Snowmobile Arctic Cat (2004 year). Manual - part 126

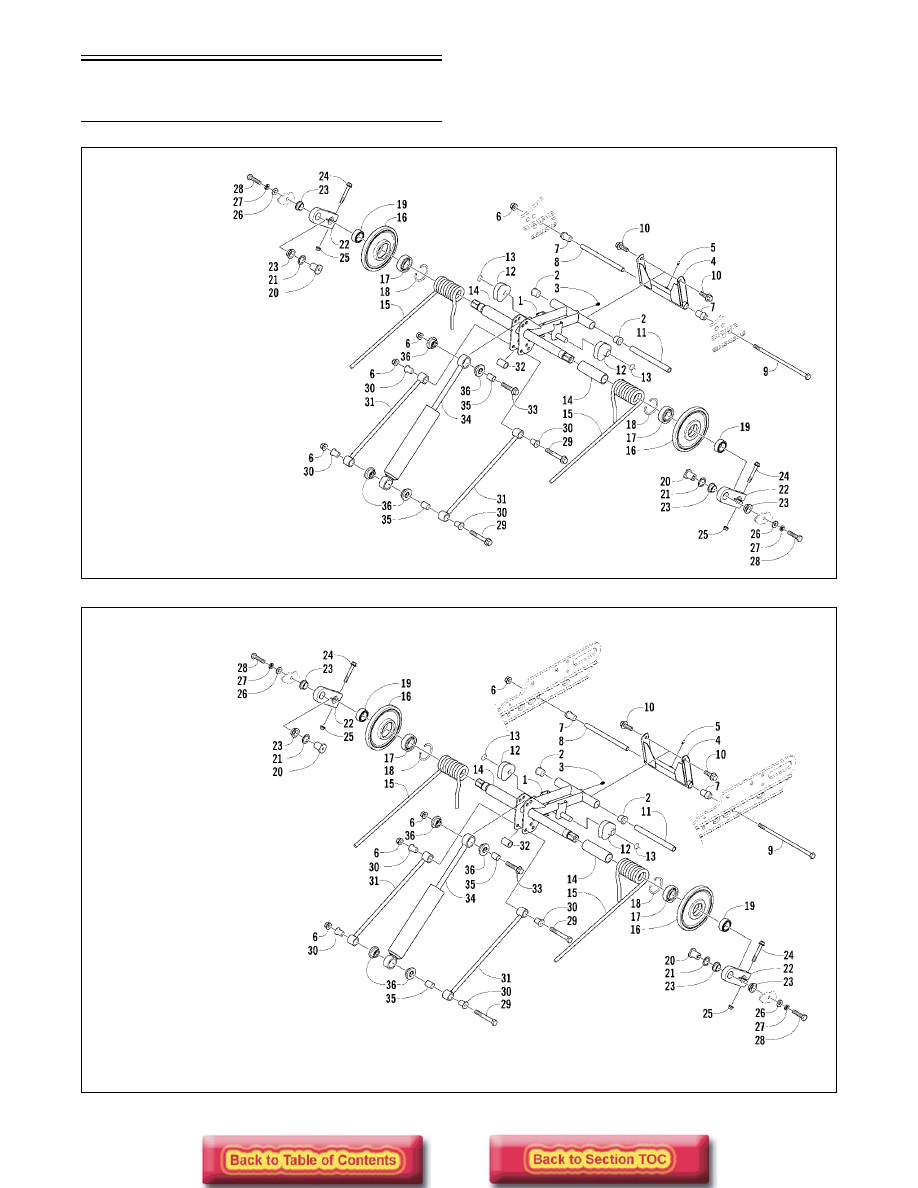

9-20

Rear Arm

Schematics

0738-384

0738-439

KEY

1. Idler Arm
2. Bushing
3. Grease Fitting
4. Rear Arm
5. Grease Fitting
6. Lock Nut
7. Axle
8. Axle Tube
9. Cap Screw

10. Cap Screw
11. Axle
12. Adjuster Block
13. Ring
14. Sleeve
15. Spring
16. Idler Wheel
17. Bearing
18. Ring
19. Spacer
20. Axle
21. Washer
22. Pivot Arm
23. Bushing
24. Cap Screw
25. Lock Nut
26. Washer
27. Lock Washer
28. Cap Screw
29. Cap Screw
30. Axle
31. Link

32. Spacer
33. Cap Screw
34. Shock Absorber
35. Sleeve
36. Bushing

Style A

34. Shock Absorber
35. Sleeve
36. Bushing

KEY

1. Idler Arm
2. Bushing
3. Grease Fitting
4. Rear Arm
5. Grease Fitting
6. Lock Nut
7. Axle
8. Axle Tube
9. Cap Screw

Style B

NOTE: Some components illustrated in this

sub-section may vary from actual conditions.
The technician should use discretion and sound
judgment when removing and installing compo-
nents.

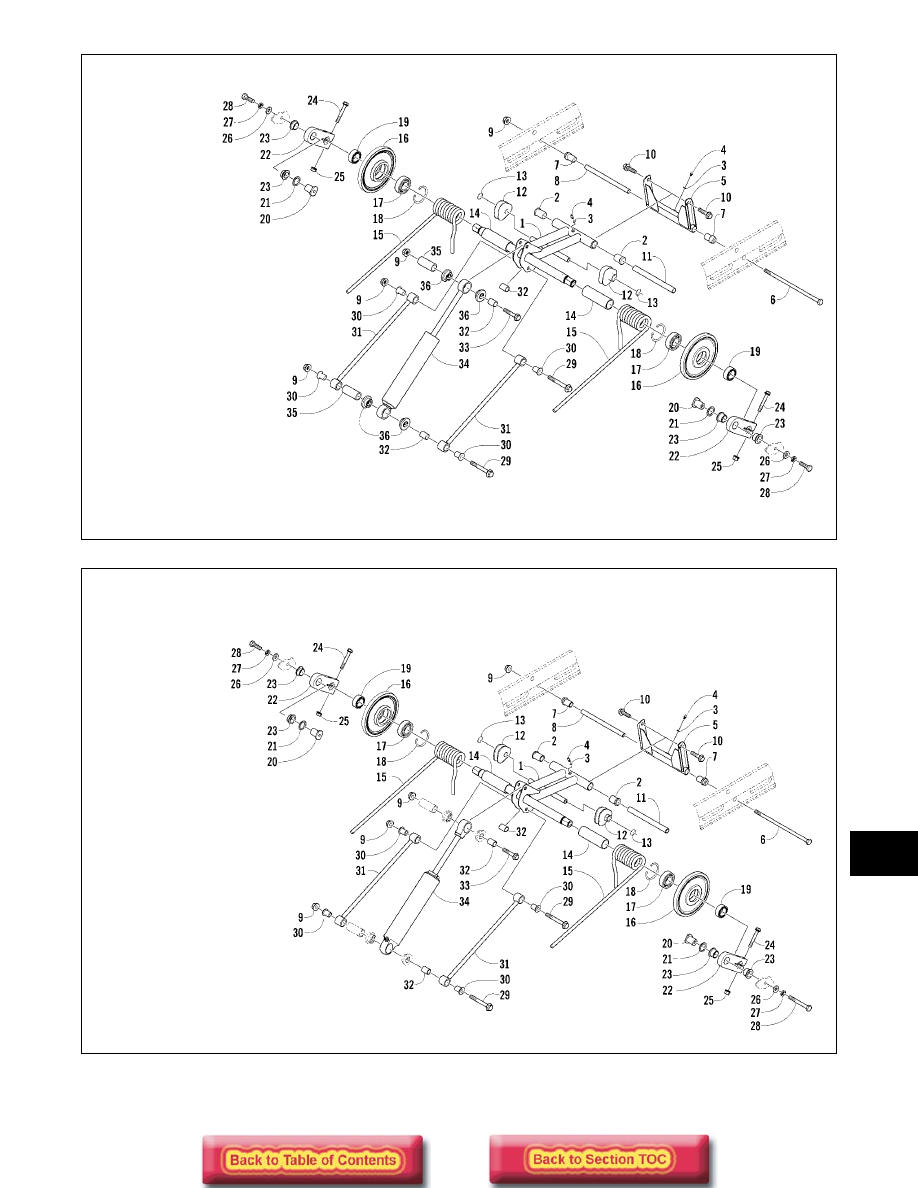

9-21

0738-564

0738-608

KEY

1. Idler Arm
2. Bushing
3. Washer
4. Grease Fitting
5. Rear Arm
6. Cap Screw
7. Axle
8. Axle Tube
9. Lock Nut

10. Cap Screw
11. Axle
12. Spring Block
13. Retaining Ring
14. Sleeve
15. Suspension Spring
16. Idler Wheel
17. Bearing
18. Retaining Ring
19. Spacer
20. Axle
21. Washer
22. Pivot Idler Arm
23. Bushing
24. Cap Screw
25. Lock Nut
26. Washer
27. Lock Washer
28. Cap Screw
29. Cap Screw
30. Link Axle
31. Link
32. Sleeve
33. Cap Screw

34. Shock Absorber
35. Sleeve
36. Bushing

Style C

KEY

1. Idler Arm
2. Bushing
3. Washer
4. Grease Fitting
5. Rear Arm
6. Cap Screw
7. Axle
8. Axle Tube
9. Lock Nut

Style D

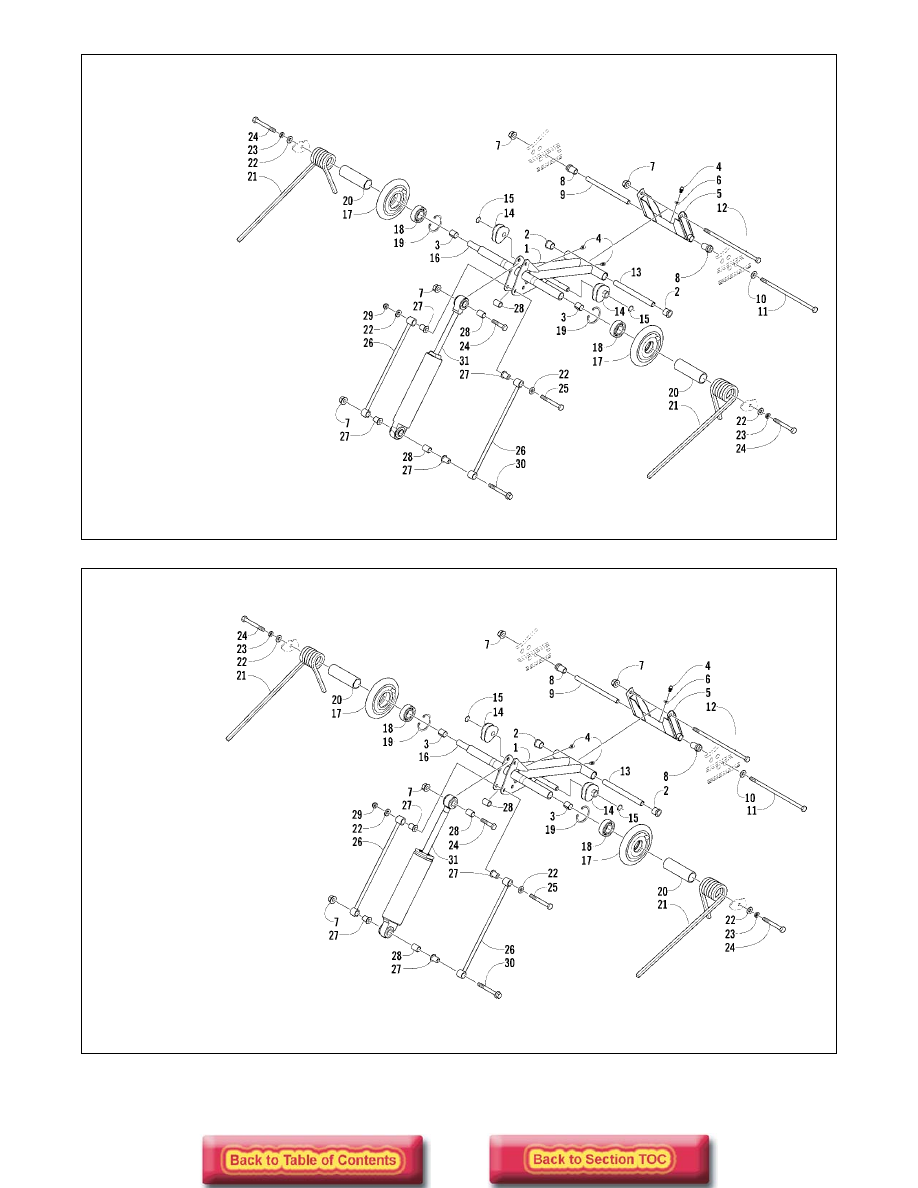

9-22

0738-663

0738-701

KEY

1. Idler Arm
2. Bushing
3. Bearing
4. Grease Fitting
5. Rear Arm
6. Washer
7. Lock Nut
8. Axle
9. Axle Tube

10. Washer
11. Cap Screw
12. Cap Screw
13. Axle
14. Spring Block
15. Retaining Ring
16. Axle
17. Idler Wheel
18. Bearing
19. Retaining Ring
20. Sleeve
21. Suspension Spring
22. Washer
23. Lock Washer
24. Cap Screw
25. Cap Screw
26. Link
27. Link Axle
28. Sleeve
29. Lock Nut
30. Cap Screw
31. Shock Absorber

Style E

KEY

1. Idler Arm
2. Bushing
3. Bearing
4. Grease Fitting
5. Rear Arm
6. Washer
7. Lock Nut
8. Axle
9. Axle Tube

Style F

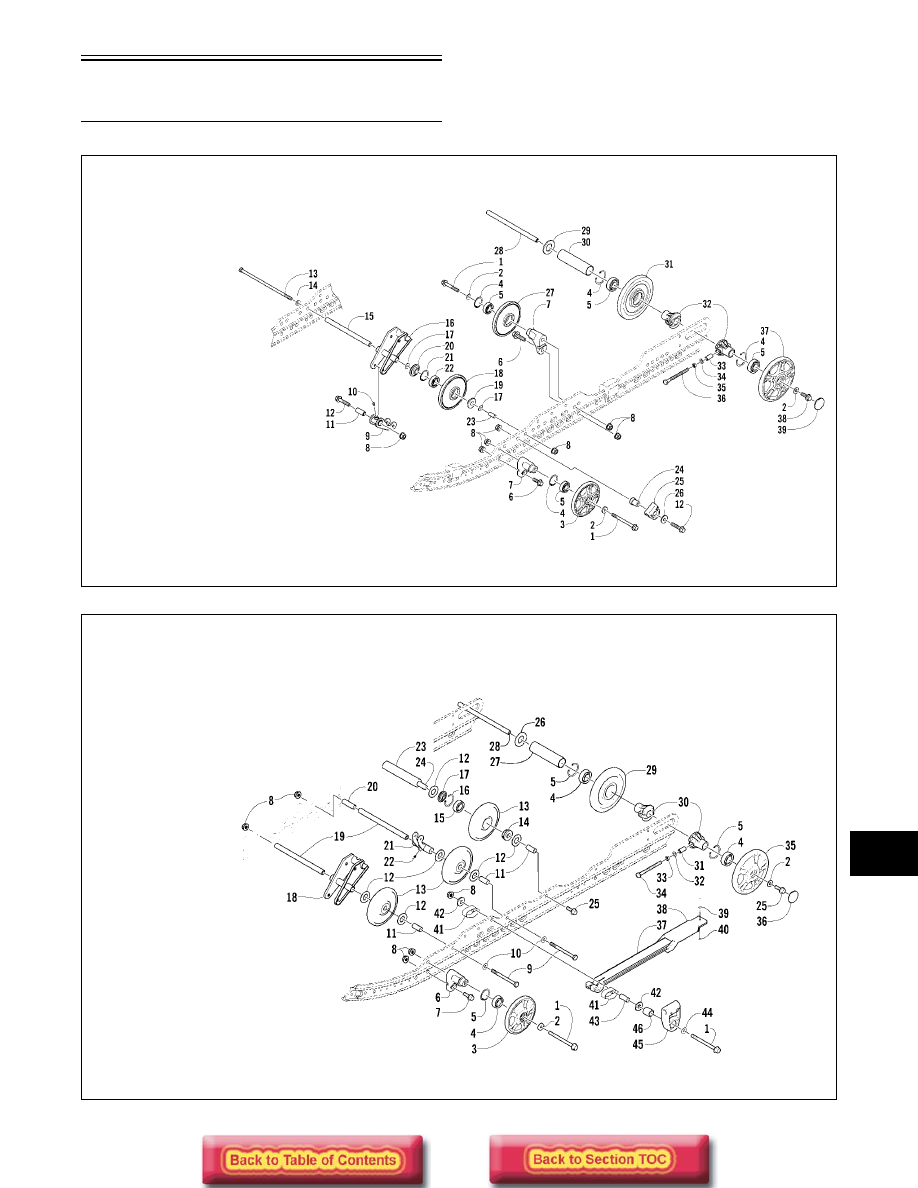

9-23

Idler Wheels

Schematics

0738-381

0738-876

KEY

1. Cap Screw
2. Washer
3. Idler Wheel
4. Retaining Ring
5. Bearing
6. Cap Screw
7. Mounting Block
8. Lock Nut
9. Pivot

10. Grease Fitting
11. Axle
12. Cap Screw
13. Cap Screw
14. Washer
15. Axle
16. Mounting Bracket
17. Washer
18. Idler Wheel
19. Insert
20. Insert
21. Retaining Ring
22. Bearing
23. Spacer
24. Slide Block
25. Spring Slide
26. Washer
27. Idler Wheel
28. Axle
29. Washer
30. Spacer
31. Idler Wheel
32. Bushing

33. Spacer
34. Lock Washer
35. Lock Nut
36. Cap Screw
37. Idler Wheel
38. Cap Screw
39. Cap

Style A

KEY

1. Cap Screw
2. Washer
3. Idler Wheel
4. Bearing
5. Retaining Ring
6. Mounting Block
7. Cap Screw
8. Lock Nut
9. Cap Screw

10. Washer
11. Spacer
12. Washer
13. Idler Wheel
14. Insert
15. Bearing
16. Retaining Ring
17. Insert
18. Bracket
19. Axle
20. Spacer
21. Pivot
22. Grease Fitting
23. Spacer
24. Axle
25. Cap Screw
26. Washer
27. Spacer
28. Axle
29. Idler Wheel
30. Adjuster Bushing
31. Spacer
32. Lock Washer
33. Nut
34. Cap Screw
35. Idler Wheel
36. Cap

Style B

37. Overload Spring Assy
38. Wear Block
39. Rivet
40. Washer
41. Retaining Clip
42. Washer
43. Bushing
44. Washer
45. Spring Slide
46. Spacer

NOTE: Some components illustrated in this sub-

section may vary from actual conditions. The tech-
nician should use discretion and sound judgment
when removing and installing components.
