900 cc EFI

738-984A

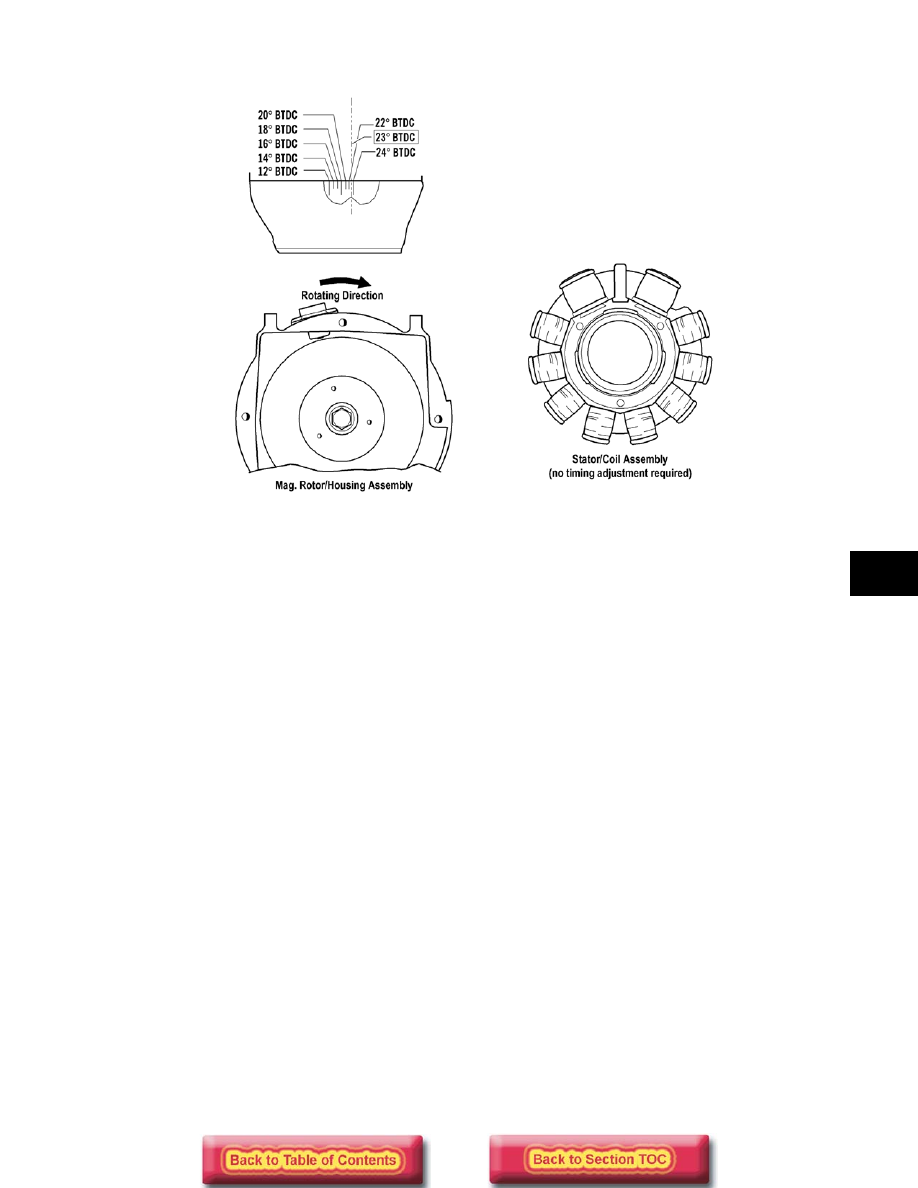

Ignition Timing - Engine Warm
BTDC - 23°/2500 RPM - 3.775 mm (0.149 in.)

„

NOTE: For timing verification on the

900 cc EFI, use a dial
indicator and scribe a
mark on the flywheel for
23° BTDC.

5-52

NOTES

5-53

Wiring Diagram Index

(Ignition)

This chart is designed to direct the technician to the
appropriate Ignition Harness Wiring Diagram. Select
the snowmobile model from the chart to determine the
correct diagram.

Snowmobile Models

Ignition Harness

Bearcat 570

A

Firecat 500/500 Sno Pro

B

Firecat 600/600 Sno Pro

E

Firecat 600 EFI (EB)

N

Firecat 600 EFI EXT

L

Firecat 600 EFI/600 EFI Sno
Pro

L

Firecat 700/700 Sno Pro

E

Firecat 700 EFI EXT

L

Firecat 700 EFI/700 EFI Sno
Pro

L

King Cat 900

I

Mountain Cat 570

A

Mountain Cat 600 EFI

G

Mountain Cat 900

I

Mountain Cat 800 EFI

F

Pantera 550

M

Pantera 600 EFI

G

Pantera 800 EFI

F

Snowmobile Models

Ignition Harness

Panther 370

D

Panther 570

A

Sabercat 500/500 LX

C/H

Sabercat 600/600 LX

E/J

Sabercat 600 EFI EXT

K

Sabercat 600 EFI/600 EFI LX

L/K

Sabercat 700 EFI/700 EFI LX

L/K

Sabercat 700 EFI EXT

K

Z 370/370 LX

D

Z 440 LX

D

Z 570/570 LX

A

ZR 900/900 Sno Pro

I

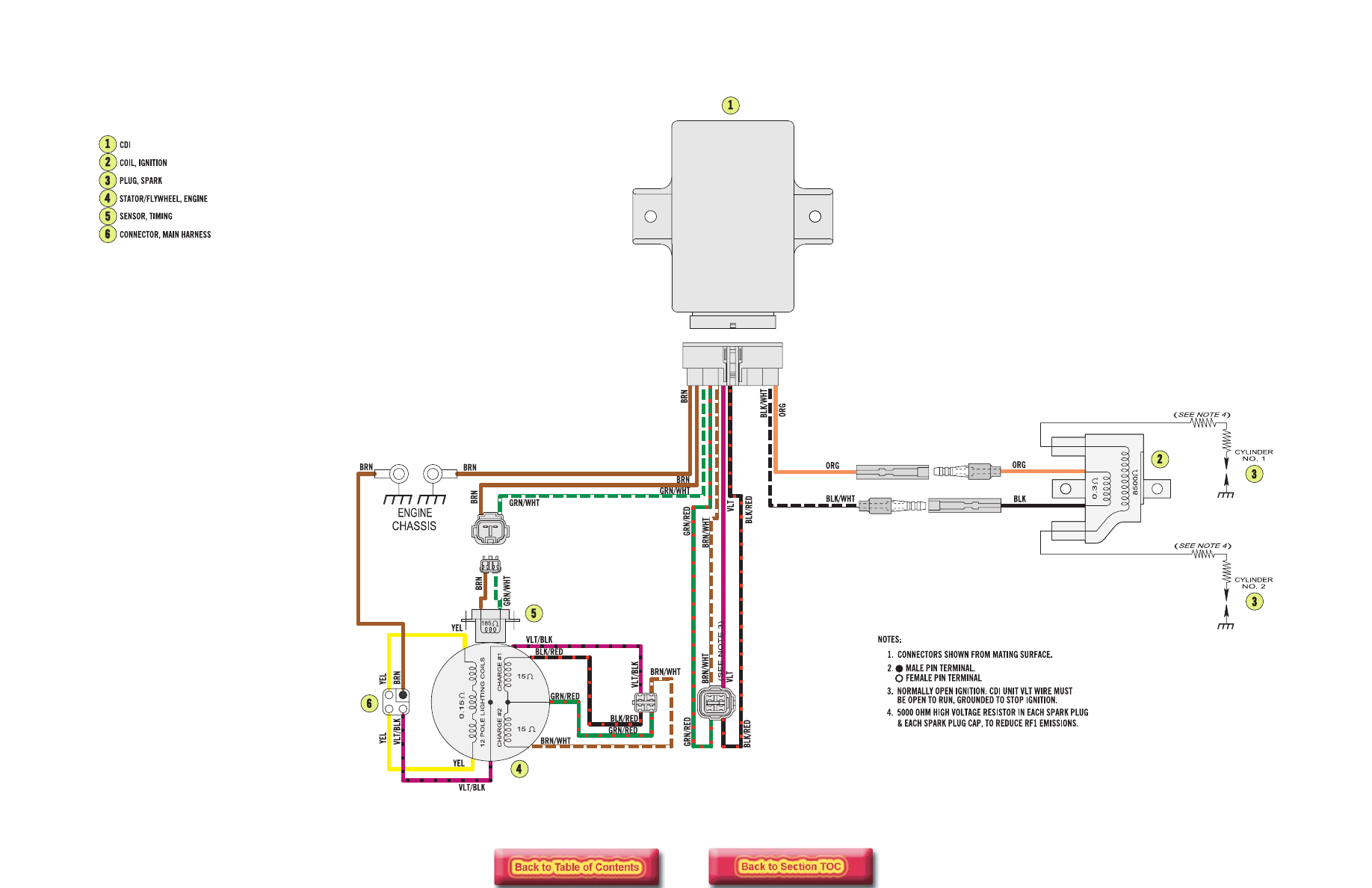

Harness A

(p/n 0686-845)

Bearcat 570

Panther 570

Z 570/570 LX

0737-378

5-54
