Snowmobile Yamaha RX1 (2003 year). Manual - part 5

5-1

ESU00013

5-

CONTROL FUNCTIONS

ESU00362

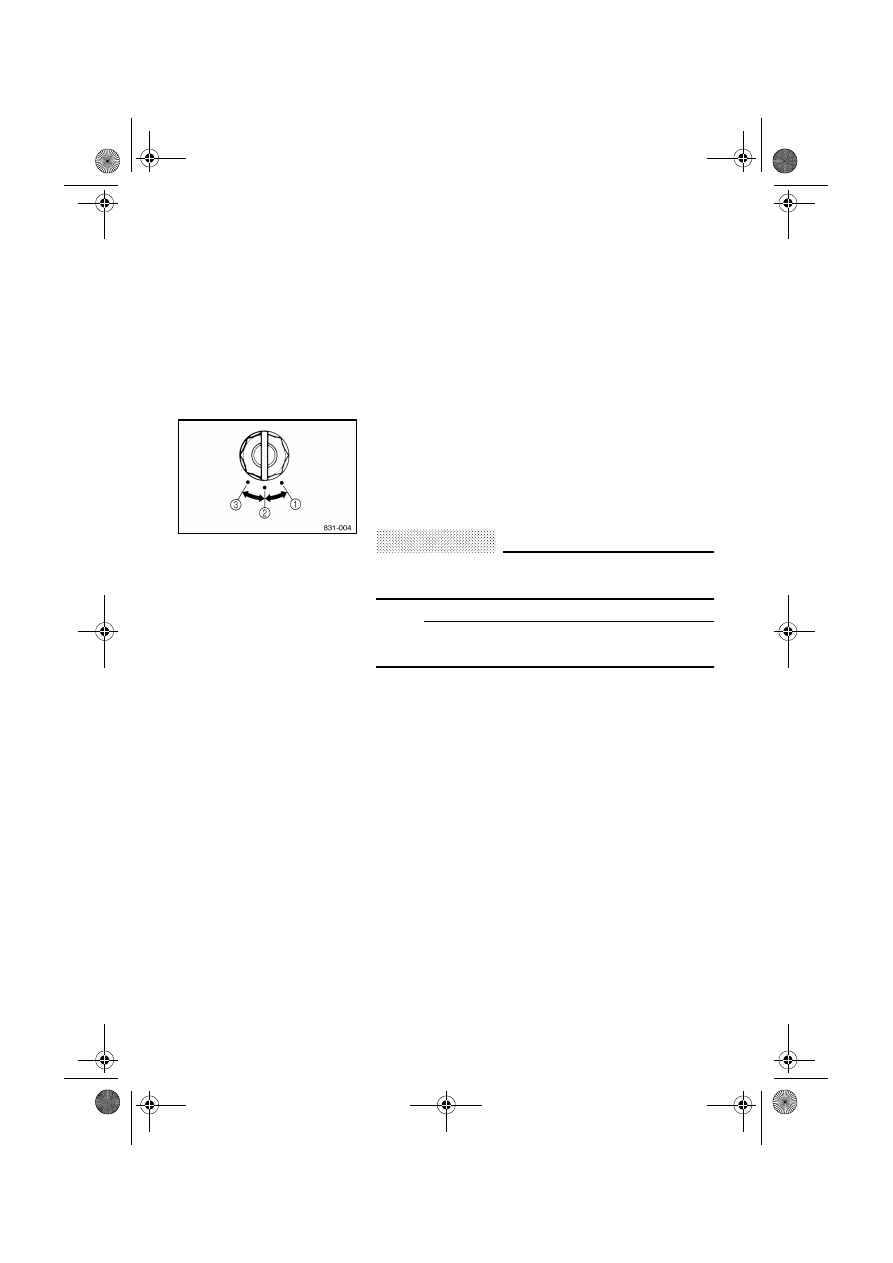

Main switch

The main switch controls the following items.

1 “OFF”
The ignition circuit is switched off.
The key can be removed only in this position.

2 “ON”
The ignition circuit is switched on.

3 “START”
The starting circuit is switched on.
The starter motor starts.

CAUTION:

@

Release the switch immediately after the engine
starts.

@

NOTE:

@

The headlights, meter lights, and taillights come on after
the engine starts.

@

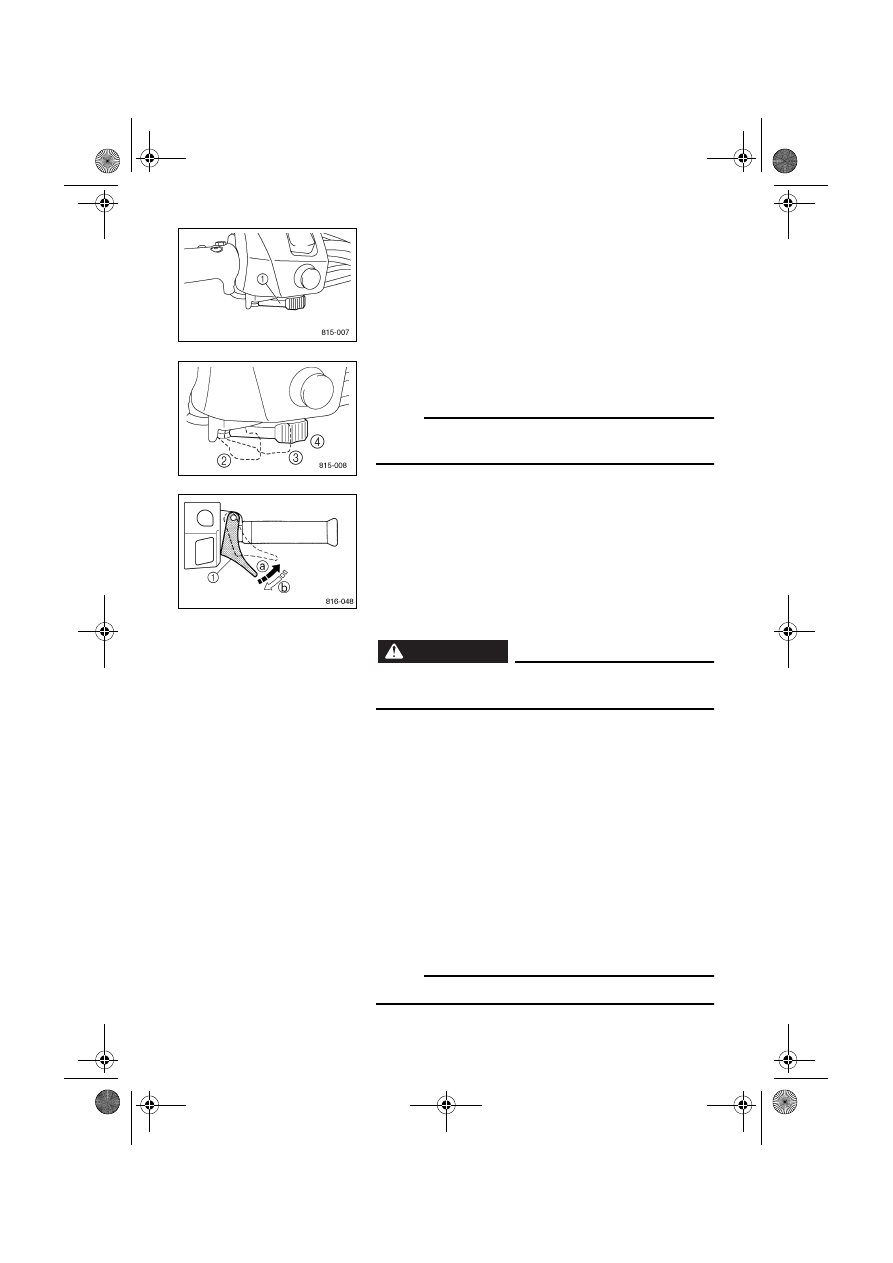

5-2

ESU00020

Starter lever (choke)

Use the starter lever (choke) when starting and warming
up a cold engine.

1 Starter lever (choke)
2 When starting a cold engine.
3 Warming up
4 When the engine is warm.

NOTE:

@

Refer the “Starting the engine” section for proper opera-
tion.

@

ESU00022

Throttle lever

Once the engine is running cleanly, squeezing

a the throt-

tle lever

1 will increase the engine speed and cause

engagement of the drive system. Regulate the speed of
the snowmobile by varying the throttle position. Because
the throttle is spring-loaded, the snowmobile will deceler-
ate, and the engine will return to idle when it is released

b.

WARNING

@

Check the throttle, brake, and steering for proper
operation before starting the engine.

@

ESU00361

Engine overheating prevention system

This model is equipped with an engine overheating pre-
vention system to prevent overheating when the engine
is idling.
When the engine has been idling for at least 3 minutes
and the coolant temperature has risen above 100 °C
(212 °F), the engine automatically shuts off to prevent
overheating.

NOTE:

The engine can be started after it shuts off.

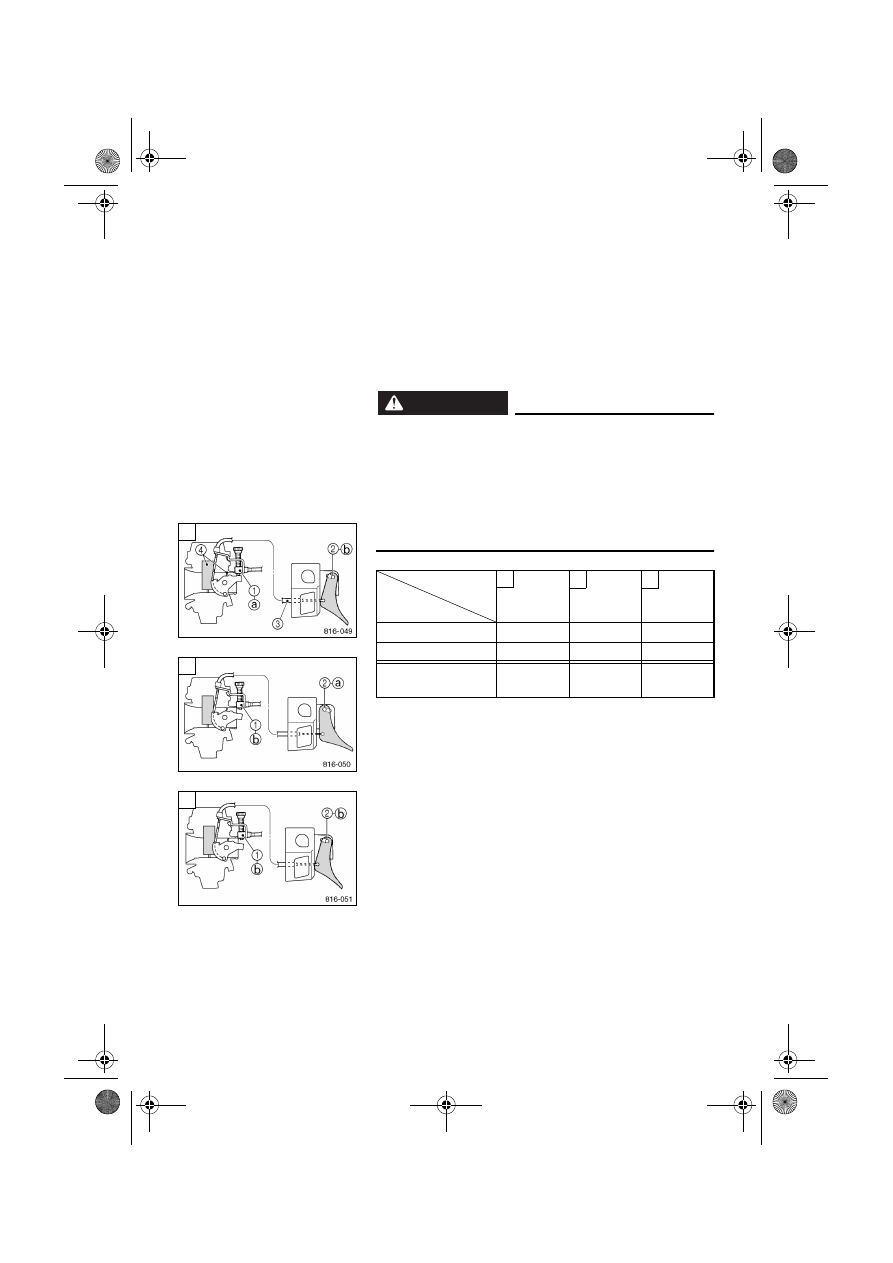

5-3

ESU00023

Throttle override system (T.O.R.S.)

If the carburetor or throttle cable should malfunction dur-
ing operation, the T.O.R.S. will operate when the throttle
lever is released.
The T.O.R.S. is designed to interrupt the ignition and
keep the engine revolution speed between 2,800 and
3,000 r/min if the carburetor fails to return to idle when
the lever is released.

WARNING

@

●

If the T.O.R.S. is activated, make sure that the
cause of the malfunction has been corrected and
that the engine can be operated without a prob-
lem before restarting the engine.

●

Be sure to use the specified spark plug and spark
plug cap. Otherwise, the T.O.R.S. will not work
properly.

@

CA-01E

È Idle or starting
É Run
Ê Trouble
1 Carburetor switch
2 Throttle switch
3 Throttle cable
4 Throttle valve
a On
b Off

A

B

C

Mode

Switch

Idle

or

starting

Run

Trouble

Throttle switch

Off

On

Off

Carburetor switch

On

Off

Off

Engine

Run

Run

T.O.R.S.
will operate

A

B

C

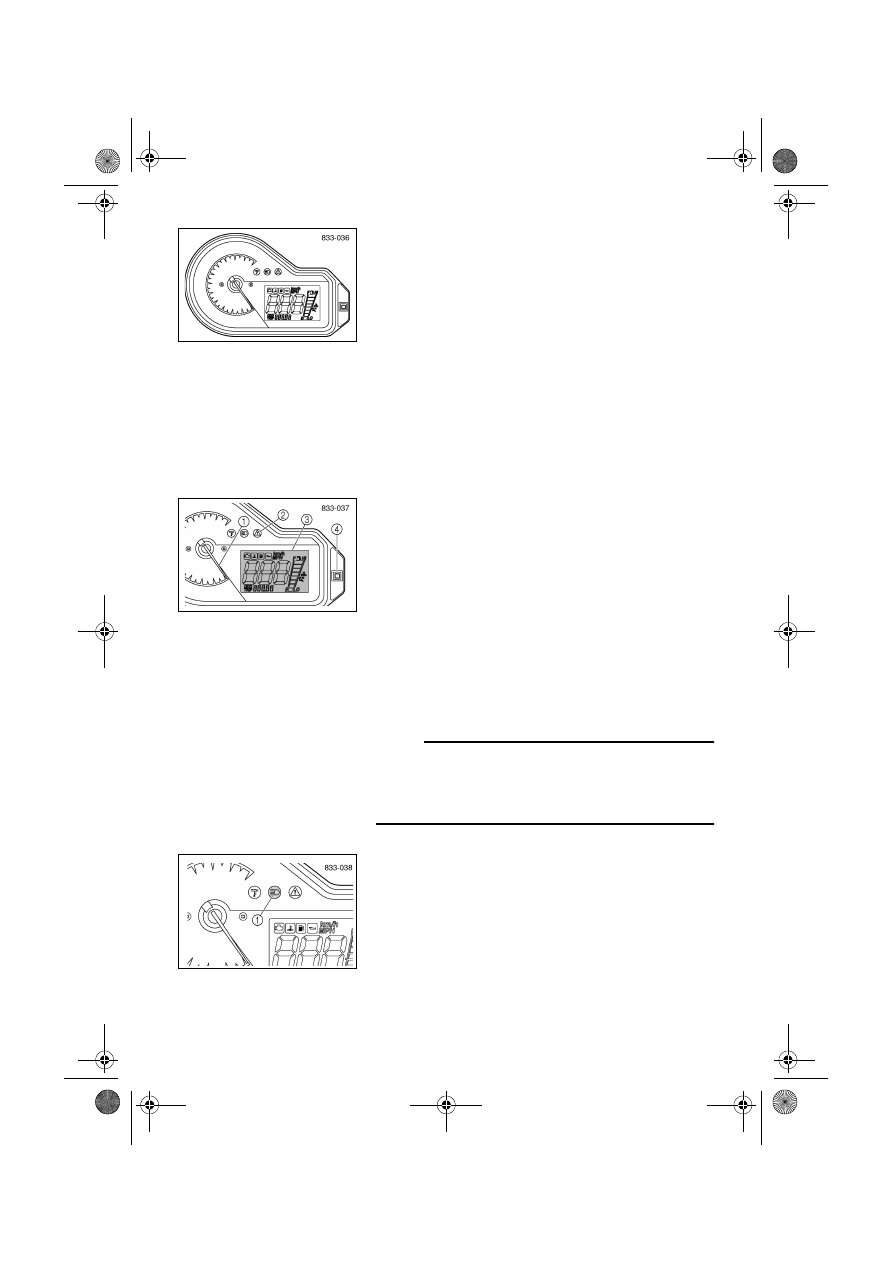

5-4

ESU00339

Speedometer unit

The speedometer unit is equipped with the following:

●

a digital speedometer (which shows riding speed)

●

an odometer (which shows the total distance trav-
eled)

●

a tripmeter (which shows the distance traveled since
it was last set to zero)

●

warning indicators (which show self-diagnosis, cool-
ant temperature, fuel level, and oil level warnings)

●

fuel meter (which shows the fuel remaining in the fuel
tank)

●

grip/thumb warmer heat level indicator (which shows
the heat level of the grip warmer or the thumb
warmer)

After the engine is started, the tachometer

1 makes one

sweep, and the warning light

2 and all segments of the

meter

3 turn on and off once. Then the warning light

turns on again, and then goes off if there are no prob-
lems. The grip warmer heat level is initially displayed for
5 seconds, then switches to the fuel meter display.

Odometer and tripmeter modes
Pushing the select/reset button

4 switches the display

between the odometer mode “ODO” and the tripmeter
mode “TRIP”.
To reset the tripmeter, push the select/reset button for at
least one second while the tripmeter is displayed.

NOTE:

@

To switch the speedometer, odometer, and tripmeter dis-
plays between kilometers and miles, select the odometer
mode  “ODO”, and then push the select/reset button

4

for at least 10 seconds.

@

ESU00363

High beam indicator light

The high beam indicator light

1 comes on when the high

beams of the headlights are switched on. (See page 5-12
for headlight beam switch operation.)
