Snowmobile Yamaha Phazer PZ50W, PZ50GTW, PZ50FXW, PZ50MW, PZ50VTW, PZ50MPW. Manual - part 103

9-65

SPEC

CABLE ROUTING

8

9

1

2

3

4

4

5

6

7

PZ50/PZ50GT/PZ50FX/PZ50M

PZ50VT/PZ50MP

9-66

SPEC

CABLE ROUTING

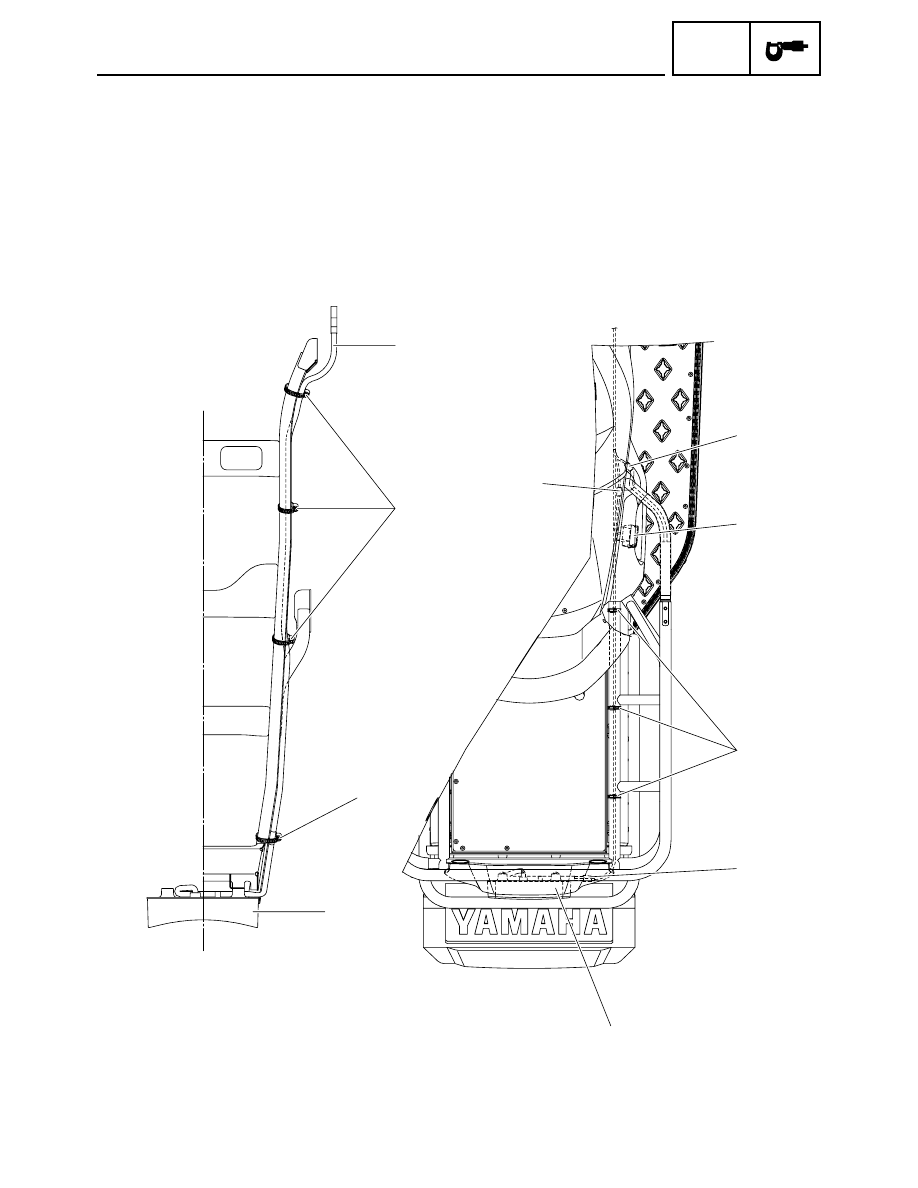

1 Tail/brake light lead
2 Fasten the tail/brake light lead

with the plastic band. Face the
end of the plastic band down-
ward.

3 Fasten the tail/brake light lead at

the white tape with the plastic
band. Face the end of the plastic
band downward.

4 Tail/brake light
5 Passenger grip warmer switch

coupler

6 Connect the passenger grip

warmer coupler, and then place it
in the rear lower cover.

7 Passenger grip warmer switch
8 Fasten the tail/brake light lead to

the rear carrier with the plastic
band.

9 Connect the tail/brake light cou-

pler, and then place it in the tail/
brake light cover.

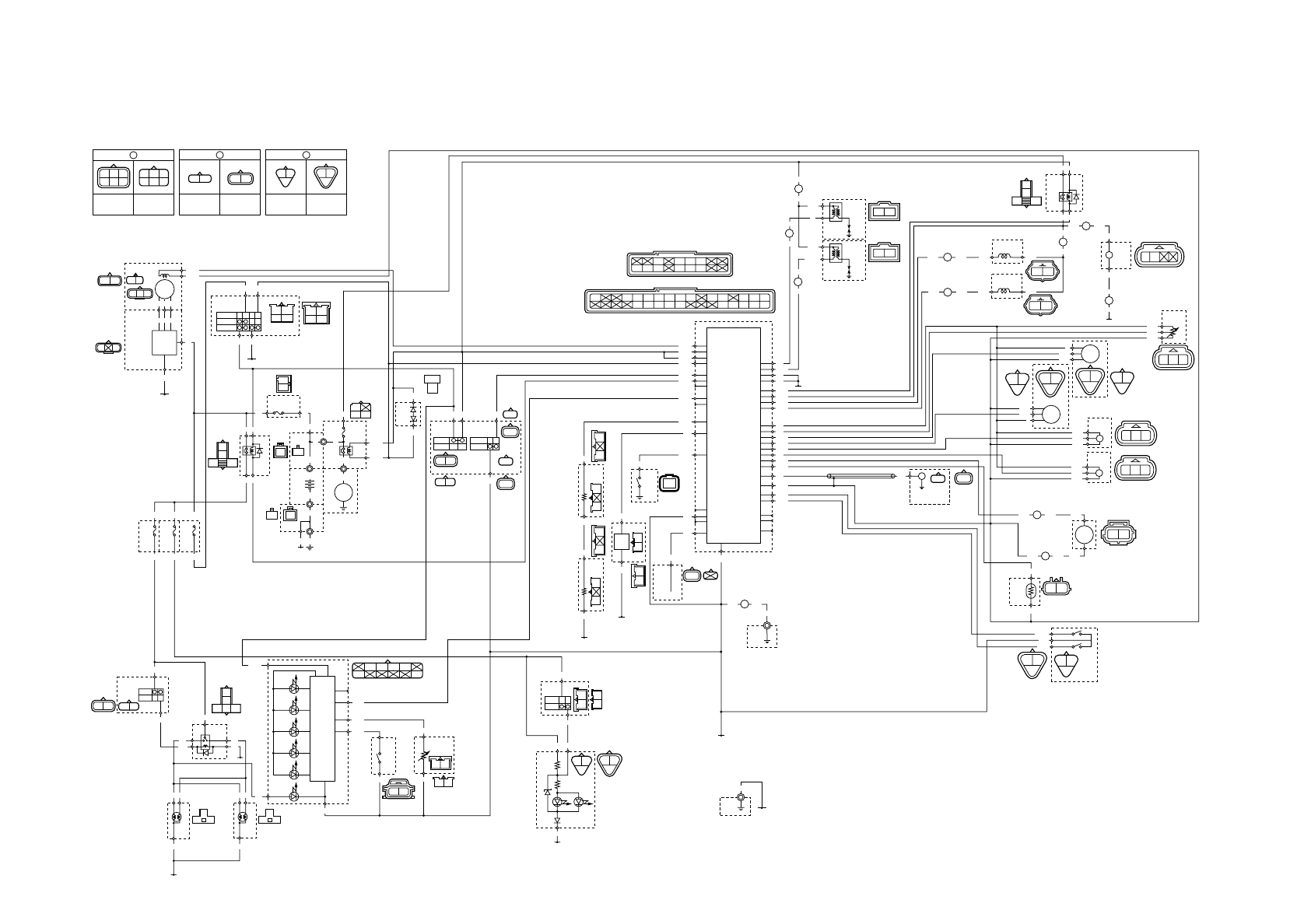

WIRING DIAGRAM
PZ50 2007
8GC-0F001-00

1 Crankshaft position sensor
2 A.C. magneto
3 Rectifier/regulator
4 Main switch
5 Main fuse
6 Load control relay
7 Fuel injection system fuse
8 Starter relay
9 Starter motor
0 Battery
A Diode
B Engine stop switch
C Throttle switch
D Grip warmer
E Thumb warmer
F Oil pressure switch
G ECU (engine control unit)
H Cylinder-#1 ignition coil
I Spark plug
J Cylinder-#2 ignition coil
K Fuel injection system relay
L Injector #1
M Injector #2
N Fuel pump
O Throttle position sensor
P Speed sensor
Q Cylinder identification sensor
R Cylinder-#1 intake air pressure

sensor

S Cylinder-#2 intake air pressure

sensor

T Knock sensor
U Coolant temperature sensor
V Intake air temperature sensor
W Grip/thumb warmer adjustment

switch

X CO adjustment coupler
Y Engine ground
Z Frame ground
[ Brake light switch
\ Tail/brake light
] Fuel sender
_ Oil level switch
a Speedometer unit
b Multi-function meter
c Warning light
d Low coolant temperature indica-

tor light

e Knock control system indicator

light

f High beam indicator light
g Headlight
h Headlight relay
i Headlight beam switch
j Ignition fuse
k Signal fuse
l Headlight fuse

COLOR CODE

B ..............Black
Br.............Brown
Ch............Chocolate
G .............Green
Gy............Gray
L ..............Blue
Lg ............Light green
O .............Orange
P ..............Pink
R..............Red
W .............White
Y ..............Yellow
B/L ...........Black/Blue
B/R ..........Black/Red
B/W .........Black/White
B/Y ..........Black/Yellow
Br/L..........Brown/Blue
Br/R .........Brown/Red
Br/W ........Brown/White
G/B ..........Green/Black
G/W .........Green/White
Gy/R ........Gray/Red
L/R...........Blue/Red
L/W ..........Blue/White
L/Y ...........Blue/Yellow
P/W .........Pink/White
R/B ..........Red/Black
R/G ..........Red/Green
R/L...........Red/Blue
R/W .........Red/White
R/Y ..........Red/Yellow
W/B .........White/Black
W/Y .........White/Yellow
YG ...........Yellow/Green
Y/L ...........Yellow/Blue
Y/R ..........Yellow/Red
Y/W .........Yellow/White

WIRING DIAGRAM
PZ50 2007

8GC-0F001-00
