Snowmobile Yamaha Phazer PZ50W, PZ50GTW, PZ50FXW, PZ50MW, PZ50VTW, PZ50MPW. Manual - part 97

9-41

SPEC

CABLE ROUTING

A

B

E

E

F

G

H

I

J

K

8

8

9

9

9

0

0

0

A

A

A

B

B

C

C

D

1

1

2

2

3

3

3

4

5

6

6

7

L

M

N

O

P

Q

R

S

A

B

9-42

SPEC

CABLE ROUTING

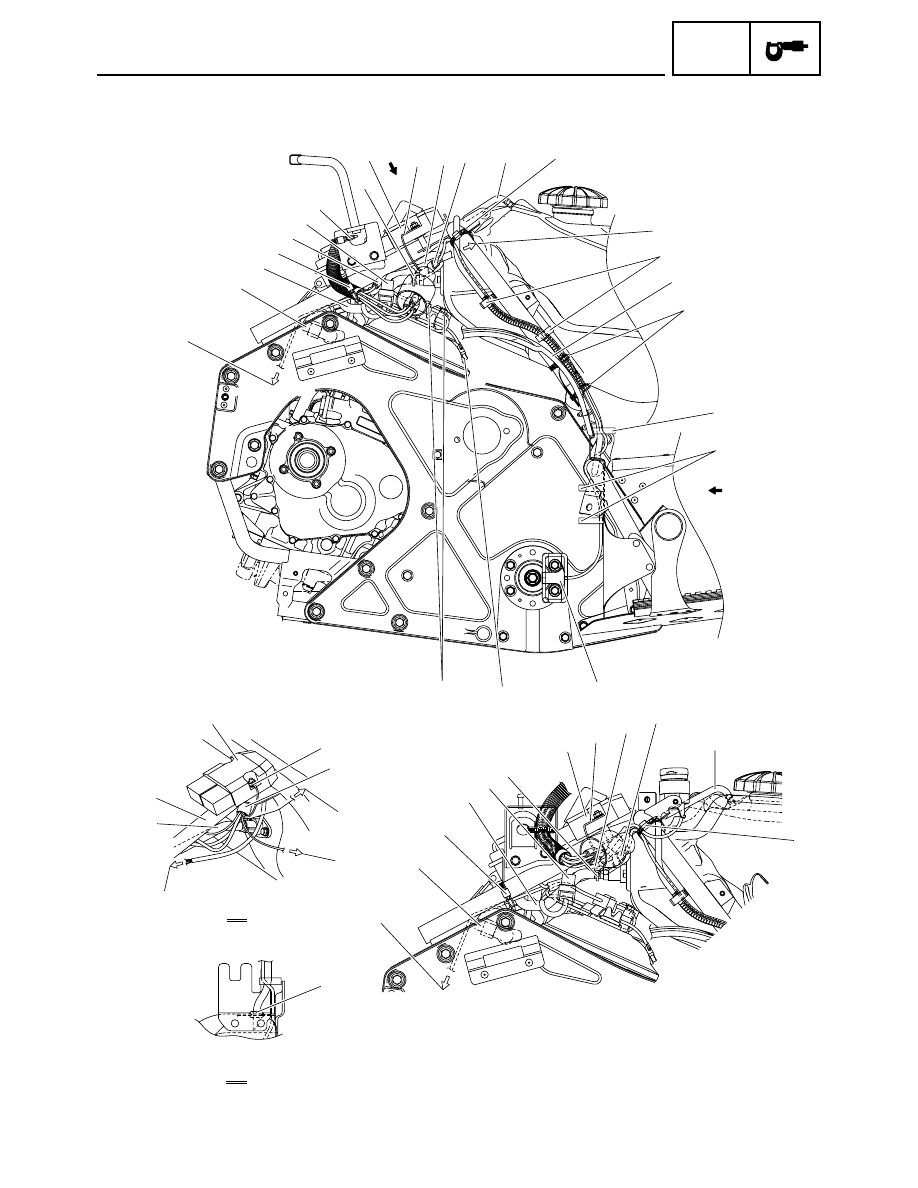

1 To the oil pressure switch
2 Throttle position sensor coupler
3 Fuel hose
4 Fasten the corrugated tube and

sub-wire harness to the frame
front cross member with the plas-
tic band. (PZ50/PZ50GT/
PZ50FX/ PZ50M)

5 Brake light switch (PZ50/

PZ50GT/PZ50FX/PZ50M)

6 Sub-wire harness coupler
7 Fasten the corrugated tube to the

headlight stay.

8 Fasten the fuel hose with the

hose clamp. Face the ends of the
hose clamp outward, angled 45°
downward.

9 Rectifier/regulator
0 Frame ground lead
A Wire harness
B Speed sensor coupler
C Fuel tank breather hose
D Fasten the speed sensor lead

and fuel tank breather hose to
the frame rear cross member
with the plastic band.

E To the auxiliary DC jack

(PZ50GT/PZ50FX/PZ50M/
PZ50VT/PZ50MP)

F Fasten the speed sensor lead

and fuel tank breather hose with
the holder.

G Drive guard
H Fasten the speed sensor lead

and fuel tank breather hose with
a plastic locking tie.

I Fasten the speed sensor lead

and fuel tank breather hose with
the holder. Be sure to bend the
holder so that the lead and hose
will not come loose.

J Fasten the speed sensor lead

with the holder. Be sure to bend
the holder so that the lead will
not come loose.

K Speed sensor

9-43

SPEC

CABLE ROUTING

A

B

E

E

F

G

H

I

J

K

8

8

9

9

9

0

0

0

A

A

A

B

B

C

C

D

1

1

2

2

3

3

3

4

5

6

6

7

L

M

N

O

P

Q

R

S

A

B

9-44

SPEC

CABLE ROUTING

L Cylinder identification sensor
M Ignition coil
N Fasten the sub-wire harness to

the frame front cross member
with the plastic band. (PZ50VT/
PZ50MP)

O Fasten the fuel tank breather

hose, auxiliary DC jack lead, and
speed sensor with the plastic
band. (PZ50VT/PZ50MP)

P To the left handlebar switch
Q Frame rear cross member
R To the speed sensor
S Align the paint mark on the fuel

tank breather hose with the top
of the grommet.
