11.12

Battery and Electrical Systems

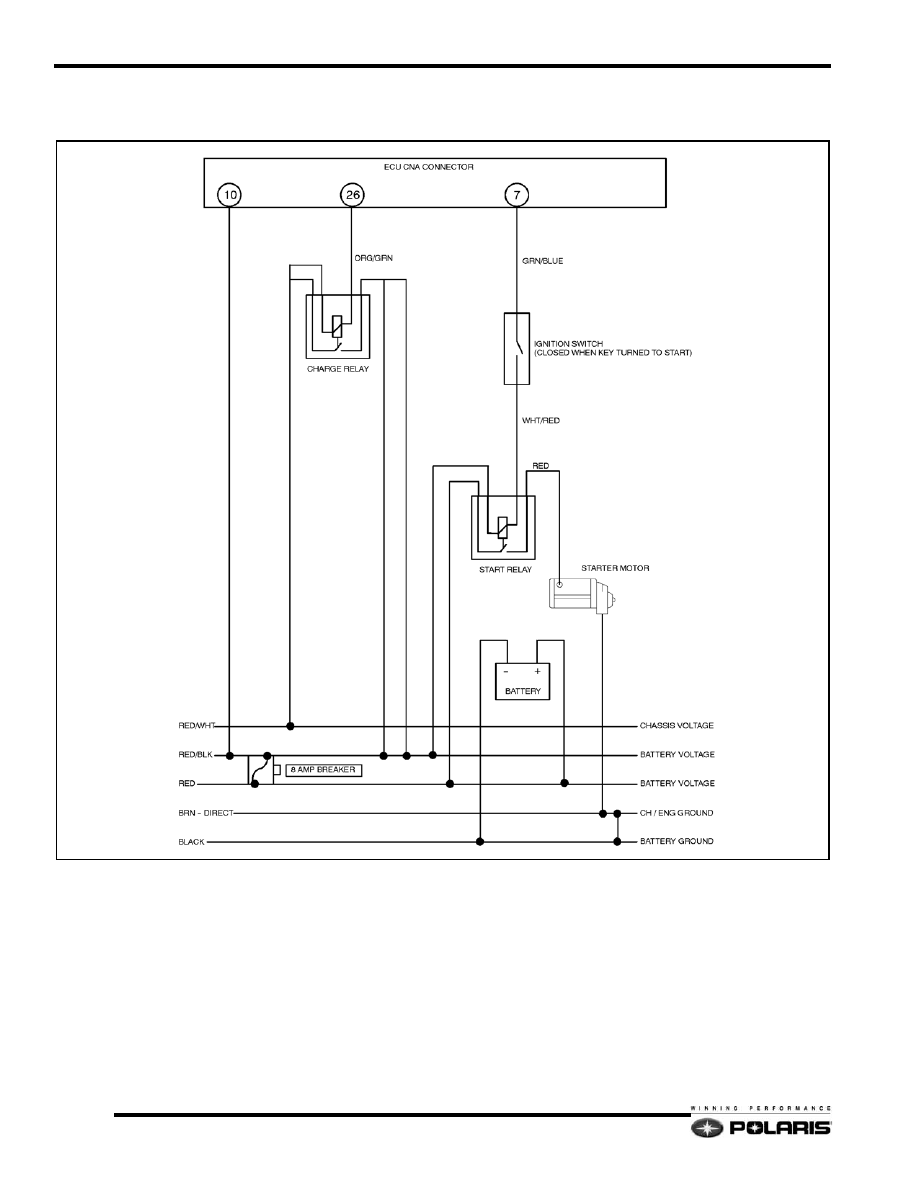

System Schematic - CFI

11.13

Battery and Electrical Systems

11

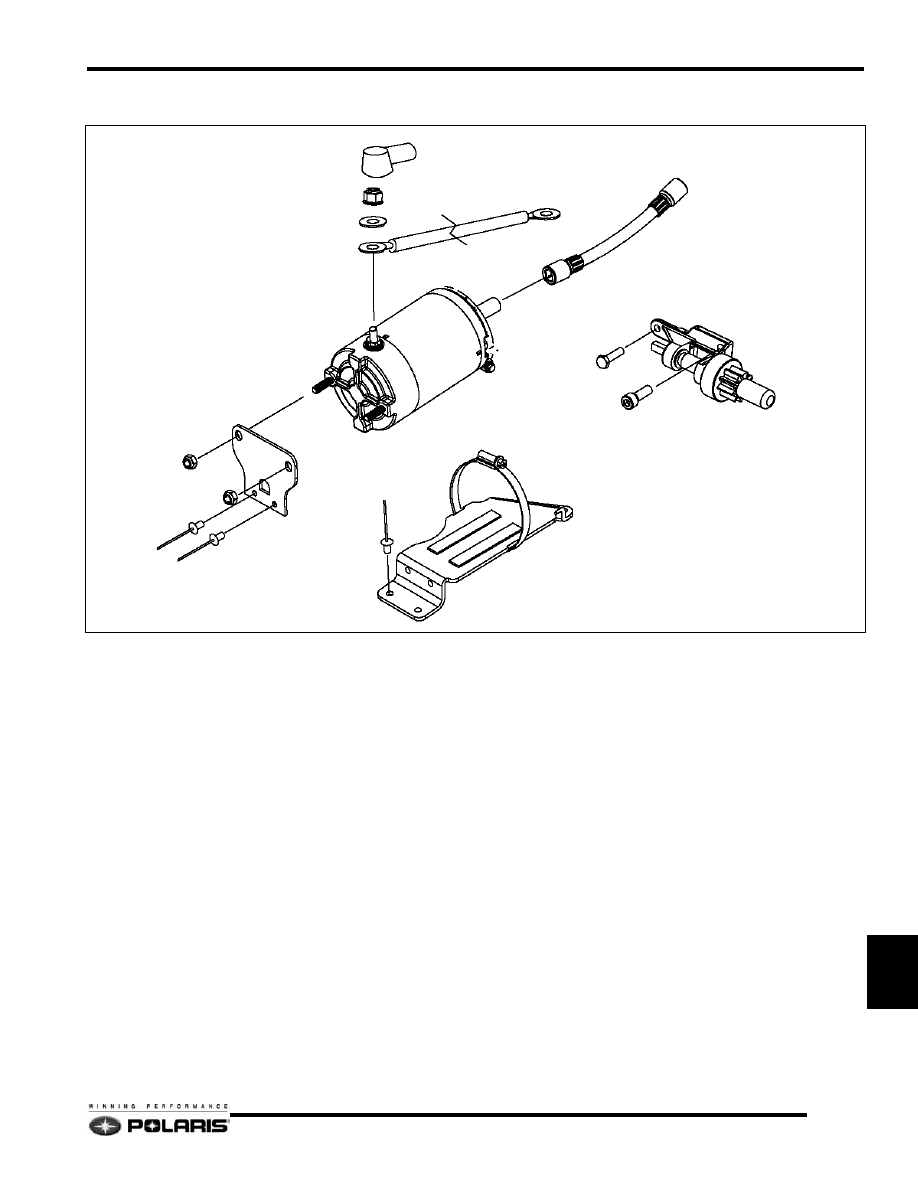

Starter Motor / Flex Drive Assembly

FLEX DRIVE

(+) RED - POSITIVE CABLE

END PLATE MOUNTING BRACKET

MOUNTING BRACKET

STARTER MOTOR

PINION / PINION BRACKET

WORM GEAR CLAMP

11.14

Battery and Electrical Systems

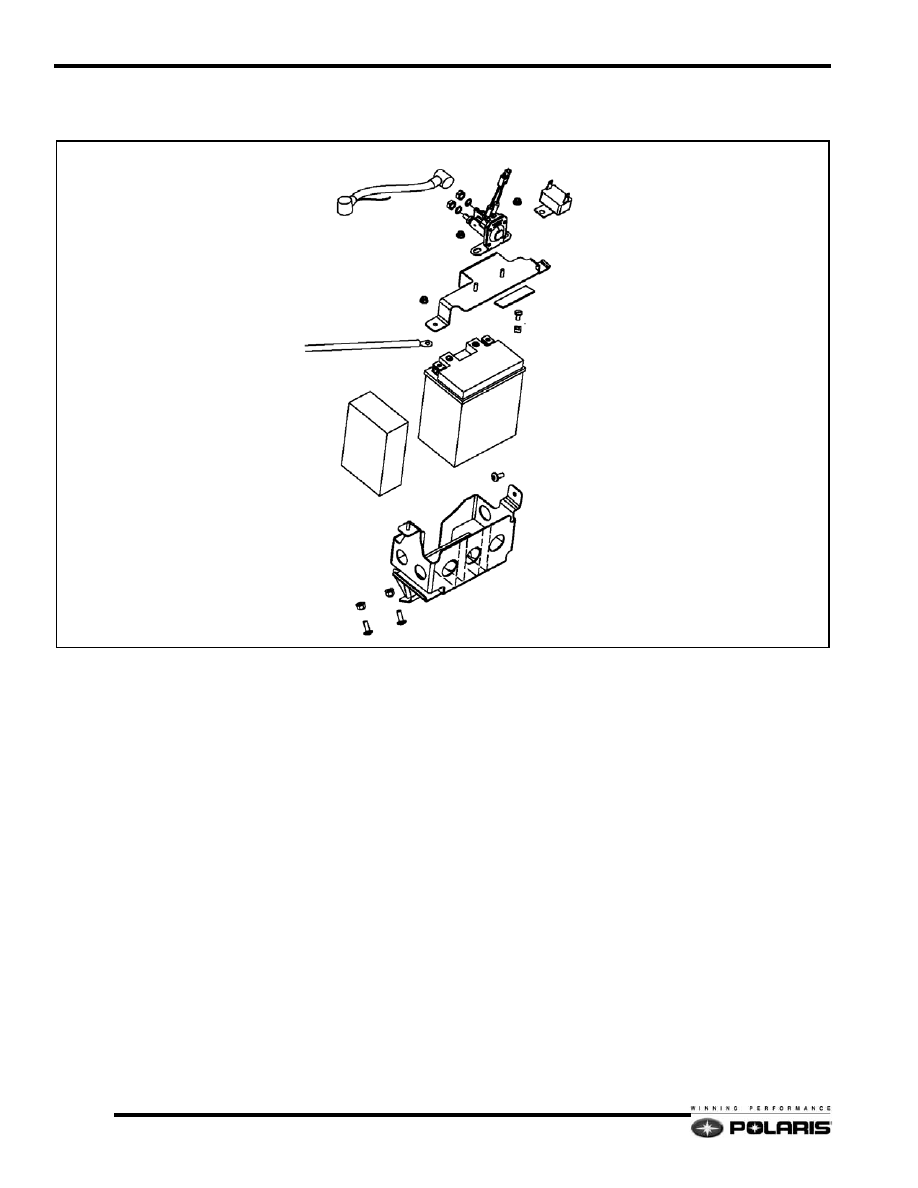

IQ Battery Box Assembly

MOUNTING BRACKET

BATTERY

BATTERY PAD

BATTERY HOLD-DOWN BRACKET

CIRCUIT BREAKER

SOLENOID

GROUND CABLE

11.15

Battery and Electrical Systems

11

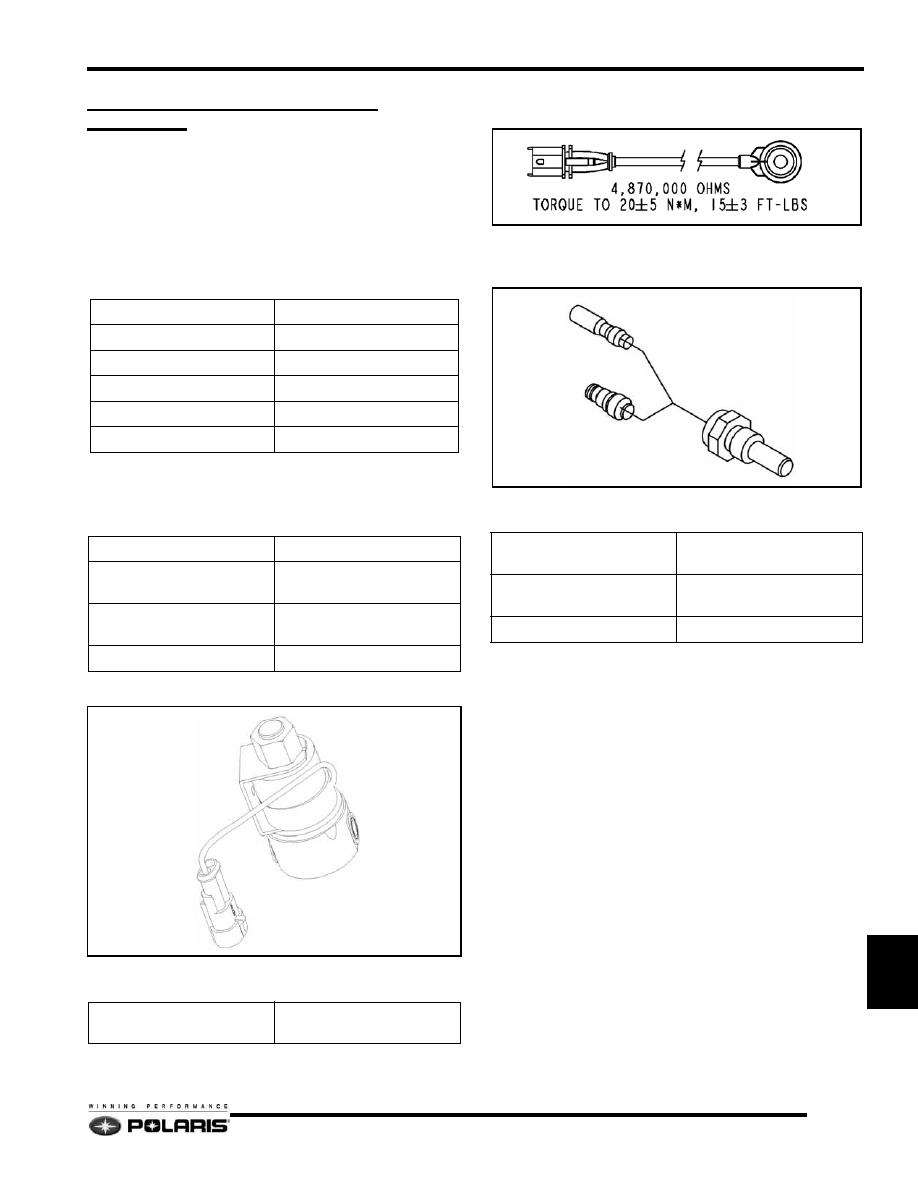

CARBURETED ELECTRICAL
SYSTEMS

600 HO Stator Specifications

NOTE: Use a multimeter to test the stator circuits.
Remember to test the circuits when the engine is
cold and after the engine has been running for some
time.

Ignition Coil Packs

Exhaust Valve Solenoid

Knock Sensor

600HO Coolant Temperature Sensor

Oil Level Sender

To test the oil level sender, position the sender as it would be in
the oil tank. Allow the float to drop in the direction it would if
the oil tank were empty. Continuity should be present when
using a multimeter to test the sender with the float in the “empty”
position.

No continuity should be present when the float is moved away
from the “empty” position.

Specifications

YEL TO BRN

0.15

Ω

BRN TO ENGINE

0

Ω

BLK / RED TO GRN

15

Ω

RED TO GRN

15

Ω

BLK or WHT TO ENGINE

0

Ω

WHT / RED TO WHT

185

Ω

Specifications

BLK TO WHT (Primary)

0.3

Ω

BLK or WHT TO
SECONDARY LEAD

OPEN

Ω

SECONDARY LEAD TO
LEAD

5K

Ω

PLUG CAPS

10K

Ω

Specifications

Coil Resistance
(WHT/YEL to RED)

15

Ω +/- 15% @ 68°F (20°C)

Sensor Specifications

Operating Temperature Range

-22_F - +248 _F (-30_C -
120_C)

Resistance

2.4 - 2.6K

Ω@ 68_F (20_C)

(Measure in stirred water)

Installation Torque

29 ft.lbs. (39.2Nm)
