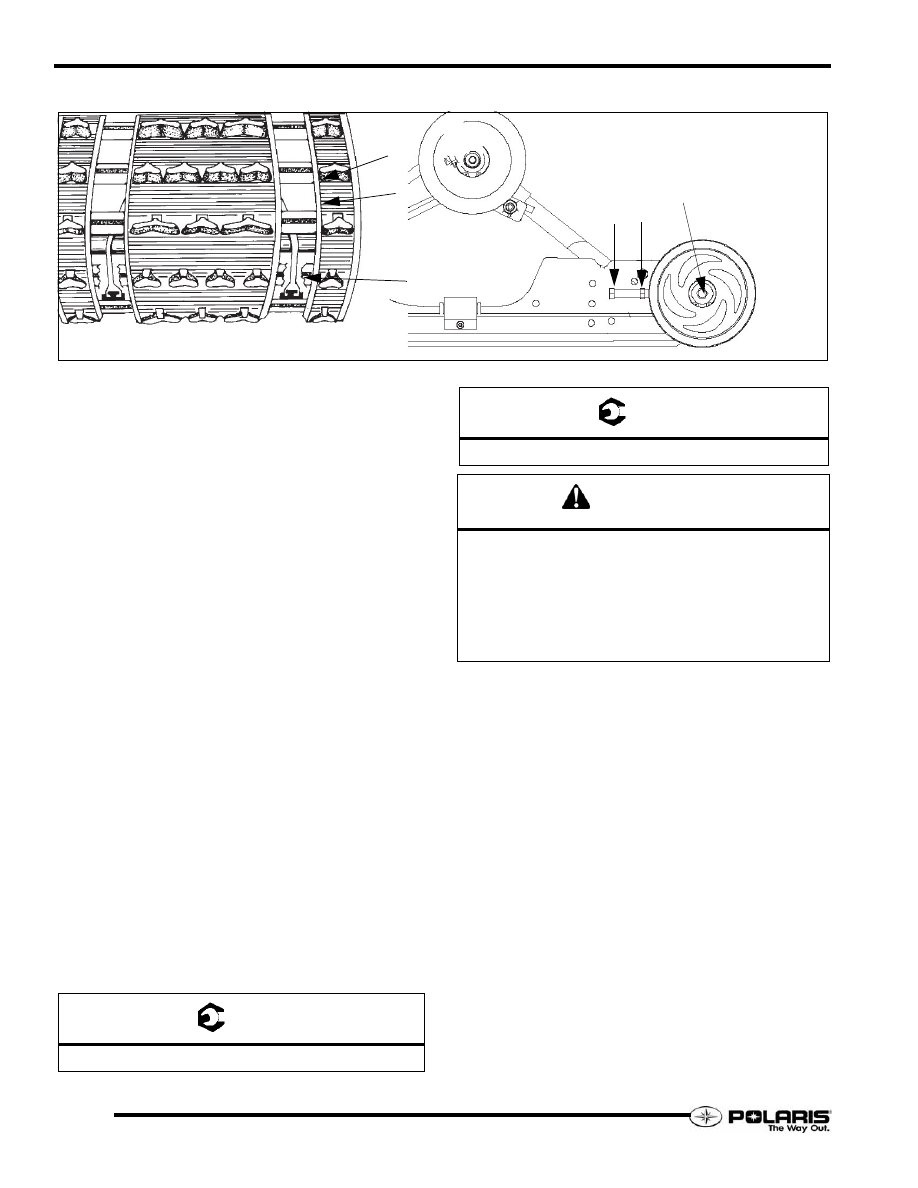

3.20 Maintenance Track Alignment NOTE: Track alignment affects track tension. NOTE: Excessive rail slide wear occurs due to Periodically check that the track is centered and running evenly 1. Safely lift and support the rear of the snowmobile off the 2. Rotate the track by hand to check for any possible damage. 3. Inspect the track rods (A) carefully and examine the track 4. Warm up the track by starting the engine and apply a small 5. Stop the engine and turn the ignition off. 6. Inspect track alignment by carefully looking through the 7. If the track runs to the left, loosen the left locknut and 8. Loosen up the rear idler shaft (F). 9. After any adjustments are complete, be sure to torque the 10. Torque both idler shaft bolts (F) to 35 ft-lb (48 N-m). A B C D E F = T Adjuster Lock Nuts: 35 ft-lb (48 N-m) = T Idler Shaft Bolt: 35 Ft.Lbs. (48 Nm) WARNING Broken track rods can cause a rotating track to come off the machine. Never operate or rotate a damaged track may occur. Stay clear of all moving parts to avoid personal injury. Never make any adjustments with the engine running, as serious personal injury can result. |
