103

MAINTENANCE

Lubrication

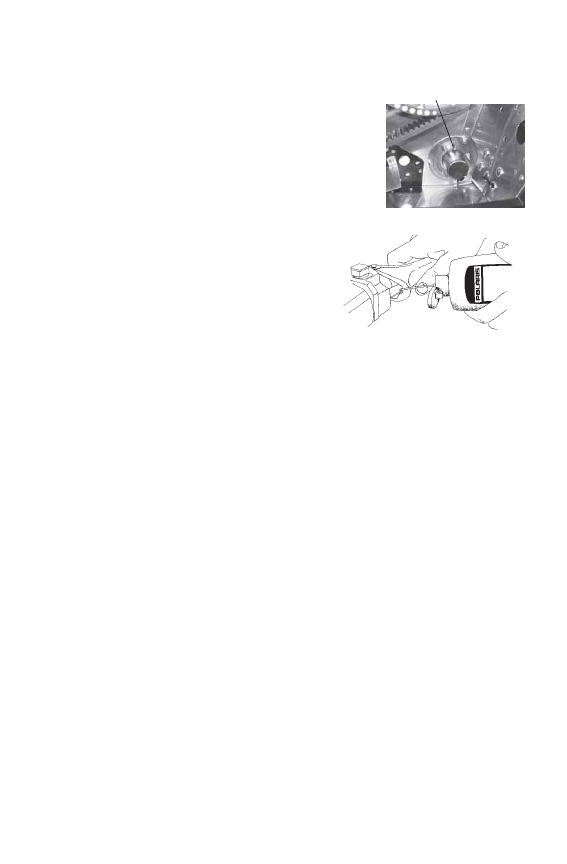

Driveshaft Bearing

Inject grease into the fitting on the
speedometer sensor housing until
grease purges from the seal on the
inside of the tunnel. This should take
approximately two pumps. Do not
use more than four pumps.

Throttle Cable

Lubricate the throttle cable lightly
with grease or oil. With the
engine off, turn the handlebars to
the left and lubricate liberally as
shown.

Front Suspension

The front suspension and steering components do not require lubrica-
tion.

Fitting

104

MAINTENANCE

Lubrication

Rear Suspension

Lubricate the suspension pivot shafts with POLARIS Premium All Sea-
son Grease at the intervals outlined in the Periodic Maintenance Table
beginning on page 91 and before seasonal storage. When operating in
heavy, wet snow conditions, lubricate every 500 miles (800 km).

Lack of lubrication will adversely affect your ride and the life of the sus-
pension. For more information about suspension lubrication and adjust-
ments, see your POLARIS dealer.

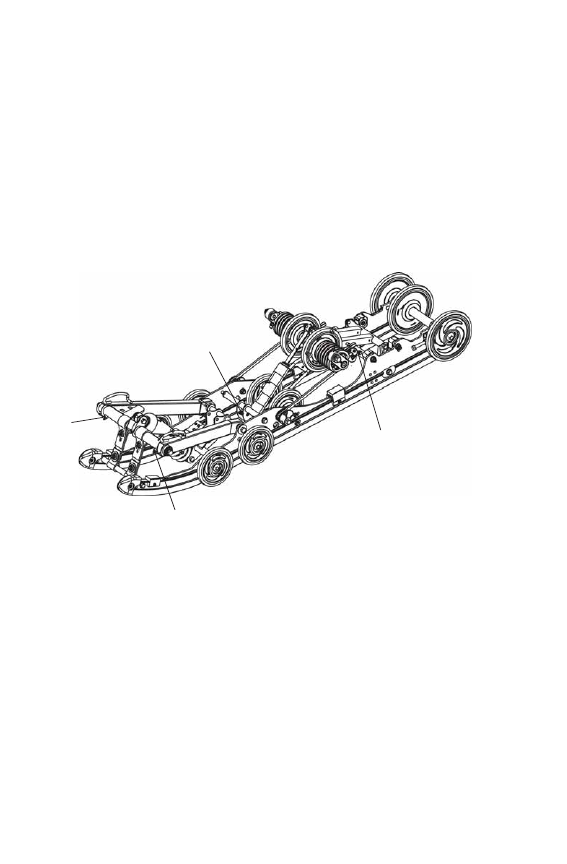

IQ Comfort Rear Suspension

X

X

X

X

105

MAINTENANCE

Gearcase Oil

Gearcase Oil Check

Check and change the gearcase
oil at the intervals outlined in the
Periodic Maintenance Table
beginning on page 91.

POLARIS recommends the use
of POLARIS Synthetic Chain-
case Lube. See page 141 for the
part numbers of POLARIS prod-
ucts.

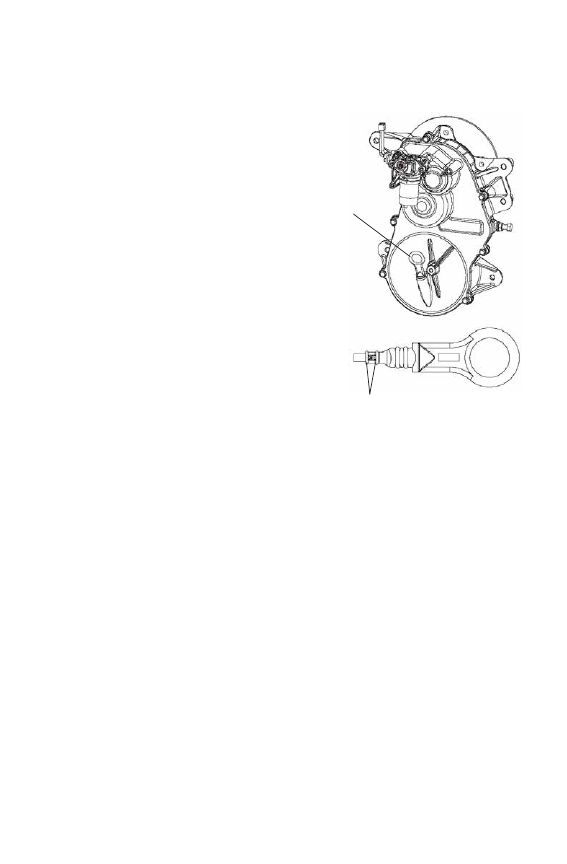

The dipstick is located on the
lower front side of the gearcase.
Maintain the oil level in the safe
operating range, between the
upper and lower marks on the
dipstick.

1. Position the vehicle on a

level surface.

2. Remove the dipstick and

wipe it dry with a clean
cloth. Reinstall the dipstick.

3. Remove the dipstick and view the oil level.

4. Add the recommended oil as needed. Do not overfill.

5. Reinstall the dipstick.

Dipstick

SAFE Range

106

MAINTENANCE

Gearcase Oil

Gearcase Oil Change

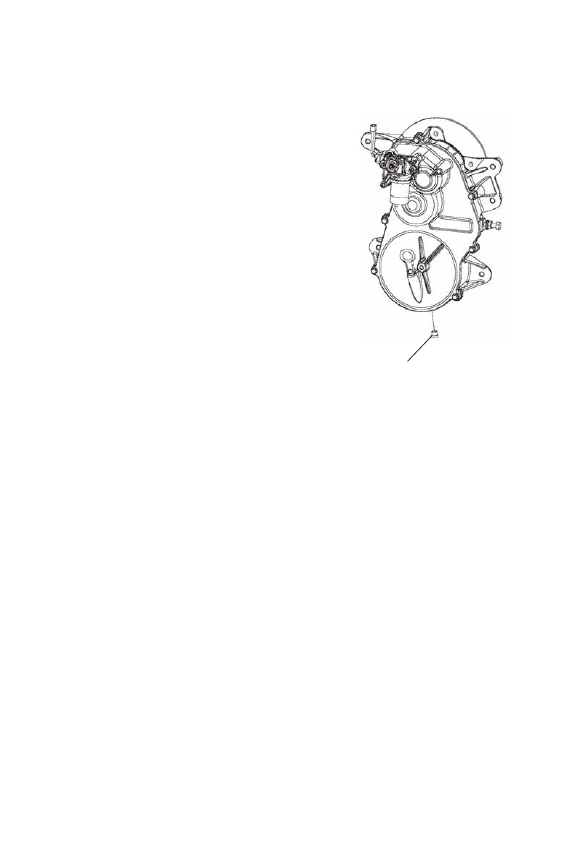

The drain plug is located on the bottom
of the gearcase.

POLARIS does not recommend tipping
the snowmobile onto it's side for service.
Any time the snowmobile is tipped onto
it's left side, always check the oil level
and clean the foam oil breather element.
See page 102.

1. Position the vehicle on a level sur-

face.

2. Remove the drain plug and drain the

oil into a drain pan. Allow the oil to
drain completely.

Tip: The sealing surfaces on the drain plug

and the gearcase should be clean and
free of burrs, nicks or scratches.

3. Reinstall the drain plug. Torque to

6-10 ft. lbs. (8-13 Nm).

4. Remove the dipstick.

5. Add 9 oz. (266 ml) of the recommended oil. Do not overfill.

6. Reinstall the dipstick, making sure it is seated properly.

Drain Plug
