103

MAINTENANCE

Brake Fluid

Hand Brake

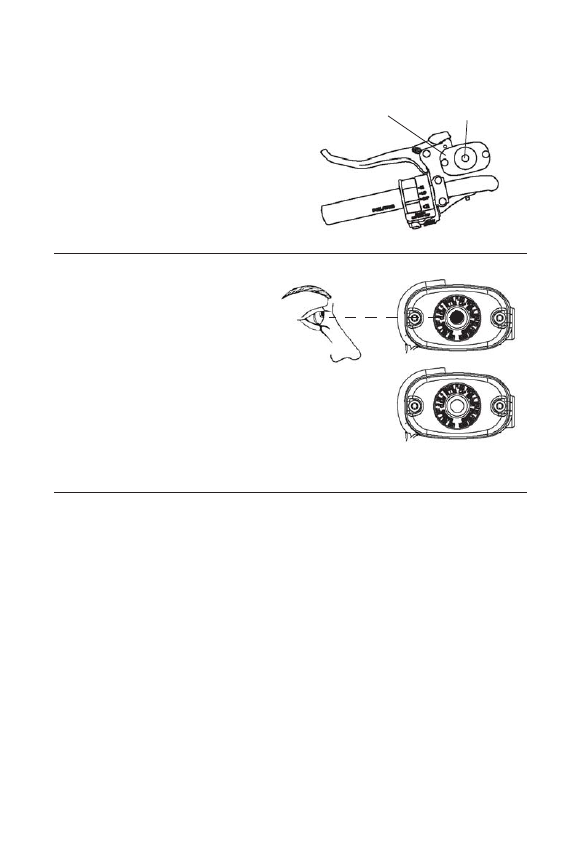

The master cylinder is located

on the left handlebar. Maintain

the fluid level 6 mm below the

top edge of the master

cylinder. Do not overfill.

1. Position the vehicle on a

level surface. Make sure

the handlebars are straight.

2. View the fluid level

through the indicator

window (eye) on the top of

the master cylinder. The

eye will appear dark when

the fluid level is full. When

fluid is low, the eye will be

clear.

3. Add the recommended fluid as needed. Do not overfill.

Master

Cylinder

Indicator

Window

Full

Low

104

MAINTENANCE

Brake Fluid

Foot Brake

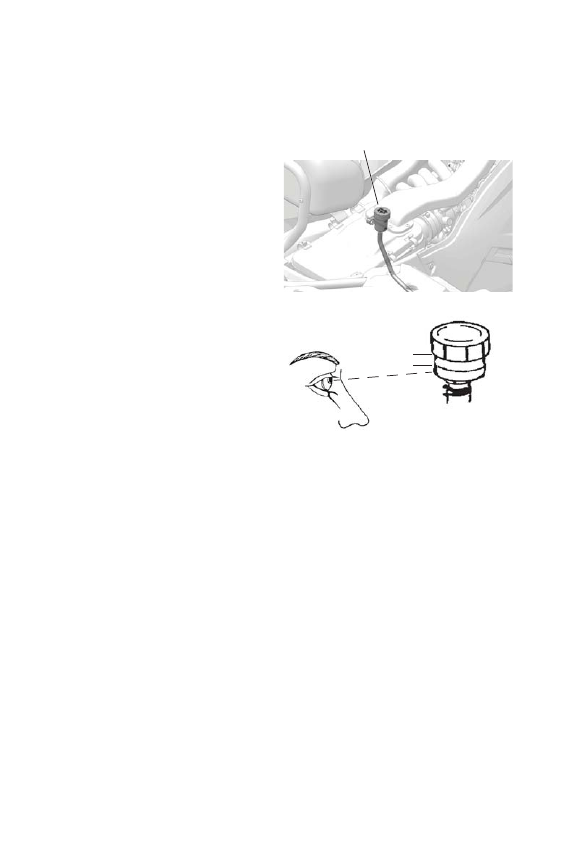

Check the brake fluid level

frequently for the foot brake

system. The foot brake fluid

reservoir is located under the seat.
1. Position the vehicle on a level

surface.

2. Remove the seat.
3. View the fluid level in the

reservoir.

4. Remove the cap and add the

recommended fluid as

needed.

5. Maintain the fluid level

between the minimum and

maximum marks. Do not

overfill.

6. Reinstall the reservoir cap.
7. Reinstall the seat.

Minimum

Maximum

Brake Fluid

Reservoir

105

MAINTENANCE

Brakes

The front and rear hand brakes are hydraulic disc brakes, activated by

moving the single brake lever toward the handlebar. The auxiliary foot

brakes are also hydraulic disc brakes. All brakes are self-adjusting.

Brake Inspections

Inspect brake components at the intervals outlined in the Periodic

Maintenance Chart beginning on page 85. Check more often if brakes

are used heavily under normal operation.
1. Always keep brake fluid at an adequate

level. See page 102.

2. Inspect hydraulic hoses for leaks, wear

or damage. Replace worn or damaged

hoses promptly.

3. Check the brakes for excessive travel

or spongy feel.

4. Check the friction pads for wear,

damage and looseness. Replace the

pads when the friction material is worn

to 0.762 mm.

5. Check the security and surface condition of the disc. Clean any

grease using a recommended brake cleaner or alcohol. Do not use

spray lubricants or other petroleum-based products. If you discover

any damage (cracks, excessive corrosion, warping) service is

required before operating. Your POLARIS dealer can assist.

0.762 mm

106

MAINTENANCE

Toe Alignment

Do not attempt to adjust alignment. All steering adjustments should be

performed by an authorized service technician. Your POLARIS dealer can

assist.

Use the following procedure to check the toe alignment of the vehicle.

The recommended toe alignment is 3-6 mm toe out.
1. Position the vehicle on a

level surface.

2. Place the handlebars in a

straight-ahead position.

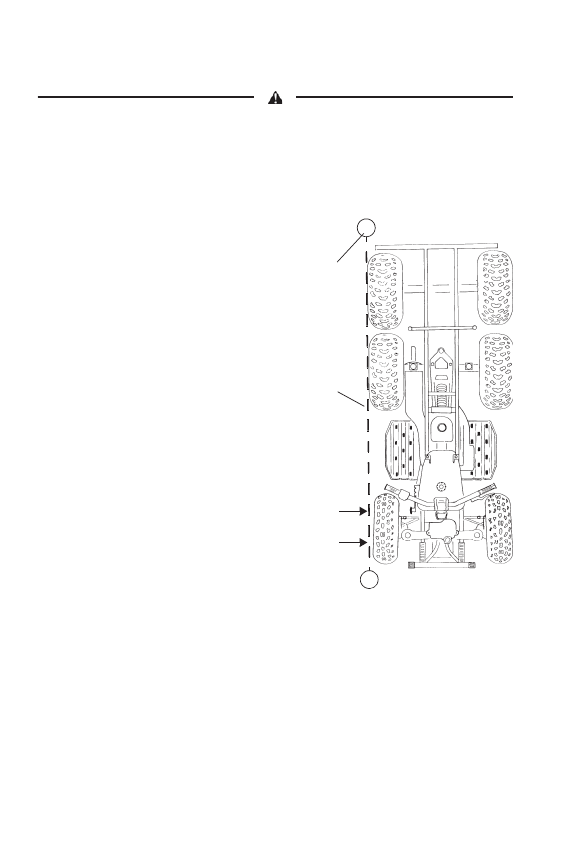

3. Tie a length of string between

two stands as shown in the

illustration. Position the

stands so that the string is

flush with the side of the rear

tire.

TIP: If available, you may use a long

straight-edge instead of string.

4. Measure the distance from

the string to the rim at the

front (1) and rear (2) of the

front rim. The rear

measurement should be 2-3

mm more than the front

measurement on each side of

the vehicle to obtain the

recommended 3-6 mm toe

out alignment.

5. Repeat the measurement

procedure on the other side of the vehicle.

6. If you discover improper alignment, service is required. Your

POLARIS dealer can assist.
