Polaris TRACTOR Sportsman 570 6X6 (2018 year). Manual - part 20





83

WINCH GUIDE

Winch Maintenance and Service Safety

WARNING! Improper or lack of winch maintenance and service could lead to

SEVERE INJURY or DEATH. Always follow all winch instructions and warnings

in this manual.

1. Always inspect your winch before each use. Inspect for worn or

kinked winch cable. Also inspect for worn or loose parts including

mounting hardware.

2. Permit your winch motor to cool down prior to servicing your

winch.

3. Never work on your winch without first disconnecting the battery

connections to prevent accidental activation of the winch.

4. For your safety, always replace POLARIS winch parts (including

the cable) with genuine POLARIS replacement parts available at

your authorized POLARIS dealer.

5. Some winch models use wire rope as the winch cable. Other

winches use a specially designed synthetic rope as the winch cable.

6. Never replace a synthetic-rope winch cable with a consumer-grade

polymer rope such as can be purchased in a hardware store.

Although they may look similar, they are NOT alike. A polymer

rope not designed for winch use will stretch and store excessive

energy when winching.

WARNING! Failure of a stretched rope under winching conditions will release

all of the stored energy. This will increase the chances of SEVERE INJURY or

DEATH.

84

EMISSION CONTROL SYSTEMS

Noise Emission Control System

Do not modify the engine, intake or exhaust components, as doing so

may affect compliance with governmental noise level requirements.

Spark Arrester

Your POLARIS vehicle has a spark arrester that was designed for on-

road and off-road operation. It is required that this spark arrester remain

installed and functional when the vehicle is operated.

Exhaust Emission Control System

Exhaust emissions are controlled by engine design. An electronic fuel

injection (EFI) system controls fuel delivery. The engine and EFI

components are set at the factory for optimal performance and are not

adjustable.

Electromagnetic Interference

This spark ignition system complies with USA requirements, Canadian

ICES-002 and EMC requirements of European directives 97/24/EC and

2004/108/EC.

85

MAINTENANCE

Periodic Maintenance Chart

Maintenance intervals in the following chart are based upon average

riding conditions. Vehicles subjected to severe use must be inspected

and serviced more frequently.
The programmable service interval mode on the instrument cluster will

help determine when maintenance service is due. See page 34.
Record maintenance and service in the Maintenance Log beginning on

page 151.
Service and adjustments are important for proper vehicle operation. If

you're not familiar with safe service and adjustment procedures, have a

qualified dealer perform these operations.

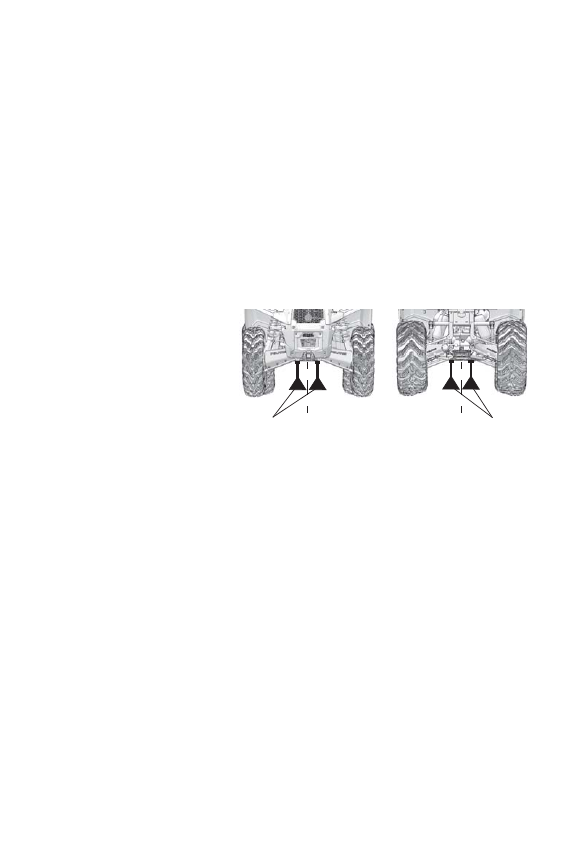

Elevating the Vehicle for Service

Some service procedures

require elevation of the

vehicle. Always position

the vehicle on a firm,

level surface before

elevating. Use an

appropriate lift or floor

jack. Place the floor jack

at the front (or rear) of

the vehicle, directly

under the center of the unit. Make sure the floor jack makes contact only

with the frame of the vehicle while lifting. After elevating,  place jack

stands under the frame on each side of the floor jack, then lower the

floor jack. Do not allow the vehicle to remain elevated on a floor jack.

Severe Use Definition

• Frequent immersion in mud, water or sand
• Racing or race-style high RPM use
• Prolonged low speed, heavy load operation
• Extended idle
• Short trip cold weather operation
Pay special attention to the oil level. A rise in oil level during cold

weather can indicate contaminants collecting in the oil sump or

crankcase. Change oil immediately if the oil level begins to rise.

Monitor the oil level, and if it continues to rise, discontinue use and

determine the cause or see your dealer.

Elevate at Center

Jack

Stands

Jack

Stands

86

MAINTENANCE

Periodic Maintenance Chart

Maintenance Chart Key

Improperly performing the procedures marked with a “D” could result in

component failure and lead to serious injury or death. Have a POLARIS dealer

or other authorized service person perform these services.

Perform all services at whichever maintenance interval is reached first.

Symbol

Description

Ź

Perform these operations more often for vehicles subjected to severe use.

D

Have a POLARIS dealer or other authorized service person perform these

services.

Item

Maintenance Interval

(whichever comes first)

Remarks

Hours Calendar Kilometers

Steering

-

Pre-Ride

-

Inspect and make

adjustments as need ed.

See Pre-Ride Checklist on

page 48.

Front suspension

-

-

Rear suspension

-

-

Tires

-

-

Brake fluid level

-

-

Brake lever

-

-

Foot brake

-

-

Brake system

-

-

Passenger seat

lock-out (if

equipped)

-

-

Wheels/fasteners

-

-

Frame fasteners

-

-

Ź Engine oil level

-

-

Winch

-

-

See pages 72-83.

Ź Air filter, pre-filter

-

Daily

-

Inspect; clean often; replace

as needed

Ź Air box sediment

tube

-

Daily

-

Drain deposits when visible

Coolant

-

Daily

-

Check level

Power steering unit

(if equipped)

-

Daily

-

Inspect daily; clean often

Headlight/taillight/

work light

-

Daily

-

Check operation; apply

dielectric grease if replacing

lamps
