FEATURES AND CONTROLS

Extreme Use Battery

An optional extreme use battery may be available for your model. If the

performance of the factory-installed battery is inadequate due to

operation in extreme cold or due to extended use of multiple electrical

accessories, please see your POLARIS dealer. Ask your dealer to

provide any installation procedures that may differ for an extreme use

battery.

28

FEATURES AND CONTROLS

Hitches

See page 140 for hitch weight capacities.

Do not operate a combination Tractor-machine or Tractor-trailer unless all

instructions have been followed. See pages 66-71.

Whenever the Tractor is towing, always stay clear of the area between the

Tractor and the towed object.

Front Hitch

The hitch installed at the front of the vehicle is the same hitch installed

at the rear of the vehicle. When installed at the front, the applicable

hitch bracket must first be installed.
Use the front hitch for vehicle recovery or towing only. Do not use the

front hitch for any other purpose. Always remove the front hitch before

operating in forward gear.

Rear Hitch

Use the rear hitch for towing a trailer. See pages 66-71 for procedures.

Rear Hitch Certification Label

The hitch certification label is located near the hitch

on models equipped with a factory-installed rear

hitch.

Rear Hitch Specifications

Material

1021 M Steel

Fasteners

1008K Steel (Main Pin and Receiver Pin)

Weld Length and Positions

3 mm fillet, both sides, all around

Maximum Vertical Load

75 kg (on coupling point)

Maximum Towable Mass

750 kg

Approval #

e11*89/173*2006/26*2073*xx

Polaris PN: 2877484

2073

e



11

s

7175839

T= 750 kg

S= 75 kg

29

FEATURES AND CONTROLS

Hitches

Hitch Installation/Removal

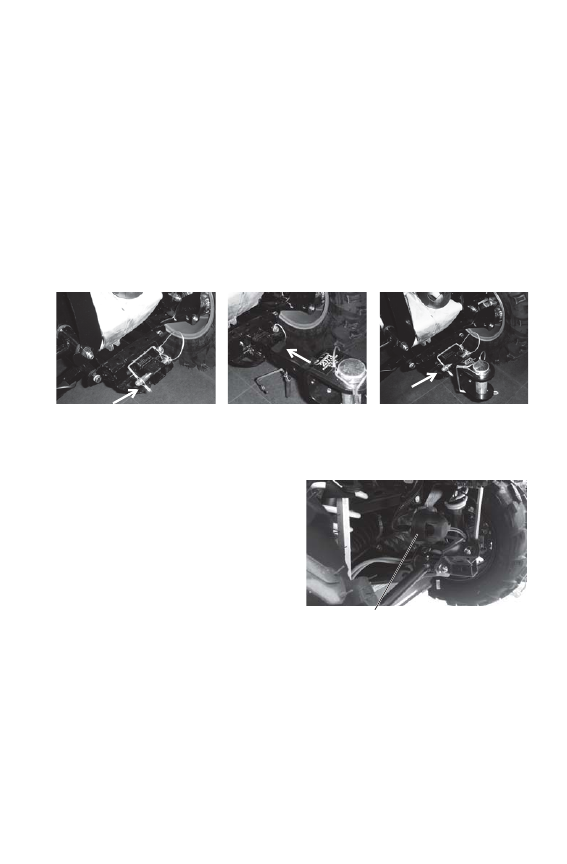

For front hitch installation, install the applicable hitch bracket before

installing the hitch.
1. Release the wire lock from the 12.7 mm pin and remove the pin.
2. Install the hitch to the receiver.
3. Install the 12.7 mm pin through the bore of both the receiver and the

hitch. Secure the wire lock. Make sure the hitch assembly is secure

at that the wire lock is properly engaged over the pin.

4. To remove the hitch, release the wire lock, remove the hitch,

reinstall the pin to the receiver and secure the wire lock.

7-Way Trailer Connector

The 7-way trailer connector

installed on your vehicle meets the

requirements of European standard

ISO 1724.
This connector uses all 7 pins on

newer model trailers. An older

model trailer may not be

compatible with this connector.
Improper electrical wiring changes

can result in damage to both

vehicle and trailer components. When in doubt about your trailer

connection, please contact a qualified towbar specialist for assistance.

Step 2

Step 1

Step 3

7-Way Trailer Connector

30

FEATURES AND CONTROLS

Automatic Transmission Gear Selector

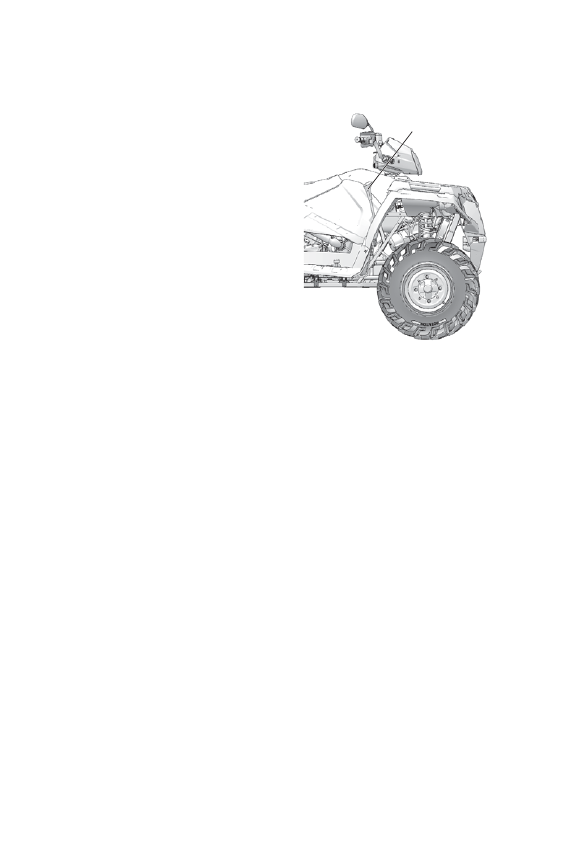

The transmission gear selector is

located on the right side of the vehicle.
H: High Gear

L: Low Gear

N: Neutral

R: Reverse

(P): Park
Whenever the vehicle is left

unattended, always place the

transmission in PARK. The

transmission is locked when it’s in

PARK.

NOTICE: Shifting gears with the engine

speed above idle or while the

vehicle is moving can cause

transmission damage.

Belt Life
To extend belt life, use LOW forward gear when pulling a heavy load at

less than 11 km/h for extended periods and when operating uphill at a

slow speed.

Gear

Selector
