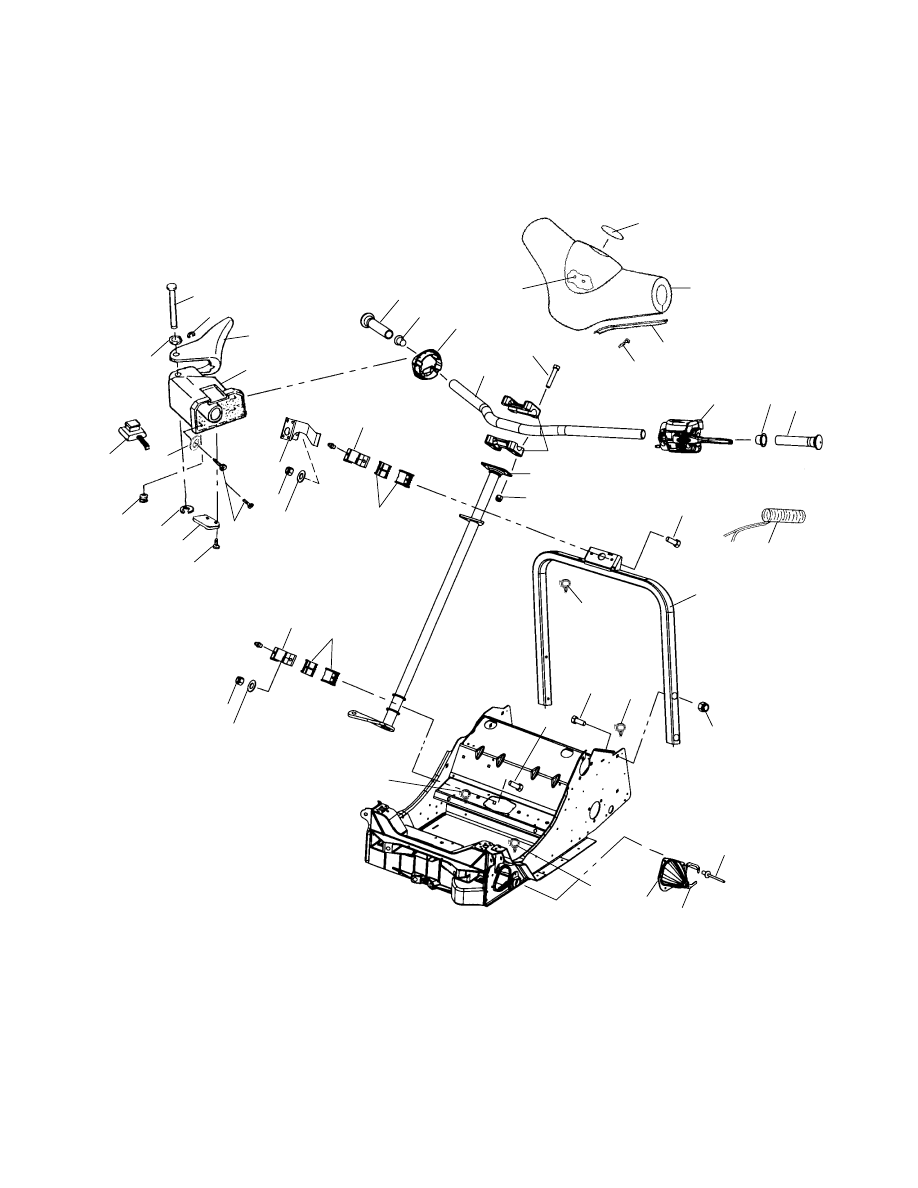

Index Snowmobiles / ATV Snowmobile Polaris SUPERSPORT EDGE S01NB5BS, S01NB5BSA - service manual 2001 year
|
|

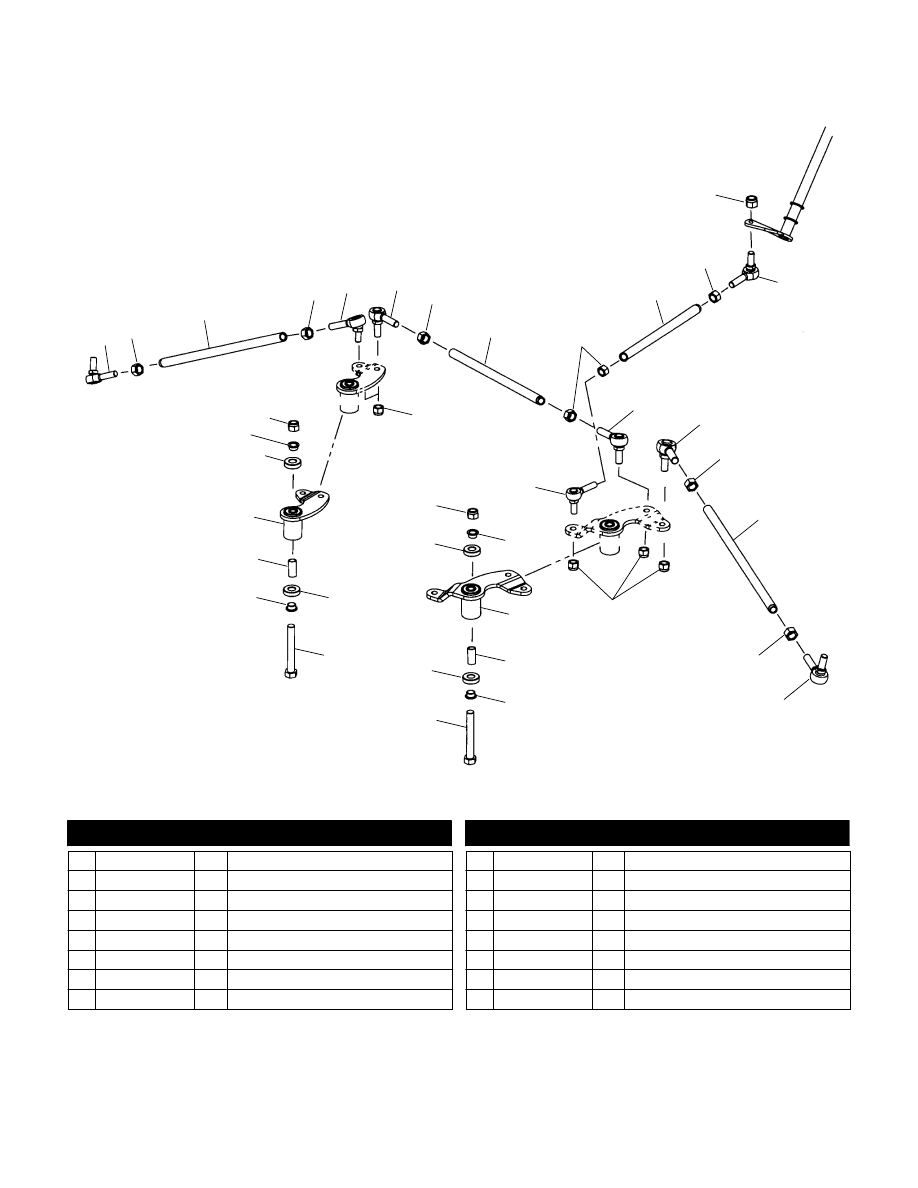

A14 FRONT SUSPENSION and SKI SUPERSPORT S01NB5BS and SUPERSPORT S01NB5BSA Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to the Electronic Catalog, which is updated monthly. Ref. Part No. Qty. Description Ref. Part No. Qty. Description 1 7512597 2 Bolt 2 5434036 8 Bushing, Pivot, Inner 3 5132779 2 Bushing, Shoulder 4 7547066 8 Nut, Nylok 5 1820679-067 2 Rod, Radius, Upper 6 7542520 2 Nut, Jam 7 7542439 12 Nut, Nylok 8 7517583 10 Screw 9 5630580 2 Retainer, Spring, Slotted 10 7041551-067 2 Spring, Compression 11 5431734 2 Ring, Spring Preload 12 1500063 2 Retainer, Threaded 13 7041932 2 Shock 14 7555820 2 Washer, Flat 15 5132364 2 Cup, Trailing Arm Mount 16 7555832 4 Washer 17 5132728 2 Arm, Steering 18 7555797 4 Washer, Flat 19 7061042 2 Bearing, Spherical 20 7710437 2 Ring, Retaining 21 7512099 2 Screw 22 1820962-067 1820963-067 1 1 Asm., Trailing Arm, LH (Incl. 19,20) Asm., Trailing Arm, RH (Incl. 19,20) 23 -------------- 2 Rod End (See Steering Pg B3, Ref 1) 24 3573909 2 Bushing 25 7080433 2 Fitting, Lubrication 26 5433234 2 Bushing, Torsion Bar 27 7621477 6 Rivet 28 5244415-067 1 Bar, Torsion 29 5433884 2 Slide, Torsion Bar 30 7556509 2 Bushing 31 3574208 2 Bushing, Flanged 32 6230160-067 2 Shaft, Spindle 33 7080306 2 Fitting, Lubrication 34 5411083 2 Stop, Rubber 35 7542324 6 Nut, Nylok 36 1820430-067 2 Ski 37 7515462 2 Screw 38 1011829-067 2870976 2 1 Plate, Skag Kit - Carbide, 3”, Easy Steer (Incl. Skag and Plate 39 1820318-067 2 Skag 40 5245145-067 2 Shim, Skag Plate 41 7542438 2 Nut 42 7661209 2 Pin, Cotter 43 5010158 2 Bushing 44 7061060 2 Rod End 45 7542711 2 Nut 46 1820677-067 2 Rod, Radius, Lower 47 7542703 2 Nut, FLEXLOC 48 7061061 2 Rod End 49 5132780 2 Bushing, Shoulder 50 7512684 2 Bolt 7/00 |
