FUSE REPLACEMENT

If the engine stops or will not start, or if you experience other electrical failures, a
fuse may need replacement. Locate and correct any short circuits that may have
caused the blown fuse, then replace the fuse. Spare fuses are provided in a
compartment on the top of the access door.

1. Open the front box cover.

2. Remove the access panel. See page 105.

3. Remove fuse box cover.

4. Remove the suspect fuse from the fuse panel. If the fuse is blown, install a

new fuse with the same amperage.

5. Secure the fuse box cover and access panel.

6. Secure the front box cover.

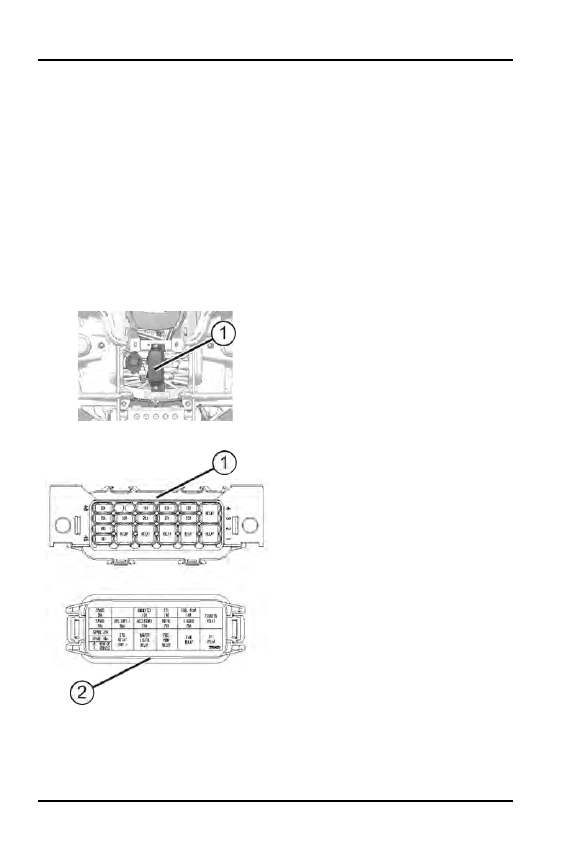

q

Fuse Box

w

Labels Inside Box Cover

130

MAINTENANCE

LIGHTS

CAUTION

Poor lighting can result in reduced visibility when driving. Headlight and taillight

lenses become dirty during normal operation. Clean headlights frequently and

replace burned out headlamps promptly.

Always make sure lights are adjusted properly for best visibility.

LOW BEAM ADJUSTMENT

The low beam can be adjusted slightly upward or downward.

1. Loosen the Phillips screw located at the rear of the headlamp.

2. Tilt the headlamp upward or downward.

3. Tighten the screw.

HEADLIGHT LAMP REPLACEMENT

When servicing a halogen lamp, don't touch the lamp with bare fingers. Oil from
your skin leaves a residue, causing a hot spot that will shorten the life of the
lamp. If fingers do touch a lamp, clean it with denatured alcohol.

CAUTION

Hot components can cause burns to skin. Allow lamps to cool before servicing.

1. 570 / 570 EPS / X2:

Remove the two screws on the lower front corners of the headlight pod.
Remove the screw from the rear of the pod. Lift the pod slightly while
depressing the tabs at the rear of the pod. Lift the pod cover and disconnect
the speedometer harnesses from the speedometer.

2. Unplug the headlamp from the wiring harness. Be sure to pull on the

connector, not on the wiring.

3. Turn the lamp counter-clockwise to remove it.

4. Apply dielectric grease to the socket and install the new lamp. Make sure the

tab on the lamp locates properly in the housing.

5. Reassemble the pod.

131

MAINTENANCE

HEADLIGHT BEAM INSPECTION

The headlight beam can be adjusted slightly upward or downward. Use the
following procedure to make the adjustment.

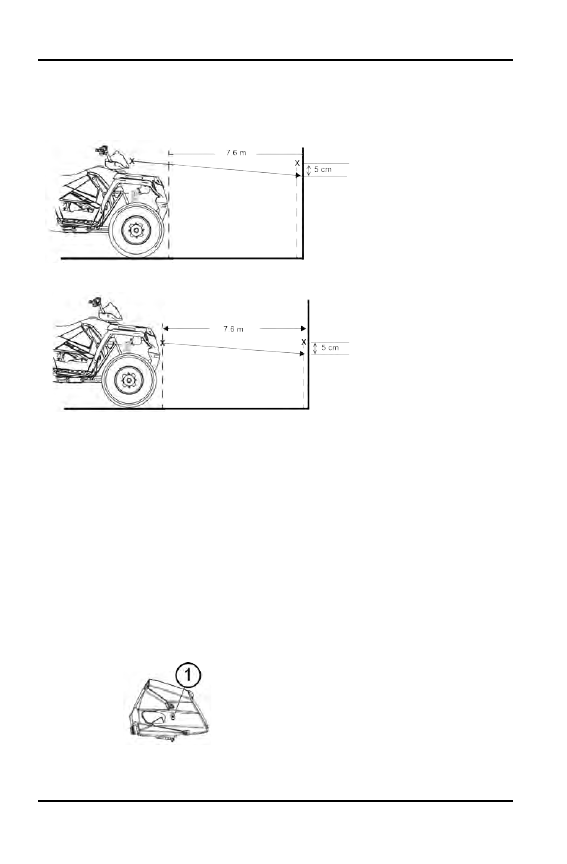

Models with a pod

headlight

Models without a pod

headlight

1. Position the vehicle on a level surface with the headlight approximately 7.6 m

(25 ft.) from a wall. Place the transmission in PARK.

2. Measure the distance from the floor to the center of the headlight and make a

mark on the wall at the same height.

3. Start the engine. Turn the headlight switch to high beam.

4. Observe the headlight aim on the wall. The most intense part of the headlight

beam should be 5 cm (2 in.) below the mark on the wall. Include rider weight
on the seat when measuring.

5. 570 / 570 EPS / X2:

The adjustment knob is located on the right side of the headlight pod. Adjust
the beam to the desired position by turning the knob either clockwise or
counter-clockwise.

q

570 SP adjustment screw

132

MAINTENANCE

HEADLIGHT HOUSING REPLACEMENT
(570 / 570 EPS / X2)

1. Remove the two screws on the lower front corners of the headlight pod.

2. Lift the pod slightly while depressing the tabs at the rear of the pod.

3. Lift the pod cover and disconnect the speedometer harnesses from the

speedometer.

4. Unplug the headlamp from the wiring harness.

5. Use a small screwdriver to remove the o-rings from the headlight mounting

tabs.

6. Pull the headlight housing up to release it from the locking tabs.

7. Lift the adjusting knob up to remove it from the locking tabs.

8. Carefully pull the assembly up and out of the pod.

9. Reverse the steps to install the new housing and reassemble the pod. The

distance from the headlamp parting line to the end of the adjustment knob
stop is 13 cm (5 1/8”)

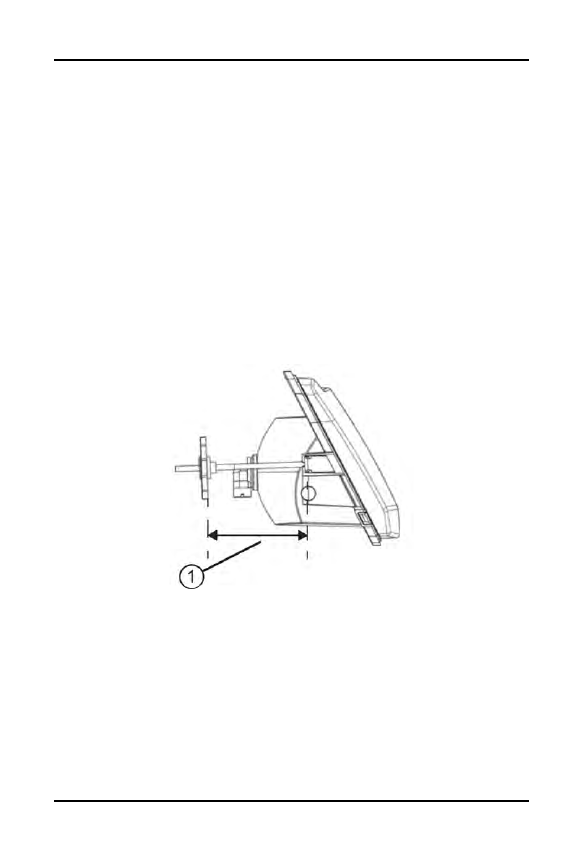

q

.

10. Adjust the headlight aim by turning the adjustment knob.
