81

MAINTENANCE

Toe Alignment

Use the following procedure to check the toe alignment of the vehicle.

The recommended toe alignment is 1/8" to 1/4" (3-6 mm) toe out.

WARNING! Severe injury or death can result from improper toe alignment

and adjustment. Do not attempt to adjust tie rod alignment. All tie rod

adjustments should be performed by an authorized POLARIS dealer or other

qualified service facility.

1. Position the vehicle on a level surface.
2. Set the handlebars in a straight-ahead position and secure them in this

position.

3. Place a chalk mark on the center line of the front tires approximately 10"

(25.4 cm) from the floor, or as close to the hub/axle center line as

possible. Make sure both marks are the same distance from the floor.

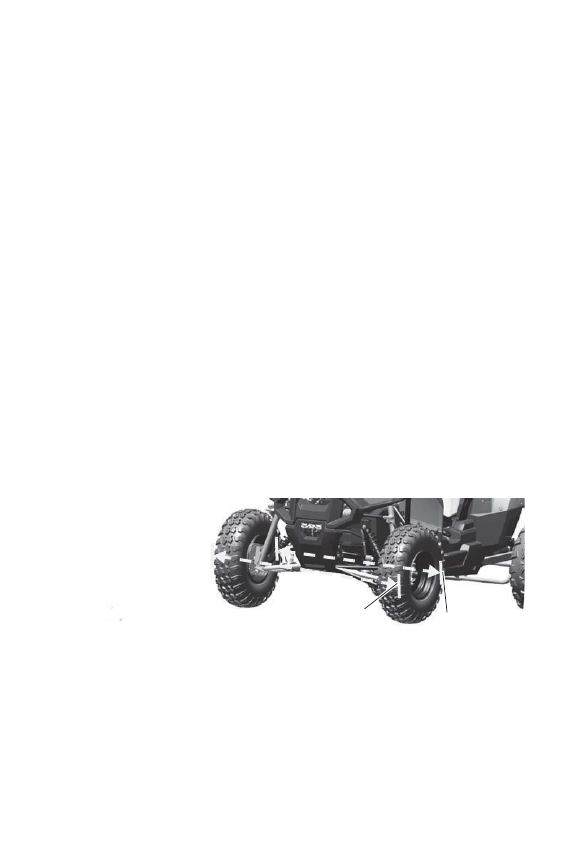

4. Measure the distance between the marks and record the measurement

(1).

5. Move the vehicle to rotate the tires 180°. Position the wheels with the

chalk marks at the rear of the tires, even with the hub/axle center line.

6. Measure the distance between the marks and record the measurement

(2).

7. Subtract measurement 2 from measurement 1. The difference is the

vehicle toe-out alignment.

If you discover improper alignment, see your POLARIS dealer for

service.

1

2

82

MAINTENANCE

Tires

Operating your vehicle with worn tires will increase the possibility of skidding,

loss of control and an accident, which could result in serious injury or death.

Always replace tires when the tread depth measures 1/8" (3 mm) or less.
Improper tire inflation or the use of non-standard size or type of tires may

adversely affect vehicle handling, which could result in vehicle damage or

personal injury. Always maintain proper tire pressure. Always use POLARIS-

approved size and type of tires for this vehicle when replacing tires.

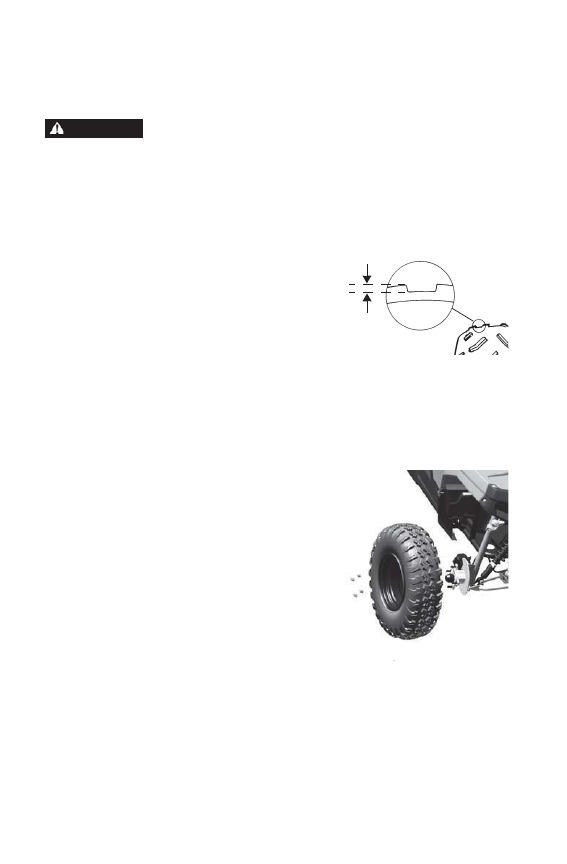

Tire Tread Depth

Always replace tires when tread depth is

worn to 1/8" (3 mm) or less.

Front Wheel Hub Tightening

Front wheel bearing tightness and spindle nut retention are critical

component operations. All service must be performed by your

authorized POLARIS dealer or other qualified service facility.

Front Wheel Replacement

1. Position the vehicle on a level

surface.

2. Place the transmission in neutral. Set

the parking brake. Stop the engine.

3. Loosen the wheel nuts slightly.
4. Elevate the side of the vehicle by

placing a suitable stand under the

frame.

5. Remove the wheel nuts.
6. Remove the wheel.
7. Reverse Steps to install.

WARNING

1/8" (3 mm)

83

MAINTENANCE

Tires

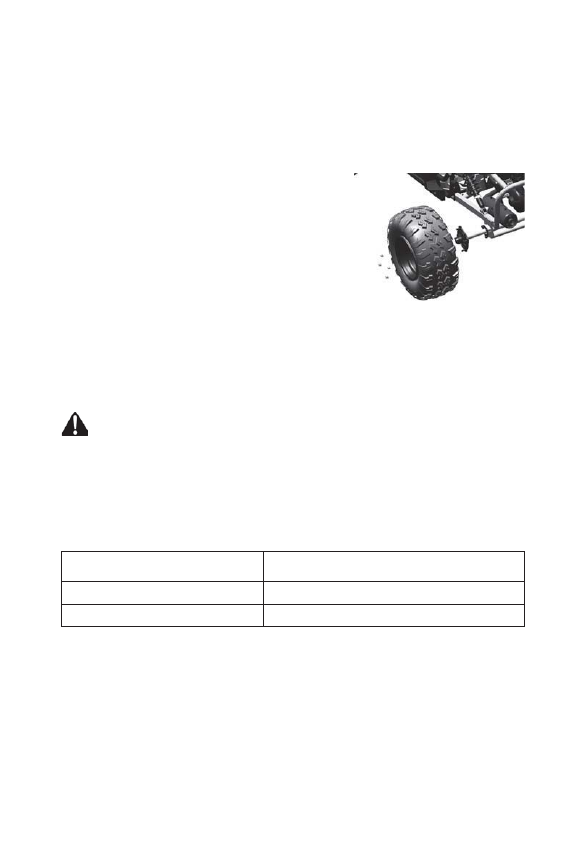

Rear Wheel Replacement

NOTE:

Do not disassemble the castle nuts when you replace the rear wheel

and hub assembly.

1. Position the vehicle on a level surface.
2. Place the transmission in neutral. Set

the parking brake. Stop the engine.

Block the front wheel to prevent

rolling.

3. Loosen the four (4) lug nuts slightly.
4. Elevate the side of the vehicle by

placing a suitable stand under the

frame.

5. Remove the lug nuts.
6. Remove the wheel.
7. Reverse steps to install.

Improperly installed wheels can adversely affect tire wear and vehicle

handling, which can result in serious injury or death. Always ensure that

all nuts are torqued to specification. Do not service axle nuts that have a

cotter pin installed. Your POLARIS dealer can assist.

Wheel Nut Torque Specifications

Check the wheel nut torques occasionally and when they've been

loosened for service.

Location

Nut Torque

Front Wheel

30 ft-lbs (41 Nm)

Rear Wheel

30 ft-lbs (41 Nm)

84

MAINTENANCE

Lights

Daytime Running Lights Replacement

This vehicle’s daytime running lamps operate using LED lights. If

they become inoperable, the entire assembly will need to be replaced

by your authorized POLARIS dealer or other qualified service facility.
