Snowmobile Polaris 600 Switchback / 800 Switchback (2013 year). Manual - part 12





48

THE PERFECT FIT

Suspension Quick Set-Up Guide

Accessory rear shock springs are available for riders of different
weights. A corresponding gauge is available for each spring type.

The gauge provided with your snowmobile is calibrated for the stock
spring, which should be used by most riders. Do not change springs
unless your weight is at the very high or very low end of the stock spring
rider weight range and adjustments to the factory-installed spring have
not perfected your ride.

In the following spring guide, the dimension is as measured from the
spring retainer to the junction of the shock body and end cap. See page
46.

Spring Guide

Stock



Spring

Accessory
120 Spring

Accessory
260 Spring

See your POLARIS dealer to order an accessory

spring and the gauge calibrated for that spring.

Rider

Weight

Dimension

Rider

Weight

Dimension

Rider

Weight

Dimension

lbs.

kg

in.

cm

lbs.

kg

in.

cm

lbs.

kg

in.

cm

120

54

1.5

Min

3.81

90

41

2.375 6.03

240

109 2.125 5.40

130

59

95

43

2.5

6.35

255

116

2.25

5.72

140

64

1.75

4.44

100

45

2.625 6.67

270

122 2.375 6.03

150

68

105

48

 2.75 6.99

280

127

2.5

6.35

160

73

2.0

5.08

110

50

2.875

7.3

295

134 2.625 6.67

170

77

115

52

3

7.62

310

141

 2.75 6.99

180

82

2.125 5.39

120

54

3.125 7.94

320

145 2.875

7.3

190

86

125

57

3.25

8.26

335

152

3

Max

7.62

200

91

2.25

5.71

130

59

3.375 8.57

-

-

-

-

210

95

135

61

3.5

8.89

-

-

-

-

220

100

2.50

6.35

140

64

3.625 9.21

-

-

-

-

230

104

150

68

 3.75 9.53

-

-

-

-

240

109

2.75

Max

6.98

155

70

3.875

Max

9.84

-

-

-

-

260

118

-

-

-

-

-

-

-

-

49

THE PERFECT FIT

Suspension Quick Set-Up Guide

POLARIS recommends that riders use this Quick Set-Up Guide to make
any adjustments for rider weight and trail conditions. If additional tun-
ing is needed after you have exhausted all possible adjustments to the
rear shock spring and clicker, refer to the information on the following
pages of this manual.

Factory Suspension Settings

IFS and Front Track Shock

IFS Shock Clicker

6 clicks clockwise from full soft

IFS Shock Spring Preload

From body end to spring:
FOX shocks 3.75 inches (9.52 cm)
PRO-R shocks 3.00 inches (7.62 cm)

Front Track Shock Clicker

2 clicks clockwise from full soft

Front Track Shock Spring Preload

1.375 inches (3.49 cm) from body end to
spring

Stock Rear Spring

Rear Shock Clicker

4 clicks clockwise from full soft

Rear Shock Spring Preload

See Optional Spring Guide (page 48)

Accessory Spring Recommended Initial Settings

Accessory 120 Rear Spring

Rear Shock Clicker

4 clicks clockwise from full soft

Rear Shock Spring Preload

See Optional Spring Guide (page 48)

Accessory 260 Rear Spring

Rear Shock Clicker

4 clicks clockwise from full soft

Rear Shock Spring Preload

See Optional Spring Guide (page 48)

50

THE PERFECT FIT

Front Suspension Adjustments

Independent Front Suspension (IFS)

Factory settings, combined with user adjustments to the rear shock
spring, should be all that’s necessary to provide the best riding experi-
ence for most riders. If all rear shock spring adjustments have been
exhausted and rider weight is at the very high or very low weight range
for the stock spring, additional adjustments are possible to the IFS.

Settings will vary from rider to rider, depending on rider weight, vehicle
speed, riding style, and trail conditions. We recommend starting with
factory settings and then customizing each adjustment individually to
suit rider preference. The snowmobile should be methodically tested,
one change at a time, under the same conditions (trail and snow condi-
tions, vehicle speed, riding position, etc.) after each adjustment until the
best ride is achieved.

Break in the suspension for about 150 miles (240 km) before making
adjustments to the front suspension.

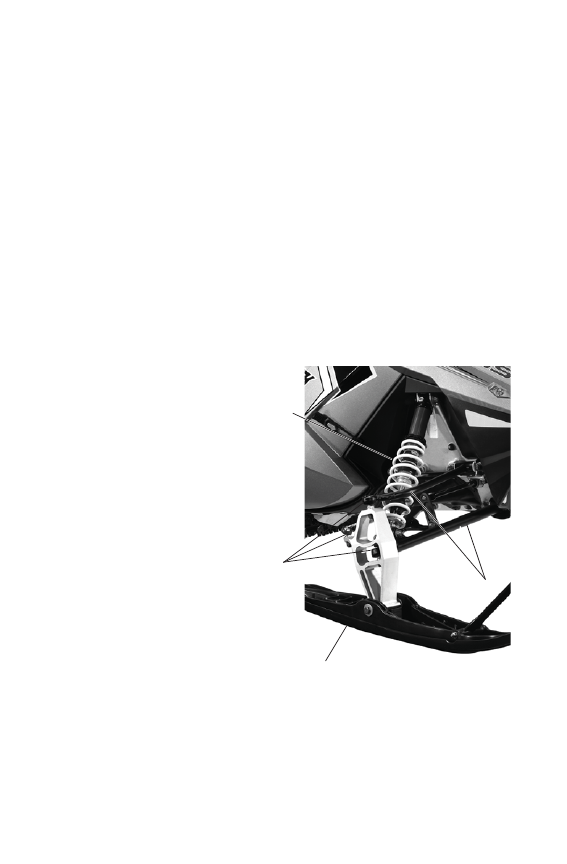

IFS Components

1. Skis

2. Front shocks and springs

3. Rod ends

4. A-arms

IFS Adjustment Options
• Front shock spring preload
• Compression damping
• Optional springs
• Optional shock valving

1

2

3

4

51

THE PERFECT FIT

Front Suspension Adjustments

IFS Shock Spring Preload

Increasing spring preload will increase ski-
to-ground pressure. Decreasing spring pre-
load will decrease ski-to-ground pressure.
When adjusting, be sure the springs on both
the left and right sides of the machine are at
the same adjustment.

Always perform shock spring preload
adjustments with the weight of the vehicle
removed from the shock and with the shock
at full extension.

To change shock spring preload, grasp the
spring retainer and rotate it.

Increasing the spring preload too much
may adversely affect the handling of the
snowmobile and the performance of the
suspension. Never exceed one inch (2.54
cm) of preload beyond the factory settings.

NOTICE: When decreasing preload, make sure at least two turns of preload are

holding the spring between the retainer on the top of the shock and
the threaded spring preload adjuster nut on the shock body. Failure to
do so could cause the retainer to fall off when the suspension is fully
extended.

TIP: Other spring options are available. Please see your POLARIS dealer.

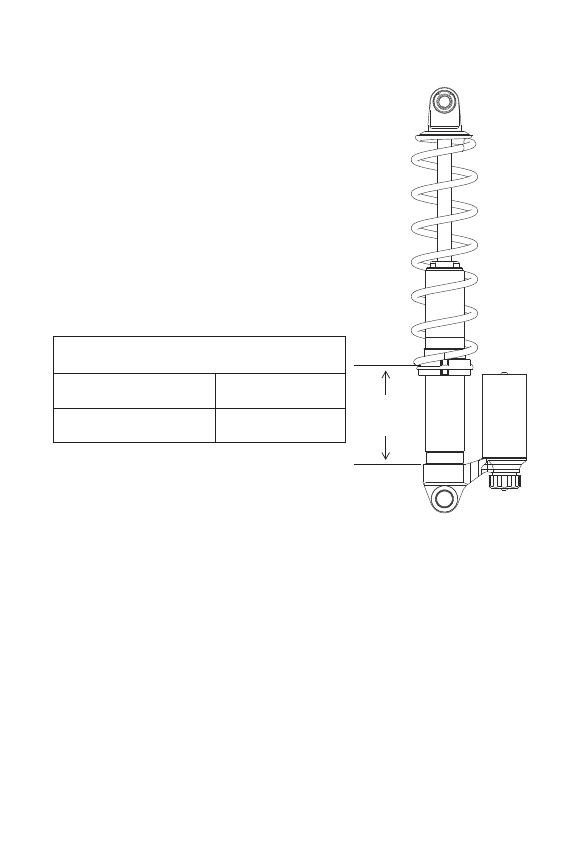

Initial IFS Preload Setting

(from body end to spring)

FOX shocks

3.75 inches

(9.5 cm)

PRO-R premium shocks

3.00 inches

(7.6 cm)

Measure

here
