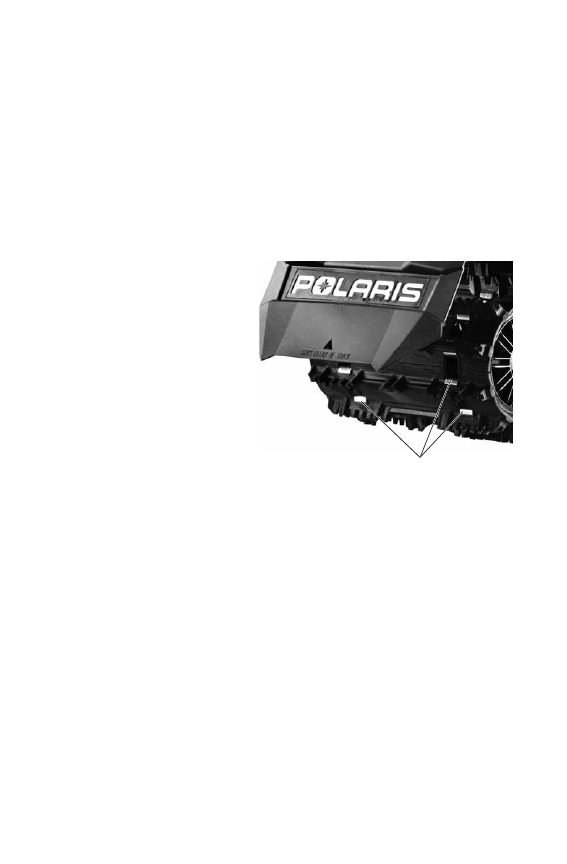

106 MAINTENANCE Track Maintenance WARNING! Moving parts can cut and crush body parts. When performing the Track Tension Track adjustment is critical for proper handling. Always maintain cor- TIP: Tension adjustments should be made only after the track is warmed up and limber. 1. Turn the engine off. NOTICE: Do not use the rear bumper to lift the rear of the snowmobile for track adjustments. 2. Lift the rear of the snowmobile by the chassis (seat support, x-brace or running boards) until the track is slightly above the ground. 3. Place the recommended weight or downward pressure on the track at the specified distance (see chart) ahead of the center of the rear 4. Measure at the point where the weight is hanging. TRACK TENSION DATA CHART Suspension Slack Measurement Weight Measurement Location RUSH 121 1/4-3/8 inch (6.3-9.6 mm) 10 lbs. (4.54 kg) 16 inches (40 cm) ahead of rear idler shaft |
