Snowmobile Polaris 600 RUSH, 600 RUSH PRO-R, 800 RUSH, 800 RUSH PRO-R (2013 year). Manual - part 13

54

THE PERFECT FIT

Rear Suspension Adjustments

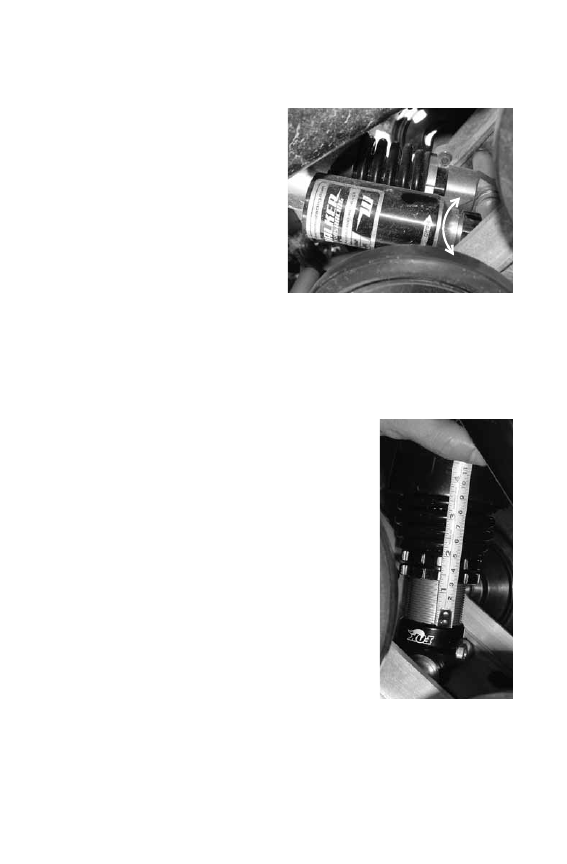

Front Track Shock Compression Damping

Make adjustments to the shock
clicker to control bottoming. Make
the adjustments in 2-click incre-
ments, then test ride. Repeat the
adjustment until the desired result is
achieved.

TIP: Initially, heavier riders may want to

set the shock clickers 2-4 clicks
higher than lighter riders.

The standard clicker setting is 2
clicks from the softest position.

• Turn the clicker clockwise for a stiffer ride.
• Turn the clicker counter-clockwise for a softer ride.

Front Track Shock Spring Preload

Always perform shock spring preload adjustments with the weight of
the vehicle removed from the shock and with the shock at full extension.

Increasing spring preload will decrease ski-to-
ground pressure. Decreasing spring preload will
increase ski-to-ground pressure.

The initial preload setting is 2 inches (5 cm) from
body end to spring. To change shock spring pre-
load, grasp the spring retainer and rotate it.

Increasing the spring preload too much may
adversely affect the handling of the snowmobile
and the performance of the suspension. Never
exceed one inch (2.54 cm) of preload beyond the
factory settings.

When decreasing preload, make sure at least two
turns of preload are holding the spring between the
retainer on the top of the shock and the threaded
spring preload adjuster nut on the shock body.
Failure to do so could cause the retainer to fall off
when the suspension is fully extended.

TIP: Other spring options are available. Please see your POLARIS dealer.

Stiffer

Softer

55

THE PERFECT FIT

Rear Suspension Adjustments

Rear Shock Spring Preload Settings

Make adjustments to the rear shock spring to tune vehicle balance.
Always perform shock spring preload adjustments with the weight of
the vehicle removed from the shock and with the shock at full extension.

Increasing preload will increase ski pressure and result in less weight
transfer and flatter cornering and more precise steering response.
Decreasing preload will decrease ski pressure and result in more weight
transfer, or less weight on the skis when accelerating.

Turn the spring retainer up to one turn from the initial setting, then test
ride. Repeat the adjustment in one-turn increments until the desired
result is achieved.

Increasing the spring preload too much may adversely affect the han-
dling of the snowmobile and the performance of the suspension. Never
exceed one inch (2.54 cm) of preload beyond the factory settings.

When decreasing preload, make sure at least two turns of preload are
holding the spring between the retainer on the top of the shock and the
threaded spring preload adjuster nut on the shock body. Failure to do so
could cause the retainer to fall off when the suspension is fully
extended.

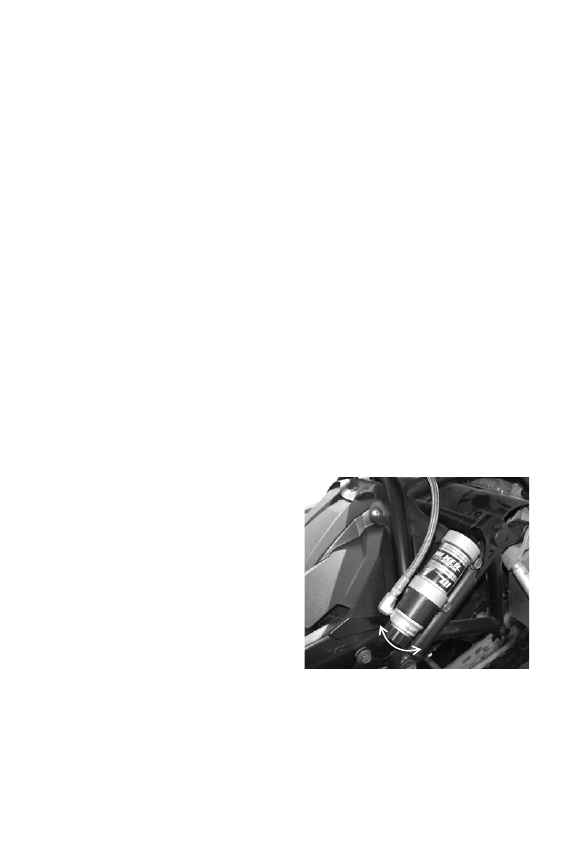

Rear Shock Clicker

Make adjustments to the shock
clicker to control bottoming, chatter
and general riding comfort. Make
the adjustments in 2-click incre-
ments, then test ride. Repeat the
adjustment until the desired result is
achieved.

TIP: Initially, heavier riders may want to

set the shock clickers 2-4 clicks
higher than lighter riders.

The standard clicker setting is 4
clicks from the softest position.

• Turn the clicker clockwise for a stiffer ride.
• Turn the clicker counter-clockwise for a softer ride.

Stiffer

Softer

56

THE PERFECT FIT

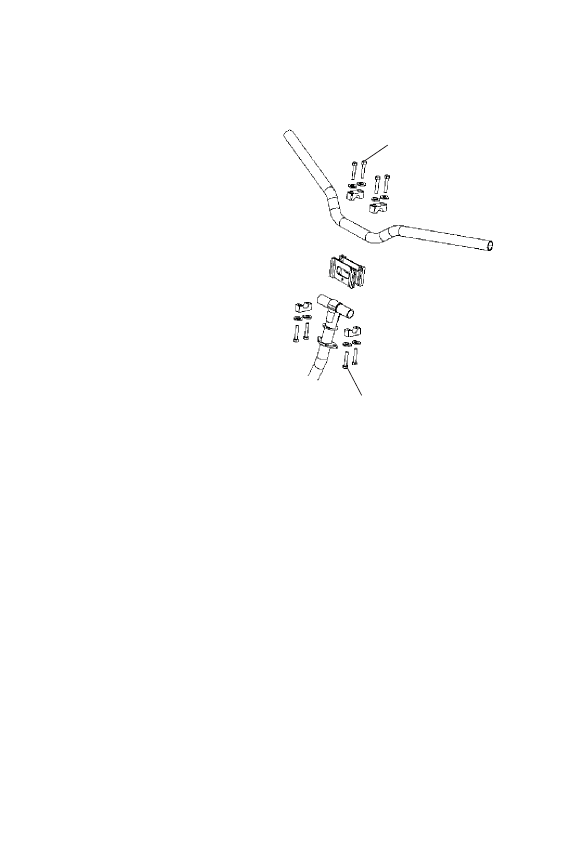

Handlebar Adjustments

Handlebar Position

1. Loosen the four bolts on

the bottom of the adjuster
block. If necessary, pry the
blocks apart with a screw-
driver.

2. Adjust the handlebar for-

ward or rearward to the
desired position.

3. Tighten the bolts. Torque

the bolts to 13-16 ft. lbs.
(18-22 Nm).

Handlebar Angle

1. Loosen the four bolts on

the top of the adjuster
block. If necessary, pry the
blocks apart with a screw-
driver.

2. Adjust the handlebar for-

ward or rearward to the
desired angle.

3. Tighten the bolts. Torque the bolts to 13-16 ft. lbs. (18-22 Nm).

Loosen top bolts to adjust
handlebar angle

Loosen bottom bolts to
adjust handlebar position

57

THE PERFECT FIT

Accessories

POLARIS offers a wide range of accessories for your snowmobile to
help make each ride more enjoyable.

Use only POLARIS parts and accessories on your POLARIS snowmo-
bile. Use of unapproved parts and accessories may result in:

• Non-compliance with government/industry requirements
• Voiding of warranty
• Injury to self or others

This applies, but is not limited to the following areas: brakes, clutches,
fuel systems, internal engine components and exhaust systems. Exhaust
systems are critical safety areas that must use approved POLARIS parts.
Please see your POLARIS dealer for service.
