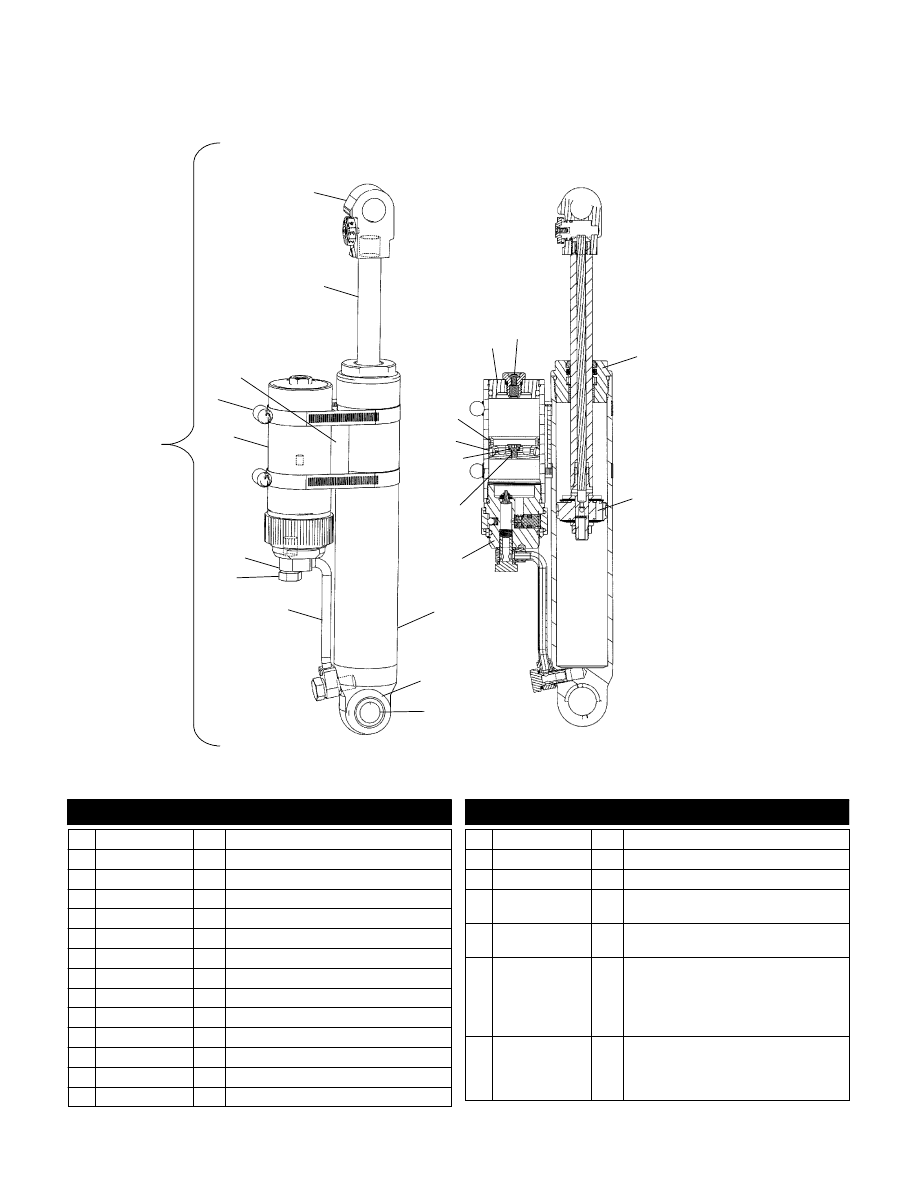

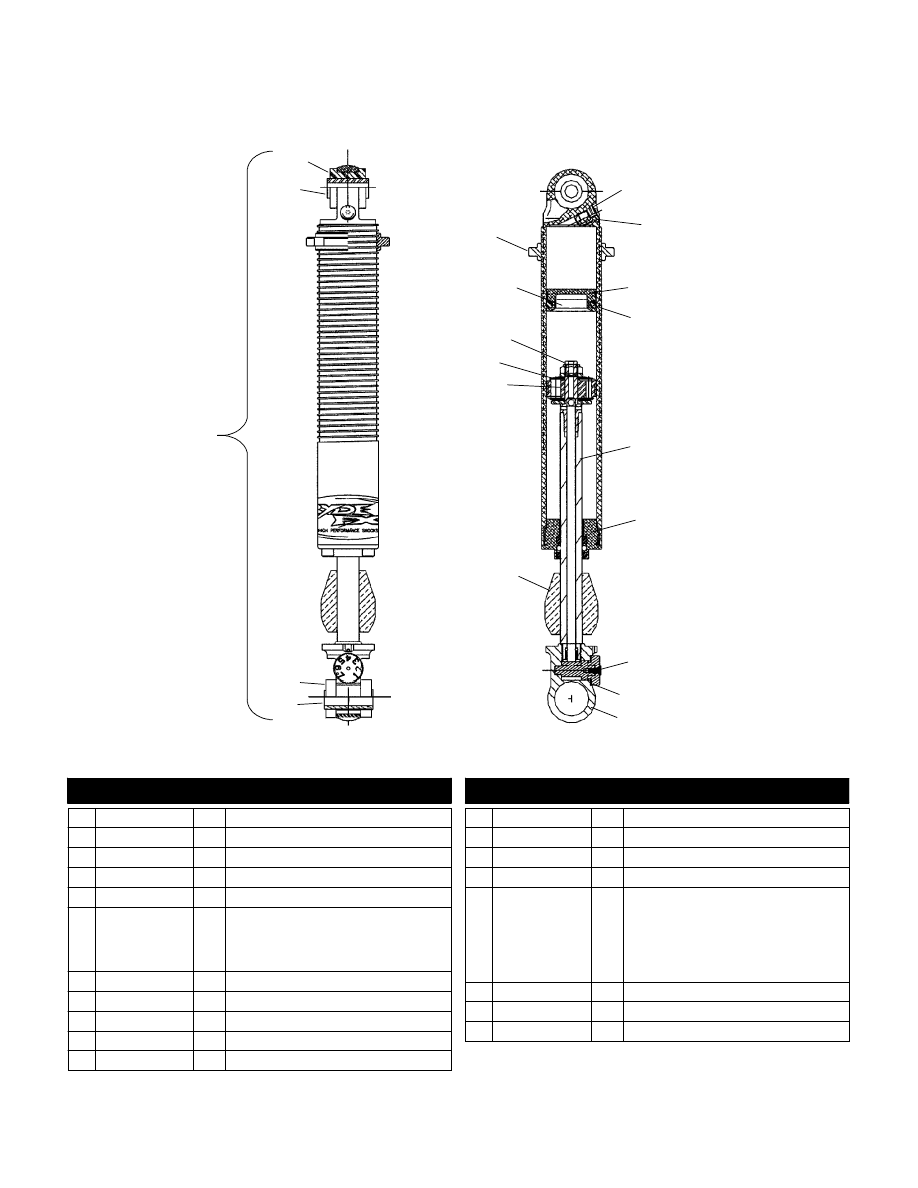

C9 SHOCK - IFS 600 RMK 144 F/O S04NK6ES and 600 RMK 144 STOCK A S04NK6ESA and 600 RMK 144 STOCK B S04NK6ESB and 600 RMK 144 STOCK C S04NK6ESC and 700 RMK 144 F/O S04NK7CS and 700 RMK 144 STOCK A S04NK7CSA and 700 RMK 144 STOCK B S04NK7CSB and 700 RMK 144 STOCK C S04NK7CSC and 700 RMK 151 F/O S04NL7CS and 700 RMK 151 STOCK A S04NL7CSA and 700 RMK 151 STOCK B S04NL7CSB and 700 RMK 151 STOCK C S04NL7CSC and 800 RMK 144 F/O S04NK8CS and 800 RMK 144 STOCK A S04NK8CSA and 800 RMK 144 STOCK B S04NK8CSB and 800 RMK 144 STOCK C S04NK8CSC and 800 RMK 151 F/O S04NL8CS and 800 RMK 151 STOCK A S04NL8CSA and 800 RMK 151 STOCK B S04NL8CSB and 800 RMK 151 STOCK C S04NL8CSC and 800 RMK 159 F/O S08NM8CS and 800 RMK 159 STOCK A S08NM8CSA and 800 RMK 159 STOCK B S08NM8CSB and 800 RMK 159 STOCK C S08NM8CSC 6 15 8 10 14 13 12 16 3 2 5 11 9 4 19 17 18 3 1 7 E 2003 Polaris Sales Inc. Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly. Ref. Part No. Qty. Description Ref. Part No. Qty. Description 1 7042249 2 Shock, IFS 2 1700036 2 Bushing 3 1700037 1 Sleeve 4 1700072 2 Bushing 5 1700042 1 Bumper, Compression 6 1700109 1700031 1700077 1700078 1 1 1 1 Piston, Banded Band, Piston, Wear Washer, Top-Out Washer, Back-Up 7 2200618 1 Kit, Piston Valving 8 1700057 1 Nut 9 1700023 1 IFP 10 1700210 1 Nut, Spring Retainer 11 1700056 1 Screw, Valve 12 1700184 1 Asm., Pressure Valve 13 1700032 1 Band, Wear, IFP 14 1700048 1 O-Ring, IFP 15 1700223 1 Shaft 16 1700206 1700051 1700019 1700046 1700020 -------------- 1 1 1 1 1 1 Asm., Cylinder Head O-Ring, External Scraper, Rod O-Ring, Internal Seal, Rod Bearing, DU 17 1700192 1 Screw 18 1700193 1 Knob 19 1700208 1 Asm., Upper Mount (Incl. 17,18) 3/03 |
