MAINTENANCE

Track Maintenance

n

Track Alignment

Periodically check that the track is centered and running evenly on the

slide rails.  Misalignment will cause excessive wear to the track and

slide rail.

1. Safely support the rear of the machine with the track off the ground.
2. Start the engine and apply a small amount of throttle until the track

turns slowly at least five complete revolutions.  Stop the engine and

let the track come to a stop (do not apply brakes).

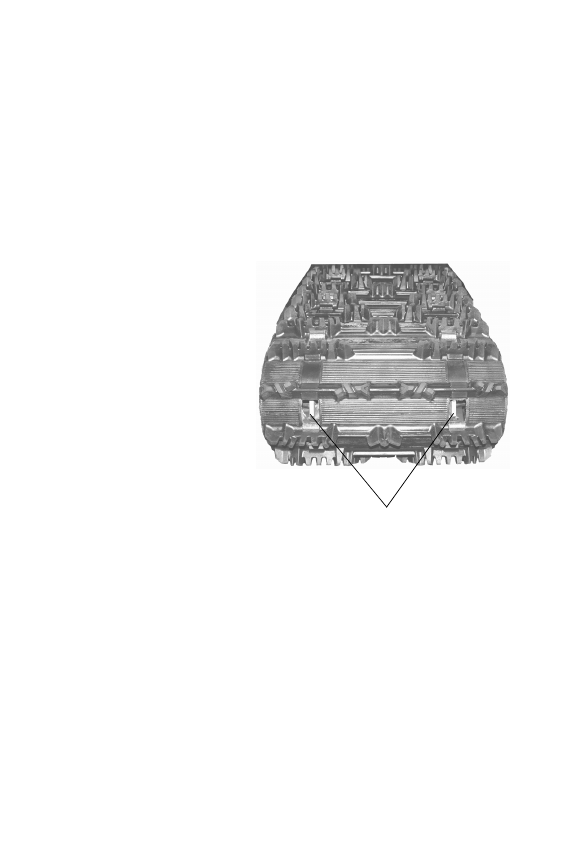

3. Inspect track alignment by

looking through the track

window to make sure the

rails (

✪) are evenly spaced

on each side.  If the track

runs to the left, loosen the

idler shaft bolts, then

loosen the left locknut and

tighten the left adjusting

bolt.  If the track runs to

the right, loosen the idler

shaft bolts, then loosen the

right locknut and tighten

the right adjusting bolt.

4. After adjustments are com-

plete, tighten the locknuts

and torque idler shaft bolts

to 35 ft. lbs. (47.5 Nm).

5. Repeat steps 2 and 3 to verify proper alignment.

✪

117

MAINTENANCE

Steering System

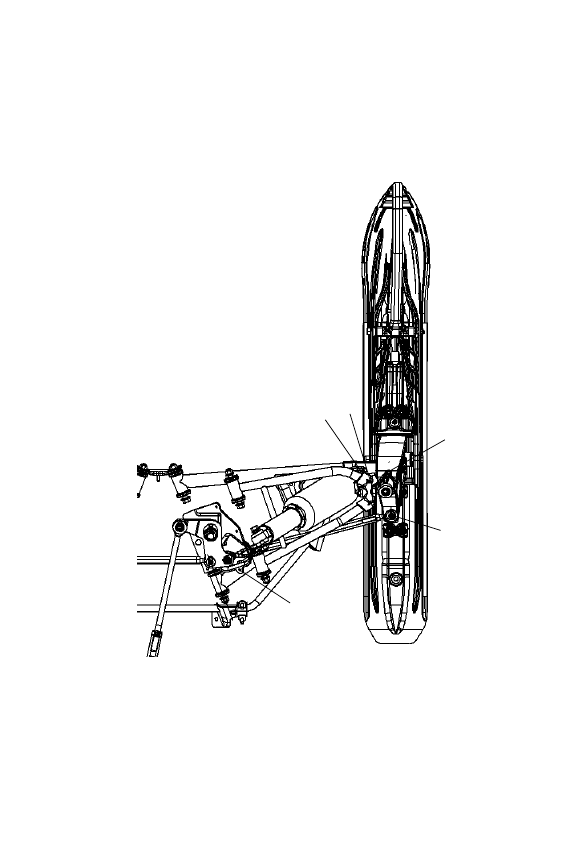

Steering Inspection and Adjustment

Each week, or before a long ride, check all steering system fasteners and

tighten if necessary.

✪

✪

✪

✪

✪

118

MAINTENANCE

Steering System

Ski Alignment

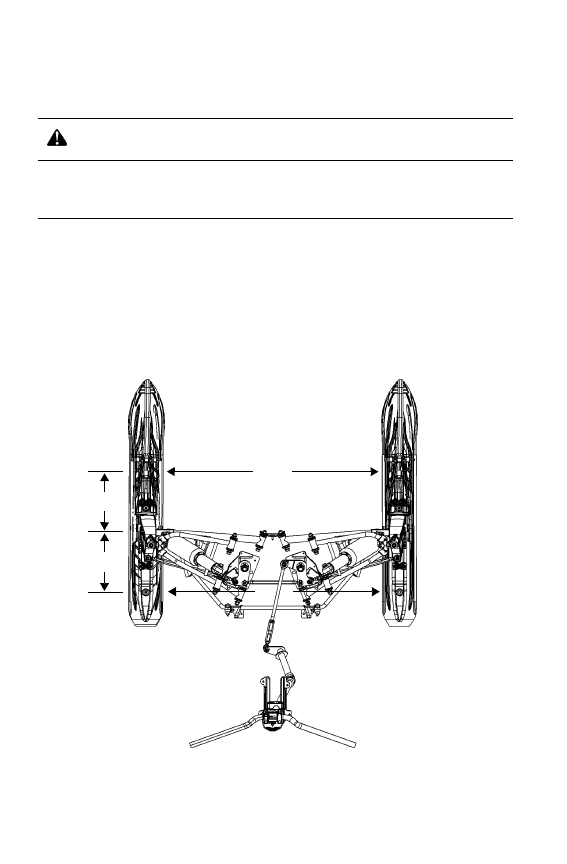

With the handlebars in a straight ahead position, and with vehicle

weight compressing the suspension, measure from the straight edge of

the skis at the center of the ski mounting bolt.  The measurement

between the skis at point X should be 1/8I to 1/4I (3-6 mm) greater

than the measurement at point Y.

NOTE: If the skis are misaligned, we recommend that your dealer cor-

rect the alignment, since camber adjustment may also be

affected.

WARNING

Improper ski alignment or adjustment may cause loss of steering control,

resulting in serious injury or death.  Do not attempt to change the ski align-

ment or camber adjustment.  See your Polaris dealer.

10

I

X

Y

10

I

119

MAINTENANCE

Steering System

n

Ski Skags

Some models have one skag, others may have dual skags. Check skags

before each use of the snowmobile to ensure positive steering character-

istics. Skags must be replaced when worn to half their original diameter.

NOTE: Carbide skags must be replaced if any abnormal wear or chip-

ping is found.

Skag Replacement

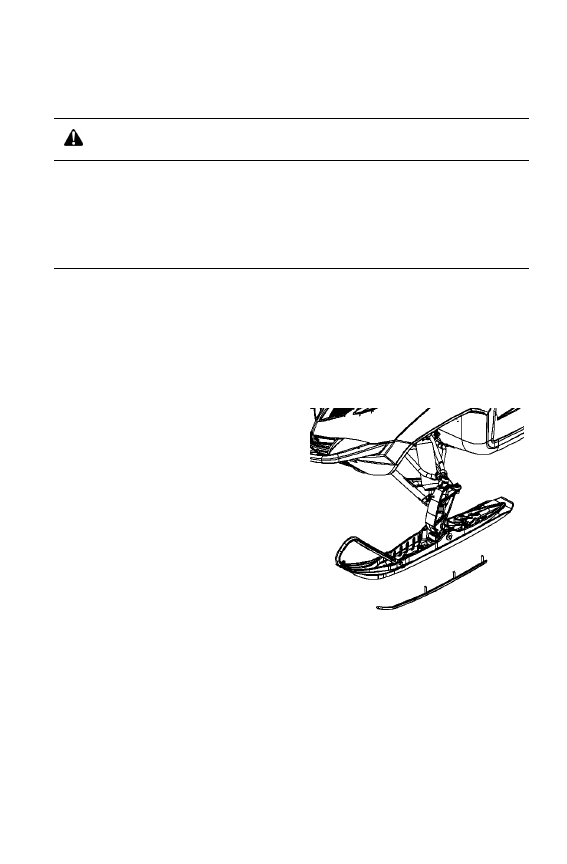

1. Raise and support the front of

the machine so the skis are

approximately 6I (15.2 cm)

from the ground.

2. Remove the attaching nuts

and pry the skag downward.

3. Remove the front end of the

skag.

4. Remove the rear end of the

skag.

5. Reverse the steps to install a

skag.

WARNING

Worn skis and/or skags will adversely affect handling.  Loss of vehicle control

may result, causing serious injury or death.
See your dealer's studding chart for recommended skags.  If you install

longer or more aggressive carbide skags than the original equipment, it may

also be necessary to add track studs to maintain proper vehicle control while

turning on hard-packed snow or ice.
