32

FEATURES

Instrumentation

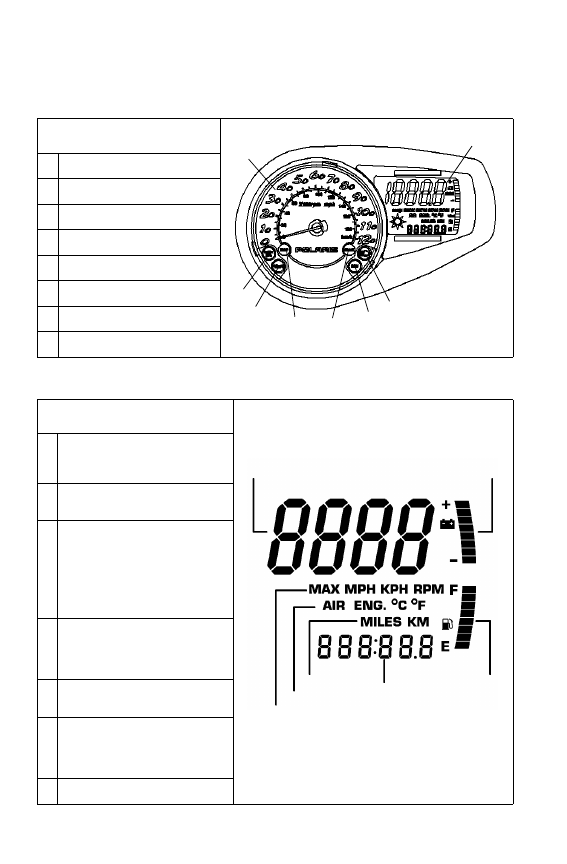

MFD Component Identification

Digital Display Identification

Item

1 Analog Gauge

2 Digital Gauge

3 DET Indicator

4 Low Oil Indicator

5 High Temp Indicator

6 Brake Indicator

7 Reverse Indicator

8 High Beam Indicator

Item

1 RPM or Speed

Altitude (if equipped)

Service Interval

2 Electrical System

Voltage Level

3 MAX - Maximum MPH/

KPH or RPM

MPH -Miles per hour

KPH - Kilometers per hour

RPM -Engine crankshaft

revolutions per

minute

4 Air Temp (if equipped)

Engine Temp

Degrees Celsius

Degrees Fahrenheit

5 Miles

Kilometers

6 Hours

Trip 1/Trip 2/Trip F

Service Label

Altitude Label

7 Fuel Level

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

33

FEATURES

Instrumentation

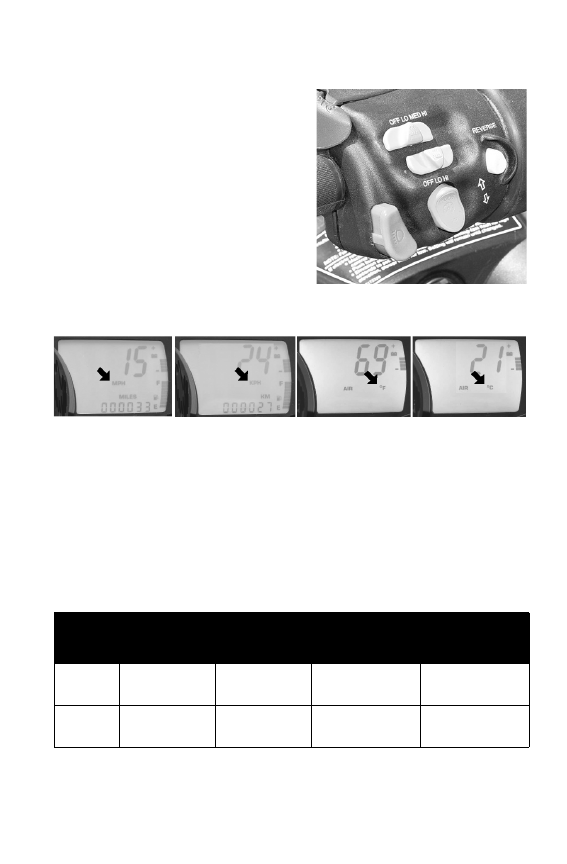

MFD Settings

With the engine running, use the

MFD Control Switch to set the MFD

display to your preference.  The

rocker switch (

✪) has a MODE but-

ton (top) and a SET button (bottom).
Standard vs. Metric
The MFD will display either stan-

dard or metric units of measurement.

While viewing a screen that displays

measurements (MPH, KPH or tem-

peratures), press and hold the MODE switch until the unit of measure-

ment changes (about 10 seconds).

Speedometer/Tachometer
The speedometer and tachometer can be viewed in either the analog or

the digital display. If the analog display is set to show speedometer read-

ings, the digital screen will automatically display the tachometer (option

1). If the analog is set to show the tachometer, the digital screen will

show the speedometer (option 2).

To change preferences, press and hold the MODE button for three sec-

onds.  When the button is released, the new setting becomes active and

screen colors change.  See table below.

Option

Analog

Display

Digital

Display

Analog

Screen

Digital

Screen

1

Speed

RPM

Blue “mph”

Blue

Backlight

2

RPM

Speed

Red

“X100rpm”

Red

Backlight

✪

34

FEATURES

Instrumentation

MFD Digital Display Programs

Press the MODE button to cycle through the three MFD programs:  Per-

formance, Engine and History. Each program will remain in the display

until another is selected.

NOTE: The analog will always display either MPH or engine RPM

(whichever setting is selected) regardless of the display pro-

gram being viewed.

Performance Program
The Performance Program automatically displays either speed or

tachometer, whichever is opposite the analog display.  See page 33.  It

also displays electrical system voltage and fuel levels.

While in the Performance mode, press the SET button to cycle through

the odometer, Trip 1, Trip 2, Trip F and Clock settings.

35

FEATURES

Instrumentation

MFD Digital Display Programs

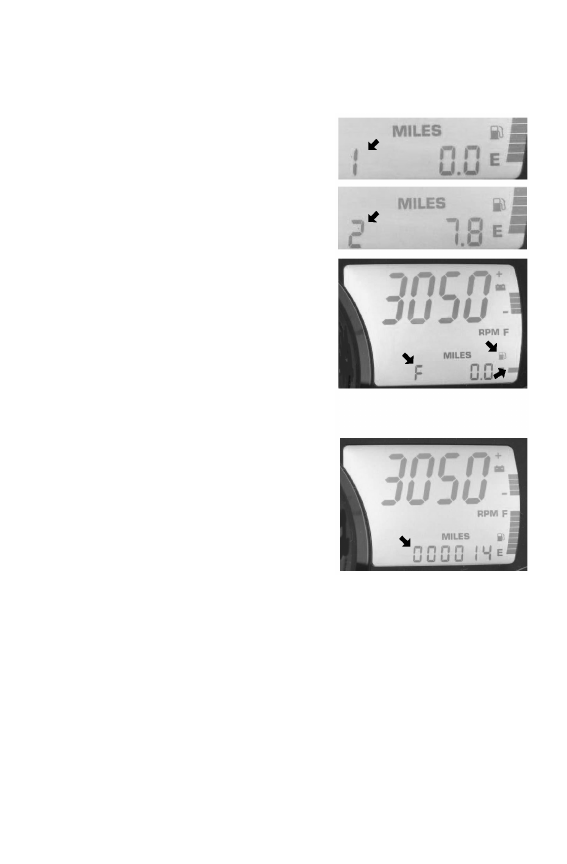

Trip Settings
Trip 1 and Trip 2 are odometers used to

check fuel mileage or to keep track of

distance traveled.

1. To reset a trip odometer to zero,

enter the Trip 1 or Trip 2 display.

2. Press and hold the SET button for

two seconds.

Trip F automatically displays if the fuel

level is low. The fuel symbol and the last

fuel bar on the MFD gauge will blink

when the fuel level reaches 1/8th tank.

The Trip F odometer records distance

traveled until enough fuel is added to

raise the level above 1/4 tank.  The fuel

symbol and the fuel bar will continue to

blink until the fuel level is above 1/4

tank.  The Trip F odometer will automat-

ically reset to zero after refueling.
Odometer Setting
The odometer records the vehicle's total

distance traveled since manufacture.

The odometer cannot be reset.
