Handlebar Adjustment

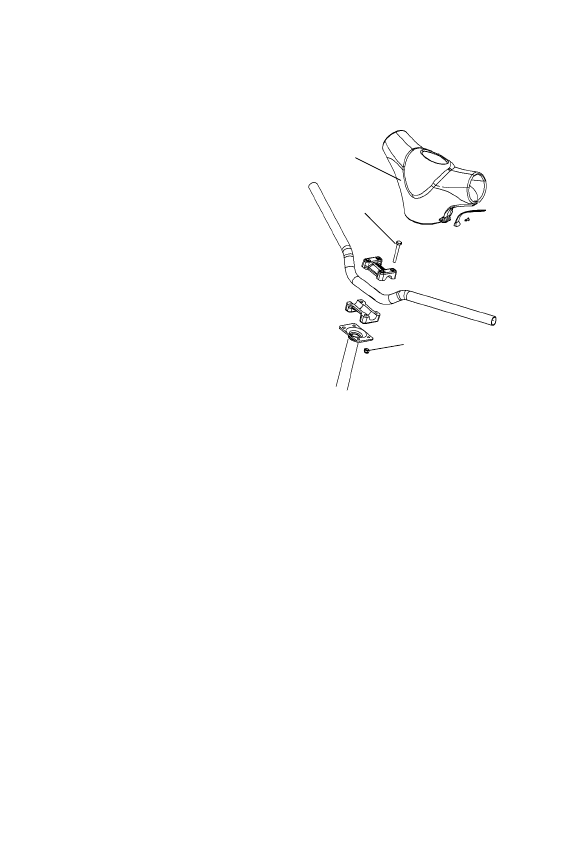

Follow these steps to adjust handlebar angle at the handlebar block.

1. Remove the handlebar cover

to expose the handlebar and

the four adjuster block bolts.

2. Using a 7/16-inch wrench,

loosen the four nuts on the

bottom of the adjuster block

(turn the handlebar either left

or right for access to the rear

nuts).

NOTE: If necessary, pry the

blocks apart with a

screwdriver.

3. Adjust the handlebar to the

desired angle. Be sure the

handlebar, brake lever and

throttle lever operate

smoothly and do not hit the

gas tank, windshield or any

other part of the machine when the handlebar is turned fully to the

left or right.

4. Torque the front bolts first, then torque the rear bolts. Torque the

bolts to 11-13 ft. lbs. (15-18 Nm).

5. Reinstall the handlebar cover.

Cover

Nuts

Bolts

41

THE PERFECT FIT

Traction Products

Studs

Before equipping your machine with traction products, be aware of the

laws in your area pertaining to the use of traction products. See your

dealer about installing studs and/or carbides. Many tracks with deep lug

designs cannot be studded, but your dealer will be able to offer advice

and assistance.

Use only Polaris traction products on your snowmobile. Track warran-

ties are void if track damage or failure results from improper or exces-

sive stud installation or the use of non-Polaris traction products.

See your dealer about installing studs and/or carbides.

Track studding will enhance braking control on hard-packed snow or

ice, but extreme caution is still required on such surfaces. Steering abil-

ity may be reduced on hard-packed snow or ice.

When studded tracks are used, increased wear to the brake pads will

result from increased braking. Extended-wear brake pad kits are avail-

able. See your dealer.

CAUTION

Always install wear strips before installing studs. Failure to install wear strips

may result in cooler or tunnel damage. See page 43.
Never add shims to the wear strip. Track damage will result because of lack

of clearance between upper carrier wheels and track.
Use of studs longer than the recommended length on machines equipped

with center coolers will result in center cooler damage or damage to the tun-

nel.

CAUTION

Aggressive studding patterns may require grinding protruding stud bolts flush

to prevent idler wheel damage. Maintain track tension on studded tracks on

the tight side of the spec to prevent heat exchanger damage. The center of

the stud must be at least 1 1/8

I

 (2.86 cm) from the outside edge of the track.

42

THE PERFECT FIT

Traction Products

n

Carbide Skags

A skag is a replaceable bar attached to the underside of the ski to assist

in turning the snowmobile and to prevent ski wear caused by contact

with roads and other bare terrain. Use carbide skags with studded tracks

to help maintain proper vehicle steering and control. See page 103.

If your machine has carbide skags, it may be necessary to add track

studs to maintain proper vehicle control. Maintain a proper balance

between the number of studs and the length of carbide on the skags (the

more studs you use, the longer the carbide on the skags should be). See

your dealer's track studding chart.

Inspect skags and studs frequently. Worn studs or skags may reduce

steering and braking control on hard-packed snow and ice. Replace

worn studs and skags to maintain proper balance and vehicle control.

WARNING

Loss of control can result in serious personal injury or death. Proper balance

of traction products on the skis and track must be maintained to obtain proper

vehicle control on hard-packed snow or ice. See your dealer for assistance.

43

THE PERFECT FIT

Traction Products

Wear Strips

To avoid excessive tunnel wear, tunnel wear strips must be installed

whenever track studding is used. See your dealer for more information.

Wear strips are designed for a specific stud length. See your dealer's

studding chart for recommended traction accessories.

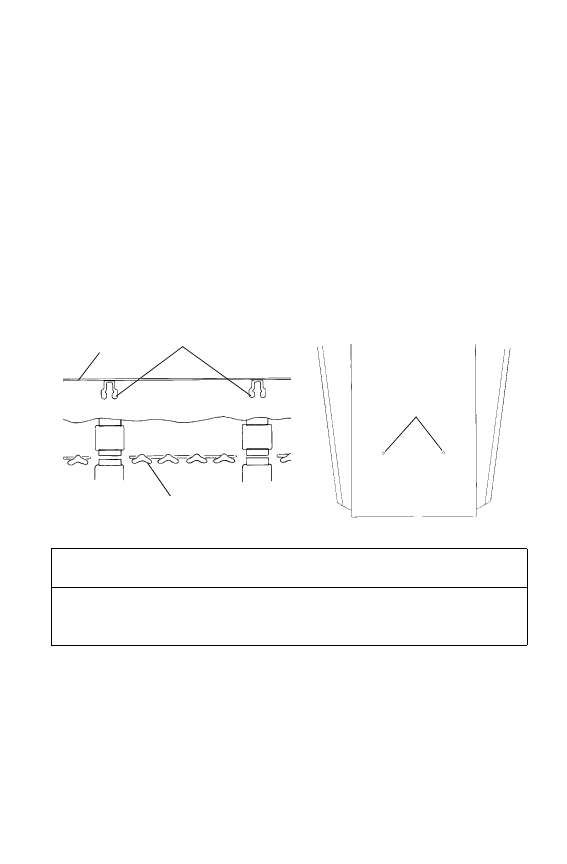

Components (viewed from rear of track)
1. Top of tunnel
2. Wear strip
3. Track
4. Wear strip mounting holes

CAUTION

Whenever wear strips are relocated, be sure there's adequate stud clearance

to the heat exchangers. Lack of clearance may result in damage to heat

exchangers.

1

2

3

4
