Kincaid 8xp. Manual - part 21

- 87 -

Storing the Engine:

(Look at engine instruction book)

•  Clean the engine externally.

•  Empty the fuel tank.

•  Clean the fuel tank.

•  Change the fuel filter.

•  Change the engine oil.

•  Change the engine oil filter.

•  Fill the fuel tank with protective fuel for

injectors.

•  Check the anti freezing quality of the

coolant.

•  Clean the air filter.

•  Run the engine min. 10 minutes to allow

the protective fuel to reach the injectors.

•  Seal the exhaust pipe, inlet opening of

the air filter and the vent duct with e.g.

adhesive tape or plastic film.

•  Disconnect the battery, the minus pole

first, wash the outside with warm water

and take it to a dry cool storing place

(temperature +0 to 5 degrees centigrade).

•  Observe the instructions for recharging

the battery.

•  Clean the cable lugs and apply grease to

them.

It is not necessary to remove or loosen the V

belts for winter. Connect the driving belts of

the threshing machinery and cutting table but

remember to disconnect the threshing

machinery

when starting the engine the next time.

After-storage Attention:

•  Remove the plastic covers of the engine

openings.

•  Fit a new air filter.

•  Fasten the fully-charged battery, the plus

pole first.

•  Check the coolant level.

•  Check the engine oil level.

•  Check the hydraulic oil level.

•  Check the gear box oil level.

•  Check the belt and chain tensions.

•  Check that there are no foreign objects

inside the combine.

•  Check the rotation of the rotor knives of

the cutter.

•  Turn by hand the coolant pump by the fan

to loosen a possibly stuck sealing.

•  Open the bottom plug of the fuel tank

a little and drain the water possibly

condensed on the tank bottom.

•  Start the engine and let it run at fast idling

speed for about 3 minutes.

•  Watch the oil pressure and alternator

warning lights.

•  Check to see that there are no coolant, oil

or fuel leaks.

•  Carefully connect the threshing

mechanism.

•  Raise the RPM to normal level, observing

the function of the threshing machinery.

•  Stop the threshing machinery and the

engine and close all doors.

•  Change the traction hydraulic oil and filter.

•  Set the threshing adjustments for the first

threshing.

- 88 -

Recommended tools and accessories

Recommended Tools

For self-made maintenance it is necessary to replenish the tool selection supplied with the

combine with the special tools mentioned under Maintenance as well as with the fork, ring

and socket wrench kits, observing the wrench gab table below and the wrench gabs 16, 18

and 27 mm for the hose and pipe couplings.

Recommended Accessories

For the Cutter Bar:

Knife sections 25 pcs

Fingers 2 “

Knife holders 2 “

For the Table Auger:

Fingers 4 pcs

Finger bearings 4 “

Bearing holders 2 “

For the Reel:

Plastic tines 5 pcs

General Parts

•  Hexagonal screws M6 to M12 in the most general lengths 16 to 40 mm, strength class

minimum 8.8.

•  Hexagonal nuts M6 to M12, strength class 8.

•  Also have lock nuts available.

•  Washers and spring washers 6.5 to 13 mm.

•  Plate screws 4.8 in 9.5 to 19 mm lengths.

•  Split cotters 3x20 and 5x30 mm.

•  Wire cotters 2.5x50 mm.

•  Spring cotters 3 to 8 mm, lengths 20 to 50 mm.

•  Circlip cotters 10 mm.

•  Grease nipples 6 mm and 1/8”, of straight and angled types.

•  Chain links.

•  Fuses (plate type) 7,5, 15 and 25 A.

Screw joints

It is important to tighten the screw joints with correct tightening torque.

Screw



Wrench



Tightening torque

size



gap mm



for screw of 8.8 strength class

M 6





10





11 Nm

M 8





13





25 “

M 10



17





47 “

M 12



19





78 “

M 14



22





120 “

M 16



24





180 “

M 20



30





335 “

The tightening torque for the tyre fixing screws:

Front wheels 350 Nm

Rear wheels 180 “

- 89 -

Conversion for corn harvesting

For to harvest corn the combine can be equipped with 2-row corn header. Also some other

modifications have to be done for preparing the combine suitable for corn harvesting.

•  assemble a special 2-row corn header

•  make sure that wide space, heavy wire concave have been fitted

•  assemble filler plates to cylinder between rasp bars

•  change the canvas located behind rear beater to long one

•  assemble rear weigh to the tail of straw hood and put some 150 kg in it.

Assembling the corn header

•  The corn header is assembled by removing the wheat table from the feed conveyor and

replacing it with the corn header.

•  Remove header / feed elevator from the combine. Support feeder elevator safely.

•  Replace the pulley assembled to left end of upper shaft of feed conveyor with the sprocket

delivered with the corn header.

•  Replace belt idler pulley with the sprocket idler delivered with the header. Check that idled

and the driver sprocket assembled to upper shaft are in line with the driven sprocket.

•  Assemble drive chain (145x3/4” ASA) delivered with the header. Lubricate the chain.

•  Assemble chain guard delivered with corn conversion kit.

•  Assemble header / feeder elevator to the combine. Note that the swinging plate at upper

end of the bottom of feed conveyor goes above the front of concave.

•  Adjust the bottom of feeder elevator to lowest position.

•  Plug the oil hose removed from reel lifting line to prevent oil leakage.

Changing the concave

The concave is changed when feed conveyor have been removed.

Remove the extension of concave and let it on straw walkers.

Remove canvas assembled between front end of the grain pan an front end of the concave.

Remove rear connecting bolts of concave.

Loosen the nut of the right end of concave front support bar.

Remove pin of the left end of concave front support bar.

Pull the bar out to the right. (Two person are needed for this)

Assemble opposite order.

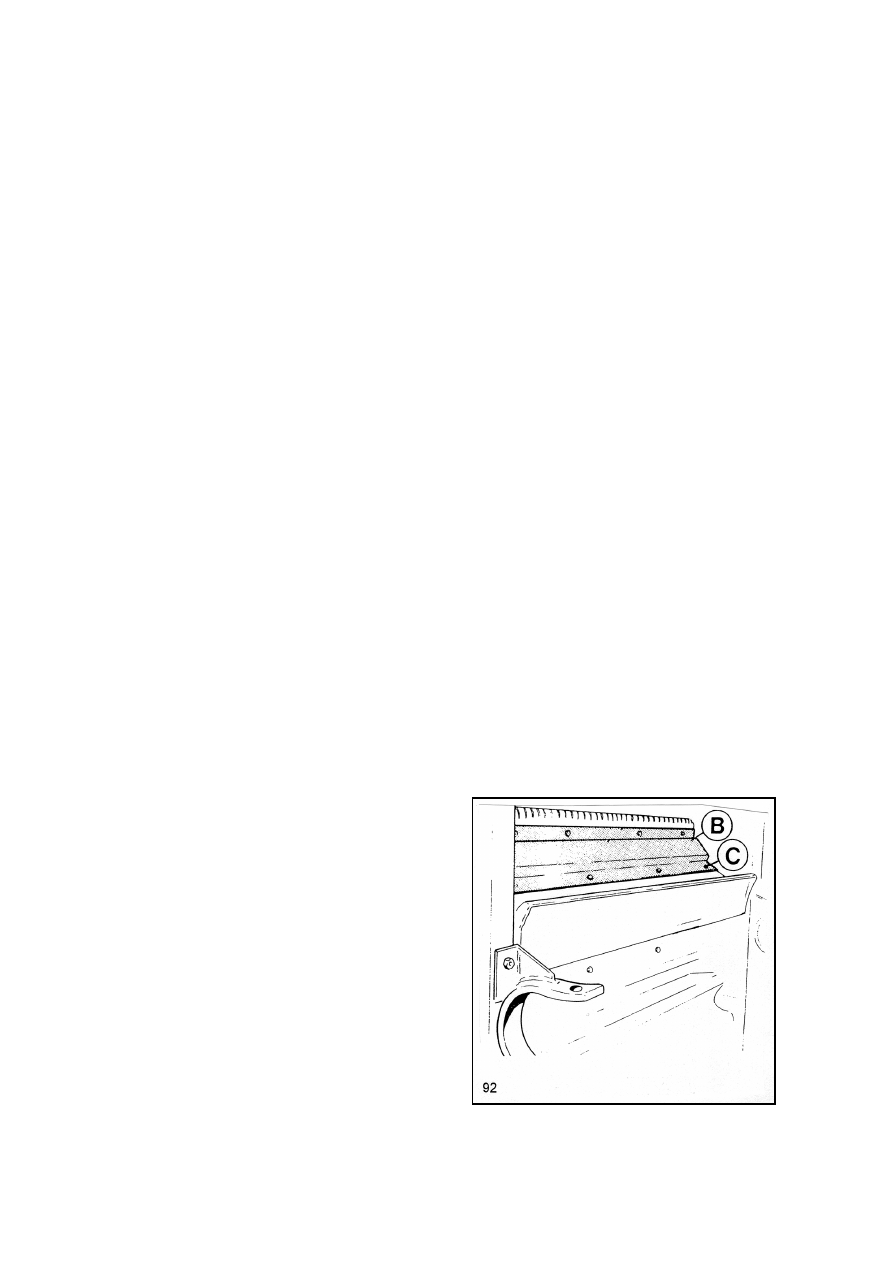

Assembling of cylinder filler plates.

Cylinder filler bars are needed for preventing

corn cobs travelling between bars.

They are assembled when feed conveyor is

dismounted.

In the corn conversion kit there are six

similar plates (B) and one different. Different

one is assembled at the top of the access

door of the cylinder. Mounting blots (C) have

been mounted the cylinder.

Max. speed 700 RPM can be used when filler

plates have been assembled.

- 90 -

300…700 rpm cylinder

speed range

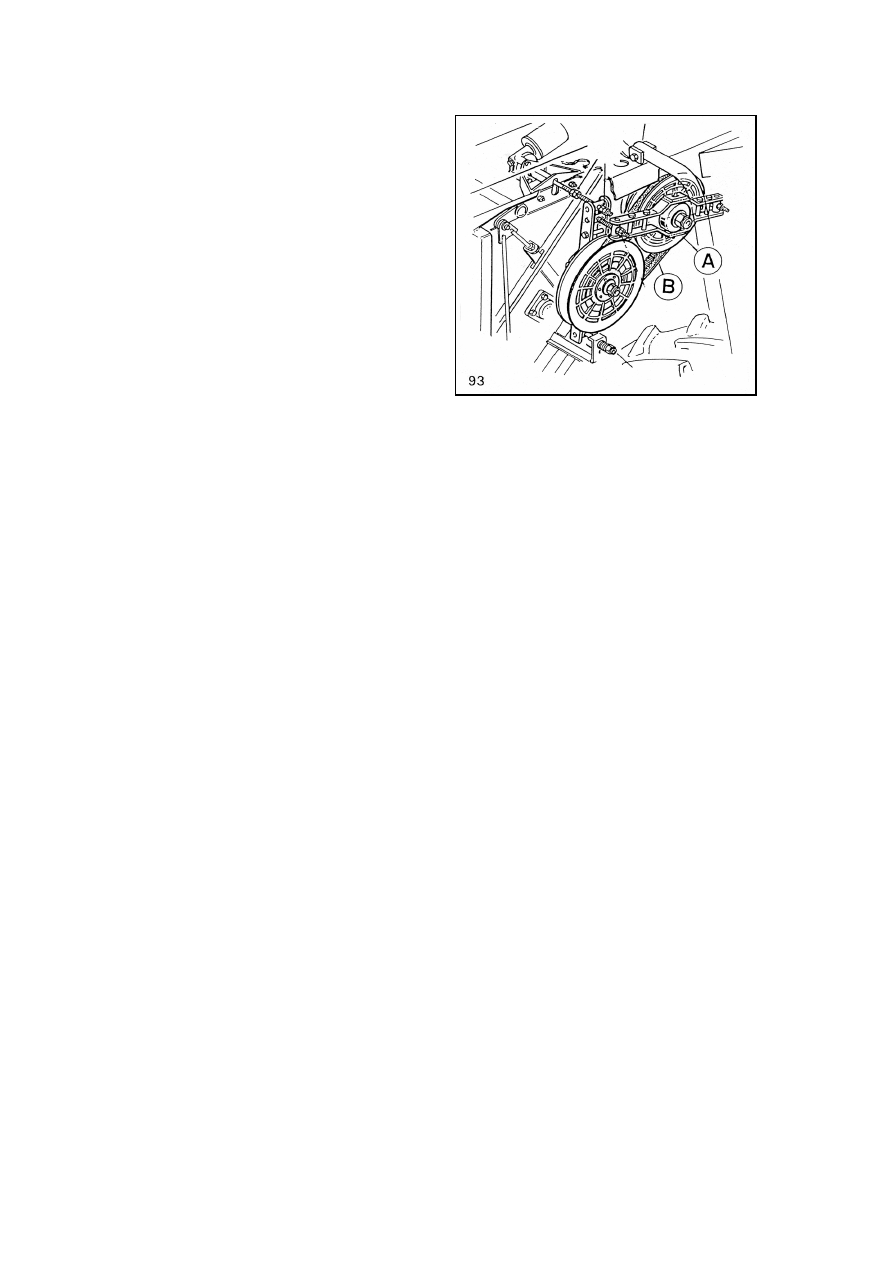

For cylinder speed under 400RPM a special

Low Speed Kit can be assembled. In this

case Pulley A on rear beater shaft and

cylinder drive belt have to be replaced with

new type parts. See Fig 93.

Part number for Low Speed Kit is R692873.
