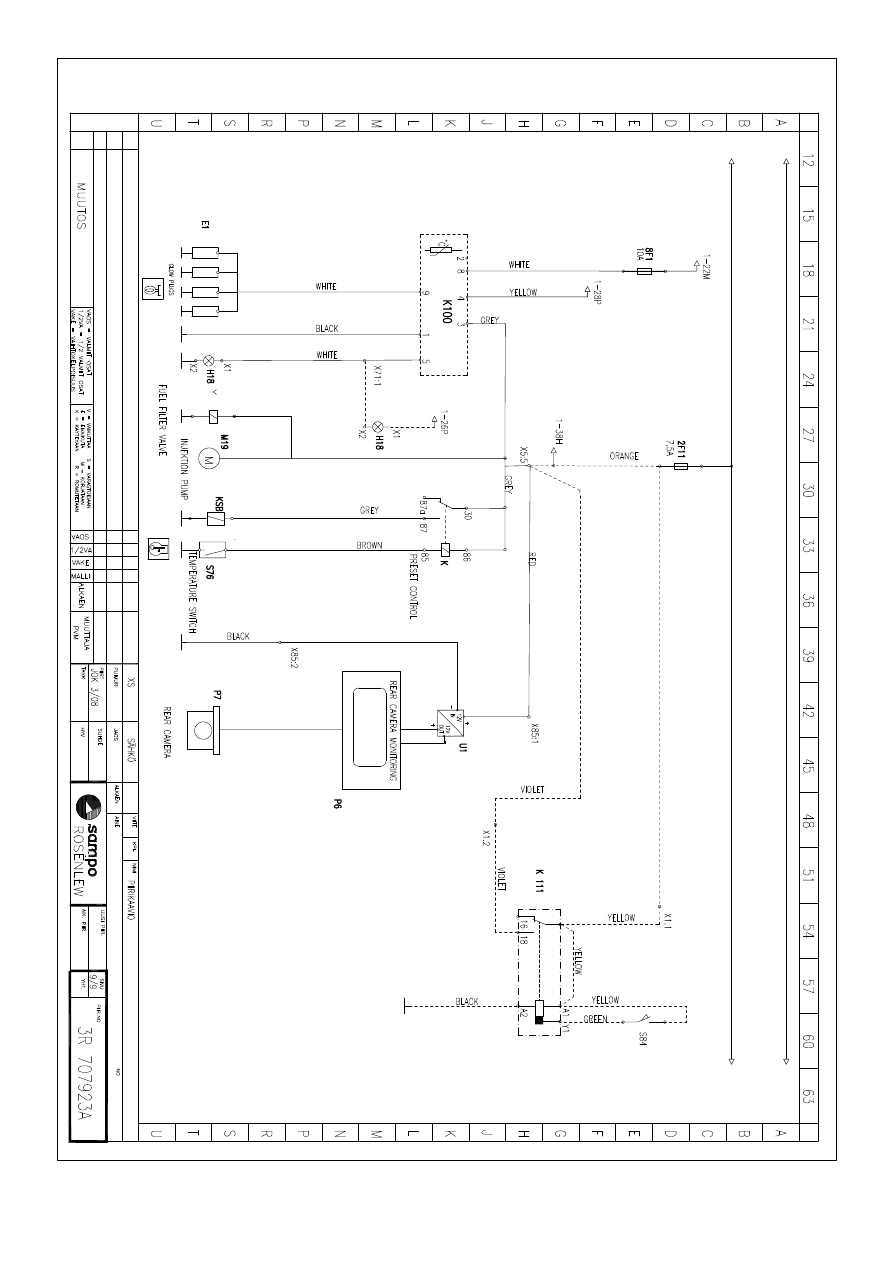

ELECTRICAL PARTS

X1:1

Unloadingtube back switch

X1:2
X1:3

Fuel level

X1:4

Coolant temperature

X1:5

Strawhood alert

X1:6

Switch, returnauger

X1:7

Switch, return bottom

X1:8

Generator D+

X1:9

Oil pressure, hydraulics safety relay ground


X2:1

right blinker

X2:2

right back light

X2:3

left back blinker

X2:4

left  blinker

X2:5

brake  light

X2:6

worklight sieve area

X2:7

worklight unloadingtube, strawhood in and





out side

X2:8

motor heat alert

X2:9

rotate light back


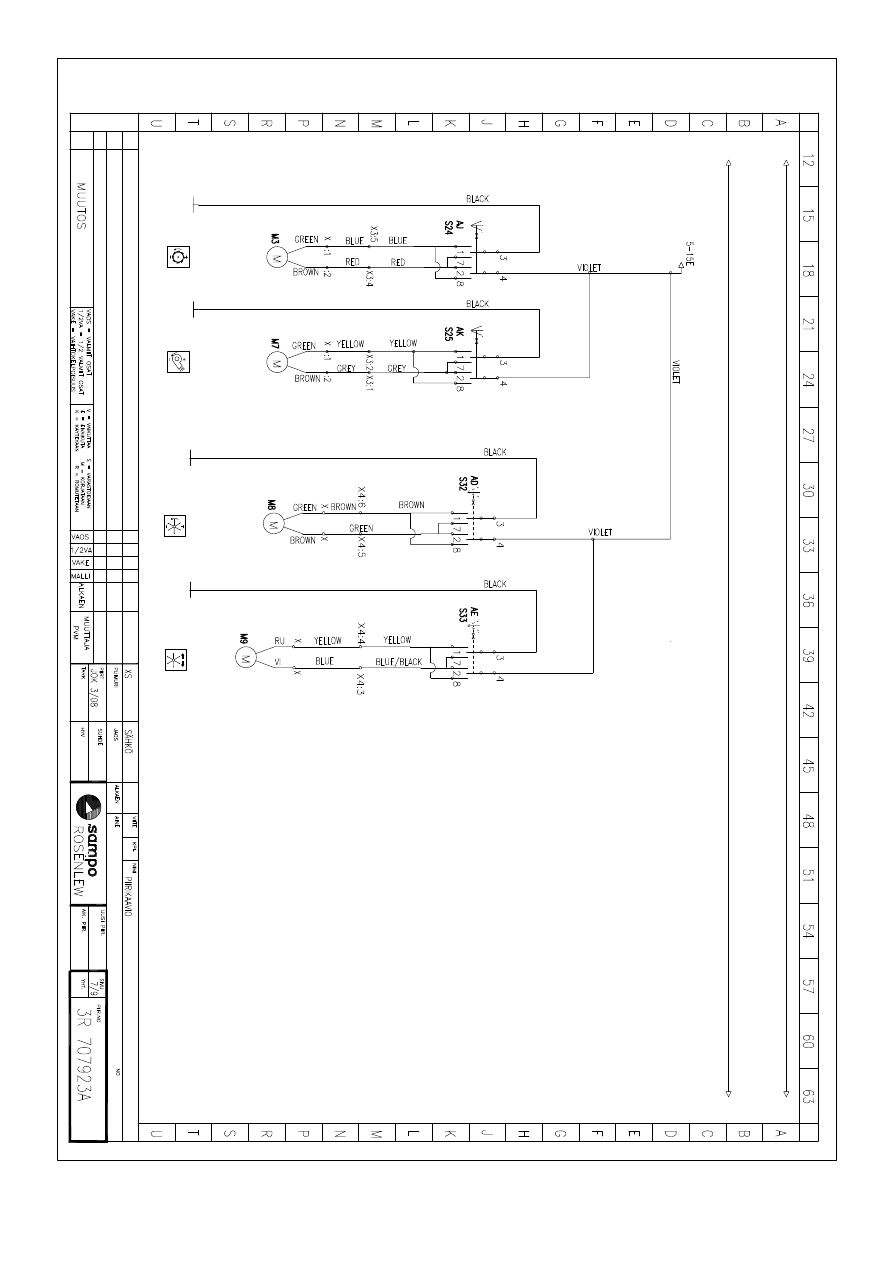

X3:1

blower speed motor

X3::2

blower speed motor

X3:3
X3:4

treshingdrum speed motor

X3:5

treshingdrum speed motor

X3:6

grain elevator alert

X3:7

unloading tube front alert

X3:8

unloading tube front alert

X3:9
X4:1

cutting table back

X4:2

reverse relay ground

X4:3

pickup reel front back motor

X4:4

pickup reel front back motor

X4:5

pickup reel speed motor

X4:6

pickup reel speed motor

X4:7

treshing drum limit switch

X4:8
X4:9

X5:1

start engine

X5:2

main  current

X5:3

main  current

X5:4

glow,  thermostart

X5:5

motor stop solenoid

X5:6

back  alert

X5:7
X5:8
X5:9

X6:1

rotate blinker front

X6:2

hand brake


X7:1

brake switch

X7:2

brake switch


X8:1

horn

X8:2

horn


X8,1:1 horn
X8,1:2 horn

X9:1

left blinker

X9:2

left park light


X10:1

left drive light

X10:2

left drive long light


X11:1

right drive light

X11:2

right drive long light


X12:1

right blinker

X12:2

right park light


X13:1

graintank light, cabin interior light

X13:2

graintank limit switch

X13:3

worklight front

X13:4

cabin blower switch,windscreen switch

X13:5

switch light windscreen

X13:6

radio, ignition +15


X14:1

blinker voltage

X14:2

blinker right

X14:3

blinker left

X14:4

light change voltage

X14:5

light change ground


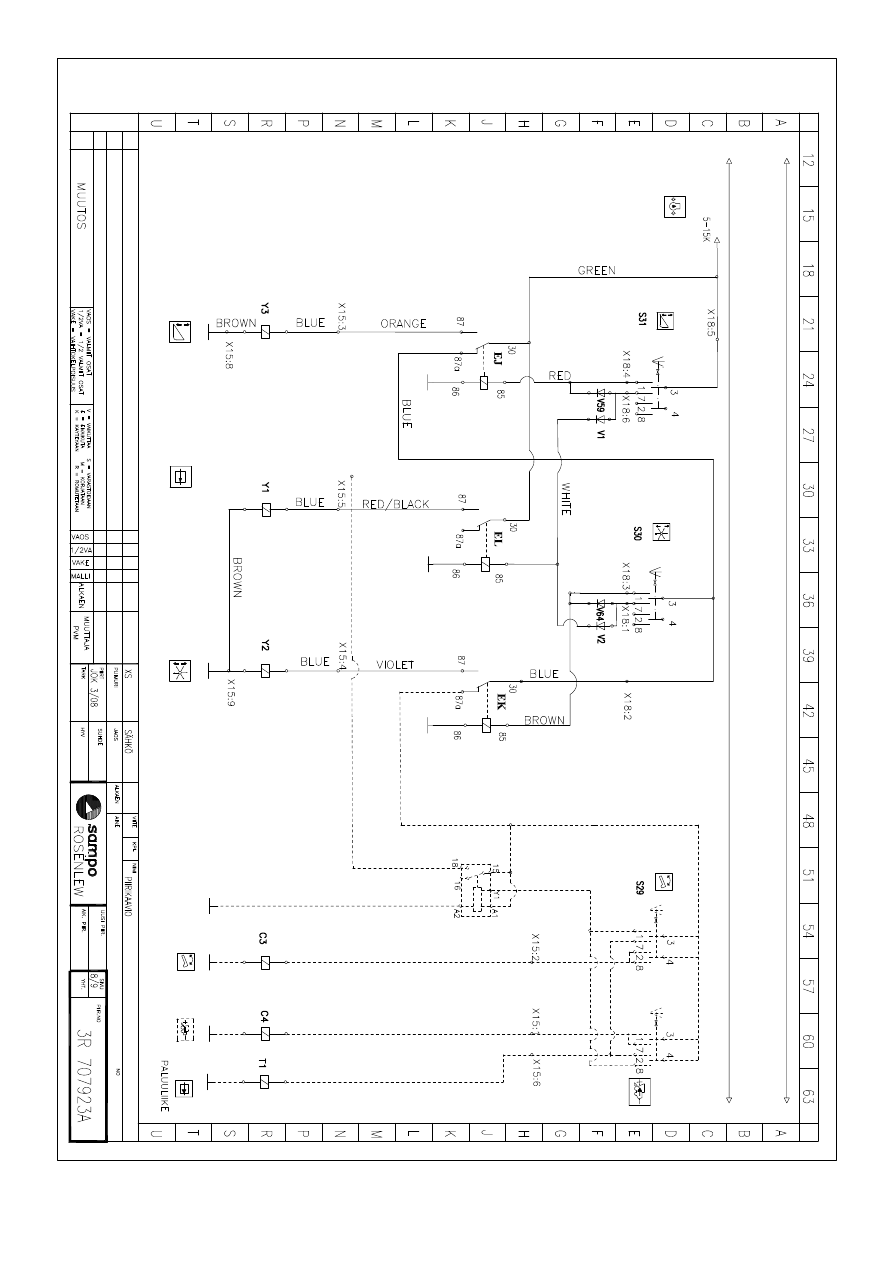

X15:1

mechanical transmission

X15:2
X15:3

cutting table

X15:4

pick- up reel

X15:5

free flow

X15:6
X15:7 ground
X15:8 ground
X15:9 ground

X16:1 Ac
X16:2
X17:1

backing alert

X17:2

backing alert


X18.1

pickup reel up

X18.2

pickup reel switch voltage

X18.3

pickup reel down

X18.4

cutting table down

X18.5

cutting table switch voltage

X18.6

cutting table up


X19:1

drive speed sensor voltage
