Periodic Inspection



85





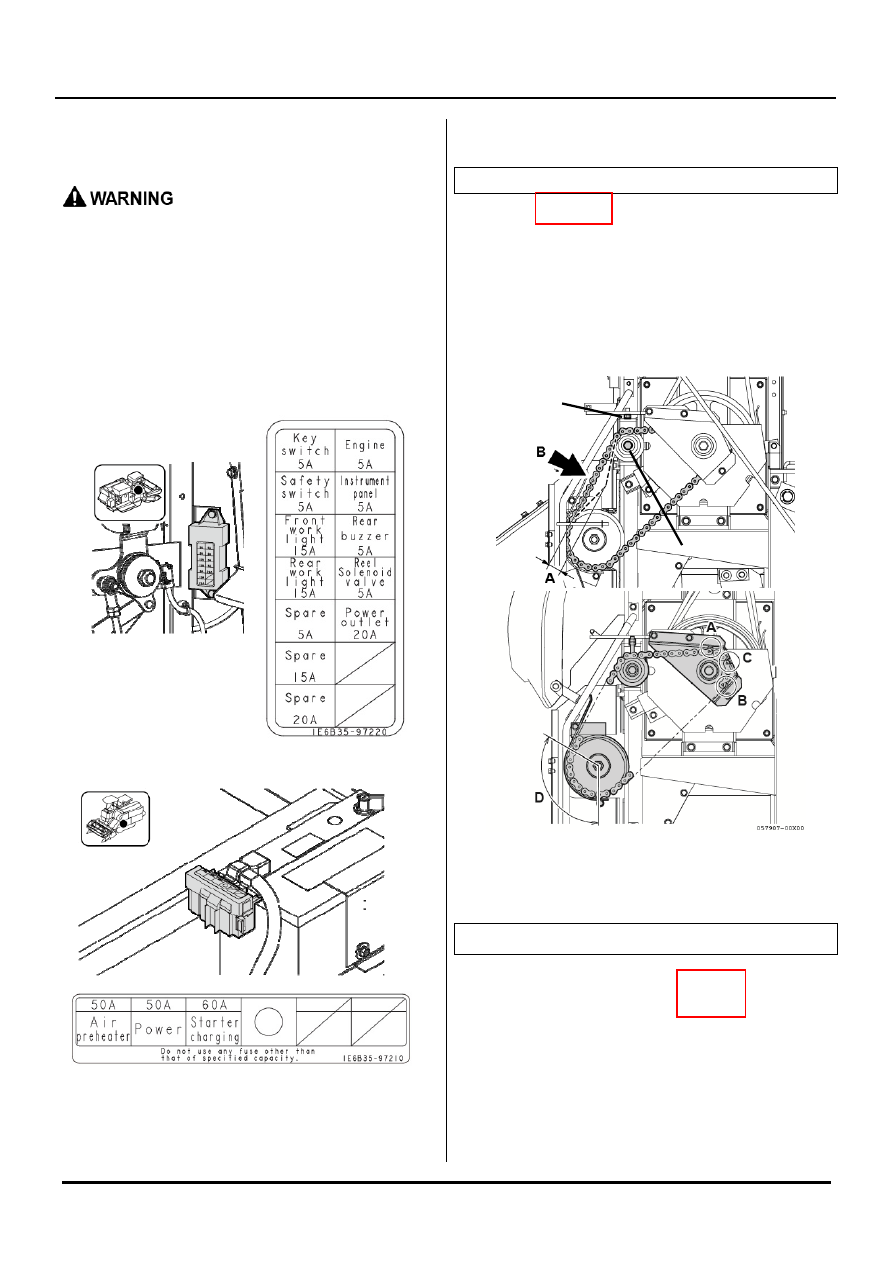

19. Checking and replacing fuse







Do not use any fuses not specified.
Otherwise, fire hazard may be caused.




Use the specified fuse for replacement if the fuse in the
fuse box breaks.
In case the fuse is once again broken after replacement,
take it to the dealer for checking.
The fuse box is located in the left board under the
driver’s seat.

























Do not use any fuse other than that of the specified
capacity.



20. Adjusting the chains



Header drive chain
Bending A (15±3mm) of the chain when you press the
central part (part B) slightly by hand.
<Adjusting>
1- Remove the upper and lower covers of threshing

section.

2- Remove the fixing bolts of tension wheel.
3- Use the adjusting bolt to tension the chain.
4- Fasten the fixing bolt and mount the side covers.





[Note]
Check whether there is a space between the covers
with the chain at A, B, C, and zone D.


Drive chains of the platform auger and reel




Bending A of the reel drive chain (16±3mm) and B of
the platform auger drive chain (19±3mm) when you
press the central parts (A and B) slightly by hand.
<Adjusting the reel drive chain>

1- Remove the right side cover of the header.
2- Loosen the fixing bolt to move the tensioning wheel.
3- Screw down the fixing bolt and mount the upper side

cover.

Adjusting bolt

Fixing bolt

Periodic Inspection



86




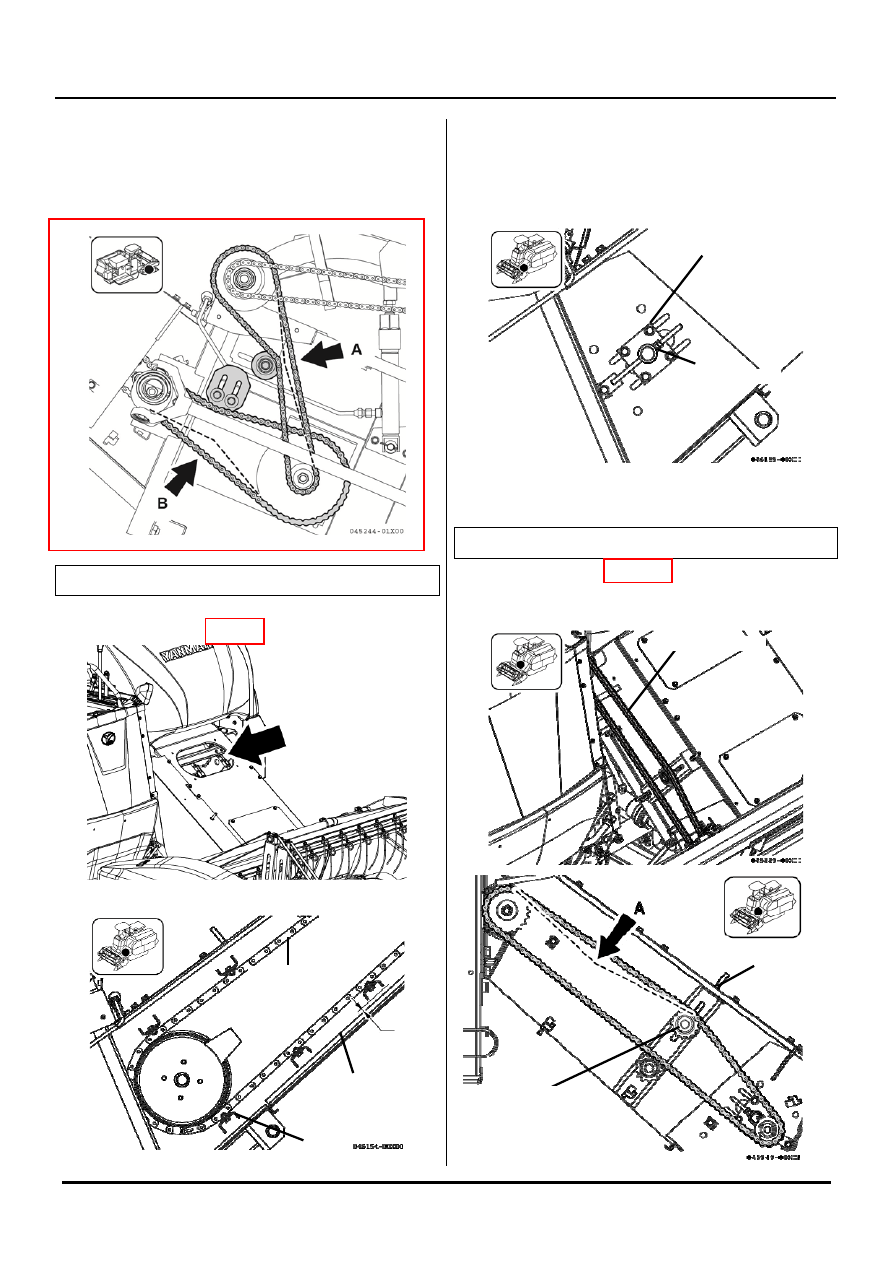

<Adjusting the header auger drive chain>
1- Remove the right side cover of the header.
2- Loosen the fixing bolt to adjust the tensioning nut.







Feeder house drive chain



The gap between the chain slat and the bottom of
feeder house is over 6±1mm (part A).








<Adjusting the feeder house drive chain>
1- Remove the chain cover.
2- Rotate the feeder house drive chain by hand.
3- Adjust the left and right sides concurrently.



4- Loosen the fixing bolt and turn the adjusting nut.
5- Tighten the fixing bolt and mount the cover.


Reaping section drive chain



The bending is about 20±3mm when you press the
central part (part A) slightly by hand.






Chain position

Base plate

A

Feeder house

drive chain

Slat

Fixing bolt

Adjusting nut

Chain position

Adjusting nut

Fixing bolt

Periodic Inspection



87




1- Loosen the fixing bolt and use the adjusting nut to

change the chain tension.

2- After checking the bending of part A, tighten the bolt

and mount the side cover.



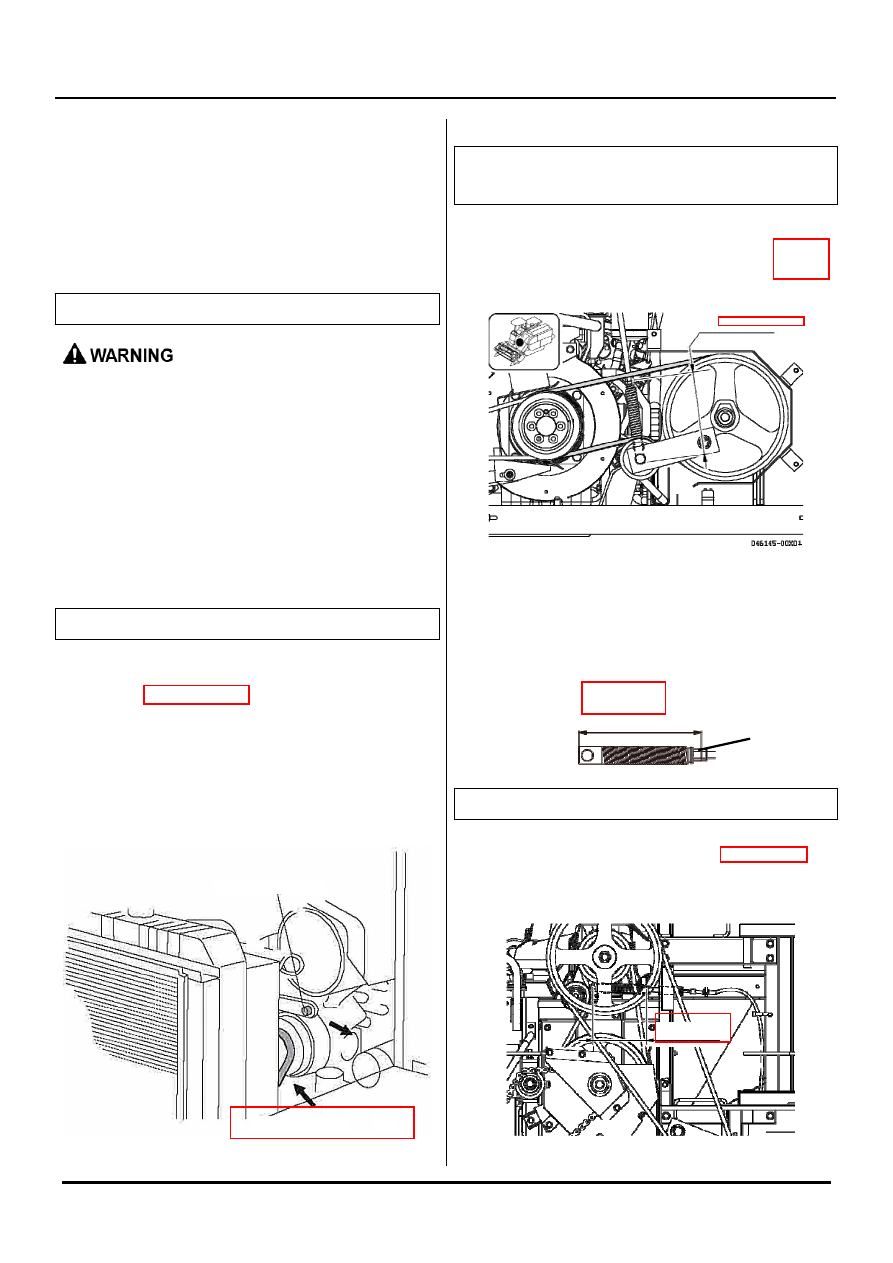

21. Adjusting the belts





Checking the belt tensioning wheel







Spark may be generated during operation
and cause fire if the belt tensioning wheel
is in contact with other parts (except the
belt).




[Precaution]
Check whether the belt tensioning wheel is in
contact with other parts before daily operation.
Adjust immediately in case of contact, and check
the internal bearing of belt wheel.


Cooling fan belt (engine)




Press the belt center with your finger to adjust the
deflection to 12.5±2.5mm.
<Adjusting>
1- Open the engine room cover.
2- Loosen the fastening bolt of generator.
3- Draw the generator to the direction of arrow to

tension the belt.

4- Tighten the fastening bolt.







Adjusting the tension of threshing clutch
belt




Put the threshing clutch lever to “ON” and check
whether the size of tension spring falls between 190±
2mm.





<Adjusting>
1- Remove the two covers of engine rear side.
2- Put the threshing clutch lever to “ON”.
3- Loosen the lock nuts (2 pieces) of threshing clutch

lever, and use the tensioning screw to adjust the
spring length to 190±2mm, as shown below.



Adjusting the tension of header clutch belt



Put the header clutch lever slightly to “ON” and check
whether the tension spring size falls in 233±2mm.




Deflection 12.5±2.5mm

Engine fixing bolt

Lock nut

190

±

2mm

233±2mm

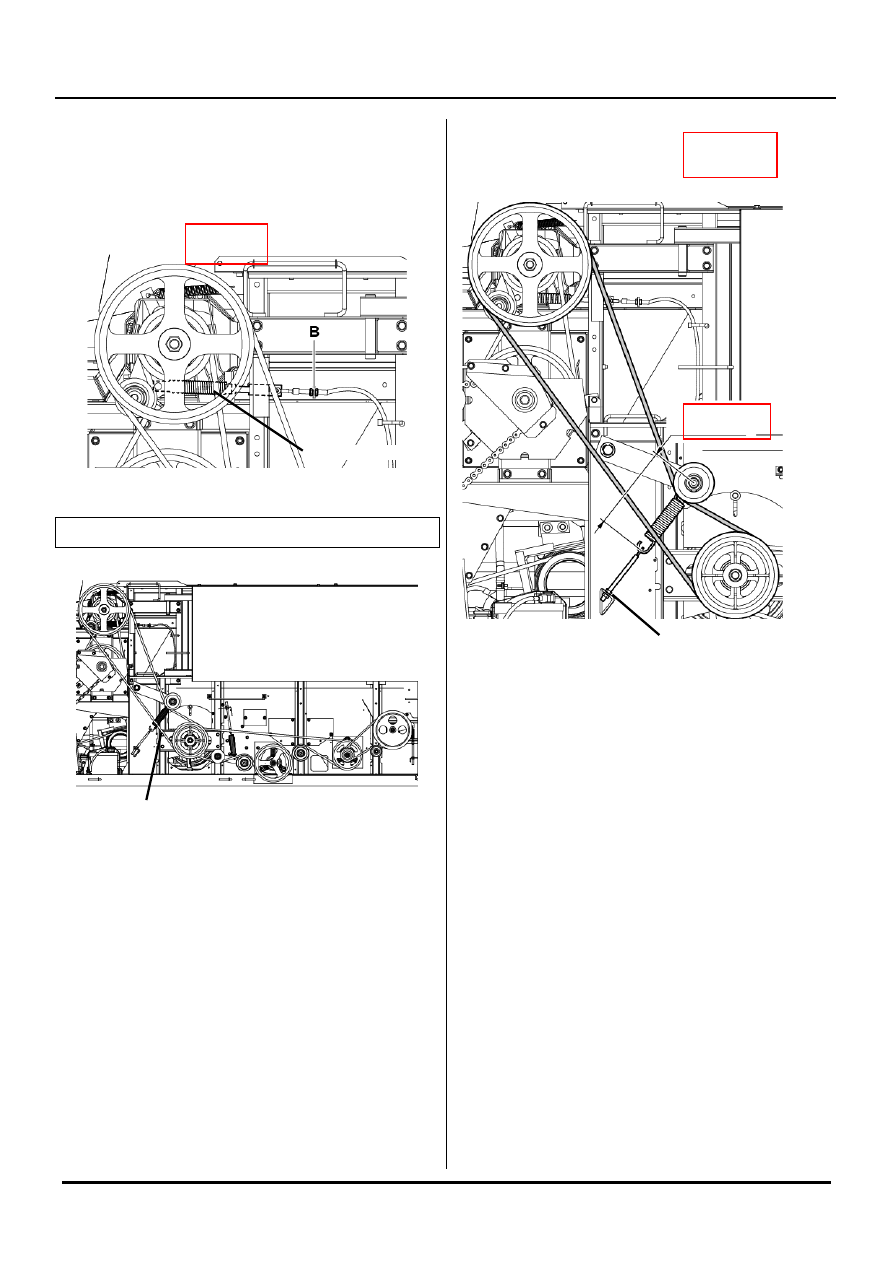

Periodic Inspection



88




<Adjusting>
1- Open the upper cover of the threshing section.
2- Put the header clutch lever to “ON”.
3- Use the header clutch wire (part B) to adjust the

spring length to 233±2mm, as shown below.






Threshing rotor drive belt



























Adjust the tension spring length to 270±2mm.






<Adjusting>
1. Remove the side cover of the threshing section.
2. Loosen the lock nut and turn the adjusting nut to

change the spring length.

3. Fix it with the lock nut.







Tension spring

Threshing rotor drive belt

270

±

2mm

Adjusting part
