COMBINE HARVESTER AW70V, VNQ, AW82V, VNQ. Manual - part 15

Operation



61





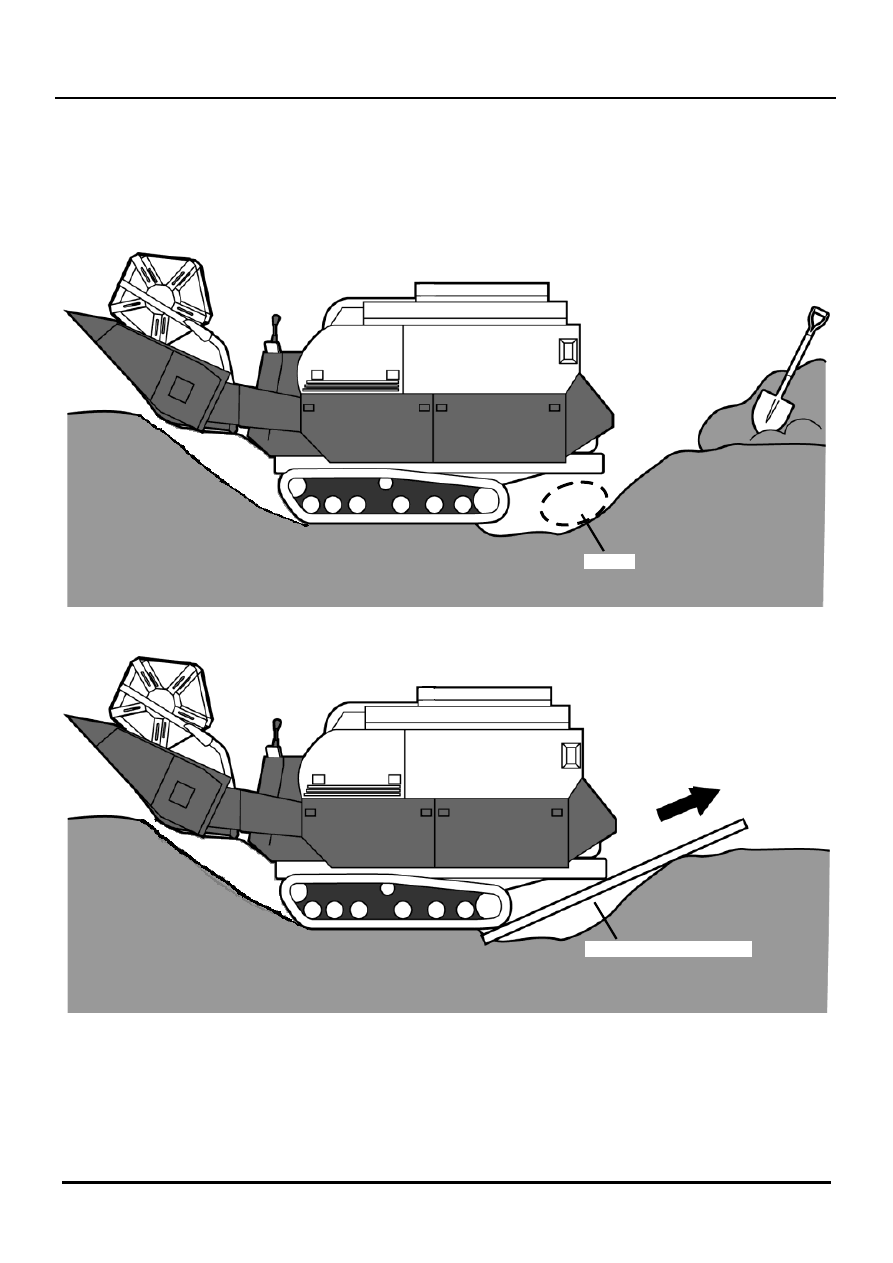

If it is unavailable to use a rescue truck for towing, loading/unloading plate, gangplanks and other materials
can be used to make the machine available for towing. In this case, fully remove clay attached on the track.
Otherwise, the machine cannot be towed due to crawler sliding.










[Note]

Never use your combine harvester to tow any other machines, or mechanical failure may be caused.



Towing



Shovel

Digging



Loading / unloading plate

Operation



62





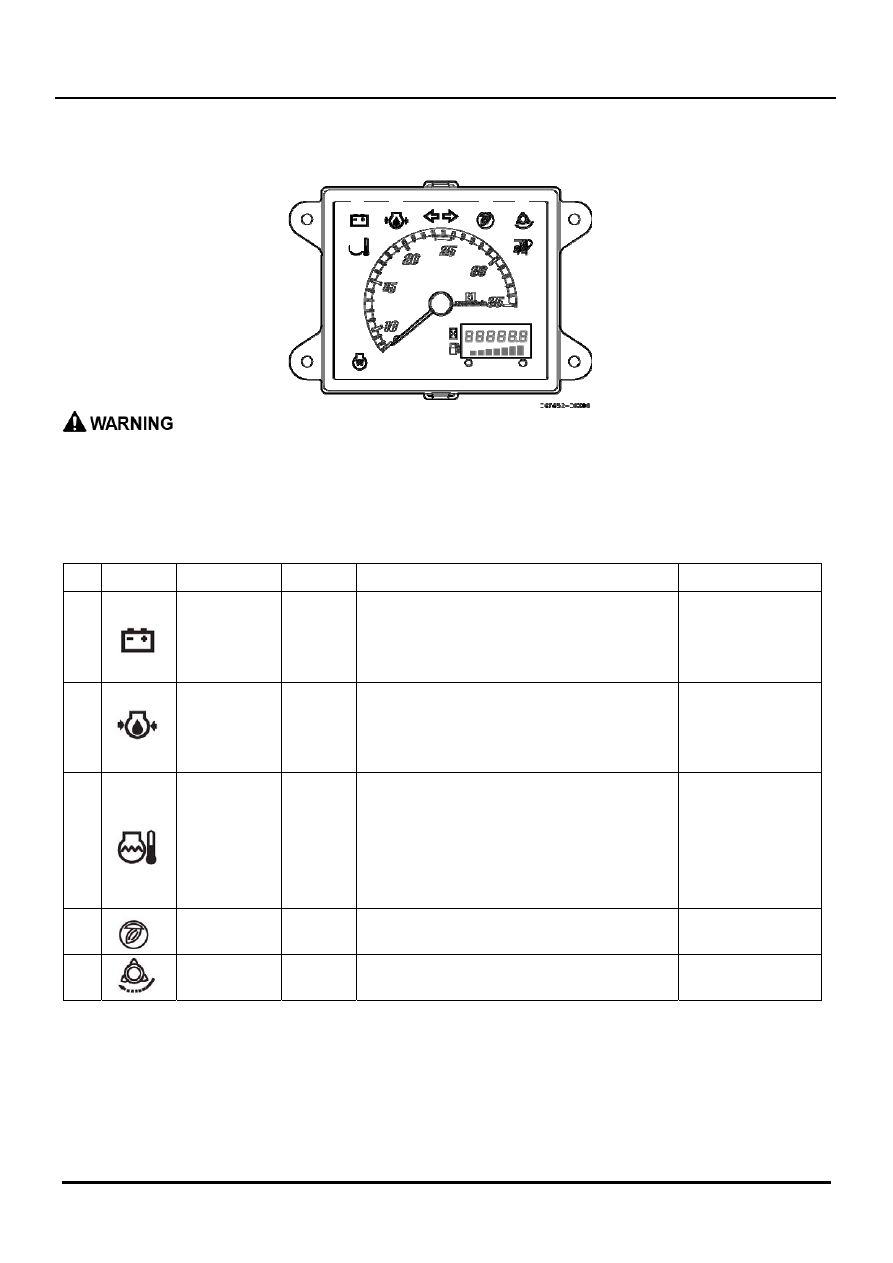

5. Alarm

























  Stop the engine without fail and engage the brake pedal lock, when you remove jam.



  Do not put the hand in the conveyor and the chain. It causes to injure.



When the indicator lamps or the buzzer sounds, make sure of abnormal point and take the following steps.



No Mark

Name

Alarm

Remedy

Check/maintenance

1

Charging

○



It is normal that the indicator is on after turning
the key switch to “ON” and off after the engine
starts up. Check the charging circuit if the
indicator remains lit during operation.



 Tension

of

engine fan
belt

2



Oil pressure

○



It is normal that the indicator is on after turning
the key switch to “ON” and off after the engine
starts up. Check oil quantity if the indicator
remains lit during operation.



 Insufficient

engine oil.



 Low

oil

viscosity

3



Water

temperature

◎



Perform no-load operation at a low speed till
the indicator goes out, and then turn off the
engine. If the cooling liquid is insufficient, add
after the engine cools down.



  Tension of fan

belt



 Water

leakage



 Cleaning

dust

on the screen
of radiator

4



Grain tank

◎



When the tank is full of grain, stop the
harvesting, and discharge grain.



5



2nd

◎



If the secondary conveyer is blocked, stop the
machine and clean completely.



 Belt

tension

○

  means the indicator is lit;  ◎  means the indicator is lit while the buzzer sounds;





○

1



○

2

○

3



○

4

○

5

Maintenance after operation



63




1. Post-operation maintenance









  Be sure to stop the engine and lock

the brake pedal before lock cleaning
and unclogging.



  Your hand may be nipped by moving

parts or cutter and injuries be caused
in case of maintenance while the
engine is running.



  Never smoke or use open fire for

lighting during refueling.



  Tighten the fuel tank cover and wipe

off any spilled fuel after refueling.


After cleaning with water, wipe off water fully, and then
add lubricant in various moving and sliding parts. In
particular, the cutters should be coated with lubricating
grease in advance, chains, wires and other greasing
parts must be added with lubricant.

[Precaution]





It is not allowed to clean with water any parts
other than the chassis, so as to avoid failures.





After inspection and maintenance of parts, be
sure to perform test run to check their working
condition.



2. Detaching and opening of each

part





Be sure to stop the engine and lock the
brake pedal before detaching or opening
any parts. Otherwise, you may be injured.







Make sure to replace the detached panels
after operation, or you may get injured.





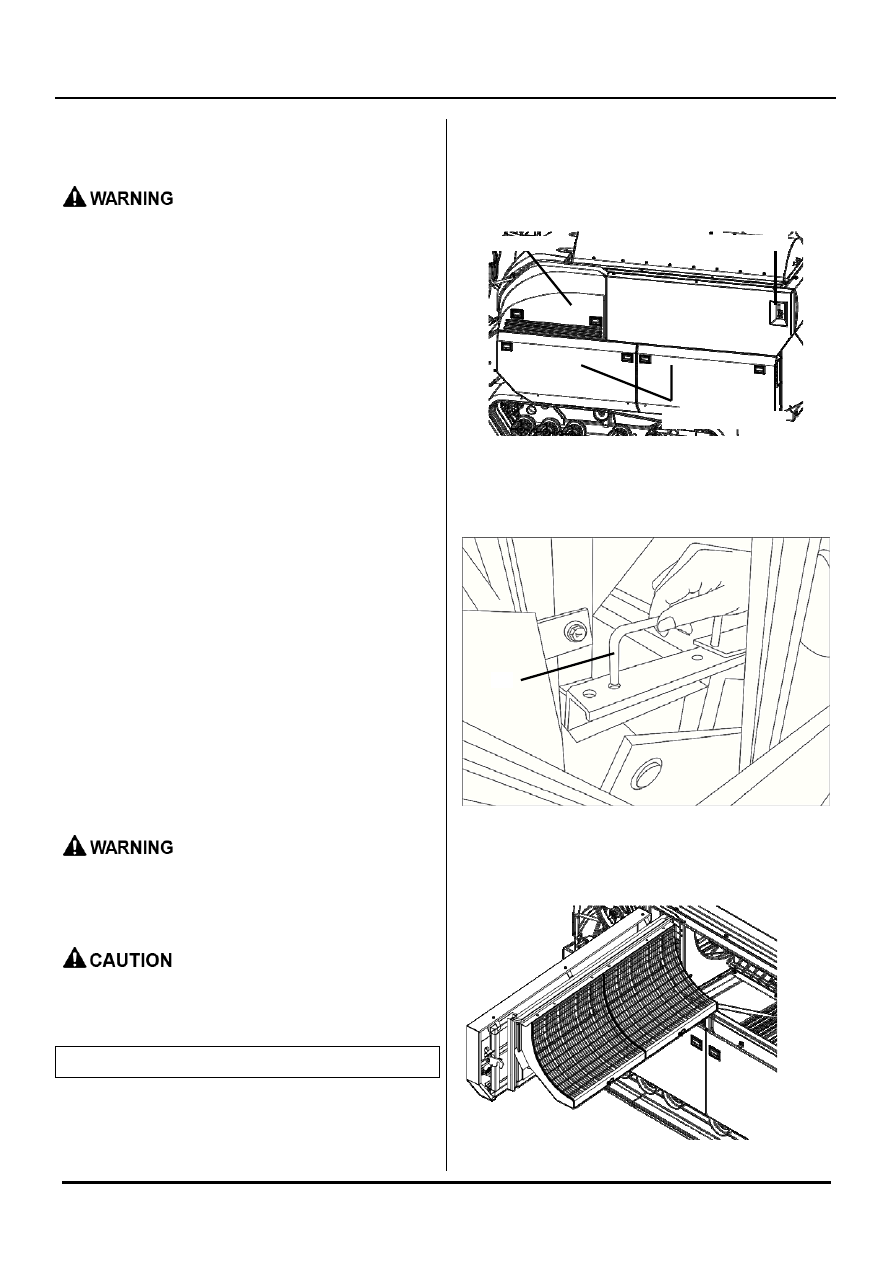

Opening the threshing section




Open the threshing section as instructed below for
section of the concave screen and inside.



1- Lower down the header to the lowest position, and

then open the upper cover and side cover of the
threshing section.







2- Pull out the pin of rotating fulcrum of the side

threshing section.







3- Pull the fixing lever of threshing section outward to

open the side threshing section.







Pin

Upper cover

Fixing lever

Side cover of

threshing chamber

Maintenance after operation



64




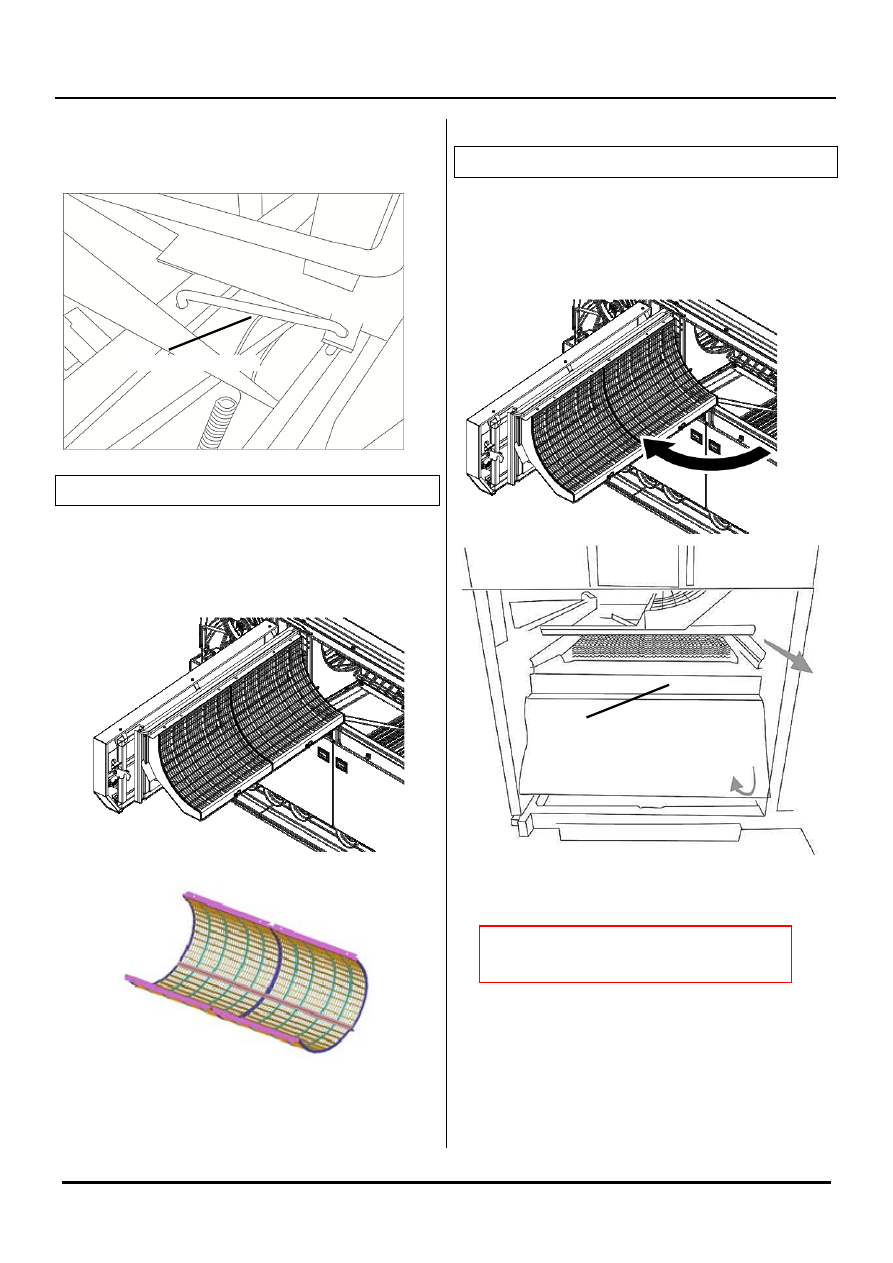

4- Change the position of pin hole to fix the side

threshing chamber after it is opened.





Detaching the concave screens




Open the side threshing chamber, and loosen the fixing
bolts to detach the 4 concave screens inside and
outside.
















Detaching the swing separator





1- Open the side threshing section.

2- The swing separator can be seen after the two

protective covers at the rear end are removed.







Changed pin position



Swing separator
