Huawei OptiX BWS 1600G. Technical Description - part 3
1 Overview
1.5 Network Management System
Huawei NM is able to manage not only DWDM equipment, but also the entire
OptiX family members including SDH and Metro equipment. In compliance with
ITU-T, NM offers rich network maintenance functions. It can manage the fault,
performance, configuration, security, maintenance and test of the entire OptiX
network. It also provides the end-to-end management function according to the
requirements of users. It improves the quality of network services, reduces the
maintenance cost and ensures the rational use of network resources.
NM with friendly Man-Machine interfaces, powerful and state-of-the-art
functionality, is used in OptiX BWS 1600G system. Its object-oriented design
allows the user to enable or disable any service according to the physical network.
In an OptiX BWS 1600G network, NM provides many functions, such as:
End-to-end channel (wavelength) management
Wavelength resource statistical analysis
Terminal simulation program
Alarm management
Performance management
System management
Equipment maintenance and management
1-13
2 Product Description
2
Product Description
The hardware of the OptiX BWS 1600G includes:
Cabinet
Subrack
Power box
Fan tray assembly
DCM frame
HUB frame
The cabinet can hold subracks that are installed with different boards to form
different equipment types.
2.1 Cabinet
2.1.1 Overview
Table 2-1 lists the full configuration of ETSI 300 mm cabinets of different heights.
When the cabinet is not fully configured, configure the work subracks from bottom
to top.
Table 2-1 Full configuration of 300 mm deep cabinets of different heights
Cabinet
Amount of
Amount of
Amount of
Amount of
height
power boxes
subracks
DCM frames
HUB frames
1.8 m
1
2
1
1
2.0 m
1
2
1
1
2.2 m
1
3
1
1
2.6 m
1
3
2
1
A power box is mounted at the top of an OptiX BWS 1600G cabinet. The OptiX
BWS 1600G is powered with -48 V DC or -60 V DC. Two power supplies are
2-1
2 Product Description
provided as mutual backup to each other. It also provides 16-channel external alarm
input interfaces and 4-channel cabinet alarm output interfaces, easing the
management of the equipment.
The OptiX BWS 1600G cabinet has the following features:
The cabinet leaves much space for routing and managing optical fibers.
Two movable side doors are installed at both sides of the cabinet. Each side
door can move in or move out along the top and bottom slide rails.
Air vents are provided at the front door of the subrack, the rear door and
upper enclosure frame of the cabinet to ensure heat dissipation.
For the structure of the cabinet, see Chapter 1 "Cabinet" in OptiX BWS 1600G
Backbone DWDM Optical Transmission System Hardware Description.
2.1.2 Specifications
Table 2-2 Specification of the cabinet
Height
Width
Depth
Weight (kg)
Maximum system power
(mm)
(mm)
(mm)
consumption (W)
Type 1
2600
600
300
78 (Note1)
2000 (Note2)
Type 2
2200
600
300
69 (Note1)
2000 (Note2)
Type 3
2000
600
300
64 (Note1)
1300 (Note2)
Type 4
1800
600
300
58 (Note1)
1300 (Note2)
Note1: The value including the weight of the power box and the empty cabinet.
Note2: The value is measured when the cabinet is fully loaded.
2-2
2 Product Description
2.2 Subrack
2.2.1 Structure
The OptiX BWS 1600G subrack is divided into four areas. The upper part is the
interface area where all kinds of electrical signals are accessed. The middle part is
the board area where DWDM boards are installed and the lower part comprise the
fibre cabling area & fan tray assembly area. The structure of the subrack is shown in
Figure 2-1.
1
2
3
4
H
D
W
5
6
7
8
1. Interface area
2. Beam
3. Board area
4. Fiber spool
5. Fiber laying area
6. Fan tray assembly
7. Subrack front door
8. Hook

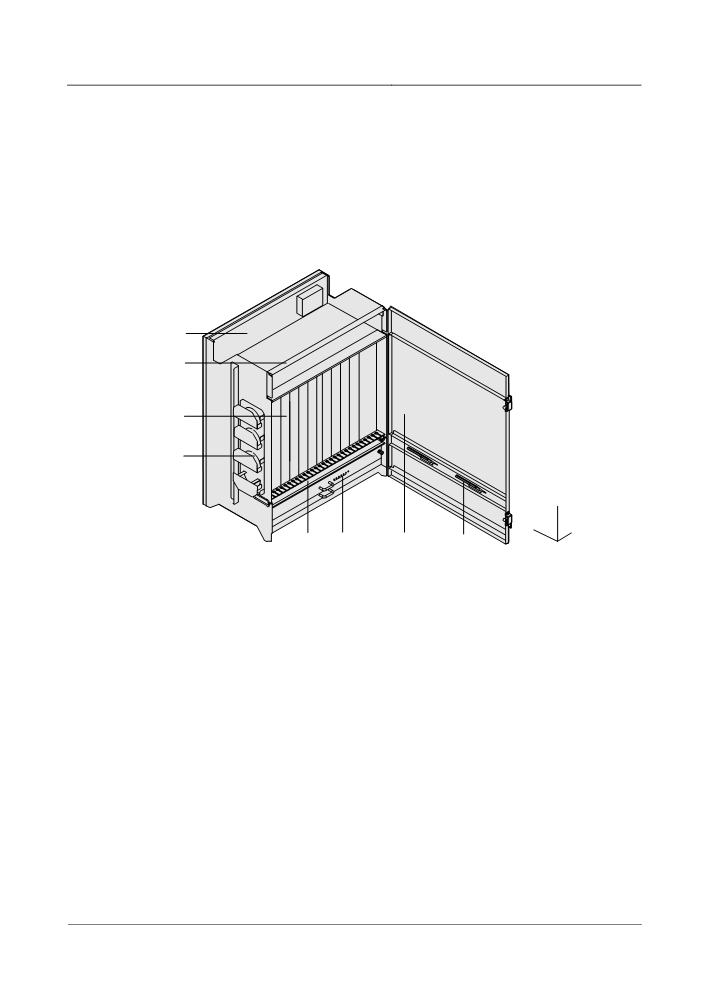

Figure 2-1 OptiX BWS 1600G subrack
Interface area
All external interfaces are located in this area, including the interfaces for subrack
power supply, NM, orderwire telephone, and so on.
The interface area also works as a heat dissipation outlet of the subrack. A beam (a
solid metal sheet) is placed at the top of subrack to fix the orderwire phone.
Board area
Totally 13 board slots are available, numbered IU1, IU2, IU3, … IU13 from left to
right when you face the front surface of the subrack. Slot IU7 is for the SCC/SCE
board and is 24 mm wide. Other slots are 38 mm wide. All optical ports are located
on these front panels. Most optical ports are of LC/PC type while the "LINE",
"EXT" and "OUT" optical ports on the front panel of the Raman amplifier unit and
"OUT" port of the HBA board are of LSH/APC type.
Fibre cabling area
2-3
2 Product Description
All the optical fibres from the optical ports are routed to this area. These optical
fibres then come out of this area and reach the corresponding side of the subrack.
There are fibre spools at the two sides of the subrack, allowing good management
over the optical fibres.
Mechanical variable optical attenuator (VOA) is installed here.
Fan tray assembly
This area contains a fan tray and an air filter. The air filter is fixed beneath the fan
tray. The fans and the air filter ensure that the equipment works in a dust-free and
normal temperature environment.
Front door
The front door is intended for equipment protection and EMC. The inner side of the
front door is equipped with hooks to hold the screws for adjusting the mechanical
VOA.
Fibre spools
They are used to coil the slack of the optical fibre.
2.2.2 Specifications
Table 2-3 Specifications of the subrack
Item
Parameter
Dimensions
625 mm (H) x 495 mm (W) x 291 mm (D)
Weight
18 kg (with the backplane but with not boards and fan
tray assembly)
Maximum system power
650 W
consumption (fully loaded)
For more details, see Chapter 3 "Subrack" in OptiX BWS 1600G Backbone DWDM
Optical Transmission System Hardware Description.
2-4
2 Product Description
2.3 Functional Units
This section describes the basic functional units (boards) of the OptiX BWS 1600G
system. According to their functions, the boards can be categorized as:
Optical transponder unit
Optical multiplexer/demultiplexer and add/drop multiplexer
Optical amplifier unit
Optical supervisory channel and timing transporting unit
Performance monitoring and adjustment unit
Optical fibre automatic monitoring unit (optional, not depicted in Figure 2-2)
Protection unit (optional, not depicted in Figure 2-2)
System control and communication unit (not depicted in Figure 2-2)
Figure 2-2 shows the positions of the boards in the system, illustrating only the
unidirectional signal flow.
2-5
2 Product Description
1
-EVEN
1
OTU
M40
D40
OTU
4 0
I
OTU
4 0
RPL
I
T
OAU
OAU
T
1
C-ODD
L
1
L
VOA
OTU
M40
C-band
C-band
OTU
4 0
OAU
MR2
OBU
D40
RPC
4 0
client
F
F
F
F
I
I
C-band
I
client
side
1
L-EVEN
I
U
U
U
1
U
side
L-band
OTU
M40
L-band
D40
OTU
4 0
4 0
I
I
T
OAU
OAU
OAU
T
1
L-ODD
L
L-band
1
L
OTU
M40
D40
OTU
4 0
4 0
SC1/TC1
SC2/TC2
SC1/TC1
OTM
OADM
OTM

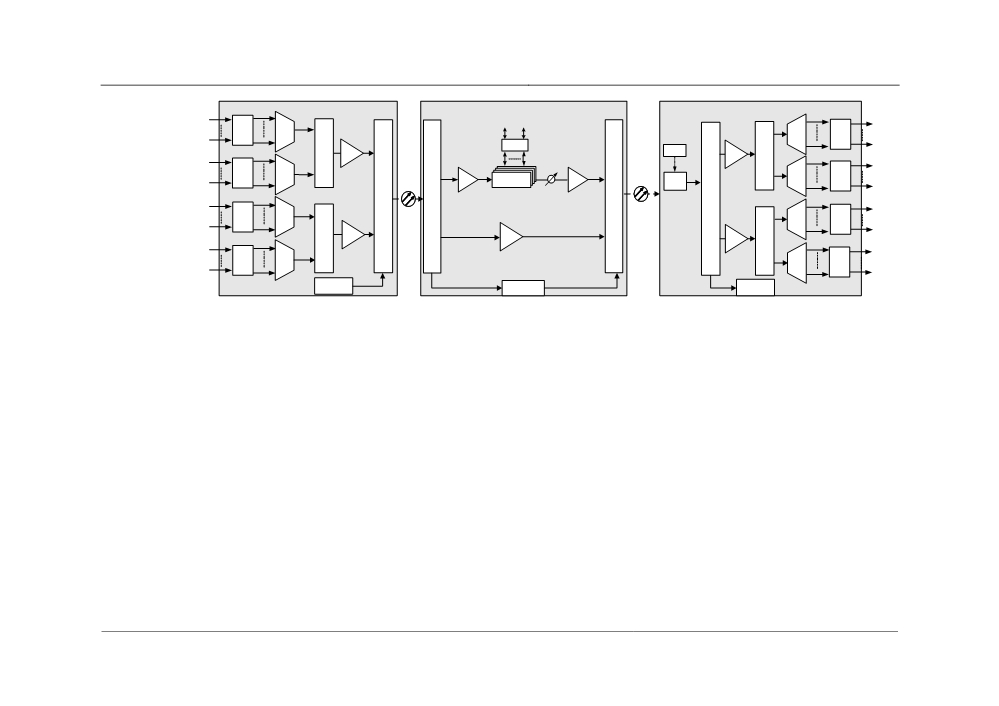

Figure 2-2 Positions of the boards in the system
2-7
2 Product Description
2.3.1 Optical Transponder Unit
Table 2-4 Board name and category of the optical transponder unit
Service type
Board
Board description
10Gbit/s
E2LWF
STM-64 transmit-receive line wavelength conversion unit with FEC
optical
function
transponder
E3LWF
STM-64 transmit-receive line wavelength conversion unit with AFEC
unit
function
E2LWFS
STM-64 transmit-receive line wavelength conversion unit with FEC
function (Super WDM)
E3LWFS
STM-64 transmit-receive line wavelength conversion unit with AFEC
function (Super WDM)
LRF
STM-64 line regenerating wavelength conversion unit with FEC function
LRFS
STM-64 line regenerating wavelength conversion unit with FEC function
(Super WDM)
TMR
10.71G line regenerating wavelength conversion board with AFEC and
G.709
TMRS
10.71G line regenerating wavelength conversion board with AFEC and
G.709 (Super WDM)
LBE
Transmit-receive line wavelength conversion board for 10GE (LAN)
LBES
Transmit-receive line wavelength conversion board for 10GE (LAN)
(Super WDM)
10Gbit/s
TMX
4-channel STM-16 asynchronous MUX OTU-2 wavelength conversion
convergent
board
optical
TMXS
4-channel STM-16 asynchronous MUX OTU-2 wavelength conversion
transponder
board (Super WDM)
unit
LOG
8-port Gigabit Ethernet multiplex optical wavelength conversion board
LOGS
8-port Gigabit Ethernet multiplex optical wavelength conversion board
(Super WDM)
2.5Gbit/s and
LWC1
STM-16 line wavelength conversion unit (compliant with G.709)
lower optical
TRC1
STM-16 optical transmitting regenerator (compliant with G.709)
transponder
unit
LWM
Multi-rate optical wavelength conversion board
LWMR
Multi-rate optical wavelength conversion relay board
LWX
Arbitrary bit rate wavelength conversion unit
LWXR
Arbitrary bit rate regenerating board
2-9
2 Product Description
Service type
Board
Board description
2.5Gbit/s
LDG
2 x Gigabit Ethernet unit
convergent
FDG
2-port Gigabit Ethernet wavelength conversion board With FEC
optical
transponder
unit
The following table briefs the application and functions of the above boards. For
more details, see Chapter 6 "Optical Transponder Unit" in OptiX BWS 1600G
Backbone DWDM Optical Transmission System Hardware Description.
Table 2-5 Application and description of wavelength conversion units (10 Gbit/s)
Board name
Application
Function
Regenerati
ng board
E2LWF (Note
Channel spacing: 50 GHz
The LWF board is an STM-64
LRF
1)
or 100 GHz
transmit-receive line wavelength
conversion unit with FEC.
Line code: NRZ
In the transmit direction (towards DWDM),
Applied to type I, II, III,
the LWF board converts the STM-64 client
IV, VI systems
signal into the G.694.1-compliant DWDM
FEC mode: FEC
signal of the standard wavelength. In the
receive direction, the LWF restores the
G.694.1-compliant DWDM signal of the
standard wavelength to the STM-64 client
signal.
The signal encoding and decoding is
compliant with ITU-T G.975, supporting
G.709-compliant overhead processing.
Supports wavelength adjustment for the
transmitted optical signal on the DWDM
side.
It does not support SuperWDM technology.
E2LWFS
Channel spacing: 50 GHz
The function, encoding/decoding and
LRFS
or 100 GHz
overhead processing are the same as that of
the E2LWF.
Line code: CRZ
It does not support wavelength adjustment
Applied to type II, III, VI
for the transmitted optical signal on the
systems
DWDM side.
FEC mode: FEC
Supports SuperWDM technology.
2-10
2 Product Description
Board name
Application
Function
Regenerati
ng board
LRF
Channel spacing: 50 GHz
Achieves the 3R functions (reshaping,
LRF
or 100 GHz
retiming and regeneration) for the FEC
encoding signal with the rate of 10 Gbit/s.
Line code: NRZ
Signal wavelengths input or output by the
Applied to type I, II, III,
board are all G.694.1-compliant DWDM
IV, VI systems
wavelengths.
FEC mode: FEC
The signal encoding and decoding is
compliant with ITU-T G.975, supporting
G.709-compliant overhead processing.
Supports wavelength adjustment for the
transmitted optical signal on the DWDM
side.
It does not support SuperWDM technology.
LRFS
Channel spacing: 50
The function, encoding/decoding and
LRFS
GHz/100 GHz
overhead processing are the same as that of
the LRF.
Line code: CRZ
It does not support wavelength adjustment
Applied to type II, III, VI
for the transmitted optical signal on the
systems
DWDM side.
FEC mode: FEC
Supports SuperWDM technology.
E3LWF
Channel spacing: 50 GHz
The LWF board is an STM-64
TMR
or 100 GHz
transmit-receive line wavelength
conversion unit with AFEC.
Line code: NRZ
In the transmit direction (towards DWDM),
Applied to type I, II, III,
the LWF board converts the STM-64 client
IV, VI systems
signal into the G.694.1-compliant DWDM
FEC mode: AFEC
signal of the standard wavelength. In the
receive direction, the LWF restores the
G.694.1-compliant DWDM signal of the
standard wavelength to the STM-64 client
signal.
The signal encoding and decoding is
compliant with ITU-T G.975.1, supporting
G.709-compliant overhead processing.
Supports wavelength adjustment for the
transmitted optical signal on the DWDM
side.
It does not support SuperWDM technology.
2-11
2 Product Description
Board name
Application
Function
Regenerati
ng board
E3LWFS
Channel spacing: 50 GHz
The function, encoding/decoding and
TMRS
or 100 GHz
overhead processing are the same as that of
the E3LWF.
Line code: CRZ
It does not support wavelength adjustment
Applied to type II, III, VI
for the transmitted optical signal on the
systems
DWDM side.
FEC mode: AFEC
Supports SuperWDM technology.
LBE
Channel spacing: 50 GHz
The LBE board is a 10 GE-LAN
TMR
or 100 GHz
transmit-receive wavelength conversion
unit with AFEC.
Line code: NRZ
In the transmit direction, the LBE board
Applied to type I, II, III,
converts the 10GE-LAN signal into the
IV, VI systems
10.71 Gbit/s G.694.1-compliant DWDM
FEC mode: AFEC
signal of the standard wavelength. In the
receive direction, the LBE restores the
G.694.1-compliant DWDM signal of the
standard wavelength to the 10 GE-LAN
client signal.
The signal encoding and decoding adopts
Huawei’s own AFEC encoding established
on ITU-T G.975, supporting
G.709-compliant overhead processing.
Supports wavelength adjustment for the
transmitted optical signal on the DWDM
side.
It does not support SuperWDM technology.
LBES
Channel spacing: 50 GHz
The function, encoding/decoding and
TMRS
or 100 GHz
overhead processing are the same as that of
the LBE.
Line code: CRZ
It does not support wavelength adjustment
Applied to type II, III, VI
for the transmitted optical signal on the
systems
DWDM side.
FEC mode: AFEC
Supports SuperWDM technology.
Note 1: E2 and E3 in the brackets before the board name are hardware versions.
2-12
