TM 10-8400-203-23&P. Manual - part 17





 TM

10-8400-203-23&P

0018

0018-3/4 blank

SIZING


Table 2. Sizing Chart.



AREA TO BE MEASURED

MEASUREMENT

TOLERANCE

Length*

24

+ 1 inch

Width**

+ 3/4 inch

Face opening***

9 1/2

+ 1/2 inch



1.  Place hood face side upon a flat surface, align bottom edges of front and back of bib and butt top and

bottom edges of facial opening. With hood in this position measure in a straight line from folded edge
of crown at highest point to bottom of hood at lowest point on bib.

2.  With hood positioned in footnote * measure across the hood in a straight line from folded edge to

folded edge. The line of measurement shall be perpendicular to the length measurement and 1 /2 to 1
inch (1 .27 to 2.54 cm) below the tuck.

3.  Fold hood in half lengthwise so fold runs in the length direction of the center top cover and center

neck cover.

4.  Place folded hood on flat surface with edges of face opening even.

5.  Place one hand on neck end of face opening, holding hood against surface with other hand, slide top

of hood along surface toward back of hood until curvature along the side edges of face opening
approximates a straight line.

6.  With hood in this position measure along the edge of face opening from fold at center neck cover to

fold at center of top cover.

END OF TASK

END OF WORK PACKAGE







 TM

10-8400-203-23&P

0019

0019-1

FIELD MAINTENANCE

ADVANCED COMBAT VEHICLE CREW HELMET

INSPECT, SERVICE, REPAIR





Tools Personnel

Required

Die Tool, Fastener (WP 0046, Item 1)



Die, Eyelet (WP 0046, Item 2)

Non-MOS Specific (1)

File, Hand, Flat (WP 0046, Item 3)



Holder, Die (WP 0046, Item 7)

References

Holder, Die Fastener (WP 0046, Item 8)


WP 0005

Pliers, Diagonal Cutting (WP 0046, Item 10)

WP 0007

Pliers, Lineman’s (WP 0046, Item 11)

WP 0033

Pliers, Needle Nose (WP 0046, Item 12

WP 0046

Pliers, Slip Joint (WP 0046, Item 13)

WP 0047

Screwdriver, Flat Tip (WP 0046, Item 23



Screwdriver, Flat-Tip, 1/4-Inch (WP 0046, Item
24)

Materials/Parts

Ruler, Tab, Metal, 16 Inches (WP 0046, Item 19)

Refer to WP 0033 for complete parts listing.






INSPECT

Perform PMCS inspection on all items IAW WP 0005 and determine serviceability IAW WP 0007.

END OF TASK

SERVICE

General Cleaning Procedures


CAUTION



Remove batteries from the battery box before cleaning.

Do not use a pointed tool when removing foreign matter from swivel joints and moveable parts.
Be careful not to puncture ear-cushioning seals.


NOTE



For saltwater operations, complete headset, including internal electronics, must be rinsed with fresh
water and air-dried daily.


1.  Clean the helmet shell with soap and warm water.

2.  Rinse with clean water.

3.  Clean the synthetic rubber edging of the shell with a clean cloth to remove dirt, dust, oil, grease, and

perspiration. Ensure all communication components such as cords, microphone, microphone boom,
connectors, and ear pads are free of any dirt or contamination.

 TM

10-8400-203-23&P

0019

SERVICE – CONTINUED

0019-2

4.  Remove loose dirt with a clean, soft cloth damped with a mild detergent solution.

5.  Remove grease, fungus, or grime with a soft brush and mild detergent.

6.  Hand wash camouflage cover in warm water (about 120° F) and mild laundry detergent or machine

wash on permanent press cycle.

7.  Rinse thoroughly with clean warm water after laundering.

8.  Hang and let air-dry.

9.  Clean the Helmet Liner Assembly Components as necessary by removing and washing the

components with a mild solution of detergent and water.

10.  Air dry components after washing.


END OF TASK

REPAIR

Only qualified personnel shall accomplish work. The finished ACVC components shall be complete,
clean, and free from defects affecting their serviceability and appearance. Threads shall be neatly
trimmed. Sealed seams shall show no leakage when tested. Seams shall not be twisted, pleaded, or
puckered. Stitch tension shall be adequate, not loose or tight, with specified number of stitches per inch
on major portions of seam. The material shall not be defective or damaged in any manner. The material
shall not contain cuts, tears, mends, burns, needle chews or holes.

Helmet Shell Repair

Repairs the helmet shell only in accordance with WP 0018.

END OF TASK

Rubber Edging Repair

Repair synthetic rubber edging by re-bonding it to the helmet shell edge or bonding the appropriate
lengths of new edging to replace a damaged portion. Roughen the surfaces before bonding adhesive
edging.

END OF TASK

Repairing the headset component


When repairing any headset component (as seen below for the left and right earcups), care should be taken to
identify cables during disassembly to facilitate proper reassembly. All cables are colored coordinated (I.E. Red
to Red, Blue/White to Blue/White, Green to Green, etc). All cable and switch entries should be resealed after
assembly with any standard commercially available silicone sealant to preserve waterproofing and the sound
attenuation, which protects hearing and aid in intelligible communications (Figure 1).


 TM

10-8400-203-23&P

0019

SERVICE – CONTINUED

0019-3

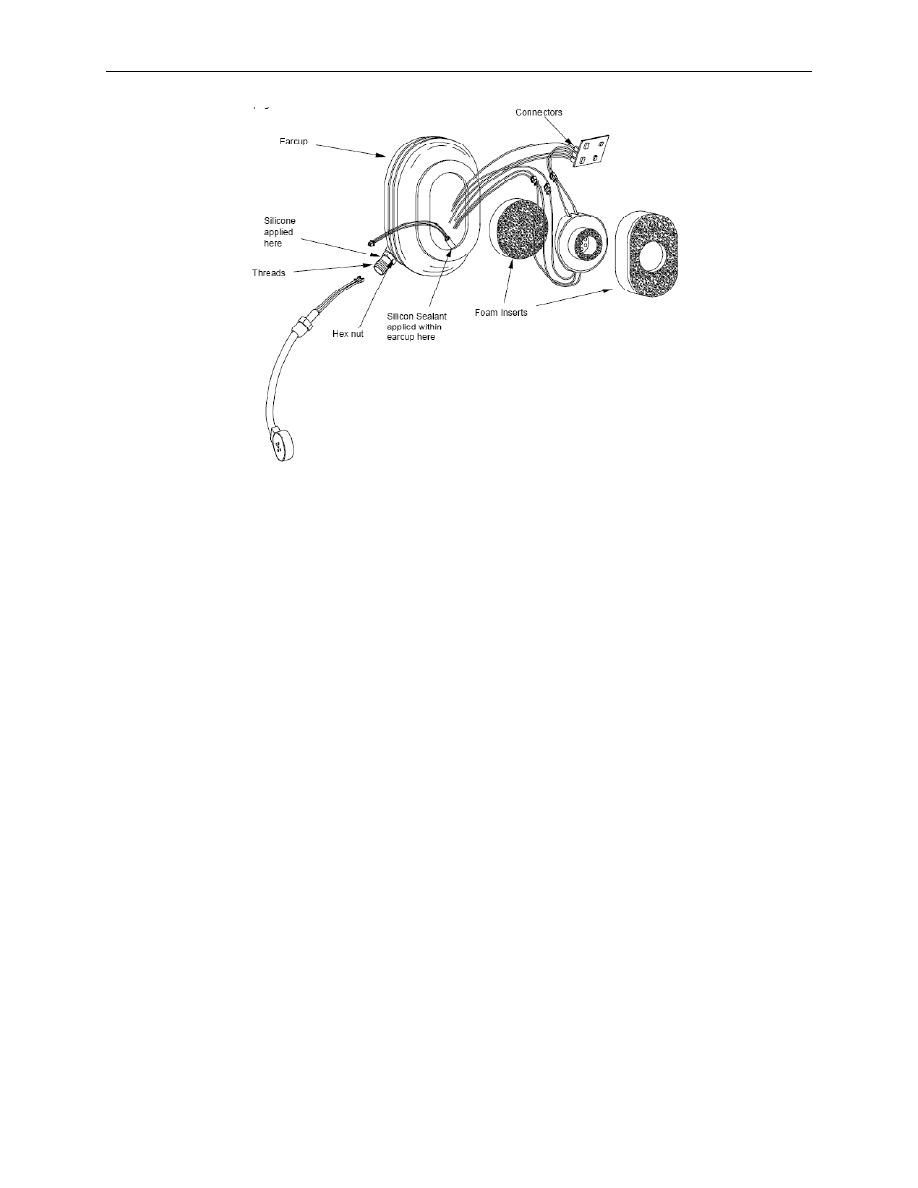

Figure 1. ACVC Microphone Assembly.


To repair the Mic/Boom Assembly, remove the foam inserts from the right earcup. Take note of the order of
assembly. Unplug the connectors with the red & white wires inside the earcup and unscrew the Assembly from
the outside using a wrench or pliers. Remove any sealant from the threads of the earcup and carefully hands
tighten the Assembly into the earcup. Using the same removal tool, grasp the hex nut closest to the threads
and tighten the Assembly into the earcup taking care not to strip the plastic threads. Seal around the Assembly
from inside the cup with silicone sealant to preserve waterproof characteristics and the noise cancellation
characteristics, plug in the connector with the red & white wires.


When repairing any headset component (Figure 2), care should be taken to identify cables during
disassembly to facilitate proper reassembly. All cables are colored-coordinated. All cable and switch
entries should be resealed after assembly with any standard commercially available silicone sealant to
preserve waterproofing and the sound attenuation, which protects hearing and aid in intelligible
communications. When replacing earphones simply remove the foam inserts from the earcup, taking note
of the order of assembly. Unplug the color-coded wires/connectors from within and reconnect the same
way. Replace the earphone assembly and foam inserts in the same order as removed.

 TM

10-8400-203-23&P

0019

SERVICE – CONTINUED

0019-4

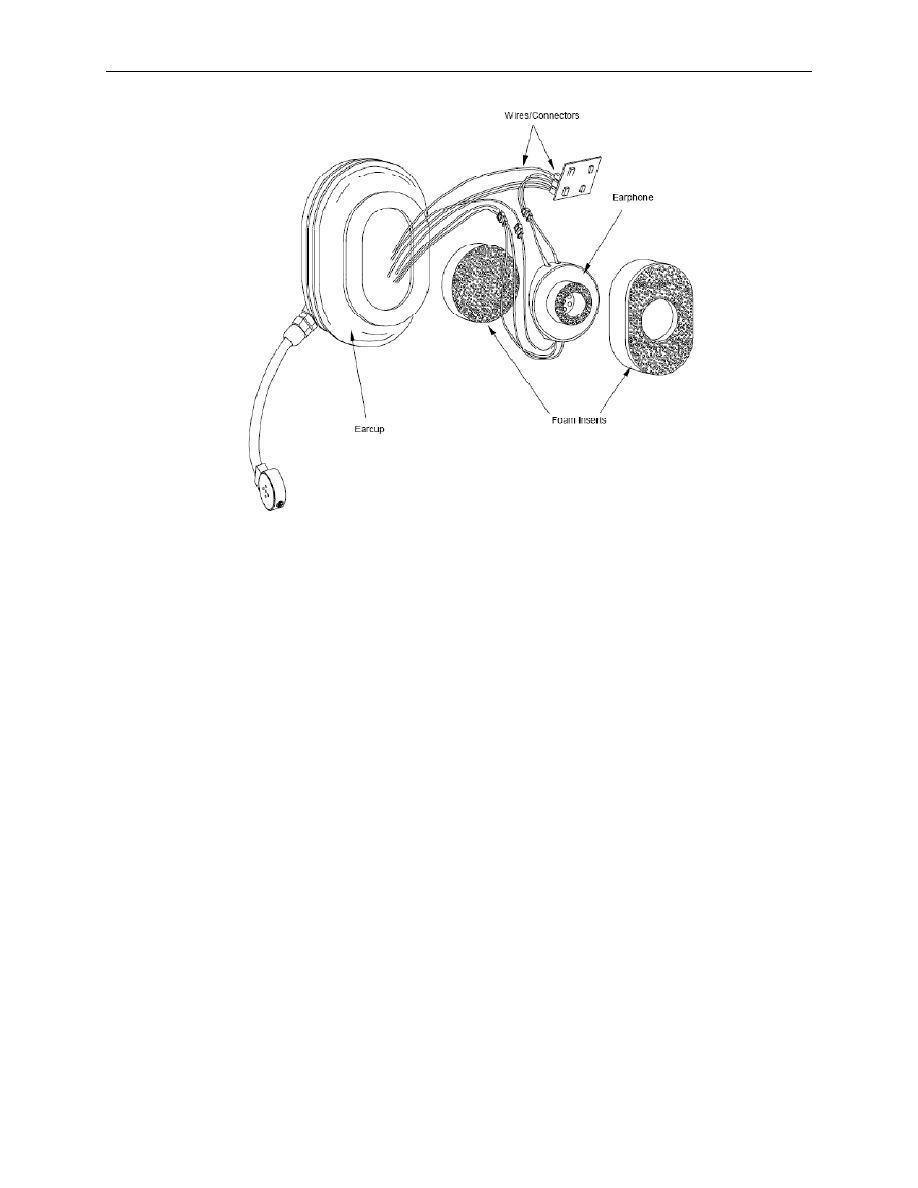

Figure 2. Headset Assembly.


END OF TASK

Repairing the Mic/Boom

Assembly




1.  Take note of the order of assembly, and remove the foam inserts from the right earcup.

2.  Unplug the connectors with the red & white wires inside the earcup and unscrew the

Assembly

 from

the outside using a wrench or pliers.

3.  Remove any sealant from the threads of the earcup and carefully hands tighten the

Assembly

 into the

earcup.

4.  Using the same removal tool, grasp the hex nut closest to the threads and tighten the

Assembly

 into

the earcup taking care not to strip the plastic threads.

5.  Seal around the

Assembly

 from inside the cup with silicone sealant to preserve waterproof

characteristics and the noise cancellation characteristics, plug in the connector with the red & white
wires.

END OF TASK

Repairing the Talk-Through Switch

1.  Taking note of the assembly order, remove the foam fillers and earphone assembly from the right ear-

cup.

2.  Unplug the mini connectors coming from the switch to the cables and printed circuit board.

3.  Unscrew the hex nut from the outside of the ear-cup and slide the switch out thru the inside of the

ear-cup.

4.  Replace in reverse order and seal around switch with silicone on the inside of the ear-cup.


END OF TASK

 TM

10-8400-203-23&P

0019

SERVICE – CONTINUED

0019-5

Repairing the Talk Circuit

1.  Take note of the order of assembly and remove the foam inserts and earphone from the right earcup

(Figure 3).

2.  Unplug the Printed Circuit Board from the three mini-connectors.

3.  Replace the Printed Circuit Board and test the talk circuit. If fault persists, remove the screen and

washer from the outside front of the earcup with a small screwdriver.

4.  Push the Microphone into the earcup. Remove the silicone sealant from the inside of the earcup and

replace the microphone from the inside.

5.  Seal the microphone in place with silicone sealant. Use a small amount of sealant around the edge of

the new screen assembly packaged with the microphone and press into place on the outside of the
earcup.

6. Reassemble

earcup.





Figure 3. Talk Circuits.

END OF TASK

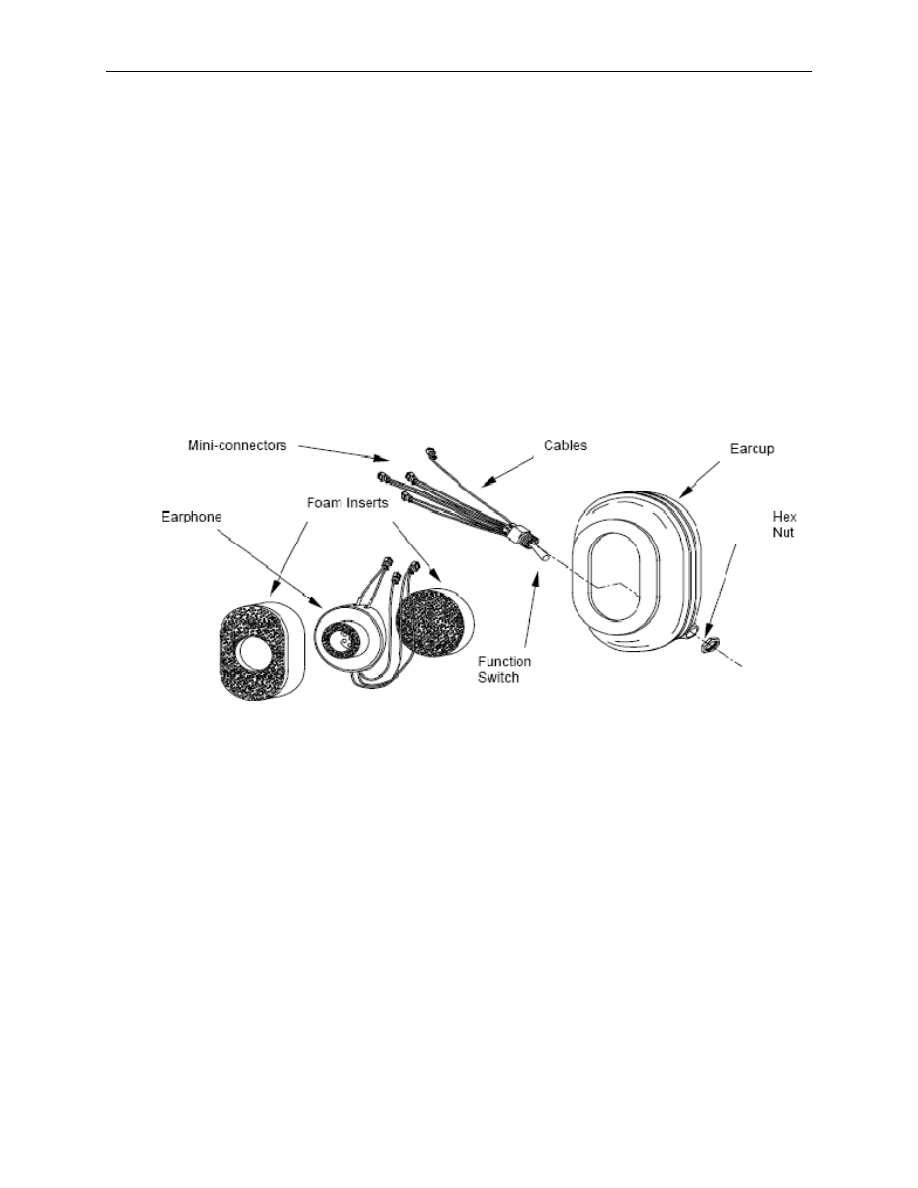

Repairing the Function Switch

1.  When removing function switch, take note of the order of assembly and remove the foam inserts and

earphone from the left earcup.

2.  Unplug the mini connectors on the wires coming from the switch and the cables. Remove the hex nut

from the switch on the outside of the earcup and slide the switch out through the inside of the earcup.
Re-assemble in reverse order and seal the switch inside the earcup with silicone sealant.


END OF TASK

Repairing the Earcup Tension/Adjustment Strap

1.  Ensure the camouflage cover is removed from shell. Open ratchet buckles on retention system, and

pull adjustment straps out of ratchet buckles.

2.  Fully extract adjustment strap. Perform this procedure for both sides.

3.  Unsnap the back piece of the tension strap assembly. Replace damaged components as necessary.

Attach right headset tension strap to faceguard attachment strut by sliding tension strap through slot
opening.

 TM

10-8400-203-23&P

0019

SERVICE – CONTINUED

0019-6

4.  Slide tension strap through tunnel on ear-cup. With ratchet adjustment lock open, slide strap end

through adjustment lock slightly. Close adjustment lock. Repeat procedure for other side.

5.  To release, and before removing helmet, pull up on adjustment lock buckles and slide straps

sufficiently back to clear ears.

END OF TASK

REPAIR

Routine maintenance involves replacing damaged earcup seals and batteries for the talk-through system,
as needed. This headset and microphone kit is designed to come apart easily, and since everything plugs
together with connectors, tools are not needed to replace most parts. There is only one way that things fit
together. You can’t make a mistake unless you force something into place.

Replacing the Camouflage Cover

1.  Remove the camouflage cover by sliding headset tension adjustment straps through the rear holes of

cover, and simply remove cover from helmet shell.

2.  To replace camouflage cover, slide adjustment tension straps through the cover’s rear holes and pull

the rest of the cover over the entire helmet. Ensure the nylon elastic keeper is securing the cover to
the shell.

END OF TASK

Replacing the Retention System

1.  Remove impact liner assembly.

2.  Starting with the right side, unscrew the retention straps from the upper inside faceguard strut while

holding the outside screw in place.

3.  Unscrew the retention straps from the inner backside of the helmet shell.

4.  Release the ratchet buckles on the back of the helmet, and pull the adjustment straps through.

5.  Push/pull the adjustment straps free, through and out of the headset tunnels and struts.

6.  Remove the earcup to earcup cable from the nape strap.

7.  Remove earcups from damaged retention system by pulling apart retention system cloth free from

earcup notch.

8.  Remove damaged retention system.

9.  To install new retention system, place right earcup on top of hole opening on right side.

10.  Insert edge of retention system cutout into the earcup notch.

11.  While pushing up on earcup from bottom, slide remaining retention system edge into earcup notch

until earcup is completely engaged.

12.  Attach the retention system to helmet shell, by screwing the retention straps onto the inside of the

struts, and to the inside rear of helmet shell. Repeat procedure for second earcup.

13.  Slide earcup adjustment strap through the strut, through the headset tunnel and finally through the

ratchet buckle in the rear.

14.  Secure earcup tension adjustment strap by fastening the ratchet buckle. Repeat for opposite side.

15. Secure earcup-to-earcup cable within the nape strap by fastening the cable into the hook and pile

fastener.

END OF TASK
