Yamaha XV1700PCR, XV1700PCRC. Service Manual - part 1





-------------------------------------------------------------------------------------------------------------------------------------------------------------

XV1700PCR
XV1700PCRC
SUPPLEMENTARY
SERVICE MANUAL
LIT-11616-16-36
5PX-28197-11

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EAS00003
NOTICE
This manual was produced by the Yamaha Motor Company, Ltd. primarily for use by Yamaha deal-
ers and their qualified mechanics. It is not possible to include all the knowledge of a mechanic in
one manual. Therefore, anyone who uses this book to perform maintenance and repairs on Yamaha
vehicles should have a basic understanding of mechanics and the techniques to repair these types
of vehicles. Repair and maintenance work attempted by anyone without this knowledge is likely to
render the vehicle unsafe and unfit for use.
This model has been designed and manufactured to perform within certain specifications in regard
to performance and emissions. Proper service with the correct tools is necessary to ensure that the
vehicle will operate as designed. If there is any question about a service procedure, it is imperative
that you contact a Yamaha dealer for any service information changes that apply to this model. This
policy is intended to provide the customer with the most satisfaction from his vehicle and to conform
to federal environmental quality objectives.
Yamaha Motor Company, Ltd. is continually striving to improve all of its models. Modifications and
significant changes in specifications or procedures will be forwarded to all authorized Yamaha deal-
ers and will appear in future editions of this manual where applicable.
NOTE:
_
Designs and specifications are subject to change without notice.
EAS00004
IMPORTANT MANUAL INFORMATION
Particularly important information is distinguished in this manual by the following.
The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR
SAFETY IS INVOLVED!
WARNING Failure to follow WARNING instructions could result in severe injury or death to
the motorcycle operator, a bystander or a person checking or repairing the
motorcycle.
CAUTION:
A CAUTION indicates special precautions that must be taken to avoid damage
to the motorcycle.
NOTE:
A NOTE provides key information to make procedures easier or clearer.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EAS00007

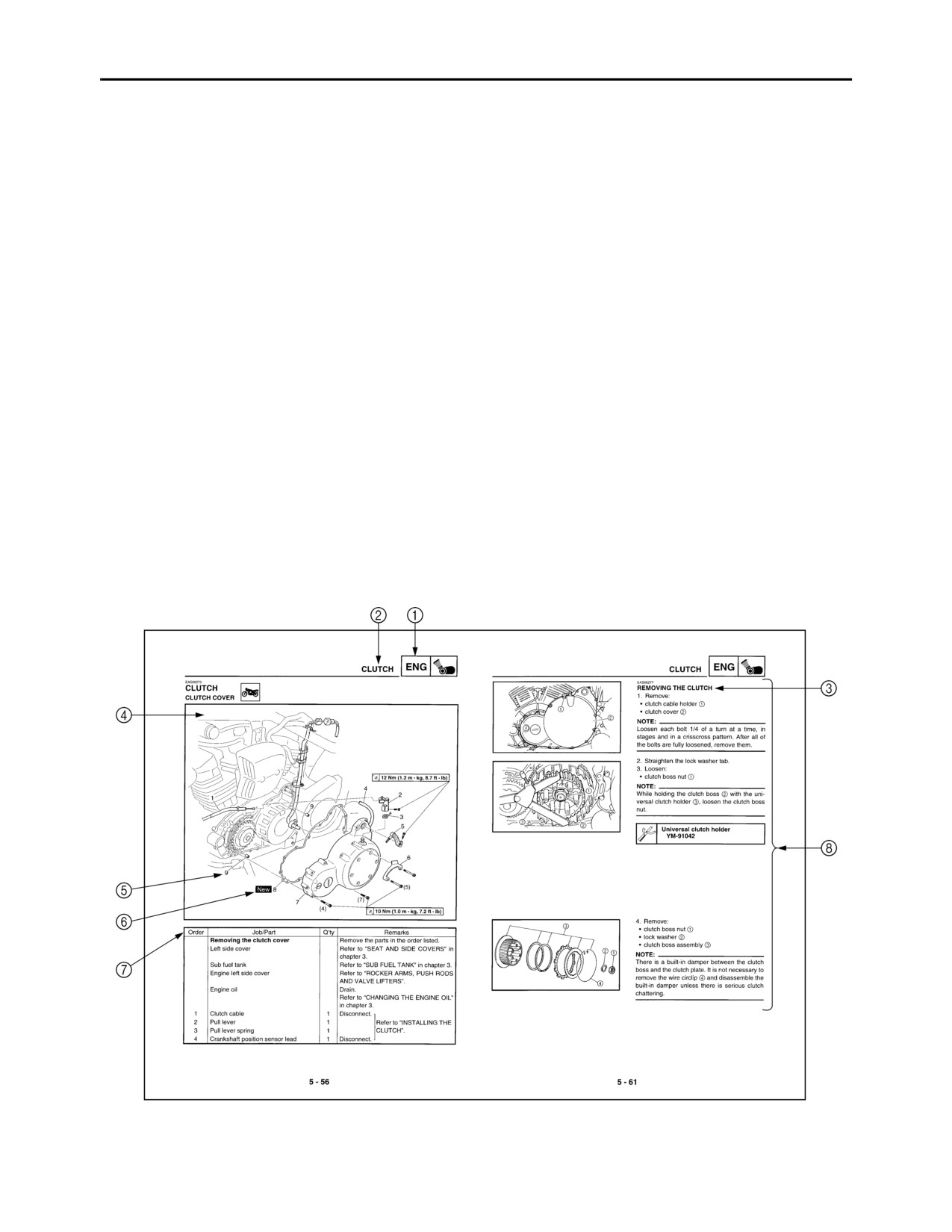

HOW TO USE THIS MANUAL
This manual is intended as a handy, easy-to-read reference book for the mechanic. Comprehensive
explanations of all installation, removal, disassembly, assembly, repair and check procedures are
laid out with the individual steps in sequential order.
1 The manual is divided into chapters. An abbreviation and symbol in the upper right corner of
each page indicate the current chapter.
Refer to “SYMBOLS”.
2 Each chapter is divided into sections. The current section title is shown at the top of each page,
except in Chapter 3 (“PERIODIC CHECKS AND ADJUSTMENTS”), where the sub-section
title(s) appears.
3 Sub-section titles appear in smaller print than the section title.
4 To help identify parts and clarify procedure steps, there are exploded diagrams at the start of
each removal and disassembly section.
5 Numbers are given in the order of the jobs in the exploded diagram. A circled number indicates a
disassembly step.
6 Symbols indicate parts to be lubricated or replaced.
Refer to “SYMBOLS”.
7 A job instruction chart accompanies the exploded diagram, providing the order of jobs, names of
parts, notes in jobs, etc.
8 Jobs requiring more information (such as special tools and technical data) are described sequen-
tially.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EAS00009
1
2
SYMBOLS
The following symbols are not relevant to
GEN
SPEC
every vehicle. Symbols 1 to 8 indicate the
INFO
subject of each chapter.
3
4
1 General information
2 Specifications
CHK
3 Periodic checks and adjustments
CHAS
ADJ
4 Chassis
5 Engine
5
6
6 Fuel injection system
7 Electrical system
8 Troubleshooting
ENG
FI
7
8
-
+
TRBL
ELEC
SHTG
Symbols 9 to F indicate the following.
9
0
9 Serviceable with engine mounted
0 Filling fluid
A Lubricant
B Special tool
A
B
C Tightening torque
D Wear limit, clearance
E Engine speed
F Electrical data
C
D
E
F
Symbols G to L in the exploded diagrams
G
H
I
indicate the types of lubricants and lubrication
points.
E
G
M
G Engine oil
H Gear oil
J
K
L
I Molybdenum-disulfide oil
J Wheel-bearing grease
B
LS
M
K Lithium-soap-based grease
L Molybdenum-disulfide grease
Symbols M to N in the exploded diagrams
M
N
indicate the following.
New
M Apply locking agent (LOCTITE®)
LT
N Replace the part

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTENTS
SPECIFICATIONS
1
GENERAL SPECIFICATIONS
1
ENGINE SPECIFICATIONS
1
CHASSIS SPECIFICATIONS
1
ELECTRICAL SPECIFICATIONS
2
TIGHTENING TORQUES
2
CHASSIS TIGHTENING TORQUES
2
CABLE ROUTING
3
PERIODIC CHECKS AND ADJUSTMENTS
11
INTRODUCTION
11
PERIODIC MAINTENANCE CHART FOR
THE EMISSION CONTROL SYSTEM
11
GENERAL MAINTENANCE AND LUBRICATION CHART
12
CHASSIS
14

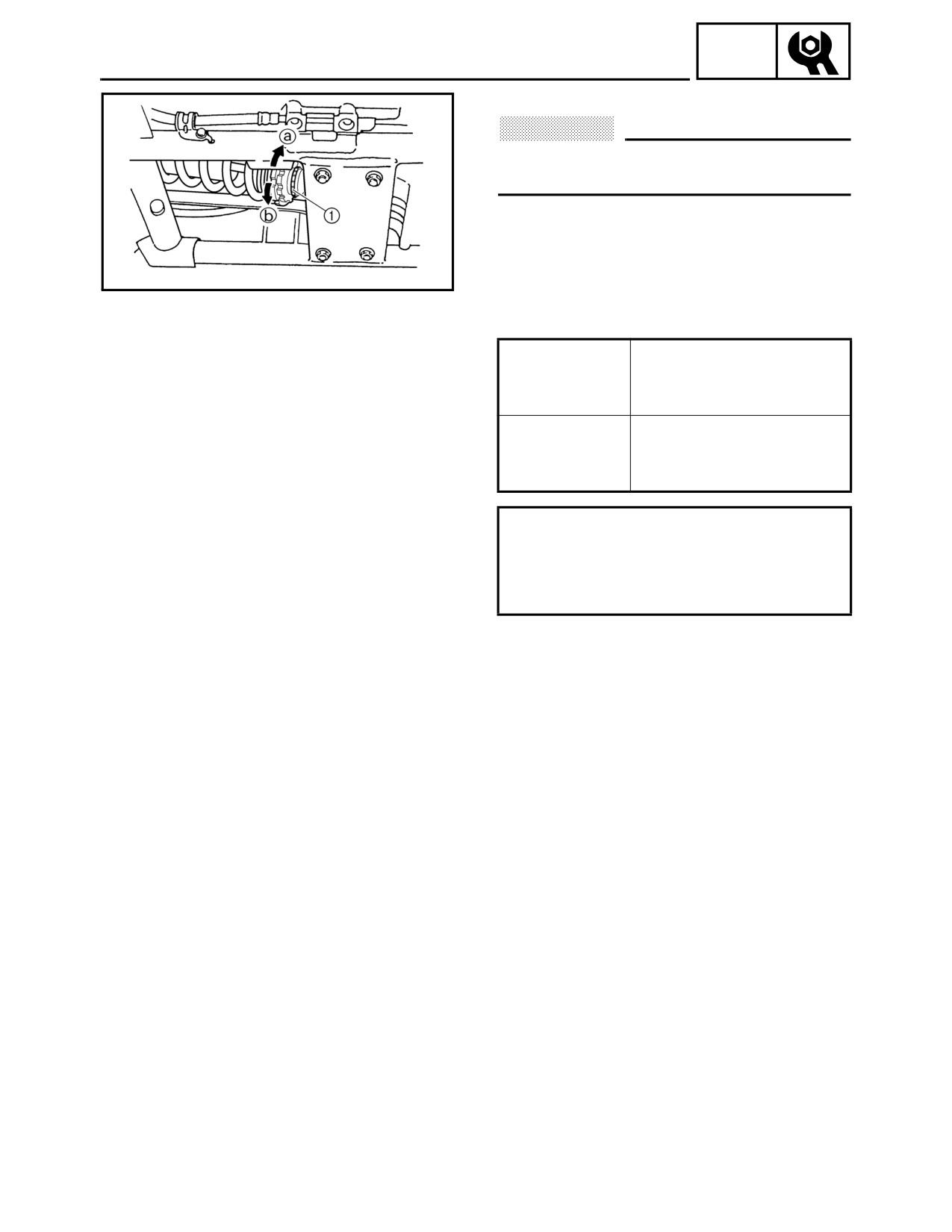

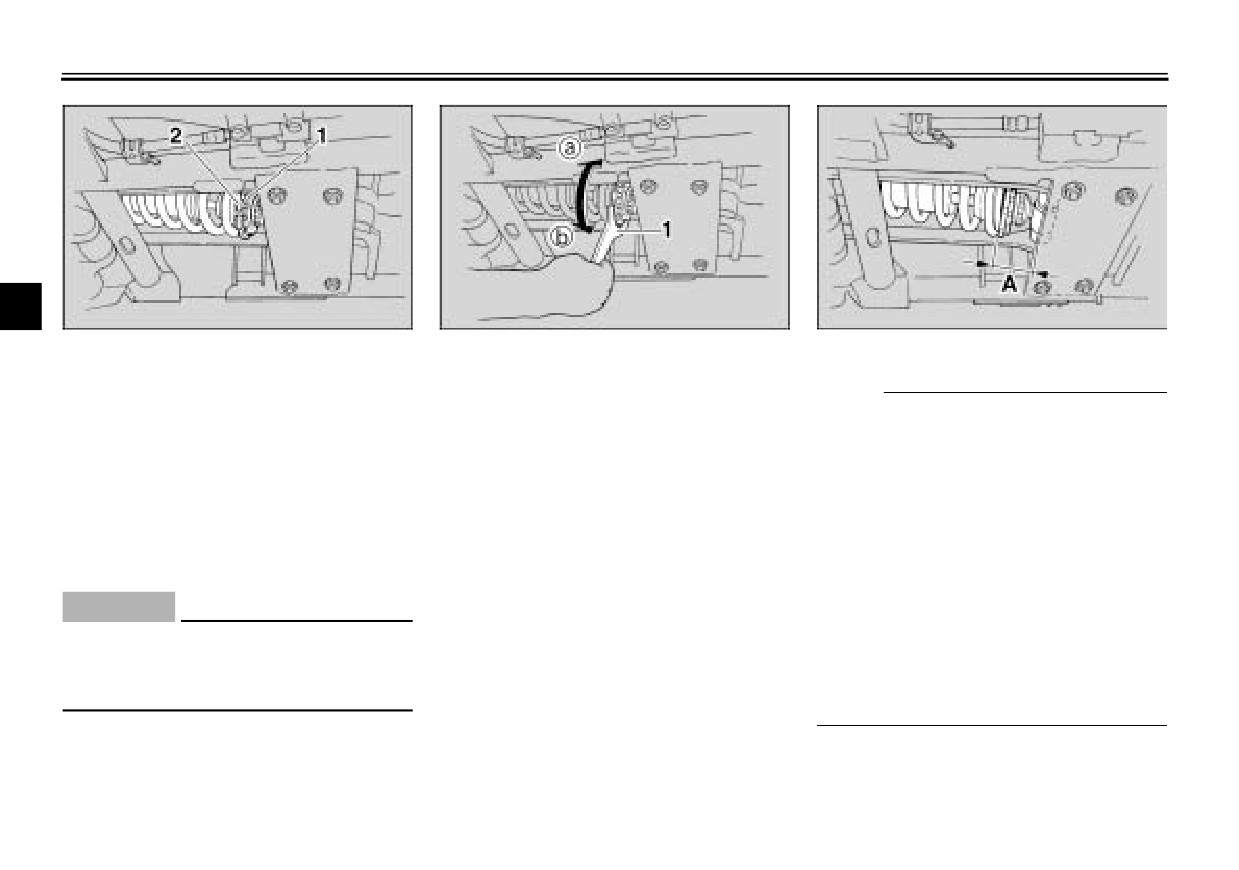

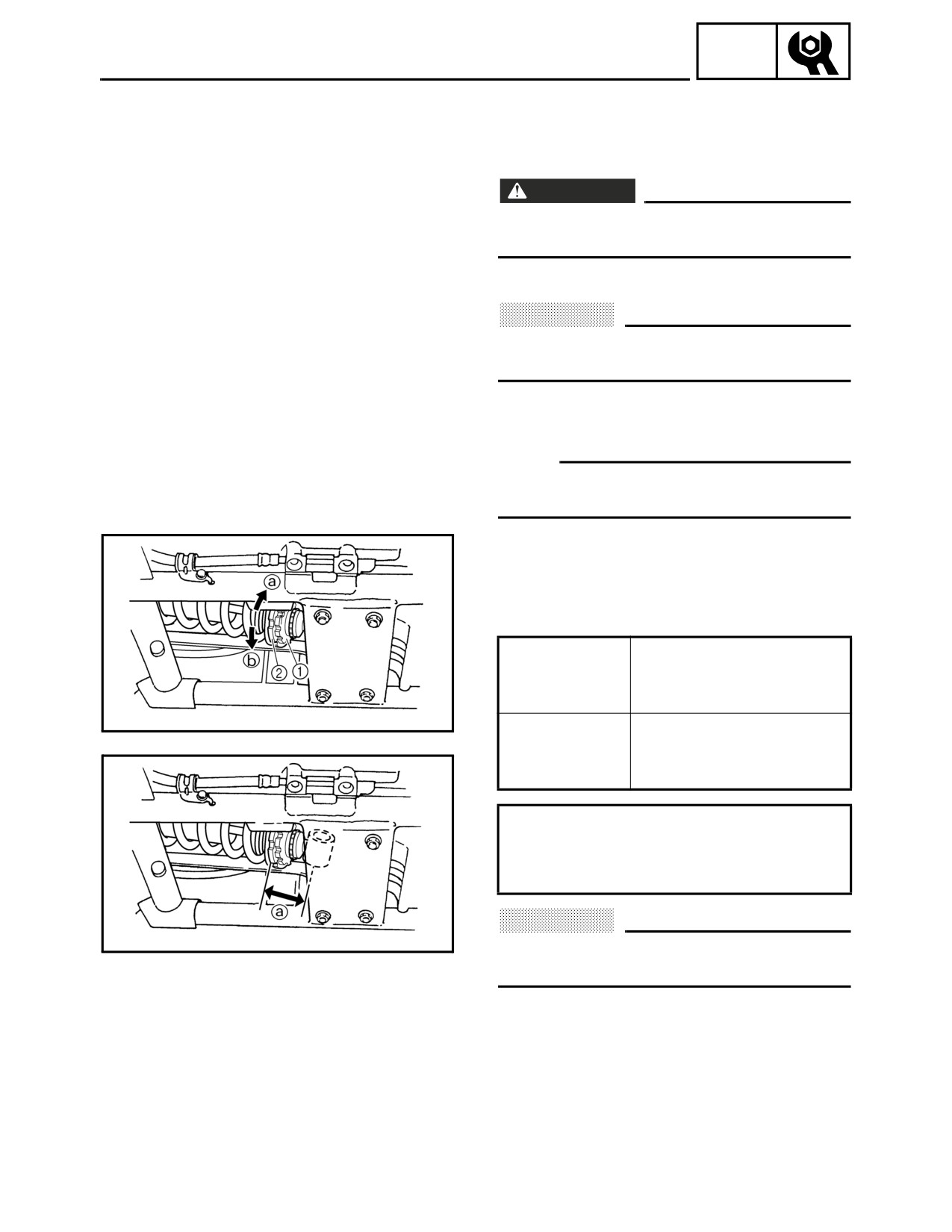

ADJUSTING THE REAR SHOCK ABSORBER ASSEMBLY
14
CHASSIS
16
FRONT AND REAR BRAKES
16

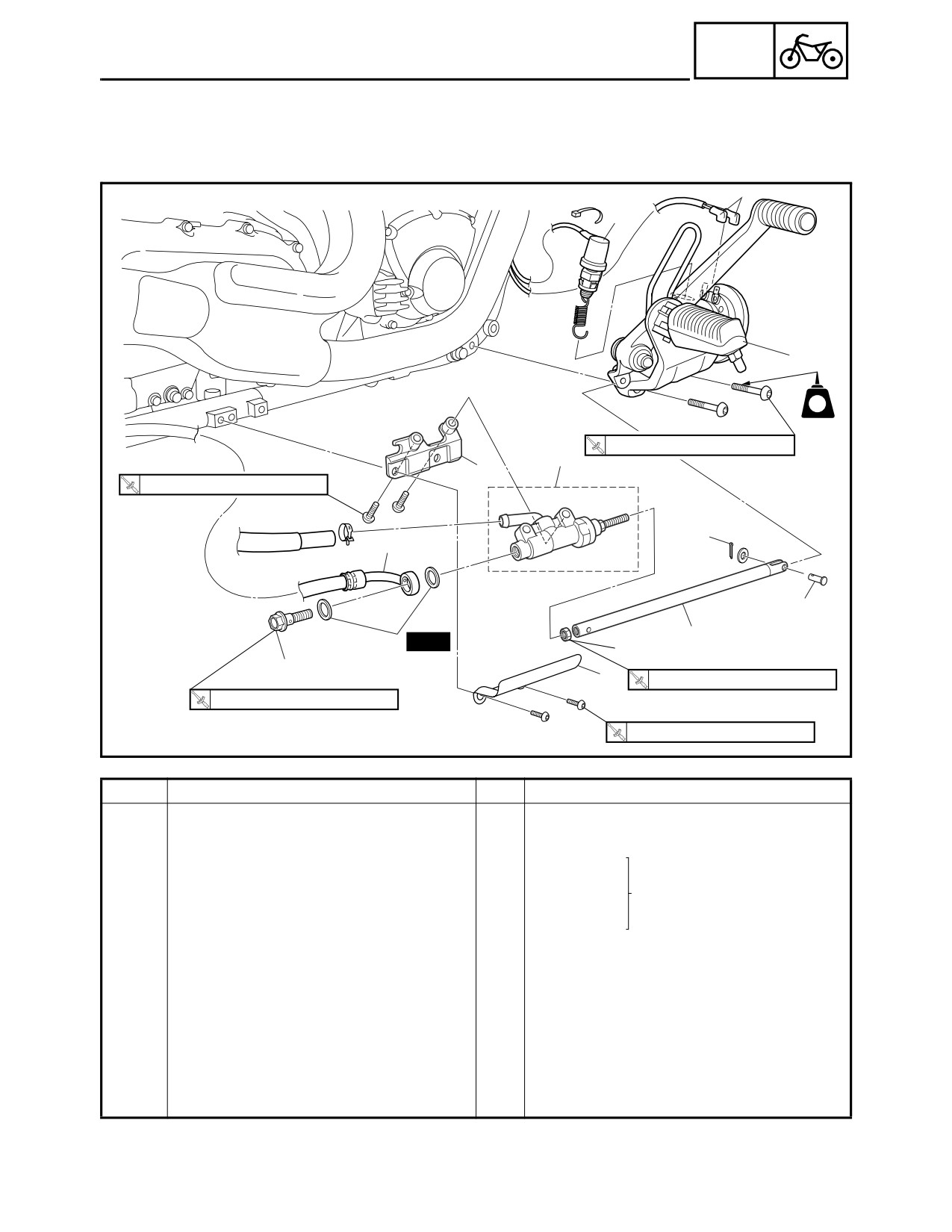

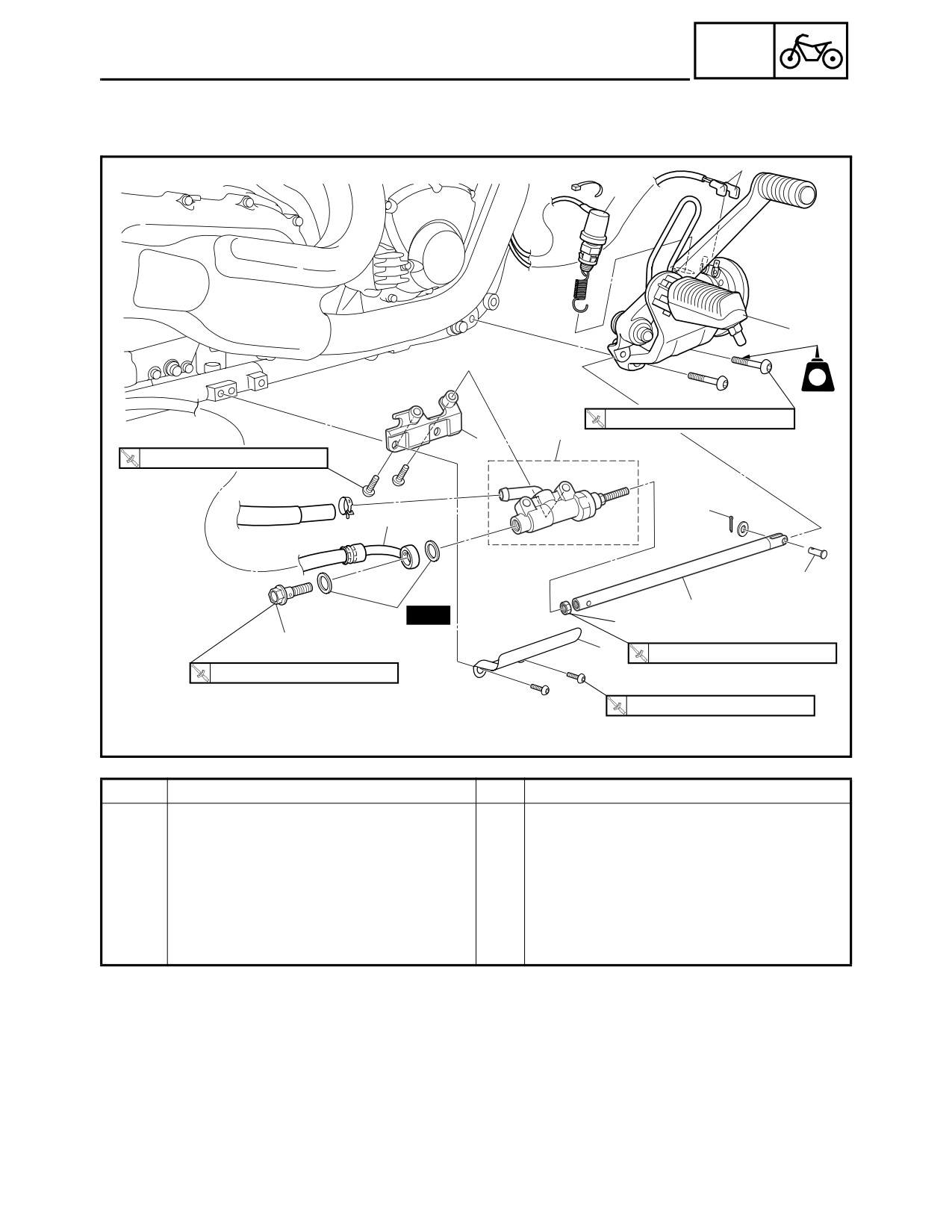

REAR BRAKE MASTER CYLINDER
16

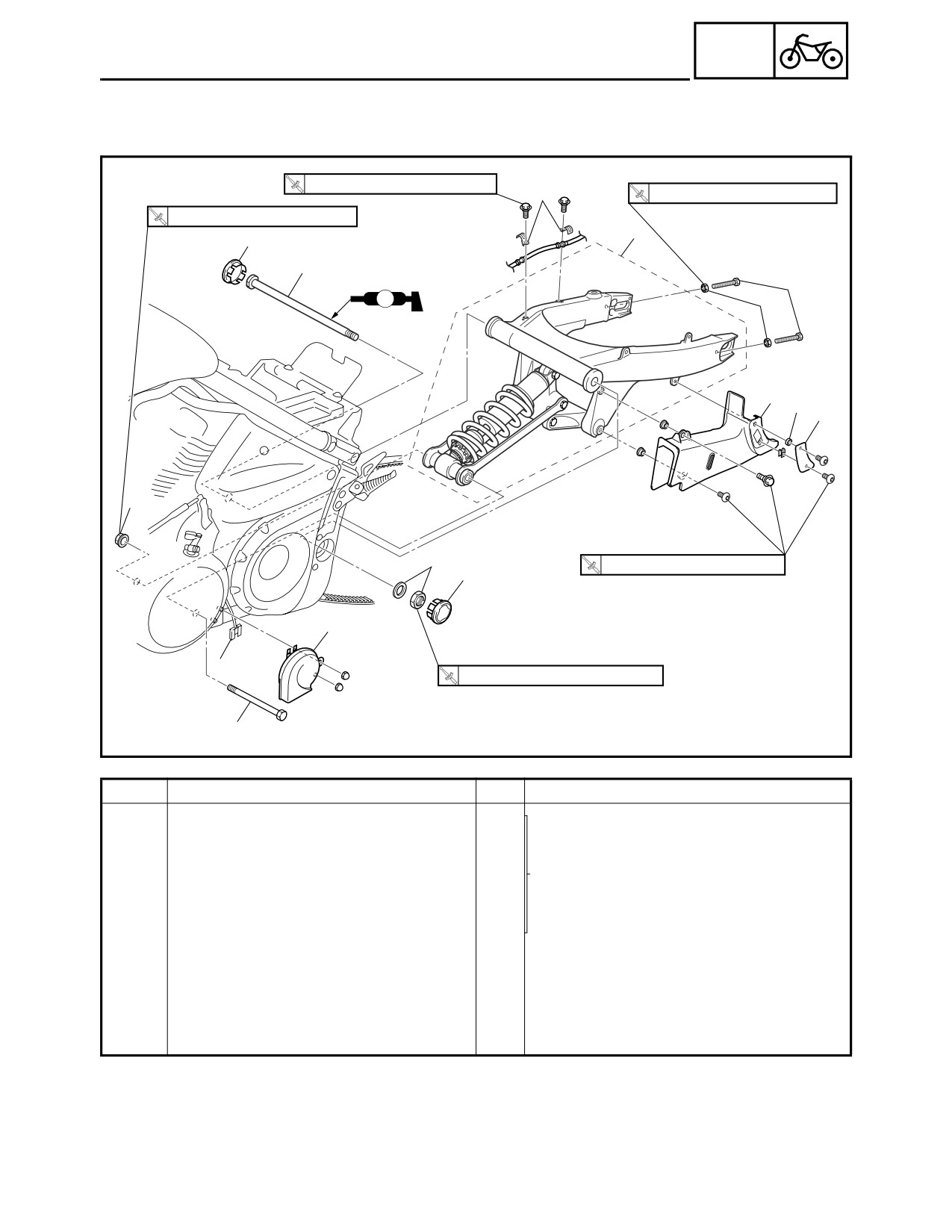

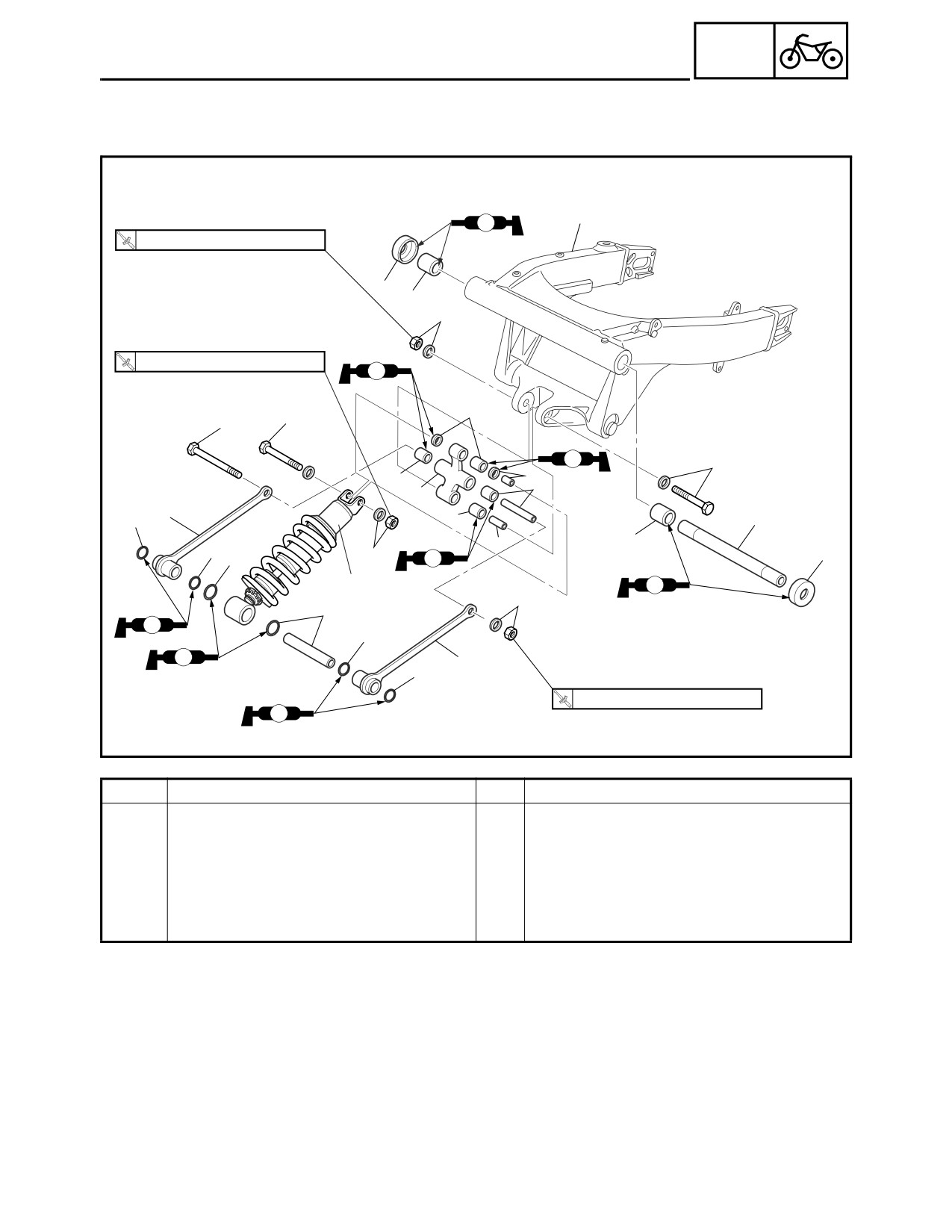

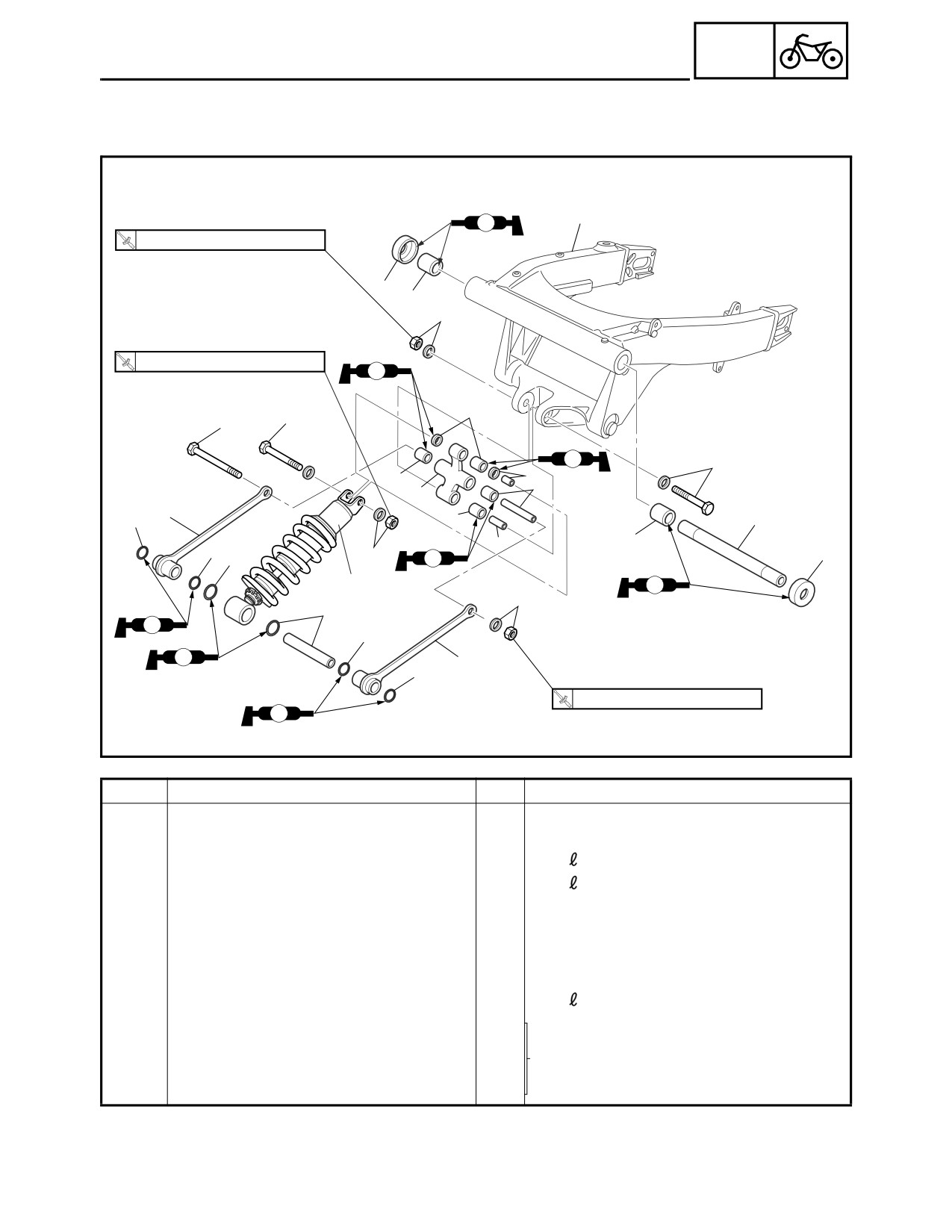

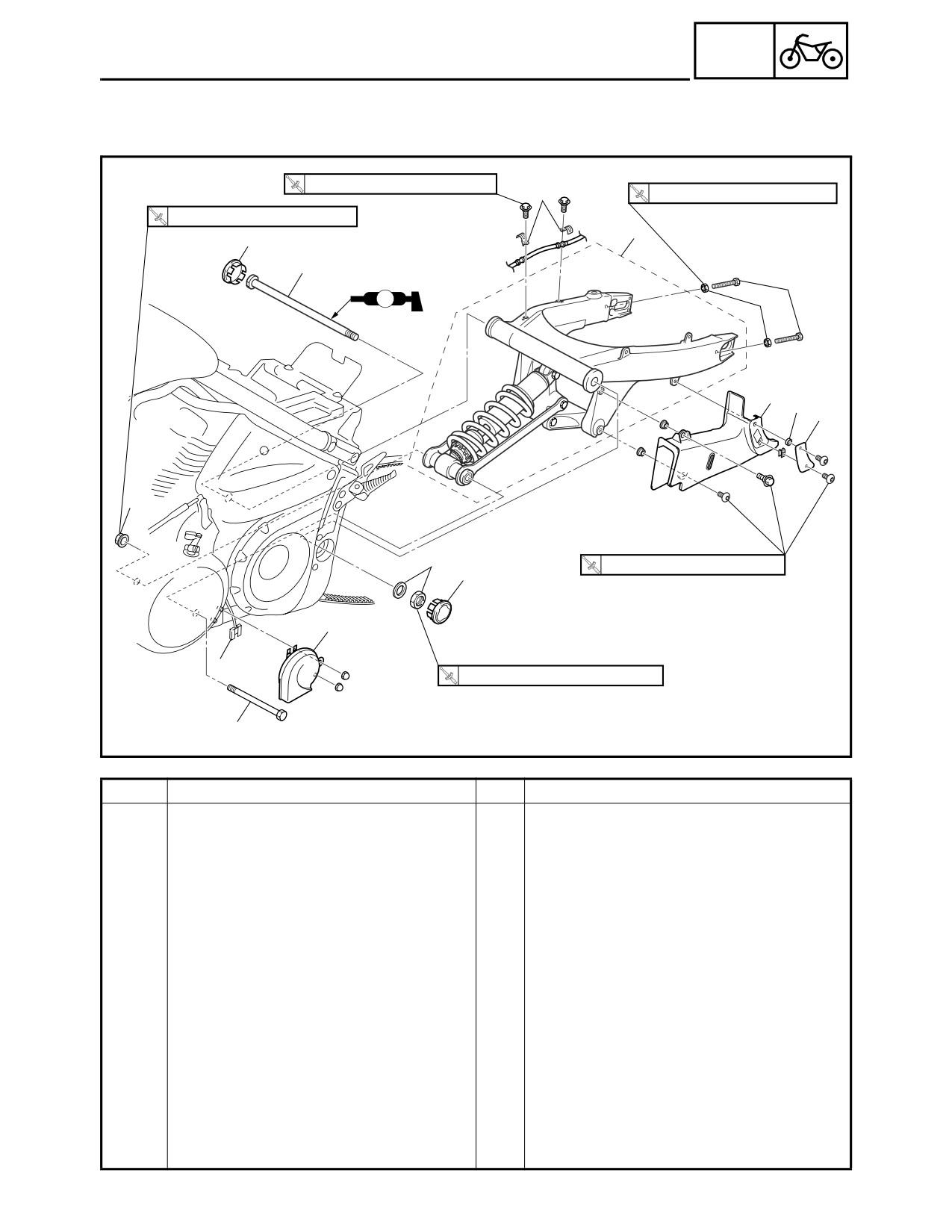

REAR SHOCK ABSORBER AND SWINGARM
18
ENGINE
22
ROCKER ARMS, PUSH RODS AND VALVE LIFTERS
22

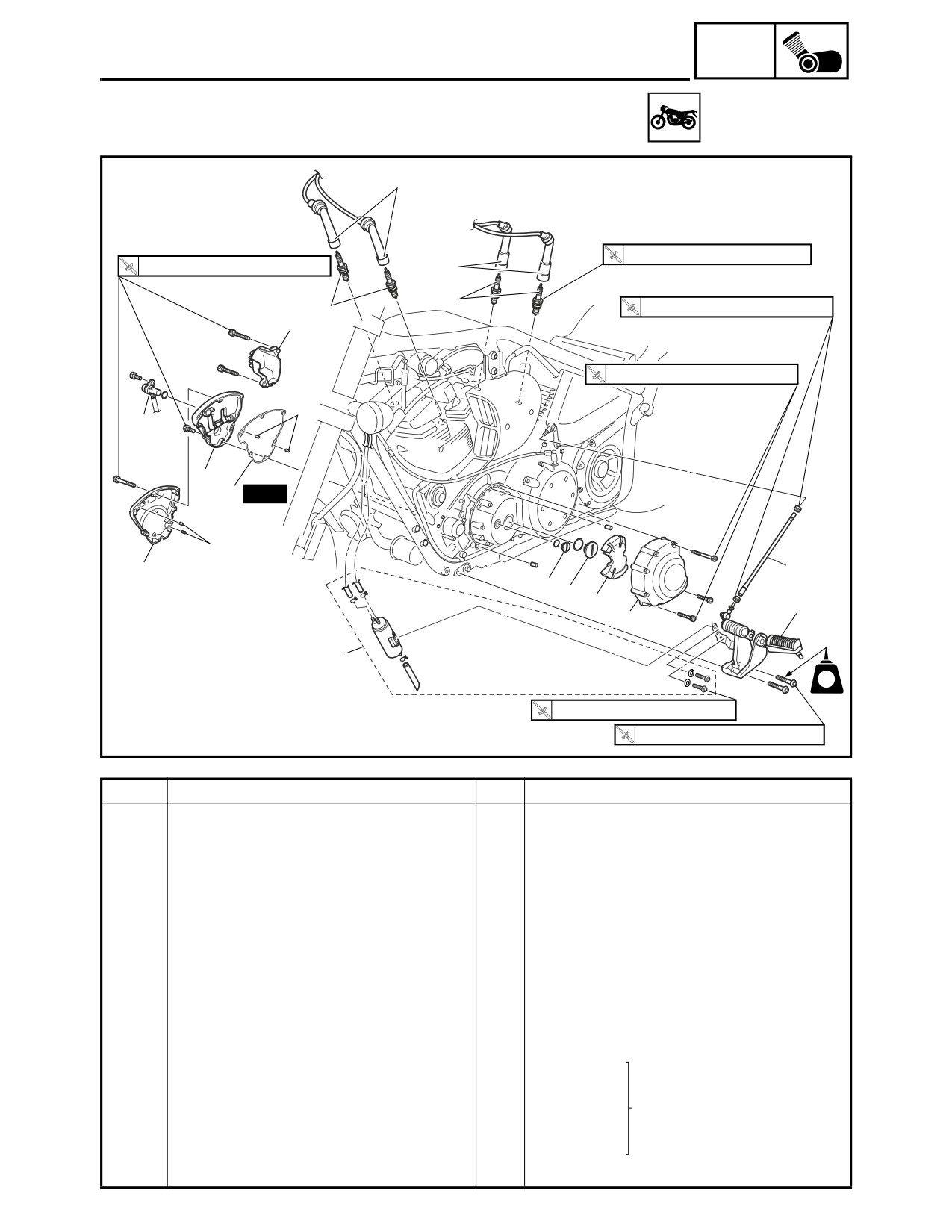

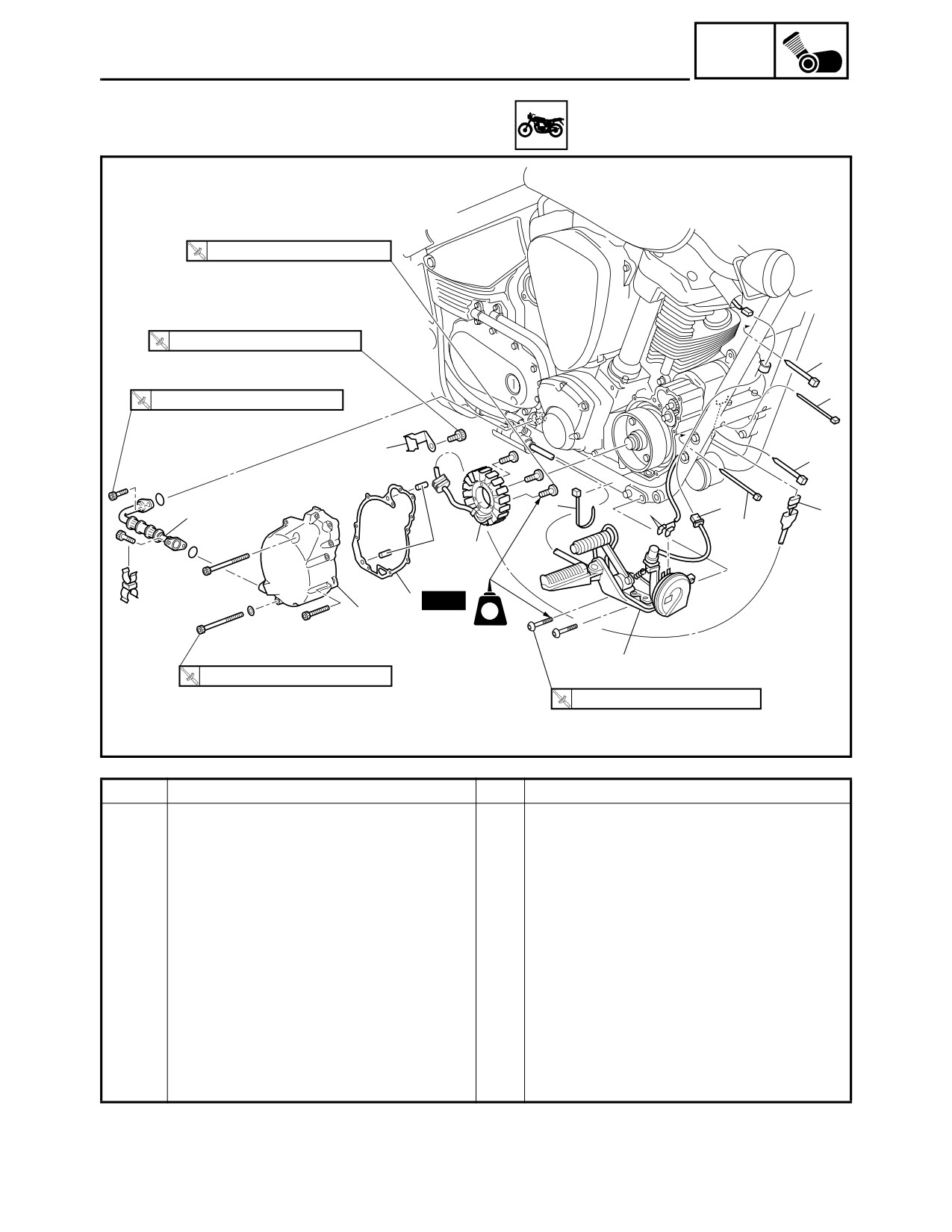

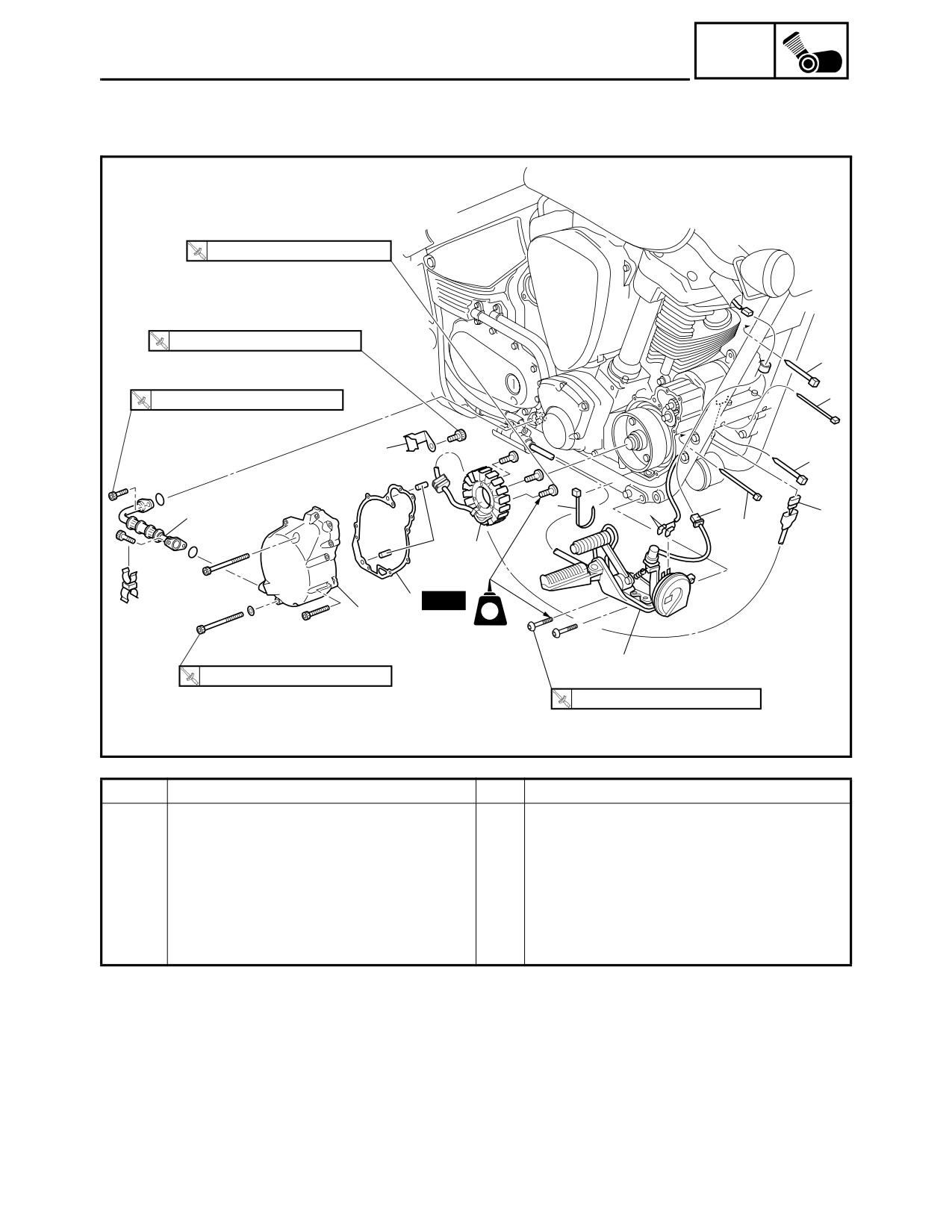

GENERATOR AND STARTER CLUTCH
24
STATOR COIL ASSEMBLY
24

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GENERAL SPECIFICATIONS/
SPEC
ENGINE SPECIFICATIONS/CHASSIS SPECIFICATIONS
SPECIFICATIONS
GENERAL SPECIFICATIONS
Item
Standard
Limit
Model code
5PX4 (USA)
----
5PX5 (California)
----
5PX6 (CDN)
----
ENGINE SPECIFICATIONS
Item
Standard
Limit
Electronic fuel injection
Model (manufacturer)
INP-732 (NIPPON INJECTOR)
----
Quantity
2
----

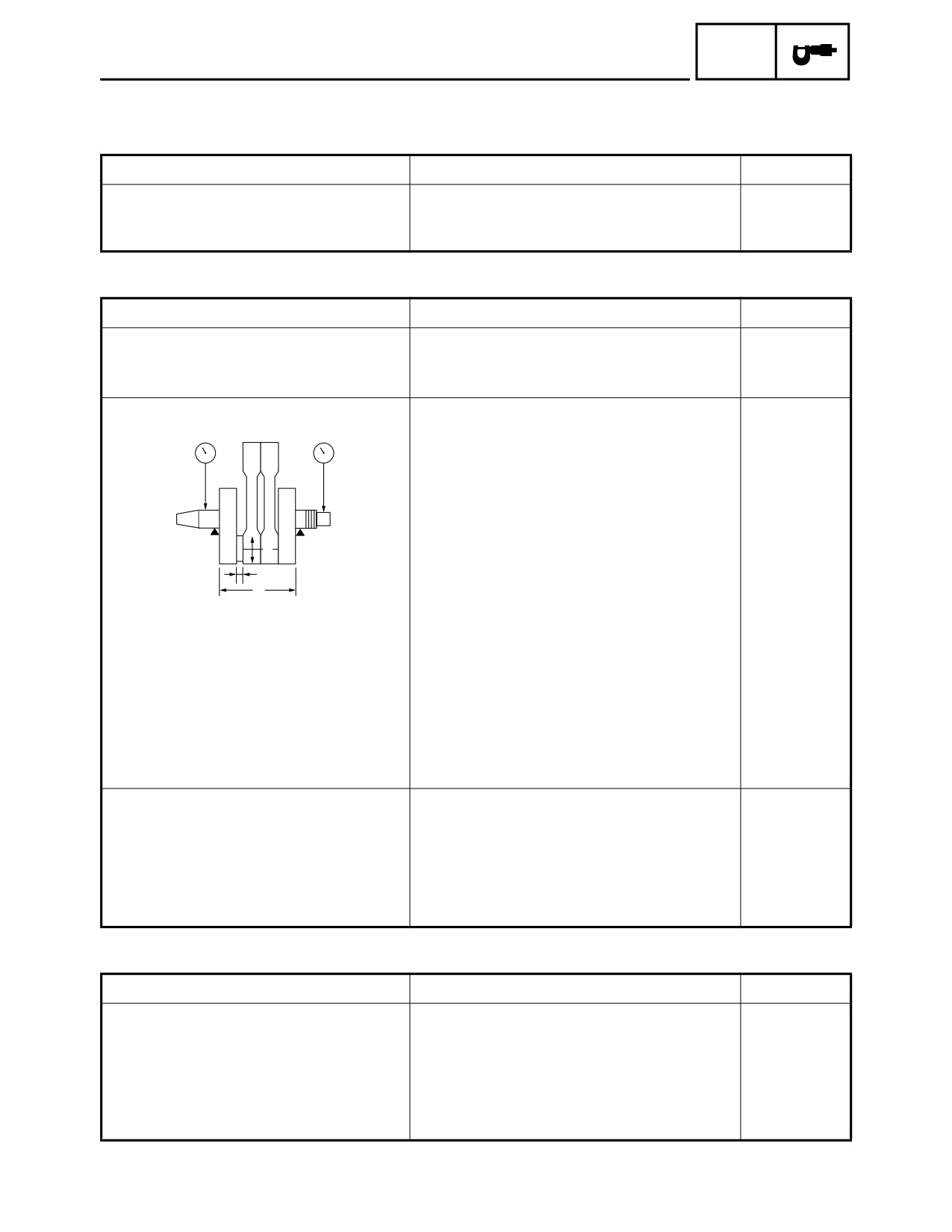

Crankshaft
C
C
E
D
A
Width A
132.8 ~ 133.2 mm (5.228 ~ 5.244 in)
----
Max. runout C
----
0.04 mm
(0.0016 in)
Big end side clearance D
0.320 ~ 0.474 mm (0.0126 ~ 0.0187 in)
----
Big end radial clearance E
0.037 ~ 0.074 mm (0.0015 ~ 0.0029 in)
0.09 mm
(0.0035 in)
Crankshaft journal-to-crankshaft-
0.032 ~ 0.062 mm (0.0012 ~ 0.0024 in)
0.1 mm
journal bearing clearance
(0.0039 in)
Fuel pump
Pump type
Electrical
----
Model (manufacturer)
5PX (MITSUBISHI)
----
Max. consumption amperage
5 A
----
Output pressure
392 ~ 588 kPa
----
(3.92 ~ 5.88 kg/cm2, 55.7 ~ 83.6 psi)
CHASSIS SPECIFICATIONS
Item
Standard
Limit
Front tire
Tire type
Tubeless
----
Size
120/70 ZR 18 M/C (59 W)
----
120/70 ZR 18 (59 W)
Model (manufacturer)
D220F ST G (DUNLOP)/
----
BT020F G (BRIDGESTONE)
- 1 -

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CHASSIS SPECIFICATIONS/
SPEC
ELECTRICAL SPECIFICATIONS/TIGHTENING TORQUES
Item
Standard
Limit
Tire pressure (cold)
0 ~ 90 kg (0 ~ 198 lb)
250 kPa (2.5 kgf/cm2, 36 psi)
----
90 kg (198 lb) ~ Maximum load*
250 kPa (2.5 kgf/cm2, 36 psi)
----
High-speed riding
250 kPa (2.5 kgf/cm2, 36 psi)
----
* Load is the total weight of the cargo,
rider, passenger and accessories.
Min. tire tread depth
----
1.0 mm
(0.04 in)
Rear tire
Tire type
Tubeless
----
Size
200/50 ZR 17 M/C (75 W)
----
200/50 ZR 17 (75 W)
Model (manufacturer)
D220 ST (DUNLOP)/
----
BT020R (BRIDGESTONE)
Tire pressure (cold)
0 ~ 90 kg (0 ~ 198 lb)
250 kPa (2.5 kgf/cm2, 36 psi)
----
90 kg (198 lb) ~ Maximum load*
290 kPa (2.9 kgf/cm2, 42 psi)
----
High-speed riding
250 kPa (2.5 kgf/cm2, 36 psi)
----
* Load is the total weight of the cargo,
rider, passenger and accessories.
Min. tire tread depth
----
1.0 mm
(0.04 in)
ELECTRICAL SPECIFICATIONS
Item
Standard
Limit
Ignition coils
Model (manufacturer)
J0447 (DENSO)
----
Minimum ignition spark gap
6 mm (0.24 in)
----
Primary coil resistance
1.32 ~ 1.78 Ω
----
Secondary coil resistance
12 ~ 18 kΩ
----
Charging system
System type
AC magneto
----
Model (manufacturer)
F5PX (YAMAHA)
----
Nominal output
14 V/31 A at 5,000 r/min
----
Stator coil resistance/color
0.13 ~ 0.19 Ω/W-W
----
TIGHTENING TORQUES
CHASSIS TIGHTENING TORQUES
Tightening torque
Item
Thread size
Remarks
Nm
m·kg
ft·lb
Rider footrest bracket and frame
M10
48
4.8
35
LT
Rear fender and turn signal light bracket (upper)
M6
7
0.7
5.1
Rear fender and turn signal light bracket (lower)
M6
9
0.9
6.5
Canister and rider footrest bracket (For California
M6
9
0.9
6.5
only)
- 2 -

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPEC

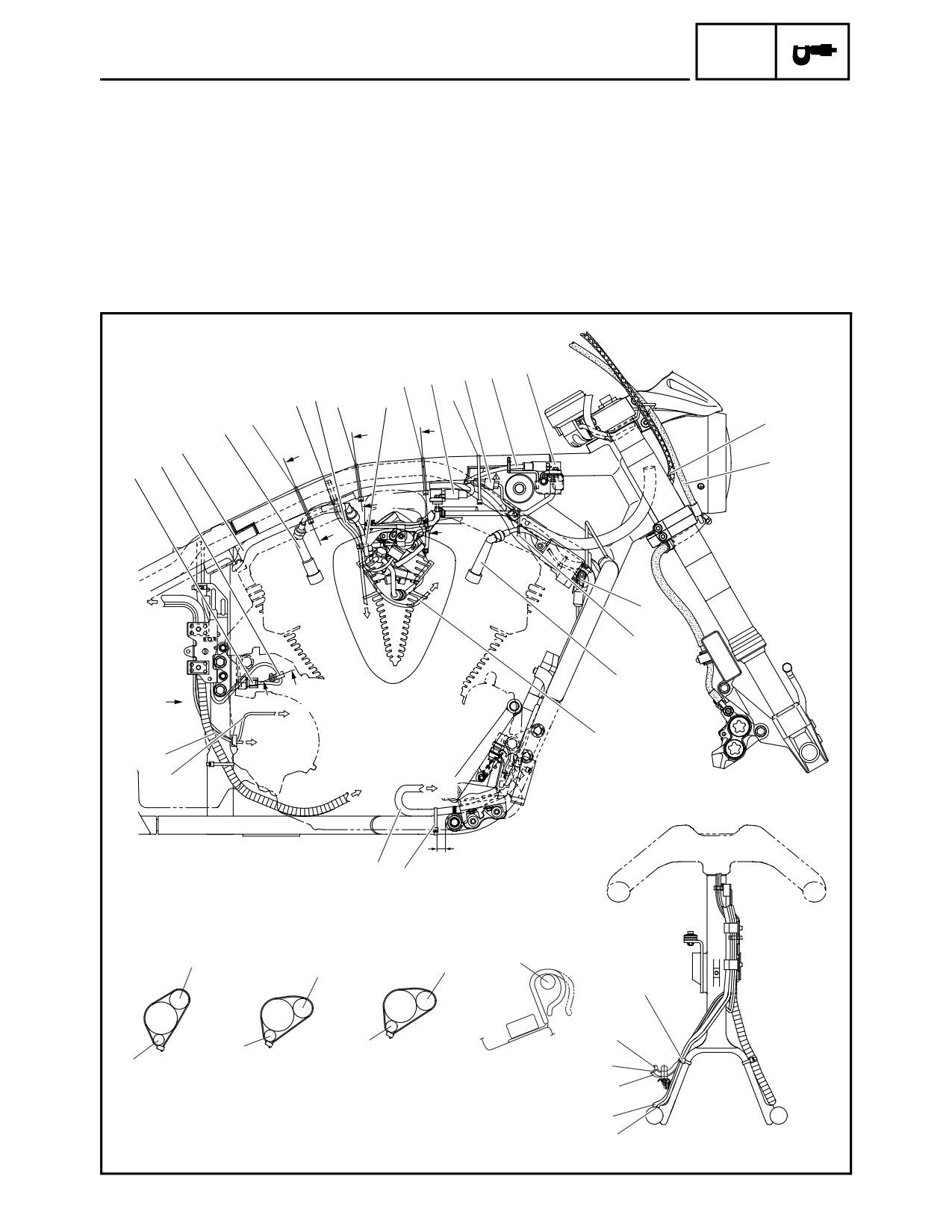

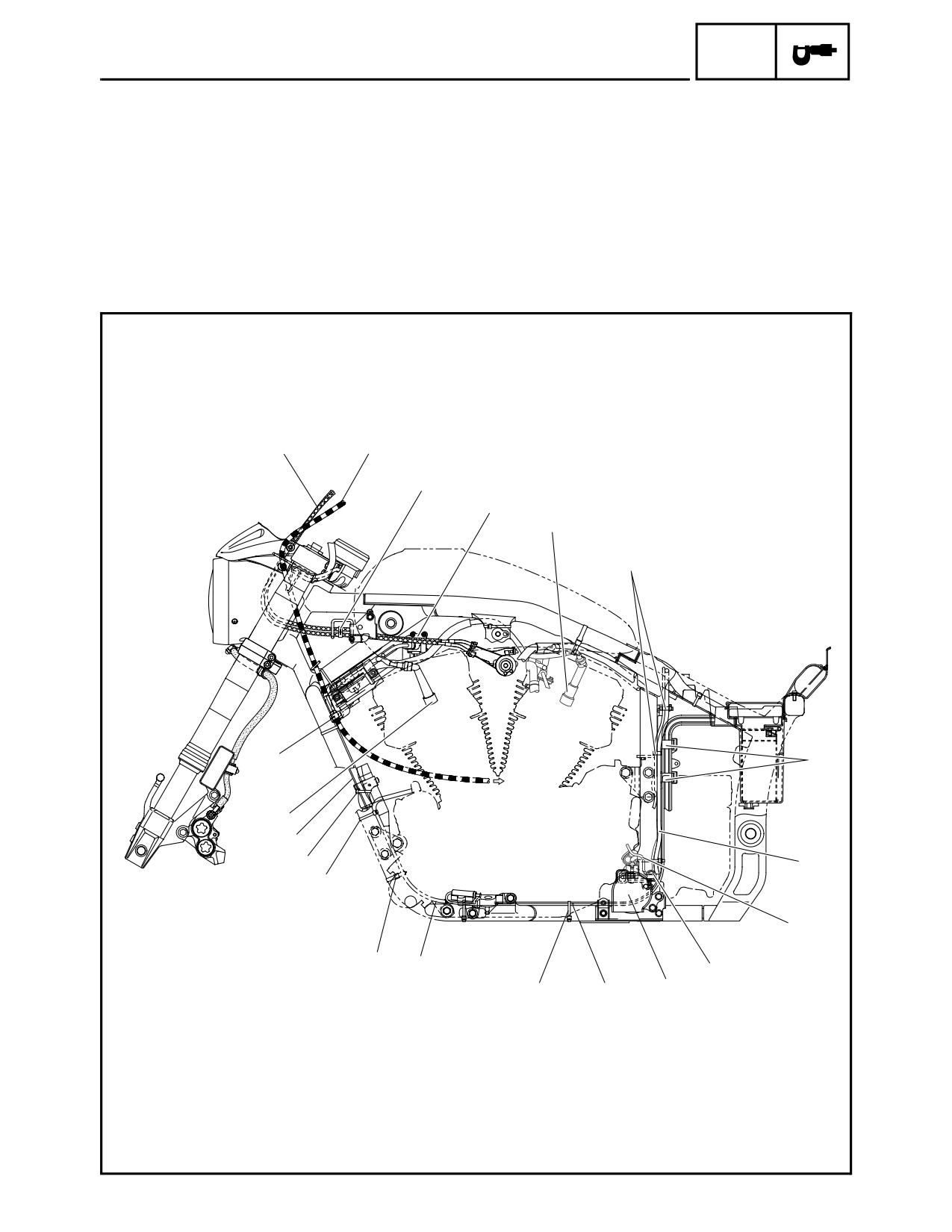

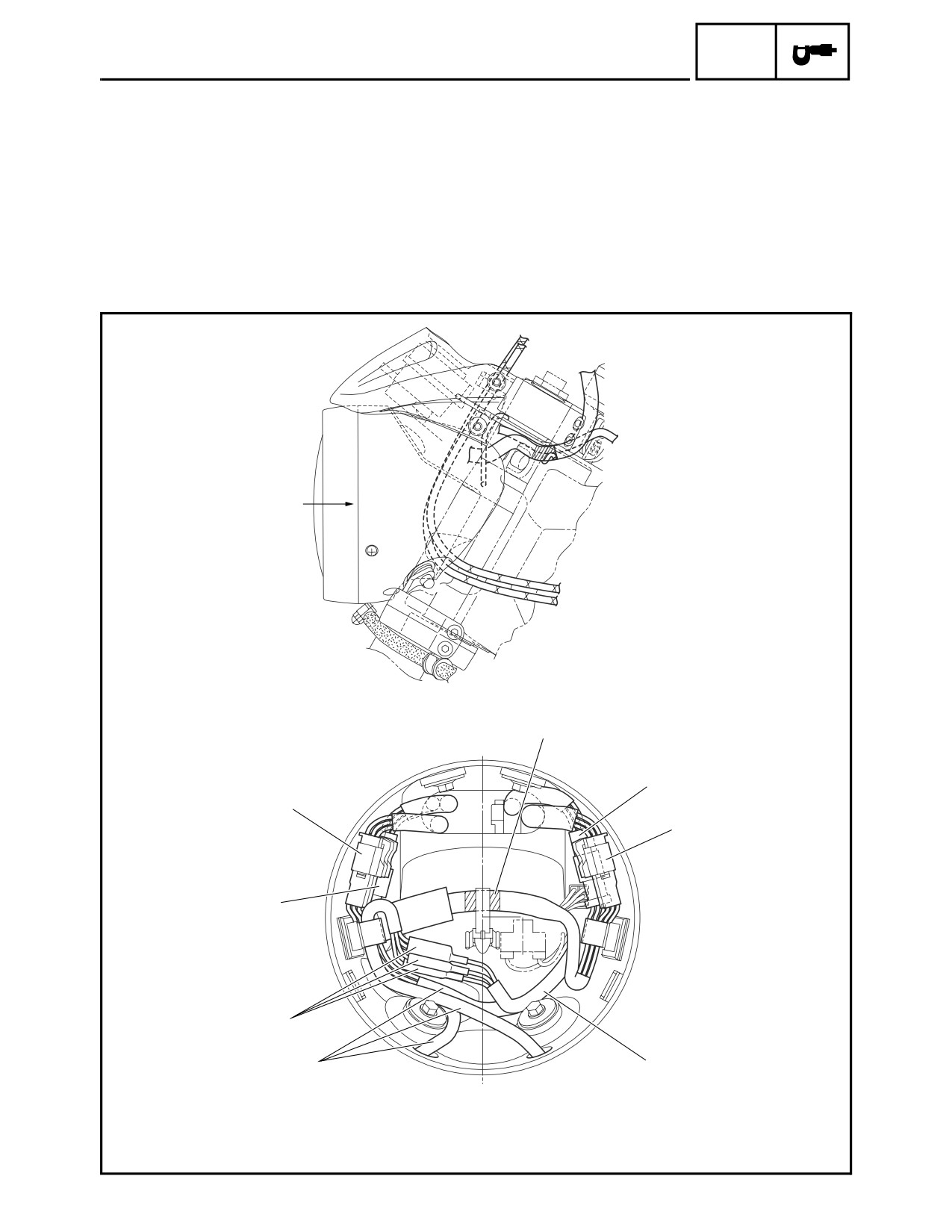

CABLE ROUTING
EB206000
CABLE ROUTING
1 Brake hose
È Fasten the rectifier/regulator
Ê Fasten the rear brake light
2 Clutch cable
lead, horn lead, and rear brake
switch lead, horn lead, and
3 Rectifier/regulator
light switch lead with a plastic
stator coil assembly lead with
4 Rectifier/regulator lead
locking tie to the frame.
a plastic locking tie to the
5 Rear brake light switch lead
É Fasten the stator coil assem-
frame.
6 Horn lead
bly lead and rectifier/regulator
Ë Fasten the stator coil assem-
7 Stator coil assembly lead
lead with a plastic clamp.
bly lead, horn lead, and rear
brake light switch lead with a
plastic locking tie to the frame.
1
2
1
1
Ë
È
7
Ê
6
3
4
5
É
- 3 -

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPEC

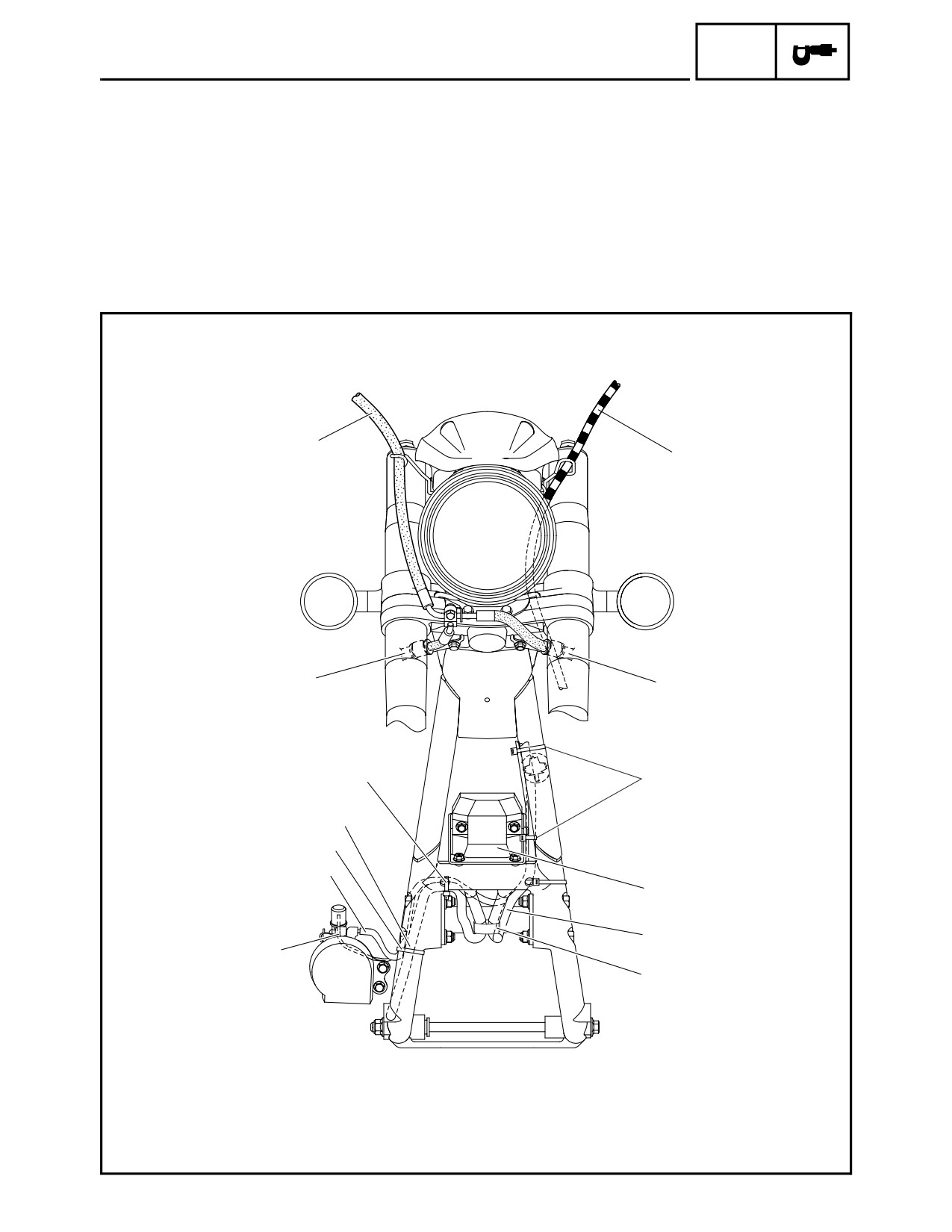

CABLE ROUTING
1 Tachometer couplers
È Secure the wire harness in the holder at the
2 Right handlebar switch coupler and speedome-
white tape on the harness.
ter couplers
É Route each lead behind the headlight assembly
3 Main switch coupler
bracket bolts.
4 Left handlebar switch couplers
5 Left and right turn signal/position light connec-
tors
A
È
3
2
4
1
5
É
É
A
- 4 -

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPEC
CABLE ROUTING
1 Throttle cable 1 and throttle cable 2
È Pass throttle cable 1 and throttle cable 2 through
2 Clutch cable
the cable guide, and then fasten them with a
3 Atmospheric pressure sensor
plastic holder.
4 Spark plug cap (ignition coil 1-L spark plug lead)
É Fasten the engine stop switch lead, horn lead,
5 Horn lead
and oil temperature sensor lead with a plastic
6 Crankshaft position sensor lead
locking tie.
7 Horn 2
Ê Fasten the sidestand switch lead, starter motor
8 Sidestand switch lead
lead, crankshaft position sensor lead, decom-
9 Starter motor lead
pression solenoid lead, cylinder identification
0 Spark plug cap (ignition coil 2-L spark plug lead)
sensor lead, speed sensor lead, and neutral
A Rear brake light switch
switch lead with a plastic locking tie.
1
2
È
3
4
É
Ï
Ê
Ð
0
A
Ñ
5
Î
6
Í
9
Ë
8
7
Ì
- 5 -

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPEC
CABLE ROUTING
Ë Fasten the engine stop switch lead, crankshaft position sensor lead, and horn lead with a plastic locking
tie.
Ì Fasten the starter motor lead and side stand switch lead with a plastic locking tie to the frame.
Í Fasten the starter motor lead, fuel tank drain hose, and fuel tank/air filter breather hose with a plastic band
to the frame.
Be sure not to pinch the fuel tank drain hose or the fuel tank/air filter breather hose.
Î Fasten the starter motor lead with a plastic locking tie.
Ï Clamp the clutch cable between the locknut and washer with a plastic clamp.
Ð To the engine.
Ñ Fasten the rear brake light switch with a plastic locking tie.
1
2
È
3
4
É
Ï
Ê
Ð
0
A
Ñ
5
Î
6
Í
9
Ë
8
7
Ì
- 6 -

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPEC

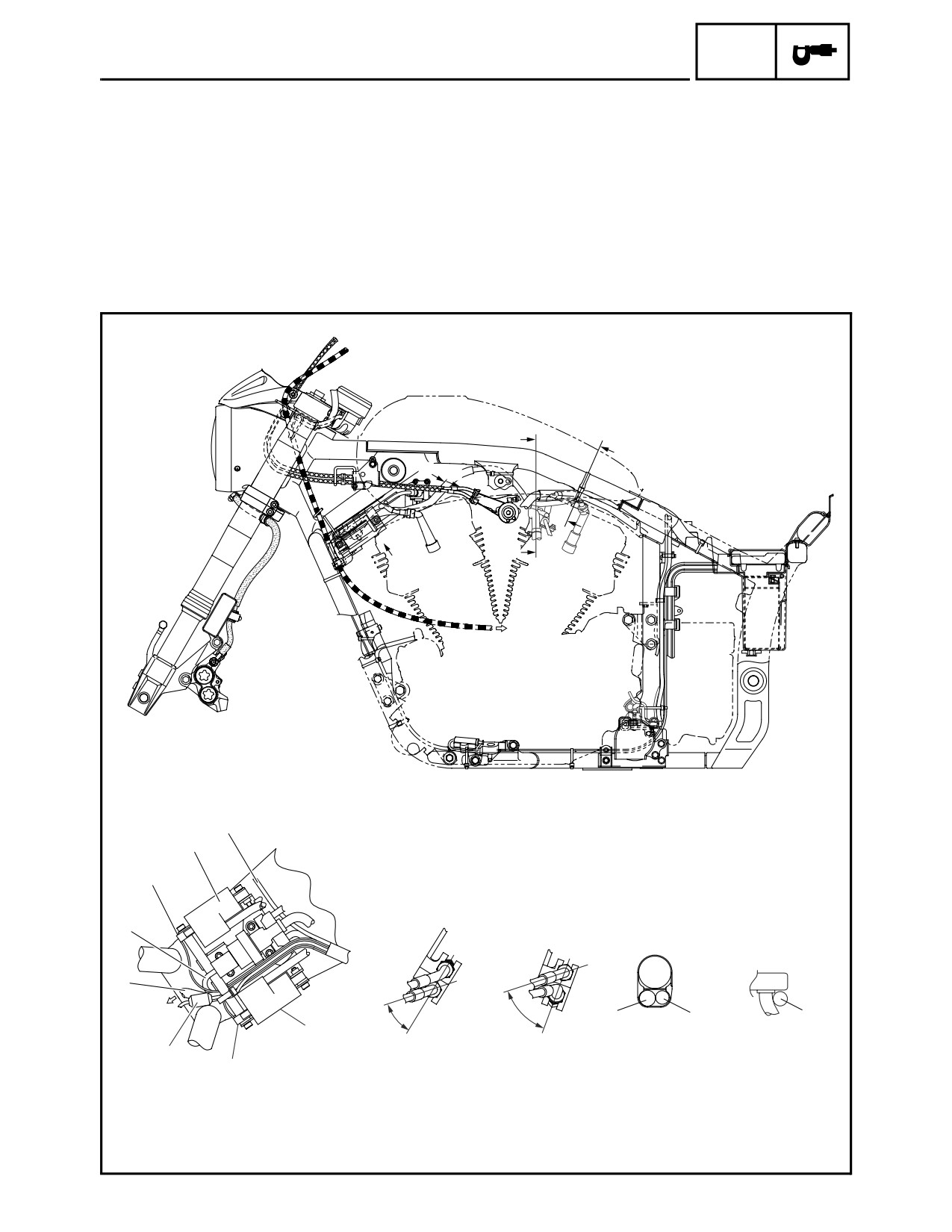

CABLE ROUTING
1 Ignition coil 1
È To the rectifier/regulator, horn 1, and rear brake
2 Atmospheric pressure sensor lead
light switch.
3 Ignition coil 2
É 30 ~ 50 degrees
4 Ignition coil 2 lead
Ê 40 ~ 60 degrees
5 Rear brake light switch coupler
6 Rectifier/regulator lead and horn lead
7 Linear control valve lead
8 Ignition coil 1 lead
9 Fuel return hose
0 Fuel inlet hose
E
D
B C
D
E
A
2
1
8
7
6
È
9
0
9
Ê
3
É
D-D
E-E
5
B
C
4
A
- 7 -

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPEC
CABLE ROUTING
1 Oil temperature sensor
9 Intake air pressure sensor 2
H Ignition coil 1-R spark plug lead
2 Fuel hose
0 Throttle cables
I Lean angle cut-off switch lead
3 Spark plug cap (ignition coil 1-R
A Brake hose
J Crankshaft position sensor lead
spark plug lead)
B Spark plug cap (ignition coil 2-R
K Sidestand switch lead
4 Injector lead
spark plug lead)
L Starter motor lead
5 Throttle position sensor lead
C Engine temperature sensor lead
M Horn 2 lead
6 Intake air pressure sensor 1
D Stator coil lead
N Oil temperature sensor lead
7 Intake air temperature sensor
E Neutral switch lead
coupler
F Speed sensor lead
8 Intake air pressure sensor lead G Main wire harness
9
7
8
6
Ì
5
Í
4
Ê
Ë
É
C
0
3
B
2
A
Ù
A
1
B
A
C
Ñ
È
Î
Ð
Ï
B
D
E
D
Ö
C
×
F
E
Õ
Ô
Ò
D
Ó
G
N
G
G
Ø
J
H
H
2
M
A-A
B-B
C-C
D-D
I
L
E
K
- 8 -

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPEC
CABLE ROUTING
È To the battery box.
Í Fasten the main wire harness, intake air pres-
É Fasten the main wire harness and fuel hose with
sure sensor lead #2, ignition coil 1-R spark plug
a plastic locking tie to the frame.
lead, and intake air temperature sensor coupler
Ê Fasten the main wire harness and spark plug
with a plastic locking tie.
lead #3 with a plastic locking tie to the frame.
Î Fasten the rear brake light switch lead and igni-
Ë Fasten the throttle position sensor lead, engine
tion coil lead #2 with a plastic band.
temperature sensor lead, and injector lead with
Ï Fasten the main wire harness and intake vac-
a plastic locking tie to the fuel delivery pipe.
uum hose with a plastic locking tie.
Ì Fasten the main wire harness and spark plug
lead #3 with a plastic locking tie.
9
7
8
6
Ì
5
Í
4
Ê
Ë
É
C
0
3
B
2
A
Ù
A
1
B
A
C
Ñ
È
Î
Ð
Ï
B
D
E
D
Ö
C
×
F
E
Õ
Ô
Ò
D
Ó
G
N
G
G
Ø
J
H
H
2
M
A-A
B-B
C-C
D-D
I
L
E
K
- 9 -

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPEC
CABLE ROUTING
Ð To the injector sub lead.
× To the speed sensor.
Ñ To the engine temperature sensor.
Ø Fasten the crankshaft position sensor lead, side-
Ò 10 ~ 30 mm (0.4 ~ 1.2 in)
stand switch lead, lean angle cut-off switch lead,
Ó Position the gray mark on the stator coil lead at
starter motor lead, and horn lead with a plastic
the center of the bolt, and then fasten it with a
locking tie.
plastic locking tie.
Ù Fasten the oil temperature sensor lead with the
Ô To the stator coil.
lead holder.
Õ To the decompression solenoid and cylinder
identification sensor.
Ö To the neutral switch.
9
7
8
6
Ì
5
Í
4
Ê
Ë
É
C
0
3
B
2
A
Ù
A
1
B
A
C
Ñ
È
Î
Ð
Ï
B
D
E
D
Ö
C
×
F
E
Õ
Ô
Ò
D
Ó
G
N
G
G
Ø
J
H
H
2
M
A-A
B-B
C-C
D-D
I
L
E
K
- 10 -

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INTRODUCTION/PERIODIC MAINTENANCE CHART
CHK
FOR THE EMISSION CONTROL SYSTEM
ADJ
EAS00036
PERIODIC CHECKS AND ADJUSTMENTS
INTRODUCTION
This chapter includes all information necessary to perform recommended checks and adjustments.
If followed, these preventive maintenance procedures will ensure more reliable vehicle operation, a
longer service life and reduce the need for costly overhaul work. This information applies to vehicles
already in service as well as to new vehicles that are being prepared for sale. All service technicians
should be familiar with this entire chapter.
PERIODIC MAINTENANCE CHART FOR THE EMISSION CONTROL
SYSTEM
INITIAL
ODOMETER READINGS
600 mi
4,000 mi
8,000 mi
12,000 mi
16,000 mi
20,000 mi
No.
ITEM
ROUTINE
(1,000 km)
(7,000 km)
(13,000 km)
(19,000 km)
(25,000 km)
(31,000 km)
or
or
or
or
or
or
1 month
6 months
12 months
18 months
24 months
30 months
• Check valve clearance when engine is cold.
1
Valve clearance
Every 16,000 mi (25,000 km)
• Adjust if necessary.
• Check condition.
• Adjust gap and clean.
2
Spark plugs
• Replace at 8,000 mi (13,000 km) or
Replace.
Replace.
12 months and thereafter every 8,000 mi
(13,000 km) or 12 months.
Crankcase ventila-
• Check ventilation hose for cracks or damage.
3
tion system
• Replace if necessary.
• Check fuel hose for cracks or damage.
4
Fuel line
• Replace if necessary.
• Check for leakage.
5
Exhaust system
• Tighten if necessary.
• Replace gasket(s) if necessary.
• Check and adjust engine idle speed and syn-
Electronic fuel
6
chronization.
injection
• Adjust cable free play.
Evaporative
Emission control
• Check control system for damage.
7
system (For
• Replace if necessary.
California only)
* Since these items require special tools, data and technical skills, have a Yamaha dealer perform the service.
- 11 -

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CHK
GENERAL MAINTENANCE AND LUBRICATION CHART
ADJ
GENERAL MAINTENANCE AND LUBRICATION CHART
INITIAL
ODOMETER READINGS
600 mi
4,000 mi
8,000 mi
12,000 mi
16,000 mi
20,000 mi
No.
ITEM
ROUTINE
TYPE
(1,000 km)
(7,000 km)
(13,000 km)
(19,000 km)
(25,000 km)
(31,000 km)
or
or
or
or
or
or
1 month
6 months
12 months
18 months
24 months
30 months
1
Engine oil
• Change.
Engine oil filter
2
Replace.
cartridge
Check condition and for
3
Air filter elements
damage.
Replace if necessary.
Check operation and
Replace
4
Front brake
fluid leakage.
brake
Correct if necessary.
fluid.
Check operation and
Replace
5
Rear brake
fluid leakage.
brake
Correct if necessary.
fluid.
Check operation and
6
Clutch
free play.
Correct if necessary.
Check vehicle for leak-
age.
SAE 80 API “GL-4”
7
Transfer case oil
Replace every
Change.
Check.
Change.
hypoid gear oil
16,000 mi (25,000 km)
or 24 months.
Check operation and
free play.
Throttle grip hous-
Adjust the throttle cable
8
ing and cable
free play if necessary.
Lubricate the throttle
grip housing and cable.
Yamaha Chain and
Apply chain lube thor-
Cable Lube or
9
Control cables
oughly.
engine oil (API SE)
10W-30
Check bearing assem-
bly for looseness.
Rear arm pivot
Moderately repack
Lithium-soap-
10
Repack.
bearing
every 16,000 mi
based grease
(25,000 km) or
24 months.
Lithium-soap-
Brake and clutch
Lubricate.
11
based grease (all-
lever pivot shafts
Apply grease lightly.
purpose grease)
Lithium-soap-
Brake pedal and
• Lubricate.
12
based grease (all-
shift pedal shafts
• Apply grease lightly.
purpose grease)
• Check operation and
Lithium-soap-
13
Sidestand pivot
lubricate.
based grease (all-
• Apply grease lightly.
purpose grease)
• Check and clean or
14
Sidestand switch
replace if necessary.
• Check operation and for
15
Front fork
leakage.
• Check bearing assem-
bly for looseness.
Lithium-soap-
• Moderately repack
16
*
Steering bearings
based grease (all-
Repack.
every 16,000 mi
purpose grease)
(25,000 km) or
24 months.
- 12 -

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CHK
GENERAL MAINTENANCE AND LUBRICATION CHART
ADJ
INITIAL
ODOMETER READINGS
600 mi
4,000 mi
8,000 mi
12,000 mi
16,000 mi
20,000 mi
No.
ITEM
ROUTINE
TYPE
(1,000 km)
(7,000 km)
(13,000 km)
(19,000 km)
(25,000 km)
(31,000 km)
or
or
or
or
or
or
1 month
6 months
12 months
18 months
24 months
30 months
• Check bearings for
17
Wheel bearings
smooth rotation.
Rear suspension
• Lubricate.
Lithium-soap-
18
link pivots
• Apply grease lightly.
based grease
• Check belt tension.
19
Drive belt
Every 2,500 mi (4,000 km)
• Adjust if necessary.
* Since these items require special tools, data and technical skills, have a Yamaha dealer perform the service.
NOTE:
From 24,000 mi (37,000 km) or 36 months, repeat the maintenance intervals starting from 4,000 mi
(7,000 km) or 6 months.
NOTE:
_
• Air filters
• This model’s air filters are equipped with disposable oil-coated paper elements, which must not
be cleaned with compressed air to avoid damaging them.
• The air filter elements need to be replaced more frequently when riding in unusually wet or dusty
areas.
• Hydraulic brake service
• After disassembling the brake master cylinders and calipers, always change the fluid. Regularly
check the brake fluid levels and fill the reservoirs as required.
• Every two years replace the internal components of the brake master cylinders and calipers, and
change the brake fluid.
• Replace the brake hoses every four years and if cracked or damaged.
- 13 -

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ADJUSTING THE REAR SHOCK ABSORBER
CHK
ASSEMBLY
ADJ
CHASSIS
EAS00156
ADJUSTING THE REAR SHOCK
ABSORBER ASSEMBLY
WARNING
_
Securely support the motorcycle so that
there is no danger of it falling over.
Spring preload
CAUTION:
_
Never go beyond the maximum or mini-
mum adjustment positions.
1. Adjust:
• spring preload
NOTE:
Adjust the spring preload with the special
wrench.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Loosen the locknut 1.
b. Turn the spring preload adjusting nut 2 in
direction a or b.
Spring preload is
Direction a
increased (suspension
is harder).
Spring preload is
Direction b
decreased (suspension
is softer).
Adjusting positions a
Minimum: 52 mm (2.05 in)
Standard: 54 mm (2.13 in)
Maximum: 63 mm (2.48 in)
CAUTION:
_
Never turn the spring preload adjusting nut
beyond the maximum or minimum setting.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
– 14 -

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ADJUSTING THE REAR SHOCK ABSORBER
CHK
ASSEMBLY
ADJ
Rebound damping
CAUTION:
Never go beyond the maximum or mini-
mum adjustment positions.
1. Adjust:
• rebound damping
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Turn the adjusting knob 1 in direction a or
b.
Rebound damping is
Direction a
increased (suspension
is harder).
Rebound damping is
Direction b
decreased (suspension
is softer).
Adjusting positions
Minimum: 20 clicks out*
Standard: 10 clicks out*
Maximum: 3 clicks out*
* from the fully turned-in position
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
– 15 -

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CHAS
FRONT AND REAR BRAKES
CHASSIS
FRONT AND REAR BRAKES
REAR BRAKE MASTER CYLINDER
7
6
8
LT
48 Nm (4.8 m kg, 35 ft Ib)
13
5
23 Nm (2.3 m kg, 17 ft Ib)
9
4
10
11
3
New
12
2
1
16 Nm (1.6 m kg, 11 ft Ib)
30 Nm (3.0 m kg, 22 ft Ib)
23 Nm (2.3 m kg, 17 ft Ib)
Order
Job/Part
Q’ty
Remarks
Removing the rear brake master
Remove the parts in the order listed.
cylinder
1
Brake master cylinder cover
1
Refer to “REMOVING THE
2
Union bolt
1
REAR BRAKE MASTER
3
Copper washer
2
CYLINDER” and “ASSEM-
BLING AND INSTALLING
4
Brake hose
1
Disconnect.
THE REAR BRAKE MAS-
TER CYLINDER” in chap-
ter 4. (Manual No.: 5PX-
28197-10)
5
Brake master cylinder bracket
1
6
Rear brake light switch
1
7
Horn 1 connector
2
Disconnect.
8
Rider footrest assembly (right)
1
- 16 -

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CHAS
FRONT AND REAR BRAKES
7
6
8
LT
48 Nm (4.8 m kg, 35 ft Ib)
13
5
23 Nm (2.3 m kg, 17 ft Ib)
9
4
10
11
3
New
12
2
1
16 Nm (1.6 m kg, 11 ft Ib)
30 Nm (3.0 m kg, 22 ft Ib)
23 Nm (2.3 m kg, 17 ft Ib)
Order
Job/Part
Q’ty
Remarks
9
Cotter pin
1
10
Pin
1
11
Brake rod
1
12
Locknut
1
13
Brake master cylinder
1
For installation, reverse the removal
procedure.
- 17 -

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CHAS
REAR SHOCK ABSORBER AND SWINGARM
REAR SHOCK ABSORBER AND SWINGARM
10 Nm (1.0 m kg, 7.2 ft Ib)
8
16 Nm (1.6 m kg, 11 ft Ib)
59 Nm (5.9 m kg, 43 ft Ib)
14
11
13
1
LS
2
5
4
3
9
12
7 Nm (0.7 m kg, 5.1 ft Ib)
11
7
6
125 Nm (12.5 m kg, 90 ft lb)
10
Order
Job/Part
Q’ty
Remarks
Removing the rear shock absorber
Remove the parts in the order listed.
and swingarm
Rear brake master cylinder bracket
Refer to “FRONT AND REAR BRAKES”
in chapter 4. (Manual No.: 5PX-28197-10)
Rear exhaust pipe
Refer to “ENGINE” in chapter 5. (Manual
No.: 5PX-28197-10)
Rear wheel
Refer to “REAR WHEEL, BRAKE DISC,
AND REAR WHEEL PULLEY” in chapter 4.
(Manual No.: 5PX-28197-10)
1
Adjusting bolt
2
2
Locknut
2
3
Lower drive belt cover plate
1
4
Spacer
1
5
Lower drive belt cover
1
6
Horn 2 coupler
1
Disconnect.
7
Horn 2
1
- 18 -

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CHAS
REAR SHOCK ABSORBER AND SWINGARM
10 Nm (1.0 m kg, 7.2 ft Ib)
8
16 Nm (1.6 m kg, 11 ft Ib)
59 Nm (5.9 m kg, 43 ft Ib)
14
11
13
1
LS
2
5
4
3
9
12
7 Nm (0.7 m kg, 5.1 ft Ib)
11
7
6
125 Nm (12.5 m kg, 90 ft lb)
10
Order
Job/Part
Q’ty
Remarks
8
Brake hose holder
2
Refer to “REMOVING THE REAR
9
Self-locking nut
1
SHOCK ABSORBER AND SWINGARM”
10
Bolt (shock absorber-connecting arm-
1
in chapter 4 (Manual No.: 5PX-28197-10)
frame)
and “INSTALLING THE REAR SHOCK
11
Cover (left and right)
2
ABSORBER AND SWINGARM” in chap-
12
Pivot shaft nut/washer
1/1
ter 4. (Manual No.: 5PX-28197-10)
13
Pivot shaft
1
14
Rear shock absorber and swingarm
1
assembly
For installation, reverse the removal
procedure.
- 19 -

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CHAS
REAR SHOCK ABSORBER AND SWINGARM
12
LS
59 Nm (5.9 m kg, 43 ft Ib)
13
15
7
40 Nm (4.0 m kg, 29 ft Ib)
LS
9
2
1
LS
7
9
10
10
8
3
11
14
4
11
15
4
1
13
6
LS
5
LS
2
6
LS
4
LS
3
4
59 Nm (5.9 m kg, 43 ft Ib)
LS
Order
Job/Part
Q’ty
Remarks
Removing the rear shock absorber
Remove the parts in the order listed.
and swingarm
1
Self-locking nut/washer/bolt
1/1/1
Bolt
= 100 mm (3.94 in)
2
Self-locking nut/washer/bolt
1/1/1
Bolt
= 124 mm (4.88 in)
3
Connecting arm
2
4
O-ring
4
5
Rear shock absorber
1
6
Spacer/O-ring
1/2
7
Self-locking nut/washer/bolt
1/2/1
Bolt
= 77 mm (3.03 in)
8
Relay arm
1
Refer to “INSTALLING THE REAR
9
Spacer/oil seal/bearing
1/2/1
SHOCK ABSORBER AND SWINGARM”
10
Spacer/bearing
1/2
in chapter 4. (Manual No.: 5PX-28197-10)
11
Spacer/bearing
1/1
– 20 -

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CHAS
REAR SHOCK ABSORBER AND SWINGARM
12
LS
59 Nm (5.9 m kg, 43 ft Ib)
13
15
7
40 Nm (4.0 m kg, 29 ft Ib)
LS
9
2
1
LS
7
9
10
10
8
3
11
14
4
11
15
4
1
13
6
LS
5
LS
2
6
LS
4
LS
3
4
59 Nm (5.9 m kg, 43 ft Ib)
LS
Order
Job/Part
Q’ty
Remarks
12
Swingarm
1
13
Dust cover
2
14
Spacer
1
15
Bearing
2
For installation, reverse the removal
procedure.
- 21 -

-------------------------------------------------------------------------------------------------------------------------------------------------------------

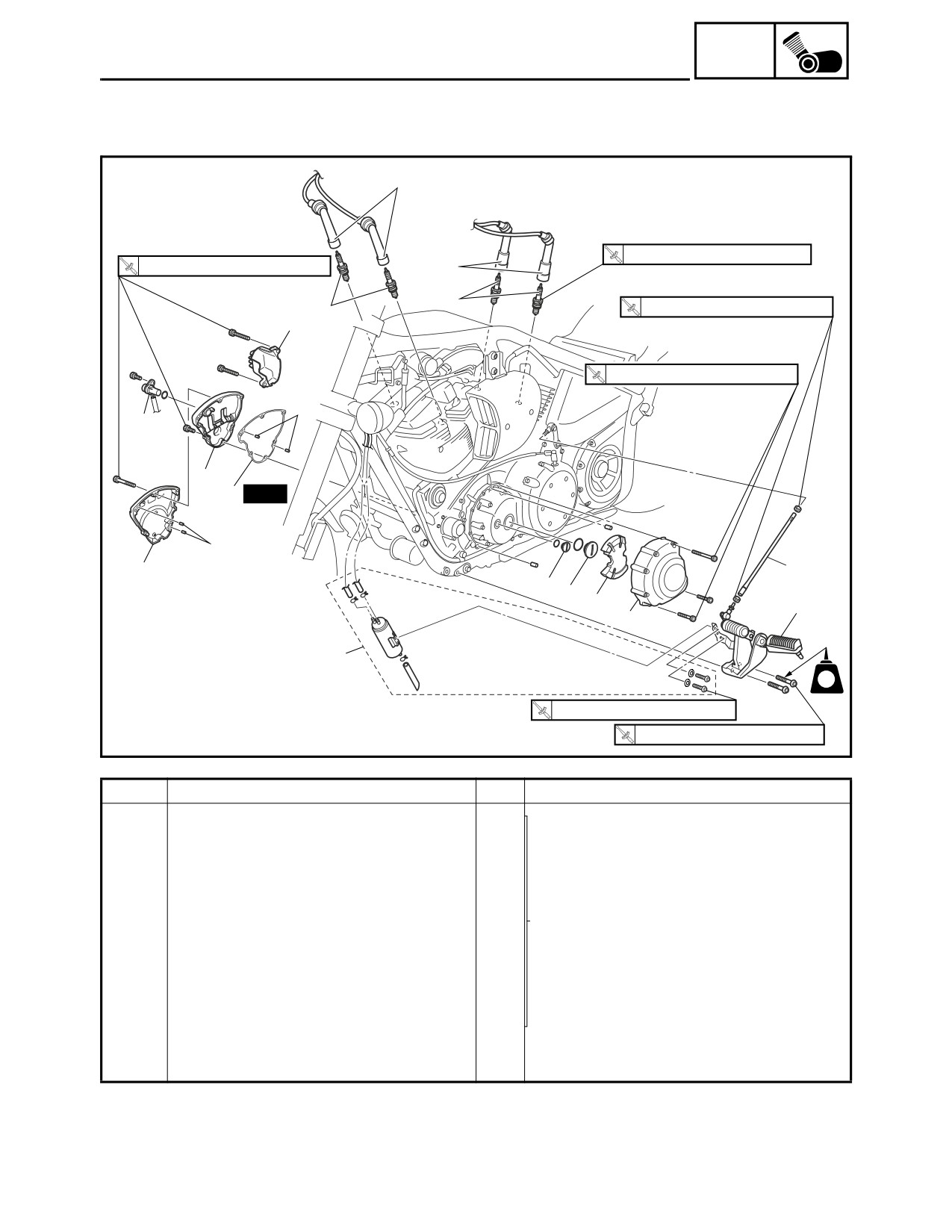

ENG
ROCKER ARMS, PUSH RODS AND VALVE LIFTERS
ENGINE
ROCKER ARMS, PUSH RODS AND VALVE LIFTERS
1
18 Nm (1.8 m kg, 13 ft Ib)
10 Nm (1.0 m kg, 7.2 ft Ib)
1
2
12 Nm (1.2 m kg, 8.7 ft Ib)
2
10
10 Nm (1.0 m kg, 7.2 ft Ib)
12
13
(5)
14
15
New
(4)
12
3
11
8
9
7
4
6
5
LT
9 Nm (0.9 m kg, 6.5 ft Ib)
48 Nm (4.8 m kg, 35 ft Ib)
Order
Job/Part
Q’ty
Remarks
Removing the engine left side cover
Remove the parts in the order listed.
and camshaft sprocket cover
Seat/fuel tank/silencer air filter case
Refer to “SEAT AND SIDE COVERS”,
“FUEL TANK” and “SILENCER AIR FIL-
TER CASE” in chapter 3. (Manual No.:
5PX-28197-10)
Muffler/exhaust pipes
Refer to “ENGINE” in chapter 5. (Manual
No.: 5PX-28197-10)
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL”
in chapter 3 (Manual No.: 5PX-28197-10).
1
Spark plug cap
2/2
Disconnect. Refer to “INSTALLING THE
2
Spark plug
4
CAMSHAFT SPROCKET
3
Shift rod
1
COVER AND ENGINE
4
Rider footrest assembly (left)
1
LEFT SIDE COVER” in
5
Canister
1
For califor-
chapter 5. (Manual No.:
nia only.
5PX-28197-10)
- 22 -

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ENG
ROCKER ARMS, PUSH RODS AND VALVE LIFTERS
1
18 Nm (1.8 m kg, 13 ft Ib)
10 Nm (1.0 m kg, 7.2 ft Ib)
1
2
12 Nm (1.2 m kg, 8.7 ft Ib)
2
10
10 Nm (1.0 m kg, 7.2 ft Ib)
12
13
(5)
14
15
New
(4)
12
3
11
8
9
7
4
6
5
LT
9 Nm (0.9 m kg, 6.5 ft Ib)
48 Nm (4.8 m kg, 35 ft Ib)
Order
Job/Part
Q’ty
Remarks
6
Engine left side cover
1
7
Rubber damper
1
8
Timing mark accessing screw
1
9
Crankshaft end cover
1
Refer to “INSTALLING THE CAMSHAFT
10
Decompression solenoid cover
1
SPROCKET COVER AND ENGINE
11
Camshaft sprocket cover 1
1
LEFT SIDE COVER” in chapter 5.
12
Dowel pin
2
(Manual No.: 5PX-28197-10)
13
Cylinder identification sensor
1
14
Camshaft sprocket cover 2
1
15
Camshaft sprocket cover gasket
1
For installation, reverse the removal
procedure
- 23 -

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ENG
GENERATOR AND STARTER CLUTCH
EAS00341
GENERATOR AND STARTER CLUTCH
STATOR COIL ASSEMBLY
7 Nm (0.7 m kg, 5.1 ft Ib)
10 Nm (1.0 m kg, 7.2 ft Ib)
2
1
10 Nm (1.0 m kg, 7.2 ft Ib)
11
2
1
3
7
4
6
1
10
12
9 New
8
LT
(9)
5
10 Nm (1.0 m kg, 7.2 ft Ib)
48 Nm (4.8 m kg, 35 ft Ib)
Order
Job/Part
Q’ty
Remarks
Removing the stator coil assembly
Remove the parts in the order listed.
Muffler/exhaust pipes
Refer to “ENGINE” in chapter 5. (Manual
No.: 5PX-28197-10)
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL”
in chapter 3. (Manual No.: 5PX-28197-10)
1
Plastic locking tie
3
2
Plastic band
2
3
Rear brake light switch coupler
1
Disconnect.
4
Horn 1 connectors
2
5
Rider footrest assembly (right)
1
6
Stator coil assembly coupler
1
Disconnect.
7
Oil delivery pipe
1
- 24 -

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ENG
GENERATOR AND STARTER CLUTCH
7 Nm (0.7 m kg, 5.1 ft Ib)
10 Nm (1.0 m kg, 7.2 ft Ib)
2
1
10 Nm (1.0 m kg, 7.2 ft Ib)
11
2
1
3
7
4
6
1
10
12
9 New
8
LT
(9)
5
10 Nm (1.0 m kg, 7.2 ft Ib)
48 Nm (4.8 m kg, 35 ft Ib)
Order
Job/Part
Q’ty
Remarks
8
Generator cover
1
9
Generator cover gasket
1
10
Dowel pin
2
11
Stator coil assembly lead holder
1
12
Stator coil assembly
1
For installation, reverse the removal
procedure.
- 25 -

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OWNER’S MANUAL
XV1700PCR
XV1700PCRC
LIT-11626-16-36
5PX-28199-11

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EAU00002
INTRODUCTION
Congratulations on your purchase of the Yamaha XV1700PC/XV1700PCC. This
model is the result of Yamaha’s vast experience in the production of fine sporting,
touring, and pacesetting racing machines. It represents the high degree of crafts-
manship and reliability that have made Yamaha a leader in these fields.
This manual will give you an understanding of the operation, inspection, and basic
maintenance of this motorcycle. If you have any questions concerning the operation
or maintenance of your motorcycle, please consult a Yamaha dealer.
The design and manufacture of this Yamaha motorcycle fully comply with the emis-
sions standards for clean air applicable at the date of manufacture. Yamaha has met
these standards without reducing the performance or economy of operation of the
motorcycle. To maintain these high standards, it is important that you and your
Yamaha dealer pay close attention to the recommended maintenance schedules and
operating instructions contained within this manual.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EAU00003
IMPORTANT MANUAL INFORMATION
Particularly important information is distinguished in this manual by the following notations:
The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!
Failure to follow WARNING instructions could result in severe injury or death to the
WARNING
motorcycle operator, a bystander or a person inspecting or repairing the motorcycle.
A CAUTION indicates special precautions that must be taken to avoid damage to the
CAUTION:
motorcycle.
NOTE:
A NOTE provides key information to make procedures easier or clearer.
NOTE:
_
This manual should be considered a permanent part of this motorcycle and should remain
with it even if the motorcycle is subsequently sold.
Yamaha continually seeks advancements in product design and quality. Therefore, while
this manual contains the most current product information available at the time of printing,
there may be minor discrepancies between your motorcycle and this manual. If you have
any questions concerning this manual, please consult your Yamaha dealer.
_

-------------------------------------------------------------------------------------------------------------------------------------------------------------

IMPORTANT MANUAL INFORMATION
EW000000
WARNING
_
PLEASE READ THIS MANUAL AND THE “YOU AND YOUR MOTORCYCLE: RIDING
TIPS” BOOKLET CAREFULLY AND COMPLETELY BEFORE OPERATING THIS MOTOR-
CYCLE. DO NOT ATTEMPT TO OPERATE THIS MOTORCYCLE UNTIL YOU HAVE AT-
TAINED ADEQUATE KNOWLEDGE OF ITS CONTROLS AND OPERATING FEATURES
AND UNTIL YOU HAVE BEEN TRAINED IN SAFE AND PROPER RIDING TECHNIQUES.
REGULAR INSPECTIONS AND CAREFUL MAINTENANCE, ALONG WITH GOOD RIDING
SKILLS, WILL ENSURE THAT YOU SAFELY ENJOY THE CAPABILITIES AND THE RELI-
ABILITY OF THIS MOTORCYCLE.
_

-------------------------------------------------------------------------------------------------------------------------------------------------------------

IMPORTANT MANUAL INFORMATION
AFFIX DEALER
LABEL HERE
EAU04247
XV1700PCR/XV1700PCRC
OWNER’S MANUAL
©2002 by Yamaha Motor Corporation, U.S.A.
1st edition, June 2002
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Corporation, U.S.A.
is expressly prohibited.
Printed in Japan.
P/N LIT-11626-16-36

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EAU00009
TABLE OF CONTENTS
1
SAFETY INFORMATION
1
2
DESCRIPTION
2
3
INSTRUMENT AND CONTROL FUNCTIONS
3
4
PRE-OPERATION CHECKS
4
5
OPERATION AND IMPORTANT RIDING POINTS
5
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6
7
MOTORCYCLE CARE AND STORAGE
7
8
SPECIFICATIONS
8
9
CONSUMER INFORMATION
9
INDEX

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY INFORMATION
Safe riding
1-1
Protective apparel
1-3
1
Modifications
1-3
Loading and accessories
1-3
Gasoline and exhaust gas
1-5
Location of important labels
1-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EAU04193
SAFETY INFORMATION
MOTORCYCLES ARE SINGLE TRACK VEHICLES. THEIR SAFE USE AND OPERATION ARE
DEPENDENT UPON THE USE OF PROPER RIDING TECHNIQUES AS WELL AS THE EXPERTISE
OF THE OPERATOR. EVERY OPERATOR SHOULD KNOW THE FOLLOWING REQUIREMENTS
1
BEFORE RIDING THIS MOTORCYCLE.
HE OR SHE SHOULD:
1. OBTAIN THOROUGH INSTRUCTIONS FROM A COMPETENT SOURCE ON ALL ASPECTS OF
MOTORCYCLE OPERATION.
2. OBSERVE THE WARNINGS AND MAINTENANCE REQUIREMENTS IN THE OWNER’S MANU-
AL.
3. OBTAIN QUALIFIED TRAINING IN SAFE AND PROPER RIDING TECHNIQUES.
4. OBTAIN PROFESSIONAL TECHNICAL SERVICE AS INDICATED BY THE OWNER’S MANUAL
AND/OR WHEN MADE NECESSARY BY MECHANICAL CONDITIONS.
Safe riding
1. Always make pre-operation checks. Careful checks may help prevent an accident.
2. This motorcycle is designed to carry the operator and a passenger.
3. The failure of motorists to detect and recognize motorcycles in traffic is the predominating cause of
automobile/motorcycle accidents. Many accidents have been caused by an automobile driver who
did not see the motorcycle. Making yourself conspicuous appears to be very effective in reducing the
chance of this type of accident.
Therefore:
a. Wear a brightly colored jacket.
b. Use extra caution when you are approaching and passing through intersections, since intersec-
tions are the most likely places for motorcycle accidents to occur.
c. Ride where other motorists can see you. Avoid riding in another motorist’s blind spot.
1-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY INFORMATION
4.
Many accidents involve inexperienced operators. In fact, many operators who have been involved in
accidents do not even have a current motorcycle license.
a. Make sure that you are qualified and that you only lend your motorcycle to other qualified opera-
tors.
1
b. Know your skills and limits. Staying within your limits may help you to avoid an accident.
c. We recommend that you practice riding your motorcycle where there is no traffic until you have
become thoroughly familiar with the motorcycle and all of its controls.
5.
Many accidents have been caused by error of the motorcycle operator. A typical error made by the
operator is veering wide on a turn due to EXCESSIVE SPEED or undercornering (insufficient lean
angle for the speed).
a. Always obey the speed limit and never travel faster than warranted by road and traffic conditions.
b. Always signal before turning or changing lanes. Make sure that other motorists can see you.
6.
The posture of the operator and passenger is important for proper control.
a. The operator should keep both hands on the handlebar and both feet on the operator footrests
during operation to maintain control of the motorcycle.
b. The passenger should always hold onto the operator, the seat strap or grab bar, if equipped, with
both hands and keep both feet on the passenger footrests.
c. Never carry a passenger unless he or she can firmly place both feet on the passenger footrests.
7.
Never ride under the influence of alcohol or other drugs.
8.
This motorcycle is designed for on-road use only. It is not suitable for off-road use.
1-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY INFORMATION
Protective apparel
The majority of fatalities from motorcycle accidents are the result of head injuries. The use of a safety
helmet is the single most critical factor in the prevention or reduction of head injuries.
1
1. Always wear an approved helmet.
2. Wear a face shield or goggles. Wind in your unprotected eyes could contribute to an impairment of vi-
sion that could delay seeing a hazard.
3. The use of a jacket, heavy boots, trousers, gloves, etc., is effective in preventing or reducing abra-
sions or lacerations.
4. Never wear loose-fitting clothes, otherwise they could catch on the control levers, footrests, or wheels
and cause injury or an accident.
5. Never touch the engine or exhaust system during or after operation. They become very hot and can
cause burns. Always wear protective clothing that covers your legs, ankles, and feet.
6. A passenger should also observe the above precautions.
Modifications
Modifications made to this motorcycle not approved by Yamaha, or the removal of original equipment,
may render the motorcycle unsafe for use and may cause severe personal injury. Modifications may
also make your motorcycle illegal to use.
Loading and accessories
Adding accessories or cargo to your motorcycle can adversely affect stability and handling if the
weight distribution of the motorcycle is changed. To avoid the possibility of an accident, use extreme
caution when adding cargo or accessories to your motorcycle. Use extra care when riding a
motorcycle that has added cargo or accessories. Here are some general guidelines to follow if loading
cargo or adding accessories to your motorcycle:
1-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY INFORMATION
Loading
The total weight of the operator, passenger, accessories and cargo must not exceed the maximum
load limit of 408 lb (185 kg). When loading within this weight limit, keep the following in mind:
1
1. Cargo and accessory weight should be kept as low and close to the motorcycle as possible. Make
sure to distribute the weight as evenly as possible on both sides of the motorcycle to minimize imbal-
ance or instability.
2. Shifting weights can create a sudden imbalance. Make sure that accessories and cargo are securely
attached to the motorcycle before riding. Check accessory mounts and cargo restraints frequently.
3. Never attach any large or heavy items to the handlebar, front fork, or front fender. These items, in-
cluding such cargo as sleeping bags, duffel bags, or tents, can create unstable handling or a slow
steering response.
Accessories
Genuine Yamaha accessories have been specifically designed for use on this motorcycle. Since
Yamaha cannot test all other accessories that may be available, you must personally be responsible
for the proper selection, installation and use of non-Yamaha accessories. Use extreme caution when
selecting and installing any accessories.
Keep the following guidelines in mind, as well as those provided under “Loading” when mounting
accessories.
1. Never install accessories or carry cargo that would impair the performance of your motorcycle. Care-
fully inspect the accessory before using it to make sure that it does not in any way reduce ground
clearance or cornering clearance, limit suspension travel, steering travel or control operation, or ob-
scure lights or reflectors.
1-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY INFORMATION
a. Accessories fitted to the handlebar or the front fork area can create instability due to improper
weight distribution or aerodynamic changes. If accessories are added to the handlebar or front
fork area, they must be as lightweight as possible and should be kept to a minimum.
1
b. Bulky or large accessories may seriously affect the stability of the motorcycle due to aerodynamic
effects. Wind may attempt to lift the motorcycle, or the motorcycle may become unstable in cross
winds. These accessories may also cause instability when passing or being passed by large ve-
hicles.
c. Certain accessories can displace the operator from his or her normal riding position. This improp-
er position limits the freedom of movement of the operator and may limit control ability, therefore,
such accessories are not recommended.
2. Use caution when adding electrical accessories. If electrical accessories exceed the capacity of the
motorcycle’s electrical system, an electric failure could result, which could cause a dangerous loss of
lights or engine power.
Gasoline and exhaust gas
1. GASOLINE IS HIGHLY FLAMMABLE:
a. Always turn the engine off when refueling.
b. Take care not to spill any gasoline on the engine or exhaust system when refueling.
c. Never refuel while smoking or in the vicinity of an open flame.
2. Never start the engine or let it run for any length of time in a closed area. The exhaust fumes are poi-
sonous and may cause loss of consciousness and death within a short time. Always operate your
motorcycle in an area that has adequate ventilation.
3. Always turn the engine off before leaving the motorcycle unattended and remove the key from the
main switch. When parking the motorcycle, note the following:
1-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY INFORMATION
a. The engine and exhaust system may be hot, therefore, park the motorcycle in a place where pe-
destrians or children are not likely to touch these hot areas.
b. Do not park the motorcycle on a slope or soft ground, otherwise it may fall over.
1
c. Do not park the motorcycle near a flammable source (e.g., a kerosene heater, or near an open
flame), otherwise it could catch fire.
4. When transporting the motorcycle in another vehicle, make sure that it is kept upright. If the motor-
cycle should lean over, gasoline may leak out of the fuel tank.
5. If you should swallow any gasoline, inhale a lot of gasoline vapor, or allow gasoline to get into your
eyes, see your doctor immediately. If any gasoline spills on your skin or clothing, immediately wash
the affected area with soap and water and change your clothes.
1-6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY INFORMATION
EAU02977

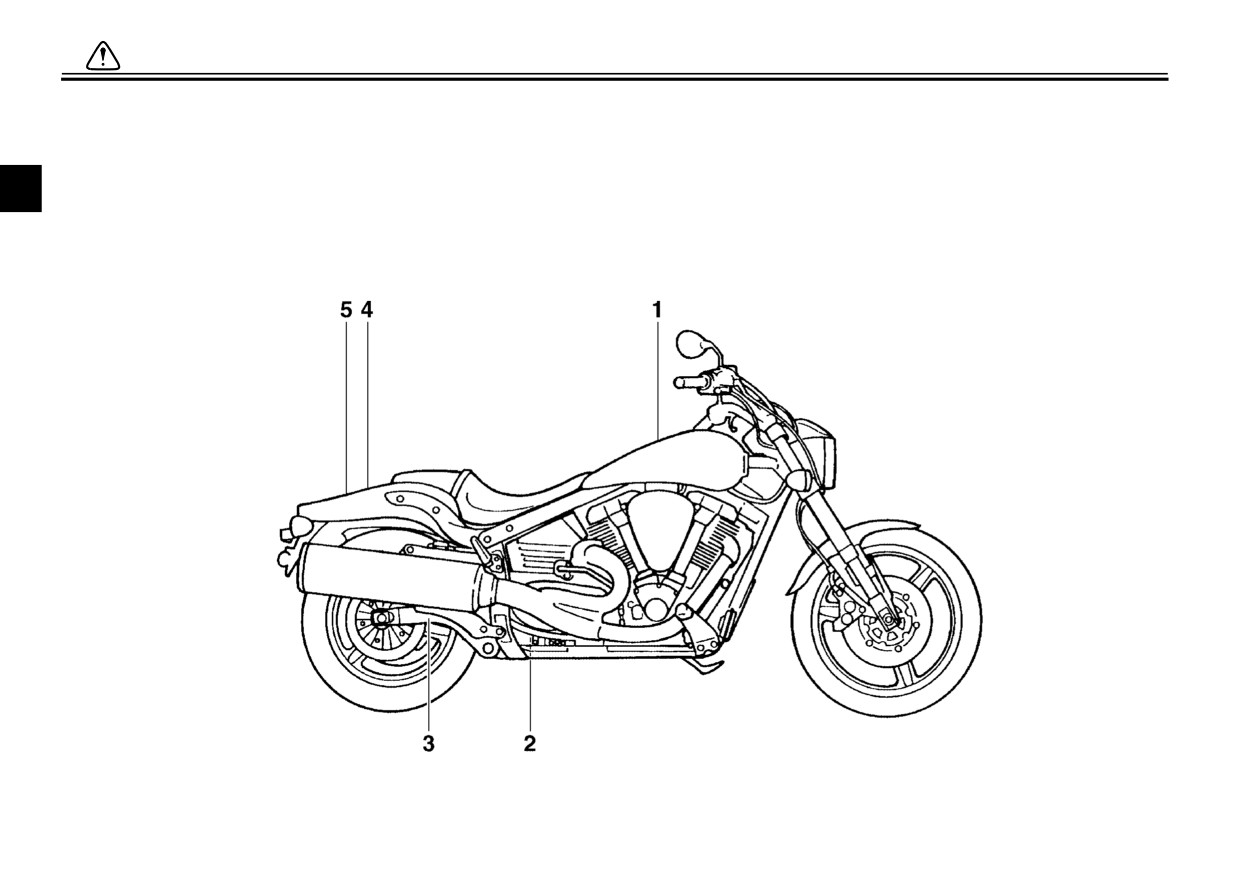

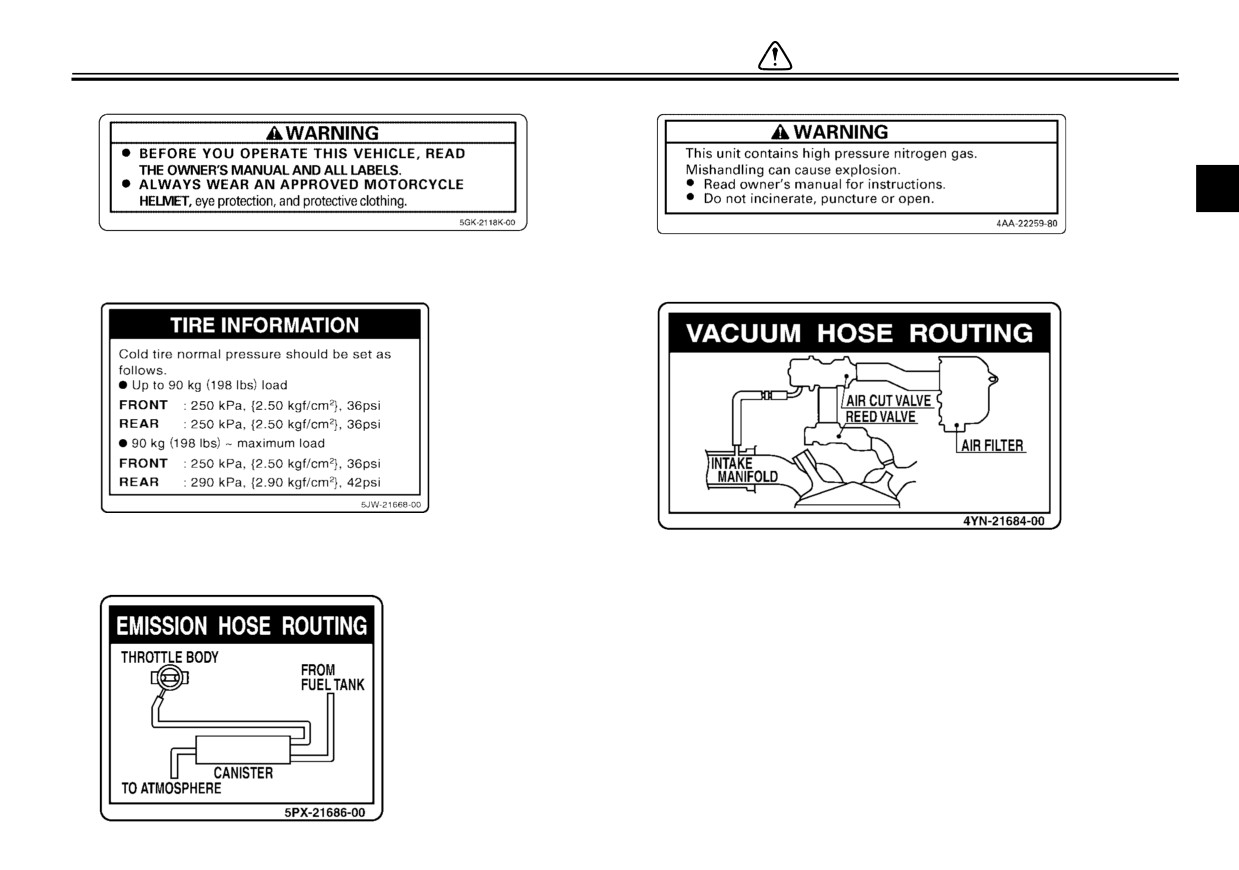

Location of important labels
Please read the following important labels carefully before operating this motorcycle.
1
1-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY INFORMATION
1
2
1
California only
3
4
California only
5
1-8

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DESCRIPTION
Left view
2-1
Right view
2-2
Controls and instruments
2-3
2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EAU00026
DESCRIPTION

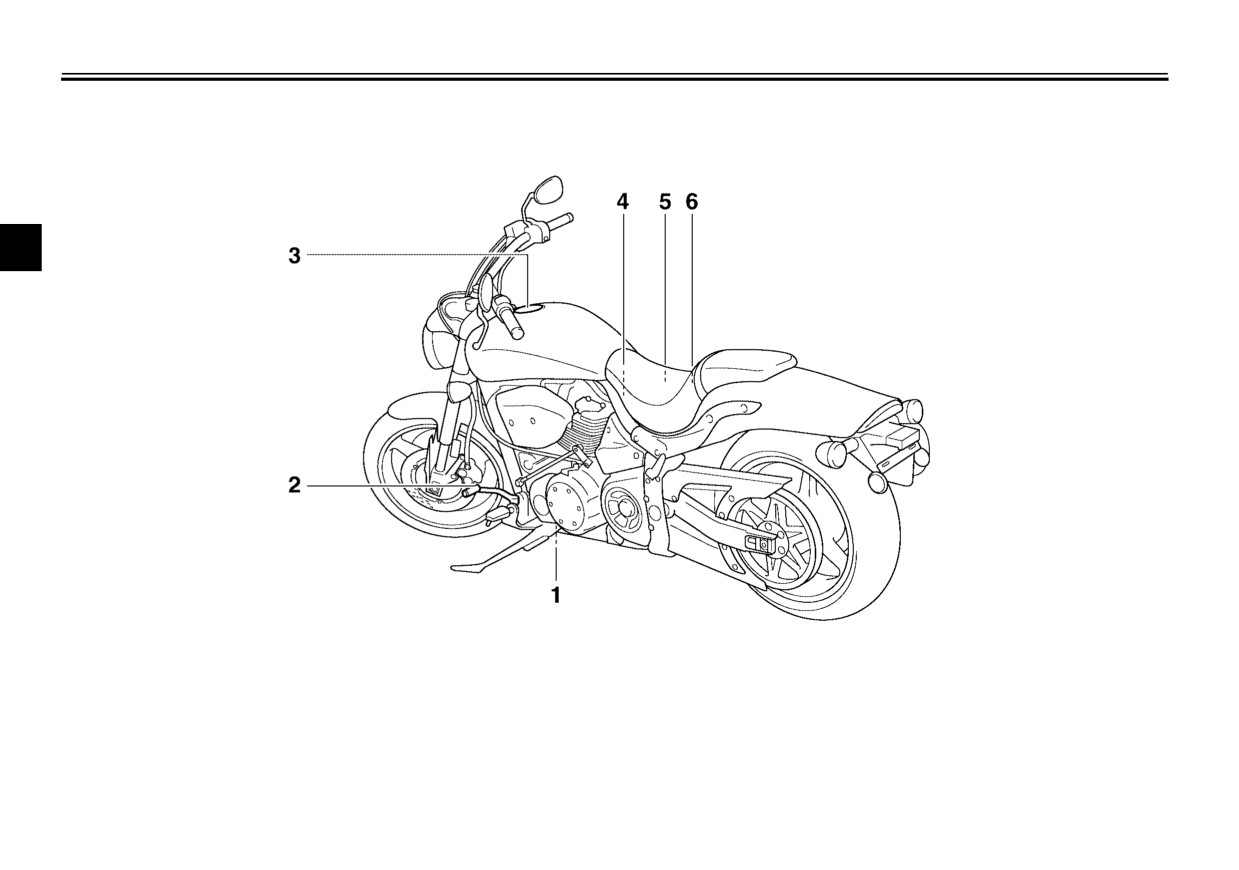

Left view
2
1. Engine oil drain bolt (crankcase)
(page 6-11)
4. Helmet holder
(page 3-11)
2. Shift pedal
(page 3-7)
5. Fuses
(page 6-37)
3. Fuel tank cap
(page 3-9)
6. Owner’s tool kit
(page 6-2)
2-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

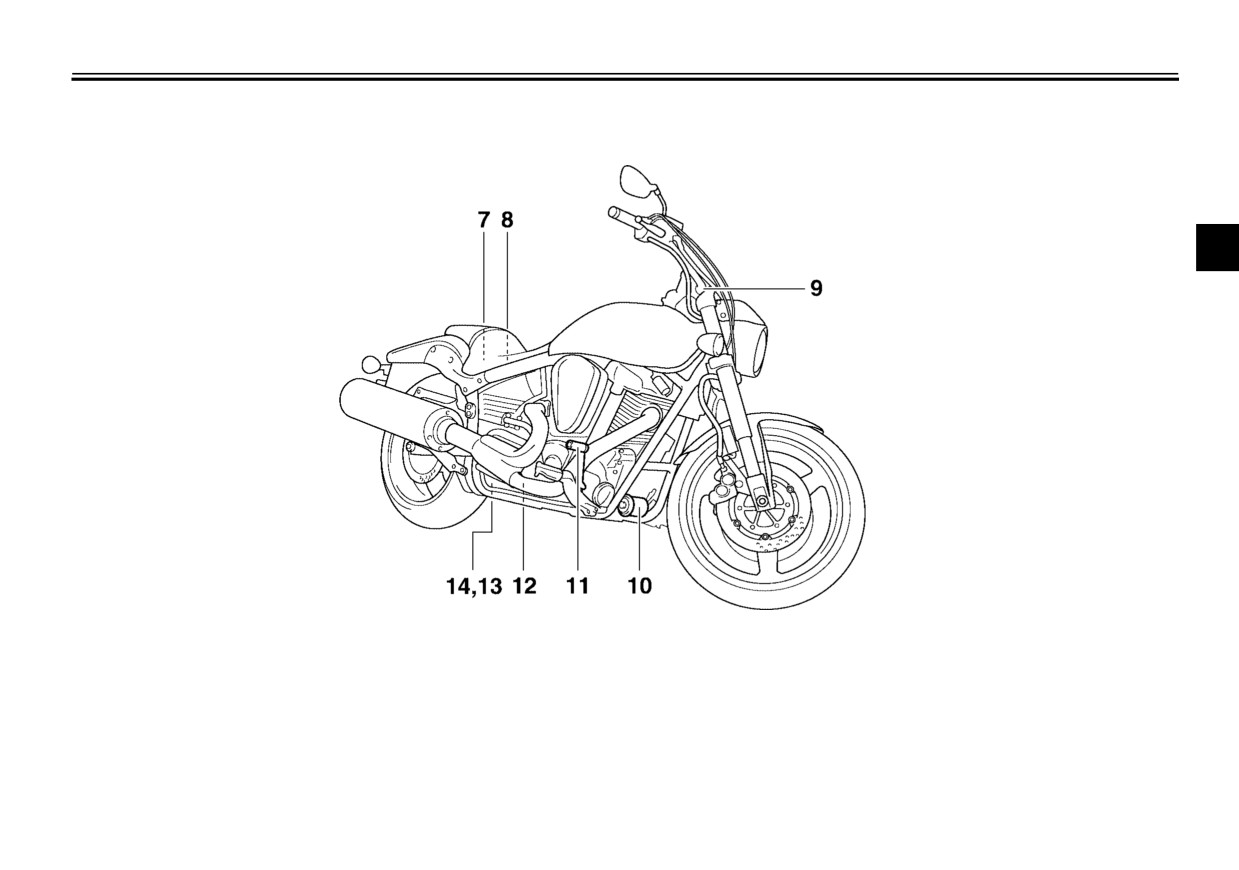

DESCRIPTION
Right view
2
7. Battery
(page 6-35)
11. Brake pedal
(page 3-8)
8. Engine oil filler cap
(page 6-9)
12. Engine oil drain bolt (oil tank)
(page 6-10)
9. Front fork spring preload adjusting bolt
(page 3-12)
13. Shock absorber assembly spring
10. Engine oil filter cartridge
(page 6-11)
preload adjusting nut
(page 3-13)
14. Shock absorber assembly rebound
damping force adjusting knob
(page 3-14)
2-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DESCRIPTION

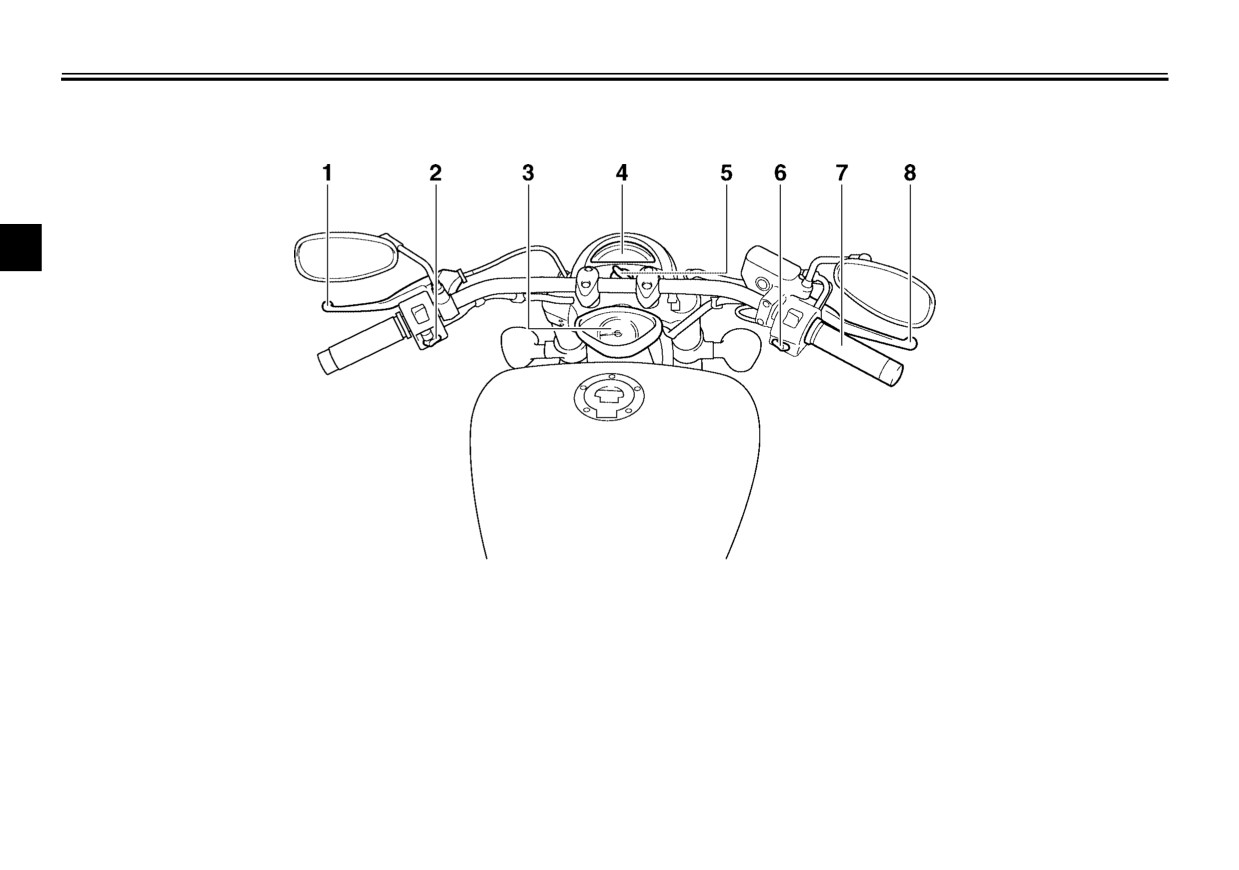

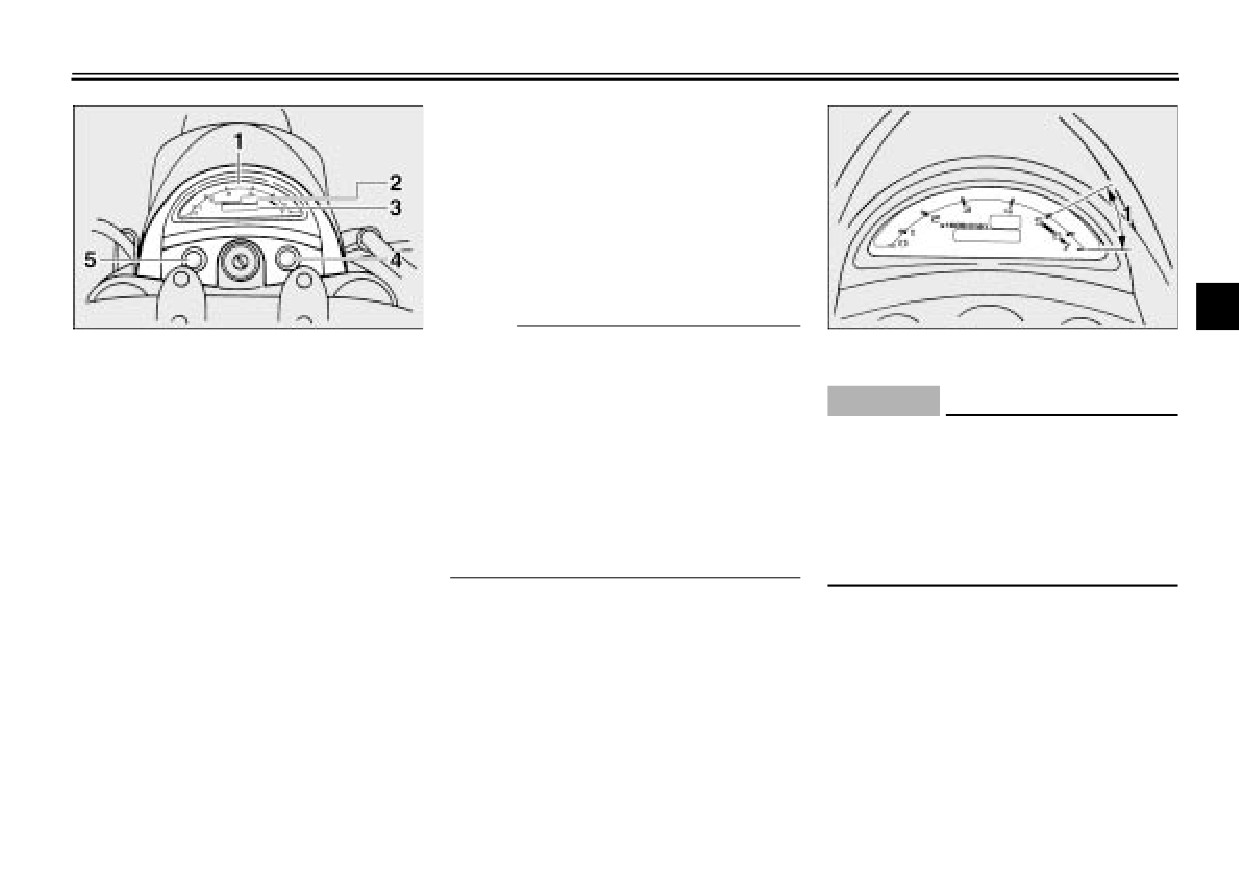

Controls and instruments
2
1. Clutch lever
(page 3-7)
6. Right handlebar switches
(page 3-7)
2. Left handlebar switches
(page 3-6)
7. Throttle grip
(page 6-18)
3. Speedometer
(page 3-3)
8. Brake lever
(page 3-8)
4. Tachometer unit
(page 3-4)
5. Main switch/steering lock
(page 3-1)
2-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
Main switch/steering lock
3-1

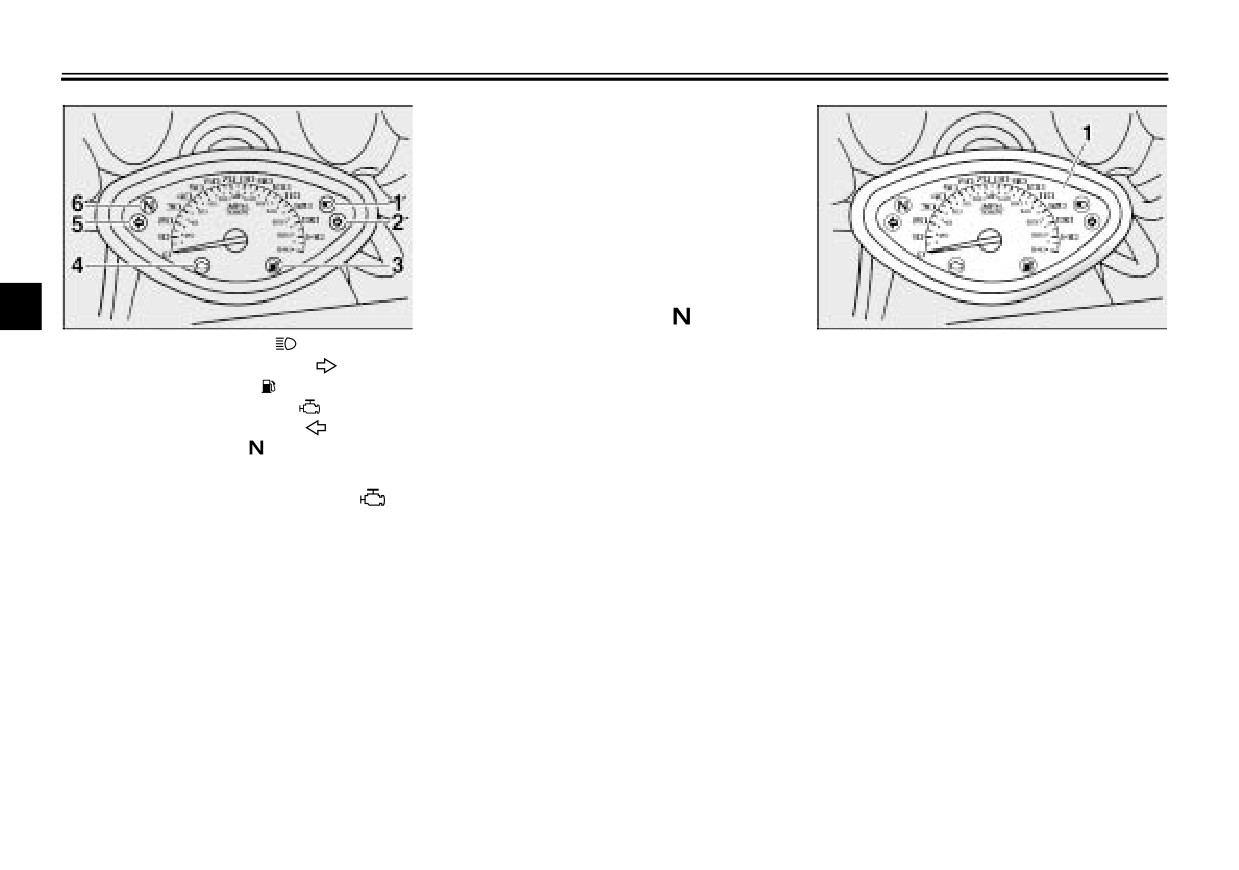

Indicator and warning lights
3-2
Speedometer
3-3
Tachometer unit
3-4

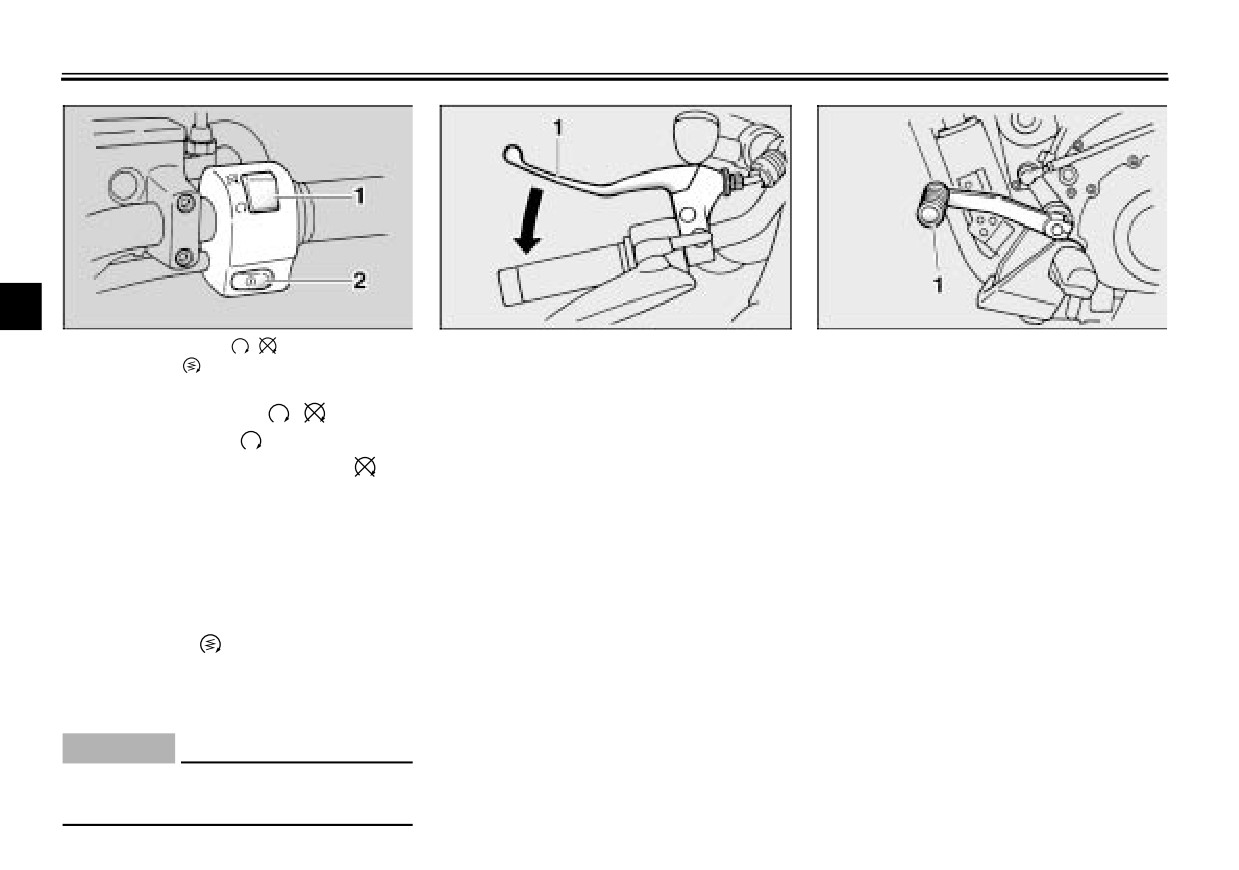

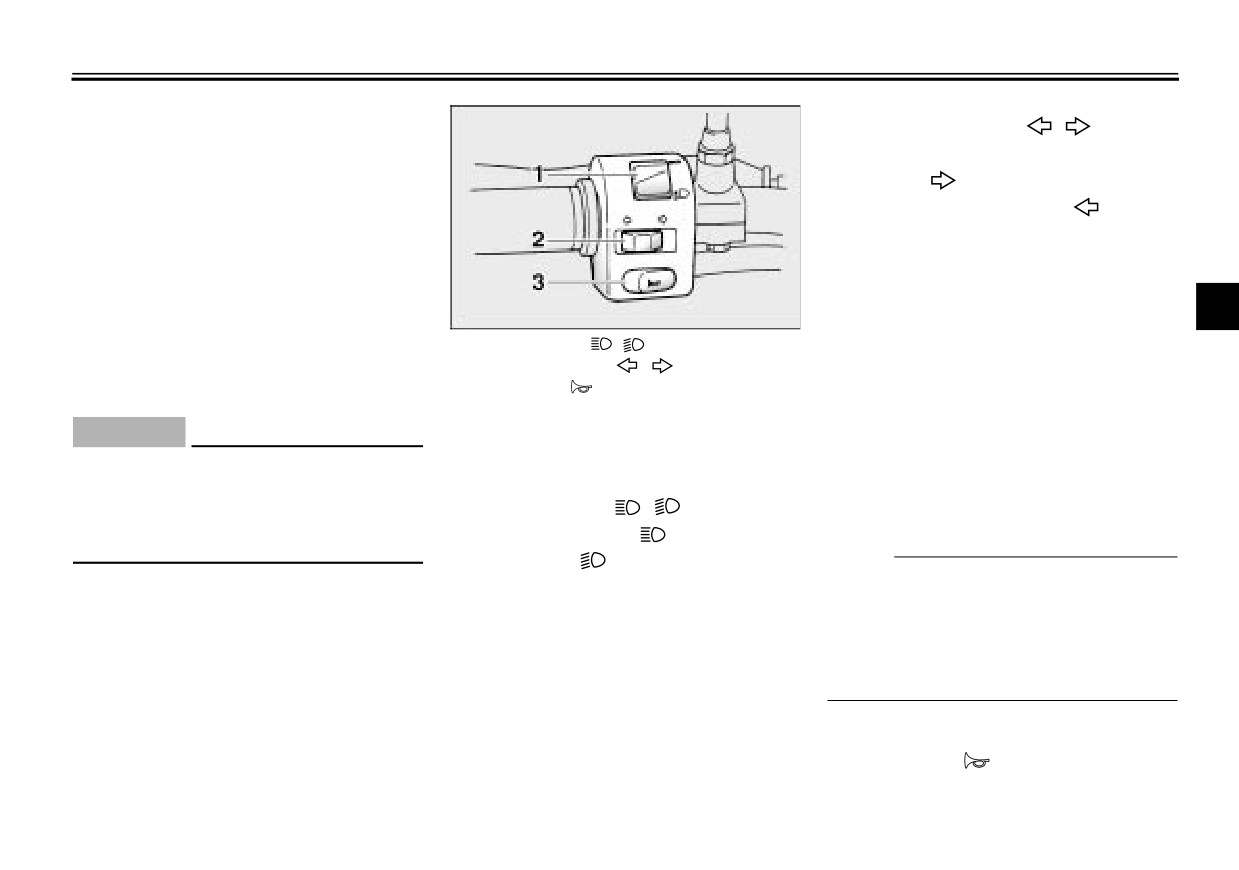

Handlebar switches
3-6
Clutch lever

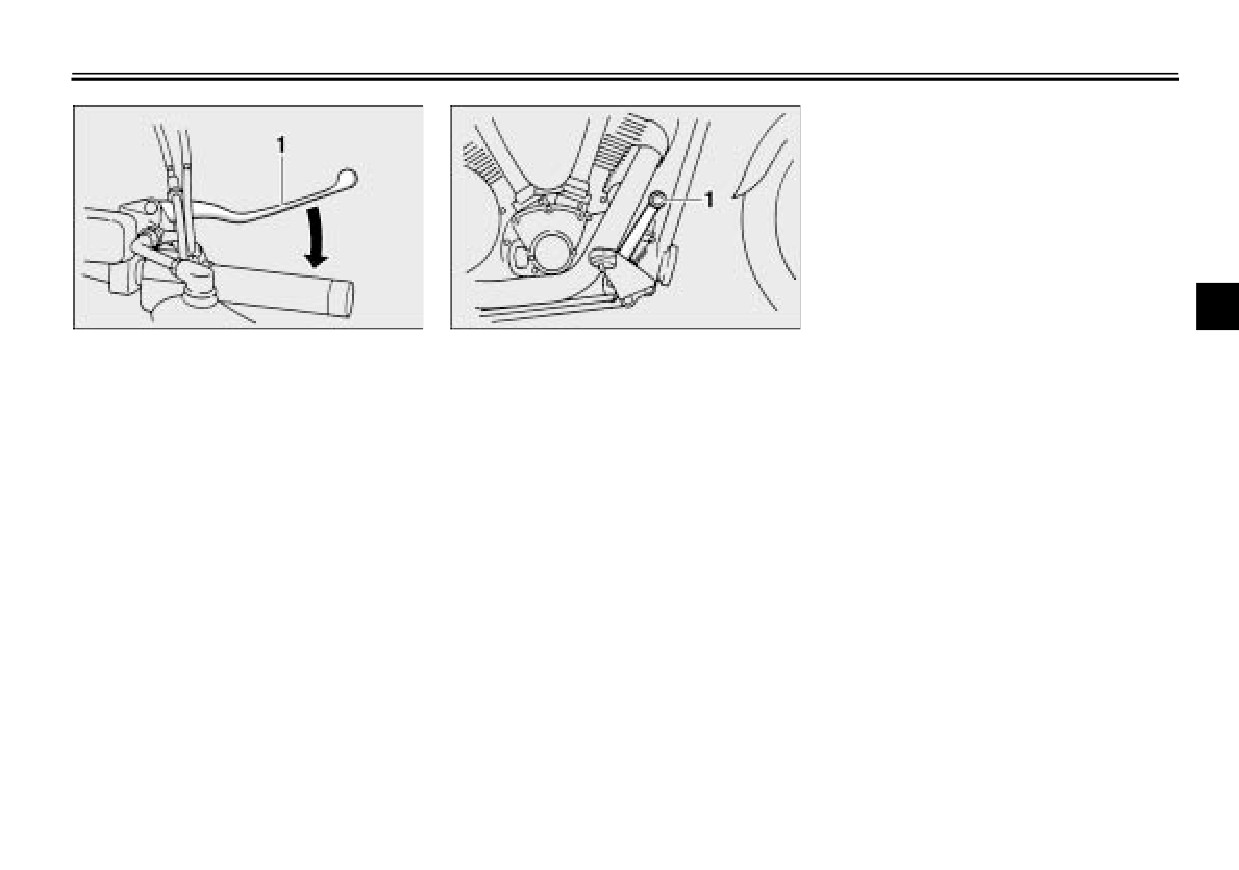

3-7
3
Shift pedal
3-7
Brake lever
3-8
Brake pedal
3-8

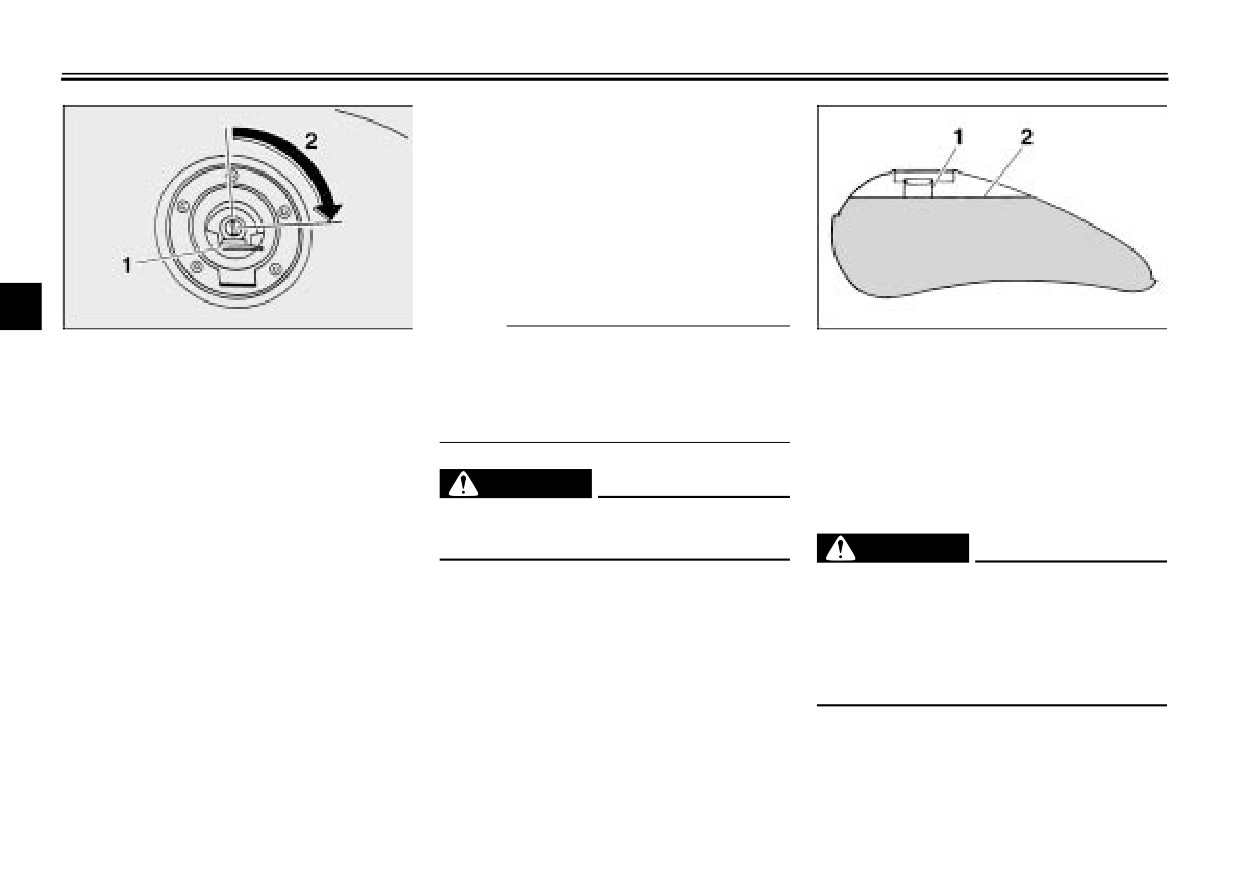

Fuel tank cap
3-9
Fuel
3-9
Seat
3-11
Helmet holder
3-11

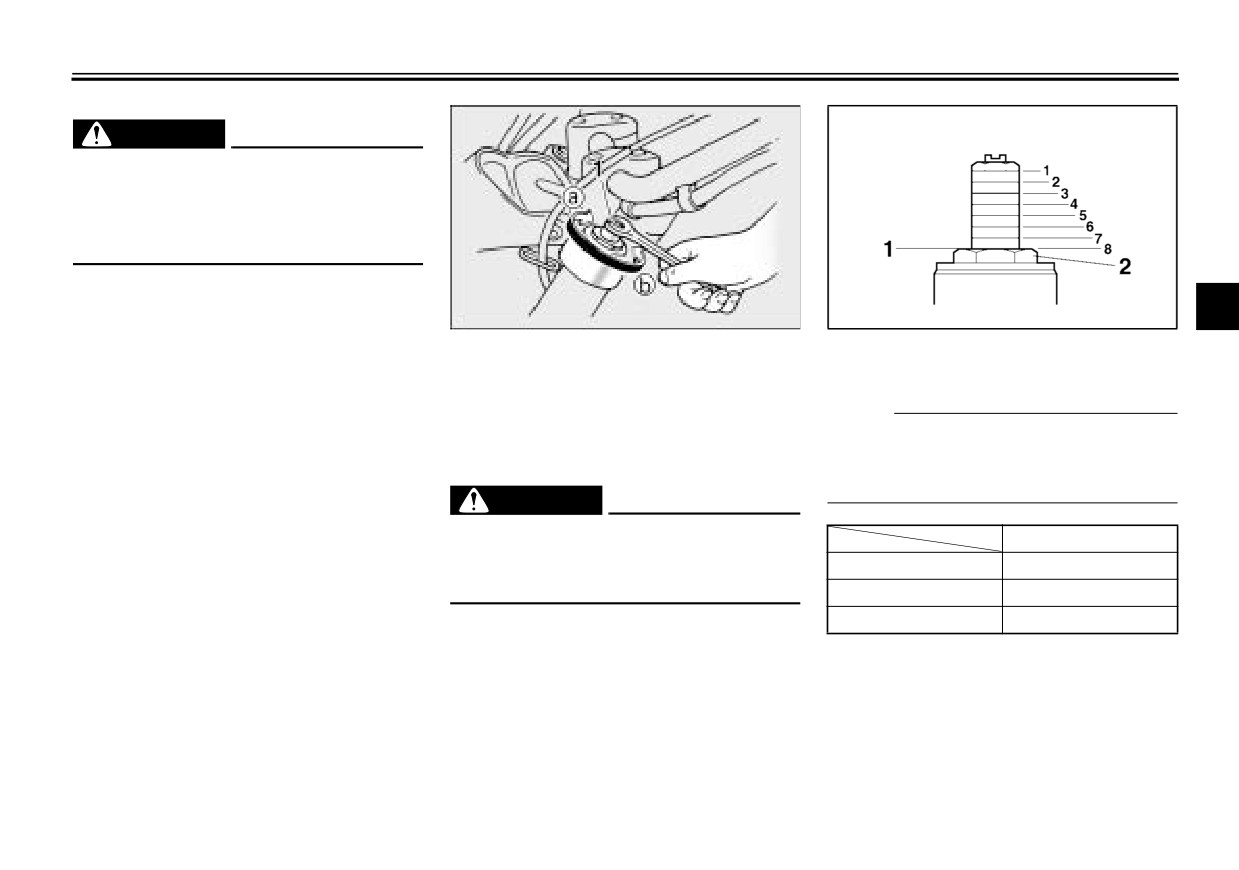

Adjusting the front fork
3-12

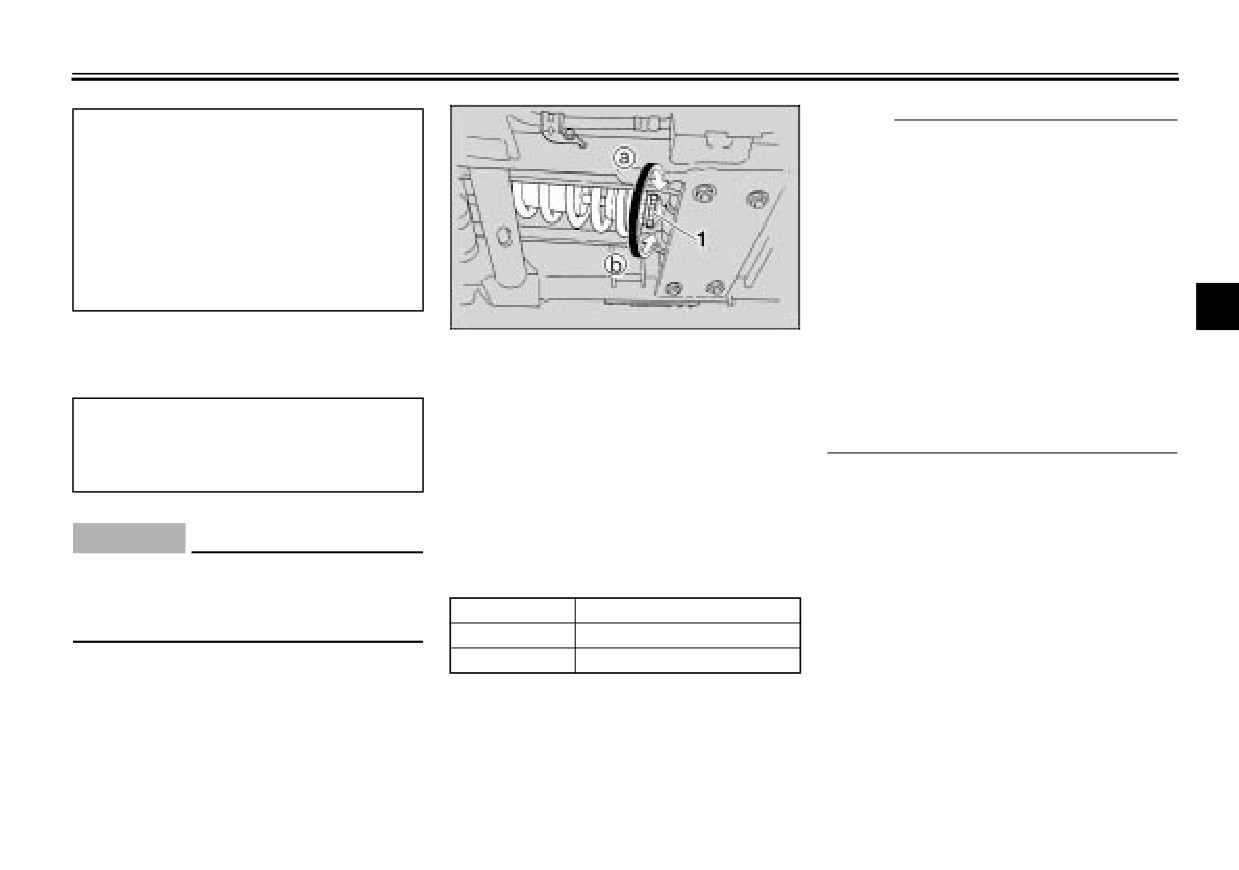

Adjusting the shock absorber assembly
3-13
Sidestand
3-15
Ignition circuit cut-off system
3-16

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EAU00027
INSTRUMENT AND CONTROL FUNCTIONS
EAU04437
ON
All electrical circuits are supplied with
power, and the meter lighting, taillight,
license plate light and position lights
come on, and the engine can be start-
ed. The key cannot be removed.
3
NOTE:
_
The headlight comes on automatically
when the engine is started and stays
EAU00029
EAU00040
on until the key is turned to “OFF”, even

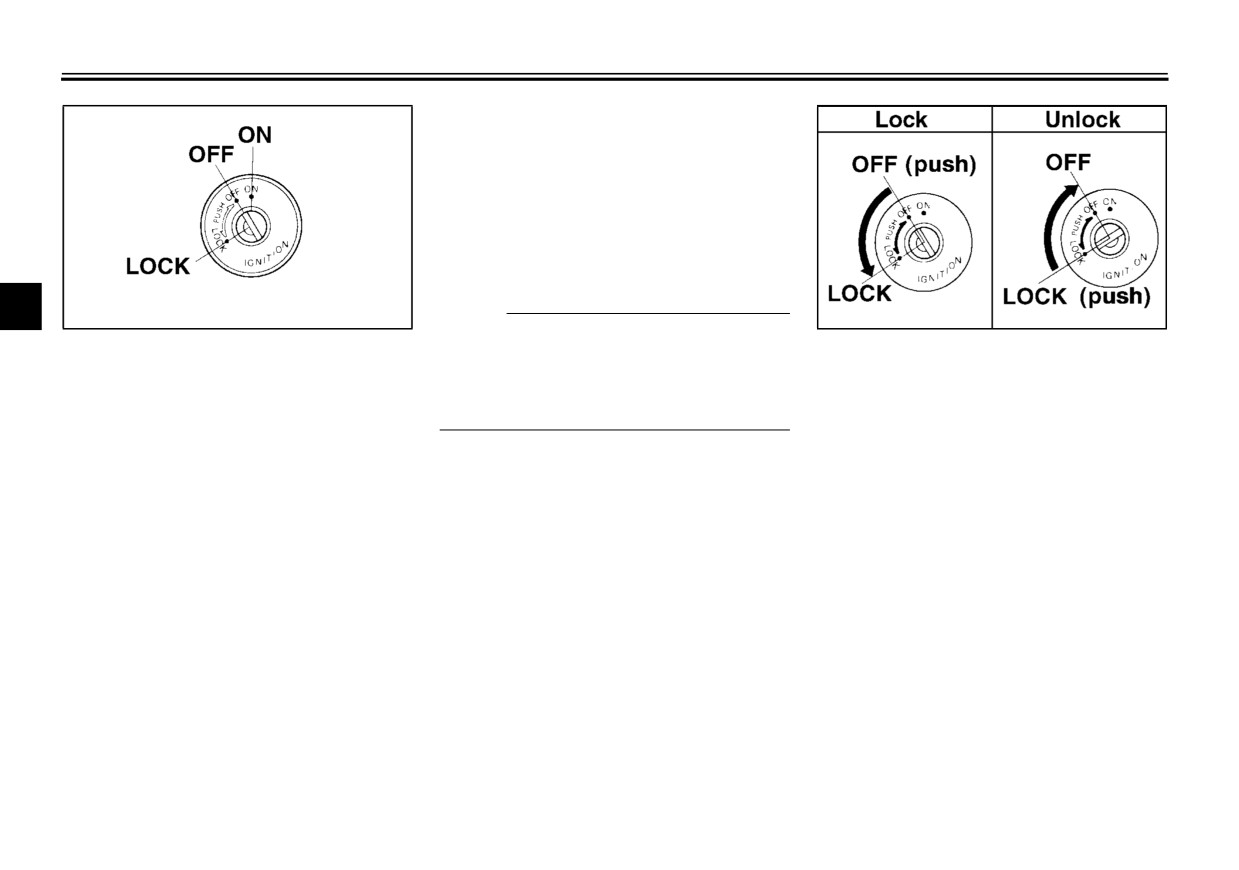

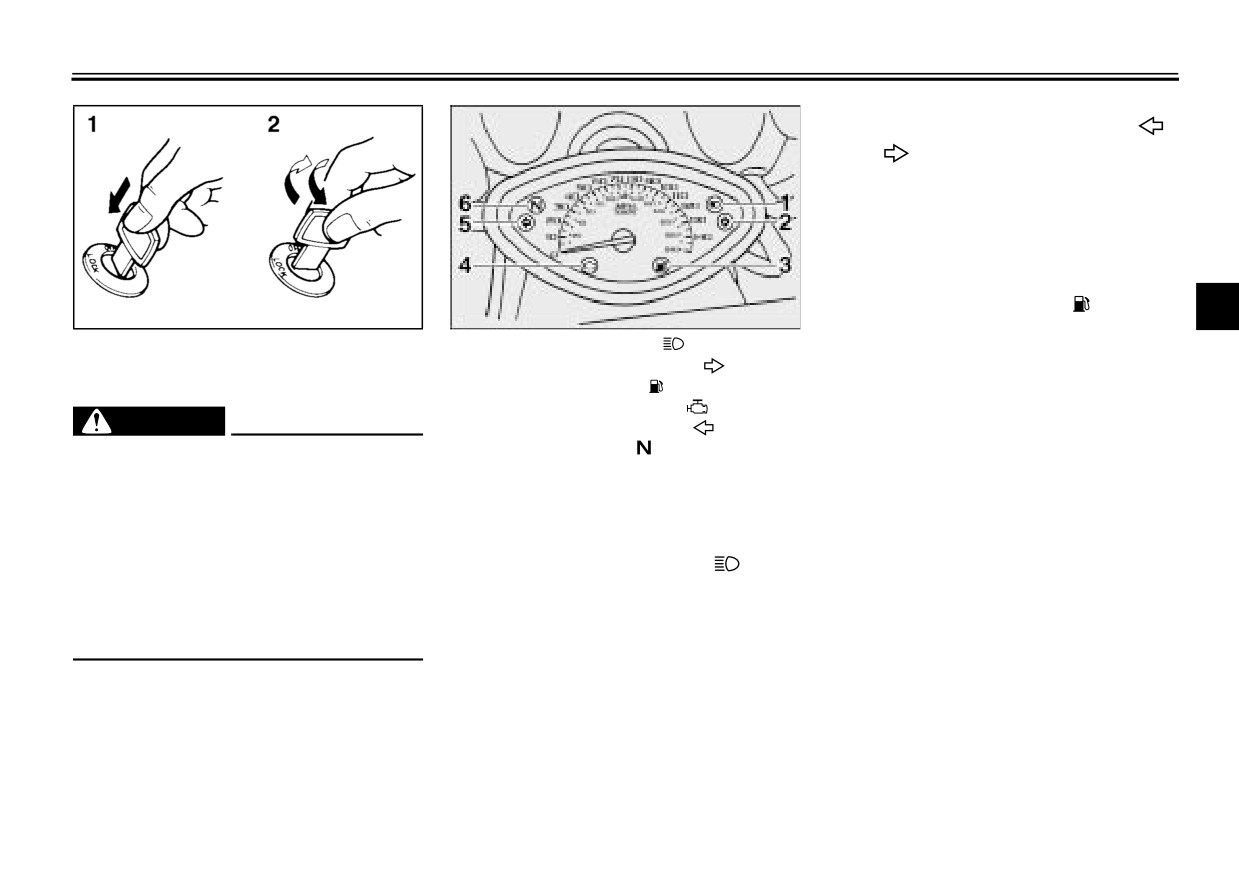

Main switch/steering lock
LOCK
if the engine stalls.
The main switch/steering lock controls
The steering is locked, and all electrical
_
the ignition and lighting systems, and is
systems are off. The key can be re-
EAU00038
moved.
used to lock the steering. The various
OFF
positions are described below.
All electrical systems are off. The key
To lock the steering
can be removed.
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.
To unlock the steering
Push the key in, and then turn it to
“OFF” while still pushing it.
3-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
EAU04121
Turn signal indicator lights
and “
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
EAU04878
Fuel level warning light “
3
This warning light comes on when the
1. Push.
1. High beam indicator light “
fuel level drops below approximately
2. Turn.
2. Right turn signal indicator light “
3. Fuel level warning light “
0.8 US gal (0.7 Imp gal, 3.0 L). When
EW000016
4. Engine trouble warning light “
this occurs, refuel as soon as possible.
WARNING
5. Left turn signal indicator light “
_
The electrical circuit of the warning light
Never turn the key to
“OFF” or
6. Neutral indicator light “
can be checked by turning the key to
“LOCK” while the motorcycle is
EAU03034
“ON”.
moving, otherwise the electrical
Indicator and warning lights
If the warning light does not come on
systems will be switched off, which
EAU00063
for a few seconds, then go off, have a
may result in loss of control or an
High beam indicator light “
Yamaha dealer check the electrical cir-
accident. Make sure that the motor-
This indicator light comes on when the
cuit.
cycle is stopped before turning the
high beam of the headlight is switched
key to “OFF” or “LOCK”.
on.
_
3-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not
come on for a few seconds, then go off,
have a Yamaha dealer check the elec-
trical circuit.
EAU00061
3
Neutral indicator light “
1. High beam indicator light “
This indicator light comes on when the
1. Speedometer
2. Right turn signal indicator light “
transmission is in the neutral position.
EAU04031
3. Fuel level warning light “
Speedometer
4. Engine trouble warning light “
5. Left turn signal indicator light “
The speedometer
shows
the
riding
6. Neutral indicator light “
speed.
EAU04867
Engine trouble warning light “
This warning light comes on when an
electrical circuit monitoring the engine
is defective. When this occurs, have a
Yamaha dealer check the self-diagno-
sis system.
3-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
a fuel reserve tripmeter
(which
shows the distance traveled since
the fuel level warning light came
on)
a meter lighting control
a clock
a self diagnosis device
3
_
NOTE:
1. Tachometer
Be sure to turn the key to “ON”
1. Tachometer red zone
2. Clock
before using the “SELECT” and
ECA00123
3. Odometer/tripmeter/fuel reserve tripmeter
“RESET” buttons.
CAUTION:
4. “RESET” button
_
5. “SELECT” button
To switch the odometer, the trip-
Do not operate the engine in the ta-
EAU04436
meters and the fuel reserve trip-
chometer red zone. If operated in
Tachometer unit
meter
displays
between
the red zone, the tachometer seg-
The electric tachometer allows the rider
kilometers and miles, press the
ments will start flashing to notify the
to monitor the engine speed and keep it
“SELECT” button for at least two
rider.
within the ideal power range.
seconds.
Red zone: 5,000 r/min and above
_
The tachometer unit is equipped with
_
the following:
an odometer (which shows the to-
tal distance traveled)
two tripmeters (which show the
distance traveled since they were
last set to zero)
3-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
Odometer and tripmeter modes
To reset a tripmeter, select it by push-
Clock mode
Pushing the “SELECT” button switches
ing the
“SELECT” button, and then
To set the clock:
the display between the odometer
push the “RESET” button for at least
1. Push the “SELECT” button and
mode “ODO” and the tripmeter modes
one second. If you do not reset the fuel
“RESET” button together for at
“TRIP 1” and “TRIP 2” in the following
reserve tripmeter manually, it will reset
least two seconds.
order:
itself automatically and the display will
2. When the hour digits start flashing,
ODO → TRIP 1 → TRIP 2 → ODO
return to the prior mode after refueling
push the “RESET” button to set
3
If the fuel level warning light comes on
and traveling 3 mi (5 km).
the hours.
(see page 3-2), the odometer display
3. Push the “SELECT” button, and
will automatically change to the fuel re-
Meter lighting control mode
the minute digits will start flashing.
serve tripmeter mode “TRIP F” and
1. Turn the key to “OFF”.
4. Push the “RESET” button to set
start counting the distance traveled
2. Push and hold the “SELECT” but-
the minutes.
from that point. In that case, pushing
ton.
5. Push the “SELECT” button and
the “SELECT” button switches the dis-
3. Turn the key to “ON”, and then after
then release it to start the clock.
play between the various tripmeter and
five seconds, release the “SELECT”
NOTE:
_
odometer modes in the following order:
button.
After setting the clock, be sure to
TRIP F → TRIP 1 → TRIP 2 → ODO →
4. Push the “RESET” button to select
push the “SELECT” button before
TRIP F
the desired brightness.
turning the key to “OFF”, other-
5. Push the “SELECT” button to set the
wise the clock will not be set.
brightness level.
To set the clock after the battery
6. Turn the key to “OFF”.
has been disconnected, first set
NOTE:
the time to 1:00 AM, and then set
_
When adjusting the meter lighting, the
the clock to the correct time.
_
odometer display will indicate the
brightness level.
_
3-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
EAU04218
Self diagnosis device
Turn signal switch “
/
This model is equipped with a self-di-
To signal a right-hand turn, push this
agnosis device for various electrical cir-
switch to “
”. To signal a left-hand
cuits.
turn, push this switch to “
”. When
If any of those circuits are defective,
released, the switch returns to the cen-
the clock display will indicate a two-dig-
ter position.
it error code (e.g., 11, 12, 13).
Since this model is equipped with a
If the clock display indicates such an
3
self-canceling system, the turn signal
error code, note the code number, and
1.
Dimmer switch “
/
lights will self-cancel after the motor-
then have a Yamaha dealer check the
2.
Turn signal switch “
/
cycle has traveled both about 490 ft
motorcycle.
3.
Horn switch “
(150 m) and for approximately 15 sec-
ECA00122
EAU00118
onds. However, the turn signal lights
CAUTION:
Handlebar switches
_
can also be canceled manually by
If the clock display indicates an er-
pushing the switch in after it has re-
ror code, the motorcycle should be
EAU03888
Dimmer switch “
/
turned to the center position.
checked as soon as possible in or-
Set this switch to “
” for the high
der to avoid engine damage.
NOTE:
_
_
beam and to “
” for the low beam.
The self-canceling system only oper-
ates when the motorcycle is moving, so
that the turn signal lights will not self-
cancel while you are stopped at an in-
tersection.
_
EAU00129
Horn switch “
Press this switch to sound the horn.
3-6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
3
1. Engine stop switch “
/
1. Clutch lever
1. Shift pedal
2. Start switch “
EAU00152
EAU00157
EAU03890
Clutch lever
Shift pedal
Engine stop switch “
/
The clutch lever is located at the left
The shift pedal is located on the left
Set this switch to “
” before starting
handlebar grip. To disengage the
side of the engine and is used in com-
the engine. Set this switch to “
” to
clutch, pull the lever toward the handle-
bination with the clutch lever when
stop the engine in case of an emergen-
bar grip. To engage the clutch, release
shifting the gears of the 5-speed con-
cy, such as when the motorcycle over-
the lever. The lever should be pulled
stant-mesh transmission equipped on
turns or when the throttle cable is
rapidly and released slowly for smooth
this motorcycle.
stuck.
clutch operation.
The clutch lever is equipped with a
EAU00143
Start switch “
clutch switch, which is part of the ignition
Push this switch to crank the engine
circuit cut-off system. (See page 3-16
with the starter.
for an explanation of the ignition circuit
EC000005
cut-off system.)
CAUTION:
_
See page 5-1 for starting instruc-
tions prior to starting the engine.
_
3-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
3
1. Brake lever
1. Brake pedal
EAU00158
EAU00162
Brake lever
Brake pedal
The brake lever is located at the right
The brake pedal is on the right side of
handlebar grip. To apply the front
the motorcycle. To apply the rear
brake, pull the lever toward the handle-
brake, press down on the brake pedal.
bar grip.
3-8

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
To close the fuel tank cap
1. Push the fuel tank cap into posi-
tion with the key inserted in the
lock.
2. Turn the key counterclockwise to
the original position, remove it,
and then close the lock cover.
3
_
NOTE:
1. Fuel tank cap lock cover
The fuel tank cap cannot be closed un-
1. Fuel tank filler tube
2. Unlock.
2. Fuel level
less the key is in the lock. In addition,
EAU02935
the key cannot be removed if the cap is
EAU03753
Fuel tank cap
Fuel
not properly closed and locked.
_
Make sure that there is sufficient fuel in
EWA00025
To open the fuel tank cap
the tank. Fill the fuel tank to the bottom
WARNING
Open the fuel tank cap lock cover, in-
_
of the filler tube as shown.
Make sure that the fuel tank cap is
EW000130
sert the key into the lock, and then turn
properly closed before riding.
it 1/4 turn clockwise. The lock will be re-
WARNING
_
_
leased and the fuel tank cap can be
Do not overfill the fuel tank, oth-
opened.
erwise it may overflow when the
fuel warms up and expands.
Avoid spilling fuel on the hot
engine.
_
3-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
EAU00185
Your Yamaha engine has been de-
CAUTION:
signed to use regular unleaded gaso-
_
Immediately wipe off spilled fuel
line with a pump octane number
with a clean, dry, soft cloth, since
[(R+M)/2] of 86 or higher, or a research
fuel may deteriorate painted surfac-
octane number of
91 or higher. If
es or plastic parts.
knocking (or pinging) occurs, use a
_
EAU04438
gasoline of a different brand or premi-
um unleaded fuel. Use of unleaded fuel
3
Recommended fuel:
will extend spark plug life and reduce
UNLEADED GASOLINE ONLY
maintenance costs.
Fuel tank capacity:
Total amount:
Gasohol
4.0 US gal (3.3 Imp gal, 15.0 L)
There are two types of gasohol: gaso-
Amount remaining when the fuel
hol containing ethanol and that contain-
level warning light comes on:
ing methanol. Gasohol containing
0.8 US gal (0.7 Imp gal, 3.0 L)
ethanol can be used if the ethanol con-
tent does not exceed 10%. Gasohol
ECA00104
containing methanol is not recom-
CAUTION:
_
mended by Yamaha because it can
Use only unleaded gasoline. The
cause damage to the fuel system or ve-
use of leaded gasoline will cause se-
hicle performance problems.
vere damage to internal engine
parts, such as the valves and piston
rings, as well as to the exhaust sys-
tem.
_
3-10

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
3

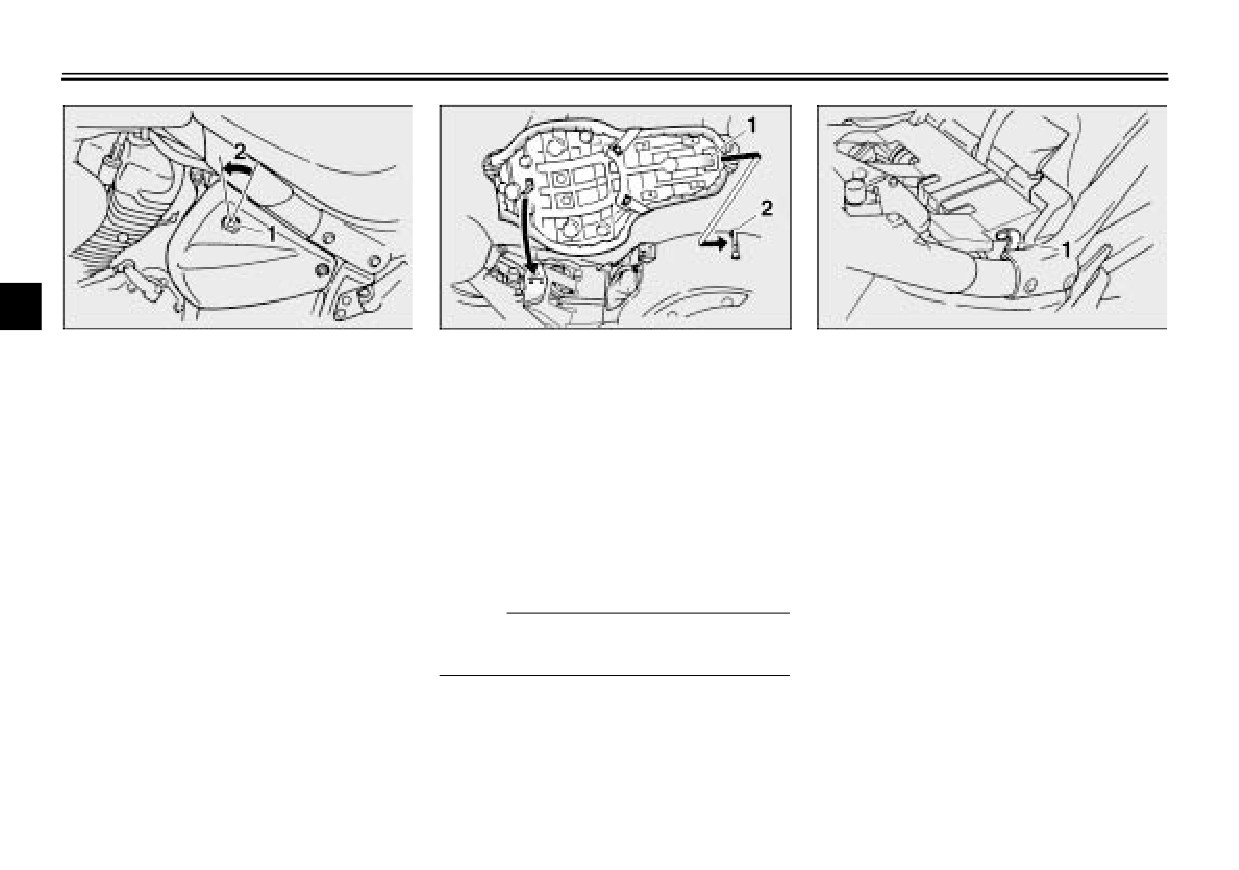

1. Seat lock
1. Projection
1. Helmet holder
2. Unlock.
2. Seat holder
EAU00263*
EAU01319
To install the seat
Helmet holder
Seat
1. Insert the projection on the rear of
The helmet holder is located under the
the seat into the seat holder as
seat.
To remove the seat
shown.
1. Insert the key into the seat lock,
2. Push the front of the seat down to
To secure a helmet to the helmet
and then turn it counterclockwise.
lock it in place.
holder
2. While holding the key in that posi-
3. Remove the key.
1. Remove the seat.
tion, lift the front of the seat up,
2. Attach the helmet to the helmet
and then pull the seat off.
NOTE:
_
holder, and then securely install
Make sure that the seat is properly se-
the seat.
cured before riding.
_
3-11

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
EW000030
WARNING
_
Never ride with a helmet attached to
the helmet holder, since the helmet
may hit objects, causing loss of
control and possibly an accident.
_
3
To release the helmet from the
helmet holder
1. Spring preload adjusting bolt
1. Current setting
Remove the seat, remove the helmet
2. Front fork cap bolt
EAU00285
from the helmet holder, and then install
Adjusting the front fork
_
NOTE:
the seat.
This front fork is equipped with spring
Align the appropriate groove on the ad-
preload adjusting bolts.
justing mechanism with the top of the
EW000035
front fork cap bolt.
WARNING
_
_
CI-10E
Always adjust both fork legs equal-
Setting
ly, otherwise poor handling and loss
Minimum (soft)
8
of stability may result.
Standard
5
_
Maximum (hard)
1
Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting bolt on each fork leg in di-
rection a. To decrease the spring pre-
load and thereby soften the
suspension, turn the adjusting bolt on
each fork leg in direction b.
3-12

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
3
1. Locknut
1. Special wrench
A. Distance A
2. Spring preload adjusting nut
2.
To increase the spring preload
EAU04873
_
NOTE:
and thereby harden the suspen-
Use the special wrench included in
Adjusting the shock absorber
sion, turn the adjusting nut in di-
the owner’s tool kit to make the ad-
assembly
rection a. To decrease the spring
justment.
This shock absorber assembly is
preload and thereby soften the
The spring preload setting is de-
equipped with a spring preload adjust-
suspension, turn the adjusting nut
termined by measuring distance
ing nut and a rebound damping force
in direction b.
A, shown in the illustration. The
adjusting knob.
longer distance A is, the higher the
EC000015
spring preload; the shorter dis-
CAUTION:
_
tance A is, the lower the spring
Never attempt to turn an adjusting
preload. With each complete turn
mechanism beyond the maximum
of the adjusting nut, distance A is
or minimum settings.
_
changed by 1.0 mm (0.04 in).
_
Spring preload
1. Loosen the locknut.
3-13

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
NOTE:
_
Spring preload:
Although the total number of clicks of
Minimum (soft):
the damping force adjusting mecha-
Distance A = 2.05 in (52 mm)
nism may not exactly match the above
Standard:
specifications due to small differences
Distance A = 2.13 in (54 mm)
in production, the actual number of
Maximum (hard):
clicks always represents the entire ad-
Distance A = 2.48 in (63 mm)
justing range. To obtain a precise ad-
3
justment, it would be advisable to
3. Tighten the locknut to the speci-
1. Rebound damping force adjusting knob
check the number of clicks of the
fied torque.
Rebound damping force
damping force adjusting mechanism
To increase the rebound damping
and to modify the specifications as nec-
Tightening torque:
force and thereby harden the rebound
essary.
Locknut:
_
damping, turn the adjusting knob in di-
36 ft·lbf (5.0 m·kgf, 50 Nm)
rection a. To decrease the rebound
ECA00076
damping force and thereby soften the
CAUTION:
rebound damping, turn the adjusting
_
Always tighten the locknut against
knob in direction b.
CI-08E
the adjusting nut, and then tighten
Minimum (soft)
20 clicks in direction b*
the locknut to the specified torque.
Standard
10 clicks in direction b*
_
Maximum (hard)
3 clicks in direction b*
* With the adjusting knob fully turned in direction a
3-14

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
EAU00315
EAU00330
EW000044
Sidestand
WARNING
WARNING
_
_
The sidestand is located on the left side
This shock absorber contains high-
The motorcycle must not be ridden
of the frame. Raise the sidestand or
ly pressurized nitrogen gas. For
with the sidestand down, or if the
lower it with your foot while holding the
proper handling, read and under-
sidestand cannot be properly
motorcycle upright.
stand the following information be-
moved up (or does not stay up), oth-
fore handling the shock absorber.
erwise the sidestand could contact
NOTE:_
The manufacturer cannot be held re-
the ground and distract the opera-
3
The built-in sidestand switch is part of
sponsible for property damage or
tor, resulting in a possible loss of
the ignition circuit cut-off system, which
personal injury that may result from
control. Yamaha’s ignition circuit
cuts the ignition in certain situations.
improper handling.
cut-off system has been designed to
(See further down for an explanation of
Do not tamper with or attempt to
assist the operator in fulfilling the
the ignition circuit cut-off system.)
open the gas cylinder.
_
responsibility of raising the side-
Do not subject the shock ab-
stand before starting off. Therefore,
sorber to an open flame or other
check this system regularly as de-
high heat sources, otherwise it
scribed below and have a Yamaha
may explode due to excessive
dealer repair it if it does not function
gas pressure.
properly.
_
Do not deform or damage the
gas cylinder in any way, as this
will result in poor damping per-
formance.
Always have a Yamaha dealer
service the shock absorber.
_
3-15

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
EAU03720
Ignition circuit cut-off system
The ignition circuit cut-off system (com-
prising the sidestand switch, clutch
switch and neutral switch) has the fol-
lowing functions.
It prevents starting when the trans-
mission is in gear and the side-
3
stand is up, but the clutch lever is
not pulled.
It prevents starting when the trans-
mission is in gear and the clutch
lever is pulled, but the sidestand is
still down.
It cuts the running engine when
the transmission is in gear and the
sidestand is moved down.
Periodically check the operation of the
ignition circuit cut-off system according
to the following procedure.
EW000045
WARNING
_
If a malfunction is noted, have a
Yamaha dealer check the system
before riding.
_
3-16

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT AND CONTROL FUNCTIONS
CD-01E
NOTE:
With the engine turned off:
This check is most reliable if performed with
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to “
”.
a warmed-up engine.
3. Turn the key to “ON”.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
The neutral switch may be defective.
3
YES
NO
The motorcycle should not be ridden until
checked by a Yamaha dealer.
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
The sidestand switch may be defective.
YES
NO
The motorcycle should not be ridden until
checked by a Yamaha dealer.
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The clutch switch may be defective.
YES
NO
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The system is OK. The motorcycle can be ridden.
3-17

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PRE-OPERATION CHECKS
Pre-operation check list
4-1
4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EAU01114
PRE-OPERATION CHECKS
The condition of a vehicle is the owner’s responsibility. Vital components can start to deteriorate quickly and unexpectedly,
even if the vehicle remains unused (for example, as a result of exposure to the elements). Any damage, fluid leakage or loss
of tire air pressure could have serious consequences. Therefore, it is very important, in addition to a thorough visual inspec-
tion, to check the following points before each ride.
EAU03439
Pre-operation check list
CO-01E
ITEM
CHECKS
PAGE
Check fuel level in fuel tank.
Fuel
Refuel if necessary.
3-9-3-10
Check fuel line for leakage.
4
Check oil level in engine.
Engine oil
If necessary, add recommended oil to specified level.
6-9-6-10
Check vehicle for oil leakage.
Check operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check lever free play.
Front brake
Adjust if necessary.
6-24, 6-26-6-28
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.
Check operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Rear brake
Check fluid level in reservoir.
6-25-6-28
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.
Check operation.
Lubricate cable if necessary.
Clutch
6-23-6-24
Check lever free play.
Adjust if necessary.
Make sure that operation is smooth.
Check cable free play.
Throttle grip
6-18, 6-31
If necessary, have Yamaha dealer adjust cable free play and lubricate cable and
grip housing.
4-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PRE-OPERATION CHECKS
ITEM
CHECKS
PAGE
Make sure that operation is smooth.
Control cables
6-31
Lubricate if necessary.
Check for damage.
Check tire condition and tread depth.
Wheels and tires
6-19-6-22
Check air pressure.
Correct if necessary.
Make sure that operation is smooth.
Brake and shift pedals
6-31
Lubricate pedal pivoting points if necessary.
Make sure that operation is smooth.
Brake and clutch levers
6-32
Lubricate lever pivoting points if necessary.
Make sure that operation is smooth.
Sidestand
6-33
4
Lubricate pivot if necessary.
Make sure that all nuts, bolts and screws are properly tightened.
Chassis fasteners
Tighten if necessary.
Instruments, lights, signals
Check operation.
and switches
Correct if necessary.
Check operation of ignition circuit cut-off system.
Sidestand switch
3-15
If system is defective, have Yamaha dealer check vehicle.
NOTE:
_
Pre-operation checks should be made each time the motorcycle is used. Such an inspection can be accomplished in a very
short time; and the added safety it assures is more than worth the time involved.
_
EWA00033
WARNING
_
If any item in the Pre-operation check list is not working properly, have it inspected and repaired before operating
the motorcycle.
_
4-2















Content      ..       1      2     ..



///////////////////////////////////////
