LUBRICATION SYSTEM CHART AND DIAGRAMS

2-42

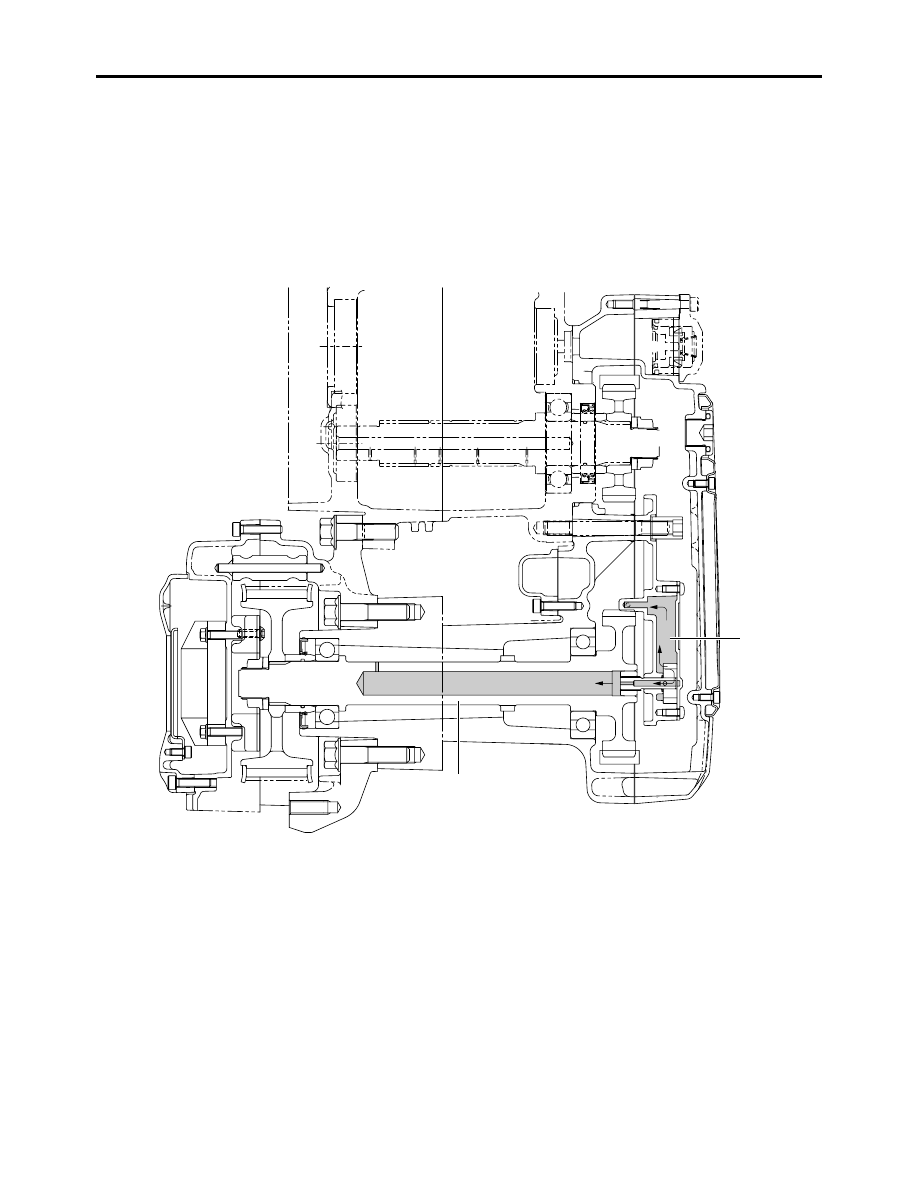

1. Oil pipe 5
2. Transfer gear oil pump
3. Oil strainer (transfer gear case)
4. Middle drive shaft
5. Oil strainer (oil tank)
A. From the oil pump

LUBRICATION SYSTEM CHART AND DIAGRAMS

2-43

1

2

LUBRICATION SYSTEM CHART AND DIAGRAMS

2-44

1. Transfer gear oil pump
2. Middle driven shaft

CABLE ROUTING

2-45

EAS20430

CABLE ROUTING

C

D

F

F

C

D

B-B

C-C

D-D

F-F

A

E

A

E

B

B

1

1

1

1

2

3

4

5

5

5

5

5

6

6

6

6

7

7

7

7

8

9

10

11

A

B

C

E

F

G

D

CABLE ROUTING

2-46

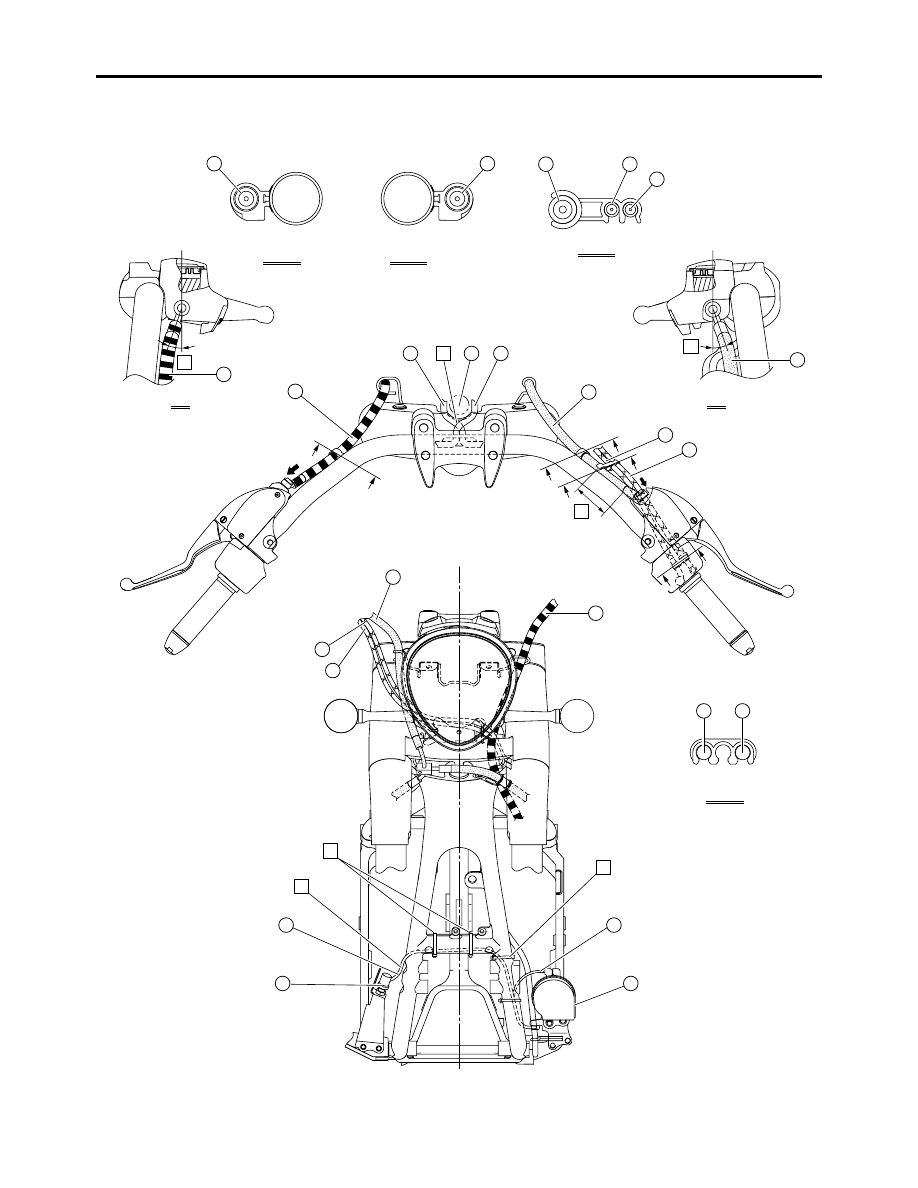

1. Clutch hose
2. Right handlebar switch lead
3. Main switch
4. Left handlebar switch lead
5. Front brake hose
6. Throttle cable (decelerator cable)
7. Throttle cable (accelerator cable)
8. Horn 1 lead
9. Horn 1
10. Rear brake light switch
11. Rear brake light switch lead
A. Cross the left and right handlebar switch leads.

Either lead can be routed on top.

B. 70 mm (2.76 in)

C. 5

–

25

°

D. 10

–

30

°

E. Fasten the rear brake light switch lead with the

plastic locking tie. Face the end of the plastic
locking tie inward, and then cut off the excess end
of the tie.

F. Make sure that there is no slack in the rear brake

light switch lead in the area shown in the illustration.

G. Fasten the rear brake light switch lead with the

plastic locking tie. Face the end of the plastic
locking tie downward, and then cut off the excess
end of the tie.

CABLE ROUTING

2-47

B

B

C

D

D

E

E

B-B

G-G

F-F

E-E

D-D

A

A

C

F

F

1

1

1

1

2

2

2

2

2

3

3

4

4

5

6

6

7

8

8

9

12

G

G

3

B

G

J

H

I

A

C

D

E

F

K

L

10

11

CABLE ROUTING

2-48

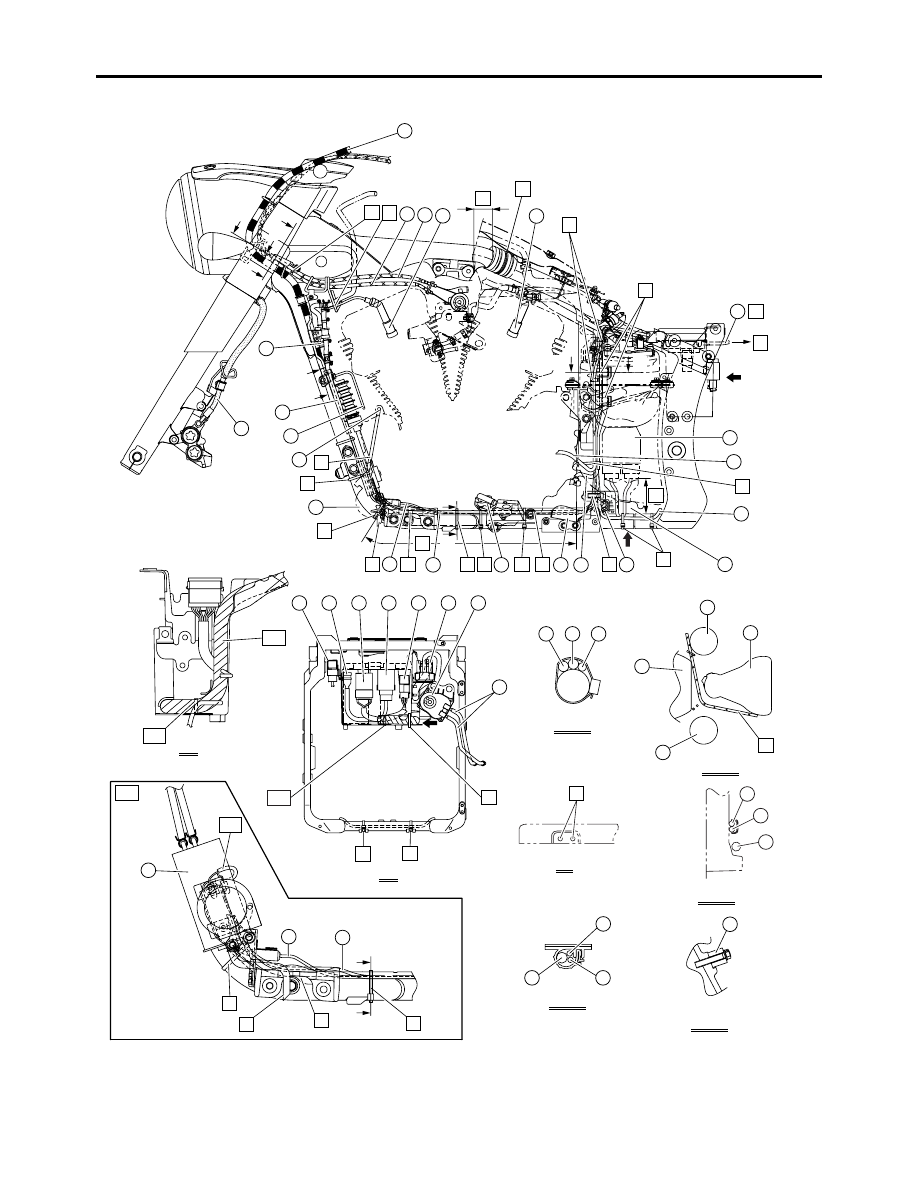

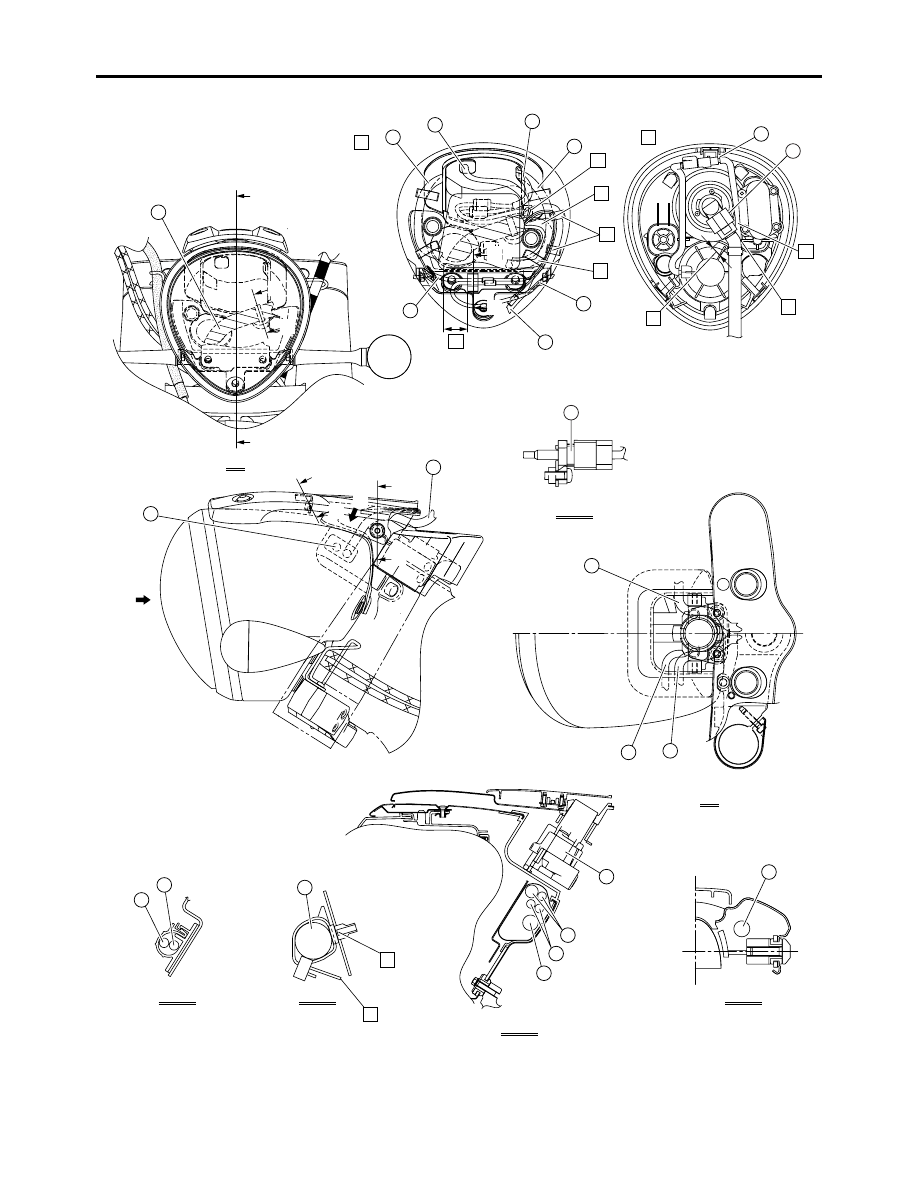

1. Main switch lead
2. Right handlebar switch lead
3. Wire harness
4. Left handlebar switch lead
5. Air temperature sensor lead
6. Front left turn signal/position light lead
7. Headlight lead
8. Front right turn signal/position light lead
9. Headlight coupler (high beam)
10. Headlight coupler (low beam)
11. Air temperature sensor
12. Main switch
A. View with headlight lens unit removed.
B. Place the joint coupler behind the leads.
C. Place the sections of the handlebar switch leads

that are not covered by their protective sleeves in
the rear of the headlight housing.

D. Fasten the headlight leads, front turn

signal/position light leads, and accessory light lead
with the holders along the side of the headlight
housing.

E. Place the headlight leads, front turn signal/position

light leads, and accessory light lead near the base
of the holder.

F. 30 mm (1.18 in)
G. View from rear of headlight lens unit
H. Less than 20 mm (0.79 in). Fasten the headlight

lead (low beam) with the holder, making sure to
fasten the protective sleeve of the lead, not the lead
itself.

I.

Route the headlight lead (high beam) between the

headlight coupler (low beam) and the stay.

J. Route the headlight lead (high beam) behind the

headlight lead (low beam).

K. Secure the plastic band by inserting the projection

on the band into the hole in the headlight housing.

L. Face the end of the plastic band downward.

CABLE ROUTING

2-49

D

D

E

A

A

C

C

C

A-A

J-J

G

G

K

E

B

B

I

F

F

A B

C D

E

F

G

H

I

J

K

L

M

S

1

2

3

3

4

5

6

7

8

9

10

11

12

13

14

14

14

14

14

15

16

17

21

26

F-F

G-G

D-D

H-H

H

H

K

I

B-B

C-C

Z

3

3

20

23

24

25

S

W

V

T

T

T

AH

18

19

27

AE

AD

AF

U

AB

AA

AC

28

Y

X

22

N

P

O

J

J

3

4

T

4

4

O

Q

R

R

R

R

U

V

Y

Z

AG

CABLE ROUTING

2-50

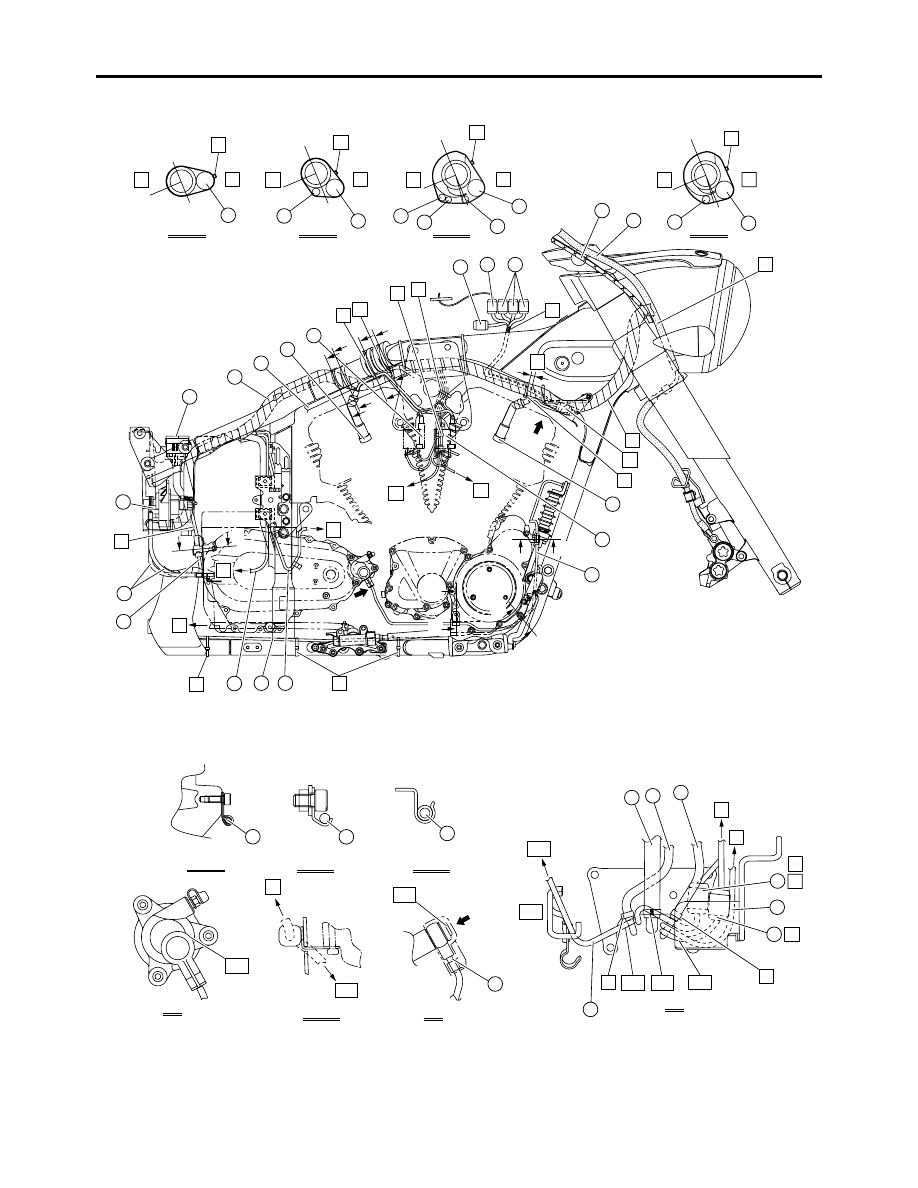

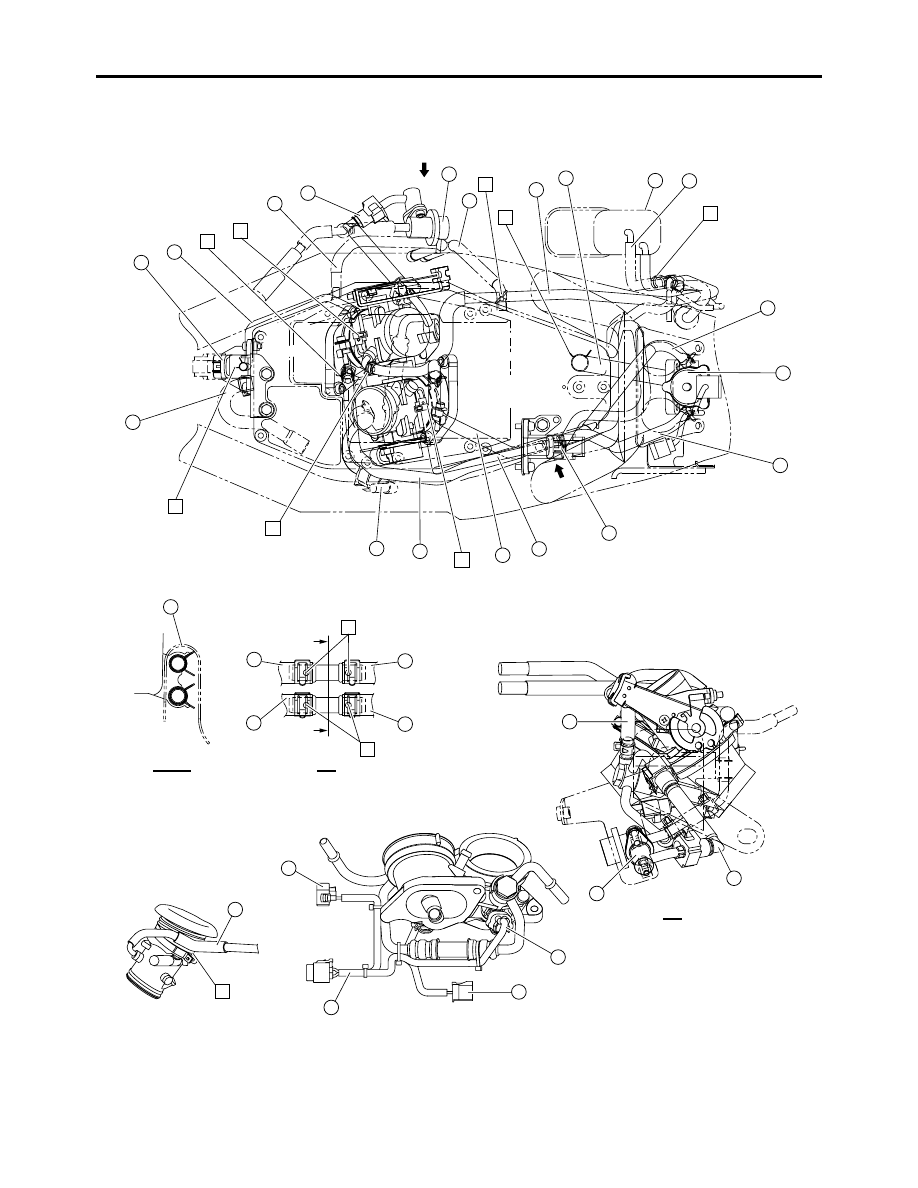

1. EXUP servo motor
2. Fuse box
3. Wire harness
4. Fuel outlet hose
5. Cylinder-#1 right spark plug cap
6. Cylinder-#1 right ignition coil
7. Cylinder-#2 intake air pressure sensor coupler
8. Fuel sender (fuel tank) coupler
9. Meter assembly coupler
10. Throttle cable
11. Front brake hose
12. Cylinder-#2 right spark plug cap
13. Cylinder-#1 left ignition coil
14. Clutch pipe
15. Neutral switch lead
16. Stator coil lead
17. Speed sensor lead
18. O

2

 sensor lead

19. EXUP cable
20. Cylinder-#1 right spark plug lead
21. Cylinder-#1 left spark plug lead
22. ISC (idle speed control) unit inlet hose
23. Cylinder-#2 ISC (idle speed control) unit outlet

hose

24. Cylinder-#1 ISC (idle speed control) unit outlet

hose

25. Sub-wire harness 3 coupler
26. Cylinder-#2 right spark plug lead
27. Sub-wire harness 4 coupler
28. Cylinder-#2 left spark plug lead
A. Fasten the cylinder-#1 left and right spark plug

leads, fuel outlet hose, wire harness and the fuel
tank damper with the plastic locking tie. Install the
plastic locking tie in the rear slot of the fuel tank
damper.

B. Fasten the fuel outlet hose, wire harness, and fuel

tank damper with the plastic locking tie. Install the
plastic locking tie in the front slot of the fuel tank
damper and make sure that the end of the damper
is aligned with the edge of the flat section on the
outside of the frame.

C. Fasten the cylinder-#1 left and right ignition coil

leads, engine temperature sensor lead, and throttle
position sensor lead to the guide on the engine
bracket (right upper side) with the plastic locking tie.
Face the end of the plastic locking tie rearward, and
then cut off the excess end of the tie.

D. Fasten sub-wire harness 2 with the plastic locking

tie.

E. Align the positioning tape on the wire harness with

the top of the frame.

F. 0

–

15 mm (0

–

0.59 in)

G. Route the throttle cables behind the front brake

hose.

H. Make sure that the wire harness is not twisted

between the fuel tank and the headlight assembly.

I.

Position the cylinder-#2 left and right spark plug

leads, sub-wire harness 2 coupler and sub-wire
harness 4 coupler on top of the guide.

J. Fasten the wire harness and the cylinder-#2 left

and right spark plug leads with a plastic locking tie,
making sure to install the tie just past the end of the
protective tube of the wire harness. Face the end of
the plastic locking tie inward, and then cut off the
excess end of the tie.

K. To the throttle position sensor
L. To the fuel injector and engine temperature sensor
M. To the neutral switch
N. To the speed sensor
O. Fasten the stator coil lead with the plastic locking

ties. Face the end of each plastic locking tie
outward, and then cut off the excess end of the tie.

P. To the rear brake caliper
Q. Install the O

2

 sensor coupler completely onto the

O

2

 sensor bracket.

R. Outside of the frame
S. Position the buckle of the plastic locking tie to the

inside of the frame. Face the end of the plastic
locking tie upward, and then cut off the excess end
of the tie.

T. Inside of the frame
U. Position the buckle of the plastic locking tie to the

inside of the frame.

V. To the wire harness
W. To the cylinder-#2 right spark plug
X. Right side
Y. Position the sub-wire harness 3 coupler and the

sub-wire harness 4 coupler between the cylinder-
#2 right spark plug lead and the cylinder-#1 ISC
unit outlet hose.

Z. Face the ends of the hose clamp outward, angled

45

°

 downward.

AA.Route the cylinder-#2 right spark plug lead under

the sub-wire harness 4.

AB.Face the ends of the hose clamp downward.
AC.Route the cylinder-#2 left spark plug lead under the

cylinder-#2 ISC unit outlet hose.

AD.Left side
AE.To the cylinder-#2 left spark plug
AF. Install the clutch pipe onto the clutch release

cylinder, making sure that the pipe contacts the
projection on the cylinder.

AG.To the O

2

 sensor

AH.Align the cutout in the clutch pipe union bolt cap

with the projection on the clutch release cylinder.

CABLE ROUTING

2-51

E

D

D

D

D

A

A

C

B

B

C

A-A

B-B

C-C

D-D

E

G-G

F

H

H

F

A B

C

D

E

F

G

H

I

J

K

L

M

N

N

O

Q

R

U

S

T

O

Q

R

S

V

Y

Z

1

1

2 3 4

5

6

7

8

9

10

11

12

13

14

15

16

15

16

17

18

15

16

18

34

18

35

19

20

21

22

23

24

24

25

26

27

28

29

30

31

32

33

36

G

G

X

W

P

AD

AC

AB

AA

AA

1

2

3

CABLE ROUTING

2-52

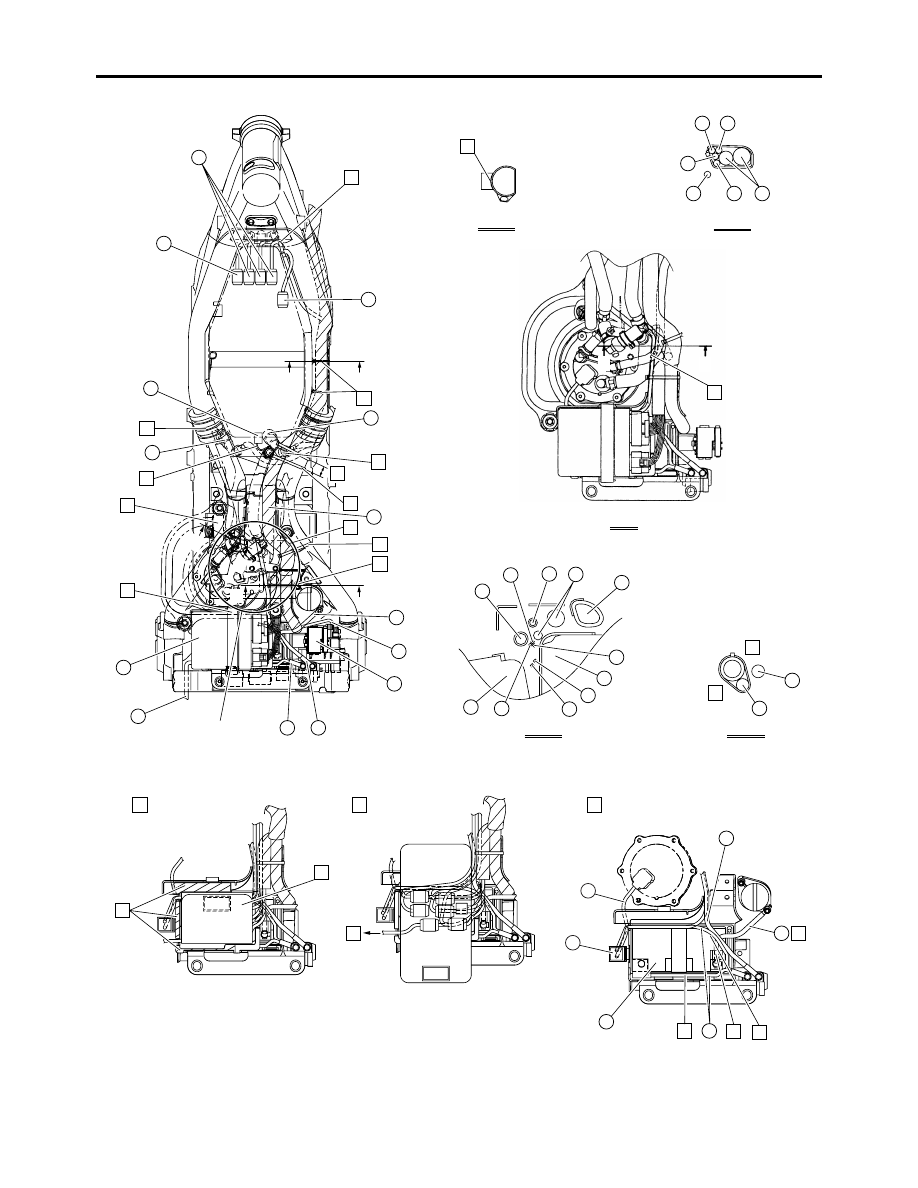

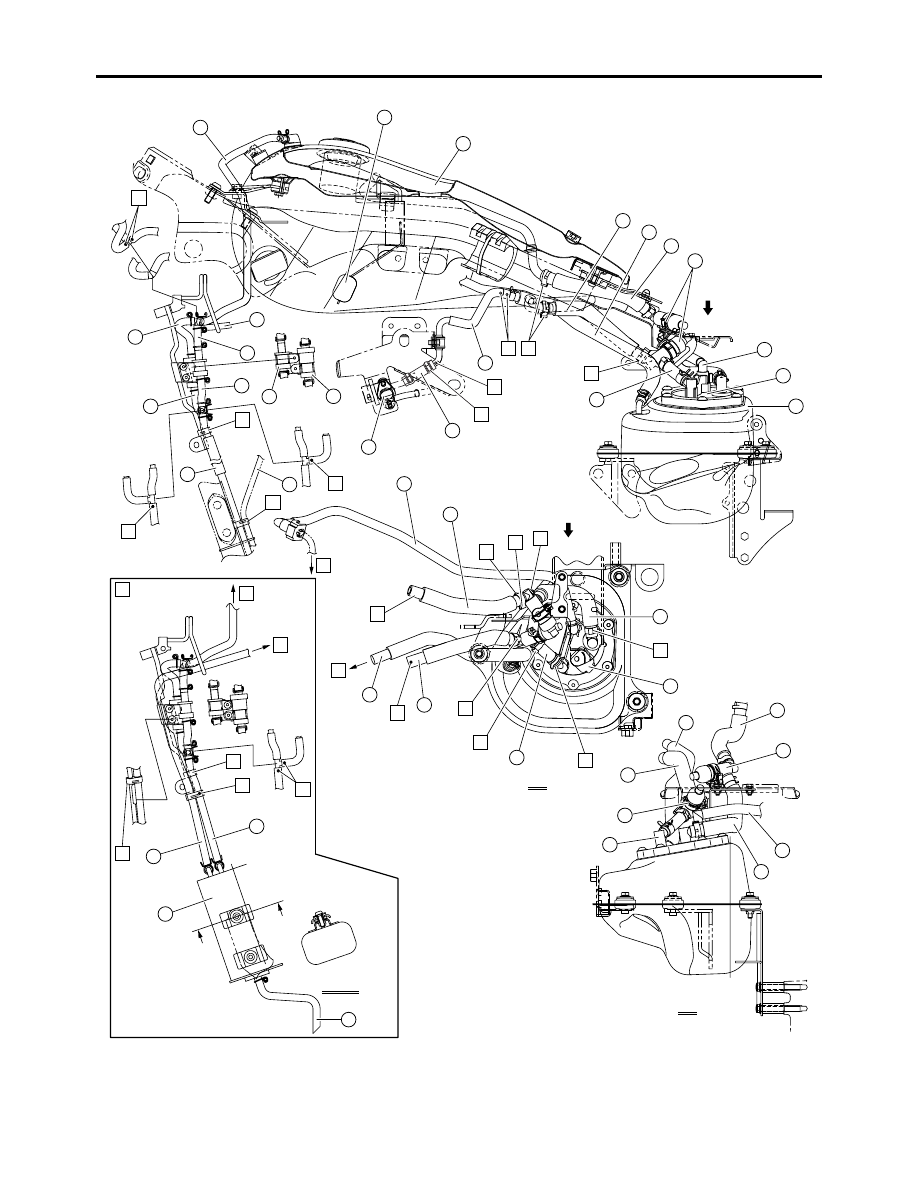

1. Clutch hose
2. Throttle cable (decelerator cable)
3. Throttle cable (accelerator cable)
4. Cylinder-#2 left spark plug cap
5. Cylinder-#1 left spark plug cap
6. Sub-wire harness 1
7. Rectifier/regulator
8. Crankshaft position sensor lead
9. Stator coil lead
10. Rectifier/regulator lead
11. Lean angle sensor
12. Horn 2 lead
13. Horn 2
14. Sidestand switch
15. Horn 1 lead
16. Rear brake light switch lead
17. Horn 1
18. Starter motor lead
19. Clutch pipe
20. Fuel tank breather/overflow hose
21. Rollover valve
22. Front brake hose
23. Headlight assembly
24. Front fork
25. Frame
26. Main fuse
27. Diode 1
28. Relay unit
29. Turn signal relay
30. Headlight relay
31. Starter relay
32. EXUP servo motor
33. EXUP cable
34. Speed sensor lead
35. Wire harness
36. Canister
A. Route the throttle cables to the inside of the clutch

hose.

B. Pass the cylinder-#2 left spark plug lead through

the guide.

C. 30

–

40 mm (1.18

–

1.57 in)

D. Position the buckle of the plastic locking tie to the

inside of the frame.

E. Fasten the crankshaft position sensor lead, neutral

switch lead, and sidestand switch lead with the
holders.

F. Fasten the starter motor lead, speed sensor lead,

and wire harness with the holders.

G. Route sub-wire harness 1 to the inside of the

frame.

H. To the tail/brake light
I.

Fasten the starter motor lead, horn 1 lead, rear

brake light switch lead, sidestand switch lead, and
crankshaft position sensor lead with the plastic
locking tie.

J. Make sure that there is no slack in the stator coil

lead and rectifier/regulator lead in the area shown
in the illustration.

K. Fasten the stator coil lead and rectifier/regulator

lead with the plastic locking tie. Face the end of the
plastic locking tie outward, and then cut off the
excess end of the tie.

L. Fasten the lean angle sensor lead, starter motor

lead, horn 1 lead, rear brake light switch lead, and
sidestand switch lead with the holder.

M. Route the starter motor lead, horn 1 lead, rear

brake light switch lead, and sidestand switch lead to
the inside of the frame boss.

N. Fasten the starter motor lead, horn 1 lead, rear

brake light switch lead, and sidestand switch lead
with the plastic locking tie. Face the end of the
plastic locking tie outward, and then cut off the
excess end of the tie.

O. Fasten the starter motor lead, horn 1 lead, and rear

brake light switch lead with the plastic locking tie,
and then face the end of the tie outward. Be sure to
install the plastic locking tie behind the frame cross
member and to fasten the rear brake light switch
lead at the white tape.

P. Route the starter motor lead, horn 1 lead, and rear

brake light switch lead along the frame in the area
shown in the illustration, making sure not to cross
the leads.

Q. Align the positioning tape on the starter motor lead

with the engine mounting bolt (front lower side).

R. Pass the fuel tank breather/overflow hose through

the horn 1 bracket, making sure to position the end
of the hose as shown in the illustration.

S. Fasten the starter motor lead, horn 1 lead, and rear

brake light switch lead with the plastic locking tie,
and then face the end of the tie inward.

T. Fasten the horn 1 lead, rear brake light switch lead,

and starter motor lead with the plastic locking tie.
Face the end of the plastic locking tie inward, and
then cut off the excess end of the tie.

U. Route the horn 1 lead to the rear of the starter

motor lead.

V. Pass the throttle cables through the cable guides

as shown in the illustration.

W. Install the lead cover, making sure not to pinch the

stator coil lead and rectifier/regulator lead.

X. Pass the plastic locking tie through the hole in the

battery box projection, and then fasten the wire
harness with the tie.

Y. Fasten the stator coil lead at the white tape with the

plastic locking tie.

Z. Fasten the stator coil lead with the plastic locking

ties.

AA.Pass the plastic locking tie through the hole in the

battery box projection, and then fasten the wire
harness with the tie.

AB.Route the wire harness along the side of the fuse

box/starter relay bracket.

AC.For California only
AD.Route the horn 1 lead to the rear of the canister.

CABLE ROUTING

2-53

CABLE ROUTING

2-54

1. Meter assembly coupler
2. Cylinder-#2 intake air pressure sensor coupler
3. Cylinder-#1 right spark plug cap
4. Wire harness
5. Negative battery lead
6. EXUP servo motor
7. Fuse box
8. Starter motor lead
9. Positive battery lead
10. Sub-wire harness 1
11. ECU (electronic control unit)
12. Cylinder-#1 left spark plug cap
13. Cylinder-#1 intake air pressure sensor coupler
14. Fuel sender (fuel tank) coupler
15. Neutral switch lead
16. Sidestand switch lead
17. Crankshaft position sensor lead
18. Speed sensor lead
19. Fuel hose (fuel tank to fuel hose joint)
20. Fuel return hose (fuel return pipe to sub-fuel tank)
21. Air vent hose (fuel pump to fuel hose joint)
22. Fuel outlet hose
23. Frame
24. Oil tank
25. Sub-fuel tank
26. Battery
27. Main fuse
28. Fuel pump lead
A. Do not pinch the leads between the fuel tank

bracket and the frame when installing the bracket.

B. Pass the plastic locking ties through the holes in

the frame damper, and then fasten the wire harness
and damper with the ties. Face the end of each
plastic locking tie upward, and then cut off the
excess end of the tie.

C. Align the white tape on the wire harness with the

frame cross member.

D. 20 mm (0.79 in)
E. Fasten the wire harness with the plastic locking tie.

Face the end of the plastic locking tie upward, and
then cut off the excess end of the tie.

F. Route the wire harness along the frame.
G. Fasten the wire harness with the plastic locking tie,

making sure to align the tie with the line on the
rubber damper. Face the end of the plastic locking
tie upward, and then cut off the excess end of the
tie.

H. Connect the ECU couplers, and then fasten the

ECU with the band.

I.

Fasten the fuel return hose (fuel return pipe to sub-

fuel tank) with the plastic locking tie. Face the end
of the plastic locking tie inward, and then cut off the
excess end of the tie.

J. Route the cylinder-#1 intake air pressure sensor

lead so that it does not protrude past the top of the
frame.

K. Fasten the fuel tank damper with the plastic locking

tie. Install the plastic locking tie in the middle slot of
the fuel tank damper.

L. Fasten the air filter case damper with the plastic

locking tie so that the rubber part of the damper
contacts the frame. Be sure to pass the plastic
locking tie between the air filter case damper and
the frame.

M. Route the crankshaft position sensor lead,

sidestand switch lead, neutral switch lead, starter
motor lead, and speed sensor lead under the fuel
outlet hose.

N. Inside of frame
O. Outside of frame
P. View with tray removed
Q. Route the negative battery lead under the starter

motor lead and battery positive lead.

R. Route the positive battery lead (main fuse to starter

relay) over the tray.

S. Route the negative battery lead towards the front of

the vehicle.

T. Route the positive battery lead (battery to starter

relay) under the tray.

U. View with tray installed
V. To the tail/brake light
W. View with ECU removed
X. Wrap the protective covering around the couplers

(crankshaft position sensor coupler, auxiliary DC
jack coupler, neutral switch coupler, sub-wire
harness 1 coupler, speed sensor coupler, and
sidestand switch coupler) and the wire harness.

Y. When installing the ECU, be sure not to pinch the

leads in the areas shown in the illustration with
oblique lines.

CABLE ROUTING

2-55

C-C

B

C

C

A

A

B

D

E

C

L

N

1

2

3

4

4

5

5

6

6

7

7

4

5

6

7

8

8

8

9

10

11

11

11

12

14

13

15

16

17

18

19

20

21

22

26

27

A

B

F

G

H

I

J

K

L

M

O

P

Q

R

S

T

U

V

W

X

21

23

24

25

28

H

F

24

G

CABLE ROUTING

2-56

1. Fuel tank breather hose
2. Fuel sender (fuel tank)
3. Fuel tank
4. Fuel hose (fuel tank to fuel hose joint)
5. Fuel return hose (fuel return pipe to sub-fuel tank)
6. Air vent hose (fuel hose joint to fuel tank)
7. Fuel hose joint
8. Fuel outlet hose
9. Fuel pump
10. Sub-fuel tank
11. Fuel hose (fuel hose joint to fuel pump)
12. Fuel return pipe
13. Fuel return hose (pressure regulator to fuel return

pipe)

14. Pressure regulator
15. Rollover valve 1
16. Rollover valve 2
17. Cylinder-#2 left spark plug lead
18. Rollover valve hose 1
19. Rollover valve hose 2
20. Starter motor lead
21. Fuel tank breather/overflow hose
22. Rollover valve hose 4
23. Rollover valve hose 3
24. Air vent hose (fuel pump to fuel hose joint)
25. Fuel pump coupler
26. Canister purge hose (for California only)
27. Canister (for California only)
28. Canister breather hose (for California only)
A. Align the blue paint mark on the fuel hose (fuel

hose joint to fuel tank) with the round indentation on
the bend in the fuel hose joint.

B. Face the fastener of the clamp downward, making

sure that the projections on the clamp are
positioned as shown in the illustration.

C. Align the white paint mark on the end of the fuel

return hose (fuel return pipe to sub-fuel tank) with
the white paint mark on the fuel return pipe.

D. White paint mark
E. Align the ends of the hose clamp with the white

paint mark on the fuel return hose.

F. Align the paint marks on the hoses with the hose

joint as shown in the illustration.

G. Fasten the fuel tank breather/overflow hose to the

throttle cable guide with the holder.

H. Align the paint mark on the hose with the hose joint

as shown in the illustration.

I.

Fasten the fuel tank breather/overflow hose and

starter motor lead with the holder.

J. To the fuel injector
K. Align the yellow paint mark on the air vent hose

(fuel hose joint to fuel tank) with the round
indentation on the bend in the fuel hose joint.

L. Face the fastener of the clamp to the left.
M. Face the ends of the hose clamp forward.
N. Install the air vent hose (fuel pump to fuel hose

joint) with its white paint mark facing upward.

O. Face the ends of the hose clamp upward.
P. Face the fastener of the clamp upward, making

sure that the projections on the clamp are
positioned as shown in the illustration.

Q. Install the fuel hose (fuel tank to fuel hose joint)

with its white paint mark facing downward.

R. To the pressure regulator
S. Install the air vent hose (fuel hose joint to fuel tank)

with its white paint mark facing downward.

T. For California only
U. To the fuel tank
V. To the intake manifold assembly
W. Fasten the canister purge hose and fuel tank

breather/overflow hose with the holder, making sure
to align the paint mark on the breather/overflow
hose with the holder.

X. Fasten the canister purge hose and throttle cable

guide with the holder.

CABLE ROUTING

2-57

C-C

B

A

B

A

C

C

A

B

D

C

E

F

H

G

I

J

1

2

3

4

5

4

5

6

7

8

9

10

11

12

13

11

13

14

15

16

17

18

19

20

22

7

11

11

13

13

11

21

K
