CFMoto motorcycle CF250T-5 (V5). Service Manual - part 1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

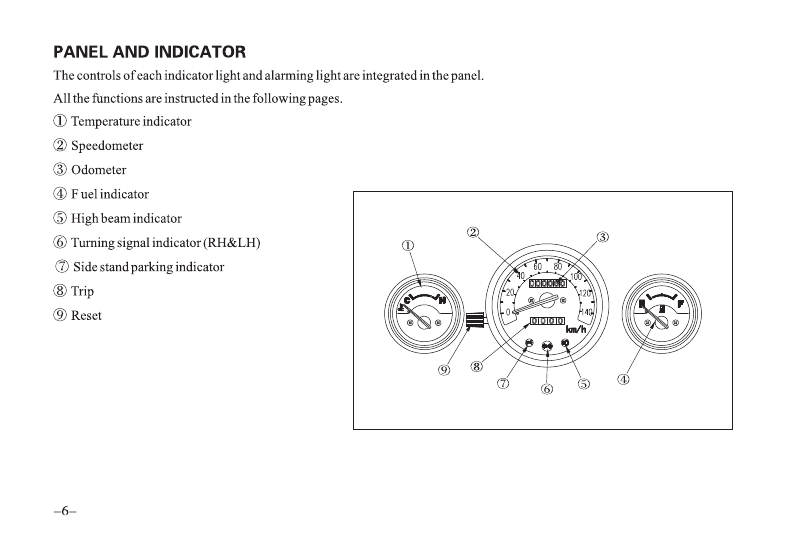

The controls of each indicator light and alarming light are integrated in the panel.

All the functions are instructed in the following pages.

¢Ù

  Temperature indicator

¢Ú

  Speedometer

¢Û

  Odometer

¢Ü

  F uel indicator

¢Ý

  High beam indicator

¢Þ

  Turning signal indicator (RH&LH)



¢ß

  Side stand parking indicator

¢à

  Trip

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

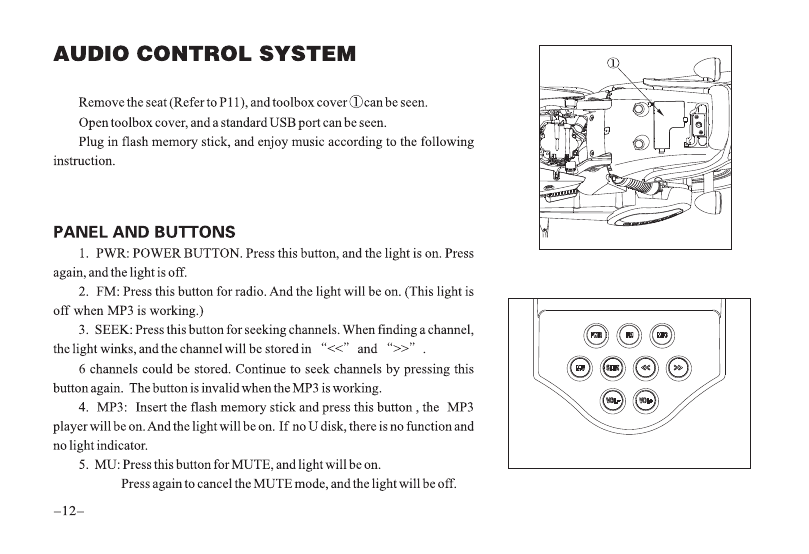

USB PLUG

-------------------------------------------------------------------------------------------------------------------------------------------------------------
