FORWARD



Thank you very much for choosing a CFMOTO vehicle

Welcome to join our worldwide family of CFMOTO owners. We proudly produce exciting products

 such as sports vehicle, utility vehicle, recreational vehicle.

●



All terrain vehicle (ATV)

●



Utility vehicle (Patrol, forest protecting and hunting)

●



Motorcycles

●



Scooters

●



Travelling motorcyles

●



Vehicles for government purpose

CFMOTO, a company which is specialized in production of liquid-cooled engine, is the top-level

 manufacturer in China

.

Compared to same displacement of air-cooled engine, engine cooling

effect is better, oil temperature can be adjusted more freely, more powerful and lower fuel con-
sumption, longer engine working life.
This motorcycle is designed for not only for working, but also for fun and adventure.

For safe and enjoyable operation of your vehicle, be sure to follow the instructions and recommend
ations in this owner

'

s manual. Your manual contains instructions for minor maintenance, but info-

rmation about major repairs is outlined in the CFMOTO service manual and should be performed
only by CFMOTO service dealer and technician authorized by CFMOTO.

Your CFMOTO dealer knows your vehicle best and is interested in your total satisfaction. Be sure to

 return to your dealership for all of your service

.

It

'

s essential to make basic pre-ride inspection. At the same time, regular maintenance is also ne-

cessary for your driving and use. This manual should be considered a permanent part of the motor-
cycle and should remain with the motorcycle when resold.
Wish you a pleasant drive.

The model is subject to standard

：

Q/CFD 004-2011.

Compiling the owner

'

s manual is in accordance with standard

：

GB9969.1-1998 and GB/T19678-2005.

DANGER

WARNING

CAUTION

CAUTION

IMPORTANT SAFETY INFORMATION

Your safety, and the safety of others, is very important. And operating this motorcycle safely is an

 important responsibility. To help you make informed decisions about safety, we have provided

operating procedures and other information on labels and in this manual. This information alerts
you to potential hazards that could hurt you or others

.

You will find important safety information in a below variety of forms, including:

This signal means

“

You WILL be KILLED or SERIOUSLY HURT if you don

'

t follow instructions

”.

This signal means

“

You CAN be KILLED or SERIOUSLY HURT if you don

'

t follow instructions

”.

This signal means

“

You CAN be HURT if you don

'

t follow instructions

”.

This motorcycle can only be used by eligible riders with proper way. At the same
 time, please pay attention to following instructions.

Do not make any modification on this motorcycle without our approval. Any modification about this

 motorcycle or electric components will cause potential side effect on performance, emission and
 noise control.

Be sure to follow your local traffic rules and laws when riding.

All information in this publication is based on latest production information available at the time of
approval for printing. CFMOTO reserves the right to make changes at any time without notice and
without incurring any obligation.

… … … …

… …

1

……………………

2
8
9
12

Meter Instruments

… … … … …

12

Tachometer gauge

… … … … … … …

12

LCD

（

Speedometer

、

Clock

、

Odometer

、

warning symbols

） … … … … …

12

Engine oil warning&EFI trouble indicator

… …

14

Key

,

Ignition switch/steering lock

… …

14

… … … … …

16

Kill switch

… … … … … … … …

16

Light switch

… … … … … … … … …

16

Start button

… … … … … … … … … … …

17

Left handlebar switch

… … … … … … …

17

Dimmer switch

… … … … … … … … …

17

Switch, turn light

… … … … … …

17

Horn button

… … … … … … … … …

18

Switch, overriding light

… … …

1 8

Switch, hazard light

… … … …

1 8

Adjustment of brake and clutch lever

… …

1 8

Cap of fuel tank

… … … … … … … …

1 9

Fuel tank

… … … … … … … … … … … …

2 0

Fuel grade

… … … … … … … … … … …

2 1

Side stand & Seat Lock

… … … … … … …

2 2

Rear seat & Helmet holding cable

…

2 4

Tools & rear view mirror

… …

2 6

…

… … … … … …

28

…

… … … … … … … … …

29

Start engine

… … … … … … … … …

2 9

Jump starting

… … … … … … … … … … …

3 0

Moving off

… … … … … … … … … … … …

33

Shifting gears

… … … … … … … … … … …

33

Braking

… … … … … … … … … … … … … …

34

Stop engine

… … … … … … … … … … … …

35

Stop in case of emergency

… … … … … …

36

Parking

… … … … … … … … … … … … … … …

37

Catalytic converter

… … … … … … … … … …

39

VIN and Engine serial number
Specifications

Major components location
Loading and accessories
General information

Right handlebar switch

Break-in period
How to use

… … …

… …

… … … …

… …

…… … … … …

… …

…………… … … …

… …

… … … …

… …

… …

… …

…

… … …

… … … …

… … … …… … … …

… …… … … …

… … … …

… … … …

…… … … …

… ……… … … …

……… … … …

… … … … … …

… … … … … …

…

… … … …

… … …

… … …

… …

…… …

… … … … … ……

… … … …

… ……

… … ………

……

… …

… …

…

…

…

…
…

…

CONTENT

Safety operation

 … … … … … … … … … …

40

Safe riding technique

… … … … … … … …

40

Pre

-

ride



inspection

… … … … … … …

42

Special note for high-speed riding

… … …

43

… … … … … …

45

Periodic



maintenance



chart

… … … … … …

45

Engine



oil

……… … ……… … …

52

Cooling



system

… ……… … ……

58

Spark plug

… … … … … … …

63

Intake & Exhaust system

… … … … … … …

64

Valve clearance

… … … … … … … …

65

Air filter

… … … … … … … … …

66

Throttle

… … … … … … … …

67

Idle speed

… … … … … … … … … … …

69

Clutch

… … … … … … … … … …

70

Drive chain

… … … … … … … … …

72

Brake

… … ……… … ……… … …

80

Switch, brake light

… … … … … … … …

85

Front fork

……… … ……… … ……

87

Rear shock absorber

… … … … … … …

88

Front &Rear wheel

… … … … … … …

91

Battery

… … … … … … … … …

…

9 6

Foot pedal

… … … … … … … … … … … …

9 9

Headlight beam

… … … … … … … … …

1 0 0

Front and rear turn light

… ……… ……

1 0 2

Fuse

… … ……… … ……… ……

1 0 3

Vehicle cleaning

… … … … … … … … …

1 0 5

… … … … … … … …

1 0 9

… … … … …

1 1 1

… … … … … … … … … …

1 1 2

… … … … … …

116

Maintenance & Adjustment

Storage guide

Warning labels

EFI errors

 Electric diagram

… …

… …

… … … …

…

…

…

… … … … … …

… … … … … …

… … … … … …… …

… …

… … …… …

… ………………

… …………………

… …… …

… … … …………

… … …………

… … …………

… …… …

… ……………

… …… …

……………

… … … … … …

…

…

…

…

…

…

…

…

… … ……

…

…

…

…

…

……

…

…

… … …

……

…

…

…………

…

…………

…

…

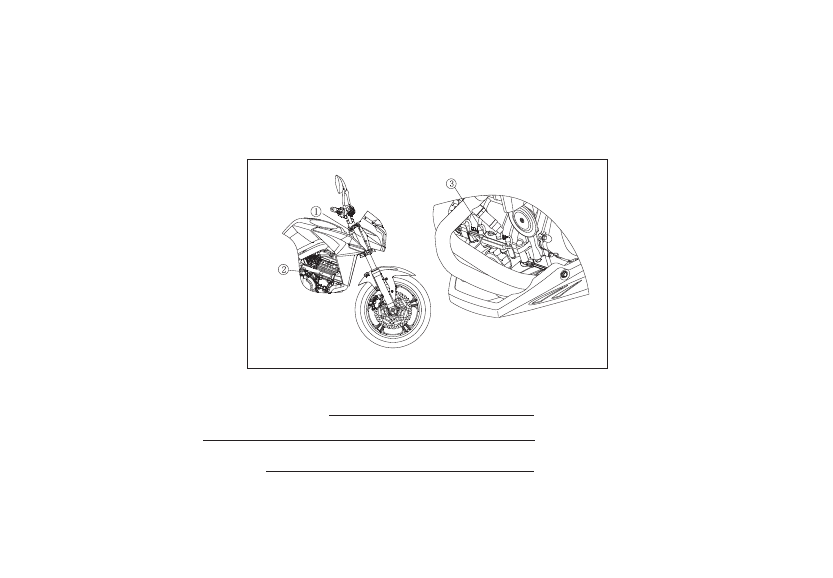

Be sure to record below VIN number, engine serial number and name plate number for your maint-
enance purposes. At the same time, keep spare key in a safe place. If two keys are missing, then
you have to replace every lock because all lock use same key.

①

②

③

Vehicle identification number:

Name



plate:

Engine serial number:

-1-

VIN AND ENGINE SERIAL NUMBER

Performance

Max. Power       52

.00

kW/8500rpm

Max. Torque       62

.00

N

·

m/7000rpm

Min. turn radius   2.70m

Size

Length:           2120mm

Width:



780 mm

Height:           1100 mm

Wheel base

:

1415 mm

Min. ground clearance

:

150 mm

Dry weight:   206 kg

Engine

Type

：

Two cylinder in-line, 4-strokes, DOHC

、

8 valves

、

liquid-cooled

Displacement

：

649.3mL

Bore



×

Stoke

：

83mm

×

60mm

-2-

SPECIFICATIONS

Compression ratio

：

11.3:1

Starting system

：

Electric starter

Number of cylinder

：

2

Firing order

：

from left to right

，

1-2

Carburetion system

：

EFI (electronic fuel injection)

Ignition system

：

CDI

 (

transistorized



ignition

)

Ignition timing（before compression to top dead point）： 10BTDC@1300rpm~

(

Advance angle of ignition)

：

33 BTDC@6000rpm

Spark plug

：

CR8EI

Lubricating system

：

Forced



lubrication

 (

semi

-

dry



sump

)

Engine oil                   Oil type

：



SAE 15W-40/SG



Oil capacity

：

2.6 L

Coolant capacity

：

1.6L

-3-

Transmission

Transmission type

：

6-speed

，

return shift

Clutch

：

Wet

，

multi disc

Driving system

：

Chain drive

Primary reduction ratio

：

2.095

Final reduction ratio

：

3.067

Overall drive ratio：    5.474(Top gear)

st



Gear ratio                              1

2.353

nd

2

1.714

rd

3

1.333

th

4

1.111

th

5

0.966

th

6

0.852

-4-

Frame

Castor：  24.5°

Tire size： Front：120/70 R17 (58H)                   Rim size：Front： 3.50×17

                   Rear：160/60 R17 (69H)                                       Rear： 4.50×17

Capacity of fuel tank

：

17L

Electric components

Battery：                12V10Ah

Headlight

：

High beam

：

H7 12V55W   Low beam

：

H7 12V55W

Tail/Brake light

：

LED 12V 0.39W/1.55W

-5-

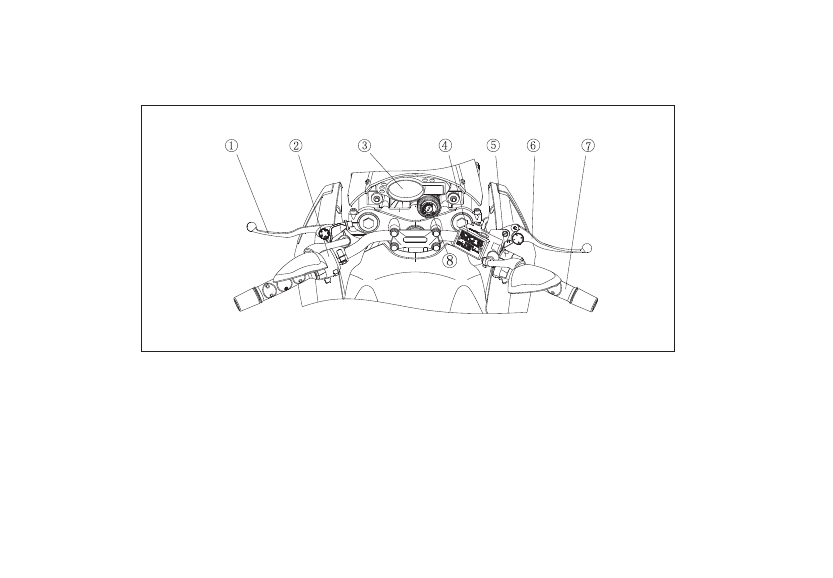

Clutch lever



Right handlebar switches

Left handlebar switches



Front brake lever

Meter instruments                                             Throttle grip
Brake fluid reservoir (Front)                             Ignition switch/Steering lock

①

②

③
④

⑤
⑥
⑦
⑧

-6-

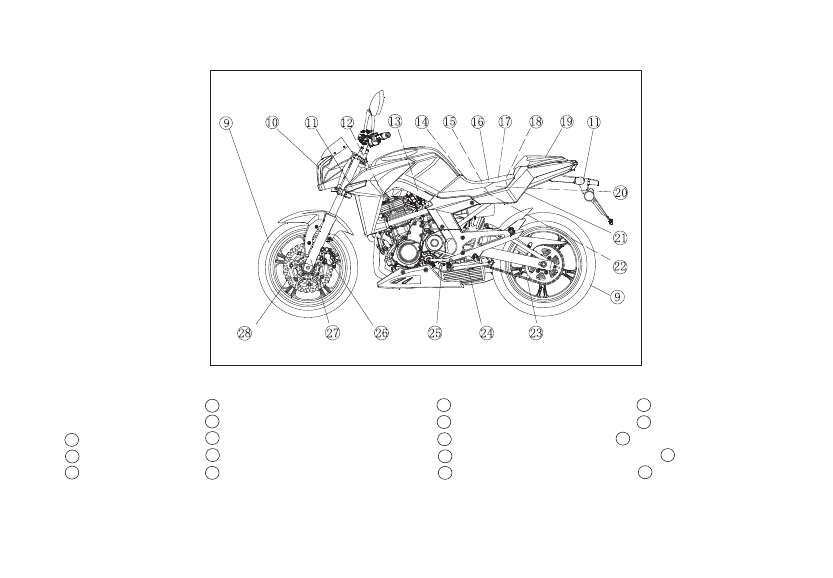

LOCATION OF PARTS

Front wheel             Main fuse                                       Rear seat                               Side stand
Headlight                 Battery                                           Helmet holding cable           Shift pedal
Turn signal light      Main seat



Seat lock                           Front brake caliper

Spark plug



Brake fluid reservoir (Rear)       Lever of opening rear seat        Front fork

Air filter                    Tools/Storage compartments      Drive chain                             Front



brake disc

（Broken line means it cannot be seen）

⑩

⑨

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

-7-

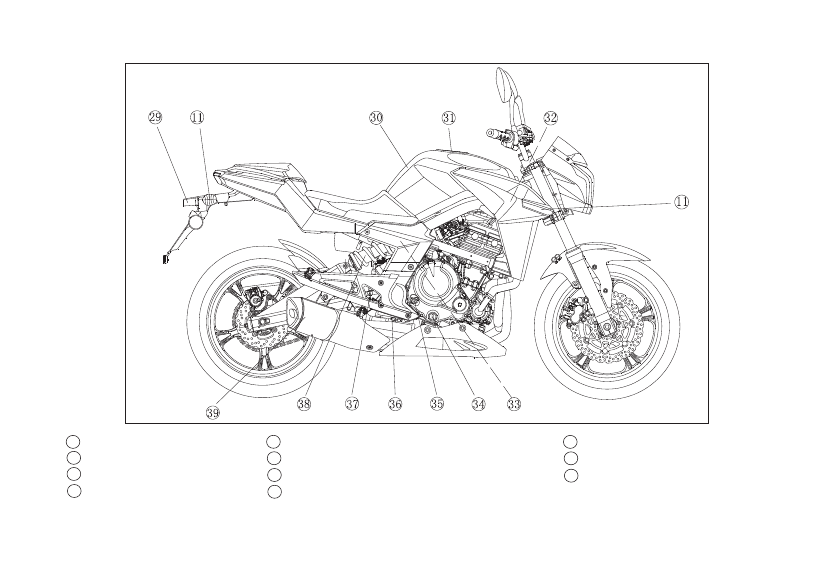

29

30

31

32

33

34

35

36

37

38

39

        Licence plate light                Rebound damping force adjuster



Switch of rear brake light

        Fuel tank                                Oil level window                                           Rear shock absorber
        Cap of fuel tank                     Cap of oil filler



Muffler

        Coolant reservoir tank          Rear brake pedal

 （Broken line means it cannot be seen）

-8-

WARNING

Incorrect loading, improper installation or use of accessories, or modification of your
motorcycle may result in an unsafe riding condition. Before you ride the motorcycle,
make sure that the motorcycle is not overloaded and that you have followed these
instructions.

NOTE

CFMOTO parts and accessories have been specially designed for use on CFMOTO
motorcycles. We strongly recommend that all parts and accessories you use are
genuine CFMOTO components.

Always use CFMOTO genuine parts and accessories. Non-genuine parts or accessories, improper

 installation or use of accessories, or motorcycle modification, will void motorcycle warranty, can

negatively affect performance and can even be illegal. In selecting and using parts or accessories,

and in loading motorcycle, you are personally responsible for your own safety and the safety of

person involved

.

Because a motorcycle is sensitive to changes in weight and aerodynamic forces, you must take
extreme care in carrying cargoes, passengers and/or in fitting of additional accessories.

-9-

LOAD AND ACCESSORIES INFORMATION

Important information before ride

1

、

Any driver and/or passenger should be completely familiar with motorcycle operation. The pas-

     senger can affect control of motorcycle by improper positioning during turning corner or sudden

     movements. So it

'

s important for passenger to sit still while the motorcycle is in motion and not

 interfere with the



operation of motorcycle. Do not carry animals on the motorcycle.

2

、

You should instruct any passenger before riding to keep his/her feet on the passenger footpegs

     and hold on the driver or grab rail

.

Do not carry a passenger unless he or she is tall enough to reach



     footpegs and footpegs are available

.

3

、

All baggage should be carried as low as possible to reduce the effect on the motorcycle gravity.

     Baggage weight should also be distributed equally on both sides of motorcycle. Avoid carrying

     baggage that extends beyond the rear of the motorcycle.

4

、

Baggage should be securely attached. Make sure that baggage will not move around while you're

     riding. Recheck baggage security as often as possible and adjust if necessary.

5

、

Do not carry heavy or bulky items on a luggage rack. They are designed for light items, and

     overloading can affect handling due to changes of weight distribution and aerodynamic forces.

6

、

Do not install accessories or carry baggage that impairs the performance of motorcycle. Make

     sure that you have not adversely affected any lighting components, road clearance, banking

     capability (i.e., lean angle), control operation, wheel travel, front fork movement, or any other

     aspect of motorcycle

'

s operation.
