CFMoto UTV Terracross CF500-6 4x4. Service Manual - part 3

Rider Safety

Gasoline is highly flammable and is explosive under certain conditions.
Always exercise extreme caution whenever handling gasoline.
Always stop the engine when refueling.
Always refuel outdoors or in a well ventilated area.
Remove flammable material containers from the box before filling.
Do not smoke or allow open flames or sparks in or near the refueling area or where gasoline is stored.
Never refuel while a person is in the vehicle.
Do not over fill the tank. Do not fill the tank neck.
If gasoline spills on your skin or clothing, immediately wash it off with soap and water and change clothing.
Never start the engine or let it run in an enclosed area. Gasoline powered engine exhaust fumes are poisonous

 and can



cause



loss



of



consciousness



and



death



in



a



short



time

.

-30-

FEATURES AND CONTROLS

Component Locations

Your vehicle is equipped with



cab nets on both sides of the vehicle. Cab nets must be used by both operator

 and passenger  at all  times. Promptly replace worn or damaged parts with new one, available from your
 authorized CFMOTO dealer.

NOTE

:

The



vehicle



illustrated



below



is



shown



without



cab



nets



only



to



allow



component



identification

.

-31-

hip bar

fuel tank cap

shifter

passenge hand hold

cargo box

seat belt

cab frame

dash

seat

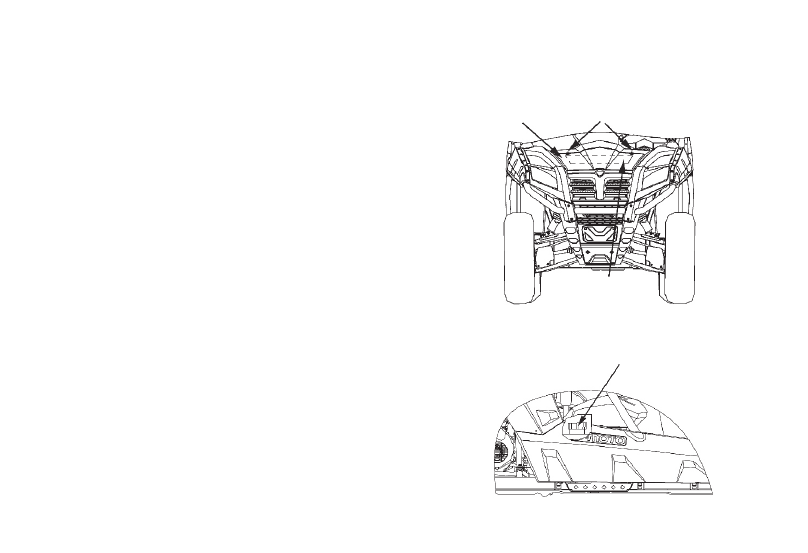

Component Locations

-32-

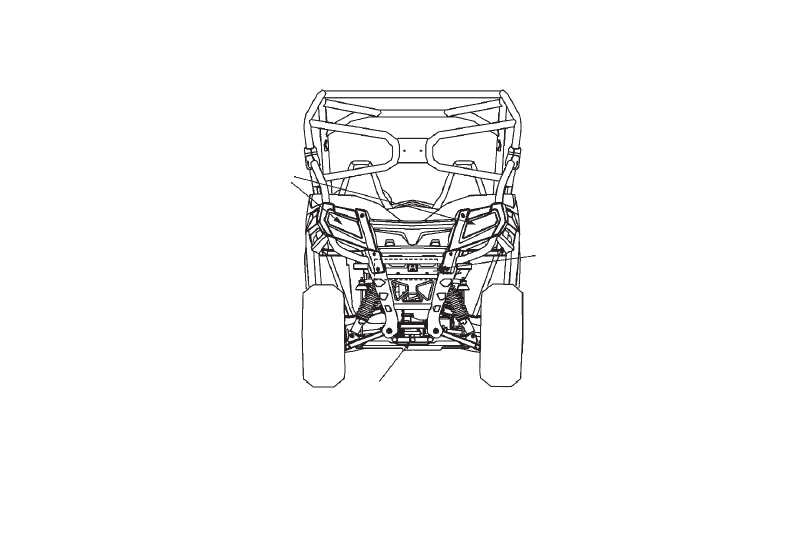

storage compartment

radiator

winch Bracket

Headlights

Steering wheel

Component Locations

Trailer Receiver Hitch Bracket

This vehicle is equipped with a receiver hitch bracket for a trailer hitch.
Trailer towing equipment is not supplied with this vehicle.
To avoid injury and possible damage, always heed the warnings and towing capacities outlined on pages 69-70.

-33-

Taillight

Towing Bracket

Muffler
(spark arrestor)

Rear Service Panel

The rear service panel is located behind the seats on the frame of the vehicle. Remove the seats to access the

 service panel. Remove the service panel to access serviceable engine components and clutches.

Seats

Before operating the vehicle, always push down on both seat backs to ensure the latches are secure.

Seat Adjustments

Loosen (do not remove) the four screws located on the seat bottom. Slide the seat forward or rearward to the

 desired position. Tighten the four screws ,Torque:(8 Nm). Do not overtighten.



Seat Removal

1. Pull up on the seat latch lever located under the rear edge of the seat.
2. Tilt the seat forward.
3. Lift the seat upward to remove it from the vehicle.

Reverse this procedure to reinstall the seat. Make sure the front edge of
the seat is properly installed to the seat retainer bar. Press down firmly



at



the rear of the seat to engage the rear latch.

-34-

Front Seat Retainer

Seat Latch

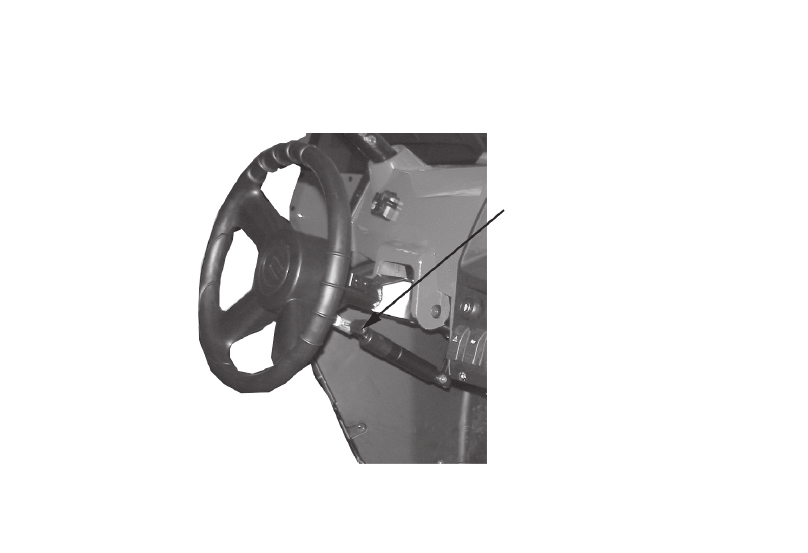

Steering Wheel

The steering wheel can be tilted upward or downward for rider preference.
Lift and hold the steering wheel adjustment lever while moving the steering



wheel upward or downward.
Release the lever when the steering wheel is at the desired position.

-35-

Adjustment
 Lever

-36-

FEATURES AND CONTROLS

Front trunk

Remove the front panel and check the front trunk

.

Detail messages about cubage of front trunk to
see the page 122

.

Front panel

1

．

Front trunk,radiator and secondary water tank under the

Front panel. Front panel need to be removed for inspection.
2

．

knob on the front panel,unscrew knob

3

．

Pull out the front panel by hold of the top panel

4

．

Remove the left panel.

Fuel cap

Fuel cap near the seat of passenger,
If refuel the 93#



or



more



than

.

Don

'

t refuel the fuel as low

93#



fuel

,

Remove



the



inflammable



material



after



refuel

.

Front panel

Konb

Front trunk

Fuel tank cap

-37-

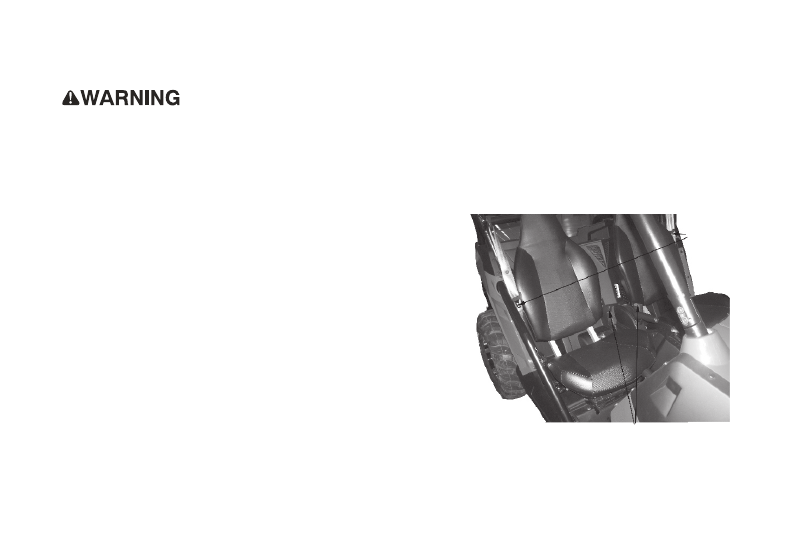

Seat Belts

This vehicle is equipped with three-point lap and diagonal seat



belts for the operator and passenger.

Riding in this vehicle without wearing the seat belt can result in serious injury



or death in the event of



an



accident



or



sudden



stop

.

Always



make



sure



the



seat belts are secured for both the operator and passen-

ger before riding.

To wear the seat belt properly, follow this procedure:

1. Pull the seat belt latch downward



and across your chest

toward the buckle at the inner



edge of the seat. The belt should

fit snugly across your hips and



diagonally across your chest.

Make sure the belt is not twisted.
2. Push the latch plate into the



buckle until it clicks.

3. Release the strap, it will selftighten.

NOTE:



Press the red release latch on



the buckle to release the seat



belt.

Seat belt
 hook

Seat belt hook

-38-

Seat Belts
Seat Belt Inspection

Inspect all seat belts for proper operation before each use of the vehicle.
1. Push the latch plate into the buckle until it clicks. The latch plate



must slide smoothly into the buckle. A click

 indicates that it's



securely latched.

2. Push the red release latch in the middle of the buckle to make sure it



releases freely.

3. Pull each seat belt completely out and inspect the full length for any
damage, including cuts, wear, fraying, dirt, debris or stiffness. If



any damage is found, have the seat belt

 system checked and/or



replaced by an authorized CFMOTO dealer.

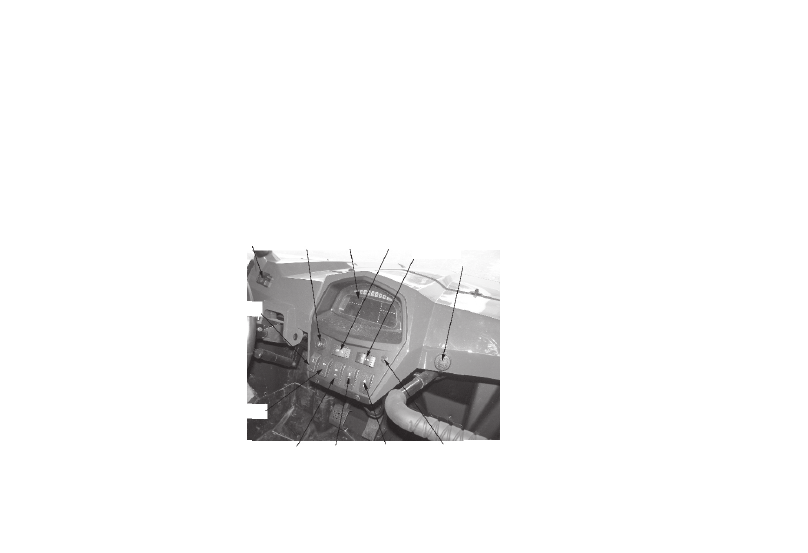

switchs

4WD/2WD
SWITCH

Ignitio n
switc h

Dashboard flameout

switch

tum

switch Auxiliary Outl et

Power-in cre ased switc h

Horn switc h

high and low beam swi tch

light
 switch

Danger lig ht
 switc h

Time adj ust ment  sw itch

-39-

Switches
Time adjustment switch

Near the dashboard, use for adjust the hour and minutes by operated the time adjustment switch. Hour by

 Shortly pressed to adjust. Minute by long pressed to adjust.

Danger light switch

Front and rear turn light will be lighted when operate



the



danger



light



switch

.

meanwhile

,

danger



light



instruction



will



be



showed



on



the



dashboard

.

Ignition Switch

Leaving the keys in the ignition can lead to unauthorized use of the vehicle



resulting in serious injury or death.



Always



remove



the



ignition



key



when



the



vehicle is not in use.

The ignition switch is a three-position, key-operated switch. Use the



ignition switch to start the engine.

 See page 54 for starting procedures.The key can be removed from the switch when it is in the OFF  position.

OFF

NO

START

The engine is off. Electrical circuits are off, except accessory as winch motor

.

Electrical circuits are on. Electrical equipment can be used.

Turn the key to the START position to engage the electric starter.The key returns to

 the ON position when released.

Light Switch

Light switch including

：“    ”、“      ”

、“    ”

High and lower beam

 light switchs

High and lower beam light switch on this position and light switch as

turn on high beam light.

High and lower beam light switch on this position and light switch as

turn on lower beam ligh.

light switch on this position,headlight,instrument light,front and rear sidelights lighted.

light switch on this position,instrument light,front and rear sidelights lighted.
light switch on this position,headlight,instrument light,front and rear sidelights closed.

Note

：

The ignition switch must be in the ON position



to operate

-40-

turn switch

Press switch to

，

turn on the turn light

(

left

)

and



indicator



light

.

Press switch to

，

turn on the turn light

(

right

)

and



indicator



light

.

Horn switch

Press the switch, horn working.

Aeta switch

Speed is limited base on AWD.if need to more power when drive to overtake, release the speed limited if press

 the aeta switch

(

See



page



41

.

detail



instruction



for



AWD



switch



and



founctions

）.

Reserve



the



speed



limited



function



if



loosen



the



aeta



switch

.

Aeta



indicator



light



is



lighten



when



press



the



switch

.

    Flameout switch

press

button

，

engine stopped

，

press

button

，

engine operated.

Auxiliary Outlet



Auxiliary outlet voltage

：

12V

;

Max outlet current

：

10A

.

-41-

Switchs

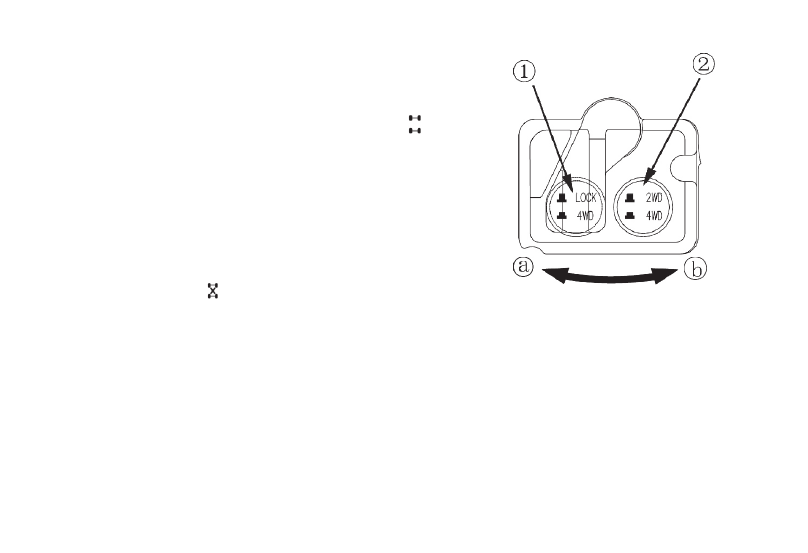

4WD switch



2WD to 4WD

，

stop the vehicle,change the switch to

“

4WD ”

。



When the switch on 4WD , 4WD indicator lightwill be on

.

4WD to 2WD,stop the vehicle,confirm the rocker

①

 on the

Position

○

a ,press the switch to

“

2WD

”

.

4WD and 4WD-Lock

  switch



“LOCK”/“4WD”

①



Lock front wheel drive on 4WD

，

confrim 4WD switch on the

“

4WD

”

,stop vehicle, press the rocker

②

to

○

b ,then if swith on

the position as

“

LOCK ” . when locked the 4WD, 4WD-Lock

indicator light will be on

.open 4WD-Lock switch,stop the

vehicle,change the switch to “ 4WD”

Note



 when the switch on “ LOCK ” , indicator light is twinkle unitil locked 4WD.

when the 4WD -Lock indicatior light twinkl e, turn left or right for steering wheel, it is better to front wheel for 4WD

Locked.

confirm whether it is 4WD -Lock

（

For example,indicator light is twinkle

）

and speed limited of Engine unitl it is over.

when vehicle as 4WD -LOCK .speed limited under 35 km/h (22 mph).if need to full power of engine.Don’ t release the

aeta switch can release the speed limited of  4WD -LOCK .



●



●



●



●



-42-

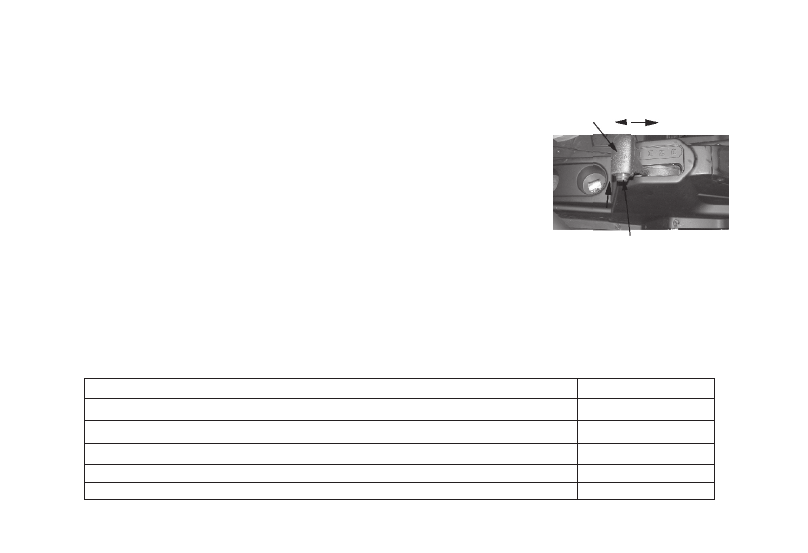

Park

P

：

Park, when vehicle stopped, fllow the arrow direction to operate the park handle for parking

Parking indicator light will be on, if need to be released it that press the release button as the arrow direction.

Gear selector

Gears

L

：

Low Gear

H

：

High Gear

N

：

Neutral

R

：

Reverse

To change gears, stop the vehicle,and with the engine idling,



move



the



lever to the desired gear. Do not



attempt to shift gears with engine

speed above idle or while the vehicle



is moving.

NOTE:



Maintaining shift linkage adjustment is important to assure proper



transmission function. See your dealer if

you experience any shifting



problems.

CAUTION

Do not attempt to shift the transmission while the vehicle is moving or



damage to the transmission could result.

Always shift when the vehicle isstationary and the engine is at idle.

Using Low Range and High Range

Condition

Range to Use

Operating at speeds less than 7 PH (11 km/h

)

Operating in rough terrain or over obstacles

Loading the vehicle onto a trailer

Towing heavy loads

Operating at speeds greater than 7 MPH

 (

11 km/h

)

High

LOW

LOW

LOW

LOW

gear shaft

Lock button

-43-

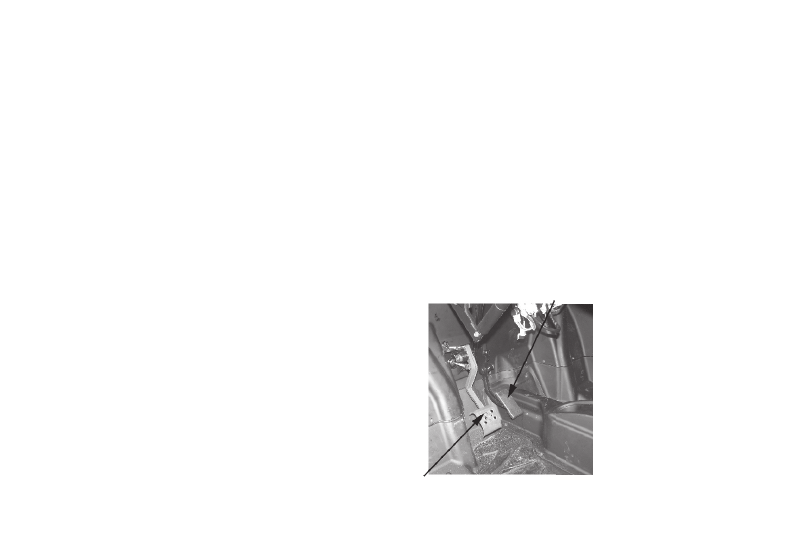

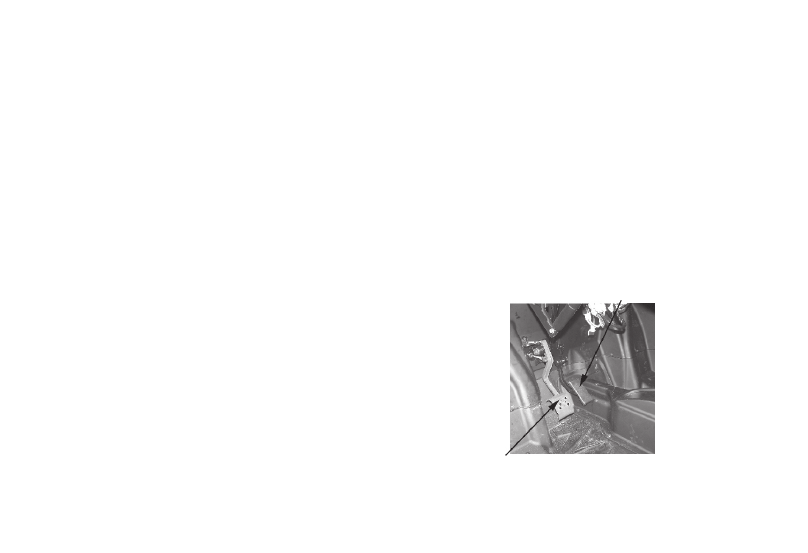

Brake Pedal

Depress the brake pedal to



slow or stop the vehicle.

Apply the brakes while starting



the engine.if feel softly of brake pedal before driving,



inspect the brake fluid whether it is between the superior and lower limited or oil leak of
oil tube,even exhaust the air of channel.

Throttle Pedal

Push the pedal down to



increase engine speed.

Spring pressure returns the



pedal to the rest position

when released. Always



check that the throttle pedal

returns normally before starting



the engine. Make sure

there's adequate throttle



pedal freeplay. See page 98

for throttle pedal adjustment



procedures.

Throttle Pedal

Brake Pedal

-44-

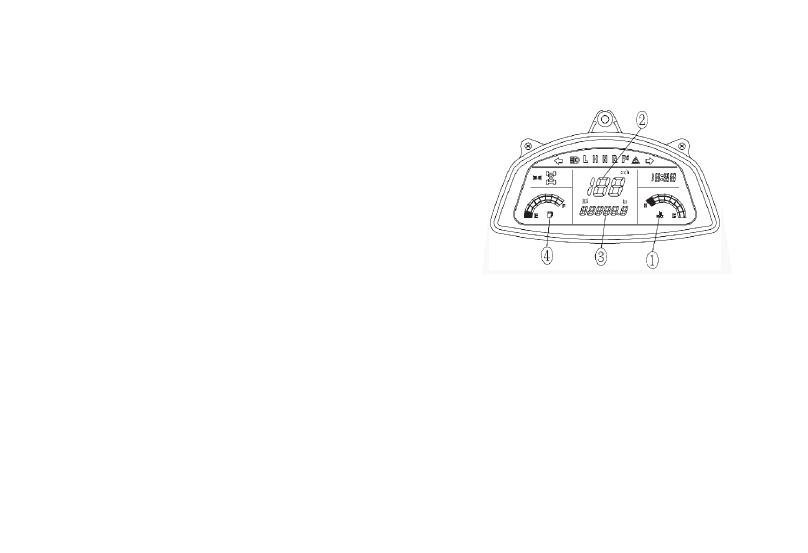

Instrument Cluster

Cooling liquid temperature indicator

①

Temperature indicator pointer on the white zond C

.

Temperature



Is normal.Temperature indicator pointer



on



the



red



zone



H

.

Engine stop and cooling liquid temperature drop down.if
Temperature is frequently overtop,inspect the volumn of
Cooling liquid and inquire the localled dealer.

caution

if ATV



is



overweight

,

engine



will



be



superheating

.

if



like



this

,

Reduce the load weight in the scope of mas load weight.

●



Restart  engine.  Confirm  the  temperature



pointer



in



the



white



Zone C

.

when



the



pointer



in



the



red



zone

,

engine



will



be



damaged

。

Speedmeter

②

:

display speed.

odometer

③

:

display odo

Fuel gauge

④

 :

display the surplus fuel.

 “

F

”

fuel total

:

27L

.

when



pointer



in



the



red zone, show that the

 surplus fuel only 4.01,need to refuel.



●



-45-

4WD indicator light

①

switch

“

2WD

”/“

4WD

”

on



the position

“

4WD

”. 4

WD



indicator



light



will



be



on

.

switch

“

LOCK

”-“

4WD

”

on



the



position

“

LOCK

-4

WD

 ”,4

WD

-

Lock



indicatior light will be on.

4WD indicatior light will be on after vehicle moving due to the mechanical synchronous



sets



in



the



front



wheel



driving



case

.

Turn left indicator light

②

Switch on the position

“”

indicator light will be on.

Low gears indicatior light

“

L

”③

Gears on the position

“

L

”,

indicator



light



will



be



on

.

High gears indicator light

 “

H

”④

Gears on the position

“

H

”

indicator light will be on.

Neutralindicator light

“

N

”⑤

Gears on the position

“

N

”

indicator light will be on.

Reverse indicator light

 “

R

”⑥

Gears on the position

“

R

”

indicator light will be on.
