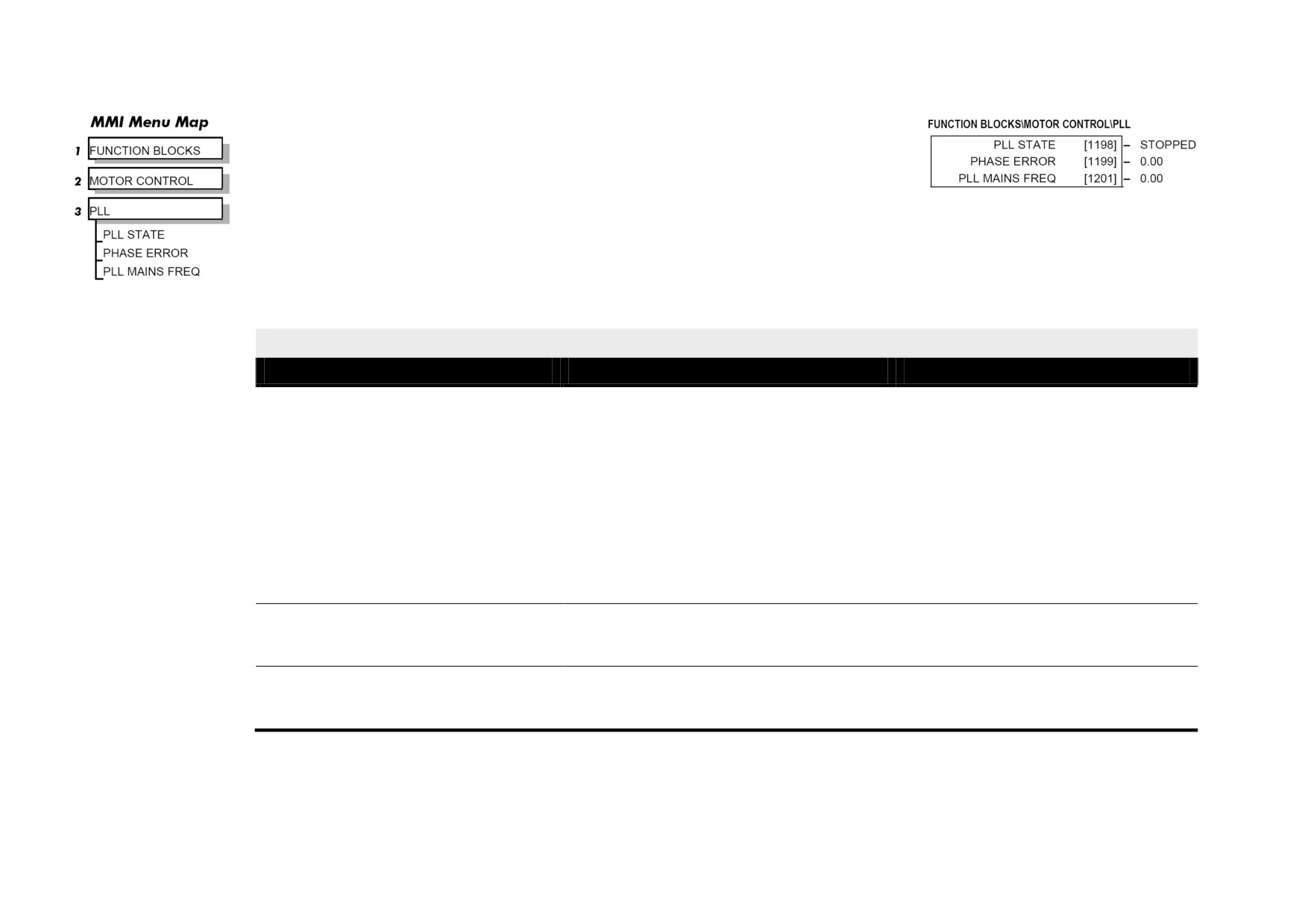

PLL (PHASE LOCKED LOOP)
The phase locked loop function block allows the drive to ride through short disturbances to the
supply voltage, frequency or phase and provides immunity to waveform distortion.
PLL (PHASE LOCKED LOOP)
Parameter
Tag
Range
PLL STATE
1198
See below
Indicates the current operating state of the phase locked loop function block. Normally the PLL will reside in the LOCKED state after close of the
3-phase line contactor. The FAIL state results if the supply frequency moves beyond the acceptable operating range.
0 : STOPPED
1 : 1ST CODING EDGE
2 : READ EDGES
3 : MAINS PERIOD
4 : LOCKED
5 : UNLOCKED
6 : FAIL
PHASE ERROR
1199
.xx
The instantaneous angle error between the zero-crossing detection of the line supply and the reference output from the PLL function block.
PLL MAINS FREQ
1201
.xx
The measured 3-phase line supply frequency at the output of the PLL function block.
Programming D-95

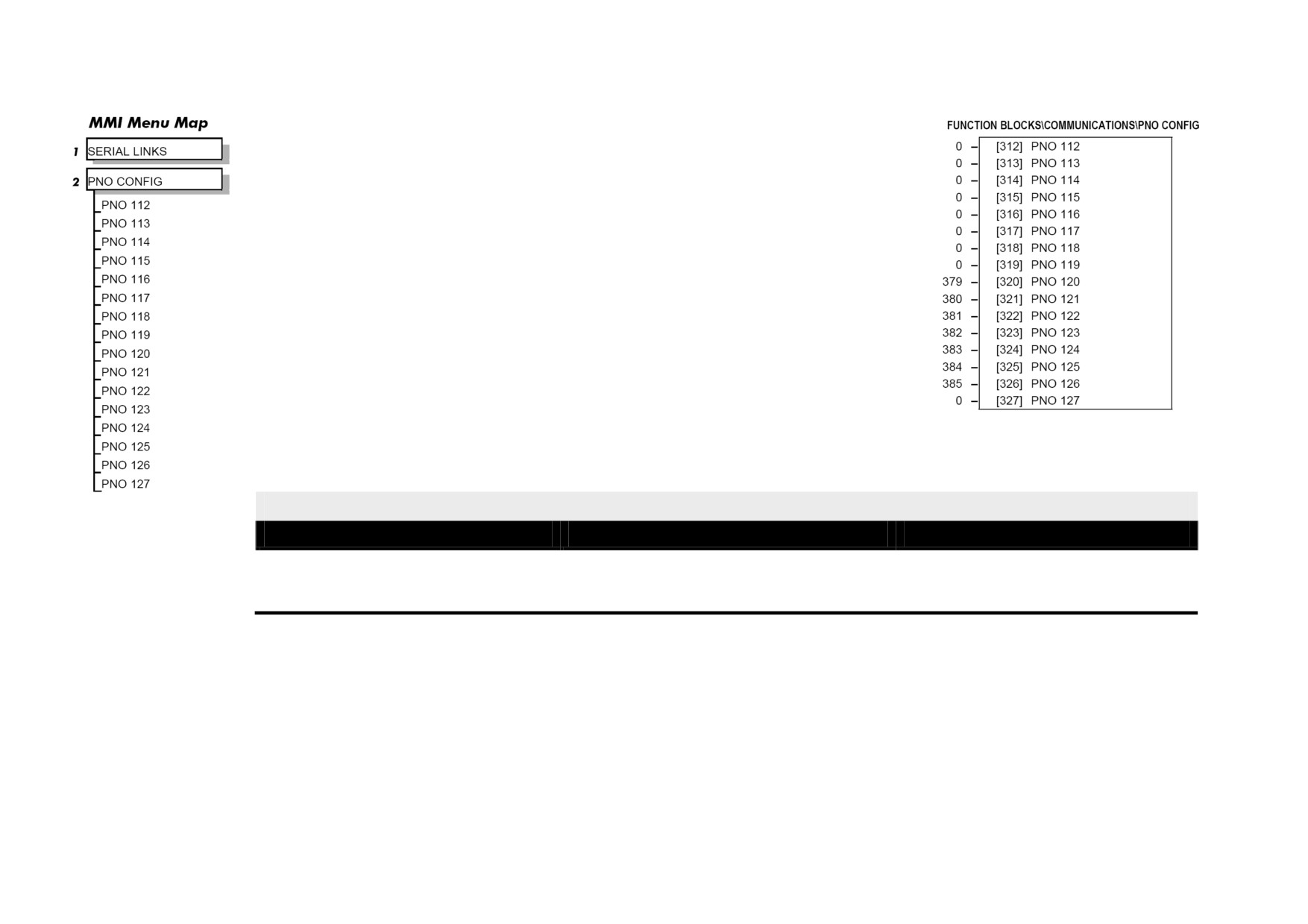

PNO CONFIG
The PNO parameters are used in conjunction with the EI ASCII and EI BINARY communications
protocols.
Refer to Appendix A: "Serial Communications".
PNO CONFIG
Parameter
Tag
Range
PNO 112 - 127
312 to 327
-1276 to 1276
Indirect access parameters.
D-96 Programming

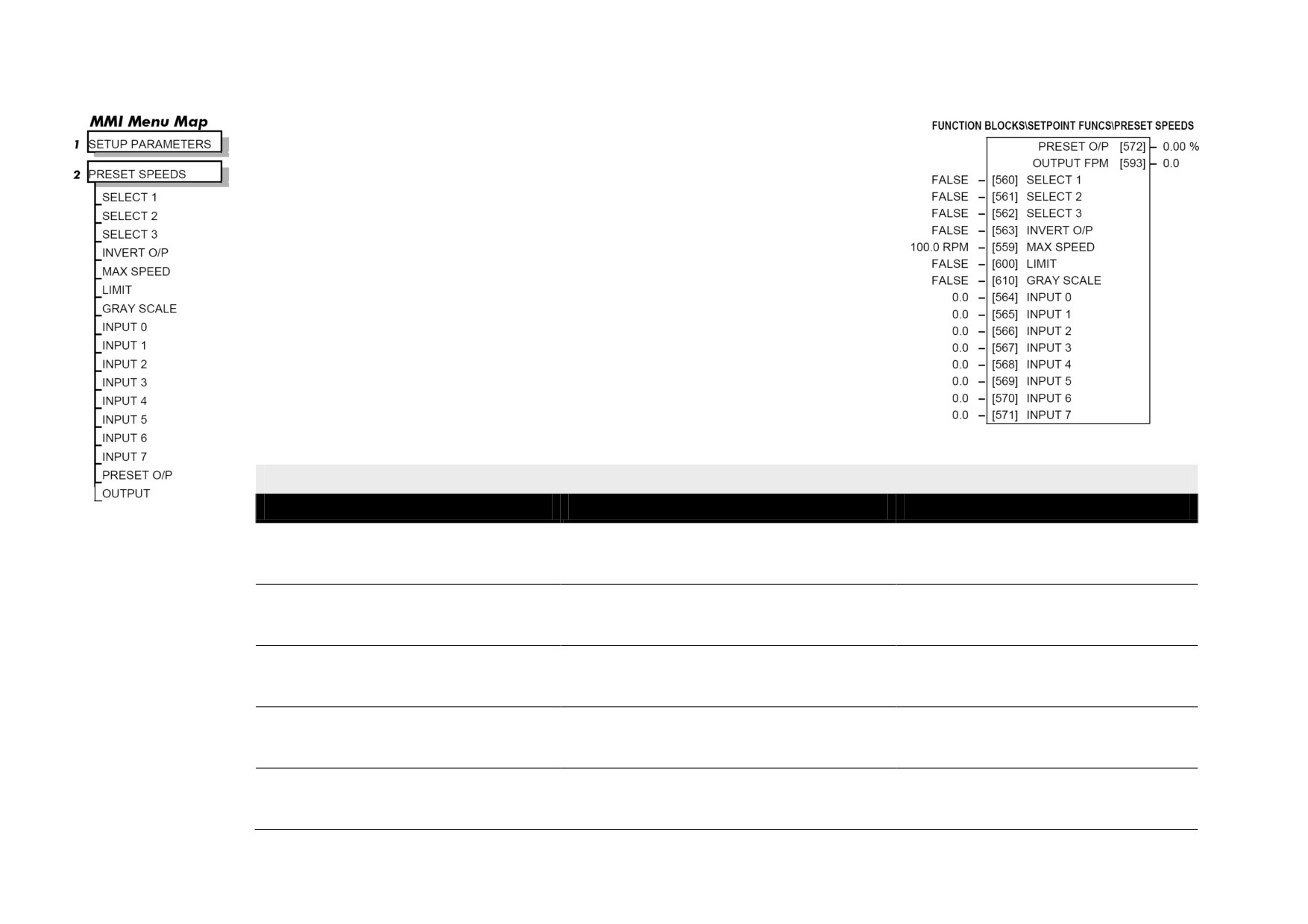

PRESET SPEEDS
The Preset Speeds block allows you to select one of eight preset inputs, which in turn may be
connected to other blocks of inputs.
PRESET SPEEDS
Parameter
Tag
Range
SELECT 1
560
FALSE / TRUE
Select inputs 1.
SELECT 2
561
FALSE / TRUE
Select inputs 2.
SELECT 3
562
FALSE / TRUE
Select inputs 3.
INVERT O/P
563
FALSE / TRUE
Changes the sign of the output. If TRUE, the output is of the opposite sign to the selected input.
MAX SPEED
559
0.1 to 3000.0 RPM
Scaler for PRESET OP (%).
Programming D-97
PRESET SPEEDS
Parameter
Tag
Range
LIMIT
600
FALSE / TRUE
Clamp output to MAX SPEED if TRUE.
GRAY SCALE
610
FALSE / TRUE
Selects Gray Scale encoding when TRUE, Binary encoding when FALSE. When gray scale is selected, only one input changes between state
preventing the mis-selection of intermediate states.
INPUT 0 to INPUT 7
564, 565, 566, 567, 568, 569, 570, 571
-3000.0 to 3000.0
Pre-set input variables.
PRESET O/P
572
.xx %
Scales the selected preset input by MAX SPEED.
OUTPUT FPM
593
.x
Outputs the selected INPUT value.

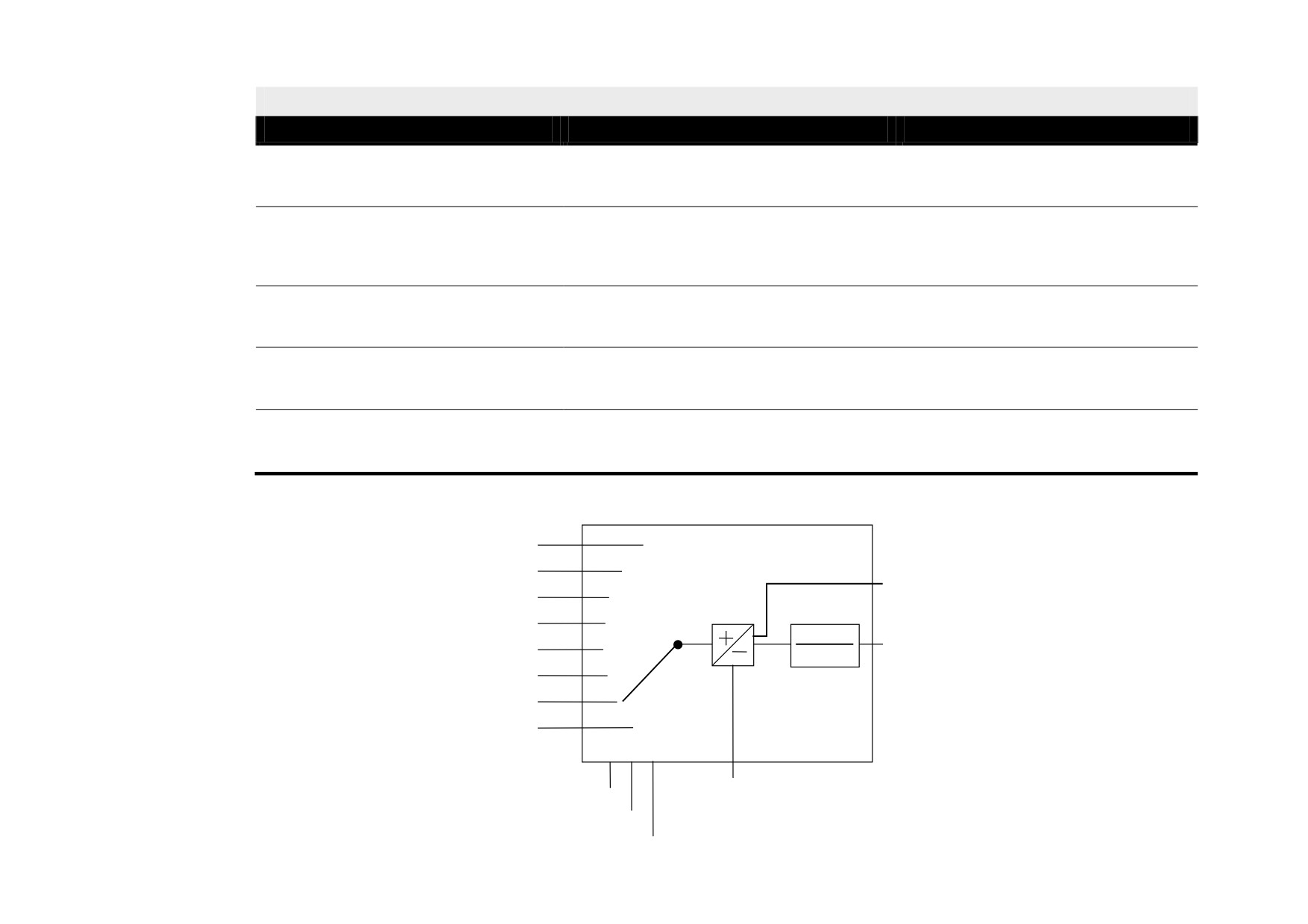

Functional Description
INPUT 0
INPUT 1
OUTPUT
INPUT 2
INPUT 3
100%
PRESET OP %
INPUT 4
MAX SPEED
INPUT 5
INPUT 6
INPUT 7
INVERT O/P
SELECT 1
SELECT 2
SELECT 3
D-98 Programming
Selection Table
Three Boolean variables used to select between one of the 8 preset values.
BINARY ENCODING
GRAY SCALE ENCODING
Select 3
Select 2
Select 1
Input
Select 3
Select 2
Select 1
Input
FALSE
FALSE
FALSE
0
FALSE
FALSE
FALSE
0
FALSE
FALSE
TRUE
1
FALSE
FALSE
TRUE
1
FALSE
TRUE
FALSE
2
FALSE
TRUE
TRUE
2
FALSE
TRUE
TRUE
3
FALSE
TRUE
FALSE
3
TRUE
FALSE
FALSE
4
TRUE
TRUE
FALSE
4
TRUE
FALSE
TRUE
5
TRUE
TRUE
TRUE
5
TRUE
TRUE
FALSE
6
TRUE
FALSE
TRUE
6
TRUE
TRUE
TRUE
7
TRUE
FALSE
FALSE
7
Programming D-99

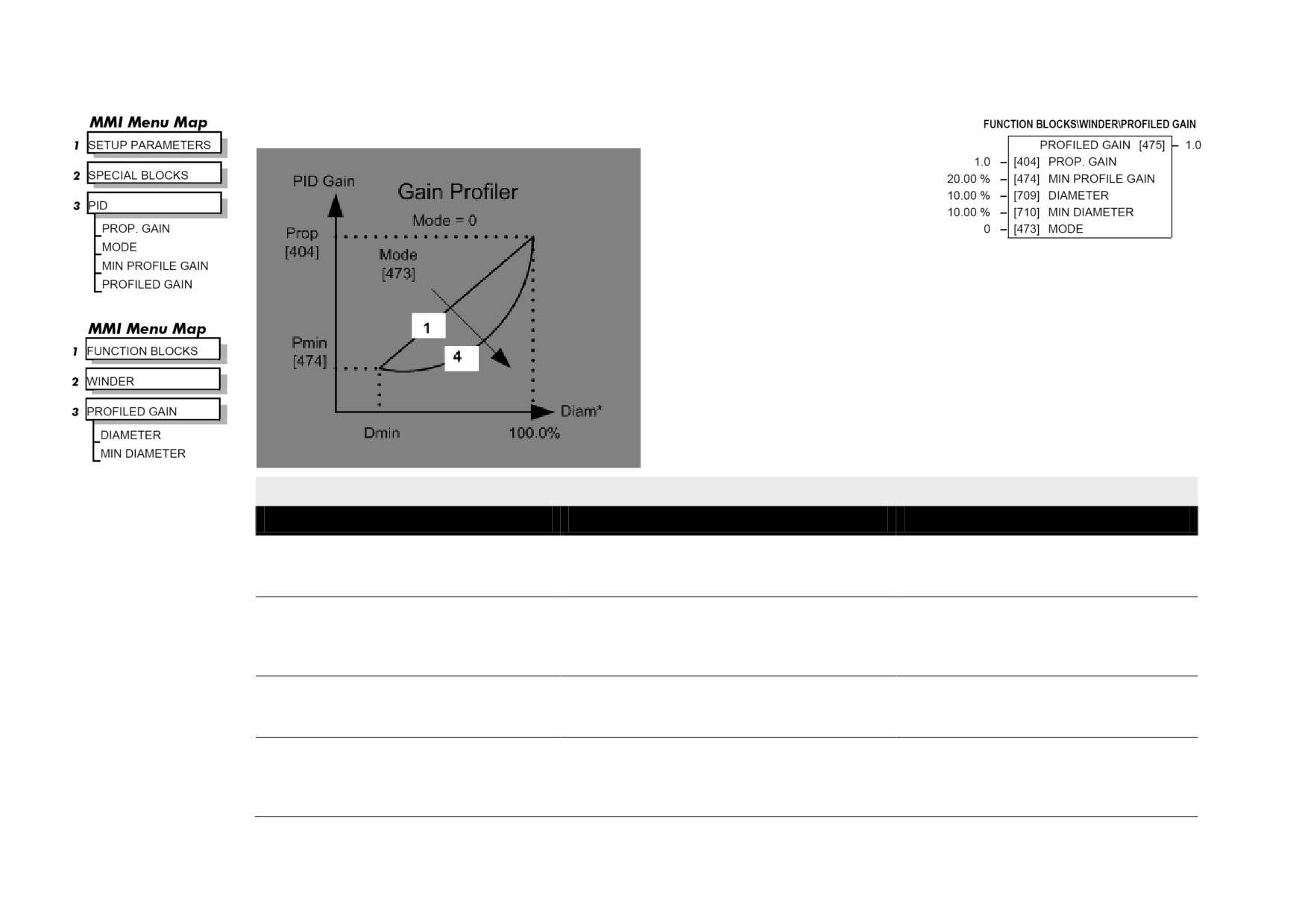

PROFILED GAIN
This function block may be used to profile the proportional gain input to the PID block.
PROFILED GAIN
Parameter
Tag
Range
PROP. GAIN
404
0.0 to 100.0
The nominal gain prior to profiling.
MIN PROFILE GAIN
474
0.00 to 100.00 %
This expresses the minimum gain required at minimum diameter (core) as a percentage of the (maximum) P gain at full diameter (100%), when
MODE > 0.
DIAMETER
709
0.00 to 100.00 %
The actual measured diameter. If appropriate, this may be connected to the DIAMETER output parameter in the DIAMETER CALC function block.
MIN DIAMETER
710
0.00 to 100.00 %
Set to the minimum core diameter (normally the empty core diameter) as a percentage of the maximum roll diameter. If appropriate, this may be
connected to the MIN DIAMETER parameter in the DIAMETER CALC function block.
D-100 Programming
PROFILED GAIN
Parameter
Tag
Range
MODE
473
0 to 4
This determines the shape of the proportional gain profile. The higher the setting, the steeper the curve of the profiled gain.
For Mode = 0, Profiled Gain = constant = P.
For Mode = 1, Profiled Gain = A * (diameter - min diameter) + B.
For Mode = 2, Profiled Gain = A * (diameter - min diameter)^2 + B.
For Mode = 3, Profiled Gain = A * (diameter - min diameter)^3 + B.
For Mode = 4, Profiled Gain = A * (diameter - min diameter)^4 + B.
PROFILED GAIN
475
.x
The proportional gain after profiling by a profiler block which varies the gain versus diameter. This is primarily to be used with Speed Profiled
Winders for compensation against varying diameter and therefore inertia.
• When MODE is not ZERO (see above) this overrides the P gain above.
• When MODE = 0, then PROFILED GAIN = PROP. GAIN.
Programming D-101

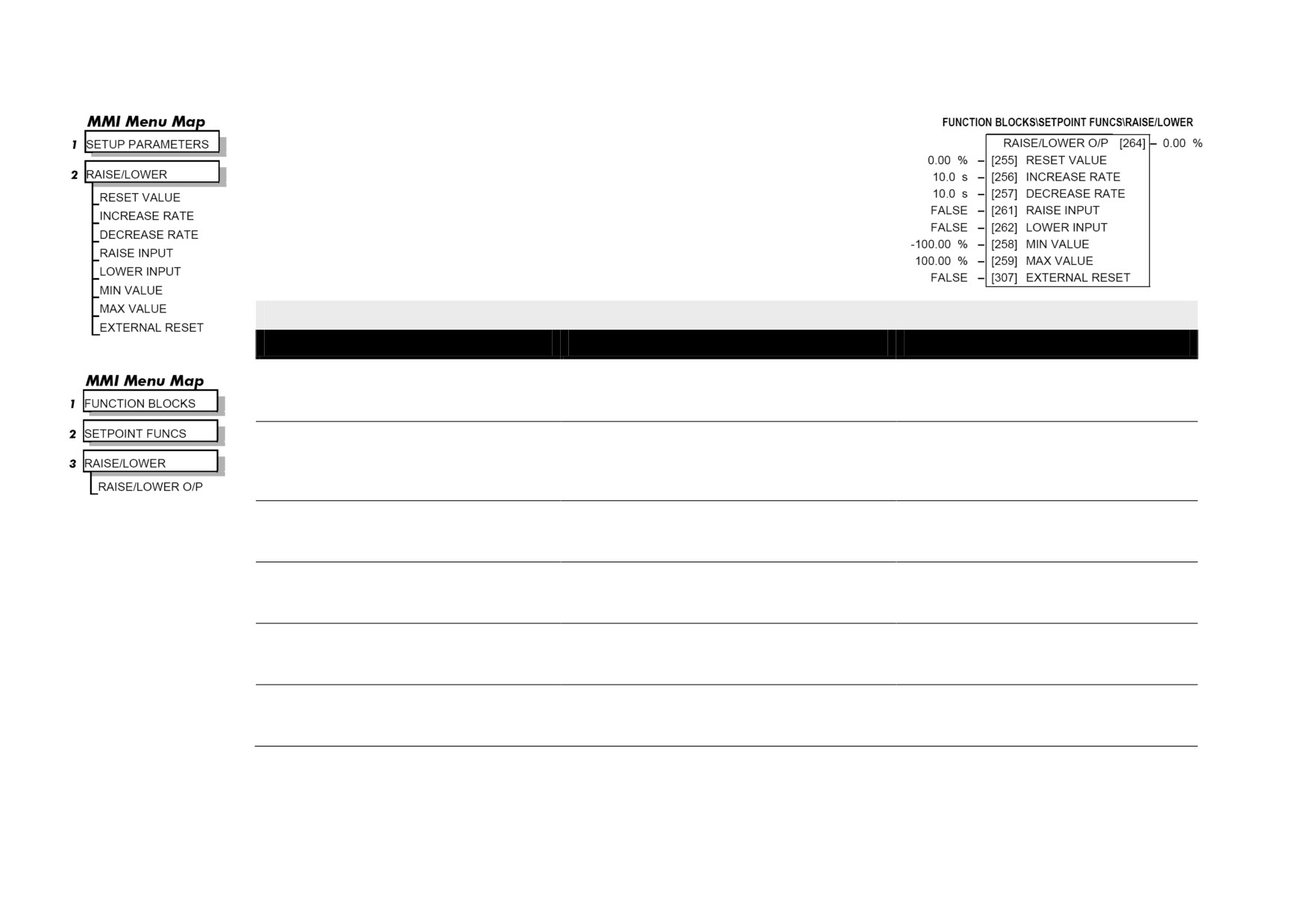

RAISE/LOWER
This function block acts as an internal motorised potentiometer (MOP).
The OUTPUT is not preserved when the drive is powered-down.
RAISE/LOWER
Parameter
Tag
Range
RAISE/LOWER O/P
264
.xx %
The output value.
RESET VALUE
255
-300.00 to 300.00 %
This reset value is pre-loaded directly into the output when EXTERNAL RESET is TRUE, or at power-up. It is clamped by MIN VALUE and
MAX VALUE.
INCREASE RATE
256
0.1 to 600.0 s
Rate of change of an increasing output value. An increasing value is defined as the output ramping away from zero.
DECREASE RATE
257
0.1 to 600.0 s
Rate of change of a decreasing output value. A decreasing value is defined as the output ramping towards zero.
RAISE INPUT
261
FALSE / TRUE
Command to raise the output value. When TRUE, increases the output at the rate determined by INCREASE RATE.
LOWER INPUT
262
FALSE / TRUE
Command to lower the output value. When TRUE, decreases the output at the rate determined by DECREASE RATE.
D-102 Programming
RAISE/LOWER
Parameter
Tag
Range
MIN VALUE
258
-300.00 to 300.00 %
Minimum ramp output clamp. This is a plain clamp, not a ramped "min speed" setting.
MAX VALUE
259
-300.00 to 300.00 %
Maximum ramp output clamp.
EXTERNAL RESET
307
FALSE / TRUE
When TRUE, sets the output of the Raise/Lower block to the RESET VALUE.
Functional Description
EXTERNAL RESET
RAISE INPUT
LOWER INPUT
RAISE INPUT
TRUE
t
FALSE
RAISE/LOWER
INPUT
100%
100%
X%
0%
t
RAISE/LOWER
RESET VALUE
INCREASE RATE
DECREASE RATE
OUTPUT %
DEFAULT=0.00% DEFAULT 10.0 SEC
DEFAULT 10.0 SEC

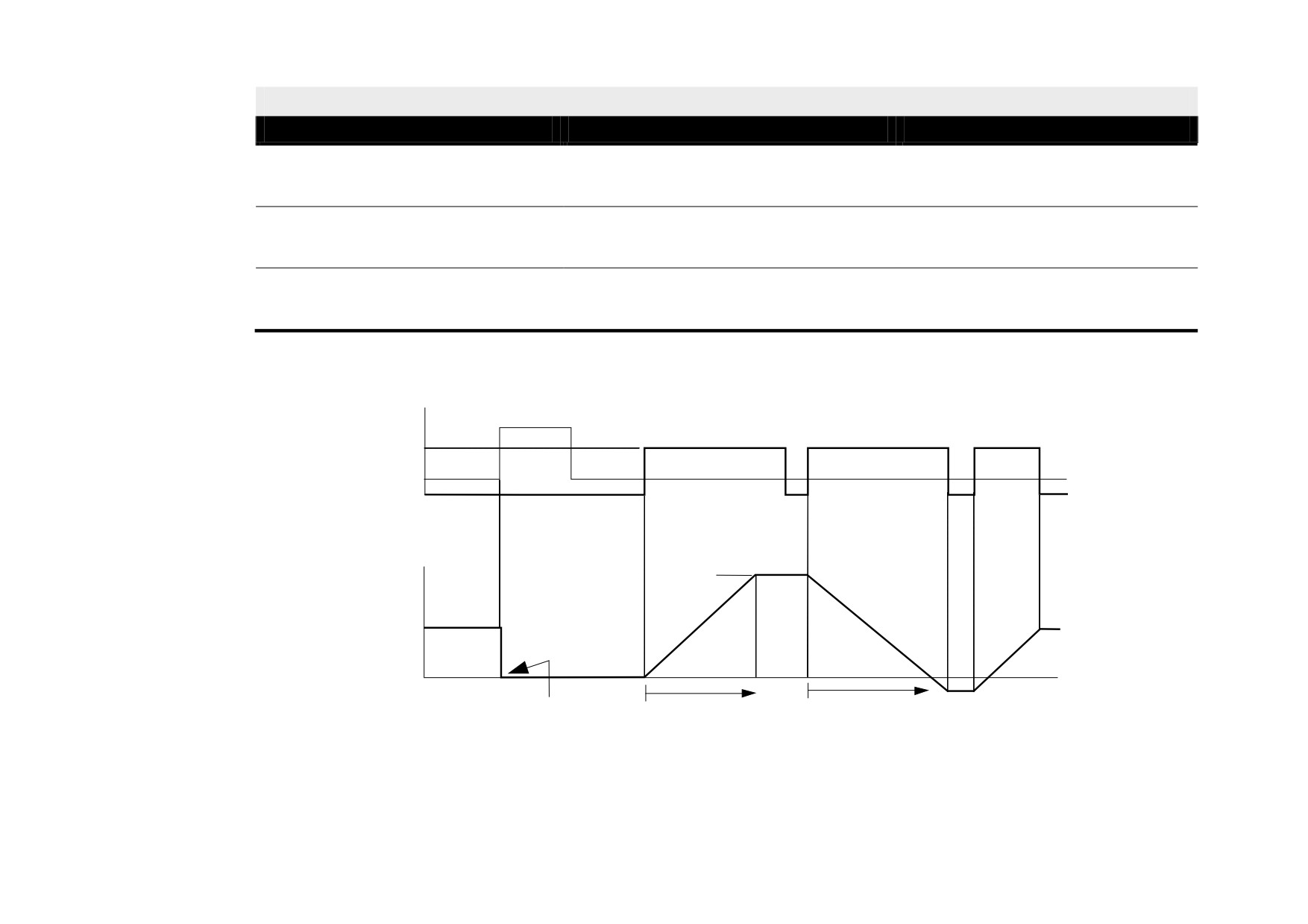

The diagram above illustrates the raise/lower functionality.
Programming D-103
When EXTERNAL RESET is set TRUE, the raise/lower output resets to RESET VALUE (default = 0.00%).
When RAISE INPUT is TRUE, the output increases at INCREASE RATE. The output cannot exceed MAX VALUE.
The reverse is true when LOWER INPUT is TRUE: LOWER INPUT reduces the output at DECREASE RATE. The output cannot drop below MIN
VALUE.
The ramp is held at its last value when the RAISE and LOWER INPUT are removed.
Setting both RAISE INPUT and LOWER INPUT to TRUE at the same time creates a ramp hold condition.
If MIN VALUE is greater than MAX VALUE the output is forced to zero.
(256)
INCREASE RATE
(257)
DECREASE RATE
(255)
RESET VALUE
(261)
RAISE INPUT
RAISE / LOWER
OUTPUT
(262)
LOWER INPUT
RAMP
(307)
EXTERNAL RESET
Dest. Tag.
(260)
(259)
MIN VALUE
(258)
MAX VALUE
If Reset, Output = Reset Value (Clamped)
D-104 Programming

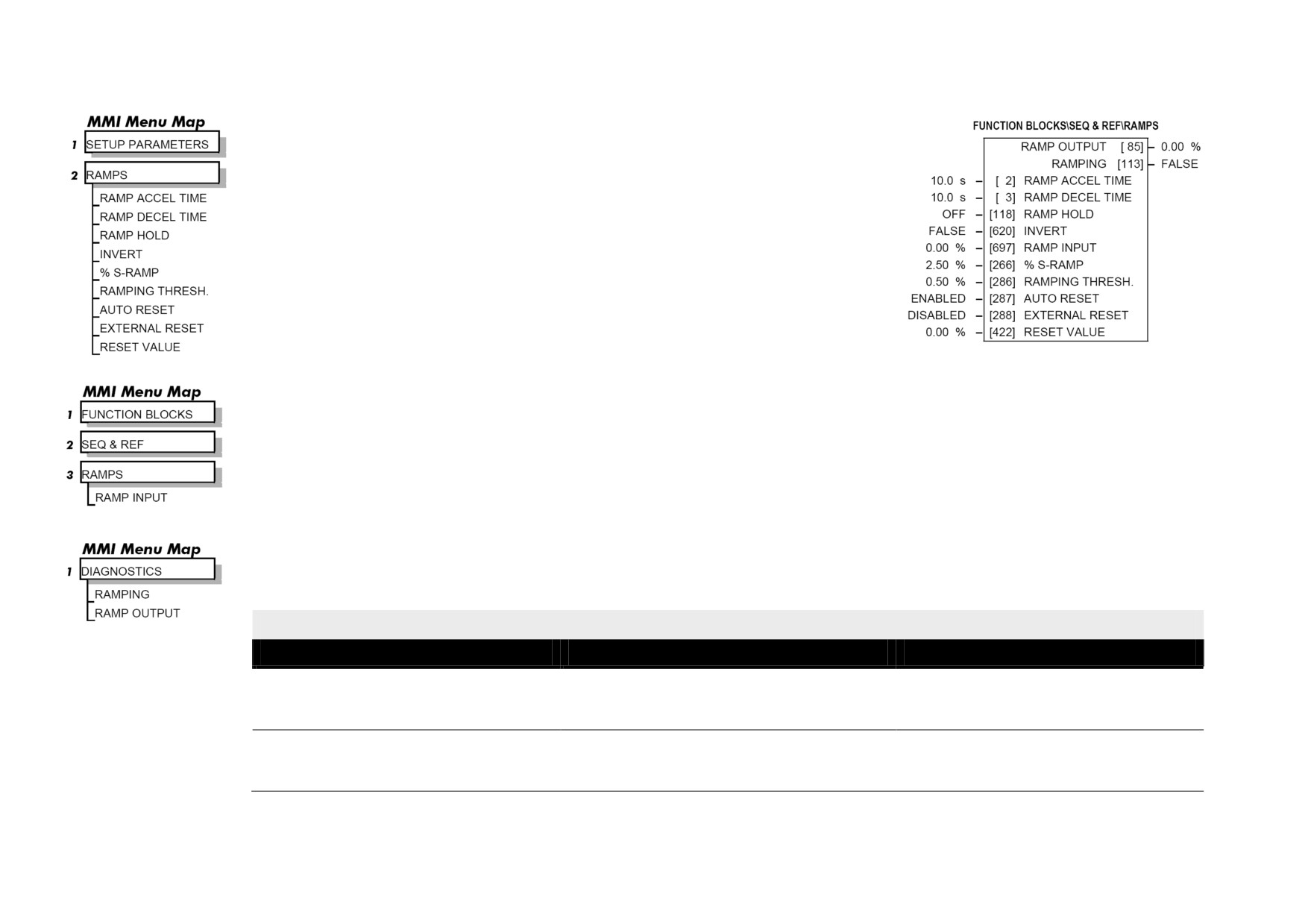

RAMPS
The RAMPS parameters set the shape and duration of the ramp used for starting and
changing speeds.
NOTE The STOP RATES function block contains a separate deceleration rate for
controlled stopping of the drive.
By default the inputs are ANIN 3 (A4) for a ramped speed input, and DIGIN 2 (C7) to switch
RAMP HOLD. The input signal to the block is clamped by MIN SPEED, which sets the minimum
ramp input speed when the drive is enabled. The default output connection is to SPEED LOOP::
SETPOINT 3.
RAMP INPUT is internally routed to the JOG/SLACK function block to be modified as determined
by the JOG inputs. The RAMPS block then shapes the signal to produce the RAMP OUTPUT
signal.
The RAMPING output becomes TRUE when the absolute value of the difference between RAMP OUTPUT and the JOG/SLACK function block
output exceeds RAMPING THRESH.
RAMP ACCEL TIME and RAMP DECEL TIME set the acceleration and deceleration times taken for input changes. % S-RAMP adds a "S" shaped
section to the linear ramp. When set to 0.00%, the ramp will be linear. As the percentage is increased, 350% of the S-RAMP time is added to the linear
ramp creating more gradual starting and stopping. The formula for the actual ramp time is shown below. Ramp time is the value of parameters RAMP
ACCEL TIME or RAMP DECEL TIME.
Actual Ramp Time = RAMP TIME x (3.5 x % S-RAMP/100 + 1)
RAMP HOLD stops the ramp from changing. When DIGIN 2 (C7) is ON, the ramp stays at the last ramp value.
The reset signal can have two sources, a RUN signal or an external reset signal. When AUTO RESET is ENABLED, the ramp resets whenever a Run
signal is given at terminal C3. Connecting a digital input to EXTERNAL RESET allows an external source to reset the ramp.
RAMPS
Parameter
Tag
Range
RAMP ACCEL TIME
2
0.1 to 600.0 s
The acceleration time for 100% change.
RAMP DECEL TIME
3
0.1 to 600.0 s
The deceleration time for 100% change.
Programming D-105
RAMPS
Parameter
Tag
Range
RAMP HOLD
118
OFF / ON
When ON, the ramp output is held at its last value. This is overridden by a ramp reset.
INVERT
620
FALSE / TRUE
Inverts the RAMP INPUT signal.
RAMP INPUT
5
-105.00 to 105.00 %
Input value.
% S-RAMP
266
0.00 to 100.00 %
Percentage of ramp with S-shaped rate of change. A value of zero is equivalent to a linear ramp. Changing this value affects the ramp times.
RAMPING THRESH.
286
0.00 to 100.00 %
Ramping flag threshold level. The threshold is used to detect whether the ramp is active.
AUTO RESET
287
DISABLED / ENABLED
When ENABLED, the ramp is reset whenever SYSTEM RESET is TRUE. (SYSTEM RESET Tag 374 is an internal flag that is set TRUE for one
cycle after the Speed/Current loop is enabled, i.e. every time the drive is started).
EXTERNAL RESET
288
DISABLED / ENABLED
When ENABLED, the ramp is reset to RESET VALUE. EXTERNAL RESET does not depend on AUTO RESET for its operation.
RESET VALUE
422
-300.00 to 300.00 %
The ramp output value at power-up, or when the ramp is reset. In order to catch a spinning load smoothly (`bumpless transfer’) connect SPEED
FEEDBACK Tag No. 62 (source) to RESET VALUE Tag No. 422 (destination).
RAMP OUTPUT
85
.xx %
Setpoint ramp output.
RAMPING
113
FALSE / TRUE
The SETPOINT ramp function block is limiting the rate of change of Speed Setpoint.
D-106 Programming

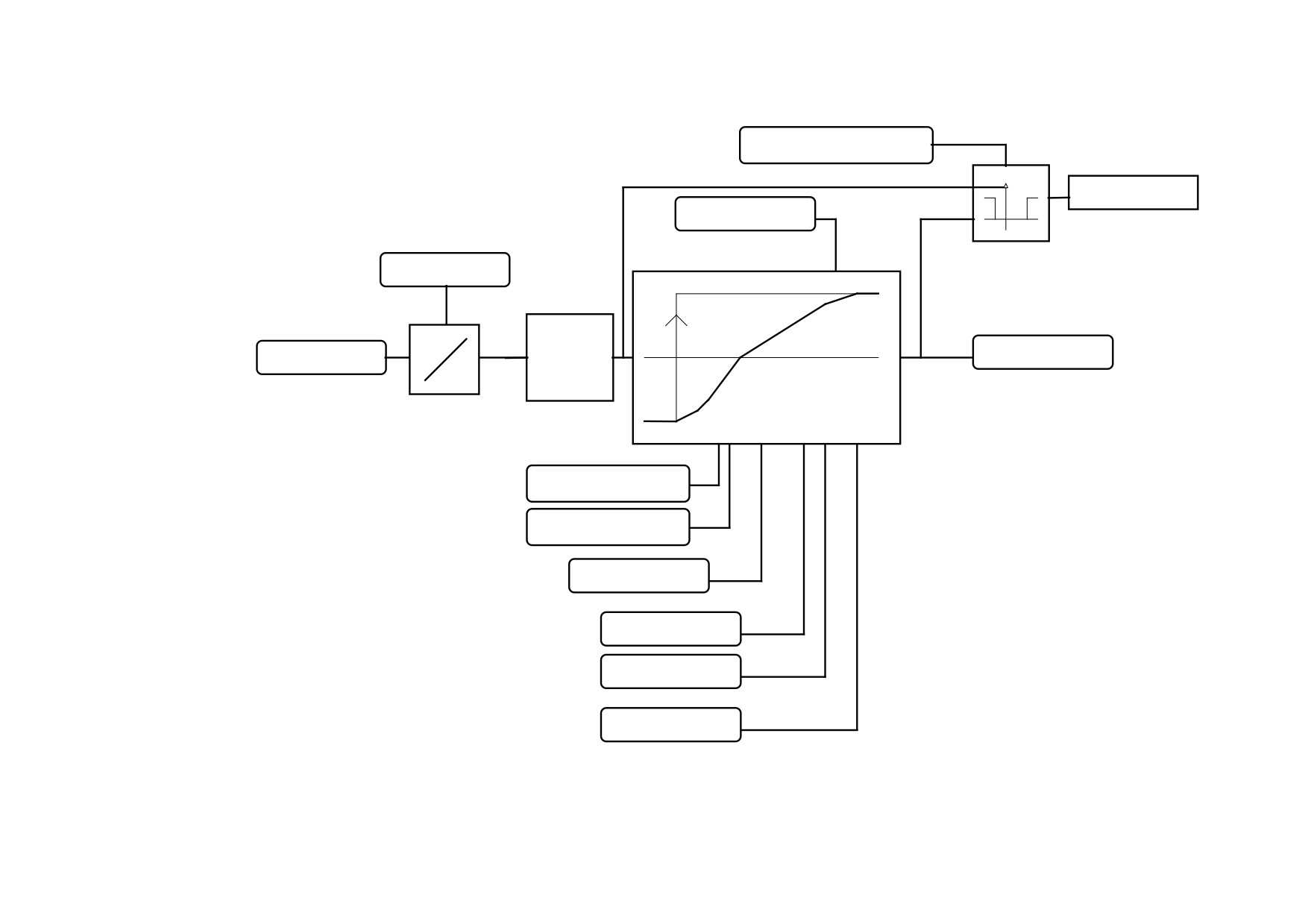

Functional Description
RAMPING THRESH.
I/P
1
RAMPING
O/P
% S-RAMP
0
INVERT
I/P
O/P
Jog /
0
+
RAMP OUTPUT
RAMP INPUT
Slack
t
-
"S" RAMP
RAMP DECEL TIME
RAMP ACCEL TIME
RAMP HOLD
AUTO RESET
EXTERNAL RESET
RESET VALUE
Programming D-107

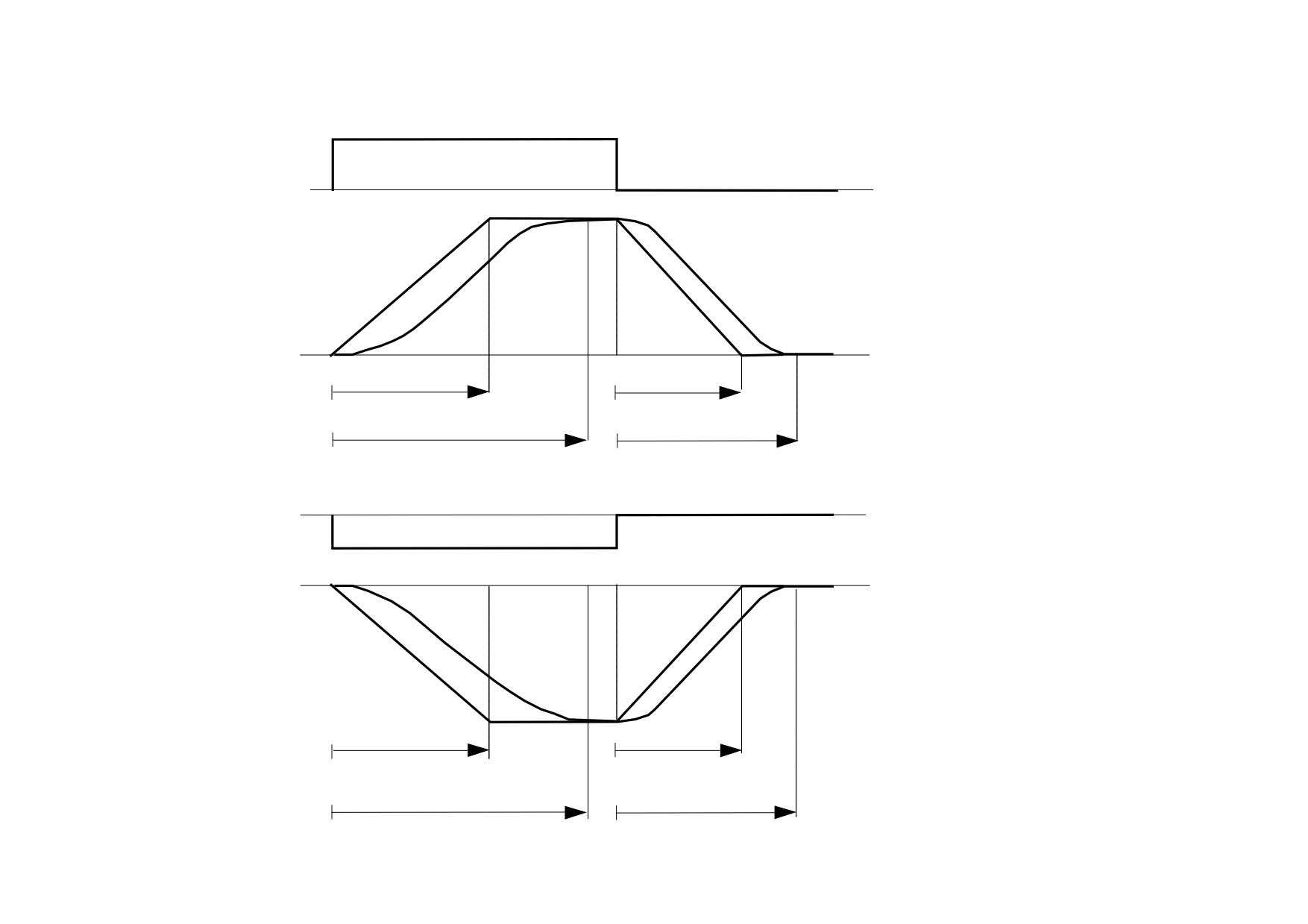

ACCELERATION/DECELERATION RATES
RAMP INPUT (+ 100%)
t
0%
+100%
RAMP OUTPUT
t
0%
RAMP ACCEL TIME
RAMP DECEL TIME
(S RAMP 0%)
(S RAMP 0%)
ACTUAL ACCEL TIME
ACTUAL DECEL TIME
WITH S RAMP
WITH S RAMP
t
0%
RAMP INPUT (-100%)
t
0%
RAMP OUTPUT
-100%
RAMP ACCEL TIME
RAMP DECEL TIME
(S RAMP 0%)
(S RAMP 0%)
ACTUAL ACCEL TIME
ACTUAL DECEL TIME
WITH S RAMP
WITH S RAMP
D-108 Programming
RAMP HOLD
RAMP HOLD ON
100%
RAMP HOLD OFF
RAMP HOLD OFF t
0%
RAMP INPUT %
100%
t
0%
RAMP OUTPUT %

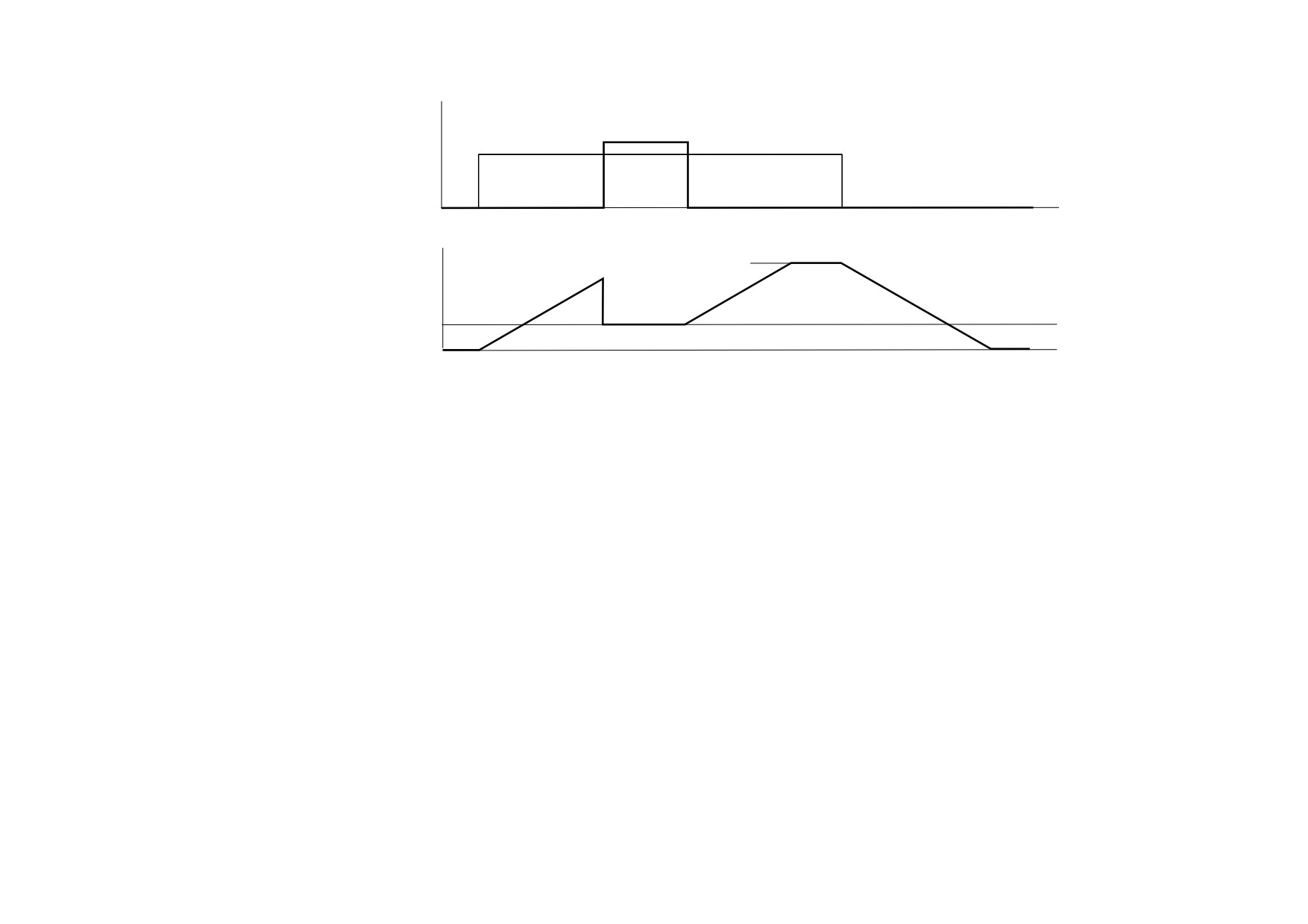

The ramp will function when a ramp input is present. When DIGIN 2 (C7) is ON, RAMP HOLD stops the ramp from changing. Even when the ramp
input signal is removed, RAMP HOLD keeps the ramp output from changing. Once RAMP HOLD is OFF, the ramp resumes.
AUTO RESET
100%
DRIVE ENABLED
DRIVE ENABLED
RAMP INPUT = X%
X%
DRIVE DISABLED
t
0%
RAMP INPUT %
100%
X%
= RAMP INPUT X %
RAMP OUTPUT
0%
t
RAMP OUTPUT %
When AUTO RESET is ENABLED, ramp output resets to RESET VALUE each time the drive is enabled. In this example RESET VALUE is
0.00%. It does not reset if the drive is disabled.
Programming D-109
EXTERNAL RESET
100%
EXTERNAL RESET ENABLED
RAMP INPUT X%
X%
t
0%
RAMP INPUT %
100%
X%
= RAMP I/P X%
Y%
t
0%
t
RAMP OUPUT %

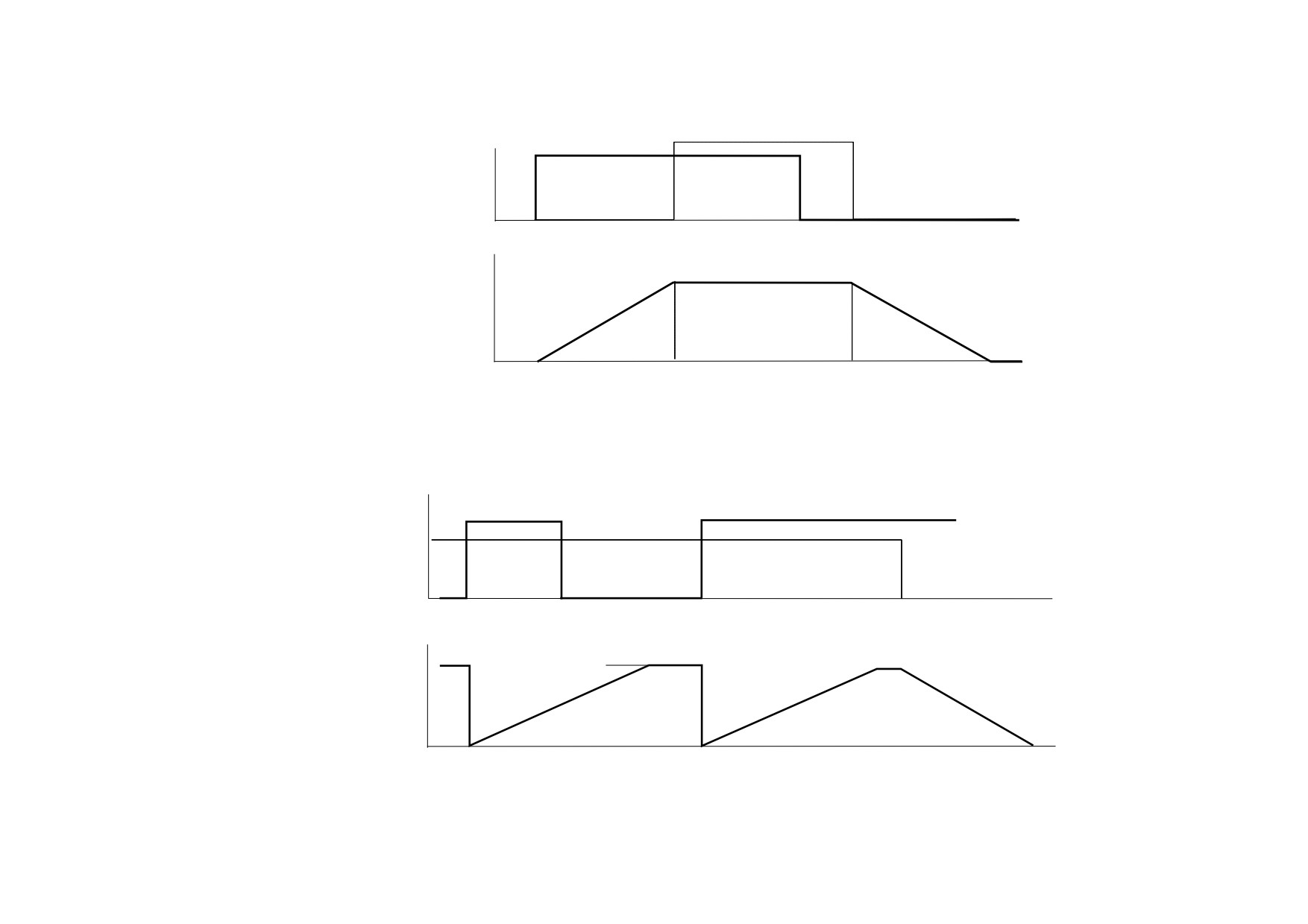

The ramp input is set to X% at time t0. The ramp output will increase at the ramp rate.
While EXTERNAL RESET is ENABLED, the ramp output resets to RESET VALUE (Y%). When EXTERNAL RESET is DISABLED, the ramp
output continues to follow the input signal.
