4 - 47

No. of

pin

Receptacle connector(Female)

Plug connector(Male)

2

2

1

DT06-2S

3

4

6

2

1

DT06-2P

2

1

3

DT06-3S

1

2

3

DT06-3P

4

1

3

2

DT06-4S

1

4

2

3

DT06-4P

6

1

4

3

DT06-6S

1

6

3

4

DT06-6P

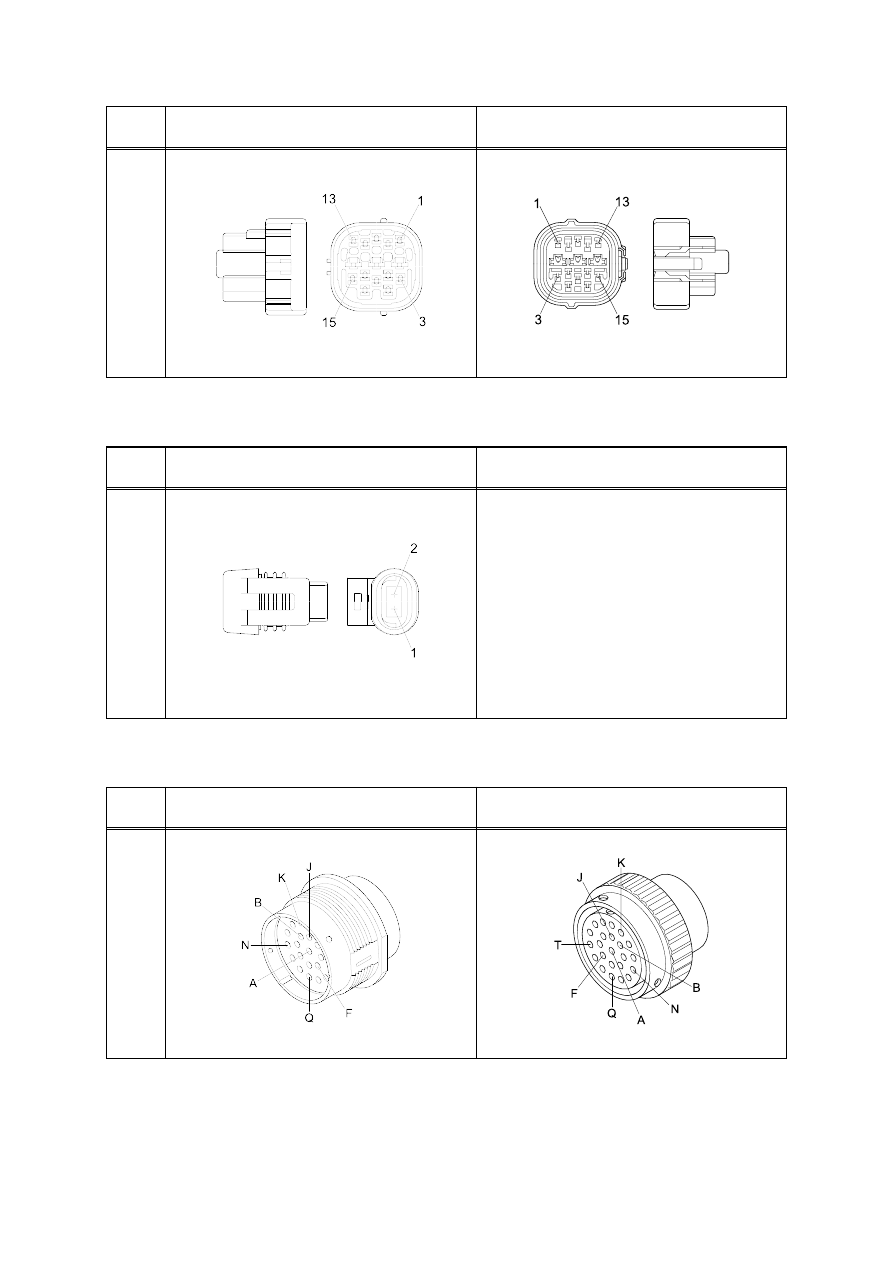

DEUTSCH DT CONNECTORS

14)

4 - 48

No. of

pin

Receptacle connector(Female)

Plug connector(Male)

8

4

5

1

8

DT06-8S

12

5

4

8

1

DT06-8P

6

7

1

12

DT06-12S

7

6

12

1

DT06-12P

4 - 49

No. of

pin

Receptacle connector(Female)

Plug connector(Male)

2

1

2

35215-0200

MOLEX 2CKTS CONNECTOR

15)

No. of

pin

Receptacle connector(Female)

Plug connector(Male)

10

1

2

9

10

SWF593757

ITT SWF CONNECTOR

16)

No. of

pin

Receptacle connector(Female)

Plug connector(Male)

1

1

NMWP01F-B

MWP NMWP CONNECTOR

17)

4 - 50

No. of

pin

Receptacle connector(Female)

Plug connector(Male)

1

S816-001002

2

3

4

S816-101002

S816-002002

S816-102002

S816-003002

S816-103002

S816-004002

S816-104002

ECONOSEAL J TYPE CONNECTORS

18)

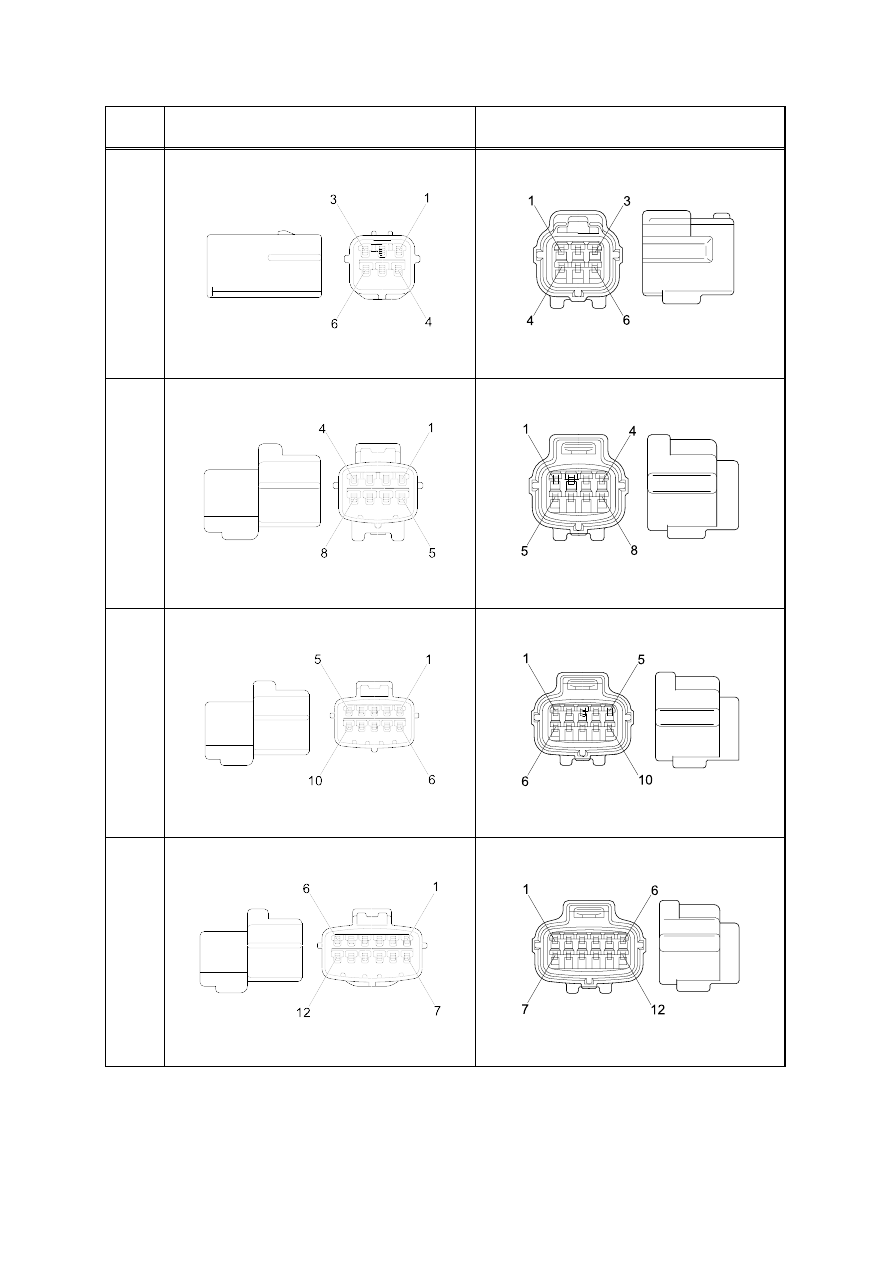

4 - 51

No. of

pin

Receptacle connector(Female)

Plug connector(Male)

6

S816-006002

8

10

12

S816-106002

S816-008002

S816-108002

S816-010002

S816-110002

S816-012002

S816-112002

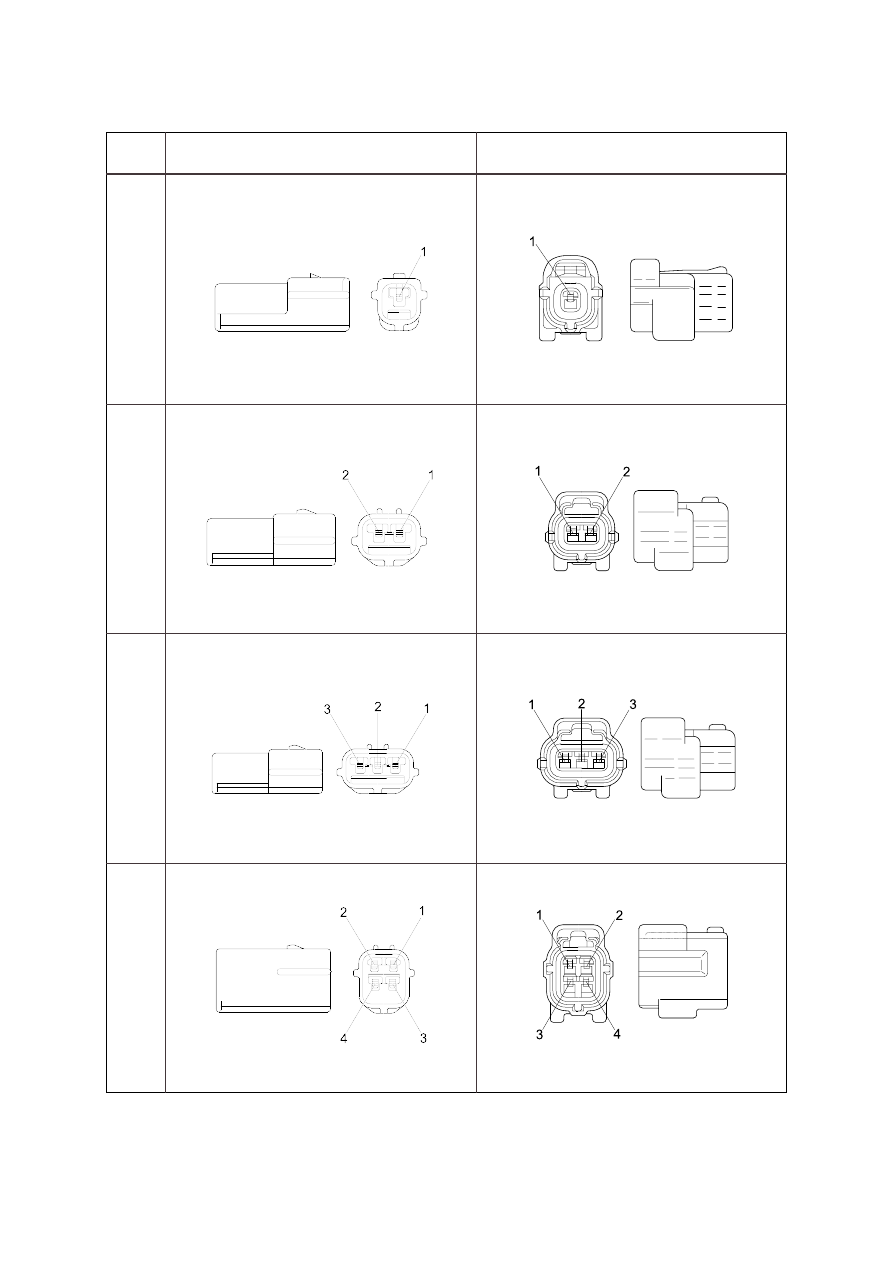

4 - 52

No. of

pin

Receptacle connector(Female)

Plug connector(Male)

15

368301-1

2-85262-1

No. of

pin

Receptacle connector(Female)

Plug connector(Male)

2

12040753

METRI-PACK TYPE CONNECTOR

19)

No. of

pin

Receptacle connector(Female)

Plug connector(Male)

23

HD36-24-23SN

HD34-24-23PN

DEUTSCH HD30 CONNECTOR

20)

4-

5

3

GROUP  5  ELECTRICAL CIRCUIT (#1001 and up, TIER II)

21074EC50

4 - 54

1. POWER CIRCUIT (#1001 and up, TIER II)

The negative terminal of battery is grounded to the machine chassis through master switch.
When the start switch is in the OFF position, the current flows from the positive battery terminal as
shown below.

OPERATING FLOW

Battery         Battery relay         Fusible link  CN-60

Fuse box  No.1

l/conn  CN-8(12)

Start switch  CS-2(1)

Power relay  CR-35(30)]

Fuse box  No.2

I/conn  CN-10(6)

Room lamp  CL-1(2)

Door switch  CS-1

Cassette radio  CN-27(11)

Fuse box  No.3

l/conn  CN-11(4)

AC & Heater controller  CN -116(3, 4)

Fuse box  No.4

I/conn  CN - 5(4)

I/conn  CN -17(5)

Wiper motor controller

CN-141(7)

Wiper motor  CN-21(4)

Fuse box  No.5

CPU controller  CN-50(7)

Fuse box  No.6

I/conn  CN-11(5)

Relay(Hi, M2)

I/conn : Intermediate connector

CHECK POINT

Engine

Start switch

Check point

Voltage

1)

2)

GND : Ground

OFF

OFF

- GND (Battery 1EA)

- GND (Battery 2EA)

- GND (Battery 2EA)

- GND (Fusible link)

10~12.5V

20~25V

20~25V

20~25V

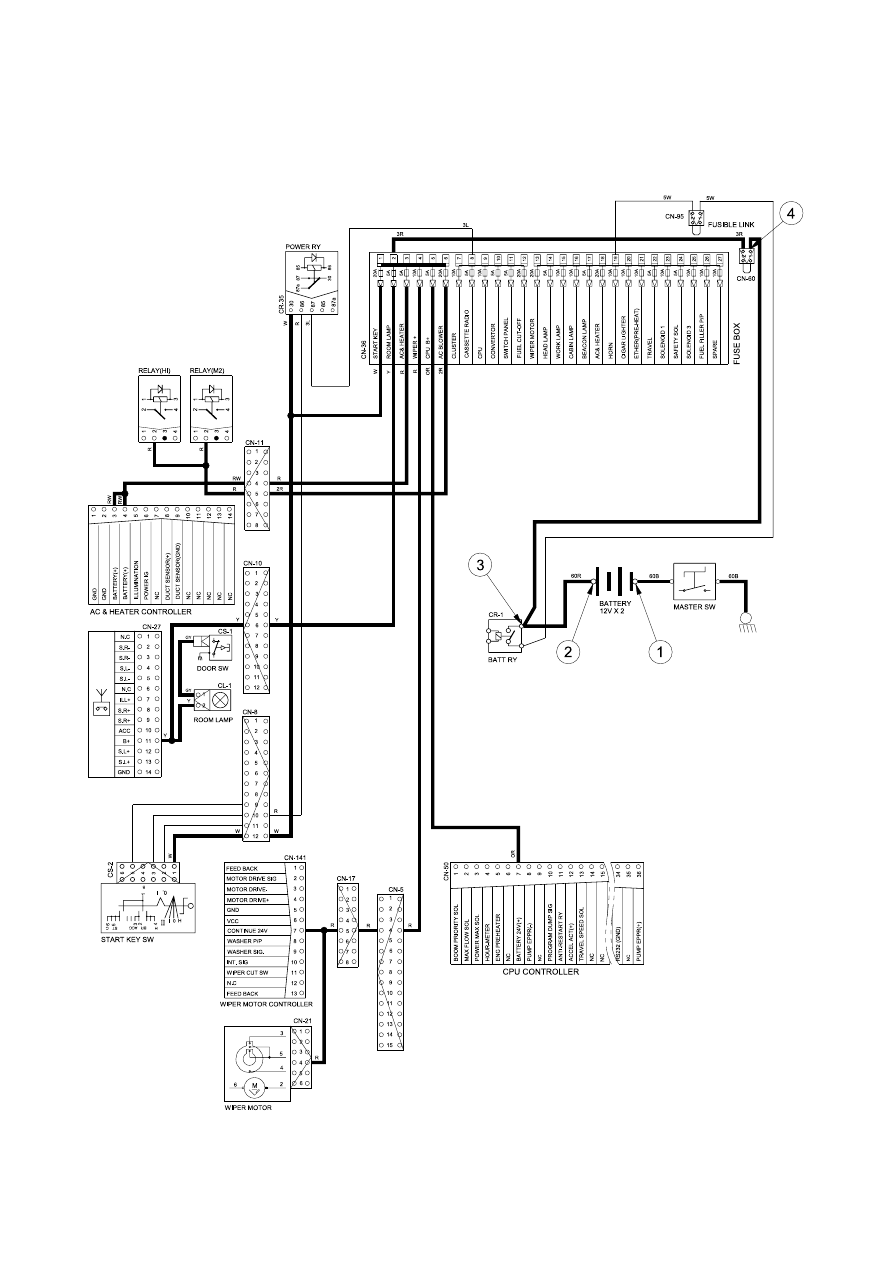

4 - 55

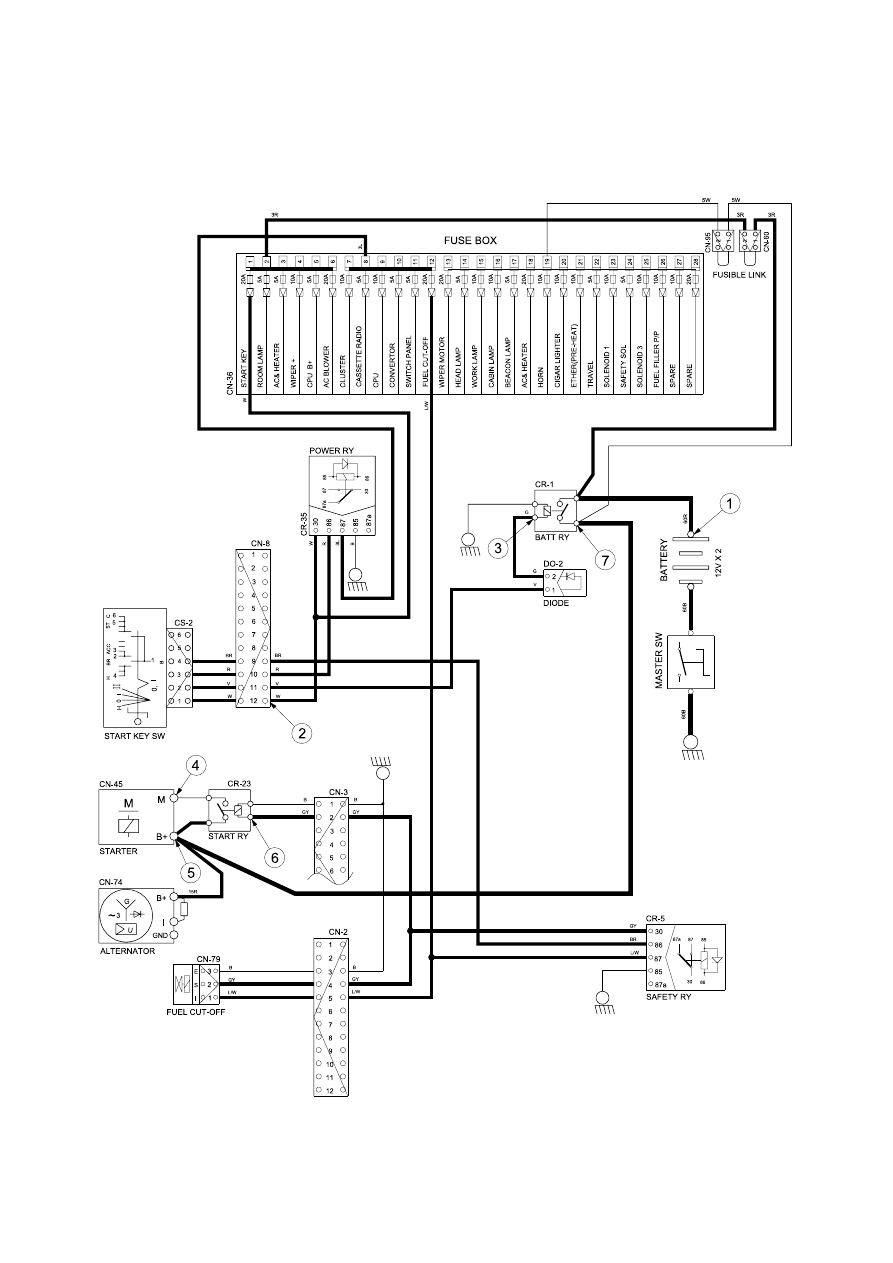

POWER CIRCUIT (#1001 and up, TIER II)

21074EL51

4 - 56

2. STARTING CIRCUIT (#1001 and up, TIER II)

OPERATING FLOW

Battery(+) terminal         Battery relay CR-1

Reset button  CS-61

Fuse box  No.1

I/conn  CN-8(12)

Start switch  CS-2(1)

When start key switch is in ON position

Start switch ON  CS-2(2)

I/conn  CN-8(11)

Battery relay  CR-1

Battery relay operating (All power is supplied with the electric component)

Start switch ON  CS-2(3)

I/conn  CN-8(10)

Power relay  CR-35(86)

(87)

Fuse box  No.12

l/conn  CN-2(5)

Fuel cut-off  CN-79(1)

When start key switch is in START position

Start switch START  CS-2(5)

I/conn  CN-8(9)

Safety relay  CR-5(86)

(30)

l/conn  CN-3(2)

Start relay  CR-23

l/conn  CN-2(4)

Fuel cut off  CN-79(2)

CHECK POINT

1)

(1)

(2)

2)

Engine

Start switch

Check point

Voltage

OPERATING

START

- GND(Battery)

- GND(Start key)

- GND(Battery relay M4)

- GND(Starter B+)

- GND(Starter M)

- GND(Start relay)

- GND(Battery relay M8)

20~25V

GND : Ground

4 - 57

STARTING CIRCUIT (#1001 and up, TIER II)

21074EL52

4 - 58

CHECK POINT

3. CHARGING CIRCUIT (#1001 and up, TIER II)

When the starter is activated and the engine is started, the operator releases the key switch to the ON
position.
Charging current generated by operating alternator flows into the battery through the battery relay
(CR-1).
The current also flows from alternator to each electrical component and controller through the fuse box.

OPERATING FLOW

Warning flow

Alternator "I" terminal         I/conn  CN-3(3)

CPU alternator level  CN-51(9)

Cluster charging warning lamp(Via serial interface)

Charging flow

Alternator "B+" terminal         Battery relay(M8)         Battery(+) terminal

Reset button  CN-60

Fuse box

1)

2)

(1)

(2)

GND : Ground

Engine

Start switch

Check point

Voltage

Run

ON

- GND(Battery voltage)

- GND(Battery relay)

- GND(Alternator B+ terminal)

- GND(Alternator I terminal)

- GND(CPU)

20~30V

4 - 59

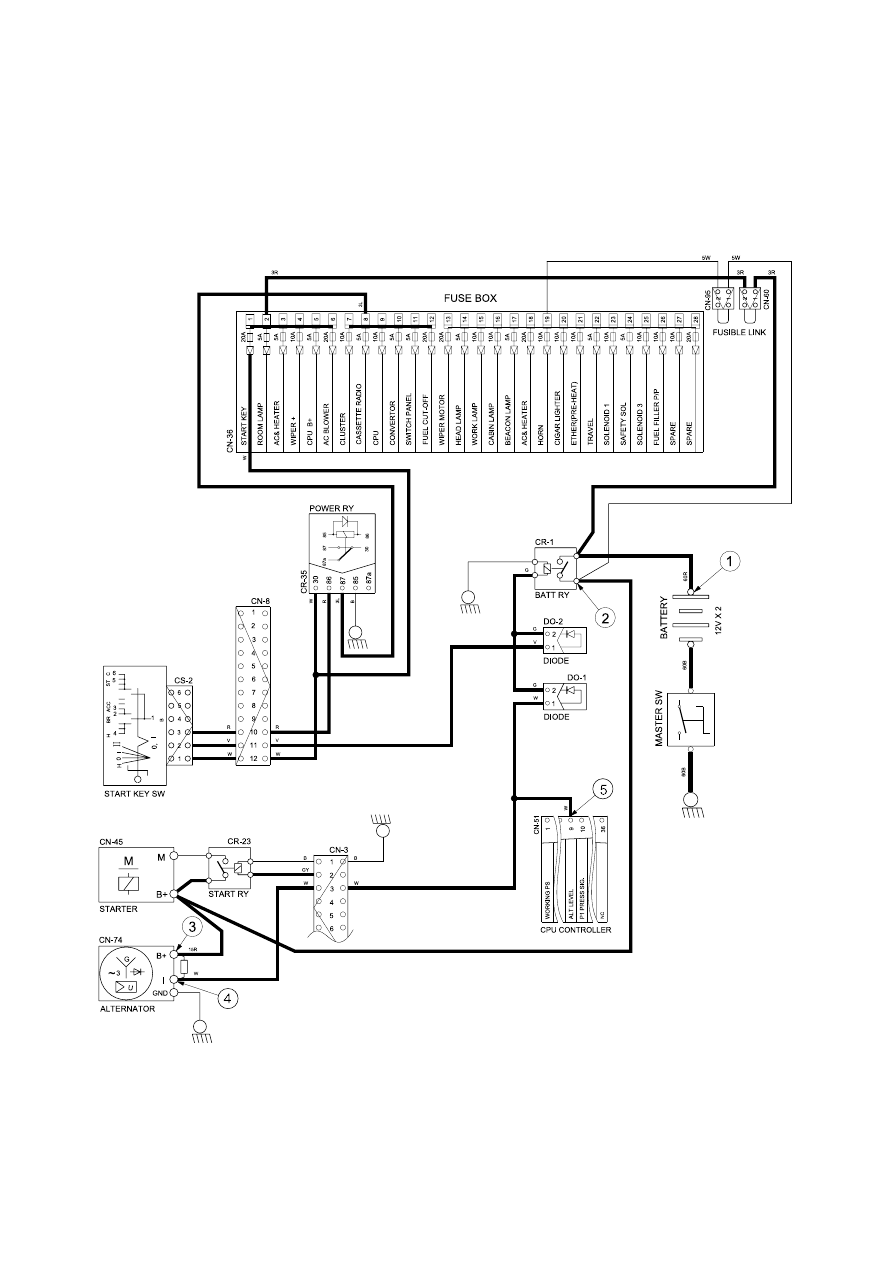

CHARGING CIRCUIT (#1001 and up, TIER II)

21074EL53

4 - 60

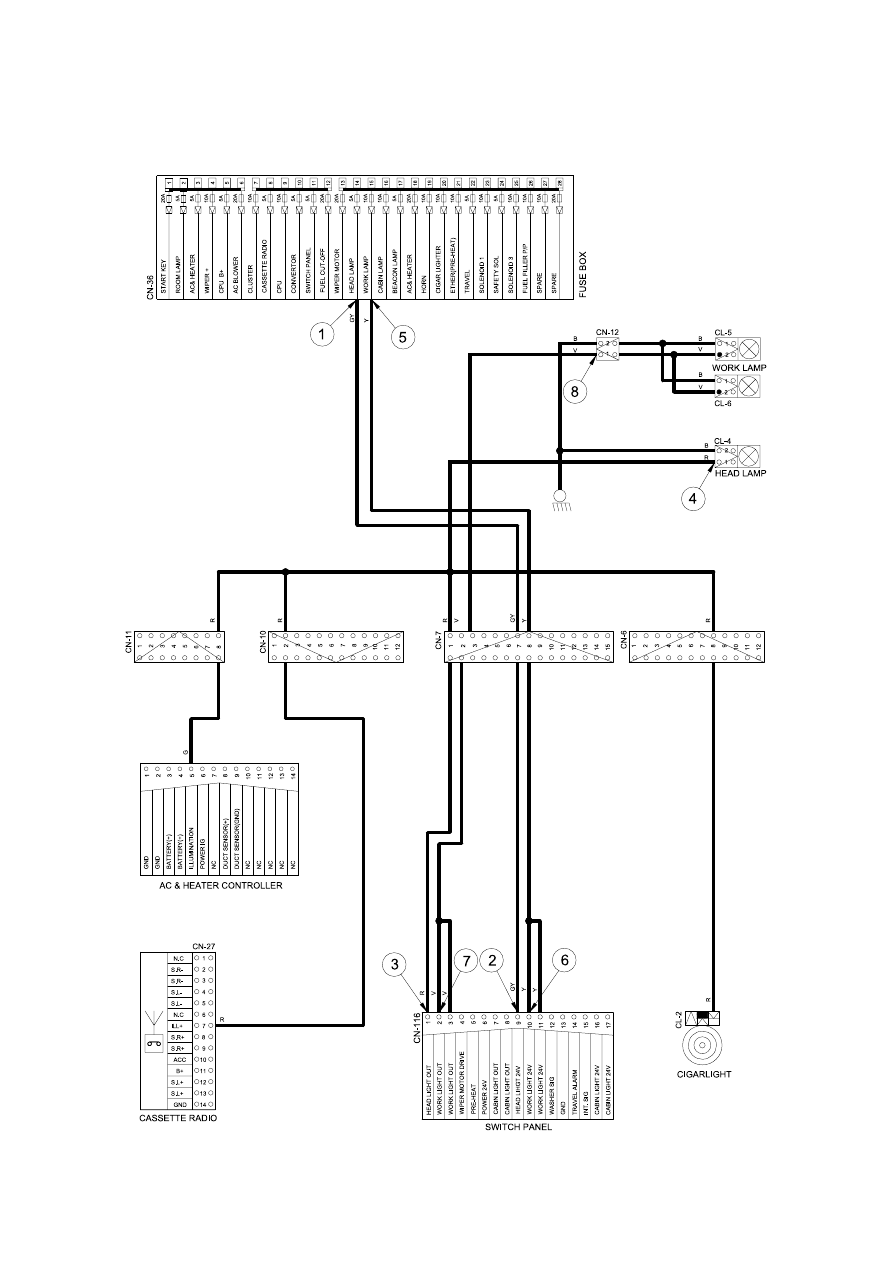

4. HEAD AND WORK LIGHT CIRCUIT (#1001 and up, TIER II)

OPERATING FLOW

Fuse box (No.14)         I/conn  CN-7(7)

Switch panel  CN-116(9)

Fuse box (No.15)         I/conn  CN-7(8)

Switch panel  CN-116(10,11)

Head light switch ON

Head light switch ON  CN-116(1)

l/conn  CN-7(1)]

Head light ON  CL-4(2) : Head lamp ON
l/conn  CN-10(2)

Cassette radio illumination ON  CN-27(7)

l/conn  CN-11(8)

AC & Heater controller illumination ON

l/conn  CN-6(8)

Cigar light  CL-2

Work light switch ON

Work light switch ON  CN-116(2,3)

l/conn  CN-7(2)

l/conn  CN-12(1)

Work light ON  CL-5(2), CL-6(2)

CHECK POINT

1)

GND : Ground

(1)

(2)

2)

Engine

Start switch

Check point

Voltage

STOP

ON

ON

STOP

- GND(Fuse box)

- GND(Switch power input)

- GND(Switch power output)

- GND(Head light)

- GND(Fuse box)

- GND(Switch power input)

GND(Switch power output)

- GND(Work light)

20~25V

20~25V

4 - 61

HEAD AND WORK LIGHT CIRCUIT (#1001 and up, TIER II)

21074EL54

5. BEACON LAMP AND CAB LIGHT CIRCUIT (#1001 and up, TIER II)

OPERATING FLOW

Fuse box (No.17)         I/conn  CN-8(3)

Beacon lamp switch  CN-23(6)

Fuse box (No.16)         I/conn  CN-7(12)

Switch panel  CN-116(16, 17)

Beacon lamp switch ON

Beacon lamp switch ON  CS-23(2)

Switch lndicator lamp ON  CS-23(9)

l/conn  CN-8(4)

l/conn  CN-10(10)

Beacon lamp ON  CL-7

Cab light switch ON

Cab light switch ON  CN-116(7, 8)

I/conn  CN-7(6)

I/conn  CN-10(11)

Cab light ON  CL-8(2), CL-9(2)

CHECK POINT

4 - 62

1)

2)

(1)

(2)

GND : Ground

Engine

Start switch

Check point

Voltage

STOP

STOP

ON

ON

- GND(Fuse box)

- GND(Switch power input)

- GND(Switch power output)

- GND(Beacon lamp)

- GND(Fuse box)

- GND(Switch power input)

- GND(Switch power output)

- GND(Cab light)

20~25V

20~25V
