Hidromek HMK 62 SS. Parts catalog - page 1
C00001
- C00019

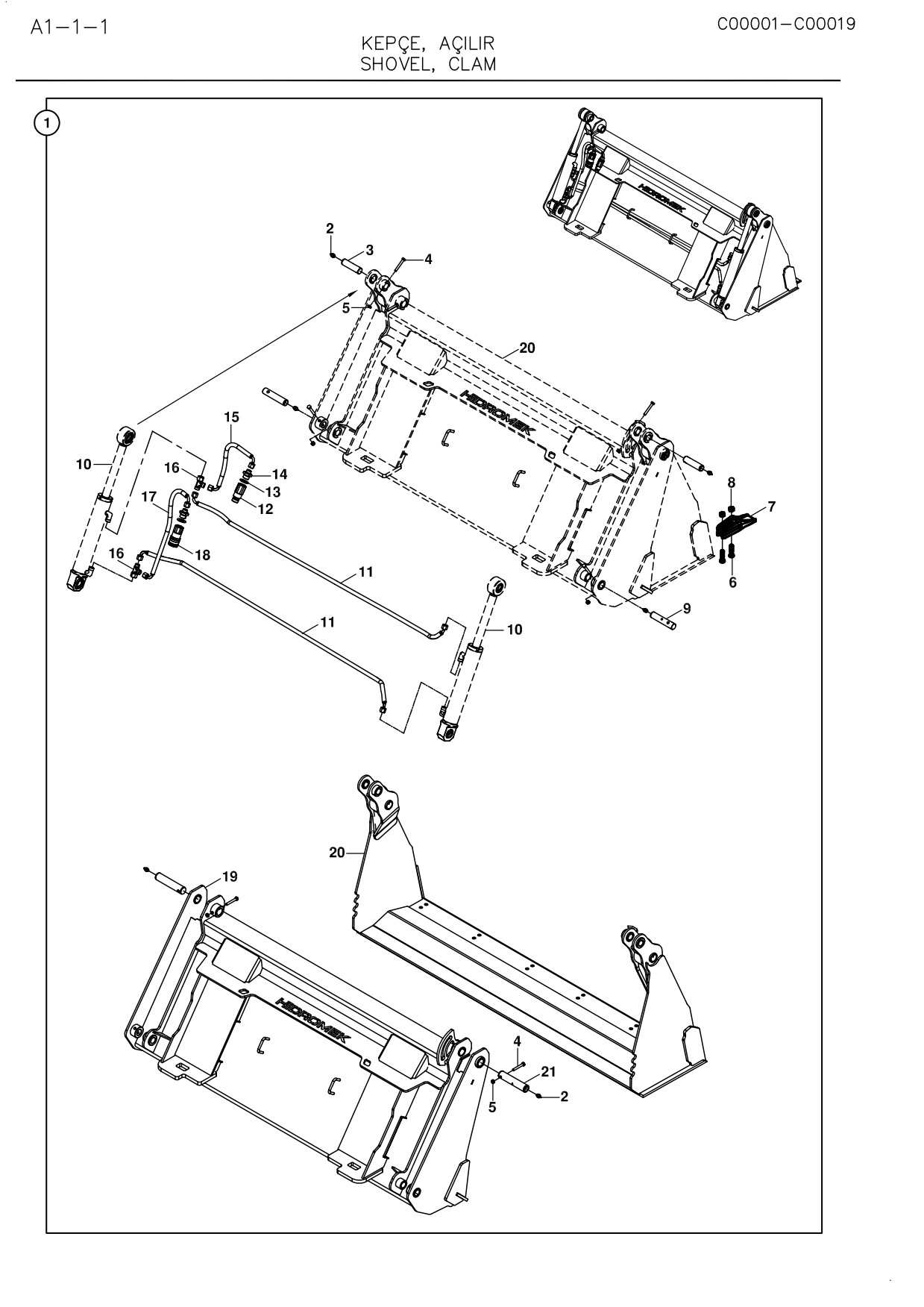

A1-1-1
KEPÇE, AÇILIR
SHOVEL, CLAM
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1
M111100000
AÇILR KEPÇE KOMPLE
SHOVEL, CLAM, ASSY.
1
2
N08/1210020
GRESÖRLÜK
GREASSE NIPPLE
6
3
801/04310
PİM
PIN
2
4
N01/0380434
CİVATA M8x55
BOLT M8X55
6
5
N02/5900062
SOMUN M8
NUT M8
6
6
N01/0232882
CİVATA M12x45
BOLT M12x45
12
7
M111104100
TIRNAK
TOOTH
6
8
N02/8320300
SOMUN
NUT
12
9
801/04305
PİM
PIN
2
10
SİLİNDİR
RAM
2
E3-3-1
11
651/1128153
HORTUM
HOSE
2
12
N16/9900091
ÇABUK SÖK TAK
QUICK COUPLER
1
13
N03/0000015
O-RİNGLİ PUL
WASHER
2
14
806/24820
NİPEL
ADAPTER
2
15
651/1124042
HORTUM
HOSE
1
16
N16/3790038
T- RAKOR
TEE
2
17
651/1124050
HORTUM
HOSE
1
18
N16/9900092
ÇABUK SÖK TAK
QUICK COUPLER
1
19
M111100101
SABİT KANAT
BLADE, BACK
1
20
M111100201
HAREKETLİ KANAT
JAW, CLAMSHOVEL
1
21
801/04300
PİM
PIN
2
C00020
-
A1-1-1/01
KEPÇE, AÇILIR
SHOVEL, CLAM
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1
M111100000
AÇILIR KEPÇE KOMPLE
SHOVEL, CLAM, ASSY.
1
2
N08/1210020
GRESÖRLÜK
GREASSE NIPPLE
6
3
801/04311
PİM
PIN
2
4
N01/0380470
CİVATA M8x70
BOLT M8x70
4
5
N02/5900062
SOMUN M8
NUT M8
4
6
N01/0232882
CİVATA M12x45
BOLT M12x45
12
7
M111104100
TIRNAK
TOOTH
6
8
N02/8320192
SOMUN
NUT
12
9
801/04306
PİM
PIN
2
10
SİLİNDİR
RAM
2
E3-3-1
11
651/1122145
HORTUM
HOSE
1
12
N16/9900091
ÇABUK SÖK TAK
QUICK COUPLER
1
13
N03/0000015
O-RİNGLİ PUL
WASHER
2
14
806/24820
NİPEL
ADAPTER
2
15
651/11P4040
HORTUM
HOSE
1
16
N16/3790038
T- RAKOR
TEE
2
17
651/11P4050
HORTUM
HOSE
1
18
N16/9900092
ÇABUK SÖK TAK
QUICK COUPLER
1
19
M11/1100102
SABİT KANAT
BLADE, BACK
1
20
M11/1100202
HAREKETLİ KANAT
JAW, CLAMSHOVEL
1
21
801/04301
PİM
PIN
2
22
651/1128150
HORTUM
HOSE
1
23
SİLİNDİR
RAM
2
E3-3-2
24
M111104300
AÇILIR KEPÇE
SHOVEL, CLAM, ASSY.
1
25
N01/0380470
CİVATA M8x70
BOLT M8x70
2
26
N02/5900062
SOMUN M8
NUT M8
2
27
N08/1210020
GRESÖRLÜK
GREASSE NIPPLE
2

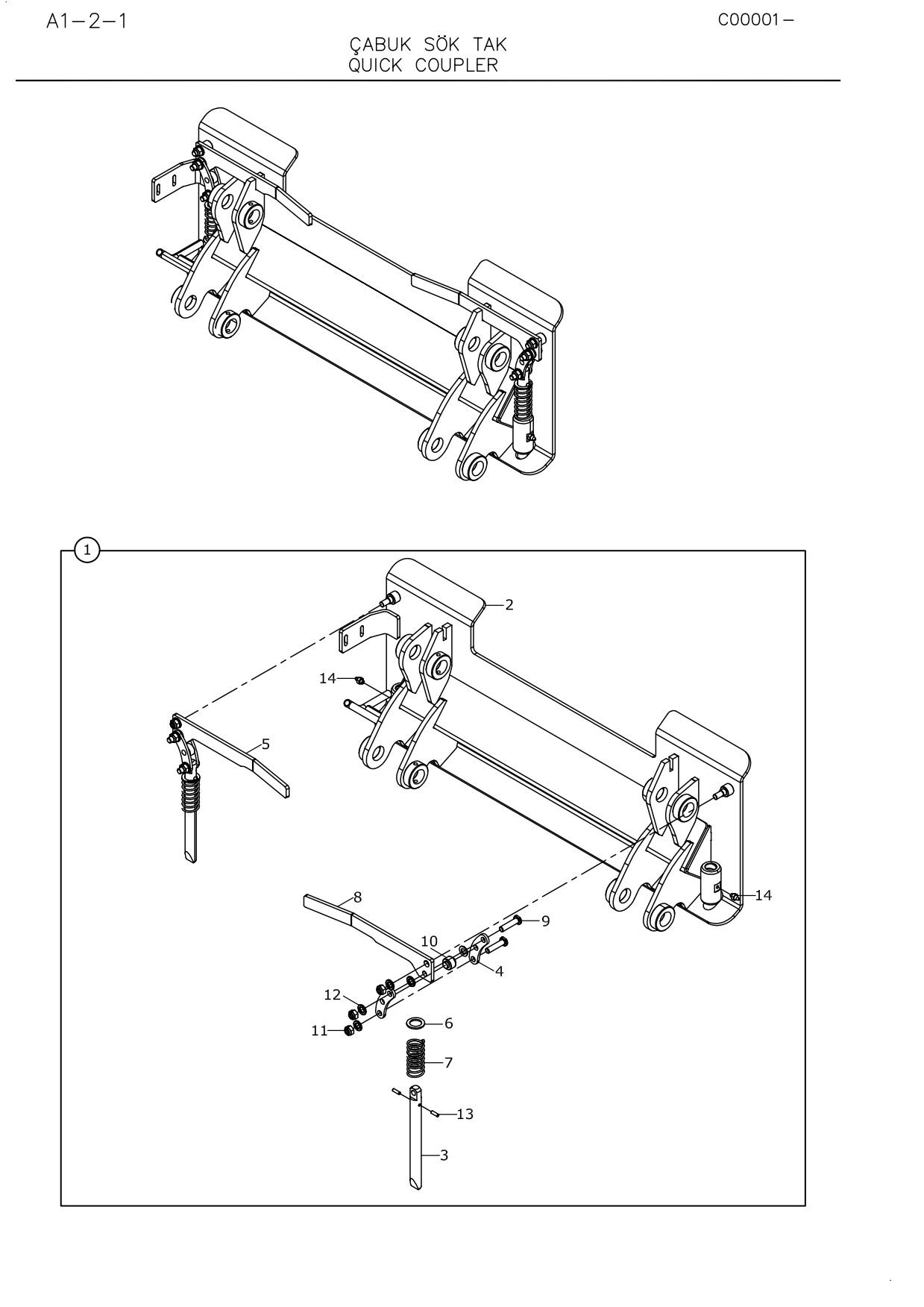

A1-2-1
-
C00001
ÇABUK SÖK TAK
QUICK COUPLER
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M111300100
1
M111302700
QUICK COUPLER KOMPLE
QUICK COUPLER ASSEMB.
1
2
M111302800
QUICK COUPLER
QUICK COUPLER
1
3
M111304400
KİLİT PİMİ
PIN, LOCKING
2
4
M111304500
KİLİT KOLU
LOCKING, HANDLE
4
5
M111304600
KOL, KİLİT AÇMA, SOL
ARM, LOCKING, LEFT
1
6
M111304700
YAY SABİTLEME
WASHER
2
7
M111304800
YAY
SPRING
2
8
M111304900
KOL, KİLİT AÇMA, SAĞ
ARM, LOCKING, RIGHT
1
9
M111305600
MENTEŞE PİMİ
PIN
4
10
M111305700
PİM
PIN
2
11
N02//5900122
SOMUN M12
NUT M12
6
12
N03/0810001
SERT PUL M12
WASHER M12
10
13
N04/3120650
VİDA M6x20
SCREW M6x20
4
14
N08/1210020
GRESÖRLÜK
GREASE NIPPLE
2

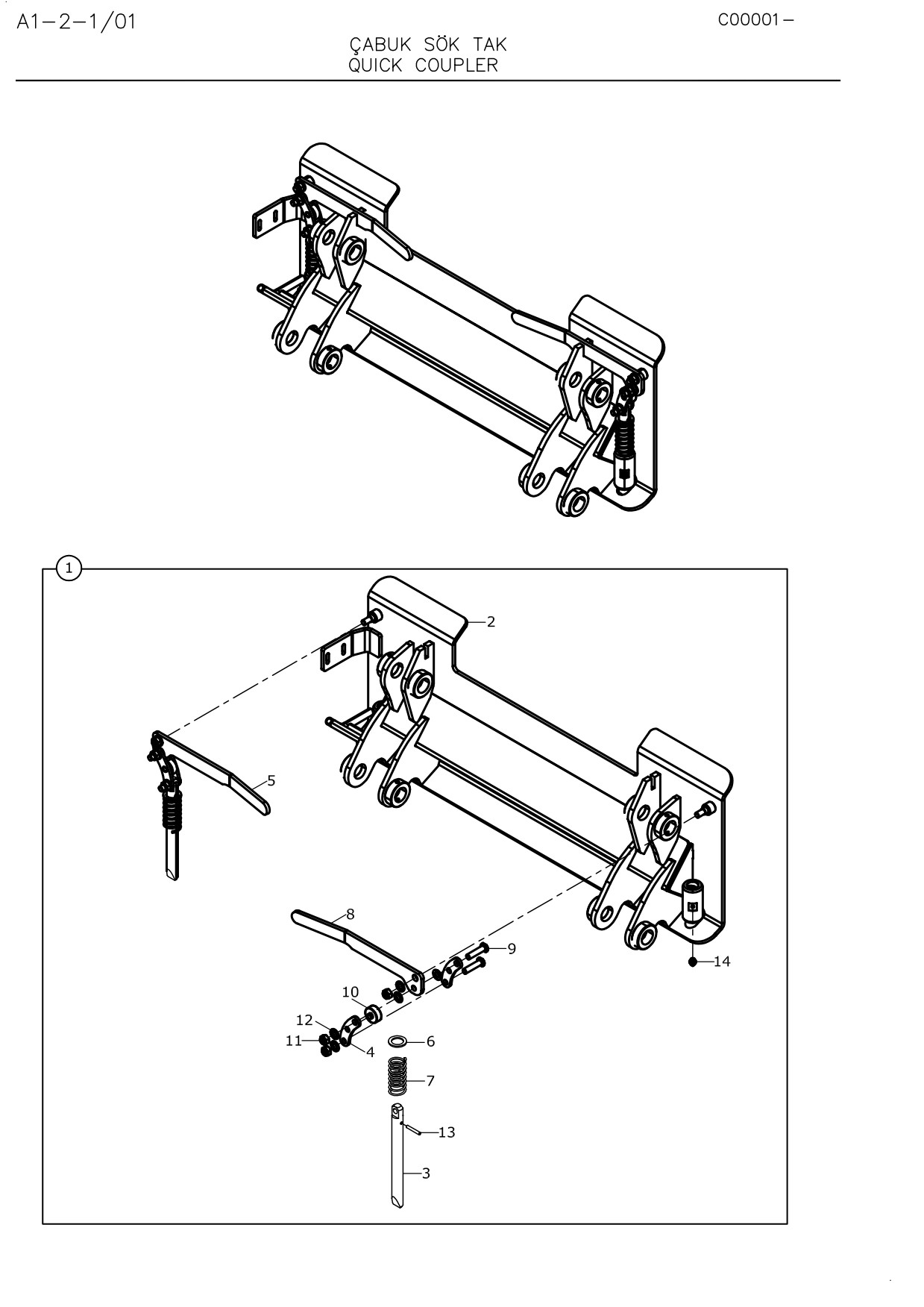

A1-2-1/01
C00001
ÇABUK SÖK TAK
QUICK COUPLER
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M111300100
1
M111302700
QUICK COUPLER KOMPLE
QUICK COUPLER ASSEMB.
1
2
M111302800
QUICK COUPLER
QUICK COUPLER
1
3
M111304400
KİLİT PİMİ
PIN, LOCKING
2
M111304401
KİLİT PİMİ
PIN, LOCKING
2
Y
4
M111304500
KİLİT KOLU
LOCKING, HANDLE
4
M111304501
KİLİT KOLU
LOCKING, HANDLE
4
Y
5
M111304600
KOL, KİLİT AÇMA, SOL
ARM, LOCKING, LEFT
1
M111304601
KOL, KİLİT AÇMA, SOL
ARM, LOCKING, LEFT
1
Y
6
M111304700
YAY SABİTLEME
WASHER
2
7
M111304800
YAY
SPRING
2
8
M111304900
KOL, KİLİT AÇMA, SAĞ
ARM, LOCKING, RIGHT
1
M111304901
KOL, KİLİT AÇMA, SAĞ
ARM, LOCKING, RIGHT
1
Y
9
M111305600
MENTEŞE PİMİ
PIN
4
10
M111305700
PİM
PIN
2
M111305701
PİM
PIN
2
Y
11
N02//5900122
SOMUN M12
NUT M12
6
12
N03/0810001
SERT PUL M12
WASHER M12
10
13
N15/6451628
SIKMA KOVANI
PIN EXPANSION
2
Y
14
N08/1210020
GRESÖRLÜK
GREASE NIPPLE
2
ATASMANLAR
A
ATTACHMENTS
YÜKLEYiCi ATASMANLAR
A1
LOADER ATTACHMENTS
KAZICI ATASMANLAR
A2
BACKHOE ATTACHMENTS
C00001
-

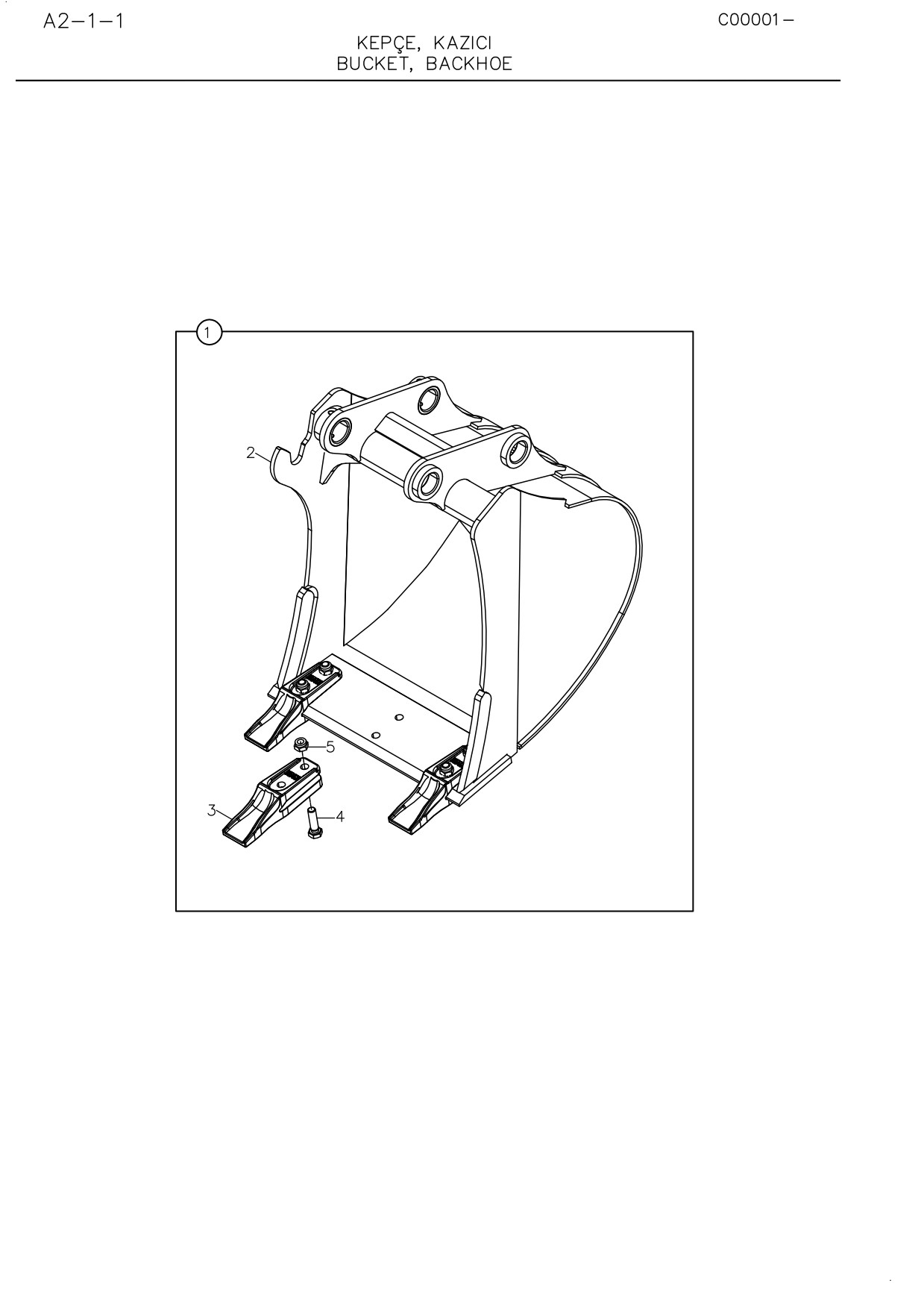

A2-1-1
KEPÇE, KAZICI
BUCKET, BACKHOE
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1A
M115300300
KEPÇE (420mm), KOMPLE
BUCKET (420mm), ASSY
1
1B
M115300100
KEPÇE (320mm), KOMPLE
BUCKET (320mm), ASSY
1
OP
2A
M115300400
KEPÇE (420mm)
BUCKET (420mm)
1
2B
M115300200
KEPÇE (320mm)
BUCKET (320mm)
1
OP
3
M111104100
TIRNAK
TOOHT, FOR
3
4
N01/0232882
CİVATA M12x45
BOLT M12x45
6
5
N02/5910122
SOMUN M12
NUT M12
6
GÖVDE
B
BODY PARTS
GÖVDE MONTAJLARI
B1
BODY PARTS MOUNTINGS
KABiN
B2
OPERATOR CAB
YÜKLEYiCi
B3
LOADER
KAZICI
B4
BACKHOE
C00001
-

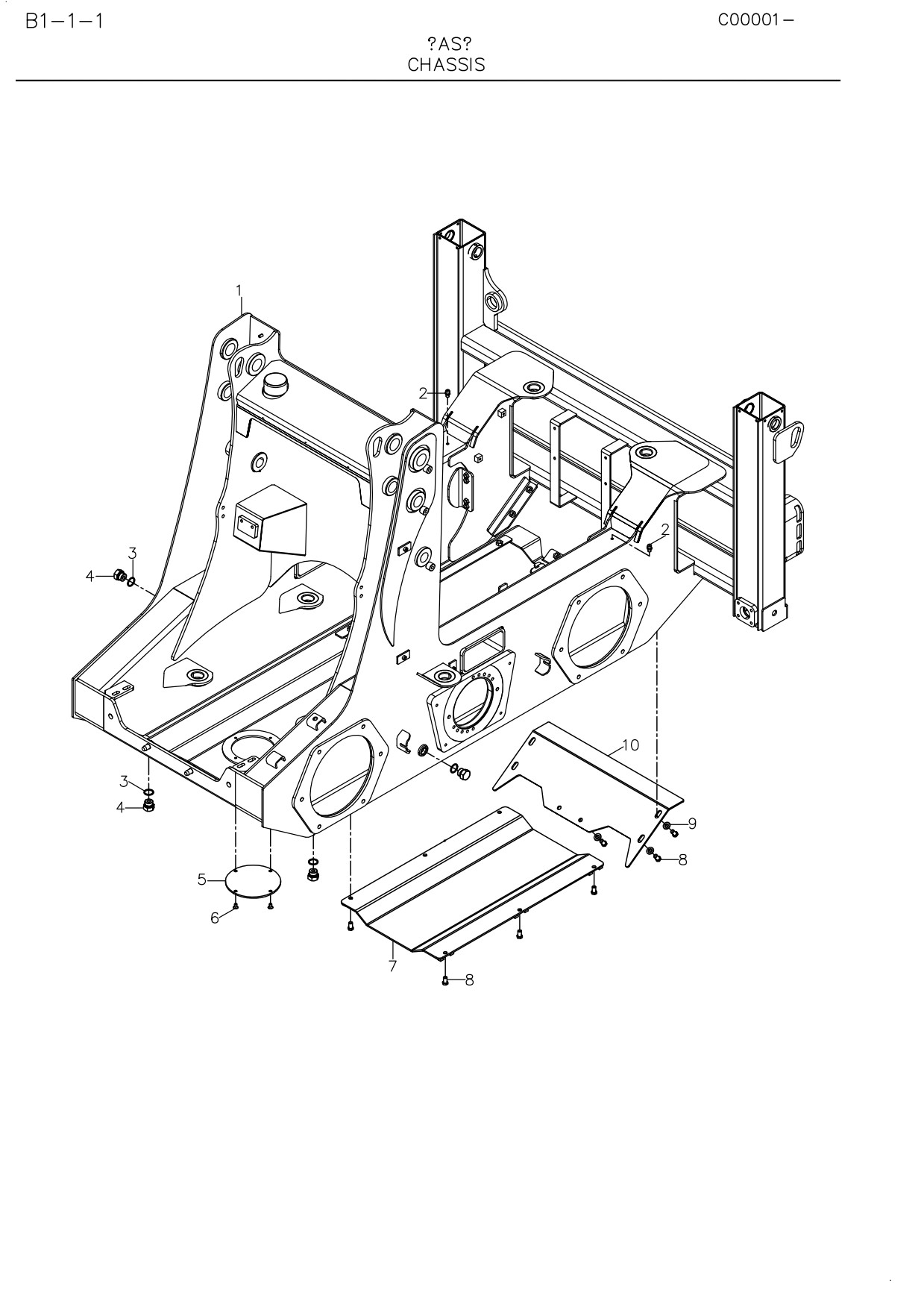

B1-1-1
ŞASĐ
CHASSIS
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M114100100
1
M114100200
ŞASİ
CHASSIS
1
2
F06/13852
HAVALANDIRMA TAPASI
PLUG
2
3
N03/0226331
PUL
WASHER
4
4
814/03010
TAPA
PLUG
4
5
M114110600
MOTOR YAĞI BOŞALTMA
COVER
1
DELİK KAPAĞI
6
N04/4320482
VİDA M8x14
SCREW M8x14
4
7
M114110700
MUDAHALE KAPAĞI
COVER
1
8
N01/0232798
CİVATA M12x20
BOLT M12x20
12
9
N03/0810001
PUL
WASHER
6
10
M114111000
ŞASİ ARKA KAPAMA SACI
SHEET
1
C00001
- C00024

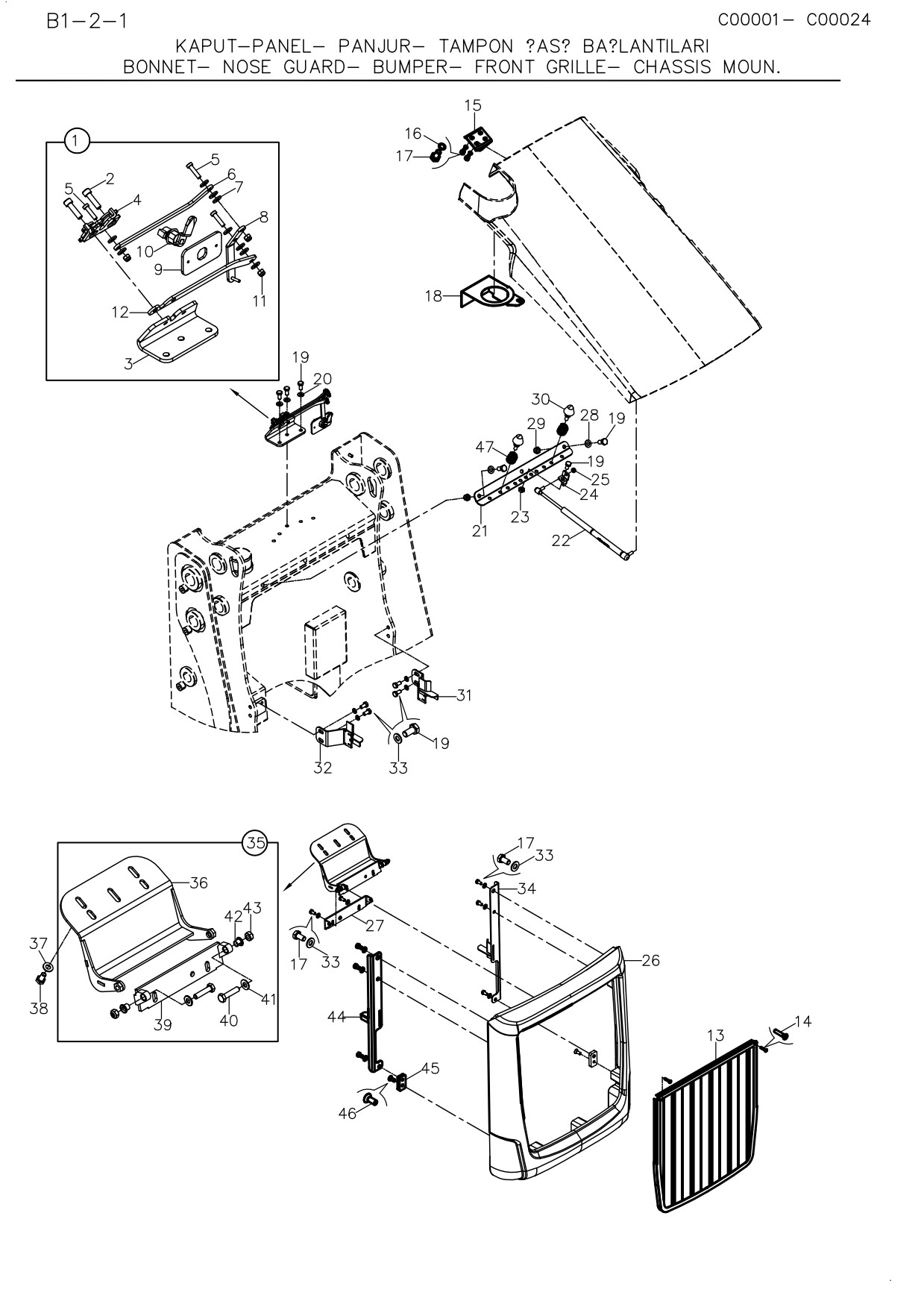

B1-2-1
KAPUT- MOTOR YAN KAPAĞI- PANEL- PANJUR- TAMPON- ŞASĐ BAĞLANTILARI
BONNET- ENGINE PANEL- NOSE GUARD- BUMPER- FRONT GRILLE CHASSIS MOUN.
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M114200100
1
M114200300
KAPUT KİLİT KOMPL.
BONNET LOCKING ASSY.
1
2
N01/5890494
CİVATA M8x30
BOLT M8x30
2
3
M114200500
KİLİT SACI
PLATE, LOCKING
1
4
F99/60260
KİLİT
LOCKING
1
5
N01/5890326
CİVATA M6x25
BOLT M6x25
3
6
M114200600
KİLİT HAREKET SACI
LOCK MOVEMENT, LING
1
7
M114200900
PUL
WASHER
9
8
M114200800
KİLİT SACI
PLATE, LOCKING
1
9
M114200700
BUTON YATAĞI SACI
LOCK ATTACHMENT, LING
1
10
F99/60265
KİLİT, KELEBEK
LOCKING
1
11
N02/5910050
SOMUN M6
NUT M6
3
12
M114200400
KİLİT BAĞLANTI SACI
LOCKING MOUNTING
1
13
M114203900
ÖN PANJUR
GRILLE, FRONT
1
14
N04/4330266
VİDA M5x25
SCREW M5x25
2
15
M114202800
KİLİT KARŞILIĞI
LOCKING PLATE
1
16
N03/0020011
PUL M8
WASHER M8
4
17
N01/0232078
CİVATA M8x16
BOLT M8x16
12
18
M114201900
EGSOZ KORUYUCU SACI
EXHAUST, VENTURI
1
BRACKET
19
N01/0232438
CİVATA M10x20
BOLT M10x20
9
20
N02/5910086
PUL M10
WASHER M10
3
21
M114201800
BAĞLANTI SACI
MOUNTING PLATE
1
22
M114203100
AMORTİSÖR
DAMPER
1
23
N02/5910086
SOMUN M10
NUT M10
1
24
M114202100
BAĞLANTI SACI
MOUNTING PLATE
1
25
N02/5910062
SOMUN M8
WASHER M8
1
26
M114200200
ÖN PANEL
NOSE GUARD
1
27
M114202300
MENTEŞE BAGL. SACI
HINGE MOUNTING PLATE
1
28
N03/0020018
PUL M10
WASHER M10
3
29
N02/5910086
SOMUN M10
NUT M10
3
30
810/40041
STOPER
STOPER
2
31
M114203500
KAPAK KİLİT KARŞILIĞI,
COVER LOCKING PLATE,
1
SOL
LEFT
32
M114203300
KAPAK KİLİT KARŞILIĞI,
COVER LOCKING PLATE,
1
SAĞ
RIGHT
33
N03/0100017
PUL M8
WASHER M8
12
34
M114201000
KAPUT BAGL. BRAKETİ,
BONNET MOUNTING
1
SOL
BRACKET, LEFT
35
M114202200
KAPUT MENTEŞE KOMPL.
BONNET HINGE ASSY.
1
36
M114202400
MENTEŞE BRAKETİ
HINGE BRACKET
1
37
N03/0100017
PUL M8
WASHER M8
3
38
N01/0232078
CİVATA M8x16
BOLT M8x16
3
39
M114203700
MENTEŞE YATAK SACI
HINGE PLATE
1
40
N01/0380374
CİVATA M8x35
BOLT M8x16
2
41
N03/0108017
PUL M8
WASHER M8
2
42
F99/14899
BURÇ
BUSHING
2
43
N02/5910062
SOMUN M8
NUT M8
2
44
M114201200
KAPUT BAGL. BRAKETİ,
BONNET MOUNTING
1
SAĞ
BRACKET, RIGHT
45
M114202000
ARA DESTEK SACI
SPACER,SUPPORT
1
46
N04/4320506
VİDA M8x20
SCREW M8x20
2
47
807/06650
YAY
SPRING
2
C00025
-

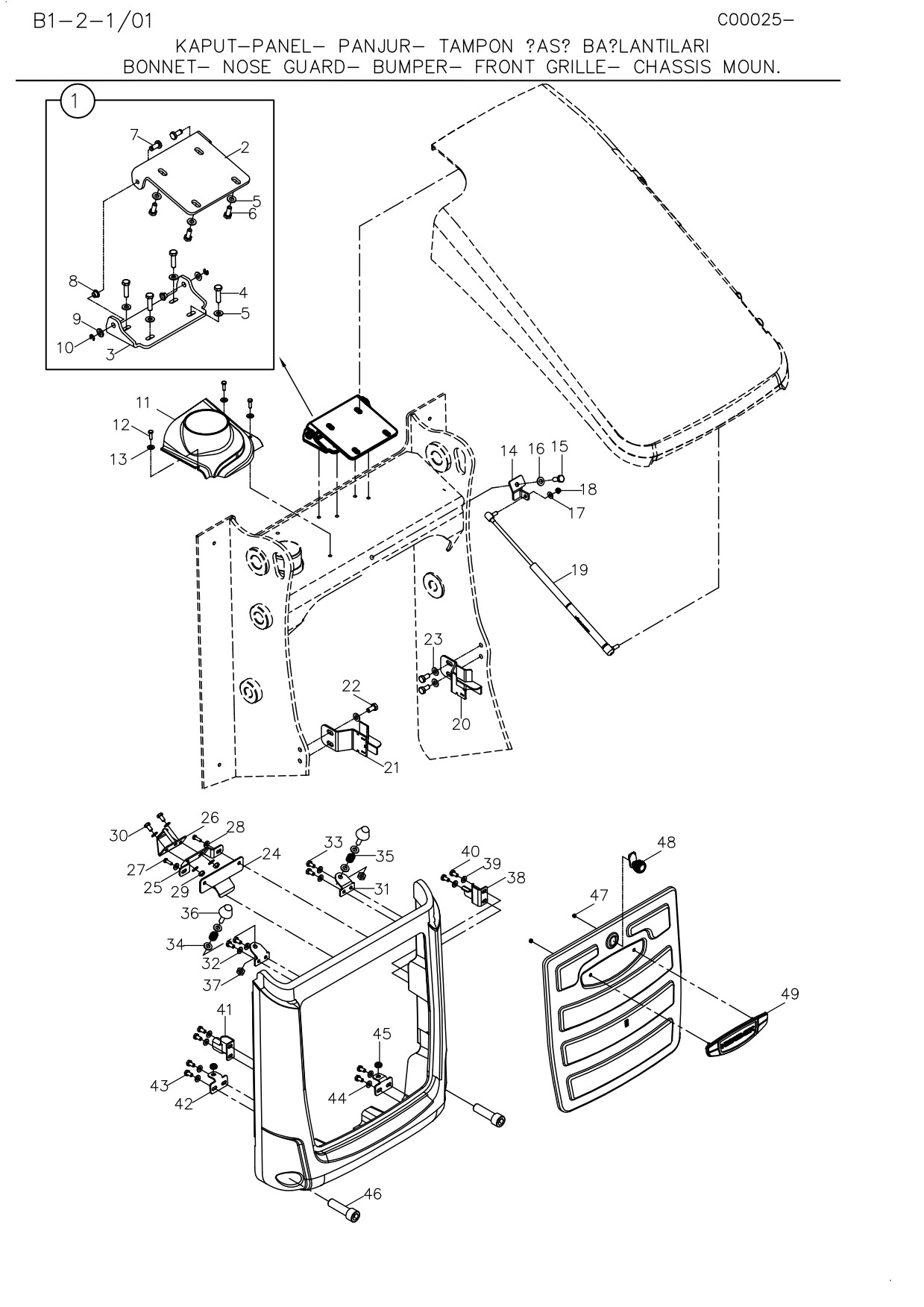

B1-2-1/01
KAPUT- MOTOR YAN KAPAĞI- PANEL- PANJUR- TAMPON- ŞASĐ BAĞLANTILARI
BONNET- ENGINE PANEL- NOSE GUARD- BUMPER- FRONT GRILLE CHASSIS MOUN.
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M114206600
1
M114204800
MENTEŞE KOMPLESI
HINGE ASSY.
1
2
M114205000
MENTEŞE SACI
HINGE BARCKET
1
3
M114204900
MENTEŞE SACI
HINGE BARCKET
1
4
N01/0232162
CİVATA M8x30
BOLT M8x30
4
5
N03/0140017
RONDELA M8 DIN125
WASHER M8 DIN125
8
6
N01/0222114
CİVATA M8X20
BOLT M8X20
4
7
M114205100
MENTESE PİMİ
PIN
2
8
F99/14899
BURÇ
BUSHING
2
9
N03/0108001
PUL Ø8X1
WASHER M8X1
2
10
N05/0760001
SEGMAN
RETAINING RING
2
11
M114204200
EGZOS KAPLAMA
EXHAUST, VENTURI
1
BRACKET
12
N01/0231514
CİVATA M6X20
BOLT M6X20
3
13
N03/0108001
PUL,Ø8X1
WASHER M8X1
3
14
M114204700
AMORTiSOR BAG. SACI
MOUNTING PLATE
1
15
N01/0222462
CİVATA M10X25
BOLT M10X25
1
16
N03/0020018
PUL M10
WASHER M10
1
17
N03/0140017
RONDELA M8 DIN125
WASHER M8 DIN125
1
18
N02/5900062
SOMUN M8
NUT M8
1
19
M114207300
AMORTiSÖR
DAMPER
1
20
M114206900
KAPAK KİLİT KARŞILIĞI,SOL
COVER LOCKING
1
PLATE,LEFT
21
M114206800
KAPAK KİLİT KARŞILIĞI,SAĞ
COVER LOCKING
1
PLATE,RİGHT
22
N01/0222438
CİVATA M10X20
BOLT M10X20
4
23
N03/0020018
PUL M10
WASHER M10
4
24
M114205900
KiLiT KARSILIK SACI
LOCKING PLATE
1
25
M114205700
KiLiT KARSILIK SACI
LOCKING PLATE
1
26
M114205600
KiLiT KARSILIGI
LOCKING PLATE
1
27
N01/0231514
CİVATA M6X10
BOLT M6X6
2
28
N03/0140017
RONDELA M8
WASHER M8
6
29
N02/5900062
SOMUN M8
NUT M8
2
30
N01/0232078
CİVATA M8X15
BOLT M8X15
2
31
M114205200
STOPER SACI
MOUNTING PLATE
2
32
N03/0140017
PUL M8,DIN125
WASHER M8 ,DIN125
4
33
N01/0232078
CİVATA M8X15
BOLT M8X15
4
34
N03/0020018
PUL,M10,DIN125
WASHER,M10,DIN125
4
35
807/06650
YAY
SPRING
2
36
810/40041
STOPER
STOPER
2
37
N02/5900086
SOMUN M10
NUT M10
2
38
M114205300
YAN KAPUT BAĞLANTI
BONNET MOUNTING
1
SACI,SOL
BRACKET, LEFT
39
N03/0140017
PUL M8,DIN125
WASHER M8 ,DIN125
4
40
N01/0232078
CİVATA M8x15
BOLT M8x15
4
41
M114205400
YAN KAPUT BAĞLANTI
BONNET MOUNTING
1
SACI,SAĞ
BRACKET, RIGHT
42
M114206200
SABiTLEME SACI
SUPPORT
2
43
N01/0232078
CİVATA,M8X15
BOLT,M8X15
4
44
N03/0140017
PUL M8,DIN125
WASHER M8 ,DIN125
4
45
810/40016
GROMET
GROMMET
2
46
N01/5892078
CİVATA,M20X70
BOLT,M20X70
2
47
N02/5880026
SOMUN,M5
NUT,M5
2
48
M11/6102700
KİLİT
LOCKING
1
49
M114206100
PANJUR
BUMPER
1
50
M114204300
ÖN PANEL
NOSE GUARD
1
51
M114206000
ÖN PANJUR
GRILLE, FRONT
1
C00001
- C00024

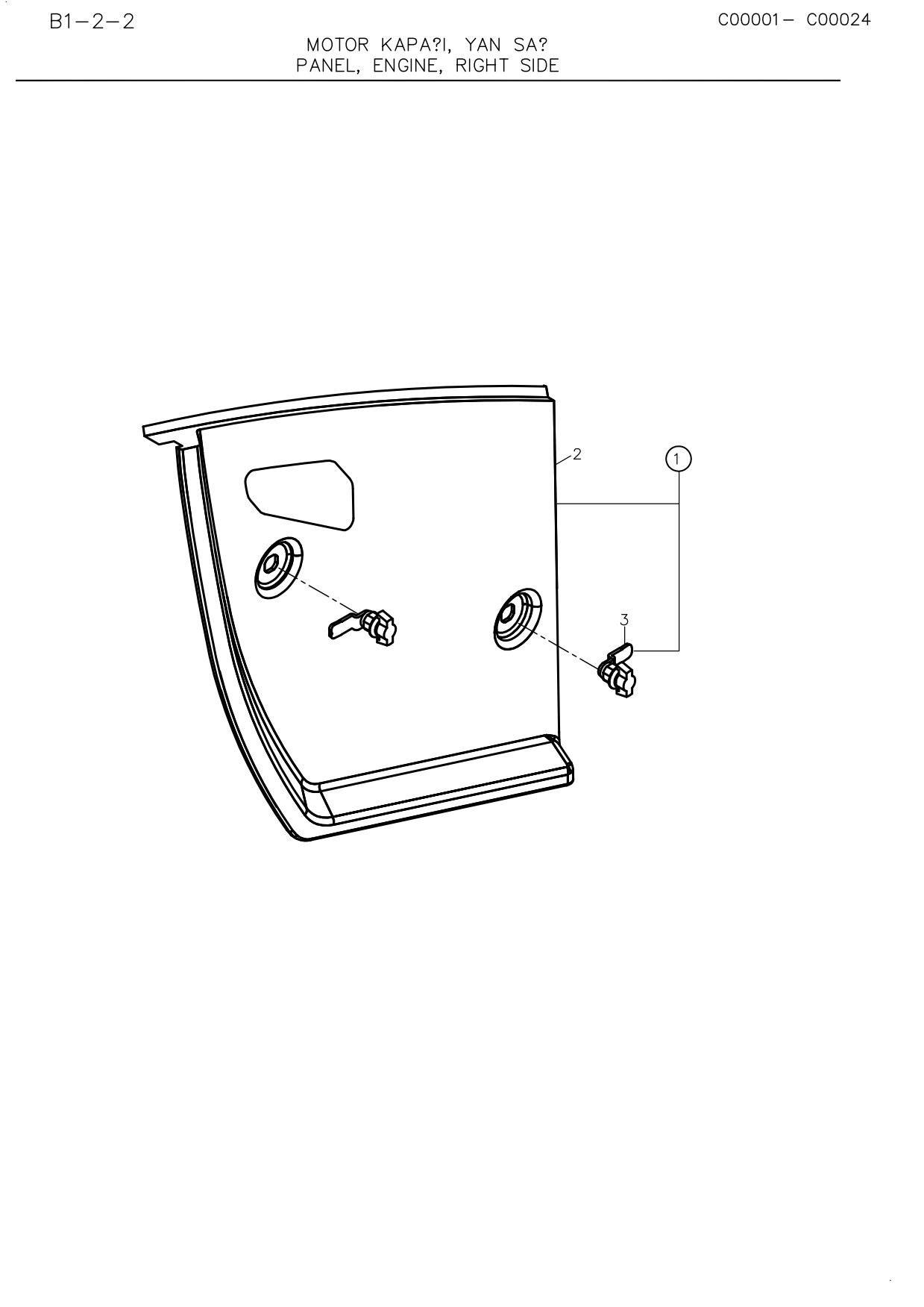

B1-2-2
MOTOR KAPAĞI, YAN, SAĞ
PANEL, ENGINE, RIGHT SIDE
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M114200100
1
M114201600
MOTOR KAPAĞI, YAN, SAĞ,
PANEL, ENGINE, RIGHT,
1
KOMP.
ASSY
2
M114201700
YAN KAPAK, SAĞ
PANEL, RIGHT
1
3
F99/60265
KİLİT, KELEBEK
LOCK
2
C00025
-

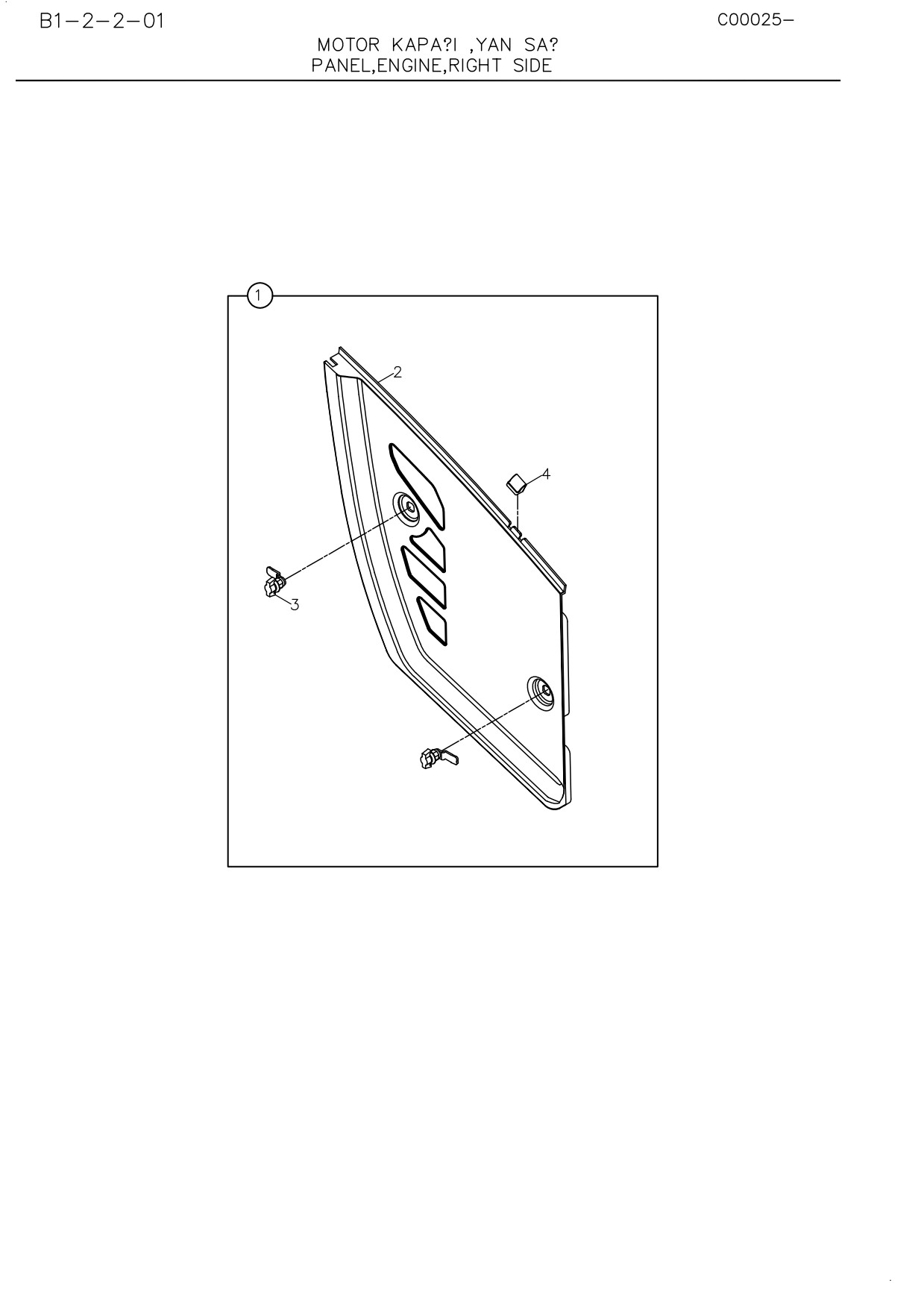

B1-2-2/01
MOTOR KAPAĞI, YAN, SAĞ
PANEL, ENGINE, RIGHT SIDE
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
M114206600
1
M114201600
MOTOR KAPAĞI, YAN, SAĞ,
PANEL, ENGINE, RIGHT,
1
KOMP.
ASSY
2
M114201700
YAN KAPAK, SAĞ
PANEL, RIGHT
1
3
F99/60265
KİLİT, KELEBEK
LOCK
2
4
810/40091
STOPER
STOPER
1
C00001
- C00024

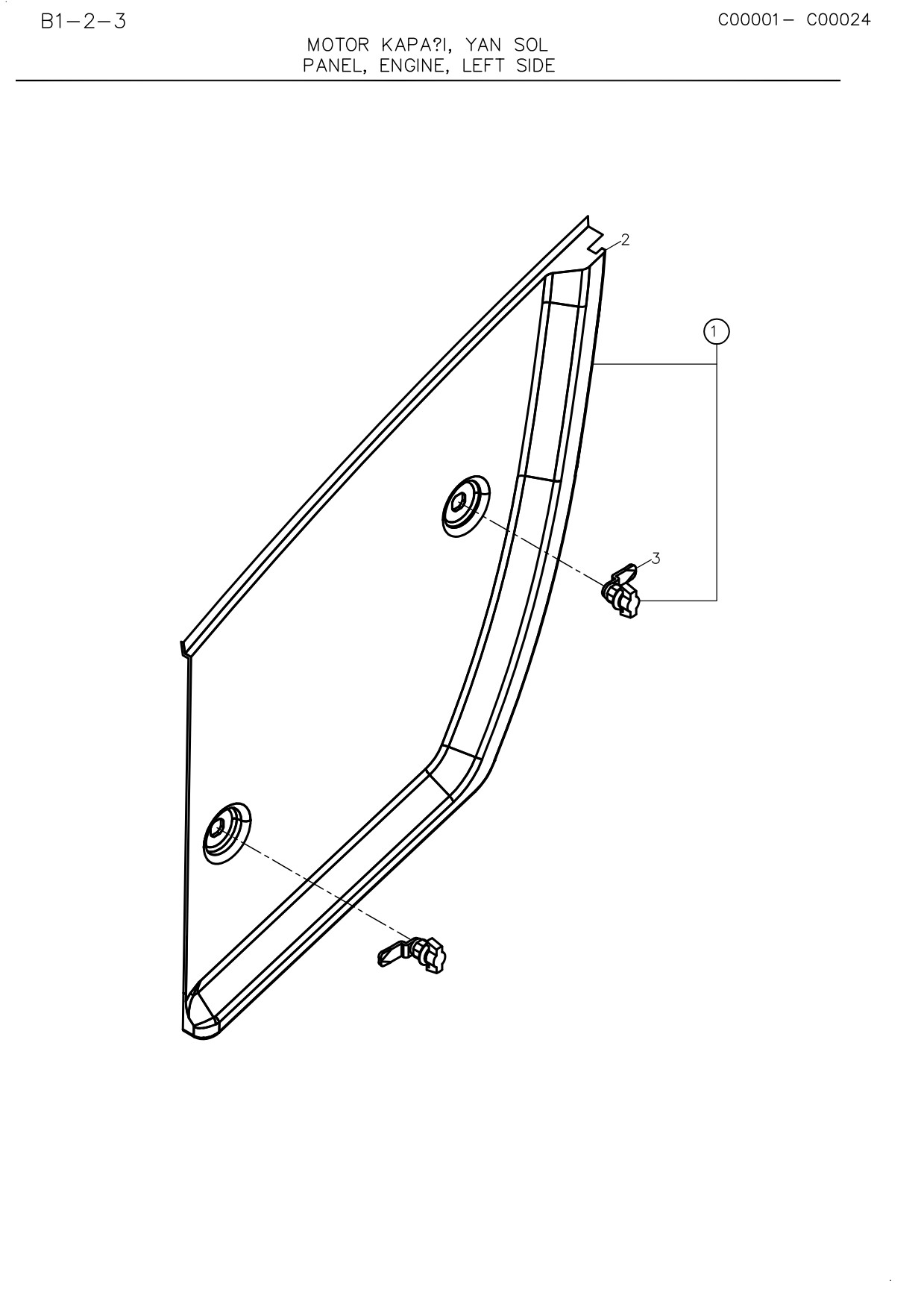

B1-2-3
MOTOR KAPAĞI, YAN, SOL
PANEL, ENGINE, LEFT SIDE
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M114200100
1
M114201400
MOTOR KAPAĞI, YAN, SOL,
PANEL, ENGINE, LEFT,
1
KOMP.
ASSY
2
M114201500
YAN KAPAK, SOL
PANEL, LEFT
1
3
F99/60265
KİLİT, KELEBEK
LOCK
2
C00025
-

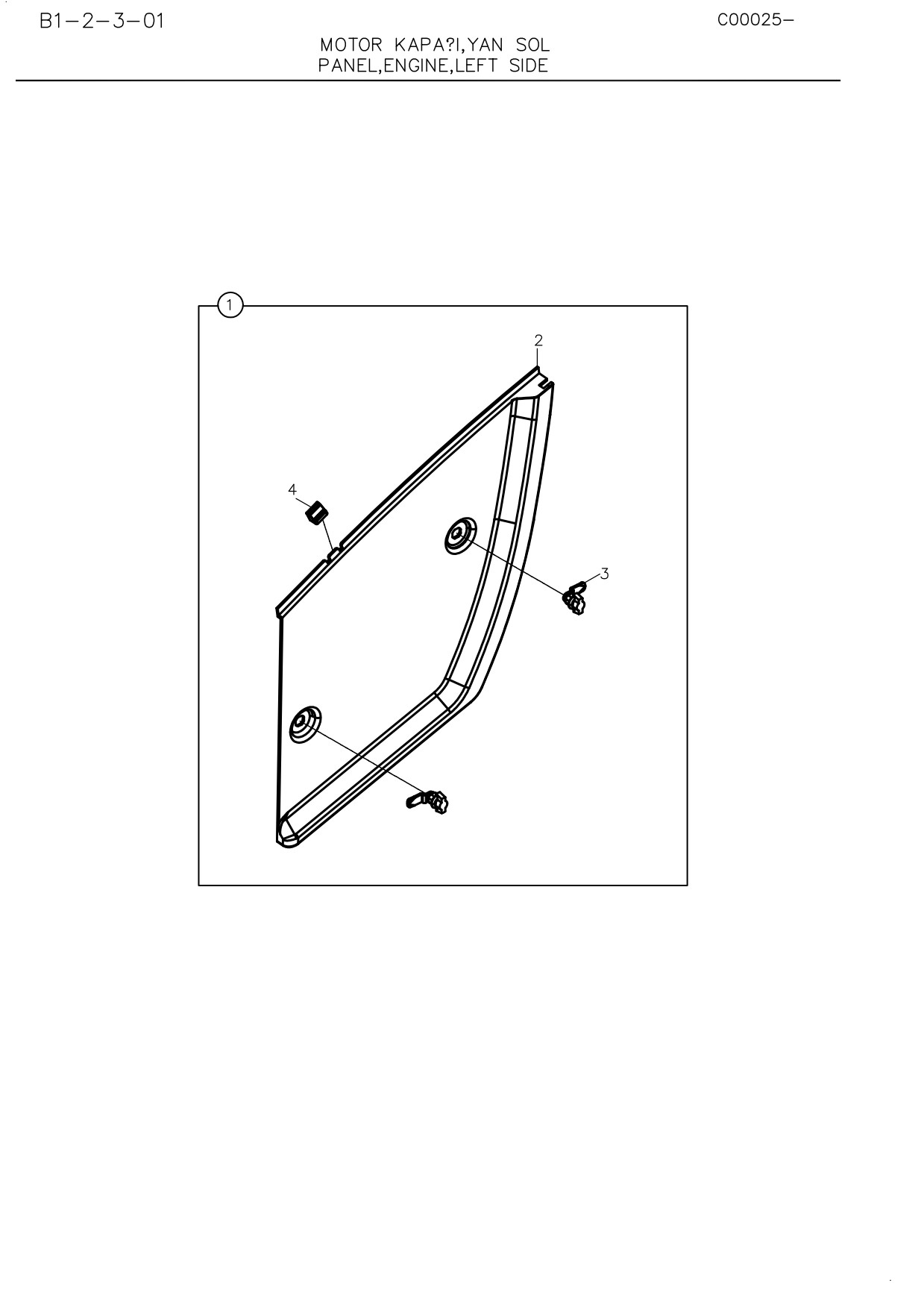

B1-2-3/01
MOTOR KAPAĞI, YAN, SOL
PANEL, ENGINE, LEFT SIDE
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M114206600
1
M114201400
MOTOR KAPAĞI, YAN, SOL,
PANEL, ENGINE, LEFT,
1
KOMP.
ASSY
2
M114201500
YAN KAPAK, SOL
PANEL, LEFT
1
3
F99/60265
KİLİT, KELEBEK
LOCK
2
4
810/40091
STOPER
STOPER
1
C00001
- C00024

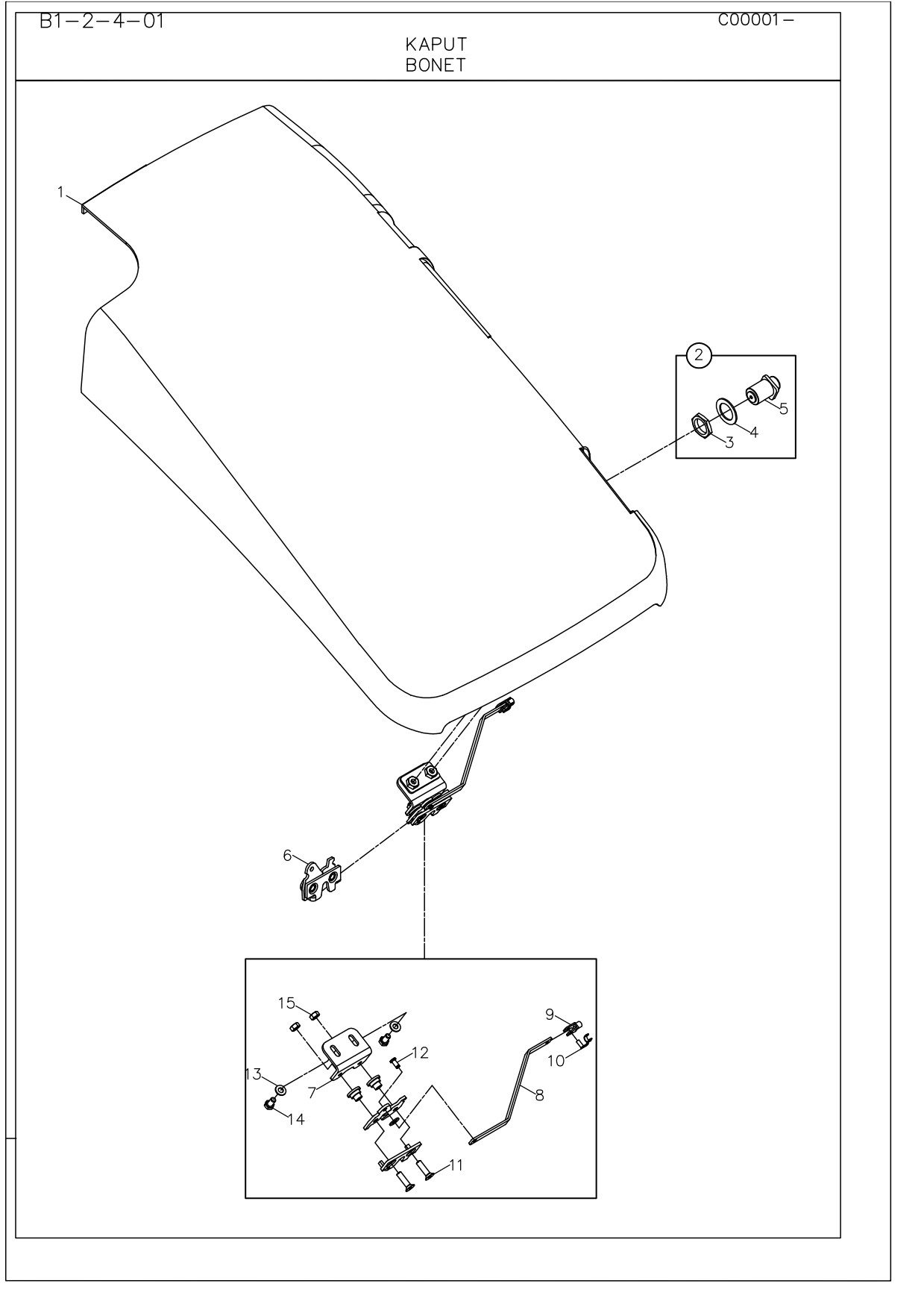

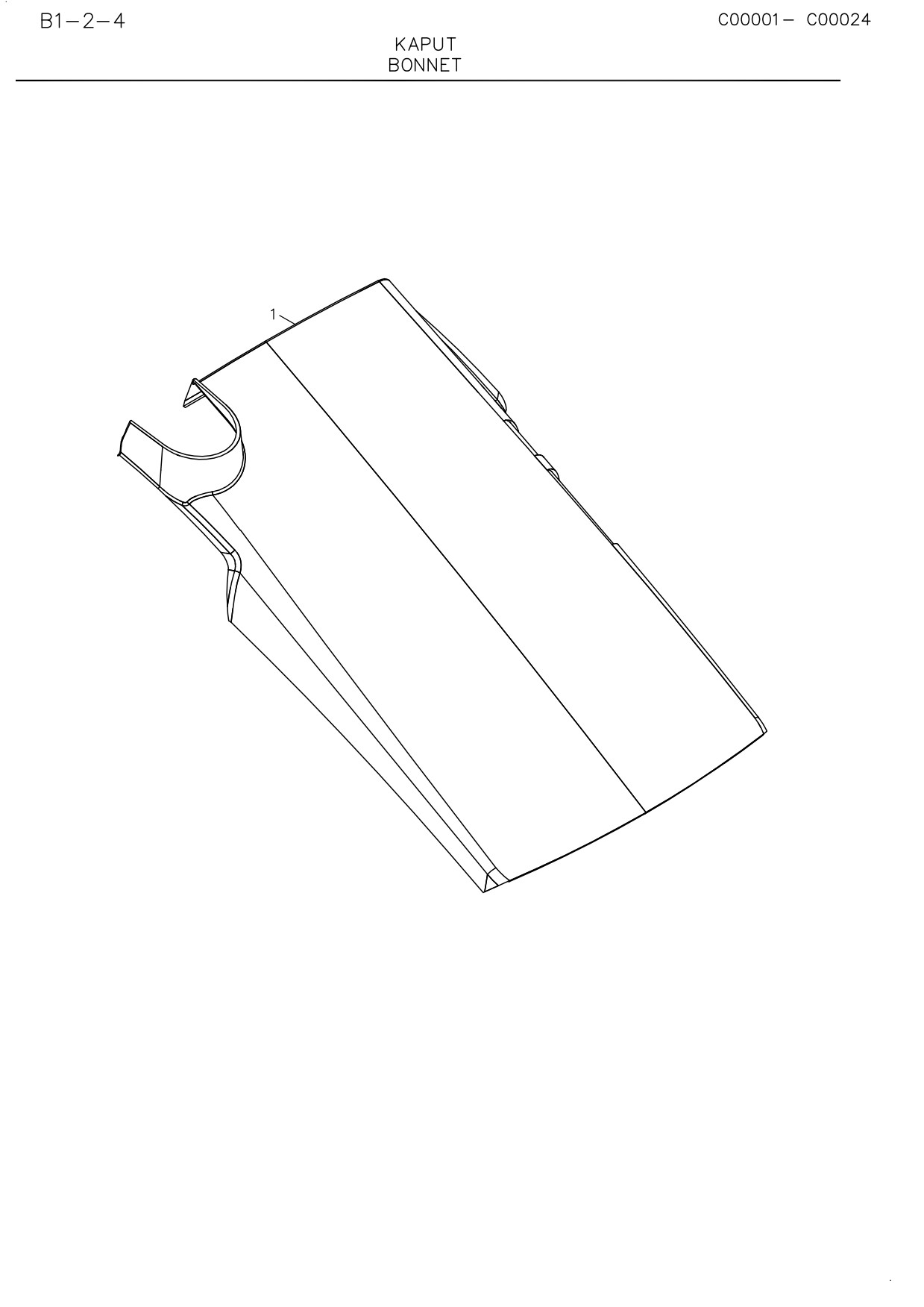

B1-2-4
KAPUT
BONNET
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M114200100
1
M114202700
KAPUT KOMPLE
BONNET ASSY.
1
///////////////////////////////////////
