Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 35
FIG NO. ：T1510-01A2
FIG. T1510-01A2 BUCKET, 0.5M3, 750 MM (HORIZONTAL PIN TYPE)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
205-926-7250
BUCKET
1
DBB0001~
2
205-926-7221
. PLATE(WELDED)
1
DBB0001~
3
205-70-74162
. PLATE, L. H (WELDED)
1
DBB0001~
4
205-70-74172
. PLATE, R. H (WELDED)
1
DBB0001~
5
205-939-7120
. ADAPTER (WELDED)
3
DBB0001~
6
205-70-19570
TOOTH
3
DBB0001~
7
09244-02496
PIN
3
DBB0001~
TO- 68
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 69
FIG NO. ：T1510-01A3

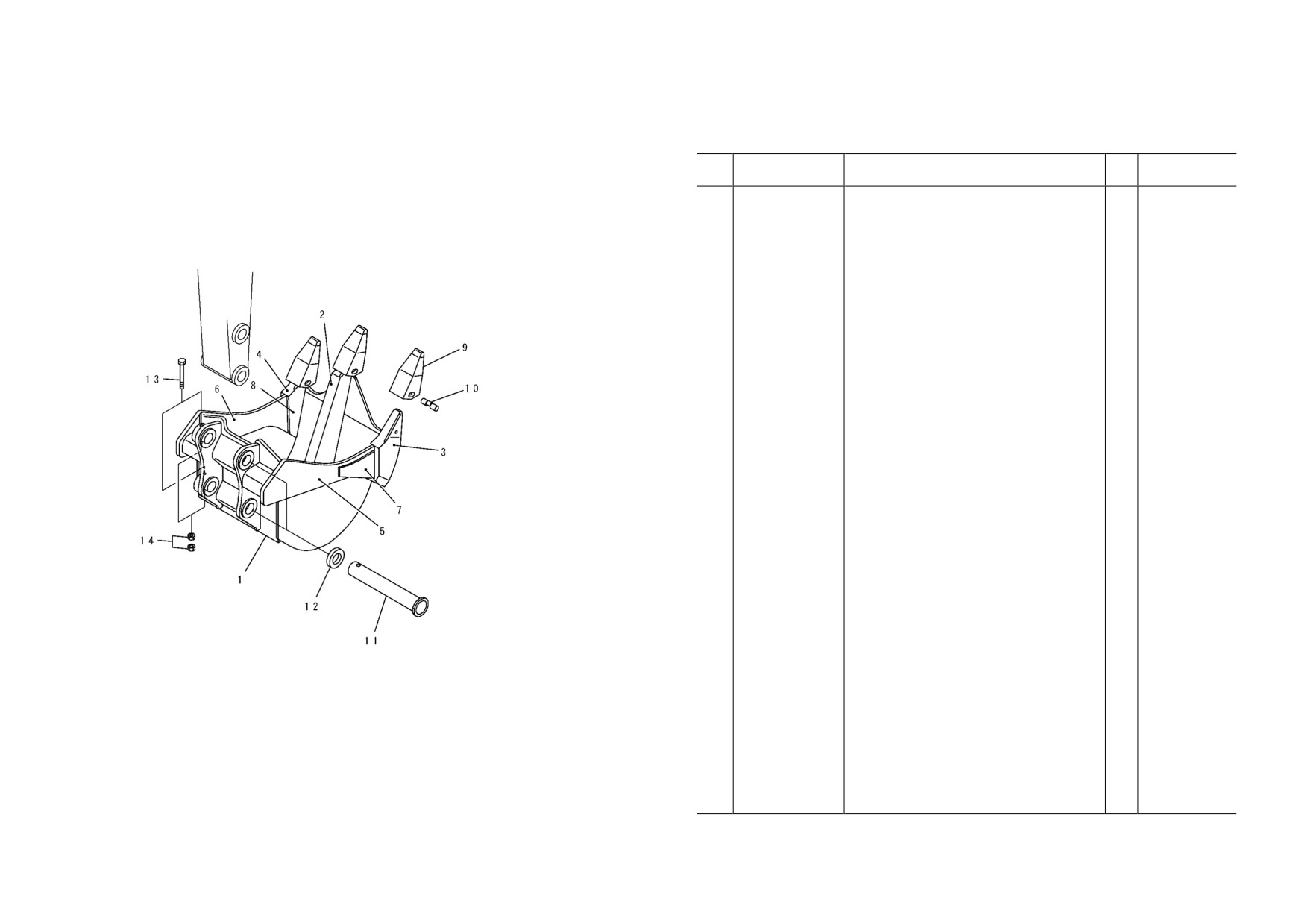

FIG. T1510-01A3 RIPPER BUCKET, 0.61M3, 950 MM
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
205-922-6210
BUCKET
1
DBB0001~
2
205-922-1120
. SHANK (WELDED)
1
DBB0001~
3
205-922-1130
. ADAPTER, L. H (WELDED)
1
DBB0001~
4
205-922-1140
. ADAPTER, R. H (WELDED)
1
DBB0001~
5
205-922-1150
. PLATE, L. H (WELDED)
1
DBB0001~
6
205-922-1160
. PLATE, R. H (WELDED)
1
DBB0001~
7
205-922-1170
. PLATE, L. H (WELDED)
1
DBB0001~
8
205-922-1180
. PLATE, R. H (WELDED)
1
DBB0001~
9
175-78-31230
POINT
3
DBB0001~
10
09244-02508
PIN
3
DBB0001~
11
205-70-73270
PIN
1
DBB0001~
12
205-70-74410
COLLAR
1
DBB0001~
13
205-70-73190
BOLT
2
DBB0001~
14
01580-12016
NUT
4
DBB0001~
PWL4297
TO- 70
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 71

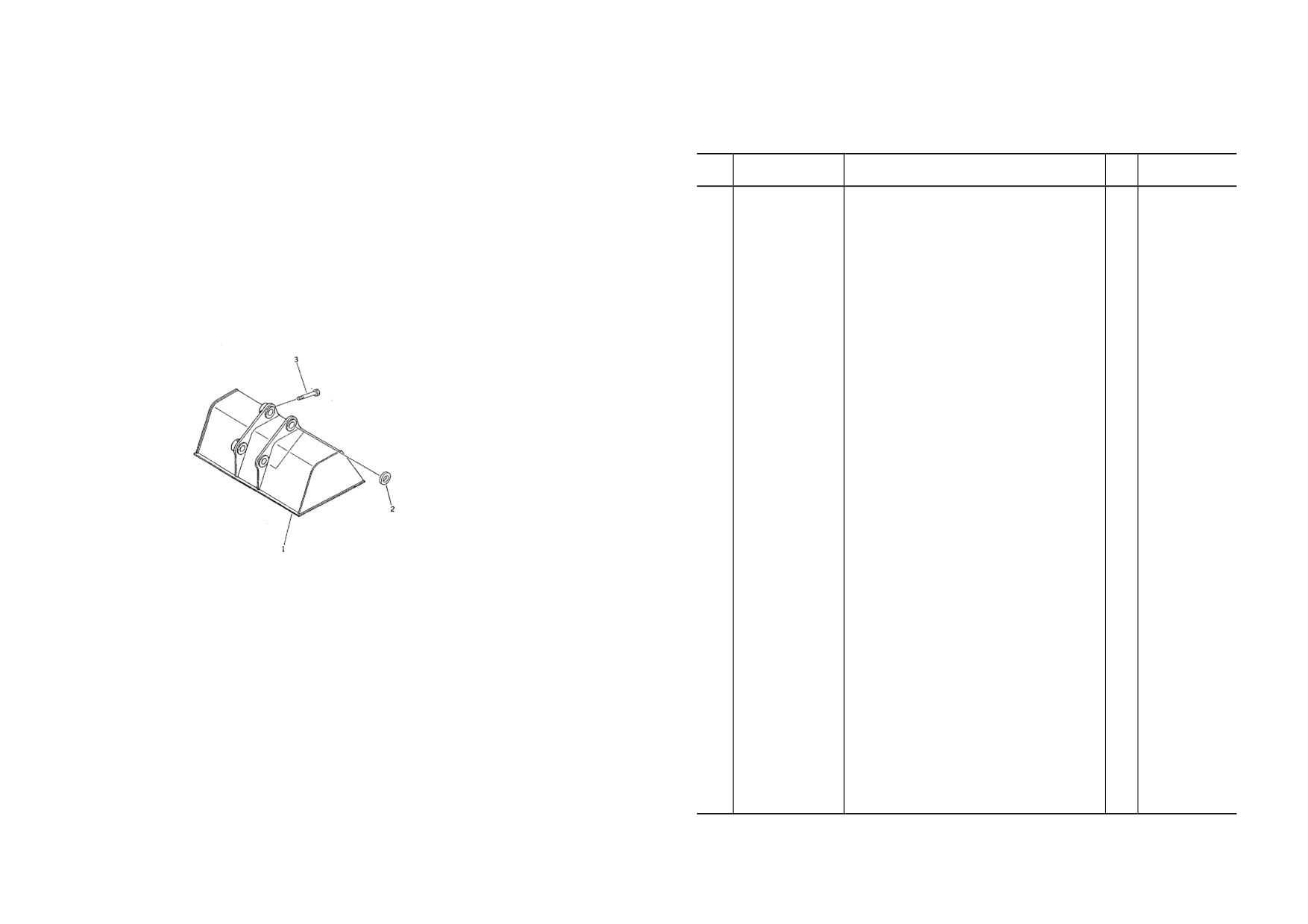

FIG NO. ：T1510-01A4

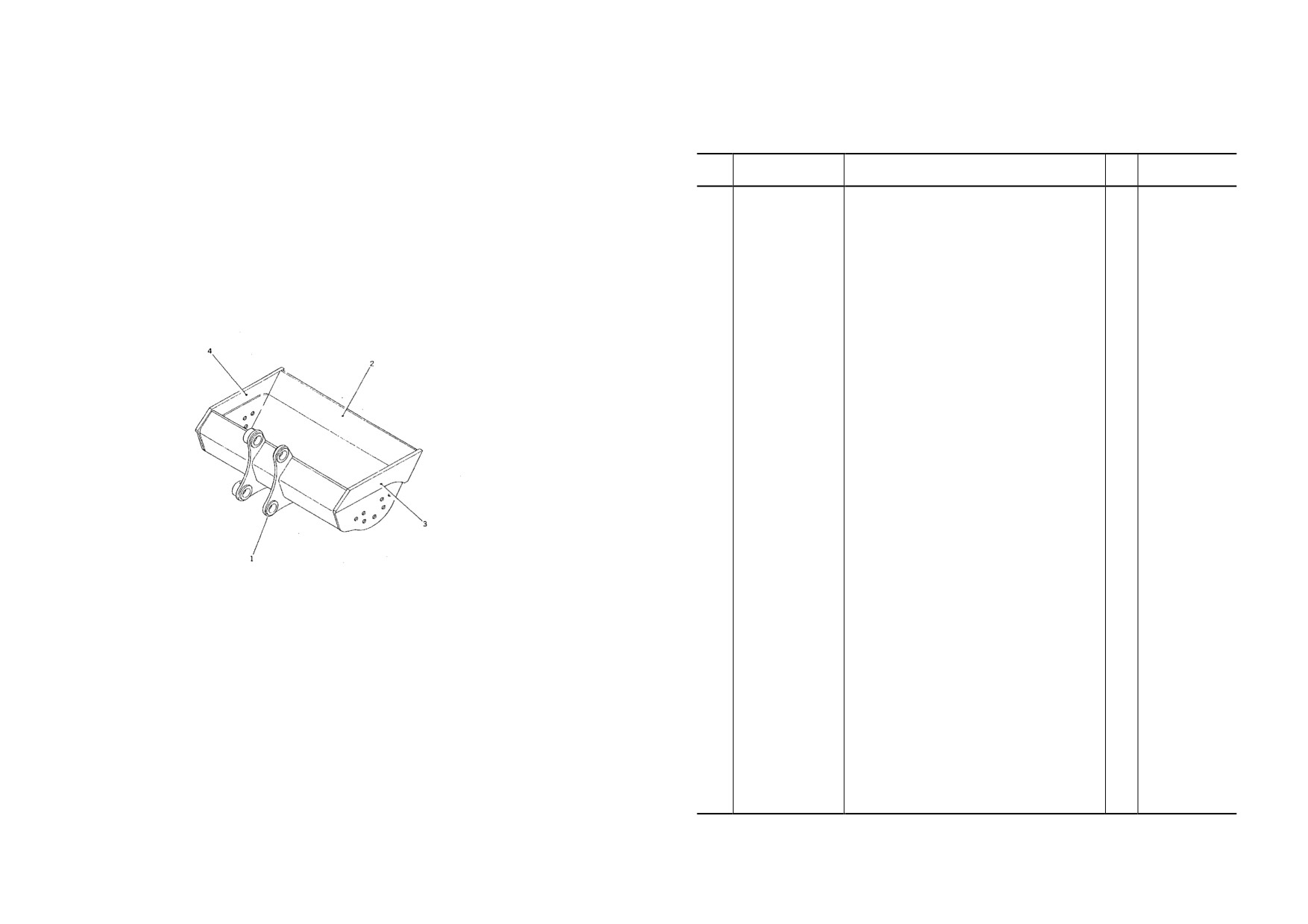

FIG. T1510-01A4 SLOPE FINISHING BUCKET (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
205-928-6110
BUCKET
1
DBB0001~
2
205-70-74410
COLLAR
2
DBB0001~
3
205-70-73190
BOLT
1
DBB0001~
TO- 72
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 73

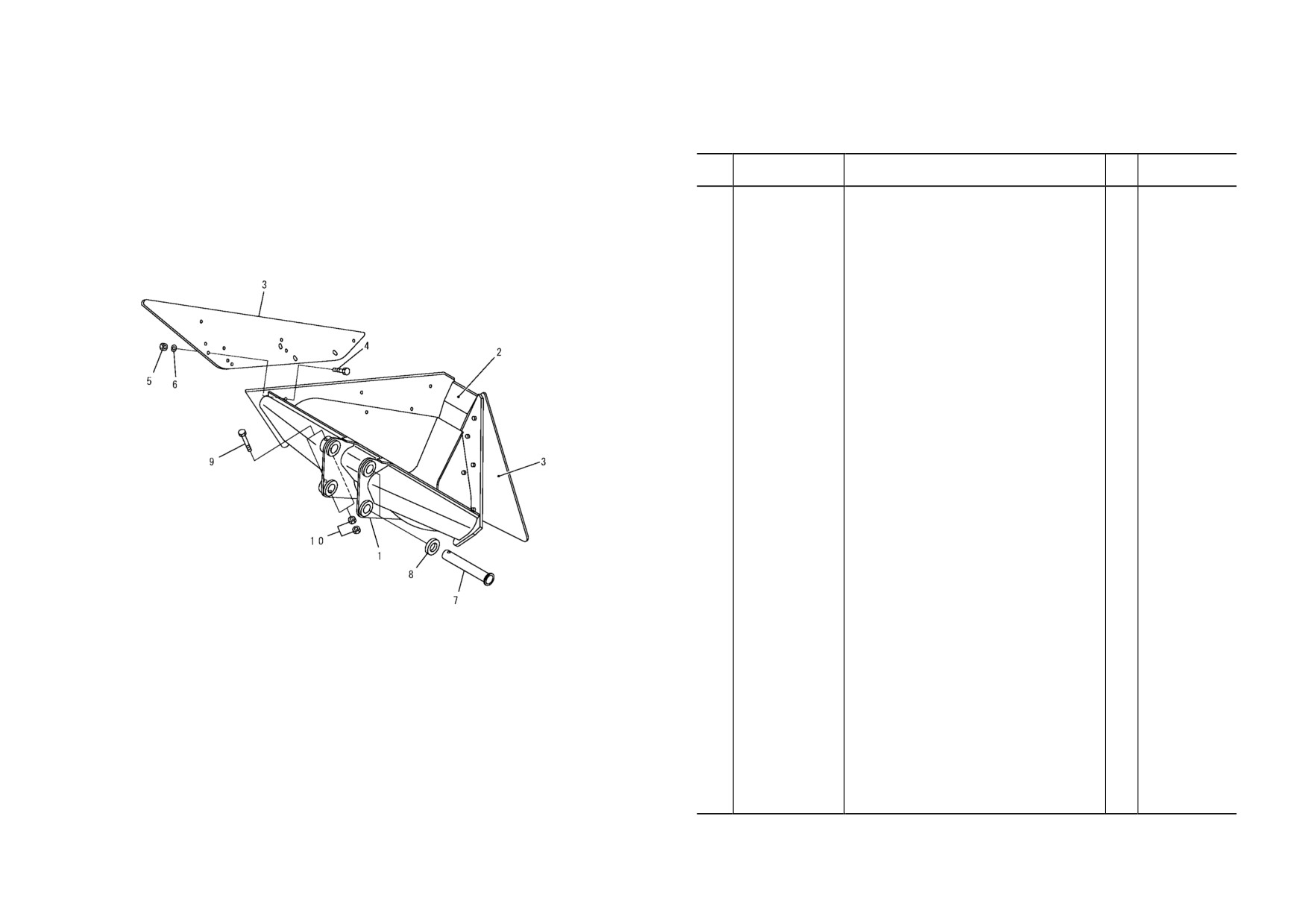

FIG NO. ：T1510-01A5
FIG. T1510-01A5 TRAPEZOIDAL BUCKET (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
205-929-6210
BUCKET
1
DBB0001~
2
205-929-6120
. PLATE (WELDED)
1
DBB0001~
3
205-929-6130
PLATE
2
DBB0001~
4
01010-82460
BOLT
12
DBB0001~
5
01580-12419
NUT
12
DBB0001~
6
01643-32460
WASHER
12
DBB0001~
7
205-70-73270
PIN
1
DBB0001~
8
205-70-74410
COLLAR
1
DBB0001~
9
205-70-73190
BOLT
2
DBB0001~
10
01580-12016
NUT
4
DBB0001~
PWL4298
TO- 74
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 75
FIG NO. ：T1510-01A6

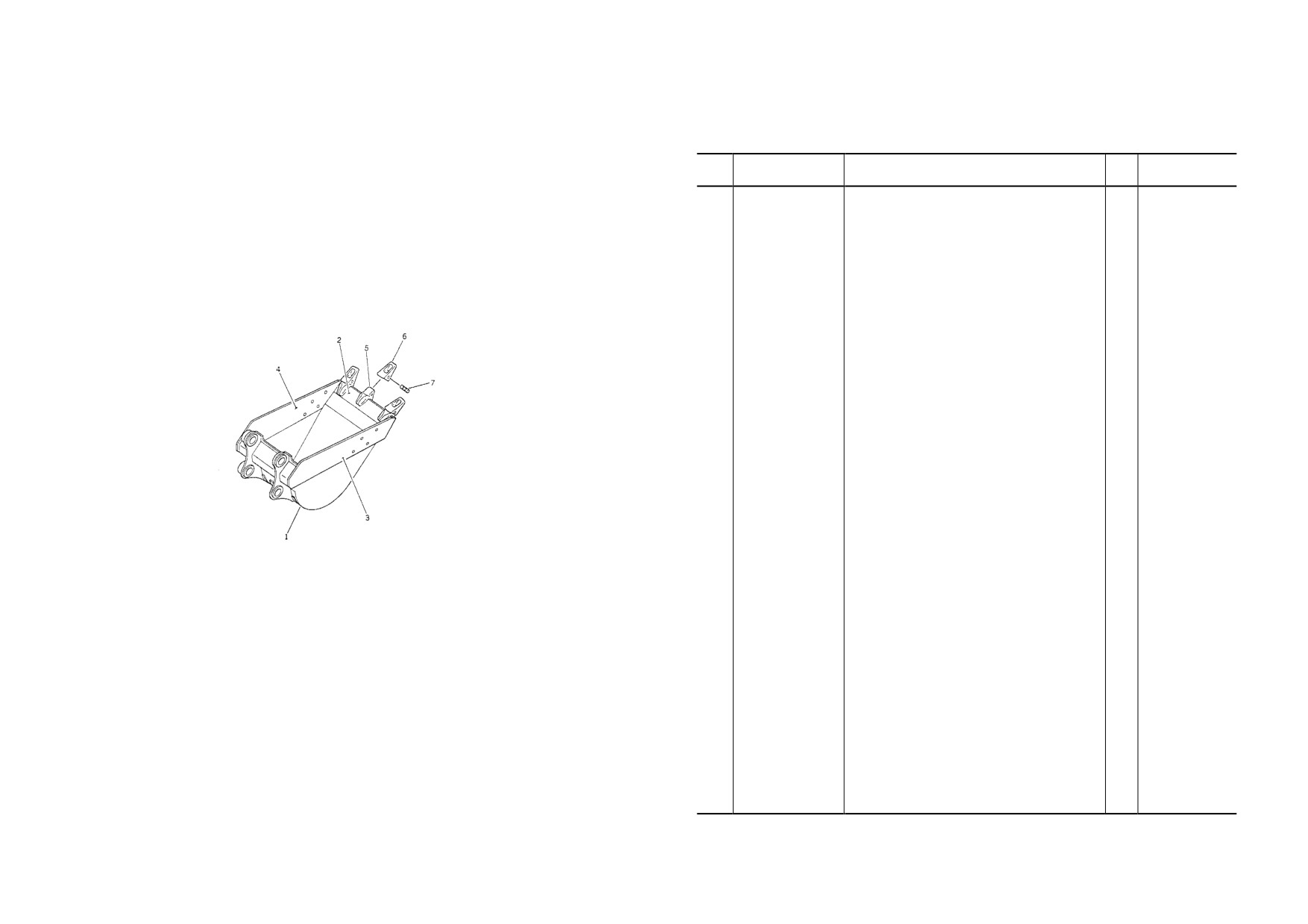

FIG. T1510-01A6 DITCH CLEANING BUCKET, 0.8M3, 1800 MM (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
205-938-7111
BUCKET
1
DBB0001~
2
205-938-6220
. PLATE (WELDED)
1
DBB0001~
3
205-938-6230
. PLATE, L. H (WELDED)
1
DBB0001~
4
205-938-6240
. PLATE, R. H (WELDED)
1
DBB0001~
TO- 76
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 77
FIG NO. ：T1510-01A7

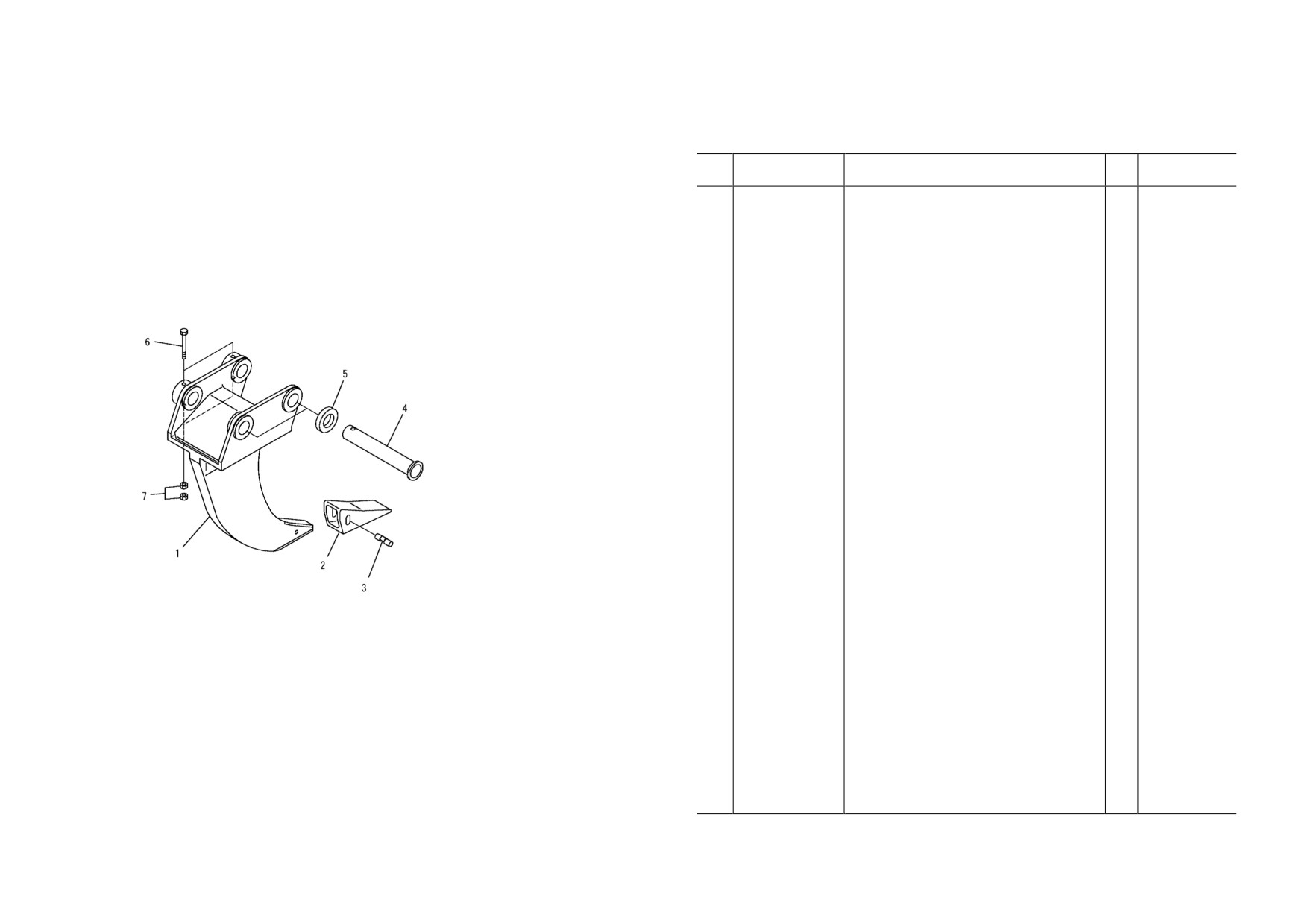

FIG. T1510-01A7 SINGLE SHANK RIPPER
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
205-950-0012
RIPPER ASS' Y
1
DBB0001~
1
☆
. RIPPER
1
DBB0001~
2
175-78-31230
. POINT
1
DBB0001~
3
09244-02508
. PIN
1
DBB0001~
4
205-70-73270
PIN
1
DBB0001~
5
205-70-74410
COLLAR
1
DBB0001~
6
205-70-73190
BOLT
2
DBB0001~
7
01580-12016
NUT
4
DBB0001~
PWL4299
TO- 78
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 79
FIG NO. ：T1510-01A8

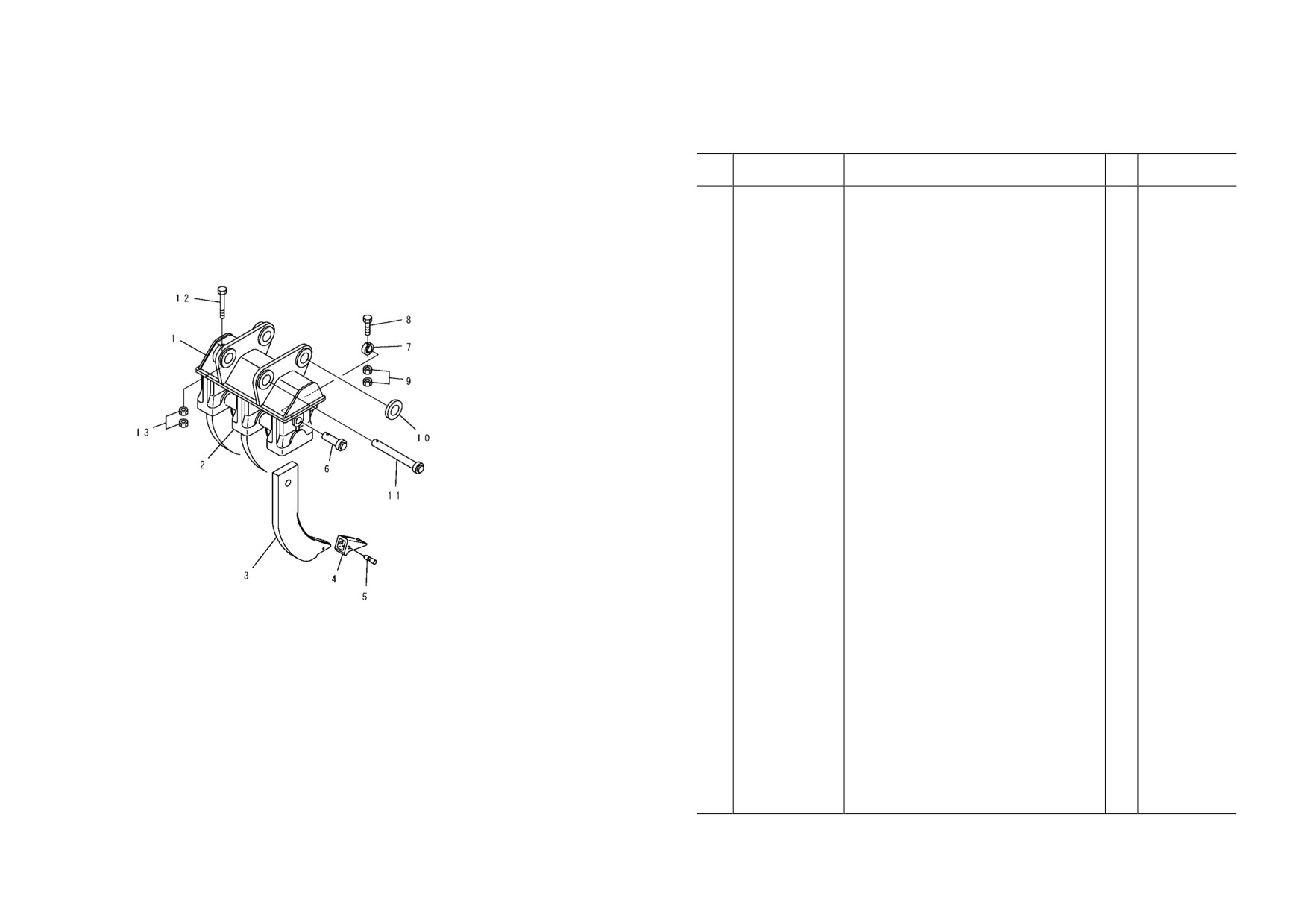

FIG. T1510-01A8 THREE SHANK RIPPER
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
205-951-0013
RIPPER ASS' Y
1
DBB0001~
1
☆
. BRACKET
1
DBB0001~
2
205-951-6120
..HOLDER
3
DBB0001~
205-951-0020
. SHANK ASS' Y
3
DBB0001~
3
☆
.. SHANK
1
DBB0001~
4
131-78-31190
.. POINT
1
DBB0001~
5
09244-02489
.. PIN
1
DBB0001~
6
205-951-6140
. PIN
1
DBB0001~
7
205-951-6150
. COLLAR
1
DBB0001~
8
01019-11205
. BOLT
1
DBB0001~
9
01580-11210
. NUT
2
DBB0001~
10
205-70-73270
PIN
1
DBB0001~
11
205-70-74410
COLLAR
1
DBB0001~
12
205-70-73190
BOLT
2
DBB0001~
13
01580-12016
NUT
4
DBB0001~
PWL1475
TO- 80
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 81
FIG NO. ：T1510-01B2

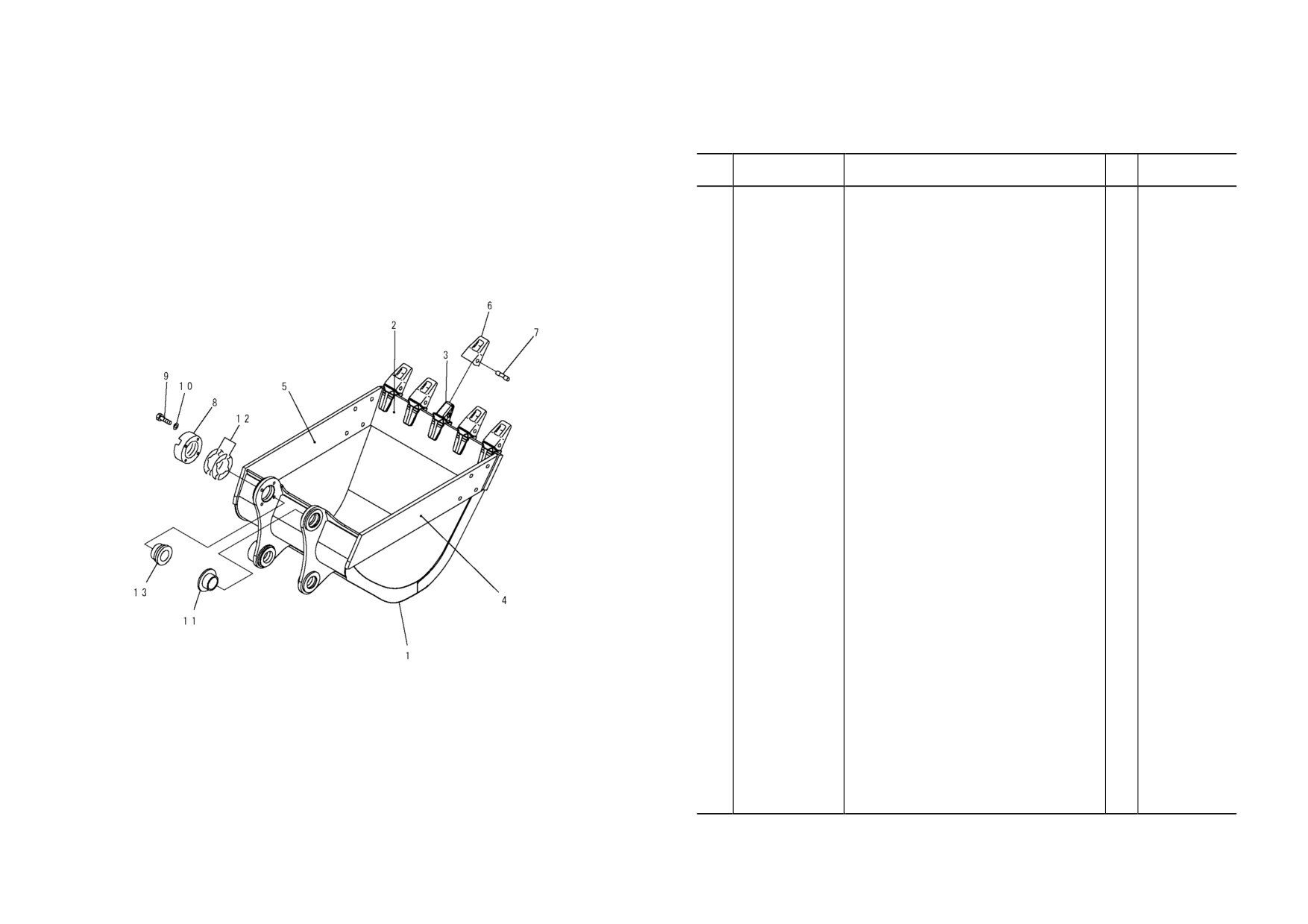

FIG. T1510-01B2 BUCKET, 1.0M3 (HORIZONTAL PIN TYPE) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-920-3530
BUCKET
1
DBB0001~
2
20Y-920-3540
. PLATE (WELDED)
1
DBB0001~
3
20Y-70-34320
. PLATE, L. H (WELDED)
1
DBB0001~
4
20Y-70-34330
. PLATE, R. H (WELDED)
1
DBB0001~
5
20Y-70-14520
. ADAPTER (WELDED)
6
DBB0001~
6
205-70-19570
TOOTH
6
DBB0001~
7
09244-02496
PIN
6
DBB0001~
8
205-70-74391
PLATE
1
DBB0001~
9
01010-62055
BOLT
4
DBB0001~
10
01643-32060
WASHER
4
DBB0001~
11
20Y-70-34221
BUSHING
1
DBB0001~DBB4708
20Y-70-32420
BUSHING
1
DBB4709~
12
205-70-00100
SHIM ASS' Y
1
DBB0001~
13
20Y-70-34211
BUSHING
1
DBB0001~DBB4708
205-70-74381
BUSHING
1
DBB4709~
X990001910
BUCKET UNIT
1
DBB0001~
1
20Y-920-3530
. BUCKET
1
DBB0001~
13
20Y-70-34211
. BUSHING
1
DBB0001~DBB4708
205-70-74381
. BUSHING
1
DBB4709~
TO- 88
PC200/210(LC)-7
PC200/210(LC)-7
TO- 89
FIG NO. ：T1510-01B5
FIG.

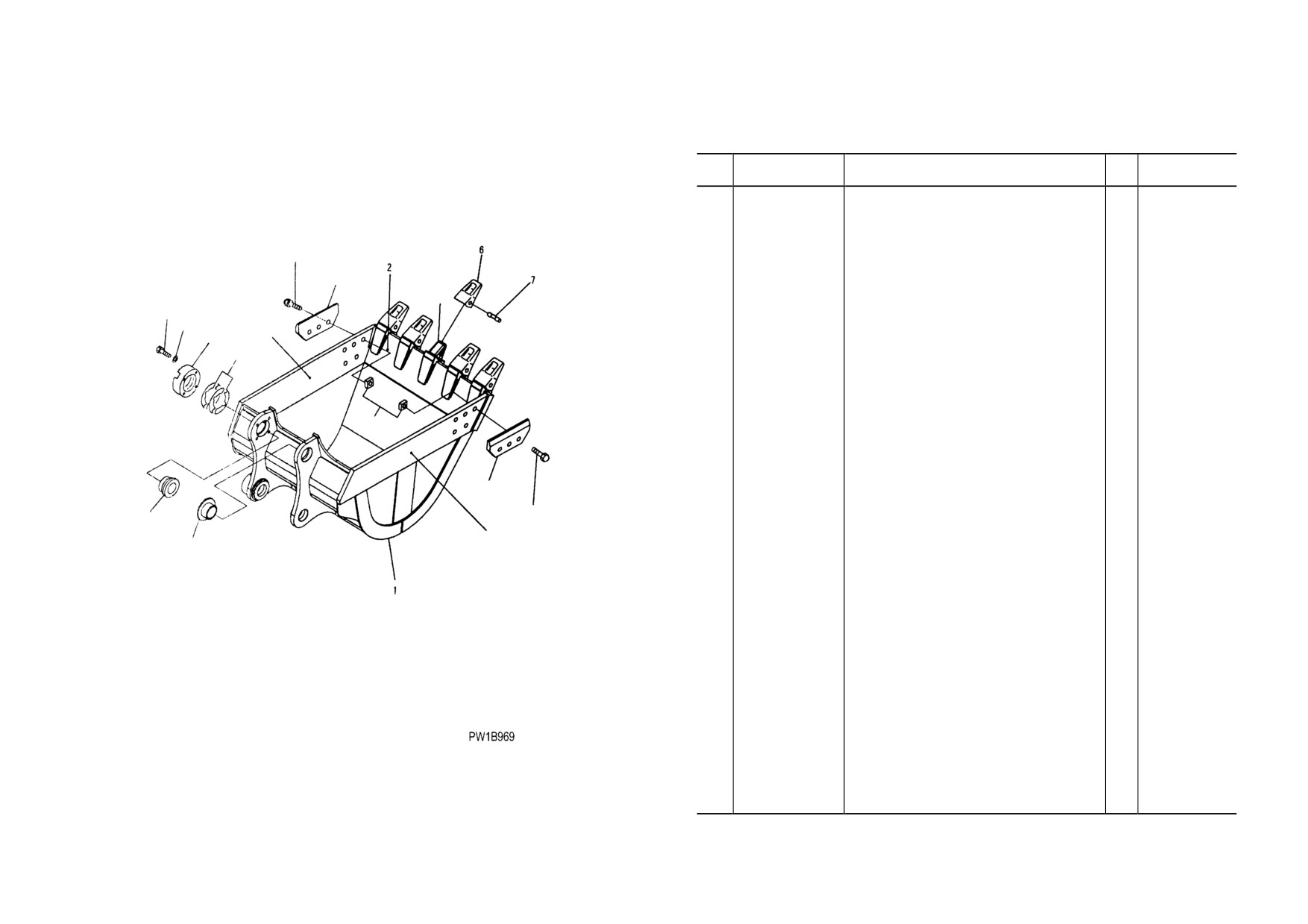

T1510-01B5 BUCKET, 0.8M3 (HORIZONTAL PIN TYPE)
（PC200, 200LC-7）
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-70-34410
BUCKET
1
DBB0001~
2
20Y-70-34420
. PLATE (WELDED)
1
DBB0001~
3
20Y-70-14520
. ADAPTER (WELDED)
5
DBB0001~
4
20Y-70-34121
. PLATE, L. H (WELDED)
1
DBB0001~
5
20Y-70-34131
. PLATE, R. H (WELDED)
1
DBB0001~
6
205-70-19570
TOOTH
5
DBB0001~
7
09244-02496
PIN
5
DBB0001~
8
205-70-74391
PLATE
1
DBB0001~
9
01010-62055
BOLT
4
DBB0001~
10
01643-32060
WASHER
4
DBB0001~
11
20Y-70-34221
BUSHING
1
DBB0001~
12
205-70-00100
SHIM ASS' Y
1
DBB0001~
13
20Y-70-34211
BUSHING
1
DBB0001~
X990001890
BUCKET UNIT
1
DBB0001~
1
20Y-70-34410
. BUCKET
1
DBB0001~
13
20Y-70-34211
. BUSHING
1
DBB0001
PW1B968
TO- 94
PC200, 200LC-7
PC200, 200LC-7
TO- 95
FIG NO. ：T1510-01B6

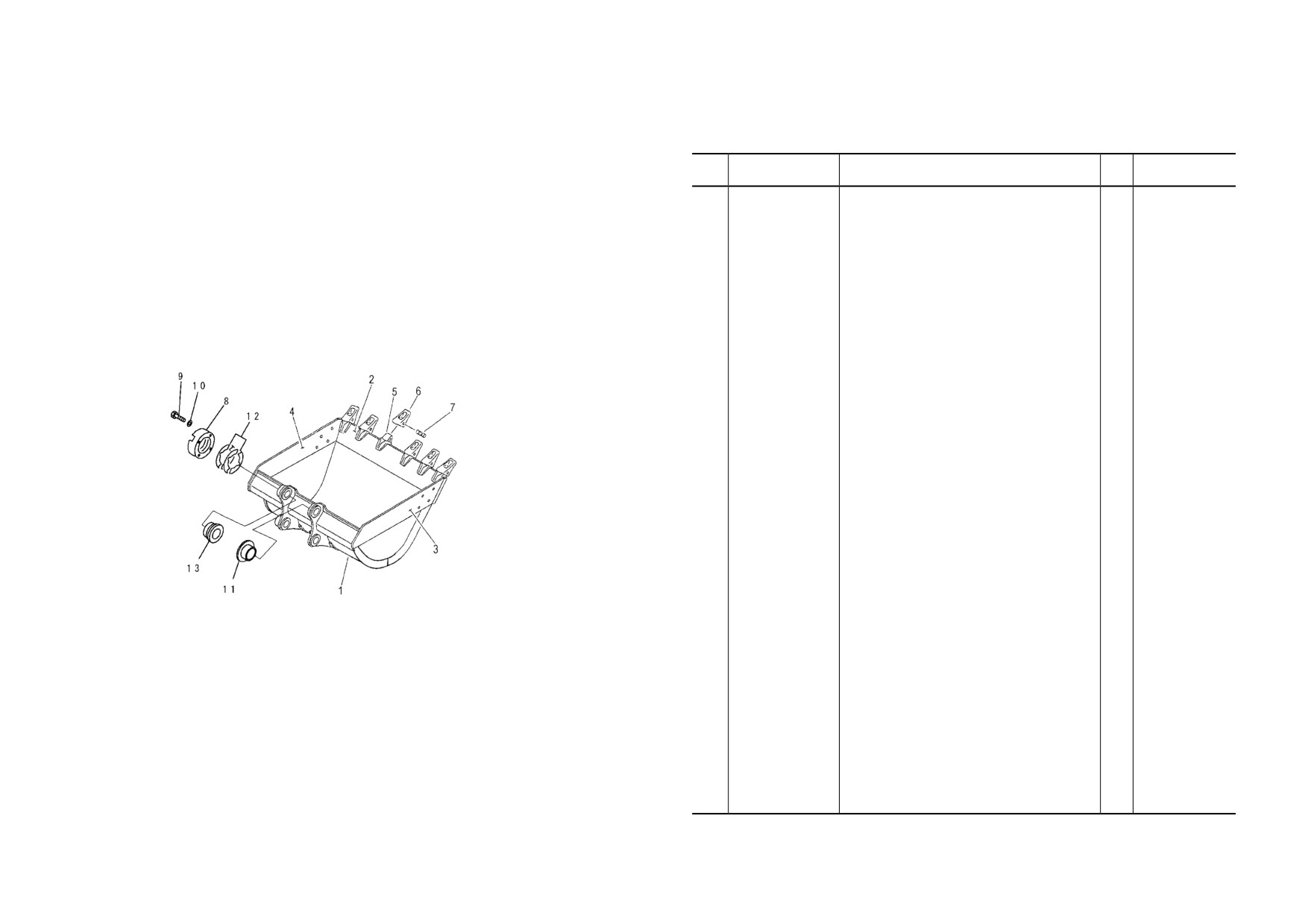

FIG. T1510-01B6 BUCKET, 0.8M3 (ROCKTYPE) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-934-3210
BUCKET
1
DBB0001~
2
20Y-934-3220
. PLATE (WELDED)
1
DBB0001~
3
20Y-934-2211
. ADAPTER (WELDED)
5
DBB0001~
15
4
20Y-934-2130
. PLATE, L. H (WELDED)
1
DBB0001~
14
5
20Y-934-2140
. PLATE, R. H (WELDED)
1
DBB0001~
3
6
205-70-19570
TOOTH
5
DBB0001~
9
10
7
09244-02496
PIN
5
DBB0001~
5
8
8
205-70-74391
PLATE
1
DBB0001~
12
9
01010-62055
BOLT
4
DBB0001~
10
01643-32060
WASHER
4
DBB0001~
11
20Y-70-34221
BUSHING
1
DBB0001~
12
205-70-00100
SHIM ASS' Y
1
DBB0001~
16
13
20Y-70-34211
BUSHING
1
DBB0001~
14
20Y-934-2150
SHROUD
2
DBB0001~
15
209-32-11234
BOLT
6
DBB0001~
14
16
195-32-11222
WASHER
6
DBB0001~
15
13
4
11
X990001920
BUCKET UNIT
1
DBB0001~
1
20Y-934-3210
. BUCKET
1
DBB0001~
13
20Y-70-34211
. BUSHING
1
DBB0001~
TO- 96
PC200/210(LC)-7
PC200/210(LC)-7
TO- 97
