Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 22

FIG NO. ：K1110-05A0

FIG. K1110-05A0 AIR CONDITIONER (DOOR)

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

(208-53-00270)

CAB ASS’Y

1

DBB4709~

208-53-00010

. DOOR ASS’Y

1

DBB4709~

1

☆

.. DOOR

1

DBH0001~

20Y-54-51401

.. SASH ASS’Y

1

DBB0001~

2

☆

SASH FRAME

1

DBB0001~

3

20Y-54-52840

GLASS

1

DBB0001~

4

20Y-54-52850

GLASS

1

DBB0001~

5

20Y-54-52860

LOCK ASS’Y

1

DBB0001~

6

20Y-54-52870

SEAL

1

DBB0001~

7

20Y-54-52880

SEAL

1

DBB0001~

8

20Y-54-13322

LOCK

1

DBB0001~

9

20Y-54-13180

.. SEAT

12

DBB0001~

10

20Y-54-51470

.. TRIM

1

DBB0001~

11

20Y-54-51451

.. GLASS

1

DBB0001~

12

20Y-54-51461

.. SEAL, DOOR, LOWER

1

DBB0001~

13

20Y-54-51482

.. SEAL, DOOR

1

DBB0001~

14

20Y-54-51330

.. HINGE

1

DBB0001~

15

14X-911-1330

.. HINGE

1

DBB0001~

16

01435-41225

.. BOLT

6

DBB0001~

17

01435-01225

.. BOLT

6

DBB0001~

KO- 70

PC200,210(LC)-7

PC200,210(LC)-7

KO- 71

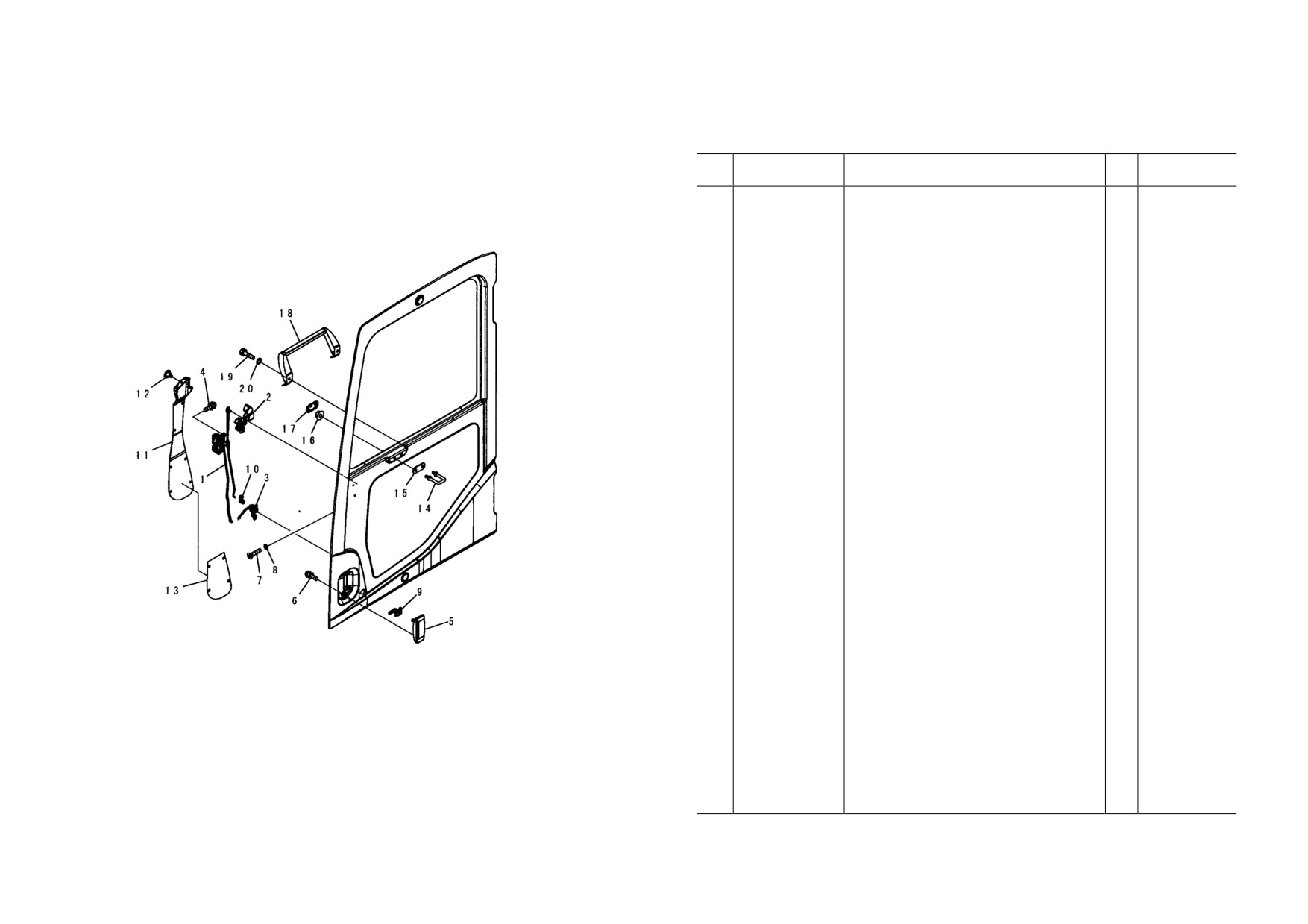

FIG NO. ：K1110-06A0

FIG. K1110-06A0 FLOOR FRAME (OPERATOR’S CAB) (DOOR COCK)

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

208-53-02700

CAB ASS’Y (KOMTRAX)

1

DBB4709~

208-53-00010

. DOOR ASS’Y

1

DBB4709~

1

20Y-54-52200

. .LATCH ASS’Y

1

DBB0001~

2

20Y-54-52300

. .HANDLE ASS’Y

1

DBB0001~

3

20Y-54-52400

. .BELLCRANK ASS’Y

1

DBB0001~

4

01023-10612

. .SCREW

5

DBB0001~

5

20Y-54-52990

. .HANDLE

1

DBB0001~

6

01023-10612

. .SCREW

2

DBB0001~

7

01240-00616

. .SCREW

3

DBB0001~

Door

8

195-Z11-1690

. .WASHER

3

DBB0001~

9

20Y-54-52820

. .LOCK ASS’Y

1

DBB0001~

10

22B-54-16330

. .SNAP

1

DBB4709~

11

20Y-54-51441

. .COVER

1

DBB0001~

12

22B-54-16461

. .RIVET

7

DBB0001~

13

208-53-11320

. .SEAL

1

DBB4709~

14

20Y-54-51321

. STRIKER

1

DBB0001~

15

20Y-54-51341

. PLATE

1

DBB0001~

16

01584-01008

. NUT

2

DBB0001~

17

20Y-54-51490

. .COVER

1

DBB0001~

18

20Y-54-51393

. .GRIP

1

DBB4709~

19

01010-80820

. .BOLT

2

DBB0001~

20

01643-30823

. .WASHER

2

DBB0001~

00011351

KO-72

PC200,210(LC)-7

PC200,210(LC)-7

KO-73

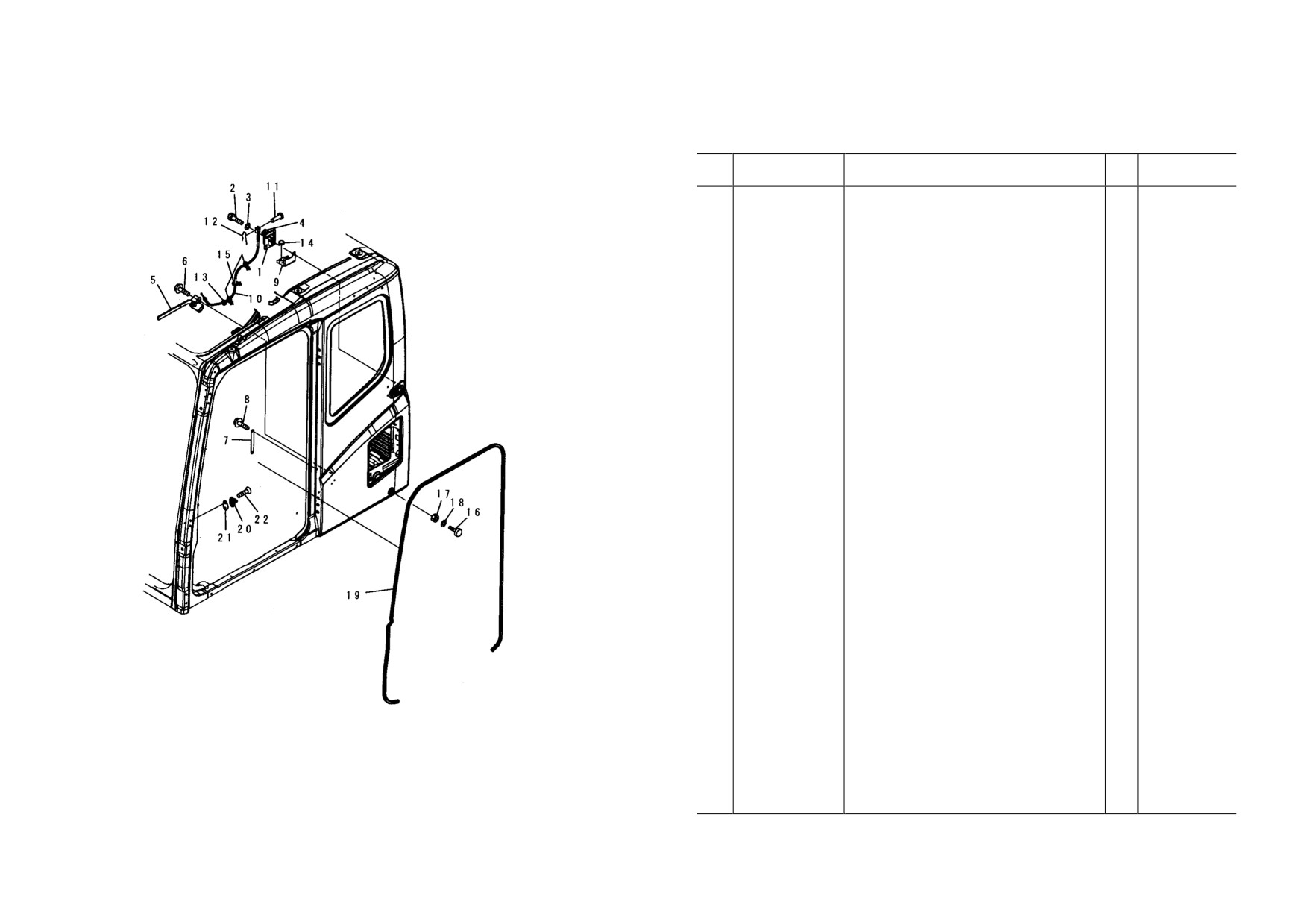

FIG NO. ：K1110-07A0

FIG. K1110-07A0 FLOOR FRAME (OPERATOR’S CAB) (OPEN LOCK)

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

(208-53-00270)

CAB ASS’Y (KOMTRAX)

1

DBB4709~

1

20Y-54-36380

. LOCK

1

DBB4709~

2

01010-D0820

. BOLT

4

DBB4709~

3

01643-70823

. WASHER

4

DBB4709~

4

20Y-54-51930

. COVER

1

DBB4709~

5

208-53-14540

. LEVER ASS’Y

1

DBB4709~

6

01435-40616

. BOLT

3

DBB4709~

7

208-53-14720

. BRACKET

1

DBB4709~

8

01435-40616

. BOLT

2

DBB4709~

9

208-53-11980

. PLATE

1

DBB4709~

10

208-53-11990

. CABLE

1

DBB4709~

11

04205-10520

. PIN

1

DBB4709~

12

04052-10530

. PIN

1

DBB4709~

13

08037-01610

. GROMMET

1

DBB4709~

14

09415-01610

. CAP

1

DBB4709~

15

08059-00413

. GLIP

3

DBB4709~

16

20Y-54-11611

. STOPPER

2

DBB4709~

17

01580-11008

. NUT

2

DBB4709~

18

01643-31032

. WASHER

2

DBB4709~

19

20Y-54-51910

. TRIM

1

DBB4709~

20

20Y-54-35470

. STRIKER

1

DBB4709~

21

20Y-54-35480

. SHIM

1

DBB4709~

22

01240-01025

. SCREW

2

DBB4709~

00011352

KO-74

PC200,210(LC)-7

PC200,210(LC)-7

KO-75

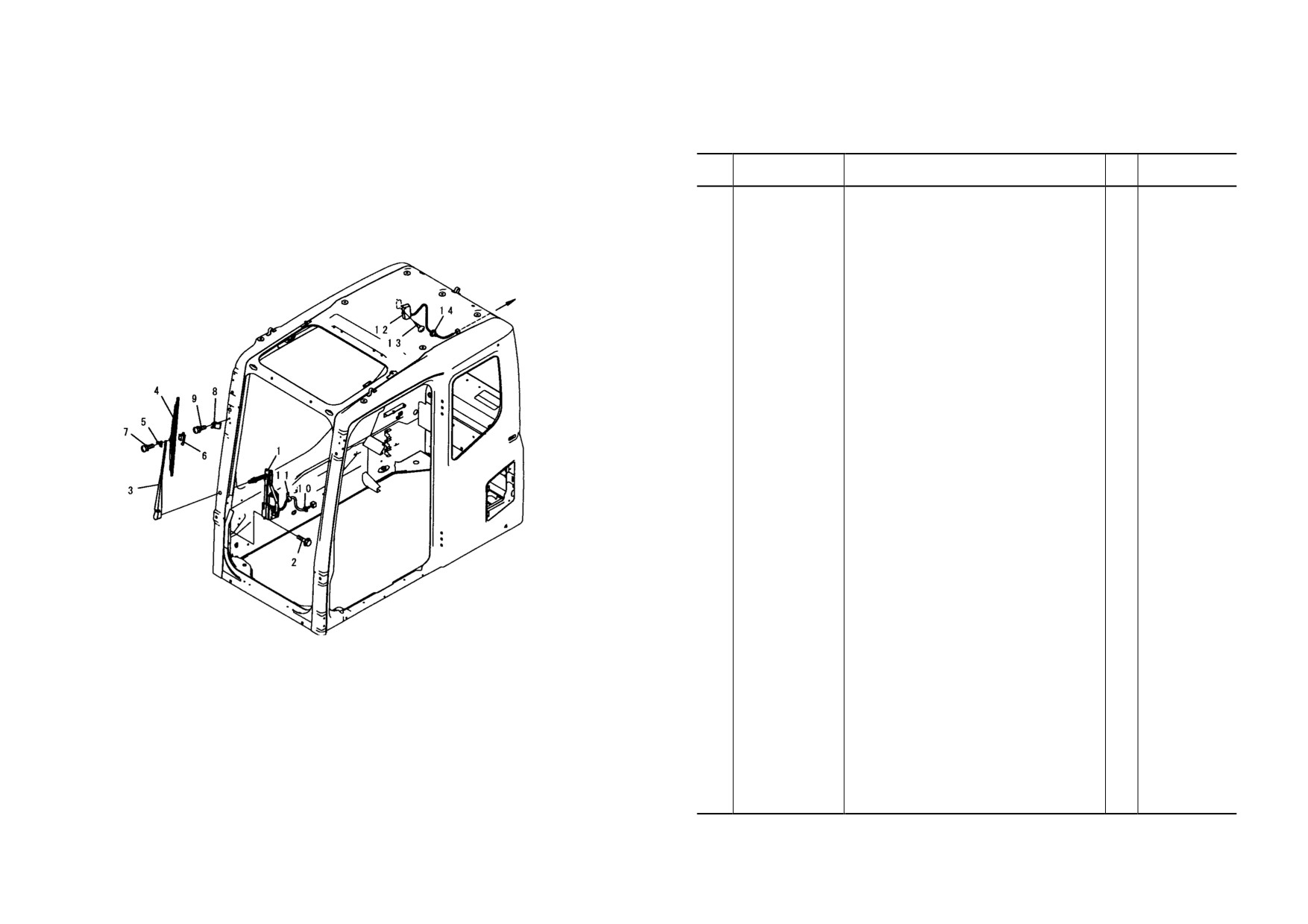

FIG NO. ：K1110-08A0

FIG. K1110-08A0 FLOOR FRAME (OPERATOR’S CAB) (ELECTRICAL) (WIPER AND ROOM LAMP)

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

(208-53-00270)

CAB ASS’Y (KOMTRAX)

1

DBB4709~

1

208-53-12780

. DOOR ASS’Y

1

DBB4709~

2

01435-40616

. BOLT

6

DBB4709~

20Y-54-52221

. WIPER ASS’Y

1

DBB0001~

3

20Y-54-52350

. ARM

1

DBB0001~

To Main Harness

4

20Y-54-39450

. . BLADE

1

DBB0001~

5

20Y-54-39460

. . SLIDER

1

DBB0001~

6

20Y-54-39480

. . PLATE

1

DBB0001~

7

ND949007-2350

. . SCREW AND WASHER

2

DBB0001~

8

20Y-54-52231

. STOPPER

1

DBB0001~

9

01023-20620

. SCREW

1

DBB0001~

10

08034-20414

. BAND

1

DBB4709~

11

08059-00310

. CLIP

1

DBB4709~

12

208-53-12790

. ROOM LAMP

1

DBB4709~

08116-02410

. . BULB,10W

1

DBB4709~

13

01370-00420

. SCREW

2

DBB4709~

14

08037-11025

. GROMMET

1

DBB4709~

00011353

KO-76

PC200,210(LC)-7

PC200,210(LC)-7

KO-77

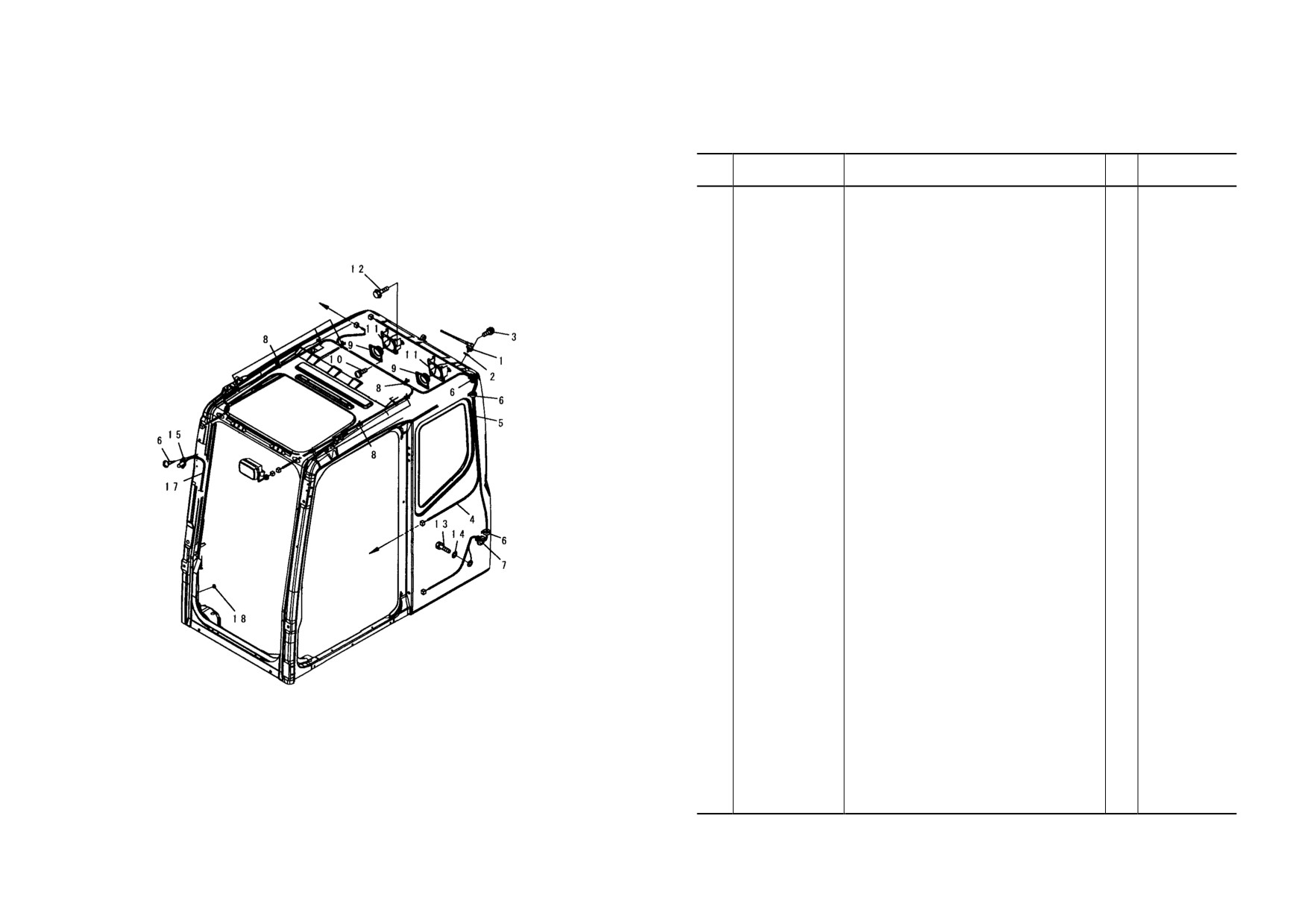

FIG NO. ：K1110-09A0

FIG.

K1110-09A0 FLOOR FRAME (OPERATOR’S CAB) (ELECTRICAL)

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

(208-53-00270)

CAB ASS’Y (KOMTRAX)

1

DBB4709~

1

(198-Z11-4610)

. RUBBER ANTENNA

1

DBB0001~

2

01643-30623

. GROMMET

1

DBB0001~

3

01023-20412

. SCREW

2

DBB0001~

4

20Y-54-52310

. WIRING HARNESS

1

DBB0001~

To Beacon:Lamp

5

20Y-54-52320

. .WIRING HARNESS

1

DBB0001~

6

08034-20414

. BAND

2

DBB4709~

7

08037-12536

. GROMMET

2

DBB0001~

8

08059-00413

. CLIP

8

DBB0001~

9

08910-10000

. SPEAKER

2

DBB4709~

10

01023-20412

. SCREW

8

DBB4709~

11

208-53-11480

. PLATE

2

DBB4709~

12

01435-40616

. BOLT

6

DBB4709~

13

01010-81020

. BOLT

1

DBB0001~

14

01643-31032

. WASHER

1

DBB0001~

15

20Y-54-39511

. NOZZLE

1

DBB0001~

16

01370-40412

. SCREW

2

DBB0001~

17

17M-911-2670

. HOSE

1

DBB0001~

18

08037-01610

. GROMMET

1

DBB0001~

To Main Harness

00011354

KO-78

PC200,210(LC)-7

PC200,210(LC)-7

KO-79

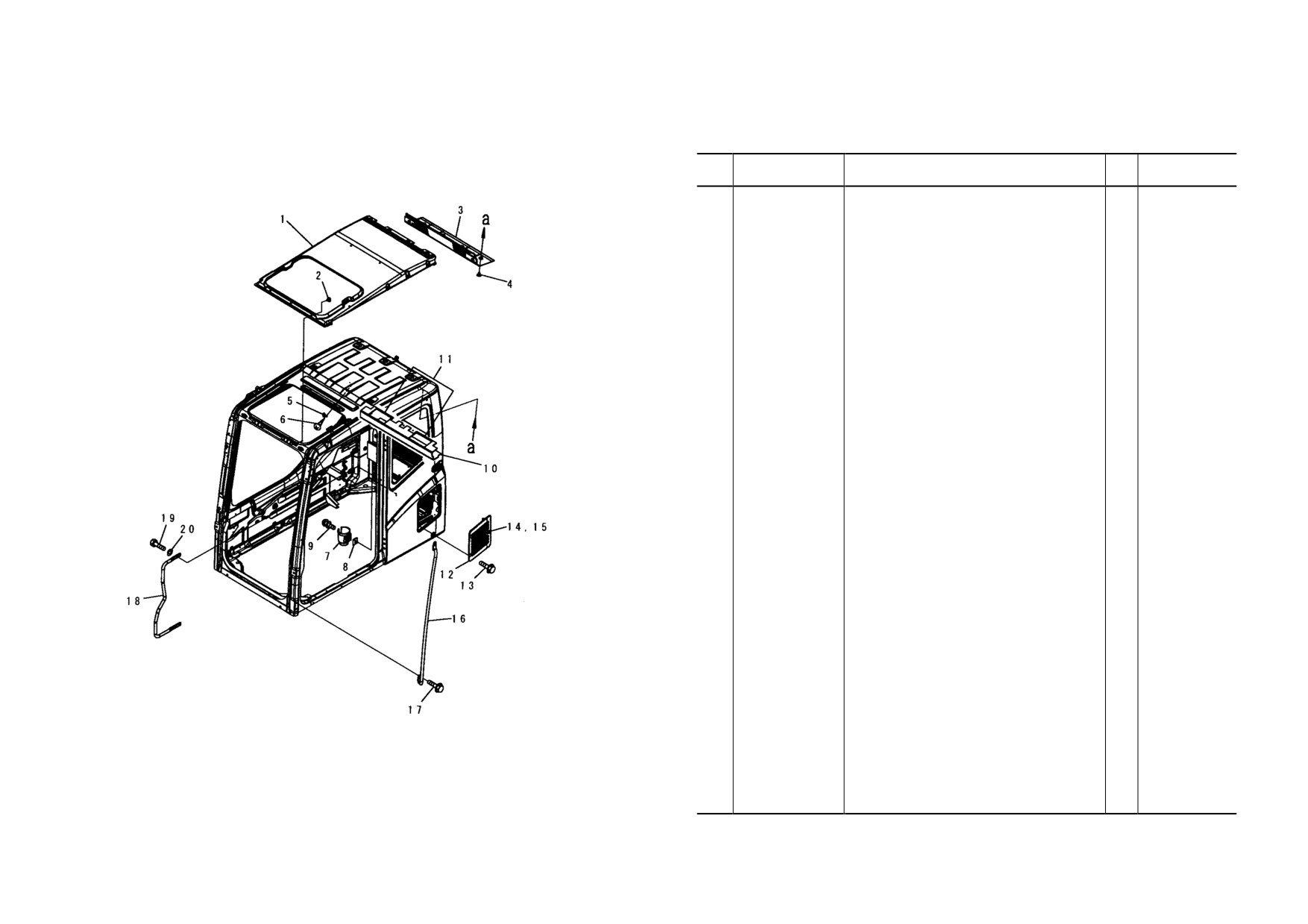

FIG NO. ：K1110-10A0

FIG. K1110-10A0 FLOOR FRAME (OPERATOR’S CAB ) (ACCESSORIES)

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

(208-53-00270)

CAB ASS’Y (KOMTRAX)

1

DBB4709~

1

20Y-54-52412

. COVER

1

DBB4709~

2

20Y-54-18690

. RIVET

15

DBB4709~

3

20Y-54-52423

. LINING

1

DBB4709~

4

20Y-54-18690

. RIVET

8

DBB4709~

5

205-54-51250

. HANGER

1

DBB4709~

6

01370-30412

. SCREW

2

DBB4709~

7

208-53-12991

. HOLDER

1

DBB4709~

8

208-53-12980

. PLATE

1

DBB4709~

9

01023-20616

. SCREW

2

DBB4709~

10

208-53-12470

. SEAL

1

DBB4709~

11

208-53-12810

. SEAT

2

DBB4709~

12

208-53-11750

. COVER

1

DBB4709~

13

01435-40610

. BOLT

4

DBB4709~

14

208-53-11760

. LOCK ASS’Y

1

DBB4709~

15

205-54-76280

. ROTOR ASS’Y

1

DBB4709~

16

20Y-54-51820

. GRIP

1

DBB4709~

17

01435-40820

. BOLT

4

DBB4709~

18

20Y-54-51832

. GRIP

1

DBB4709~

19

01010-D1020

. BOLT

3

DBB4709~

20

01643-71032

. WASHER

3

DBB4709~

00011355

KO-80

PC200,210(LC)-7

PC200,210(LC)-7

KO-81

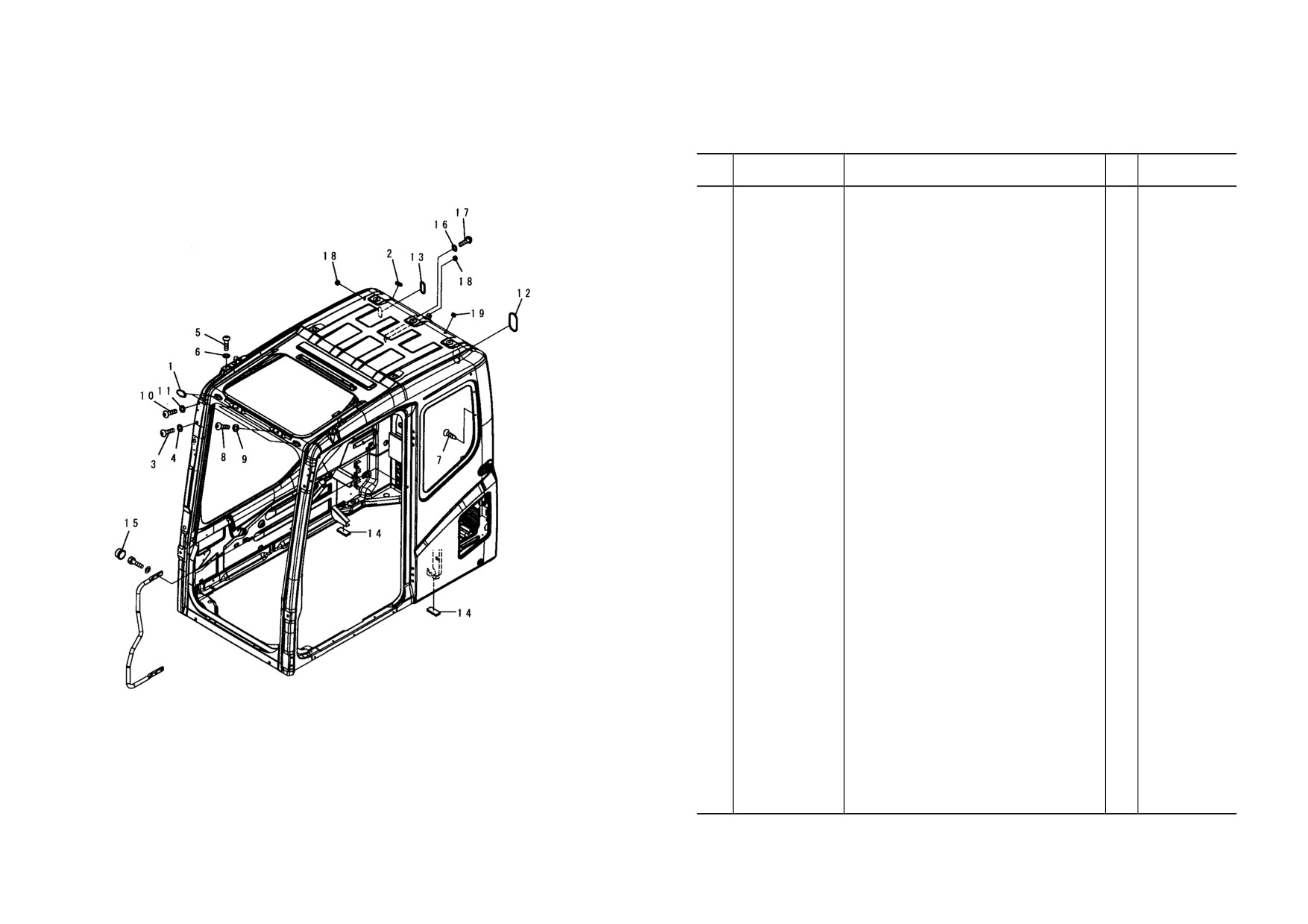

FIG NO. ：K1110-11A0

FIG. K1110-11A0 FLOOR FRAME (OPERATOR’ CAB) (PLUG BOLT)

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

(208-53-00270)

CAB ASS’Y, (VANDALISM PROTECTION)

1

DBB4709~

1

22B-54-17282

. CAP

2

DBB0001~

2

09415-02512

. CAP

1

DBB0001~

3

01245-01220

. SCREW

6

DBB0001~

4

01643-71232

. WASHER

6

DBB0001~

5

01245-01220

. SCREW

7

DBB0001~

6

01643-71232

. WASHER

7

DBB0001~

7

124-911-5750

. RIVET

2

DBB0001~

8

01245-01016

. SCREW

2

DBB0001~

9

01643-71032

. WASHER

2

DBB0001~

10

01245-00612

. SCREW

4

DBB0001~

11

01643-70623

. WASHER

4

DBB0001~

12

20Y-54-52470

. GROMMET

1

DBB0001~

13

20Y-54-36150

. GROMMET

1

DBB0001~

14

208-53-12580

. SEAL

2

DBB4709~

15

20Y-54-52440

. BRACKET, (FOR SHIPPING)

1

DBB0001~

16

01641-50608

. WASHER

2

DBB0001~

17

01245-00616

. SCREW

2

DBB0001~

18

09415-01008

. CAP

2

DBB4709~

19

09415-01008

. CAP

1

DBB4709~

00018342

KO-82

PC200,210(LC)-7

PC200,210(LC)-7

KO-83

FIG NO. ：K1110-12A0

FIG. K1110-12A0 FLOOR FRAME (OPERATOR’S CAB) (CLAMP AND PLATE)

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

(208-53-00270)

CAB ASS’Y (KOMTRAX)

1

DBB4709~

1

08034-20414

. BAND

2

DBB4709~

2

08034-20876

. BAND

1

DBB4709~

3

08034-20876

. BAND

2

DBB4709~

4

208-53-12620

. SEAL

1

DBB4709~

5

09970-00230

. PLATE, MARK

1

DBB4709~

See Fig. K1110-13D0

See Fig. K1110-14D0

See Fig. K1110-14D0

00018129

KO-84

PC200,210(LC)-7

PC200,210(LC)-7

KO-85

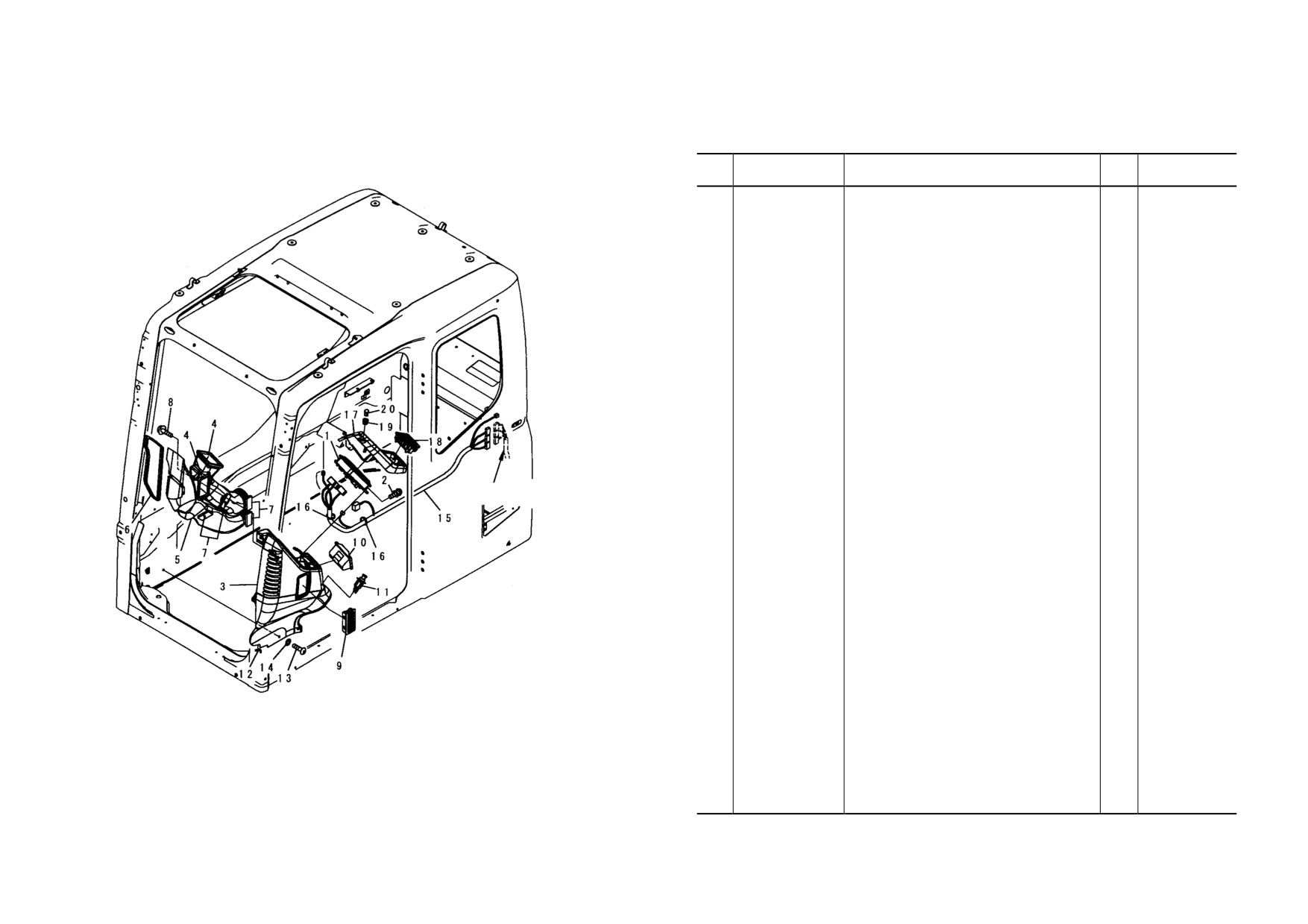

FIG NO. ：K1110-13A0

FIG. K1110-13A0 FLOOR FRAME (OPERATOR’S CAB) (MONITOR SYSTEM)

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

(7835-12-3000)

MONITOR

1

DBB0001~

2

01023-10616

SCREW

3

DBB0001~

3

208-53-12152

COVER

1

DBB4709~

4

208-53-11941

SEAL

2

DBB4709~

5

208-53-12310

DUCT

1

DBB4709~

6

208-53-11920

SEAL

1

DBB4709~

7

208-53-12440

SEAL

7

DBB4709~

8

01435-00612

BOLT

2

DBB4709~

9

421-07-33870

GRILLE ASS’Y

1

DBB4709~

10

22U-54-25371

ASHTRAY

1

DBB4709~

11

20Y-06-23472

LIGHTER

1

DBB4709~

12

208-53-11850

GROMMET

1

DBB4709~

13

01245-00816

SCREW

5

DBB4709~

14

01643-70823

WASHER

5

DBB4709~

15

208-53-12920

WIRING HARNESS

1

DBB4709~

16

08034-20876

BAND

2

DBB4709~

17

20Y-54-65580

COVER ASS’Y

1

DBB4709~

18

201-979-7820

GRILLE

1

DBB4709~

19

20Y-54-65310

ADAPTER

1

DBB4709~

20

20Y-979-6161

SENSOR

1

DBB0001~

00018130

KO-86

PC200,210(LC)-7

PC200,210(LC)-7

KO-87

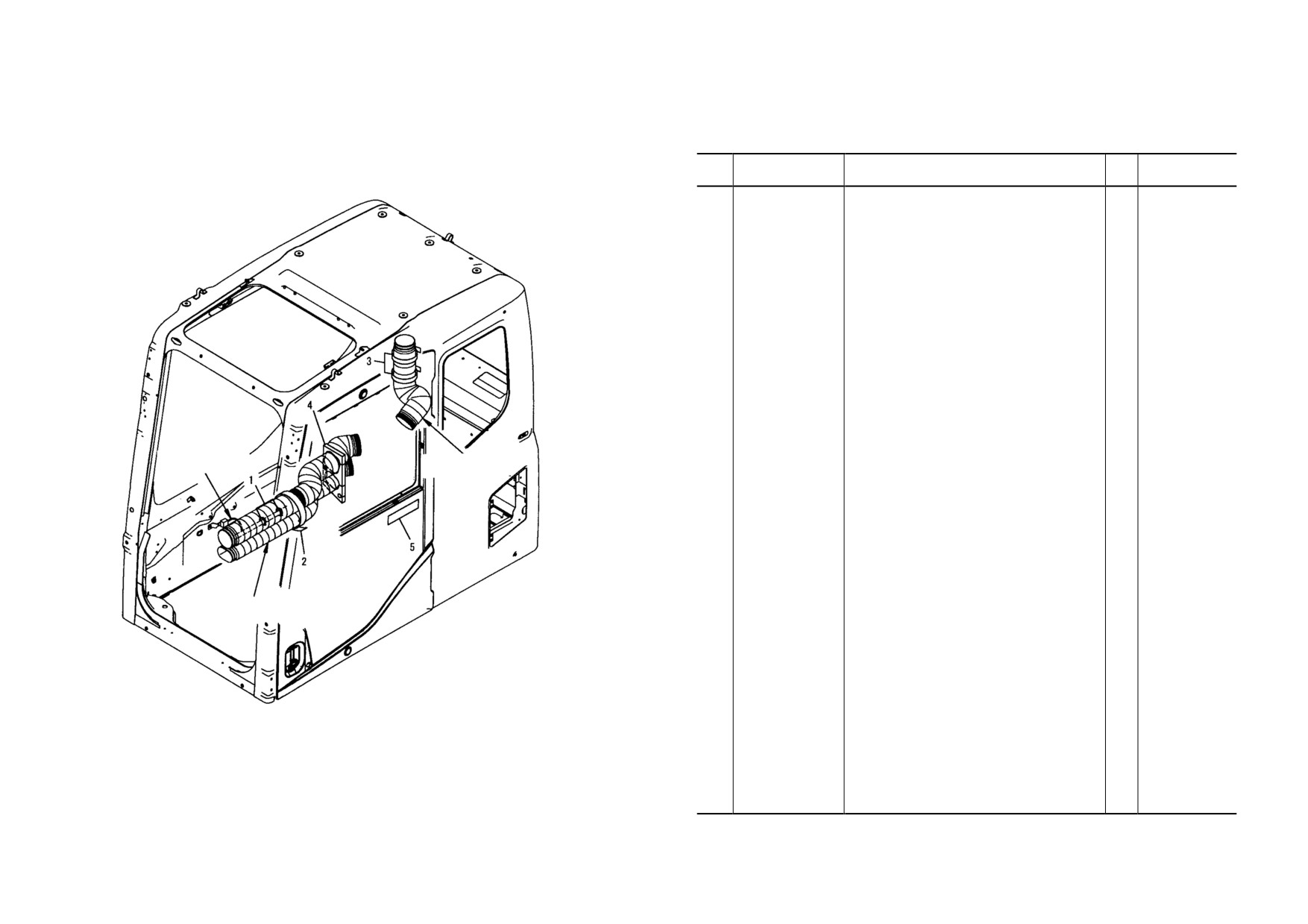

FIG NO. ：K1110-14D0

FIG. K1110-14D0 FLOOR FRAME (OPERATOR’S CAB) (PLATE AND DUCT))

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

208-53-13770

PLATE

1

DBB4709~

2

01010-D0820

BOLT

2

DBB4709~

3

01643-70823

WASHER

2

DBB4709~

4

208-53-12180

COVER

1

DBB4709~

5

01245-00816

SCREW

3

DBB4709~

6

01643-70823

WASHER

3

DBB4709~

7

208-53-12190

COVER

1

DBB4709~

8

01010-00820

BOLT

3

DBB4709~

9

01643-70823

WASHER

3

DBB4709~

10

208-53-12220

DUCT

2

DBB4709~

11

208-53-12260

DUCT

2

DBB4709~

12

208-53-12120

DUCT

1

DBB4709~

13

208-53-12170

DUCT

1

DBB4709~

14

208-53-12520

DUCT

1

DBB4709~

See Fig.K1110-13D0

15

208-53-12680

CLIP

1

DBB4709~

16

17M-911-3530

ELEMENT

1

DBB4709~

17

208-53-12220

DUCT

1

DBB4709~

18

208-53-12120

DUCT

1

DBB4709~

19

208-53-12432

HOSE

1

DBB4709~

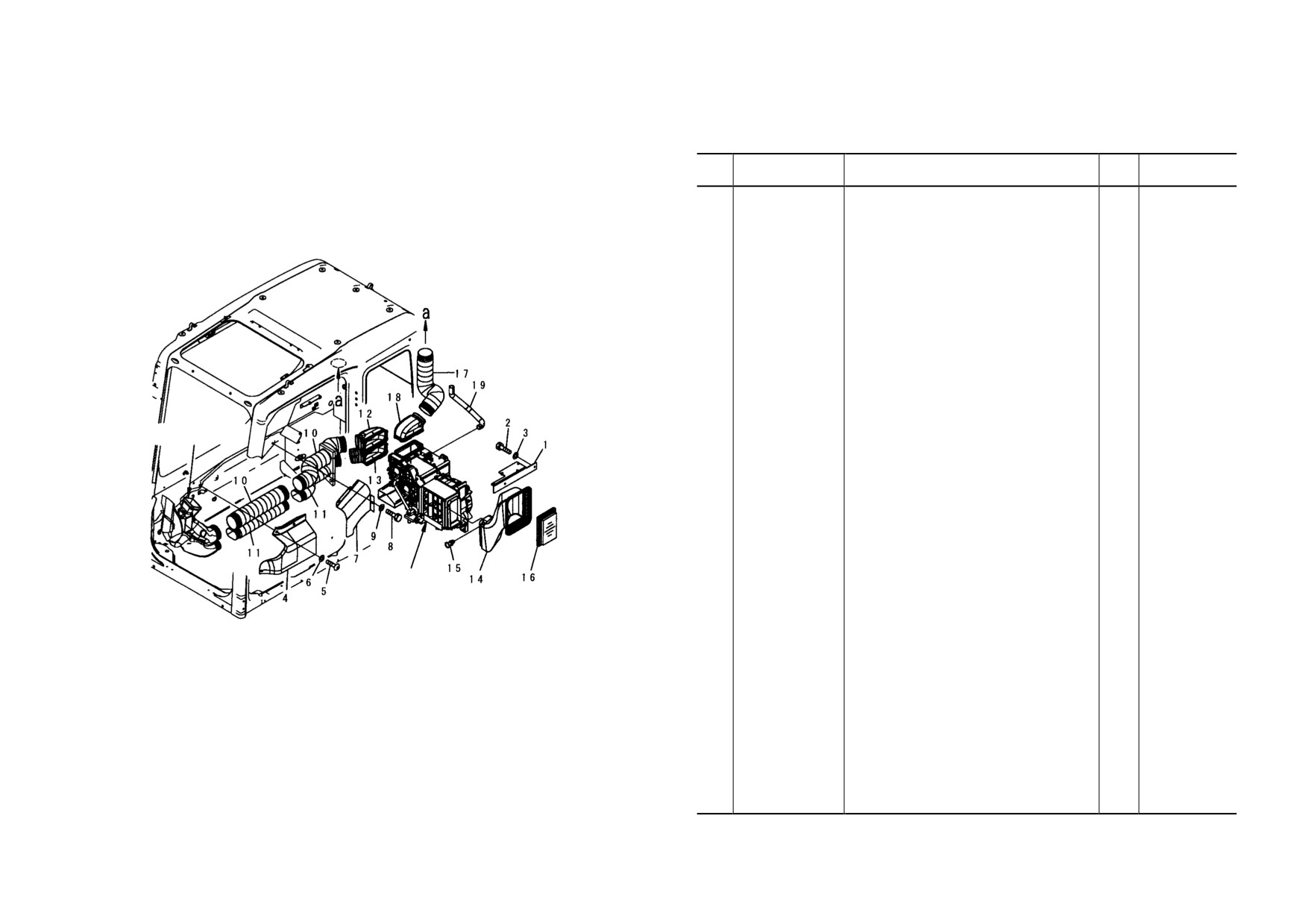

Air Conditione

00018131

KO-88

PC200,210(LC)-7

PC200,210(LC)-7

KO-89

Content      ..     20      21      22      23     ..
