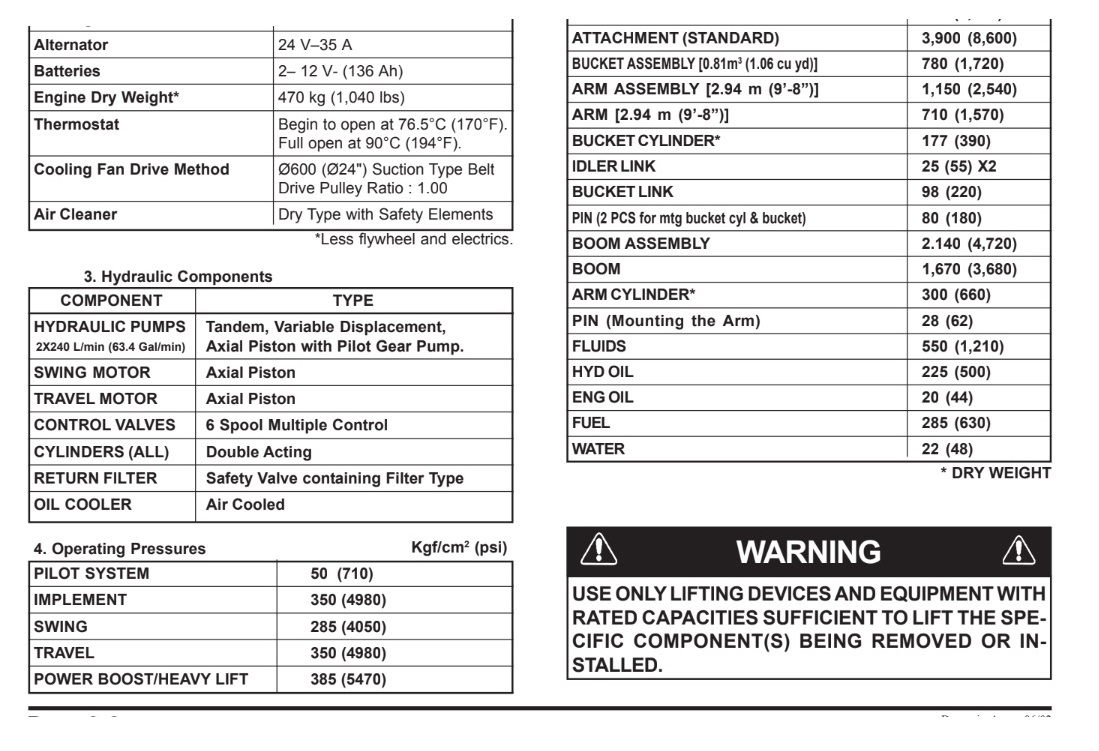

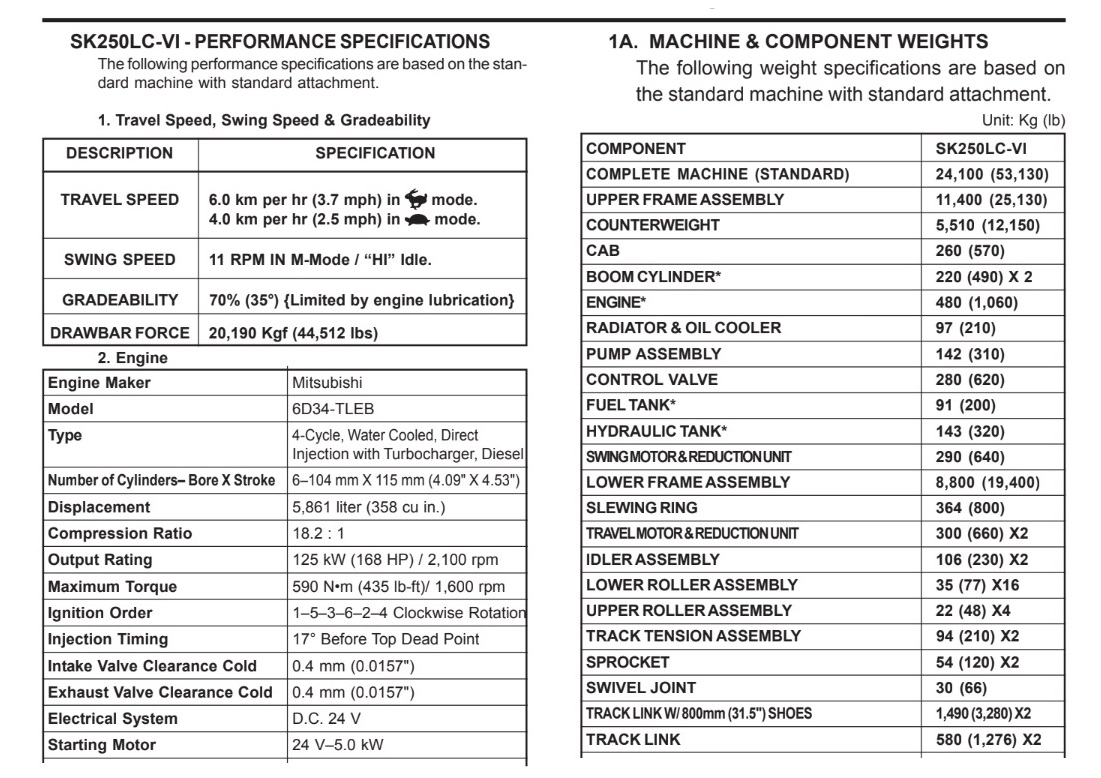

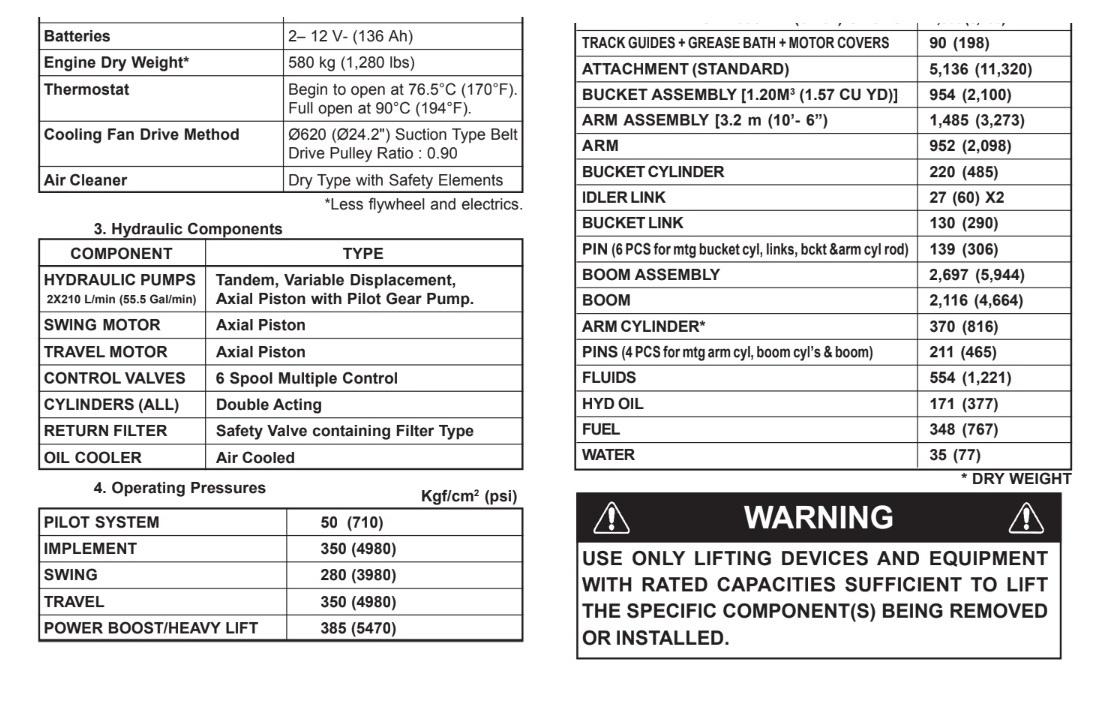

SK250LC-VI - PERFORMANCE SPECIFICATIONS

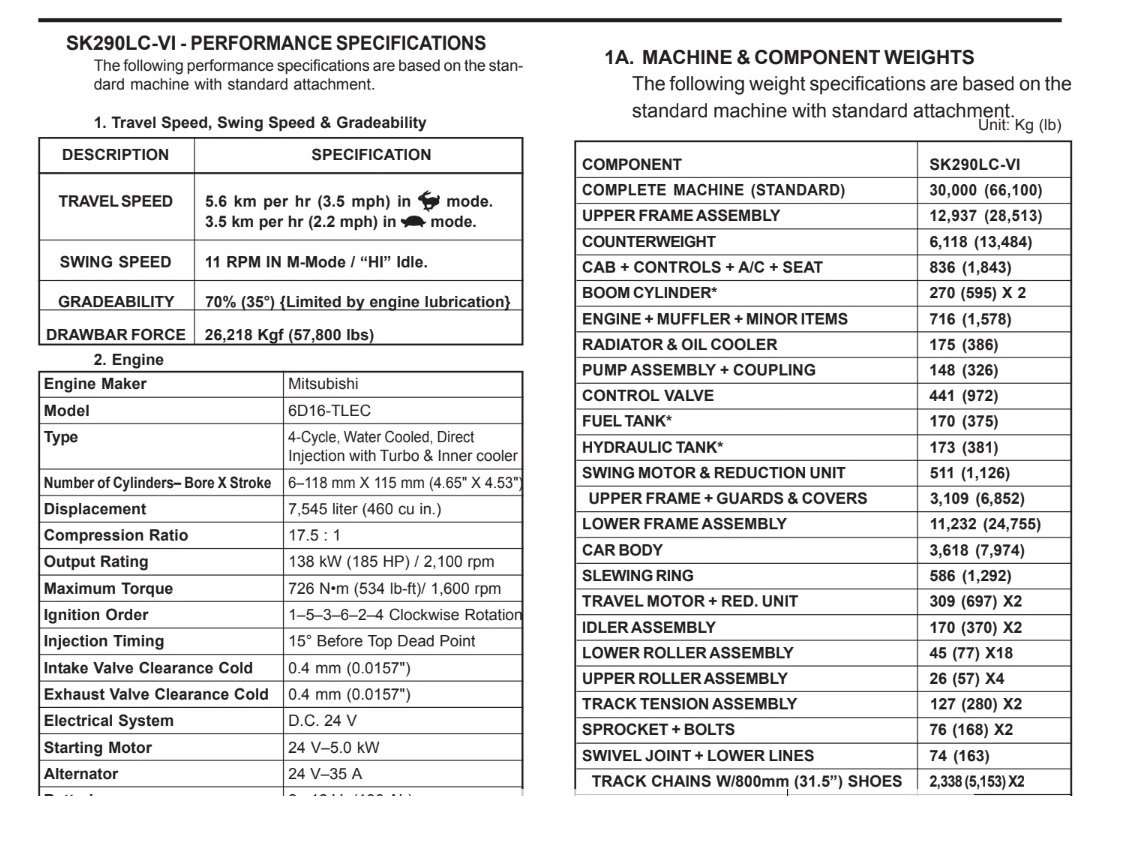

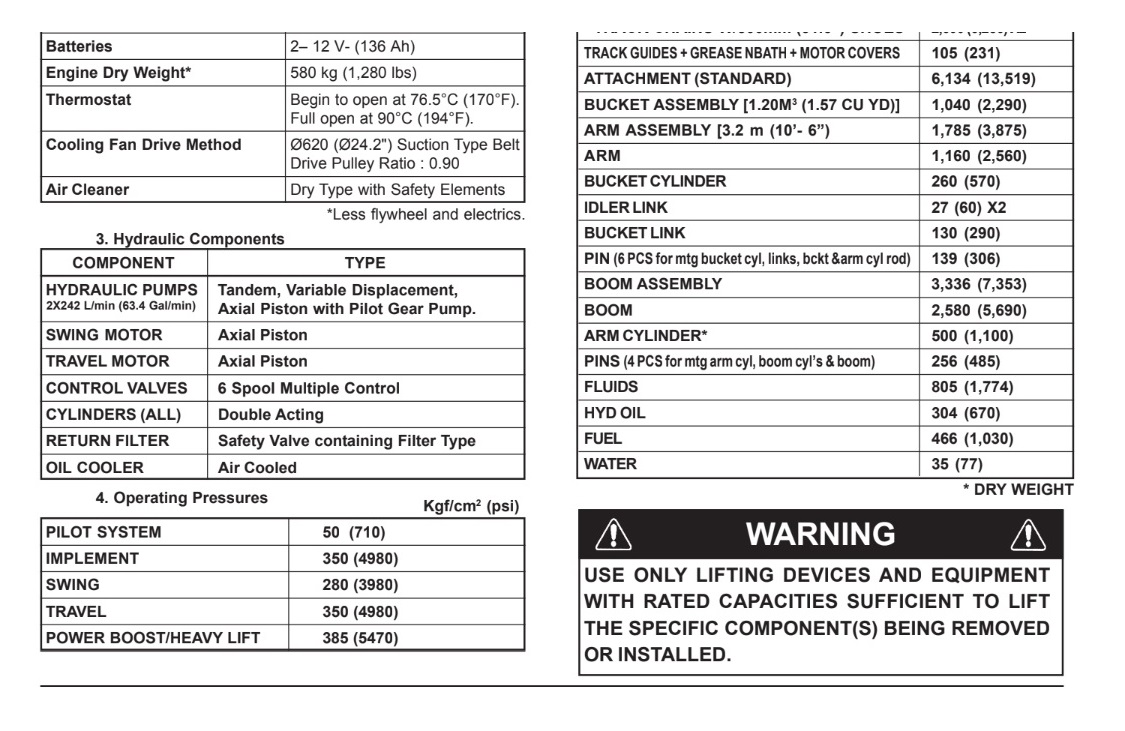

SK290LC-VI - PERFORMANCE SPECIFICATIONS

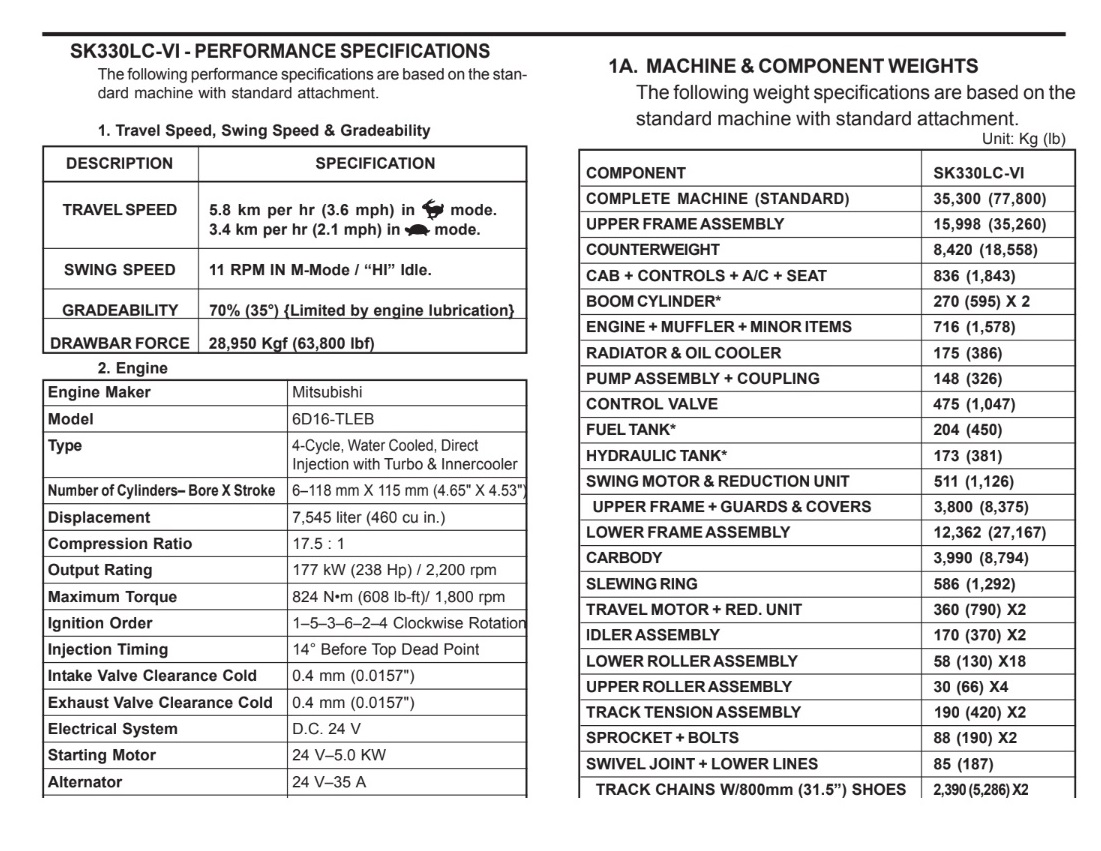

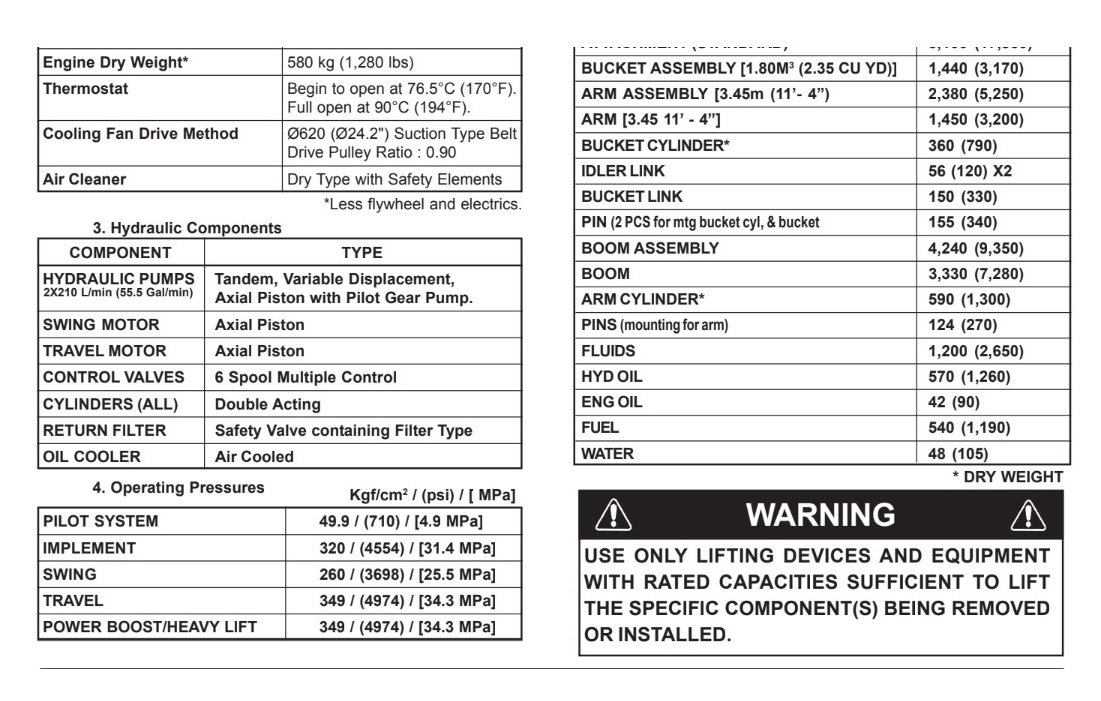

SK330LC-VI - PERFORMANCE SPECIFICATIONS

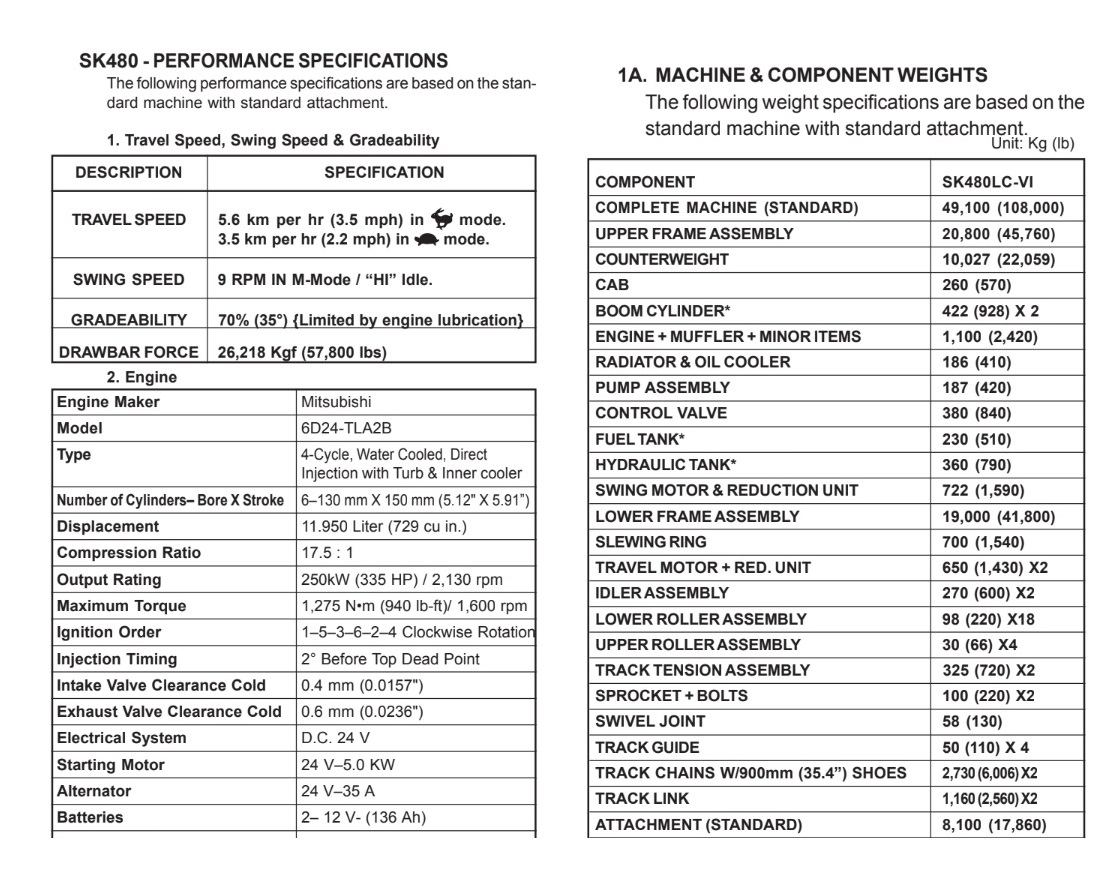

SK480 - PERFORMANCE SPECIFICATIONS

FAMILIARIZATION

All operators,service mechanics and personnel responsible for operation,inspection and maintenance of the machine should become thoroughly familiar with the controls and components and their functions before working with or on this equipment.

Study the information in this section to become familiar With the controls and components of this machine.

GENERAL MACHINE NOMENCLATURE

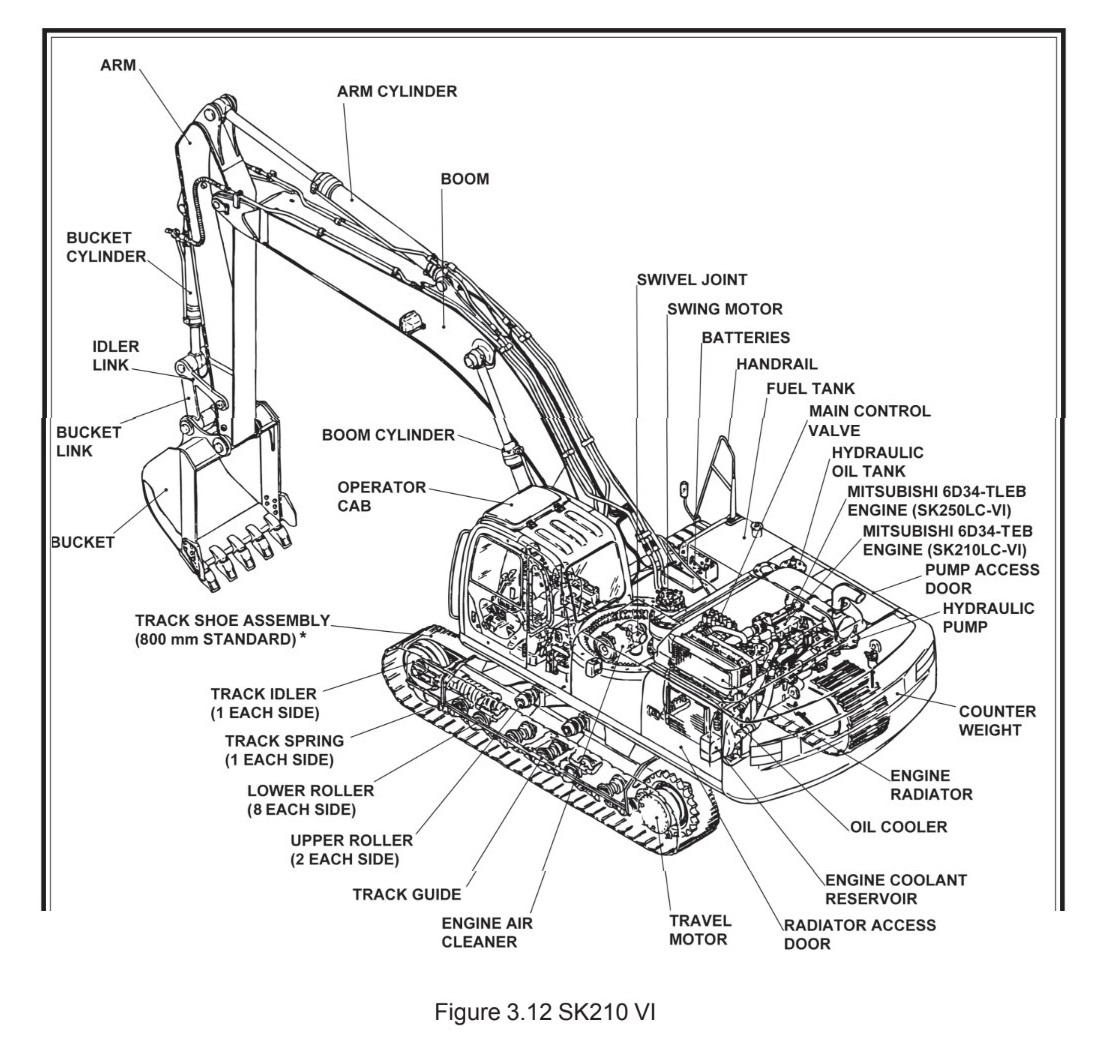

The Nomenclature drawing below (FIGURE 3.12),points out locations of major components of the KOBELCO SK210(LC)-VI Hydraulic Excavator. Study these areas and locate these components on the machine.Specific information regarding these components are explained on the following pages of this section.

OPERATOR CAB NOMENCLATURE

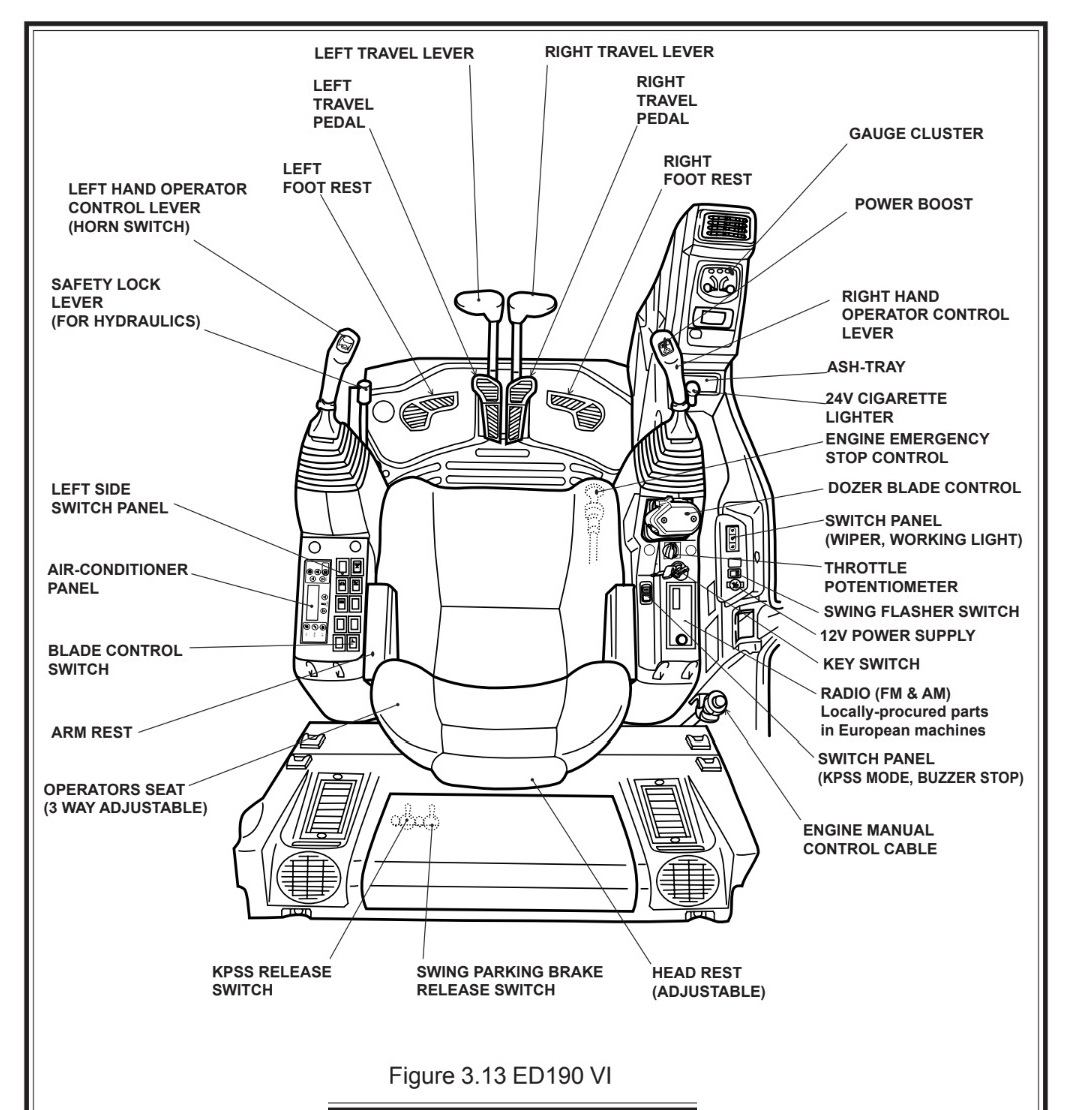

The operator cab nomenclature (FIGURE 3.13), points out the locations of operator controls of the KOBELCO ED190-VI Hydraulic Excavator operator cab.

Study these areas and locate these components on the machine.Specific information regarding these components are explained on the following pages of this section.

COMPONENT & CONTROLS NOMENCLATURE

The following information provides a brief description and function of the components and controls of the KOBELCO SK210(LC)-VI Hydraulic Excavator.

All personnel associated with this machine should read and understand this information BEFORE beginning any work with or on this equipment.

RIGHT HAND OPERATOR CONSOLE

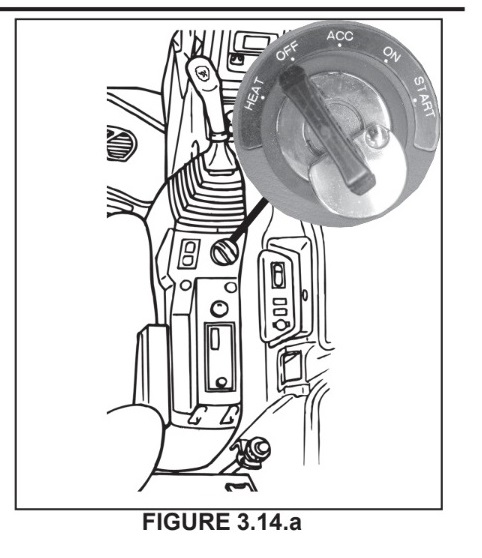

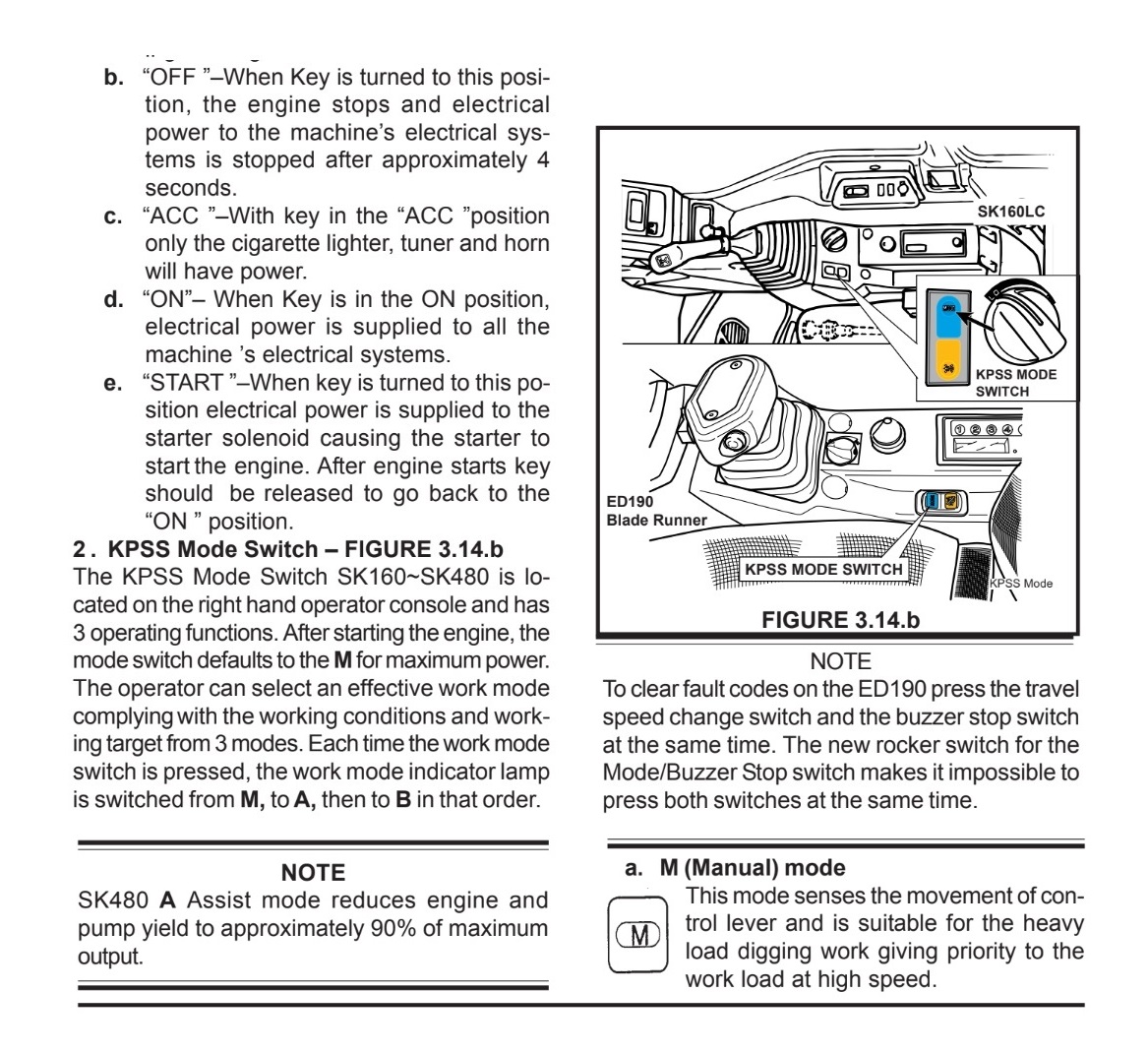

1. Key Switch-FIGURE 3.14.a

The Key Switch is located on the right hand operator console and has 5 operating functions.

a. “HEAT ’’-This position is used for starting the engine in cold climates.

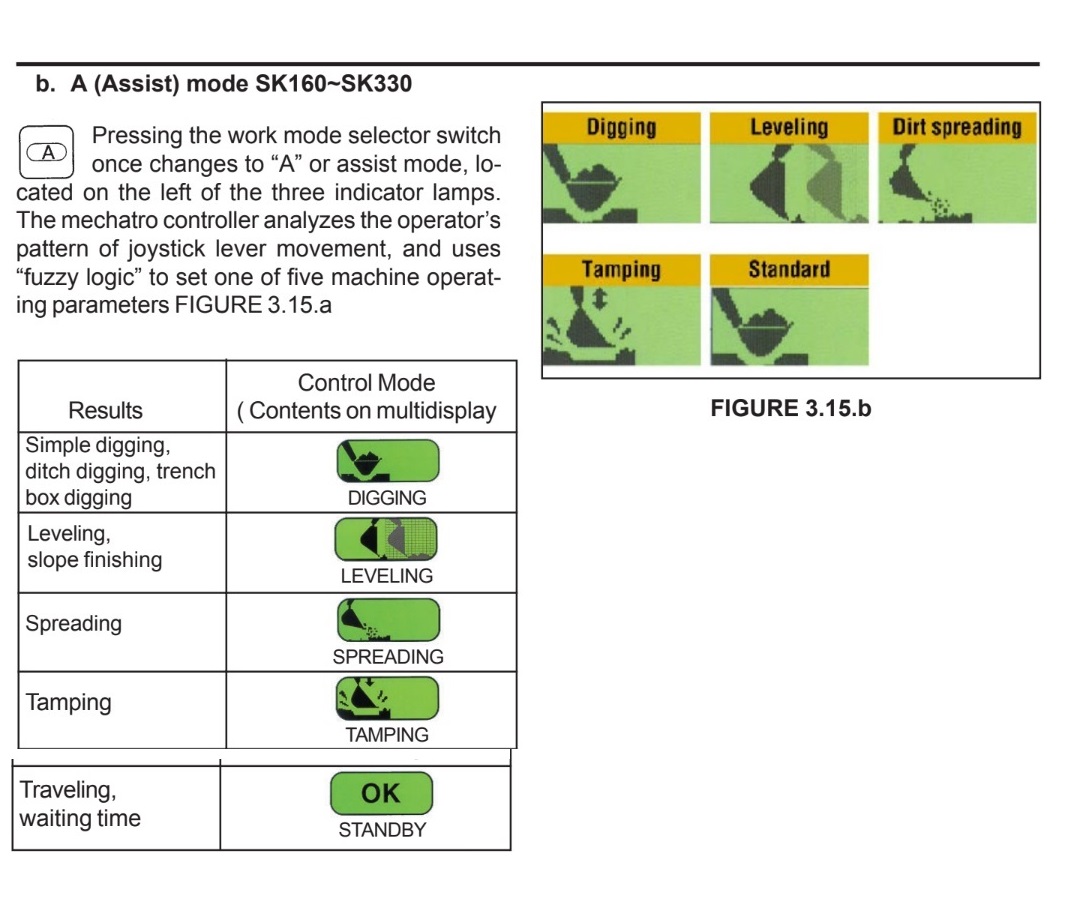

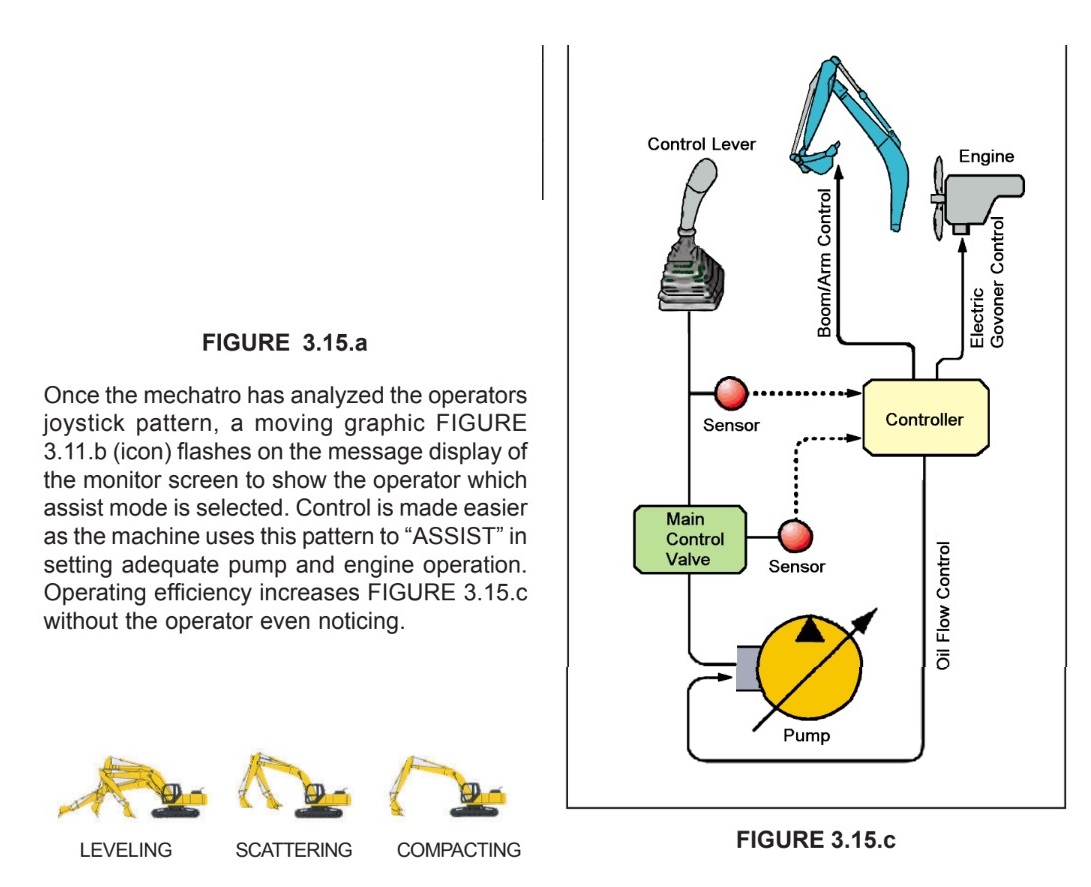

b. A (Assist) mode SK160-SK330
