Kobelco SK160LC-6E / ED190 / SK210LC-6E / SK250LC-6E / SK290LC-6E / SK330LC-6E. Service Manual - page 5

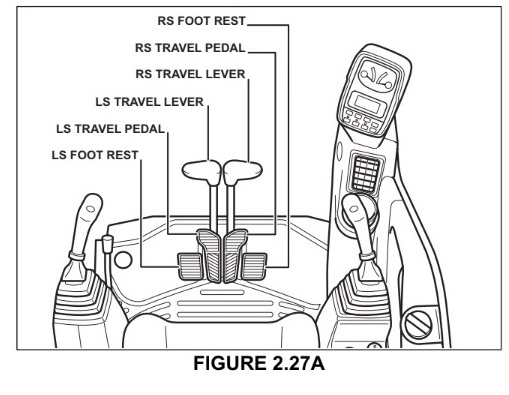

D4. Left and Right Travel Levers and Pedals -FIGURE 2.27A

The travel levers and pedals are located in front of operator seat. They are used to move the left or right track of the machine either forward or backward:

1. “FORWARD”- Variable speed forward track

movement.

2. “BACKWARD"- Variable speed reverse track

movement.

3. “CENTER”- Neutral position.
THESE OPERATIONS ARE WITH TRAVEL MOTORS POSITIONED BEHIND THE OPERATOR’S CAB.
NOTE

See “Machine Travel Controls” in Section-03 for details on travel operation.

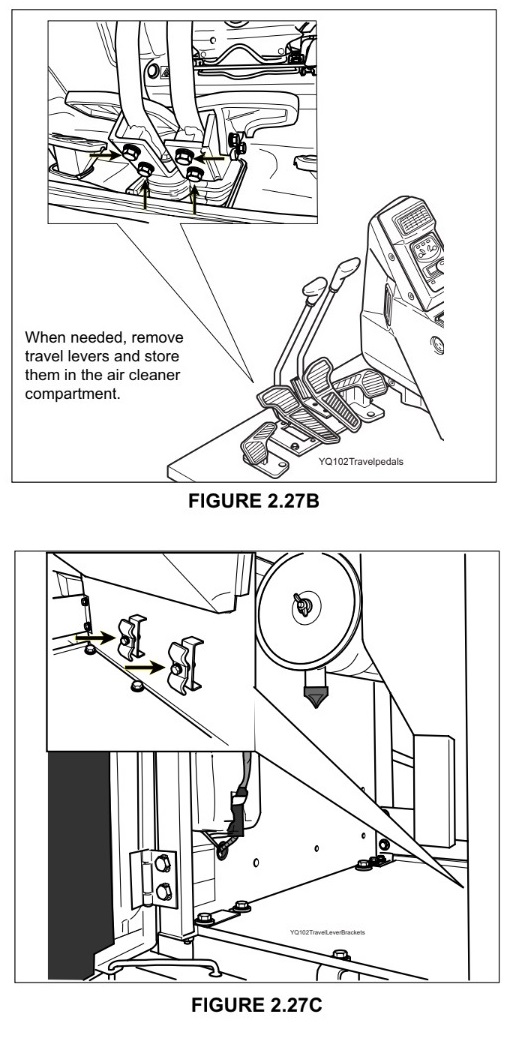

D5. Removing the Travel Control Levers

1. Use a 13 mm wrench to remove the travel control levers from the travel pedals, see Figure 2.27B.

2. Use a 17 mm wrench to remove the support brackets located in the air cleaner compartment, see Figure 2.27C.

3. Store the travel control levers properly in the air cleaner compartment and securely tighten the brackets.

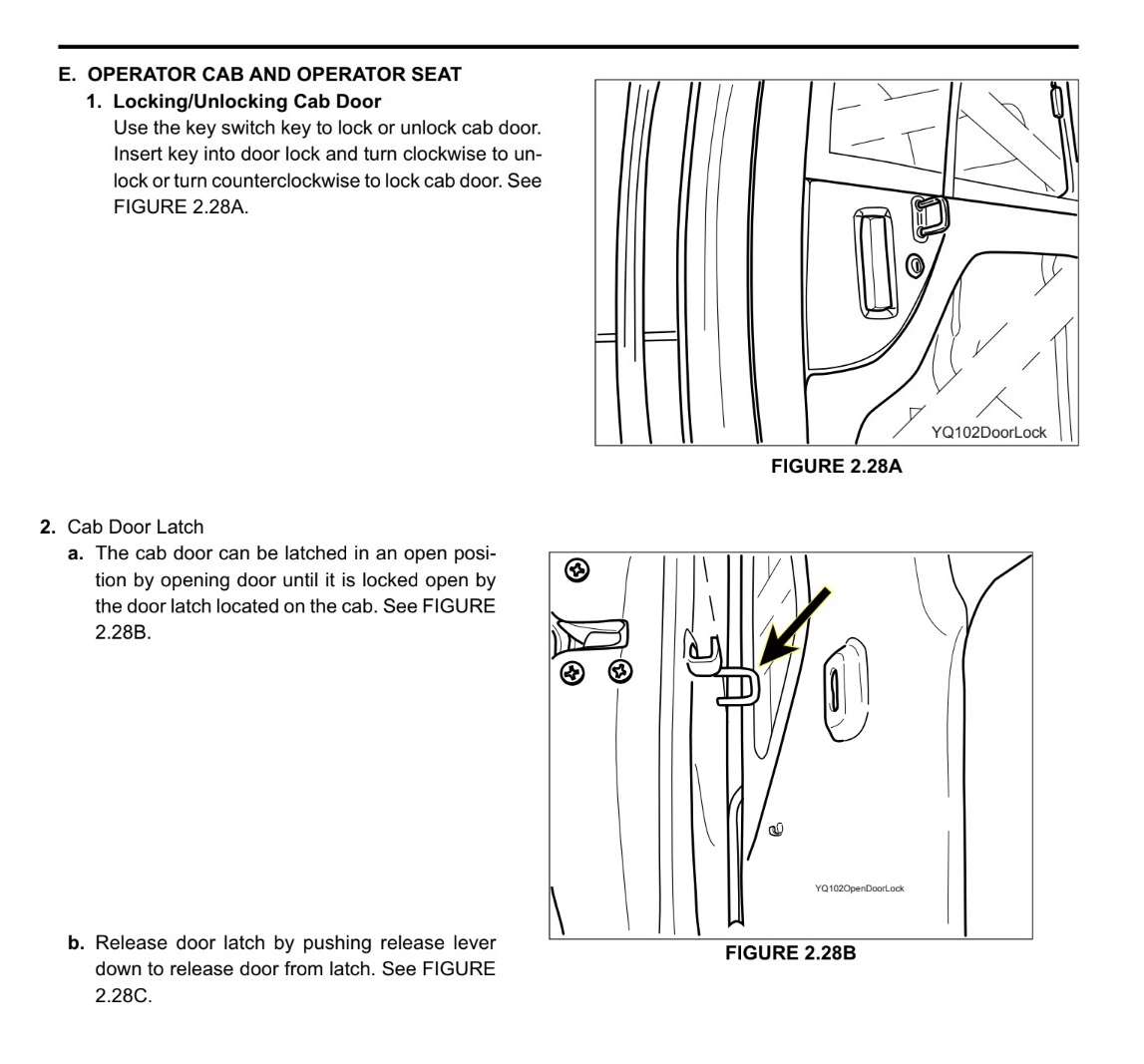

E. OPERATOR CAB AND OPERATOR SEAT

WARNING
NEVER USE THE LEVER FOR DOOR LATCH RELEASE AS A HANDLE TO MOUNT AND/OR DISMOUNT FROM THE MACHINE.

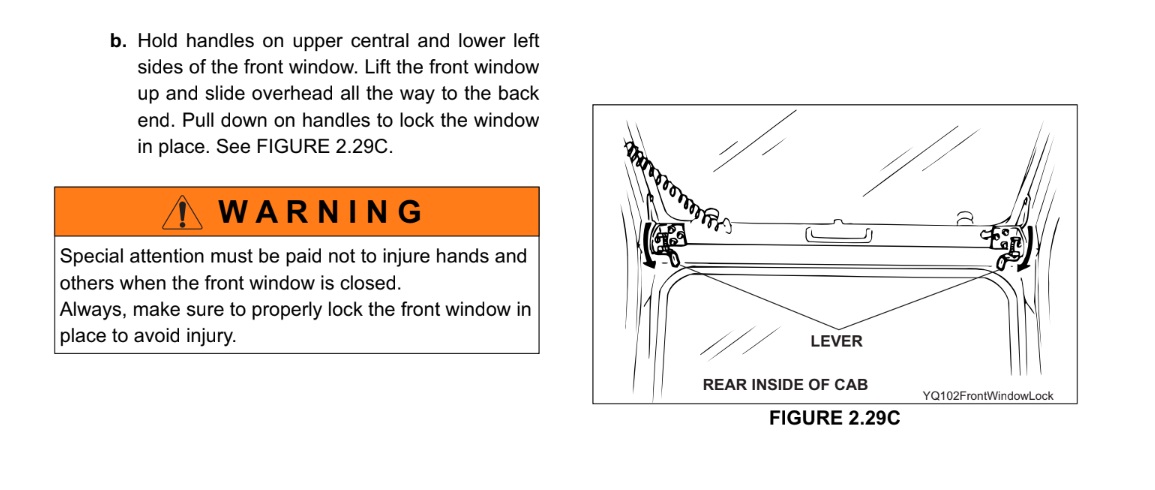

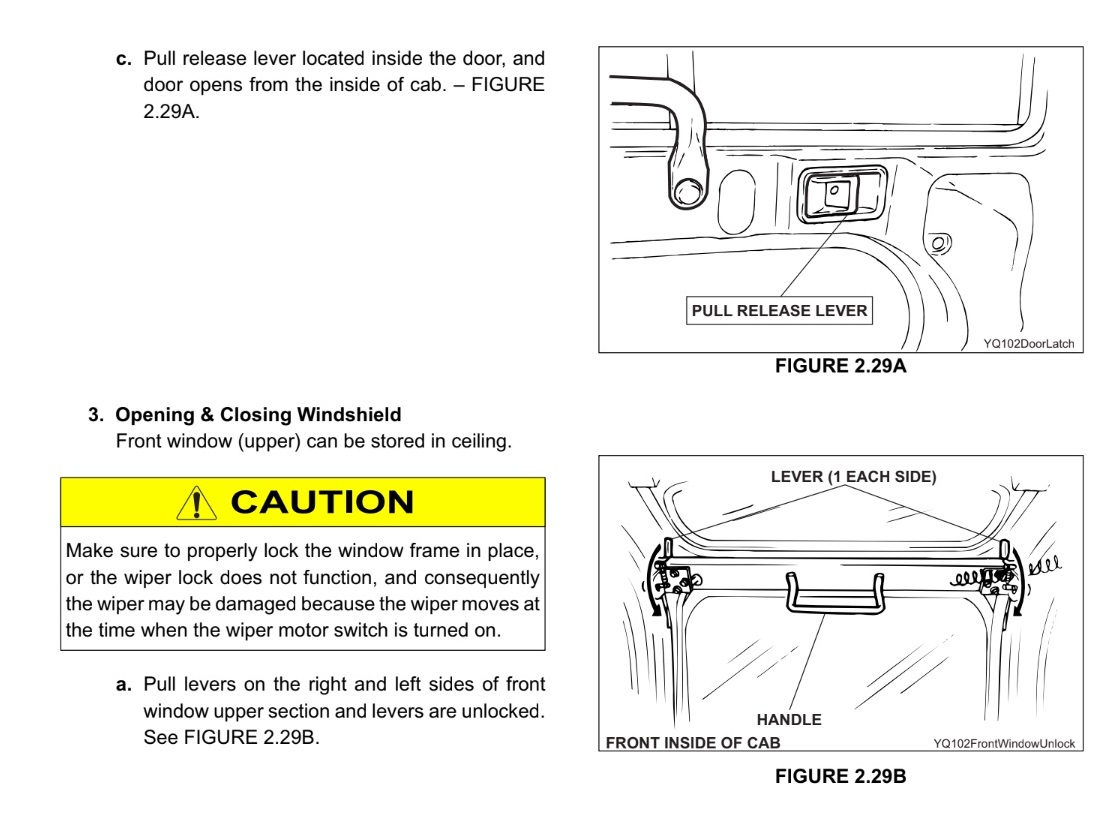

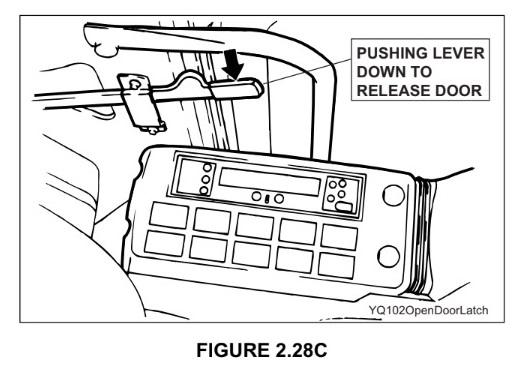

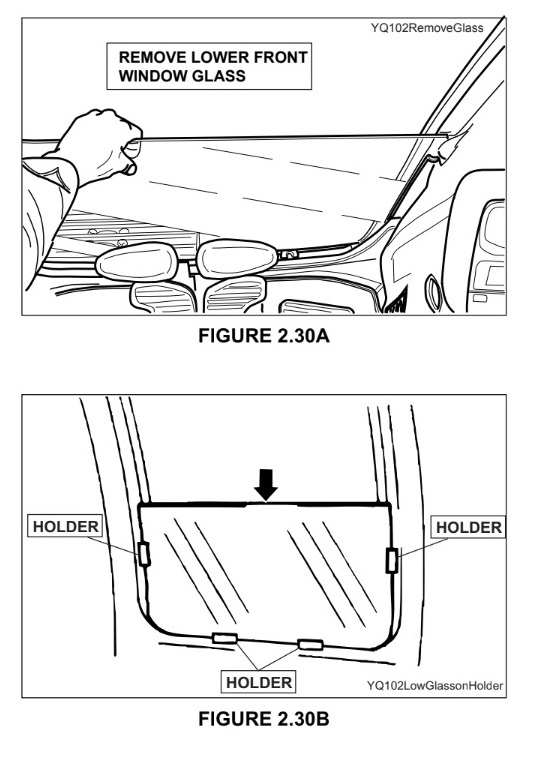

4 Removing and Storing Lower Front Window

a. After placing upper front window in ceiling, and locking it in place, remove front window by hand from window frame, see FIGURE 2.30A.

b. Securely store the removed lower front window in holder in the rear of cab, behind the operator’s seat.

c. To store it, insert the right and left sides of glass in holder, and support it with holder on the lower section of window frame. See FIGURE 2.30B.

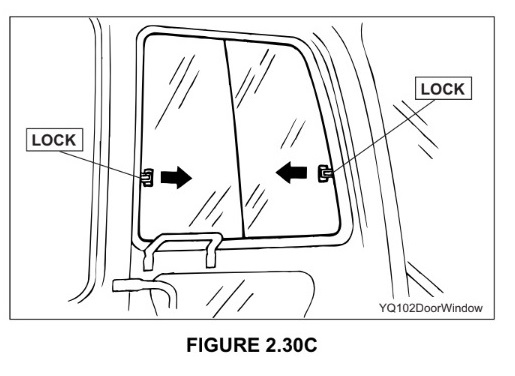

Opening and Closing Door Glass



a. Open cab door glass (upper) sliding it to front side after unlocking it.

b. Close the door glass sliding it to LOCK position, then lock it. See FIGURE 2.30C.

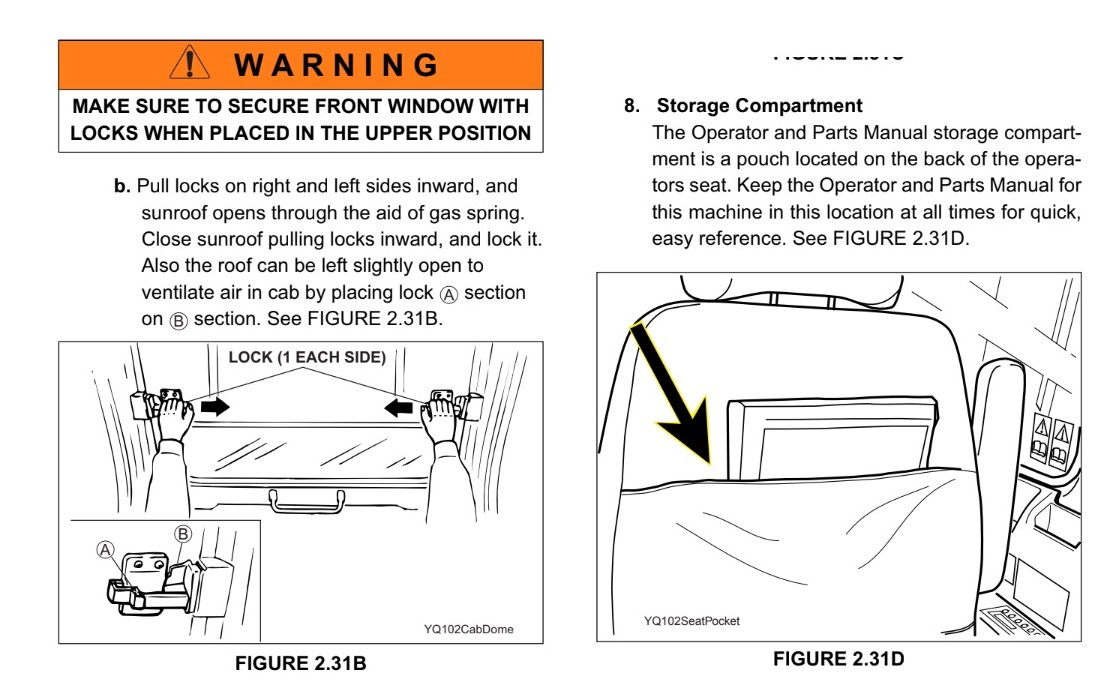

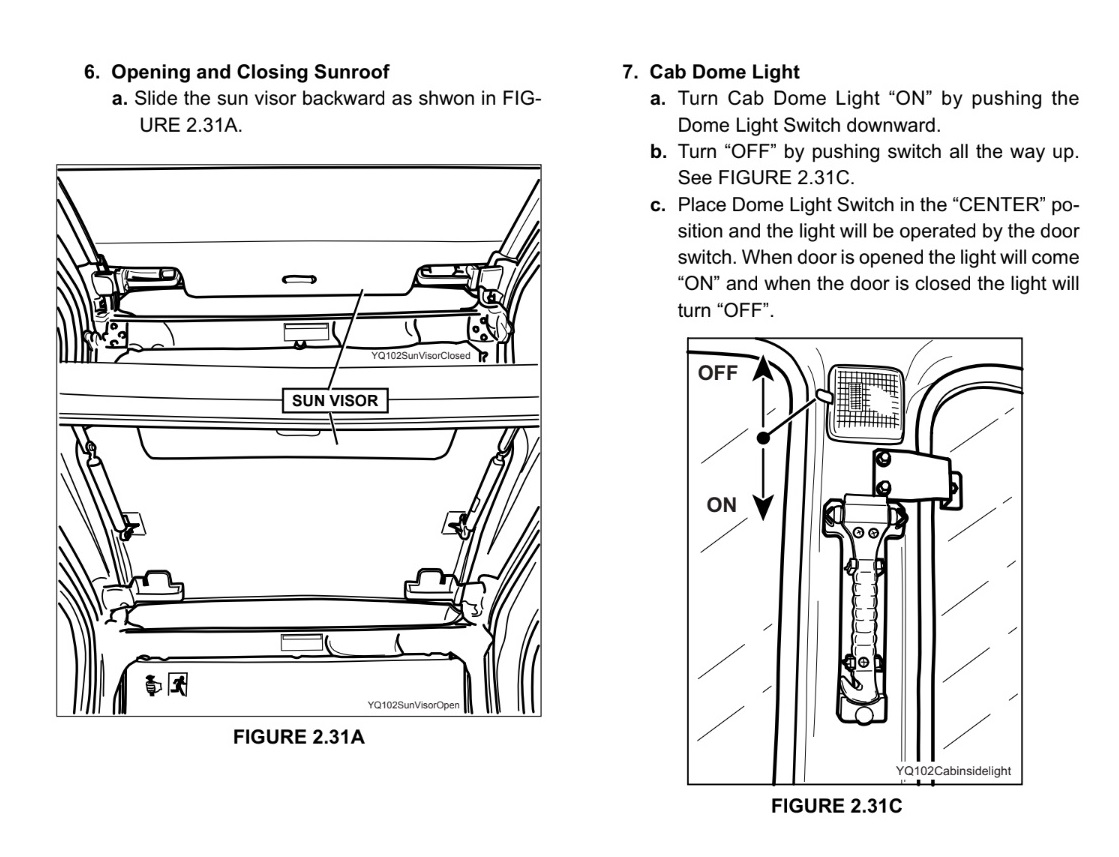

6. Opening and Closing Sunroof



9. Operator Seat Adjustments

The operator seat incorporates several adjustment mechanisms to insure operator comfort, ease of operation and operator safety.

The adjustment areas are as follows:

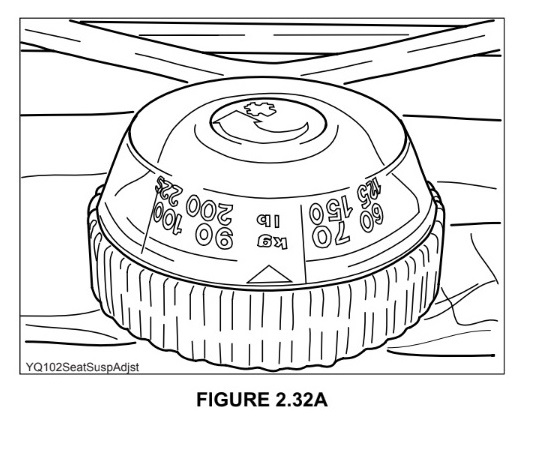

a. Operator Weight Adjustment - FIGURE 2.32A

1. Rotate the adjustment knob until weight read out is close to the operator’s weight at the top end of the dial.

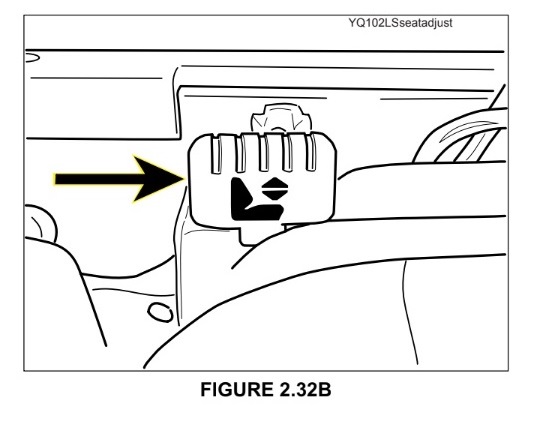

b. Seat Height Adjustment - FIGURE 2.32B

1. Pull height adjustment lever up to raise or lower rear of seat.

2. Push height adjustment lever down to raise or lower front of seat.

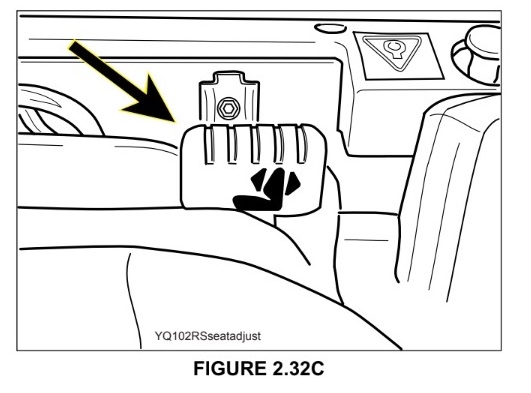

c Seat Reclining Adjustment - FIGURE 2.32C

1. Pull reclining adjustment lever up to set desired reclining angle.

2. Release reclining adjustment lever to lock seat in position.

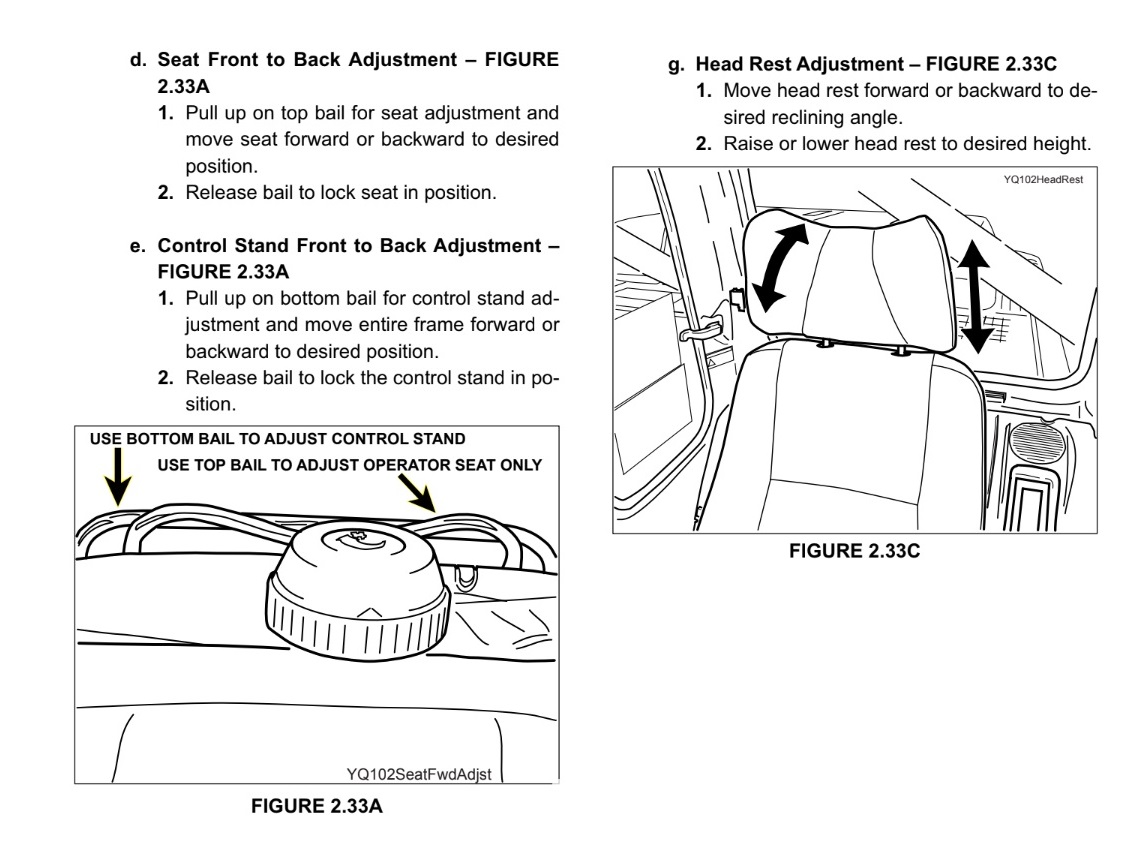

d. Seat Front to Back Adjustment - FIGURE

2.33A

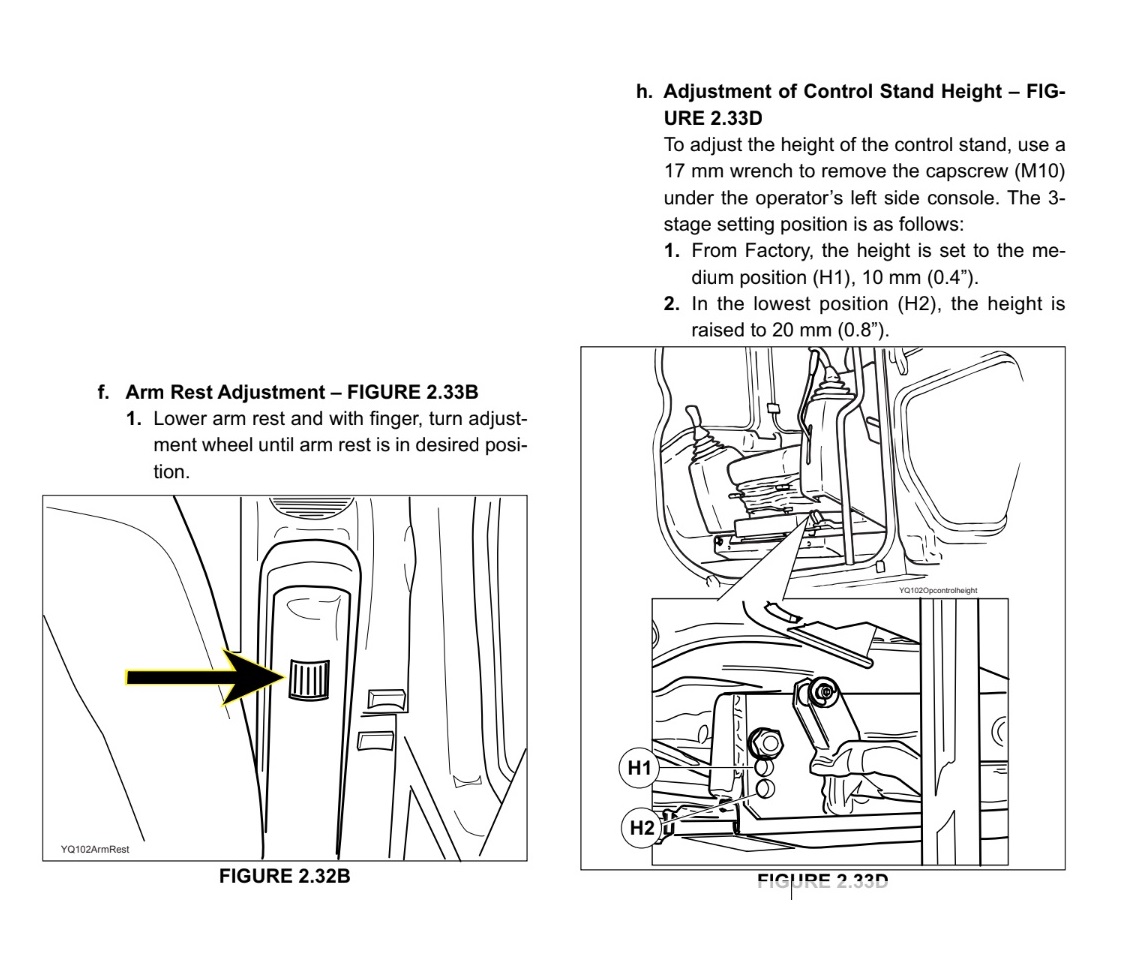

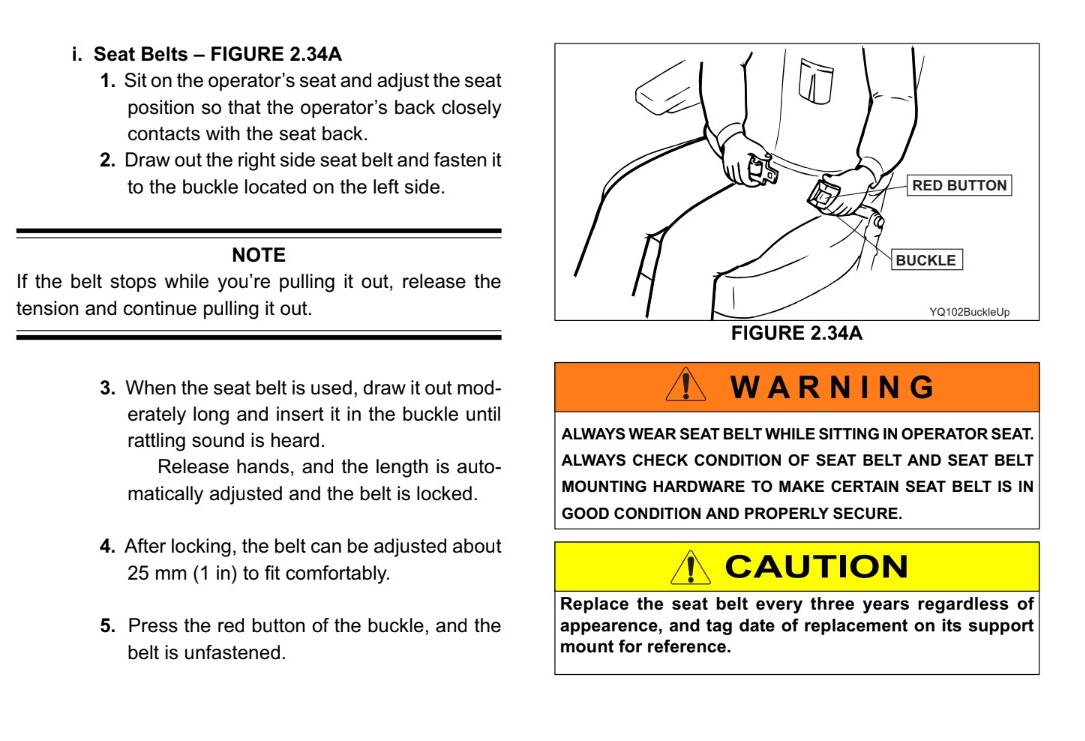

i. Seat Belts - FIGURE 2.34A
