46.7

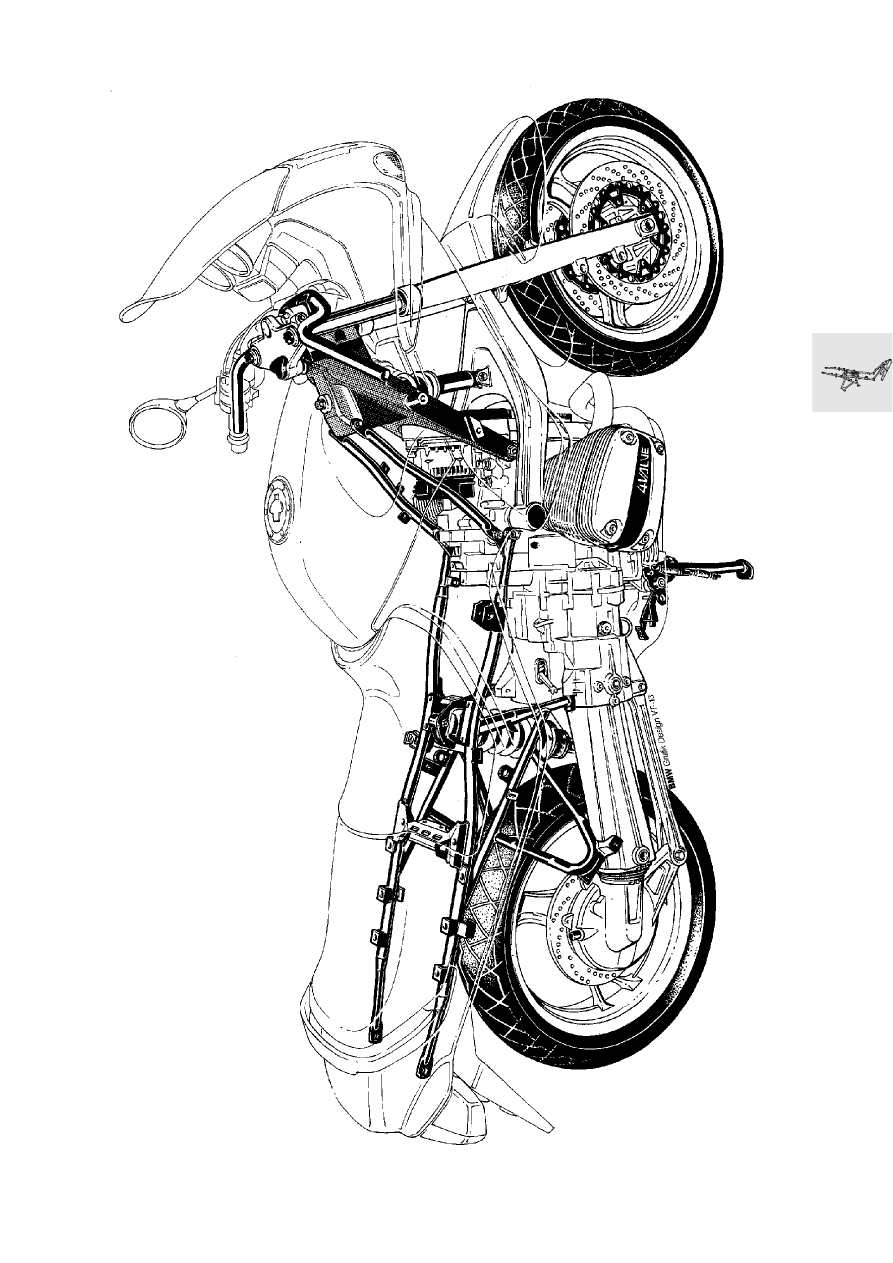

General view, frame

RS469010

46.8

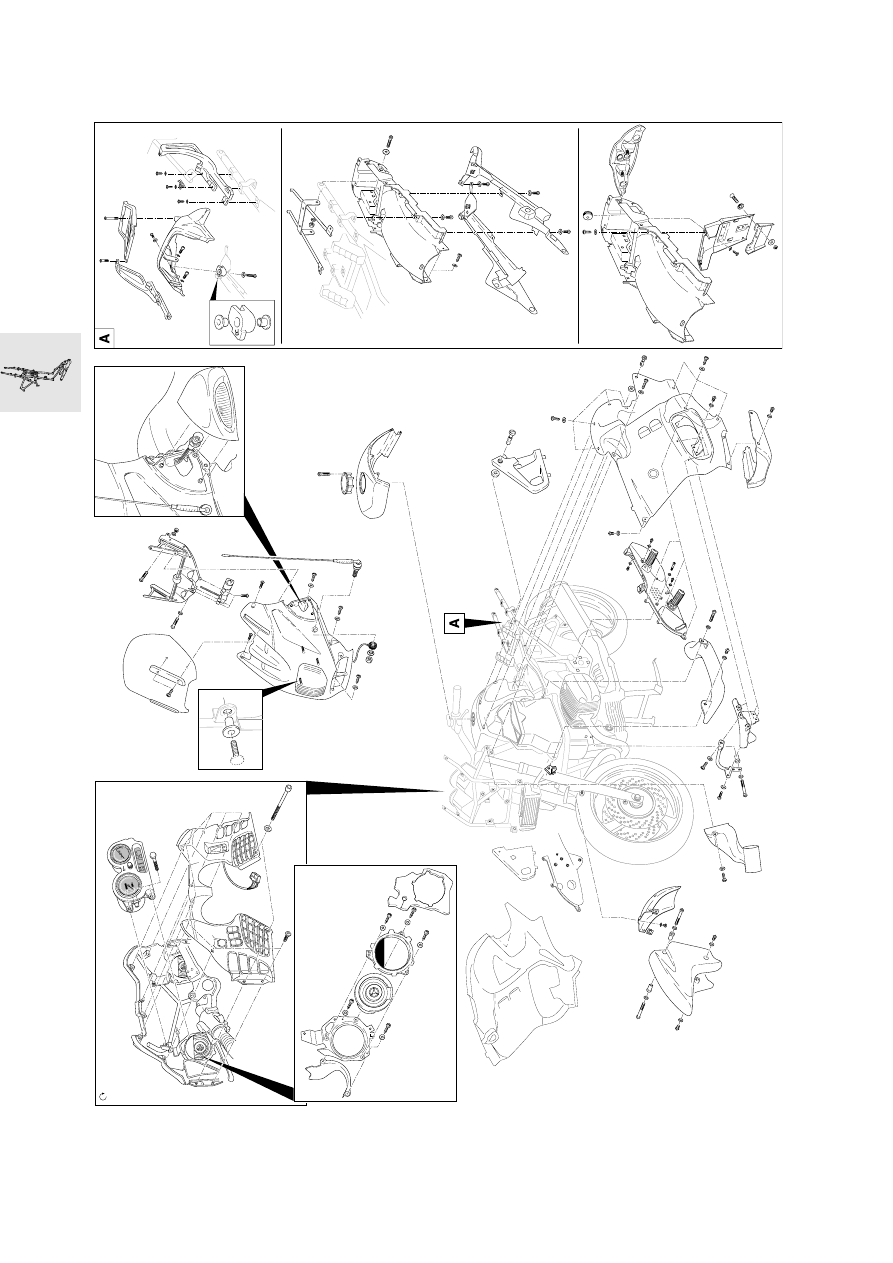

[RT] General view of fairing sections

RT469010

2x

6x

2x

3x

2x

2x

4x

2x

2x

2x

2x

2x

2x

2x

2x

2x

4x

4x

3x

um 90

°

 gedreht

0

1

2

3

4

5

6

7

8

9

1

0

10

0

20 20

40 40

60 60

80 80

100 100

km

/h
km/h

120 120

140 140

160 160

180 180

200 200

220 220

240 240

000 000

0

0

0

0

0

2

5

000025

4x

2x

10x

3x

4x

4x

3x

2x

1x

4x

2x

46.9

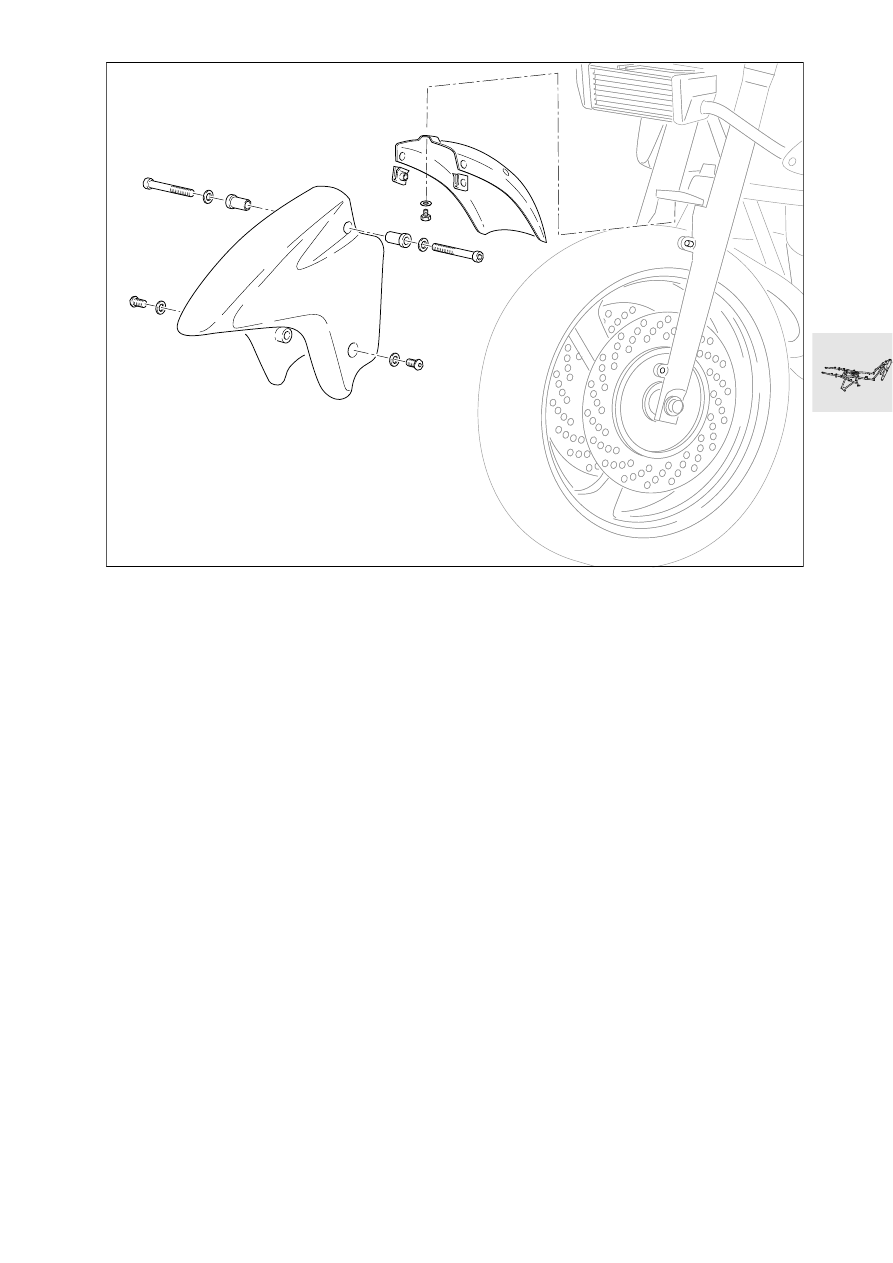

[RT] Removing and installing front
mudguard

RT460260

46.10

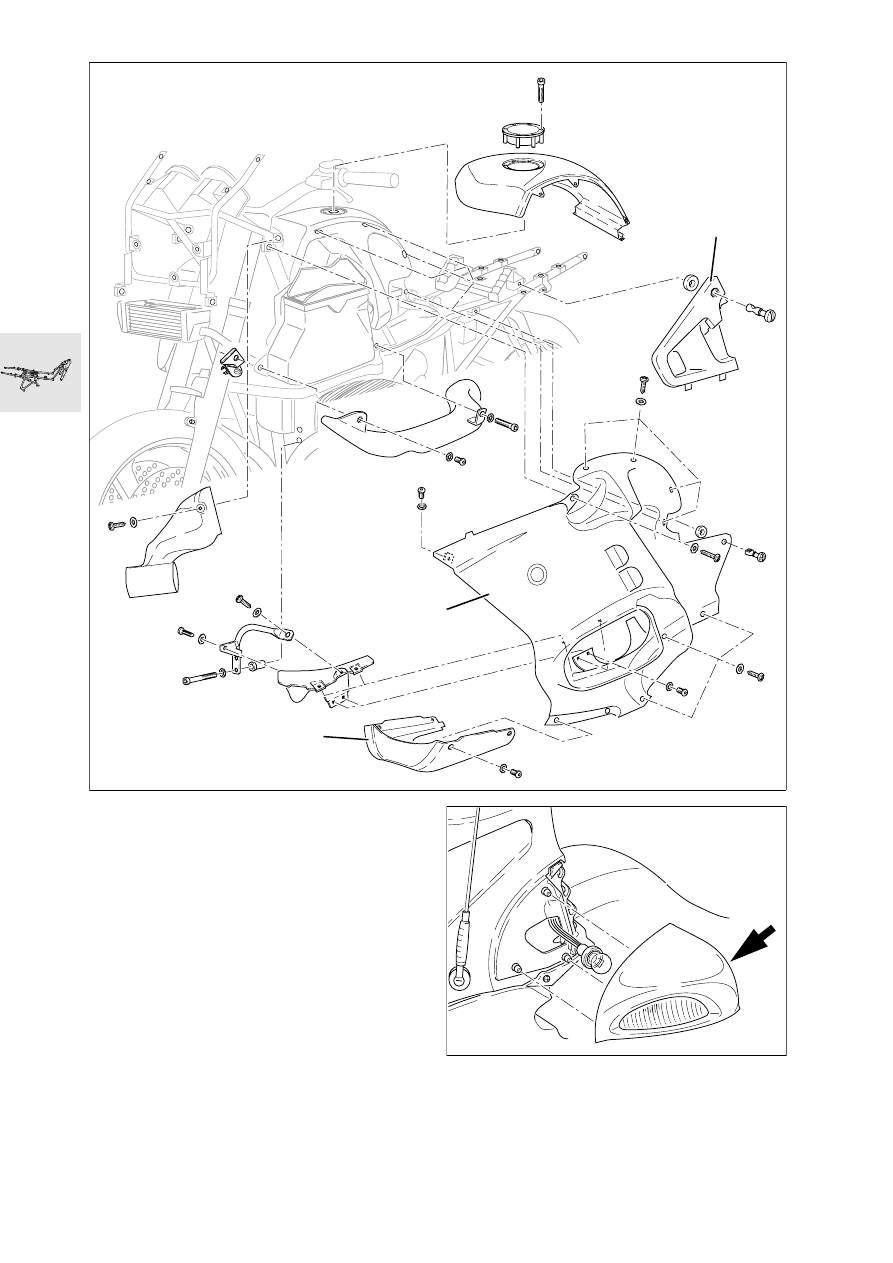

[RT] Removing and installing fairing
sections

•

Remove dualseat.

•

Take off small side sections of fairing (1).

•

Hold mirror with one hand. With the other hand,
strike the mirror housing lightly towards the mir-
ror surface (arrow). Take off the mirror.

•

Remove side sections of fairing (2) and
spoiler (3).

•

Install in the reverse order of work.

•

Offer the mirror at its three mounting points.
Strike the mirror housing lightly, first at the front,
then at the rear, to engage it

6x

2x

4x

4x

3x

4x

1

2

3

RT460270

RT460280

46.11

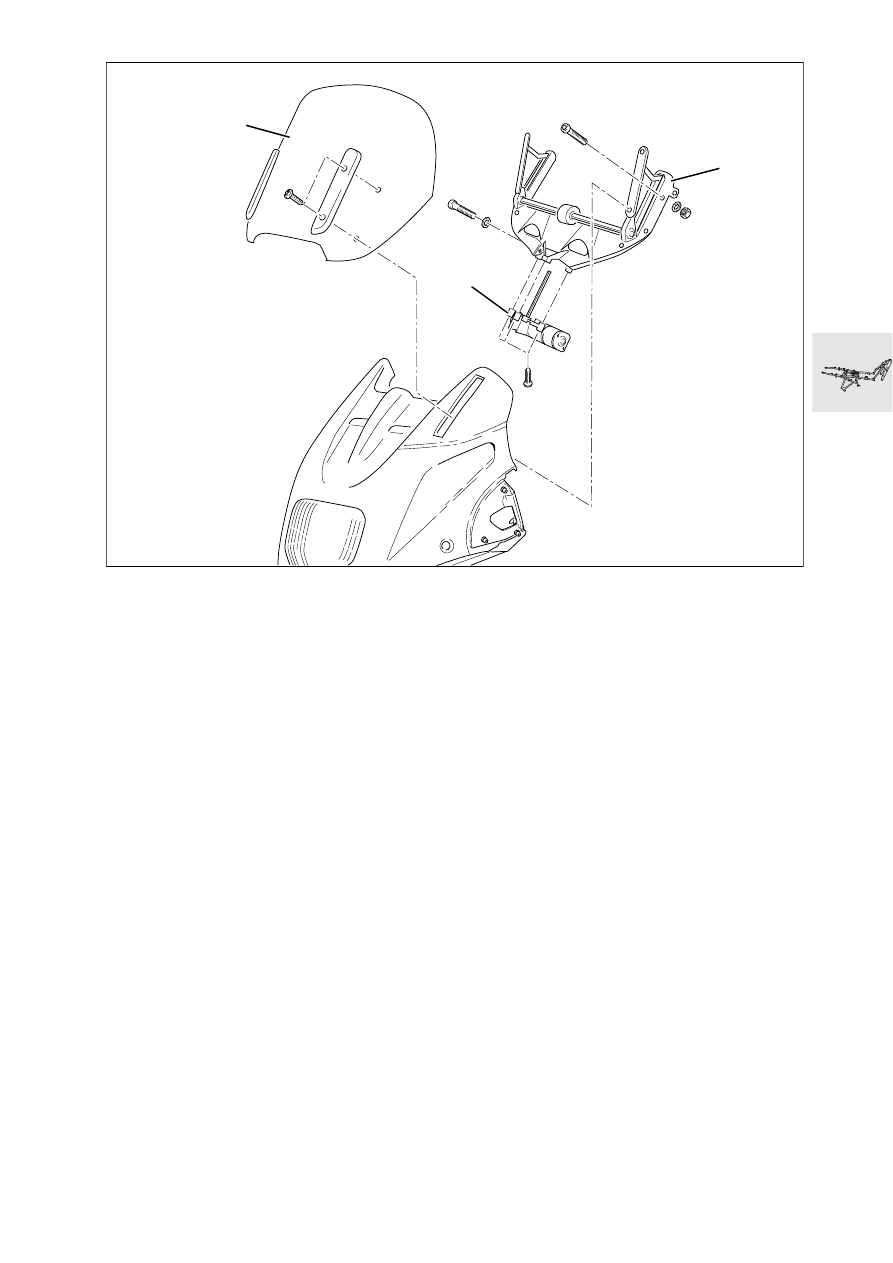

[RT] Removing and installing wind-
shield

•

Remove dualseat.

•

Remove side mirrors.

•

Remove side trim panels.

•

Remove windshield (1).

•

Remove inner cover for trim.

•

Pull off plug at headlight.

•

Detach the aerial.

•

Remove upper section of fairing.

•

Remove bracket (2) for windshield.

•

Separate the plug connection and remove the
electric drive (3).

•

Install in the reverse order of work.

4x

4x

3x

1x

1

2

3

RT460290

46.12

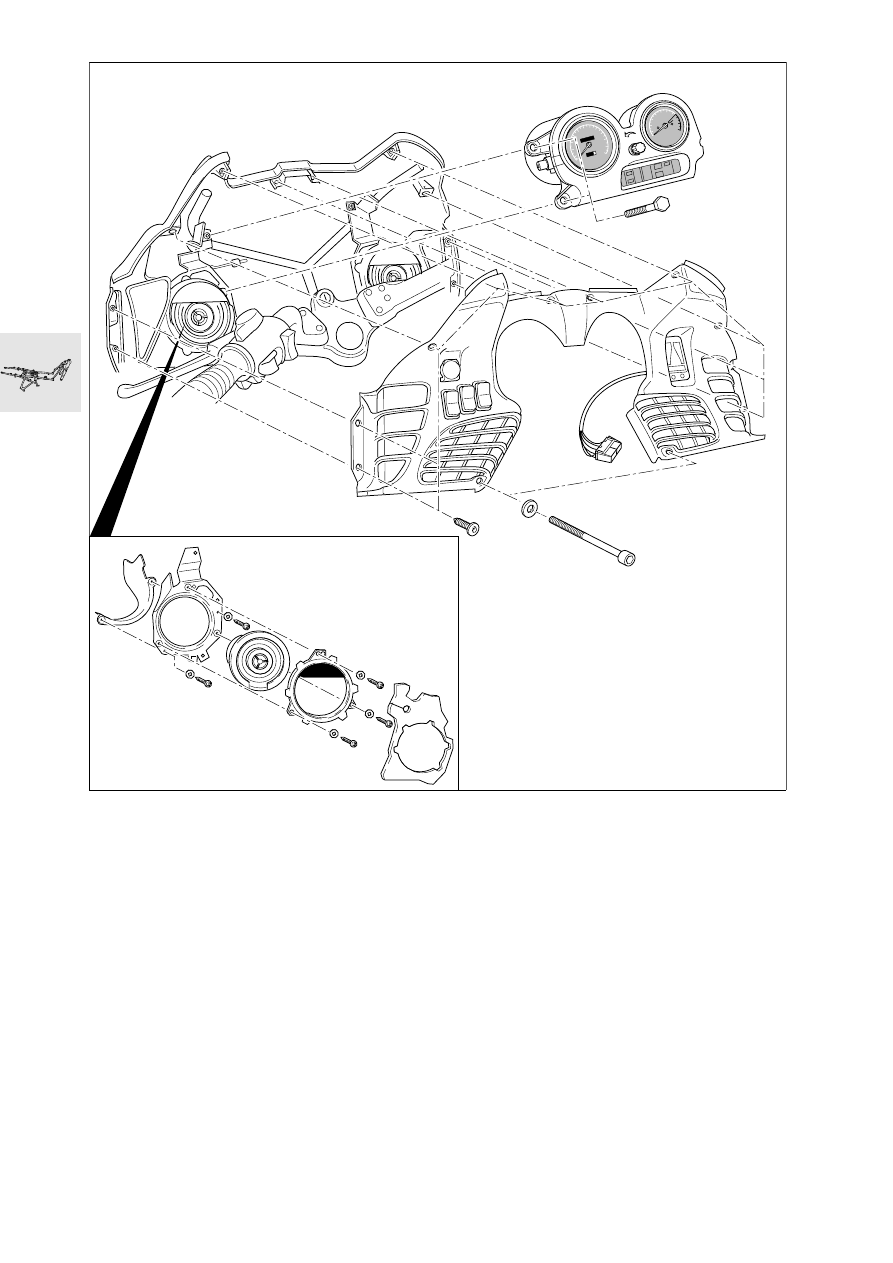

[RT] Removing and installing inner
fairing panel

0

1

2

3

4

5

6

7

8

9

10

10

0

20

20

40

40

60

60

80

80

100

100

km/h

km/h

120

120140

140

160

160

180

180

200

200

220

220

240

240

000

000

0

000025

000025

4x

2x

10x

RT460300

46.13

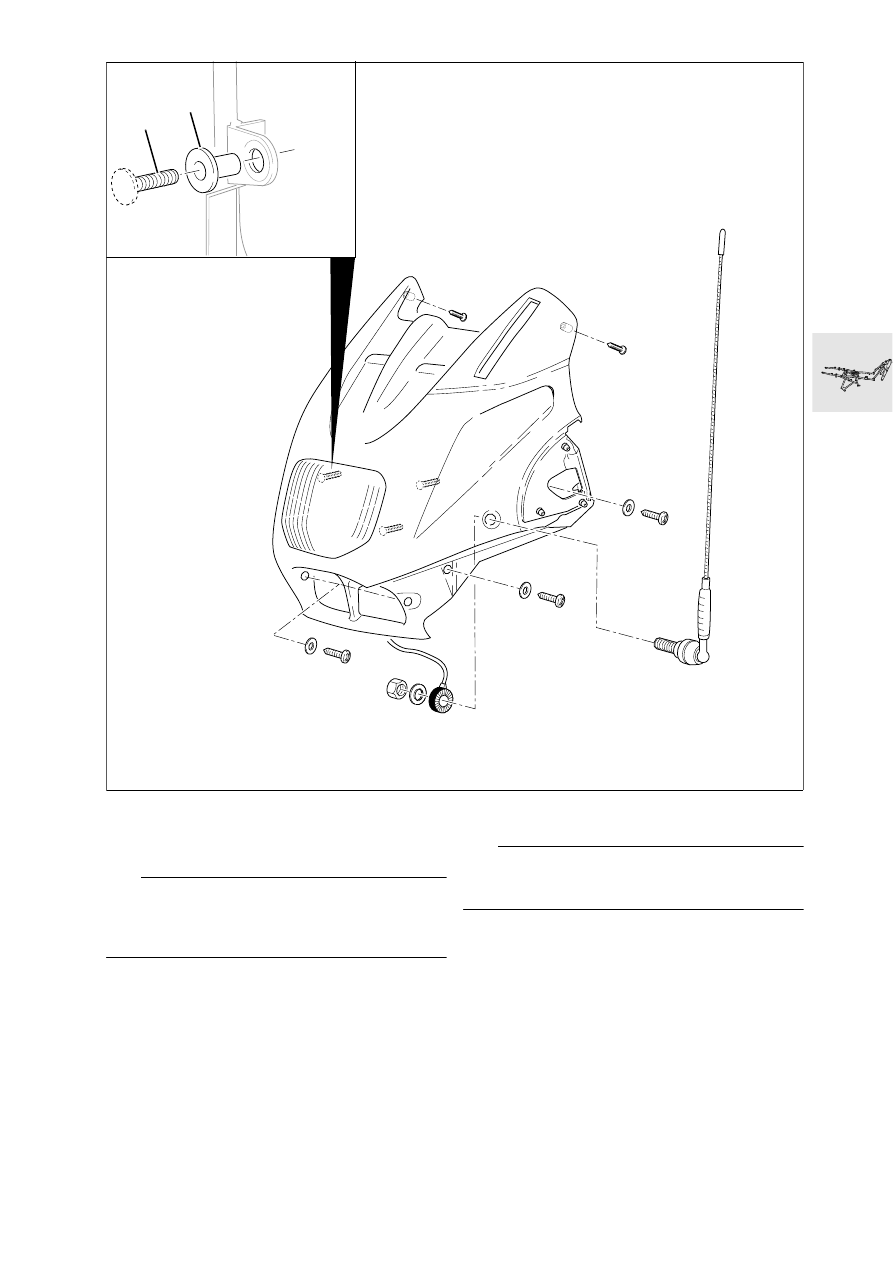

[RT] Removing and installing upper
section of fairing

e

 Caution:

Switch off ignition.
Disconnect ground (earth) lead from battery.
Insulate ground (earth) lead.

•

Remove dualseat.

•

Remove side mirrors.

•

Remove side trim panels.

•

Remove windshield.

•

Remove inner cover for trim.

•

Pull off plug for headlight.

•

Detach the aerial.

•

Remove upper section of fairing.

•

Install in the reverse order of work.

L

 Note:

Before installing upper section of fairing, push metal
bushings (1) on to threaded pins (2).

2x

2

1

RT460310

46.14

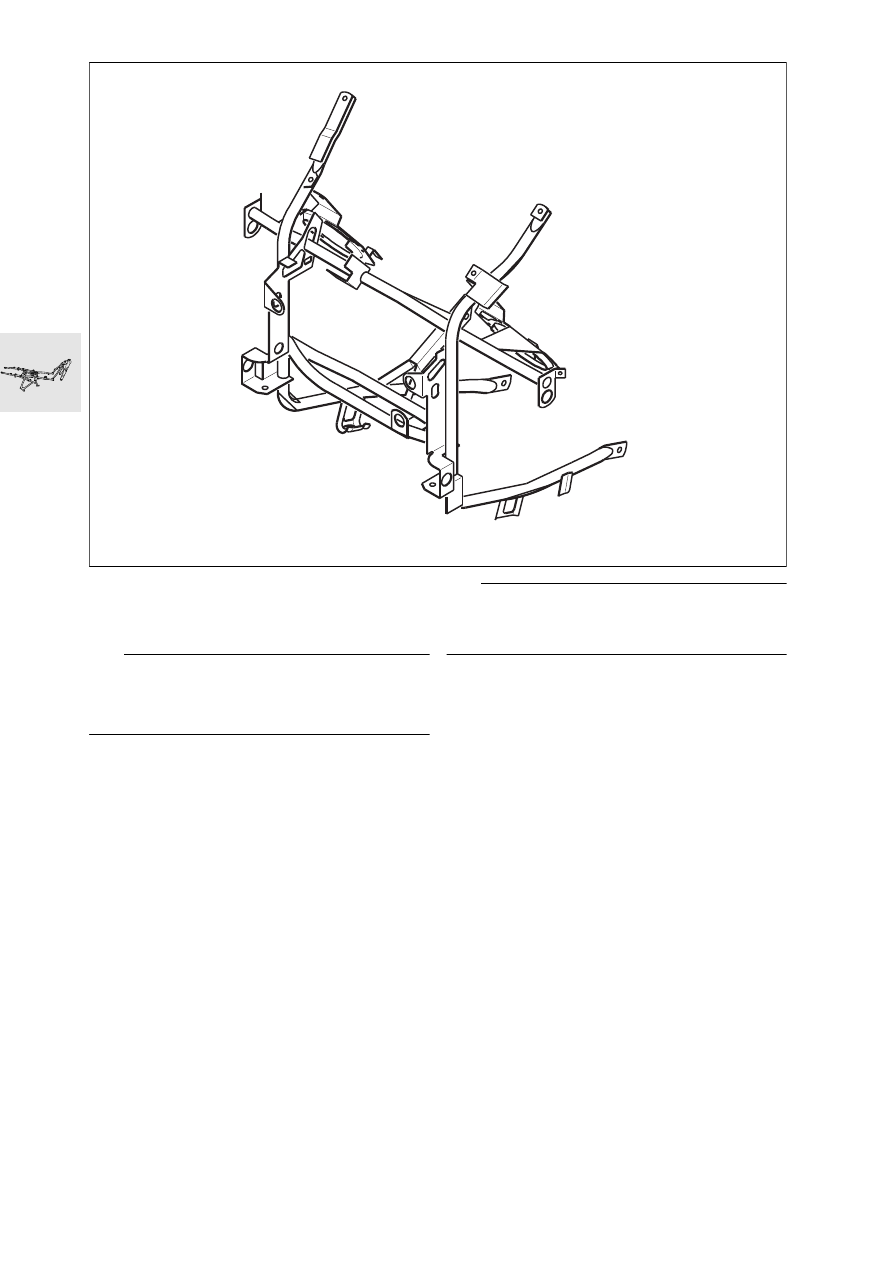

[RT] Removing and installing fairing
holder

e

 Caution:

Switch off ignition.
Disconnect ground (earth) lead from battery.
Insulate ground (earth) lead.

•

Remove dualseat.

•

Remove side mirrors.

•

Remove side trim panels.

•

Remove inner cover for trim.

•

Remove windshield.

•

Remove upper section of fairing.

•

Remove windshield holder.

•

Detach instrument cluster.

•

Remove storage compartment and air intake
stub pipe.

•

Detach plug strips, wiring harness and wires
from fairing holder.

•

Detach oil cooler mount.

•

Remove trim support bracket.

L



Note:

Do not scratch the mudgard when setting down the
oil cooler.

•

Install in the reverse order of work.

X

 Tightening torque:

Fairing support bracket to frame  ................. 20 Nm

RT460120
