BMW AG Motorcycle (R 850 C, R 1200 C). Manual - part 30

61.15

3

C619013

62.1

Contents

Page

62

Technical data

................................................................................................................................3

Removing and installing instrument cluster

..................................................................5

Dismantling and assembling instrument cluster

........................................................5

62 Instruments

62.3

62

Technical data

R 850 C

R 1200 C

Instrument cluster

Instrument lighting

T6.5 12 V 3 W

Telltale and warning lights
turn indicators/others

T6.5 12 V 3 W/1.7 W

62.5

Removing and installing instrument
cluster

•

Separate the combined instrument plug in the
electrical equipment box.

Dismantling and assembling
instrument cluster

•

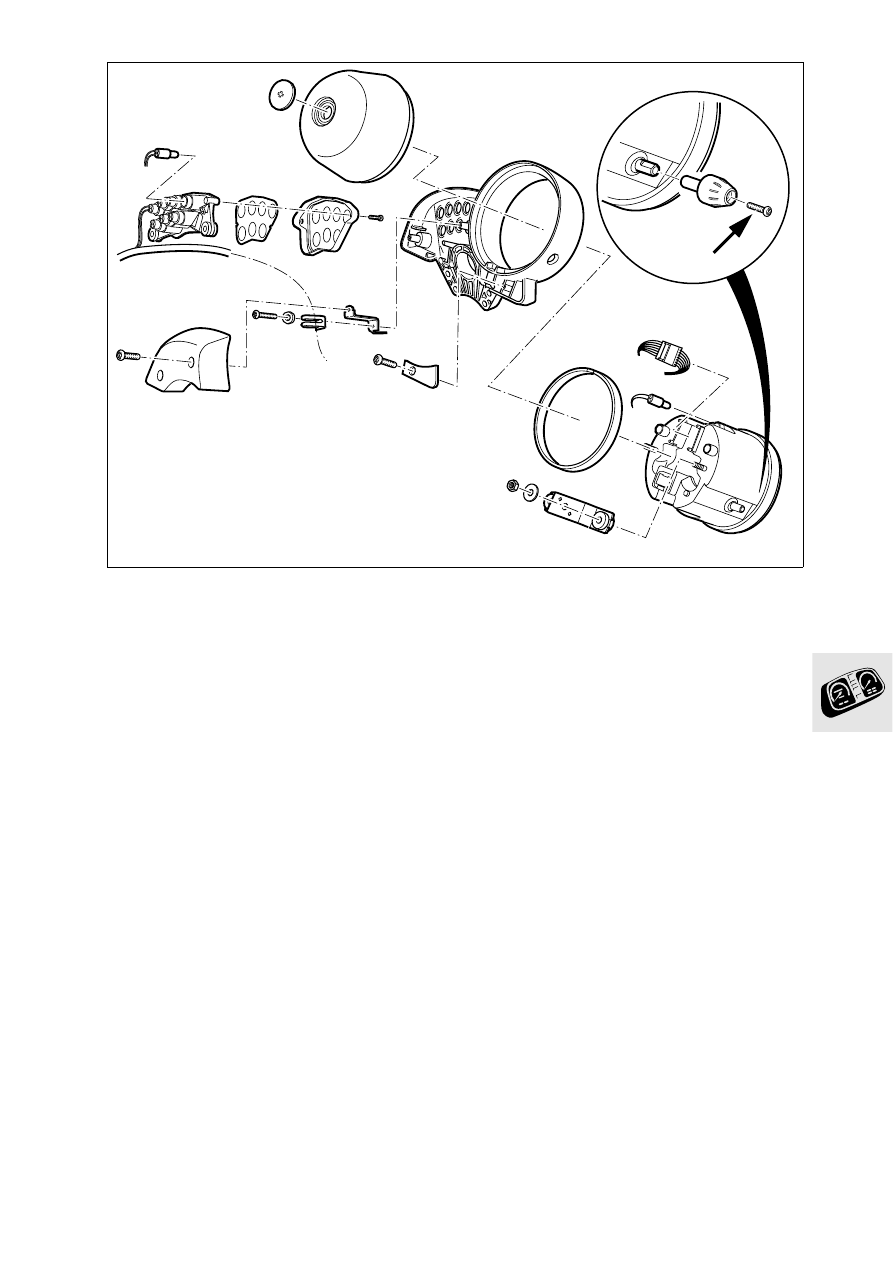

To remove the speedometer, take out the screw
(arrow) located inside for the trip distance re-
corder reset knob, and pull off the knob.

C620010

63.1

Contents

Page

63

Technical data

................................................................................................................................3

Removing and installing headlight

.....................................................................................5

Adjusting headlight

 .........................................................................................................................5

63 Lights

63.3

63

Technical data

R 850 C

R 1200 C

Headlight

circular, with halogen bulb

Bulbs

High beam/low beam

H 4 60/55 W halogen, asymmetric

Parking light

12 V/4 W

Rear light/brake light

12 V / 5/21 W

Flashing turn indicator

12 V/21 W
