BMW AG Motorcycle (K1100LT, K1100RS). Manual - part 38

46.5

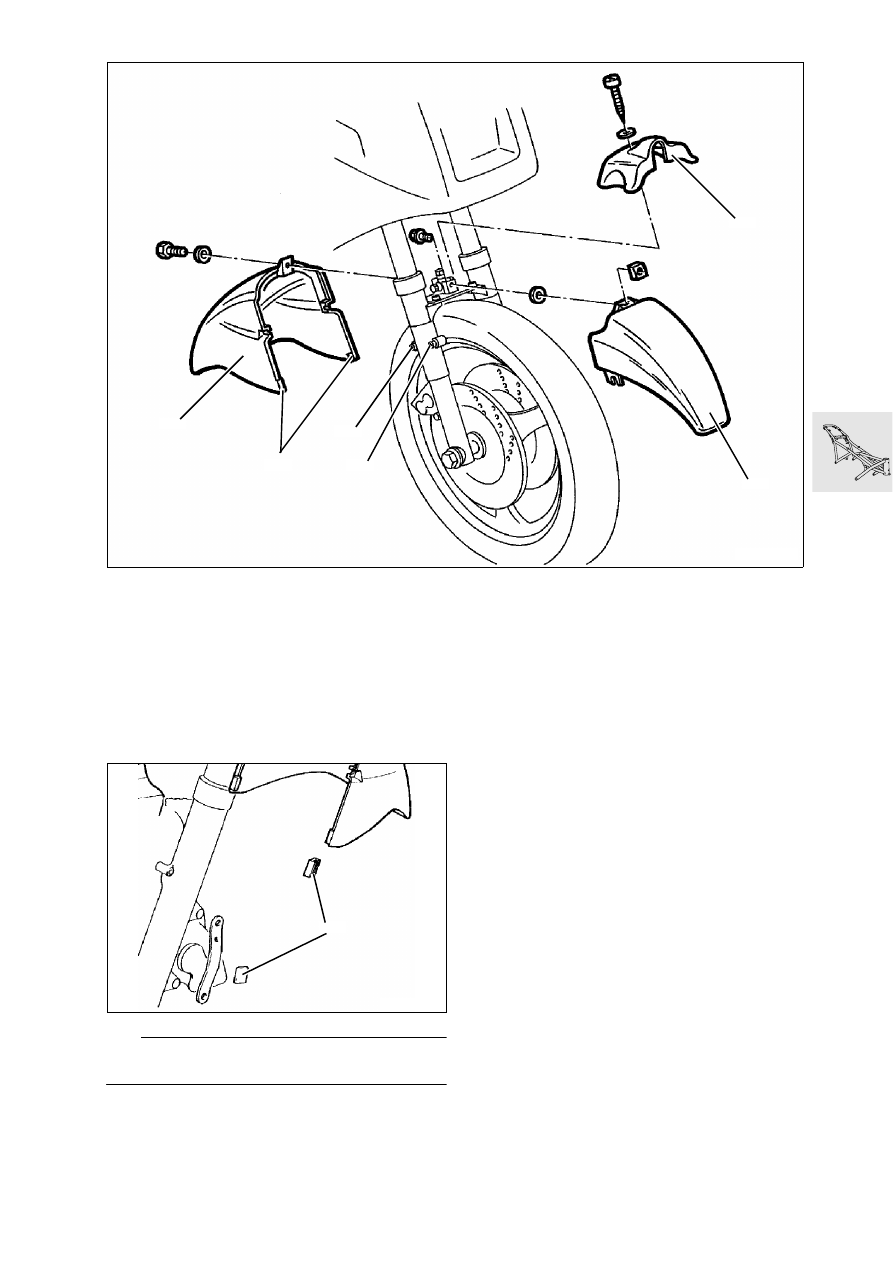

Removing and installing front
mudguard

•

Loosen clamping screws (1,2).

•

Detach cover (3).

•

Remove rear section of mudguard (4).

•

[LT]



Detach Velcro connections (5).

•

Remove front section of mudguard (6).

•

Install in the reverse order of removal.

L

 Note:

[LT] Position of Velcro connection (6).

LT460010

4

6

3

1

2

5

LT460020

5

46.6

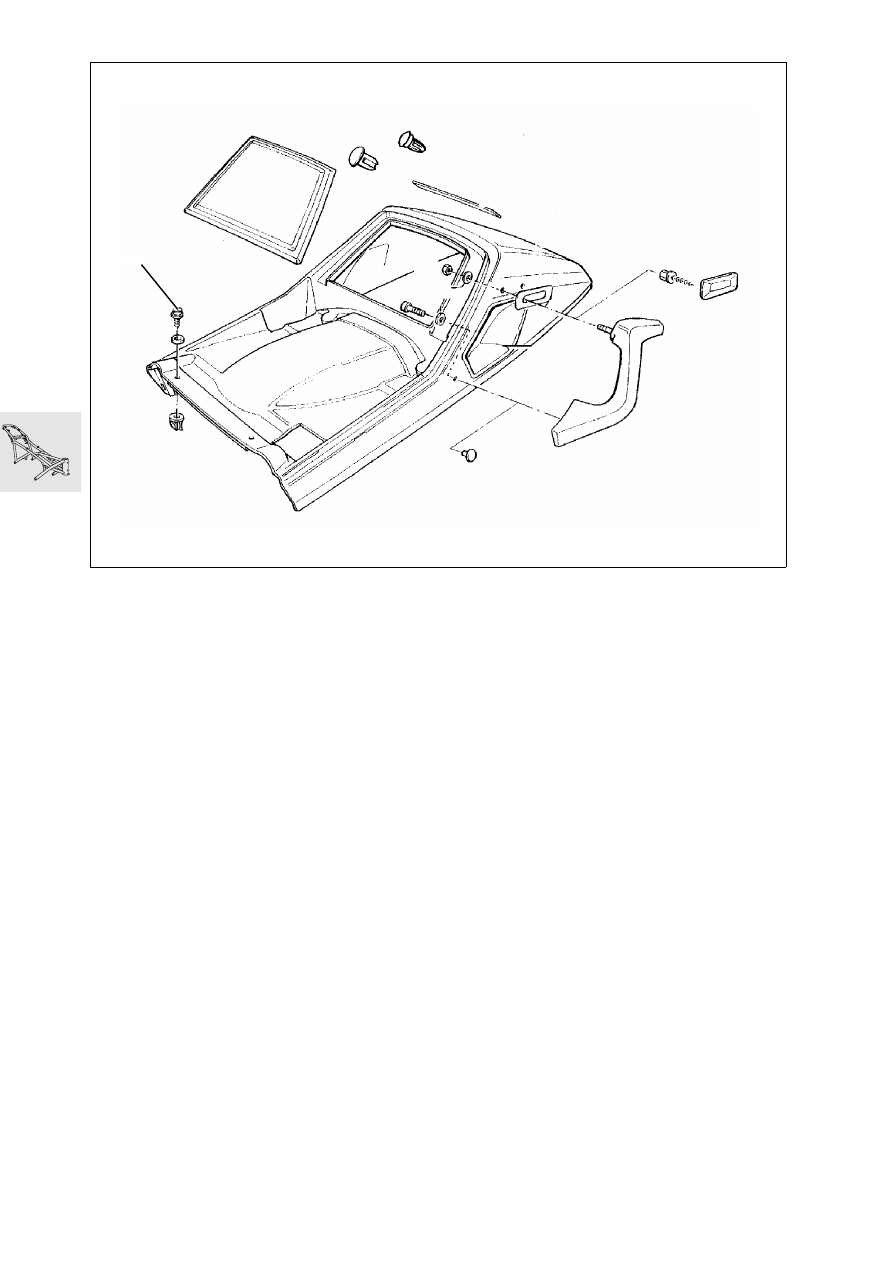

Removing and installing rear sec-
tion

•

Remove dualseat.

•

Remove combined tail light unit.

•

Release securing screw (1).

•

Install in the reverse order of removal.

LT460030

1

46.7

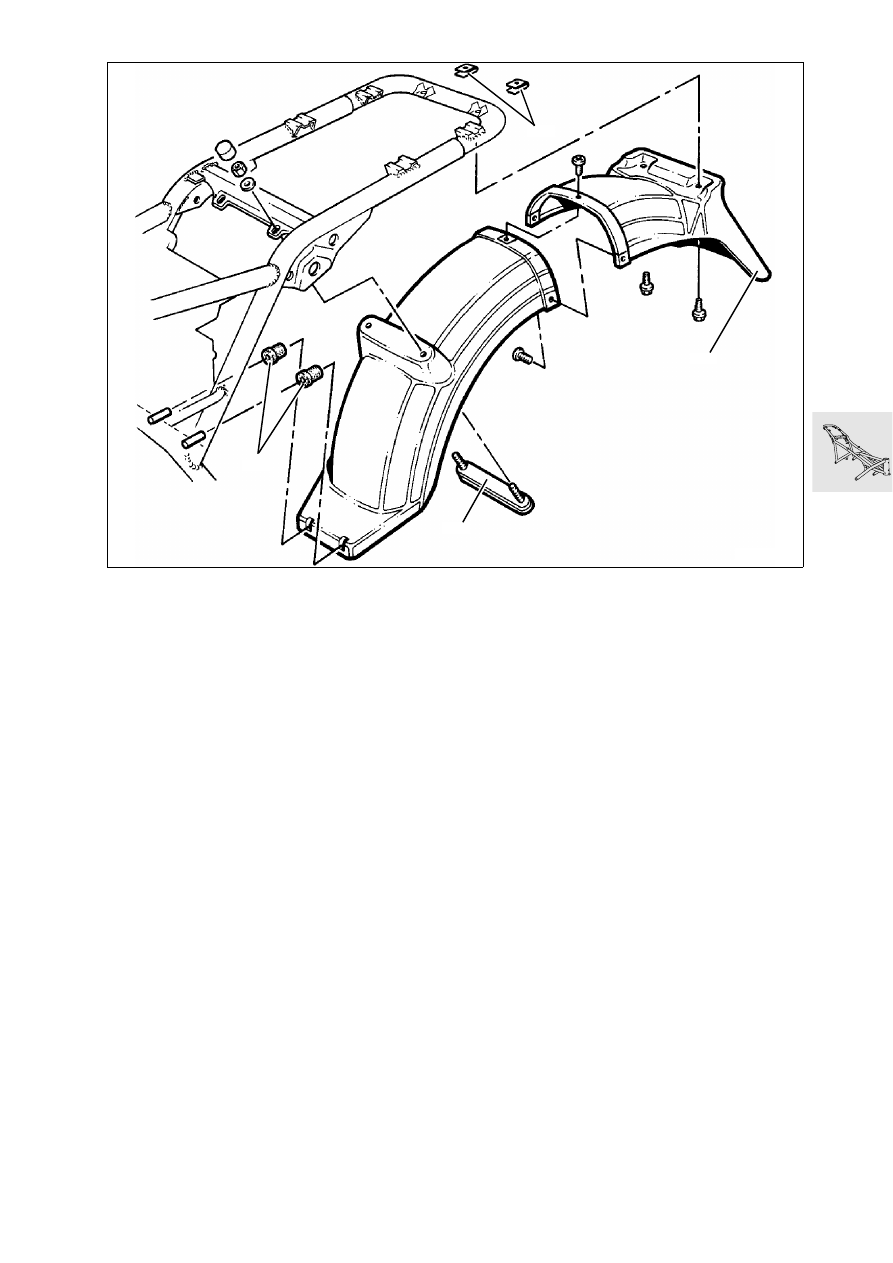

Removing and installing rear
mudguard

1. Rubber sleeves on gearbox
2. Bracket
3. Sheet-metal nuts
4. Licence plate support bracket

LT490040

3

4

2

1

46.8

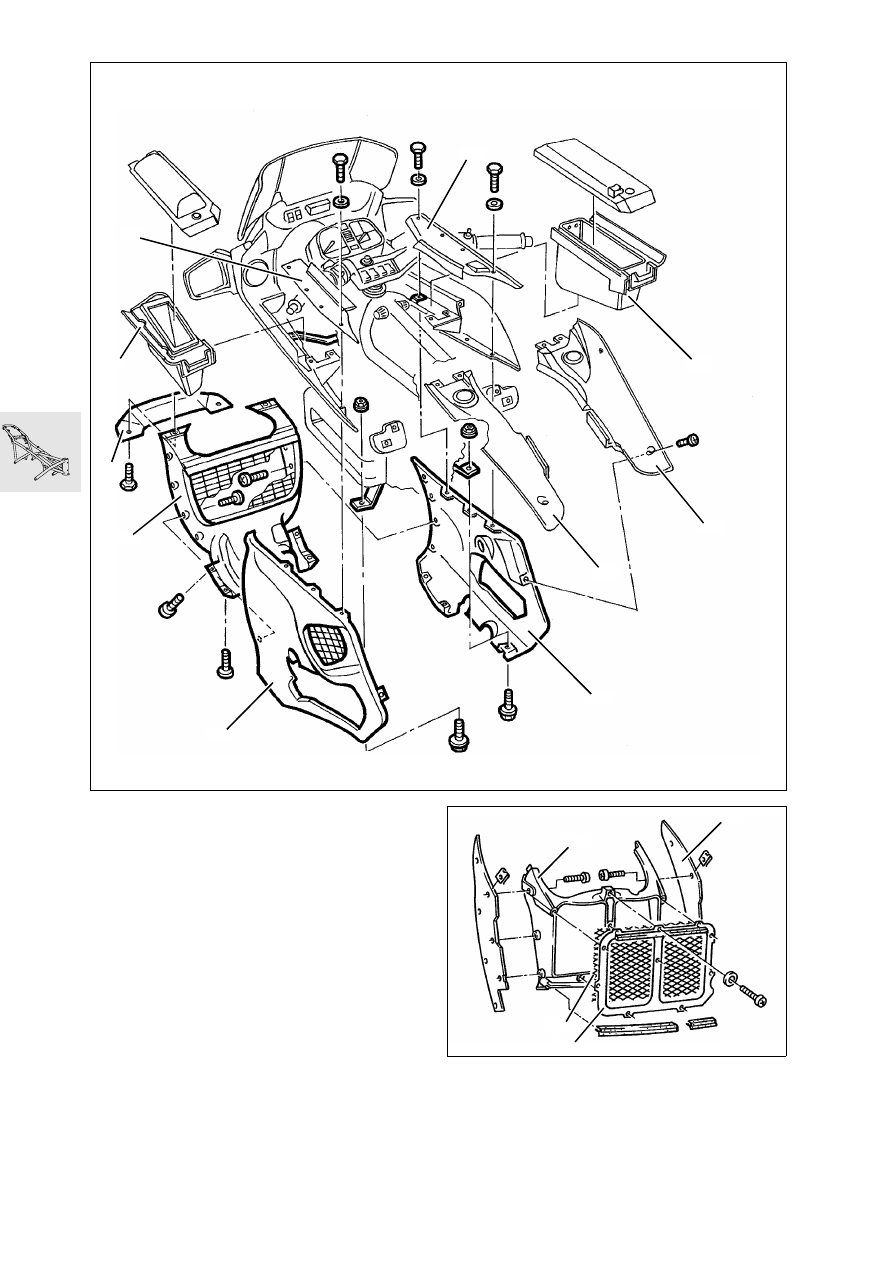

Removing and installing fairing [LT]

Removing side sections of fairing

•

Remove knee pad (1).

•

Remove storage box (2).

•

Remove cover (3).

•

Remove side section (4).

•

Install in the reverse order of removal.

Removing radiator cowling

•

Remove radiator cowling (5).

•

Remove cover (6).

1. Frame
2. Grille
3. Cowling
4. Cover

LT460050

3

3

2

6

5

4

4

1

1

2

LT460060

2

4

1

3

46.9

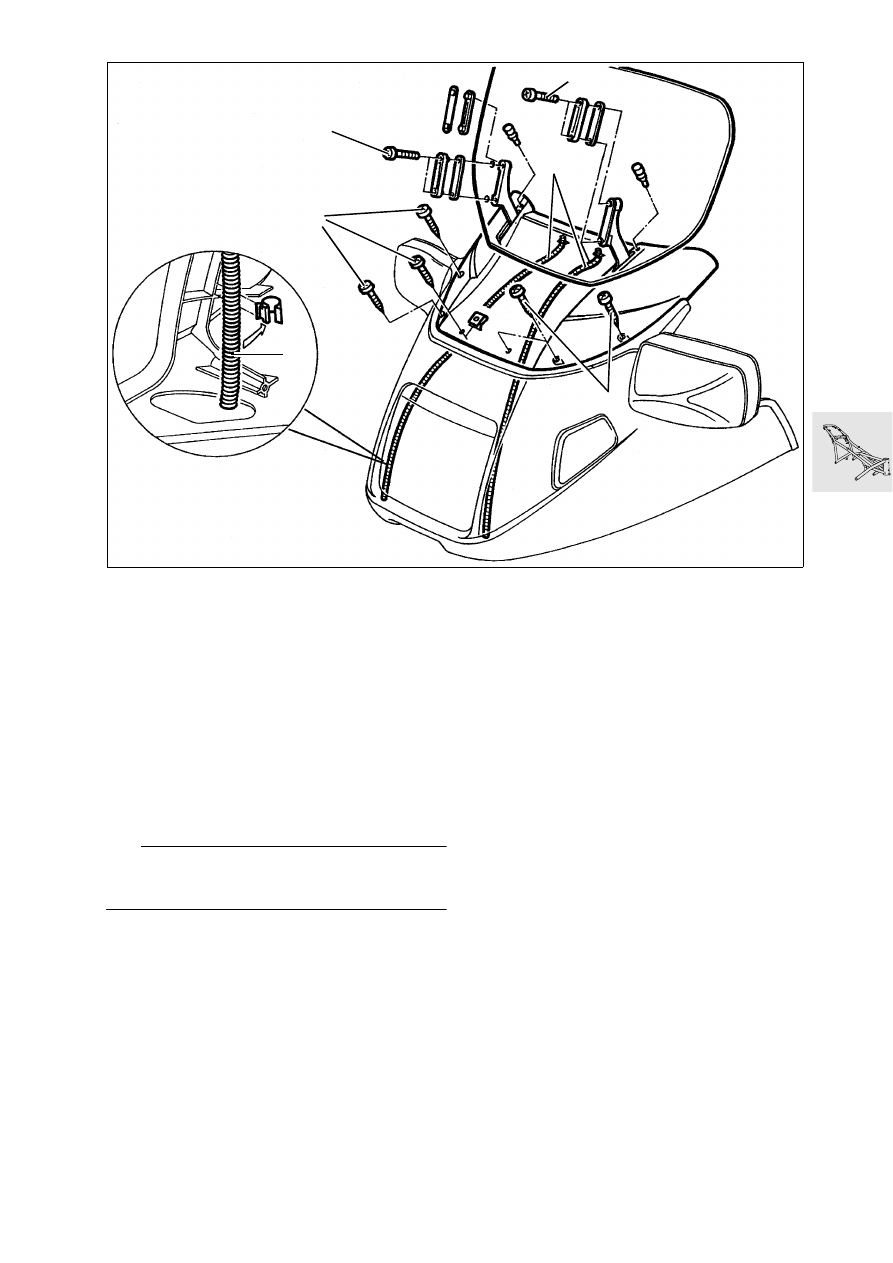

Removing and installing windshield

•

Release securing screws (1) on left and right and
detach screen.

Removing and installing windshield
complete with motor

•

Remove inner cover.

•

Release securing screws (2).

•

Detach water ducts (3) at the top nipple.

•

Disconnect electrical plug connection.

•

Remove windshield with motor.

•

Install in the reverse order of removal.

L

 Note:

Ensure the water ducts are fitted in the correct
position.

LT460070

2

1

3

1

2

3

46.10

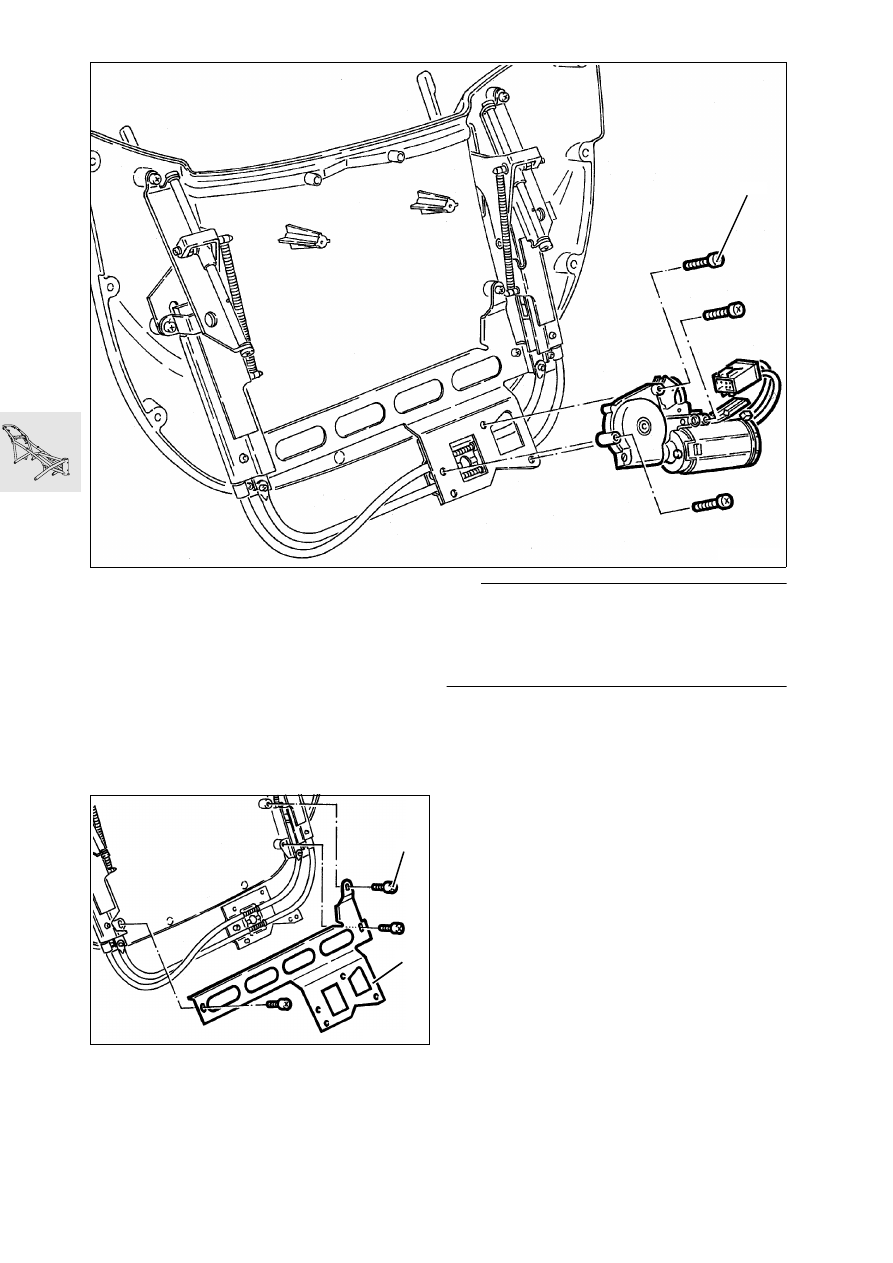

Disassembling and assembling adjust-
able windshield

Removing and installing actuator motor

•

Release securing elements (1) for actuator motor
and remove motor.

Removing plate

•

Remove actuator motor

•

Release mounting element (1) for plate (2).

•

Install in the reverse order of removal.

L



Note:

The retaining screws are micro-encapsulated and
therefore cannot be re-used. Clean the threads and
the holes. Coat screws with Loctite 243 before in-
serting.

LT460080

1

LT460090

2

1

46.11

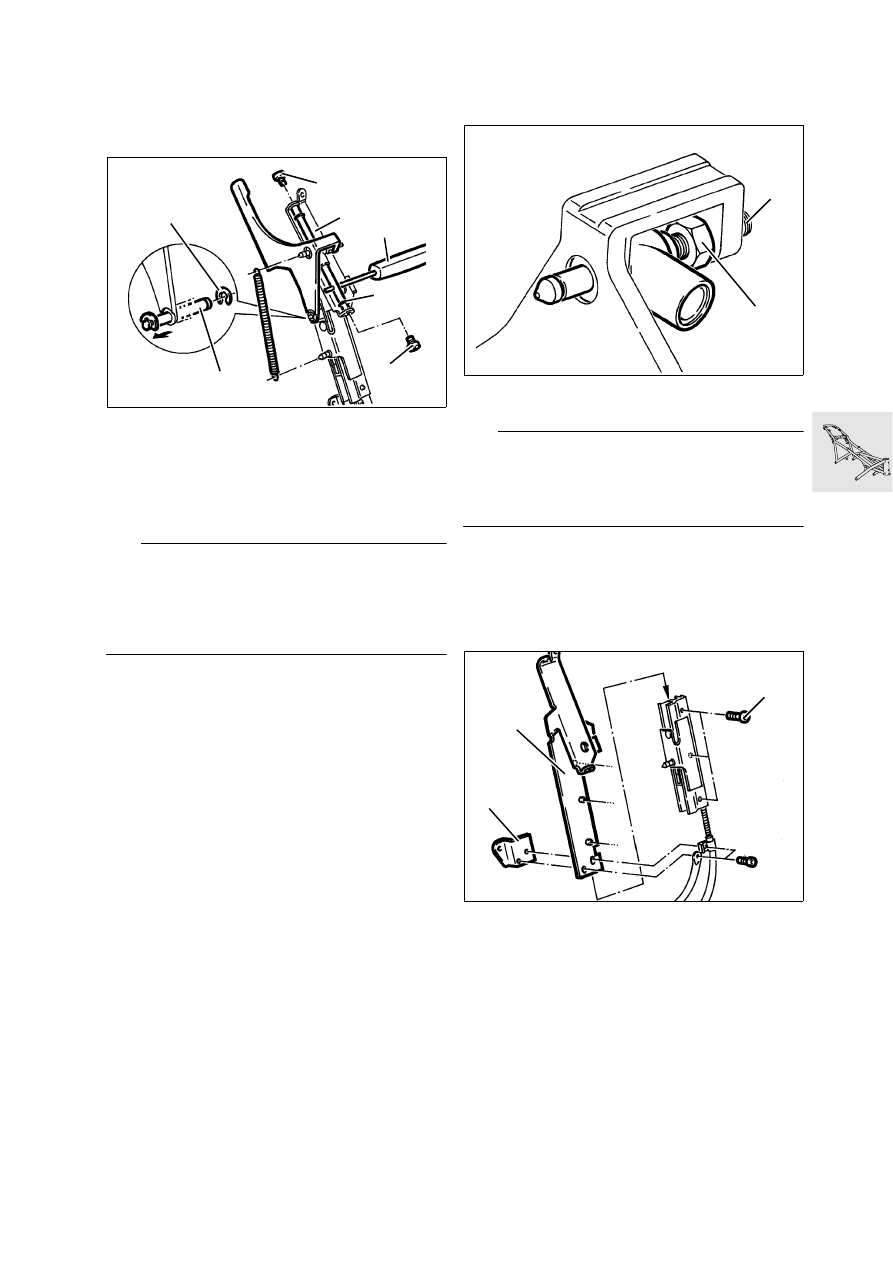

Removing lever

•

Remove actuator motor.

•

Remove plate.

•

Detach spring.

•

Release securing element (3) of guide rod (4),
while holding with pin (5).

•

Pull guide rod out of sliding bushing, note
O-rings (6).

•

Remove retainer (7) and press out shaft (8).

•

Install in the reverse order of removal.

L

 Note:

The retaining screws are micro-encapsulated and
therefore cannot be re-used. Clean the threads and
the holes. Coat screws with Loctite 243 before in-
serting.
Spray guide rod with silicone spray.

Removing guide bush in lever

•

Remove lever.

•

Loosen locknut (1), unscrew pressure screw (2).

L

 Note:

Installation:
Only tighten pressure screw such that the guide
bush can still be moved easily, then lock with hexa-
gon nut.

X

Tightening torque:

Locknut

.......................................................... 7 Nm

Removing sliding piece

•

Remove actuator motor.

•

Remove plate.

•

Remove lever.

•

Release securing element (3) for sliding piece (4)
on the plate.

•

Remove retaining bracket (5) for tubes.

•

Remove sliding piece completely out of tube.

LT460100

3

4

8

3

5

6

7

LT460110

1

2

LT460120

3

5

4

46.12

Removing and installing upper
section of fairing

•

Remove side sections of fairing and radiator
cowling.

•

Remove cover (1).

•

Remove complete windshield (2).

•

Disconnect plug connections for headlight and
turn indicators.

•

Remove upper section of fairing (3).

•

Install in the reverse order of removal.

LT460130

3

2

1
