51 25 040

Removing and installing

ignition switch/steering lock

–

Place motorcycle on its centre stand.

e

 Caution:

Cover or mask off the instrument cluster and trim to
prevent scratches.

•

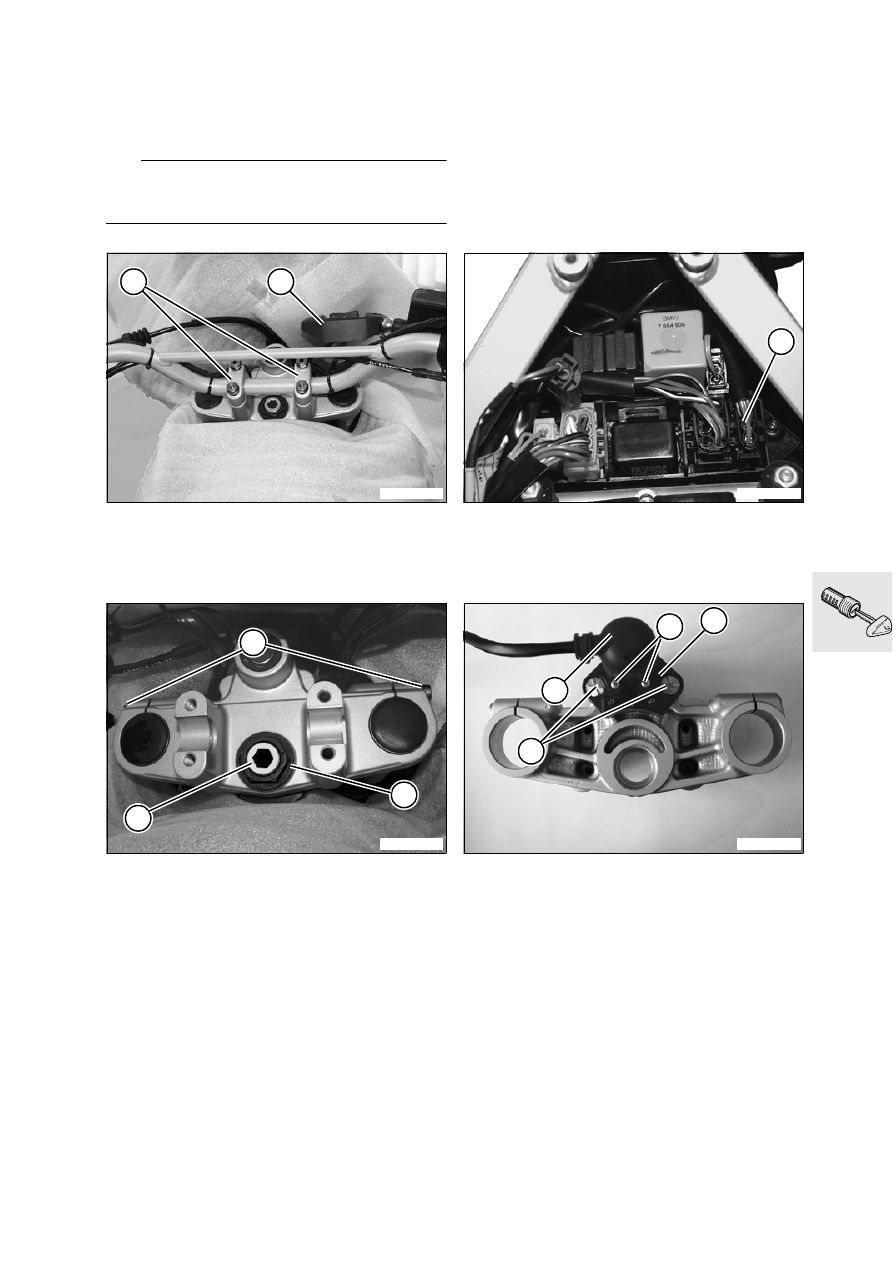

Remove impact pad (2).

•

Remove clamp blocks (1).

•

Remove the handlebar and place it in front of the
instrument cluster.

•

Unscrew hex nut (5).

•

Release clamping screws (3) at upper fork
bridge.

•

Unclip the clutch cable and the brake hose from
their holders.

•

Cut through the 2 cable ties at the left of the
frame head.

•

Cut through the 2 cable ties at the left of the
frame head.

•

Remove the fasteners securing the oil tank and
allow the oil tank to dangle to one side on the
hoses.

•

Remove the starter relay from the holder.

•

Remove the lid of the electronic equipment box.

•

Cut through the cable tie holding the wiring har-
ness at the electronic equipment box.

•

Disengage cover from the anchorage on main
frame on left.

•

Disconnect plug for ignition lock (6).

•

Remove the cable complete with the plug.

•

Remove the upper fork bridge complete with the
ignition lock.

•

Remove securing screws (7) and remove ignition
switch (10).

•

Using a 5 mm (0.20 in) bit, drill at least 6 mm
(0.24 in) into the non-removable screws (9).

•

Using an 8 mm (0.31 in) bit, drill at least 5 mm
(0.20 in) into the non-removable screws.

•

Break off the heads of the non-removable
screws.

•

Remove the ignition lock (8) from the fork bridge.

E320010

1

2

E320020

3

5

4

E610030

6

E510010

8

9

10

7

8

51.6

•

Remove the shanks of the non-removable
screws.

•

Installation is the reverse of the removal proce-
dure: pay particular attention to the following.

•

Tighten the non-removable screws with socket
wrench insert, BMW No. 51 0 530.

d

 Warning:

Begin by tightening the front securing screws (as
viewed in the forward direction of travel) of the clamp
blocks, then tighten the rear securing screws.

X

Tightening torques:

Ignition/steering lock to fork bridge .............. 21 Nm
Hexagon nut to counter-tube ....................... 65 Nm
Clamp screws for fork bridge ....................... 23 Nm
Handlebar to fork bridge .............................. 23 Nm

Removing and installing lock barrel

–

Place motorcycle on its centre stand.

•

Turn the handlebars to the left.

•

Turn the ignition key to the ON position.

•

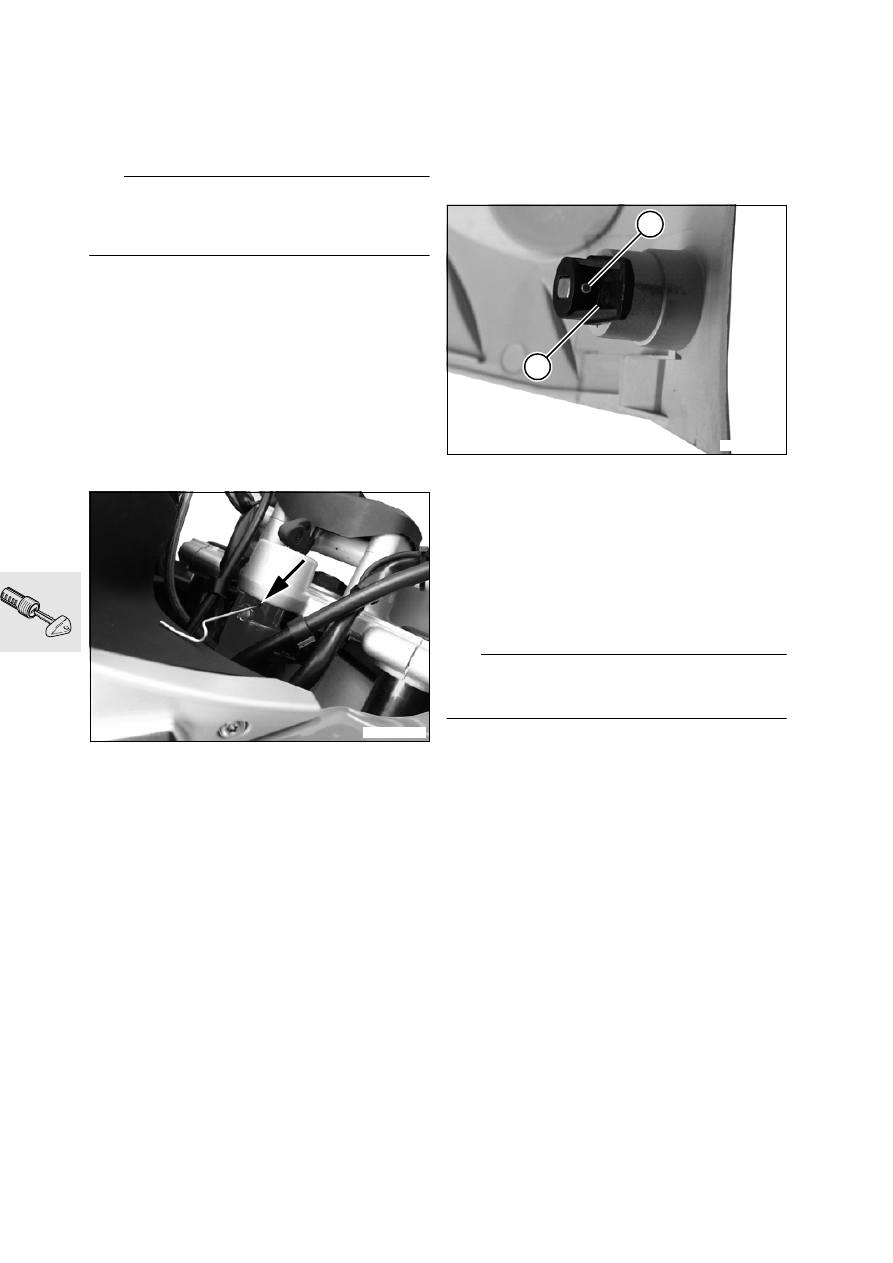

Press in the safety catch by inserting a suitable
tool through the opening (arrow), e.g. a piece of
wire.

•

Pull the lock barrel out with the ignition key.

Removing and installing lock for
rear stowage compartment

–

Place motorcycle on its centre stand.

•

Remove the lid of the rear stowage compart-
ment.

•

Clamp the lid in a vise with protective jaws.

•

Use a punch of suitable diameter to drive out
pin (1).

•

Remove latch (2).

•

Press out the lock.

•

Installation is the reverse of the removal proce-
dure.

51 25 030

Removing and installing lock

barrel for fuel tank filler cap

L

 Note:

Make sure that screws do not fall into fuel tank: cov-
er fuel tank filler neck with cloth.

•

Open the fuel filler cap.

•

Remove the bottom part of the filler cap.

E510040

E510020

1

2

51.7

•

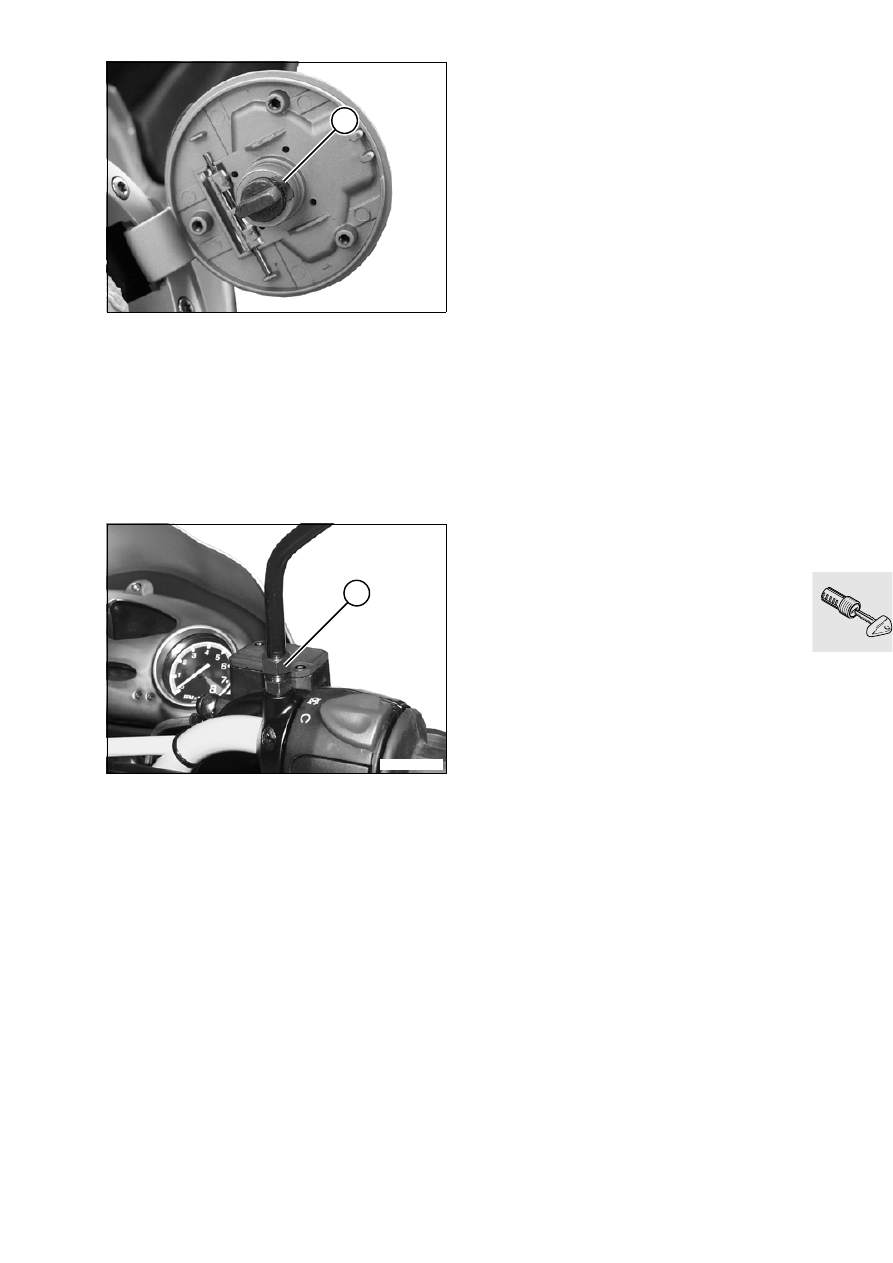

Insert key in lock barrel and press down on
retainer (1).

•

Pull out lock barrel with key.

•

Grease the new lock barrel with Optimoly MP 3.

•

Insert the lock barrel with the key.

•

Installation is the reverse of the removal proce-
dure.

51 16 042

Replacing mirrors

•

Slacken nut (2).

•

Remove the mirror.

•

Installation is the reverse of the removal proce-
dure.

X

Tightening torques:

Mirror to handlebar fitting ............................. 18 Nm

E510030

1

E510050

2

51.8

61.1
