Motorcycle BMW R1150RT. Manual

23.7

23 41 300

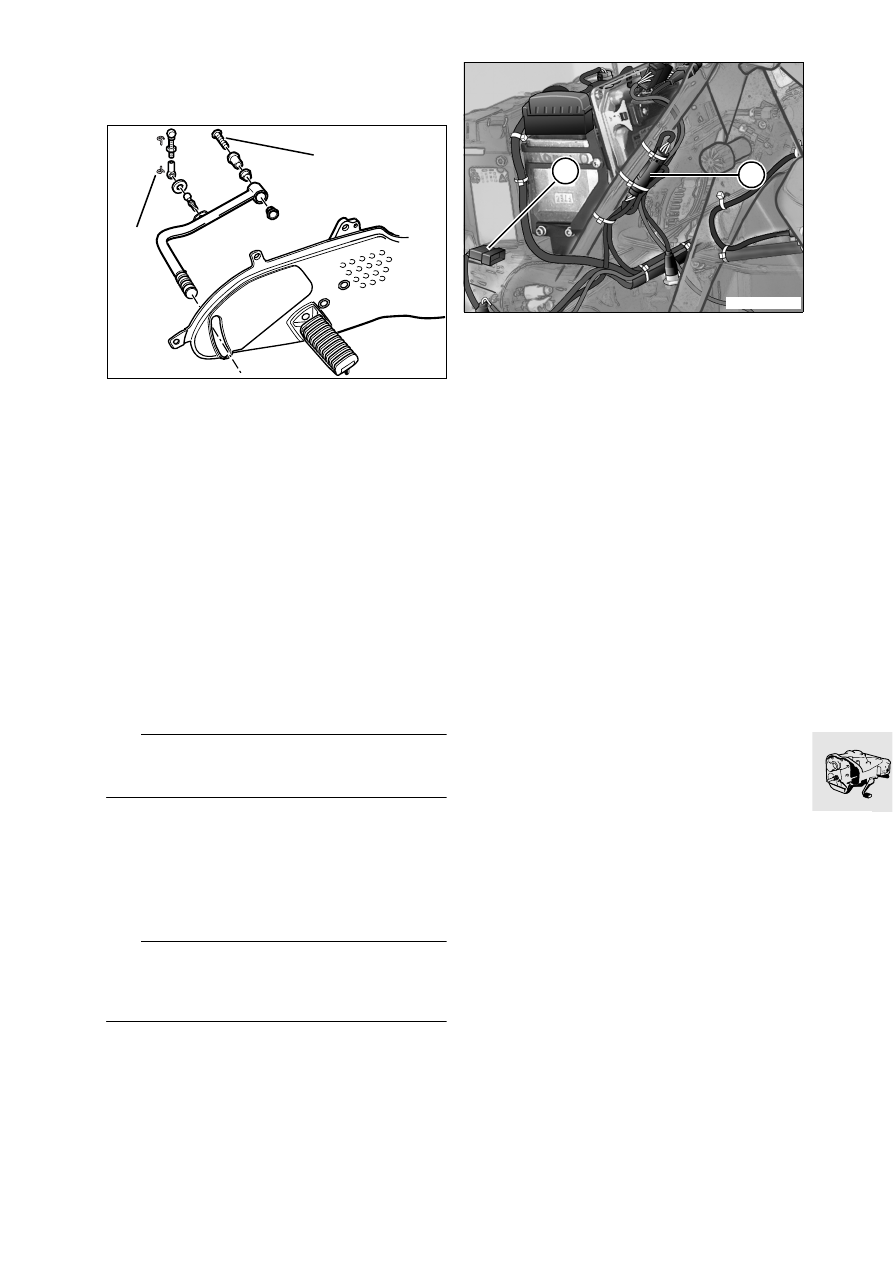

Removing and installing

gear-shift lever

•

Remove the seat.

•

Remove small left fairing panel.

•

Remove left side section of fairing (

46.8).

•

Remove retainer (2) and remove gearshift link-
age.

•

Remove the footrest plate.

•

Remove retaining screw (1) on gear shift pedal.

•

Installation is the reverse of the removal proce-
dure.

Tightening torque:

Gearshift lever to footrest plate .................... 35 Nm

23 00 020

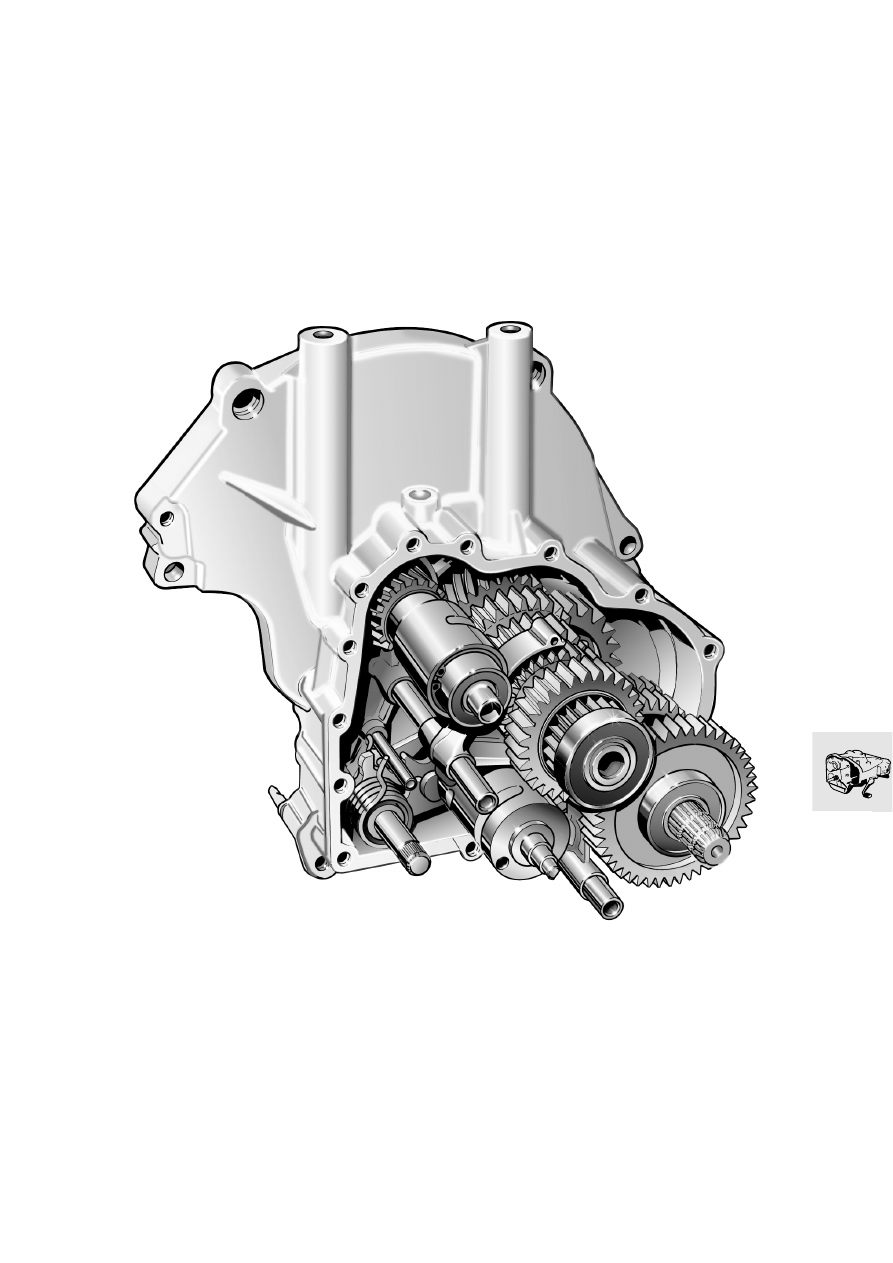

Removing and installing

gearbox

•

Remove the seat.

•

Remove side panels (

46.8).

Attention:

Fuel is flammable and a hazard to health. Observe all
applicable safety regulations.

•

Remove fuel tank (

16.5).

•

Secure stand, BMW No. 00 1 520, to motorcycle
with spacers, BMW No. 00 1 529.

•

Disconnect the air temperature sensor plug.

•

Remove air filter cover.

•

Remove the air filter element.

•

Remove the intake air pipe.

Attention:

Disconnect the negative battery terminal first, then
the positive terminal. Connect the positive battery
terminal first, then the negative terminal.

•

Remove battery

•

Unfasten air filter box at front and rear.

•

Disconnect plug for oxygen sensor (1) and re-
move cable.

•

Remove the plug/fuel pump unit (2) from the
frame.

•

Disconnect hose clamps/throttle stub pipes and
push the stubs into the air filter box.

•

Disconnect plugs of injection valves.

•

Remove holders of injection valves.

•

Remove injection valves from throttle stub pipes.

•

Remove top screw from spring strut and lower
the rear wheel drive.

•

Remove the left footrest plate (

46.16).

•

Remove securing screws for brake master cylin-
der from footrest plate.

•

Remove the right footrest plate (

46.17).

•

Remove rear-frame fasteners on left and right at
front, but only loosen strut fasteners.

•

Remove rear silencer.

•

Disconnect cables from starter motor.

•

Remove the starter motor.

R22230010

R22610030
