Motorcycle BMW R1150RT. Manual - part 13

00.48

Instructions for filling rear wheel
circuit reservoir

e

 Attention:

Integral brakes, the front brake must be ready for
use.

•

Top up fluid in rear wheel-circuit reservoir to
“MAX” mark if necessary.

•

Fully tighten resetting tool, BMW No. 34 1 531,
and adapter, BMW No. 34 1 536.

e

 Attention:

The piston in the base of the wheel-circuit reservoir
must always be covered by the fluid, as otherwise air
can be drawn into the brake system.
Bleed the system again if this happens.

•

Switch on the ignition.

L

 Note:

After switching on the ignition, always wait for the
BMW Integral ABS to complete its self-diagnosis.
Do not operate the brake lever until self-diagnosis
has completed.

•

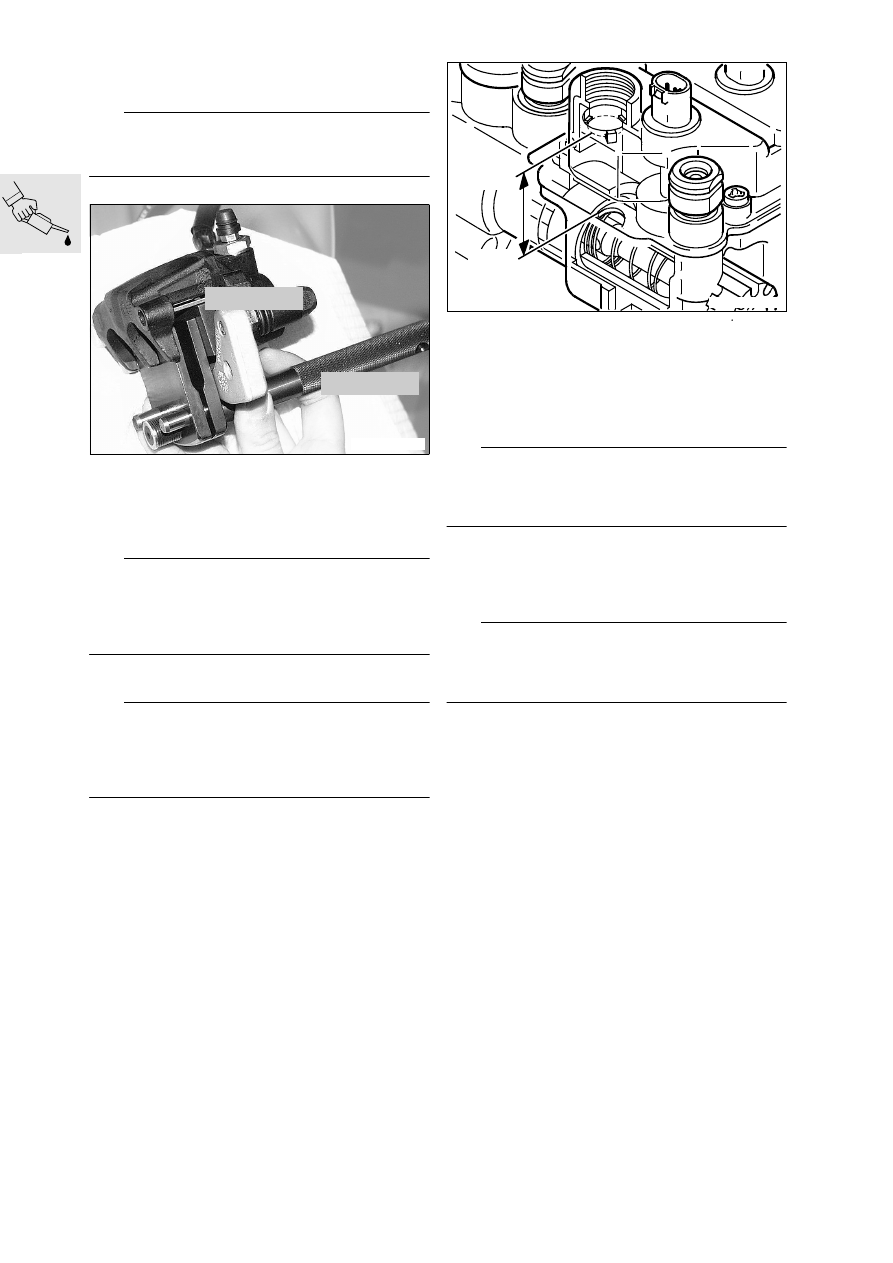

Operate the footbrake lever until the pistons of
the rear brake caliper are in contact with
resetting tool, BMW No. 34 1 531, and
adapter, BMW No. 34 1 536.

•

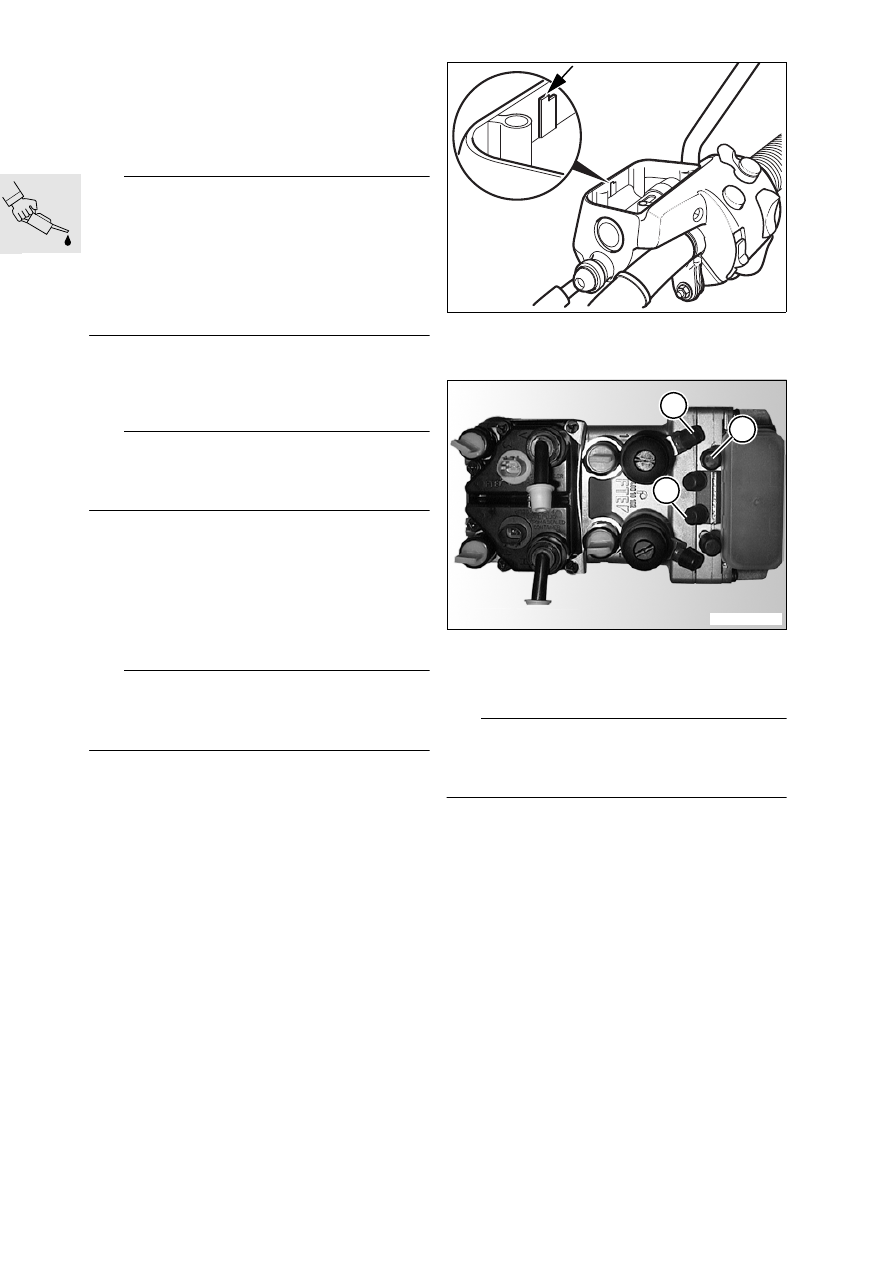

Top up the fluid in the wheel-circuit reservoir until
one of the three protrusions in the filler neck just
touches the surface of the fluid (arrow).

•

Remove resetting tool, BMW No. 34 1 531, and
adapter, BMW No. 34 1 536.

d

 Warning:

Make sure that the wheel-circuit reservoir does not
overflow when the brake pads/brake calipers are in-
stalled.

•

Install rear brake pads and brake caliper.

•

Hand-tighten cap of rear wheel-circuit reservoir.

•

Check operation of the brake system with the ig-
nition switched on.

e

 Attention:

After all the work on the brake system has been
completed, run a bleed test using the
BMW MoDiTeC.

•

Perform bleed test with BMW MoDiTeC
(

a

00.31).

•

Install fuel tank.

Brake fluid ...................................................DOT 4

X

Tightening torque:

Bleed screw in rear brake caliper ................... 5 Nm
Brake caliper to rear wheel drive .................. 40 Nm

R28000170

34 1 536

34 1 531

MAX

MIN

R28340090

 00.49

Only bleeding the rear wheel circuit

–

Draw off the old brake fluid from the wheel-circuit
reservoir.

–

Remove rear brake pads, force back the brake
pistons and secure the pistons in this position.

–

Wrap a cloth around the rear brake caliper.

•

Fill rear wheel-circuit reservoir with brake fluid up
to “MAX” mark and install
cap, BMW No. 34 2 541.

•

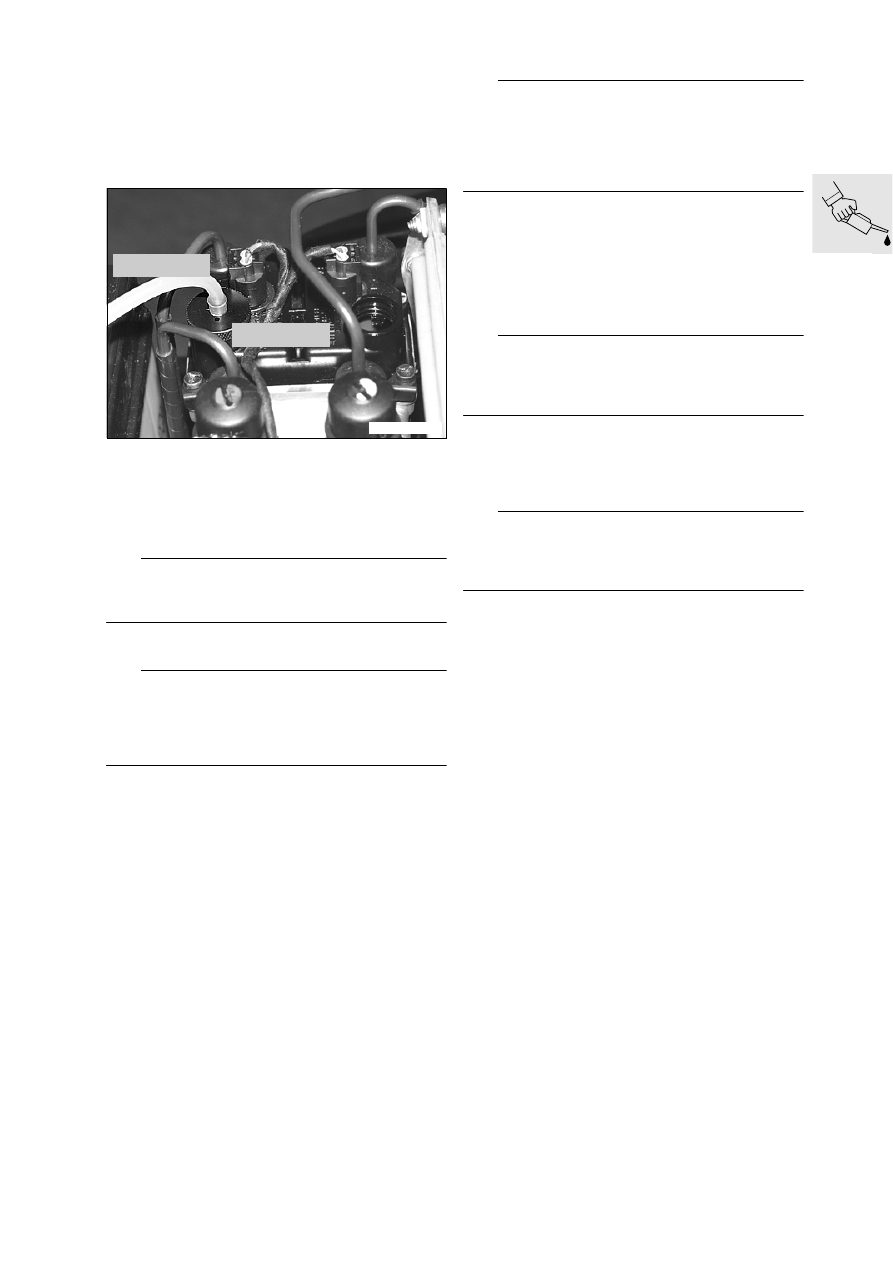

Connect 1.5 m silicon
hose, BMW No. 34 1 561, to the bleed screw.

L

 Note:

If necessary, use a cable tie to secure the bleed
hose to the bleed screw.

•

Switch on the ignition.

L

 Note:

After switching on the ignition, always wait for the
BMW Integral ABS to complete its self-diagnosis.
Do not operate the brake lever until self-diagnosis
has completed.

•

Very gently press the footbrake lever until the
pump just starts up.

•

Open the bleed screw.

•

Pump the brake fluid with virtually no pressure
until the hose is full of brake fluid.

•

Connect end of hose to
cap, BMW No. 34 2 541.

•

Pump the brake fluid with virtually no pressure to
begin with, then vary the brake pressure.

d

 Warning:

Check that the brake fluid in the hose does not
foam.
If the fluid foams, proceed as described in the sec-
tion on bleeding and changing brake fluid in rear
wheel circuit (

a

00.46).

•

Pump brake fluid through the system until it is
clear and free from air bubbles.

•

Close the bleed screw.

•

Release the brake and switch off the ignition.

•

Disconnect silicon hose, BMW No. 34 1 561,
from bleed screw and drain the hose.

•

Remove cap, BMW No. 34 2 541.

e

 Attention:

After changing and/or bleeding the brakes, always
top up the fluid in the wheel-circuit reservoir to the
correct level in accordance with the instructions.

•

Fill rear wheel-circuit reservoir with brake fluid in
accordance with instructions (

a

00.48).

•

Check operation of the brake system with the ig-
nition switched on.

e

 Attention:

After all the work on the brake system has been
completed, run a bleed test using the
BMW MoDiTeC.

Brake fluid ...................................................DOT 4

X

Tightening torque:

Bleed screw in rear brake caliper ................... 5 Nm
Brake caliper to rear wheel drive .................. 40 Nm

R28000230

34 1 561

34 2 541

00.50

34 00 091

Changing/bleeding brake

fluid in control circuit

Change brake fluid in control circuit every 2
years
(Inspection IV)

d

 Warning:

All repair and maintenance work on the
BMW Integral ABS must be performed by trained,
qualified specialists.
Comply with all maintenance and repair instructions
and always work through the various steps in the
correct order.
Use only new brake fluid from freshly opened con-
tainers.

34 00 072

Bleeding/changing brake fluid

in front control circuit

d

 Warning:

When performing maintenance and repair work on
BMW Integral ABS, never pump quickly or
vigorously.

•

Turn the handlebars to full left lock.

•

Repeatedly and slowly pull front brake lever light-
ly to expel air from brake master cylinder.

•

Place the motorcycle on its main stand.

•

Remove fuel tank.

•

Turn the front wheel to a position in which the
brake fluid reservoir is horizontal and secure the
handlebars in this position.

e

 Attention:

Do not allow brake fluid to come into contact with
painted parts of the motorcycle as brake fluid de-
stroys paint.

•

Wrap cloths around the reservoir.

•

Remove front reservoir cap with rubber dia-
phragm, draw off the old brake fluid and clean
the reservoir.

•

Top up the brake fluid level to
the “MAX” mark (arrow).

•

Connect the brake bleeding device to bleed
screw (1) of the front metering cylinder, but
do not switch on.

d

 Warning:

Do not use vacuum extraction to change the brake
fluid in the control circuits or bleed the control cir-
cuits.

R21000020

R28340110

1

3

2

 00.51

e



Attention:

During the fluid-change and bleeding procedure,
make sure that the fluid replenishing hole is always
below the level of the brake fluid, or else air will be
drawn into the brake system.
Bleed the system again if this happens.

•

Set the handbrake lever to position 4.

d

 Warning:

When performing maintenance and repair work on
BMW Integral ABS, never pump quickly or vigorous-
ly.

•

In the following sequence, bleed:

–

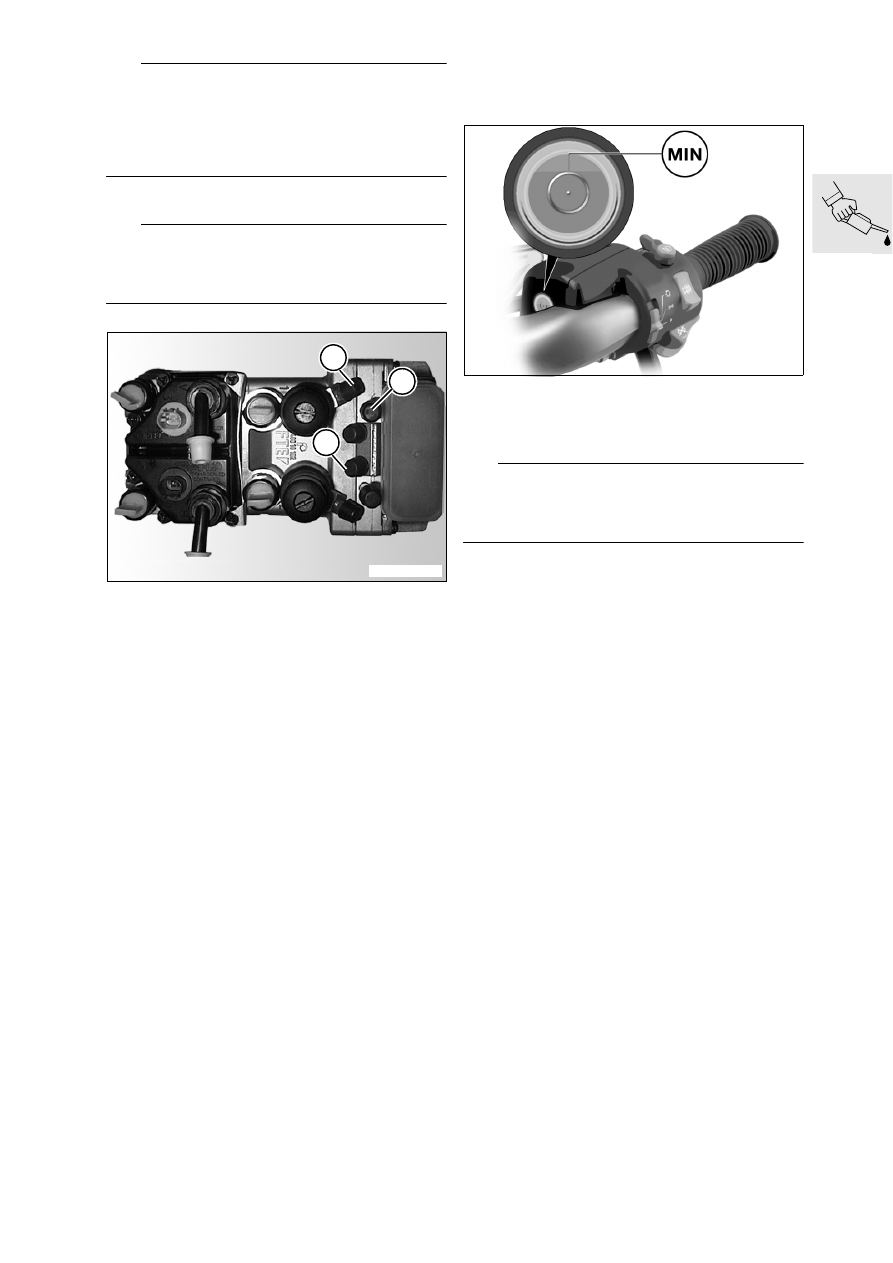

front metering cylinder (1)

–

front integral circuit (2)

–

front control circuit (3) and

–

front metering cylinder (1) for the second time

using ring spanner, BMW No. 34 2 532, in accord-
ance with instructions for bleeding.

Instructions for bleeding:
1. Slowly pull brake lever until brake-light switch
clicks (blow-by bore closed).
2. Open the bleed screw.
3. Slowly pull brake lever to full extent of its travel
and close the bleed screw.
4. Slowly release the brake lever.
5. Repeat steps 1 to 4 until the bake fluid is clear
and free of bubbles.

•

Fit the protective caps on the bleed screws.

•

Top up the brake fluid until the level reaches the
“MAX” mark.

•

Wipe the rim of the reservoir, the rubber dia-
phragm and the cover to remove brake fluid, and
carefully reassemble the components.

•

Recheck the brake-fluid level.

•

Place the motorcycle on its centre stand.

•

Turn the handlebars fully to the left.

Specified level
not below ......................................................... MIN
(top edge of the marking ring)

e

 Attention:

After all the work on the brake system has been
completed, run a bleed test using the
BMW MoDiTeC.

Brake fluid ...................................................DOT 4

R28340110

1

3

2

R22000140
