00.16

 00.17

00

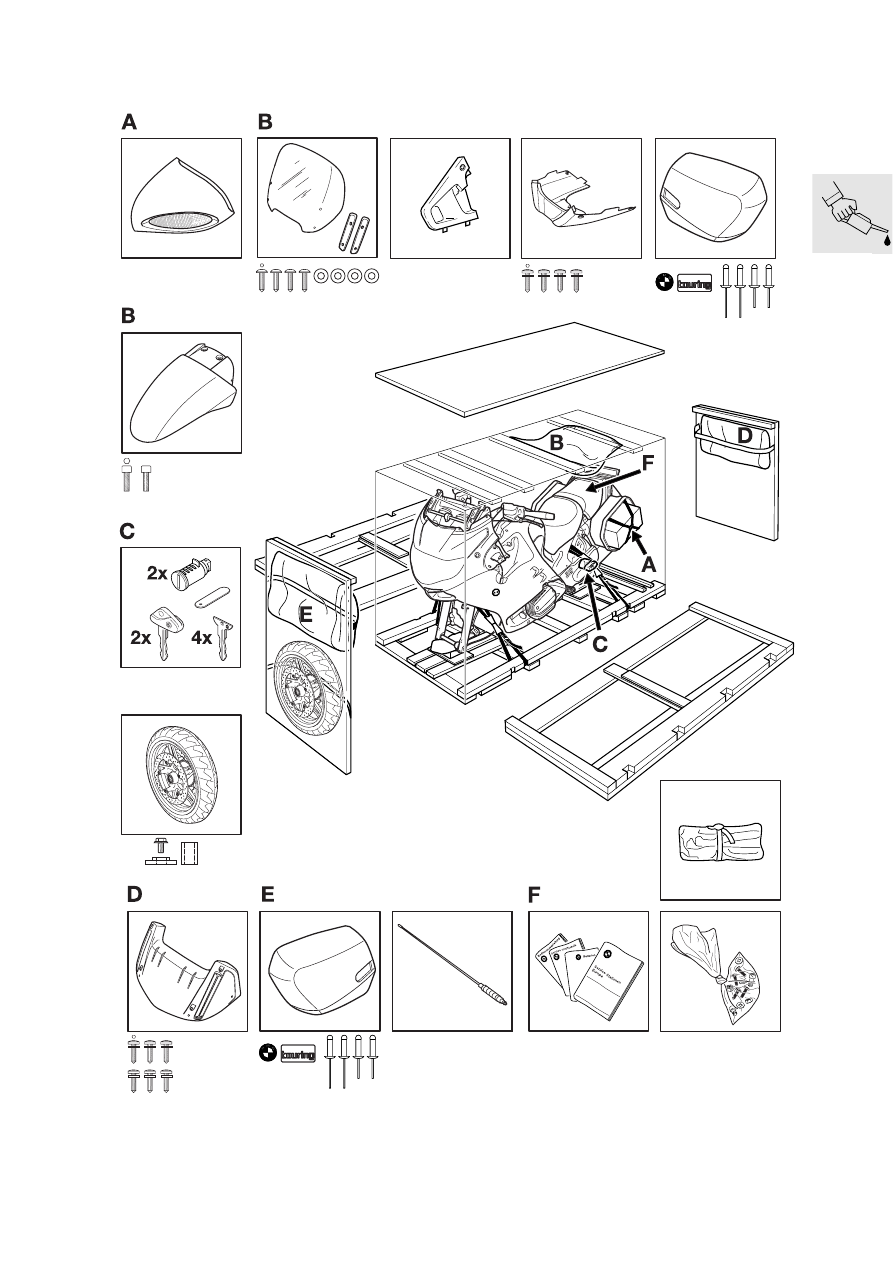

General view of crated motorcycle

B M

W

B

W

 M

R22009010

00.18

Checking the crated motorcycle for
damage

•

When the motorcycle arrives, check the crated
motorcycle immediately for damage and, if nec-
essary, examine the contents for consequential
damage.

In case of damage in Germany

•

Note the damage on the delivery slip.

•

Read the information sheet on damage in transit.

•

Notify the supplier without delay (e.g. freight
company or DB) and also
Bavaria Wirtschaftsagentur GmbH
Abteilung ZW - 12
80788 München
Tel. +49 89/14327-632
Fax. +49 89/14327-709

In case of damage in importer markets

•

Note the damage on the delivery slip.

•

Comply with specific national market proce-
dures.
In case of doubt, please submit enquiries to:
Bavaria Wirtschaftsagentur GmbH
Abteilung ZW - 12
D-80788 München
Tel. +49 89/14327-632
Fax. +49 89/14327-709

•

Notify the supplier (e.g. freight company) without
delay.

Unpacking the motorcycle

•

Lever off the cover.

•

Remove plastic covers.

•

Take out the separate pack of items:

–

Front wheel

–

Case lid

–

Aerial

–

Windscreen

–

Covers

–

Engine spoiler

–

Cover for windscreen adjuster

–

Front mudguard

–

Mirrors

–

Small parts/fasteners

–

Documentation

•

Remove the set of keys from the left rear footrest.

•

Force off cross-struts with a suitable lever.

e

 Attention:

Do not knock the cross-struts out or the motorcycle
may be damaged.

•

Remove the end-walls.

•

Remove the side-walls.

e

 Attention:

Remove any nails projecting from the base of the
crate or lying on the base or on the floor.

•

Dispose of the packing materials in an environ-
mentally responsible manner as described in Cir-
cular 23/91 - Sales.

Inspecting motorcycle for damage

•

Check for defects.

•

Use the “express handling service” to notify
BMW Motorrad
UX-VS-1
Fax: + 49 89 382 33220

•

Rectify the fault.

•

If parts are needed, order them through the usual
channel.

•

Costs are to be processed by the warranty claim
system (stage 4). Defect codes:

–

Parts missing

10 01 00 00 00

–

Parts damaged

10 02 00 00 00

–

Incorrect parts delivered

10 03 00 00 00

Checking that delivery is complete

–

All optional extras

–

Toolkit

–

Documentation

 00.19

Assembling the motorcycle

Installing the front wheel

e

 Attention:

Degrease all brake discs.

•

Remove front straps.

•

Using the straps, secure the front of the motor-
cycle to the assembly crane,
BMW No. 46 5 640.

e

 Attention:

Do not damage the brake lines, Bowden cables and
fairing panels.

•

Raise the front of the motorcycle.

e

 Attention:

Make sure that the motorcycle cannot topple side-
ways.

•

Remove rear straps.

•

Using the assembly crane, BMW No. 46 5 640,
carefully push the motorcycle forward off the
pallet.

•

Extend the main stand and lower the motorcycle
until it is resting firmly on the main stand and the
rear wheel.

d

 Warning:

Integral ABS When removing and installing the
brake calipers, carefully force back the pistons only
far enough to ensure that the wheel-circuit reservoir
does not overflow.
If fluid escapes, top up the level in the wheel-circuit
reservoir to the “MAX” mark.

•

Remove screws securing the front brake cali-
pers.

L

 Note:

Do not apply handbrake lever or footbrake lever with
brake calipers removed/front wheel removed.

•

Install the front wheel with spacer (1) and speed-
ometer drive (2).

e

 Attention:

Locate stop on slider tube (A) in recess in speedom-
eter drive (B).

•

Tighten the retaining screw (3).

•

Install the front brake calipers.

•

Release the motorcycle from the assembly
crane, BMW No. 46 5 640.

•

Compress the front fork firmly several times.

•

Tighten the clamp screws.

d

 Warning:

The brakes are not ready for use until the brake
pads have been bedded against the brake discs
with the ignition switched on.

X

 Tightening torque:

Fastener of quick-release axle ..................... 30 Nm
Clamping screws of quick-release axle  ....... 22 Nm
Brake caliper to fork slider ........................... 30 Nm

R22000010

R22000020

1

2

3

B

A
