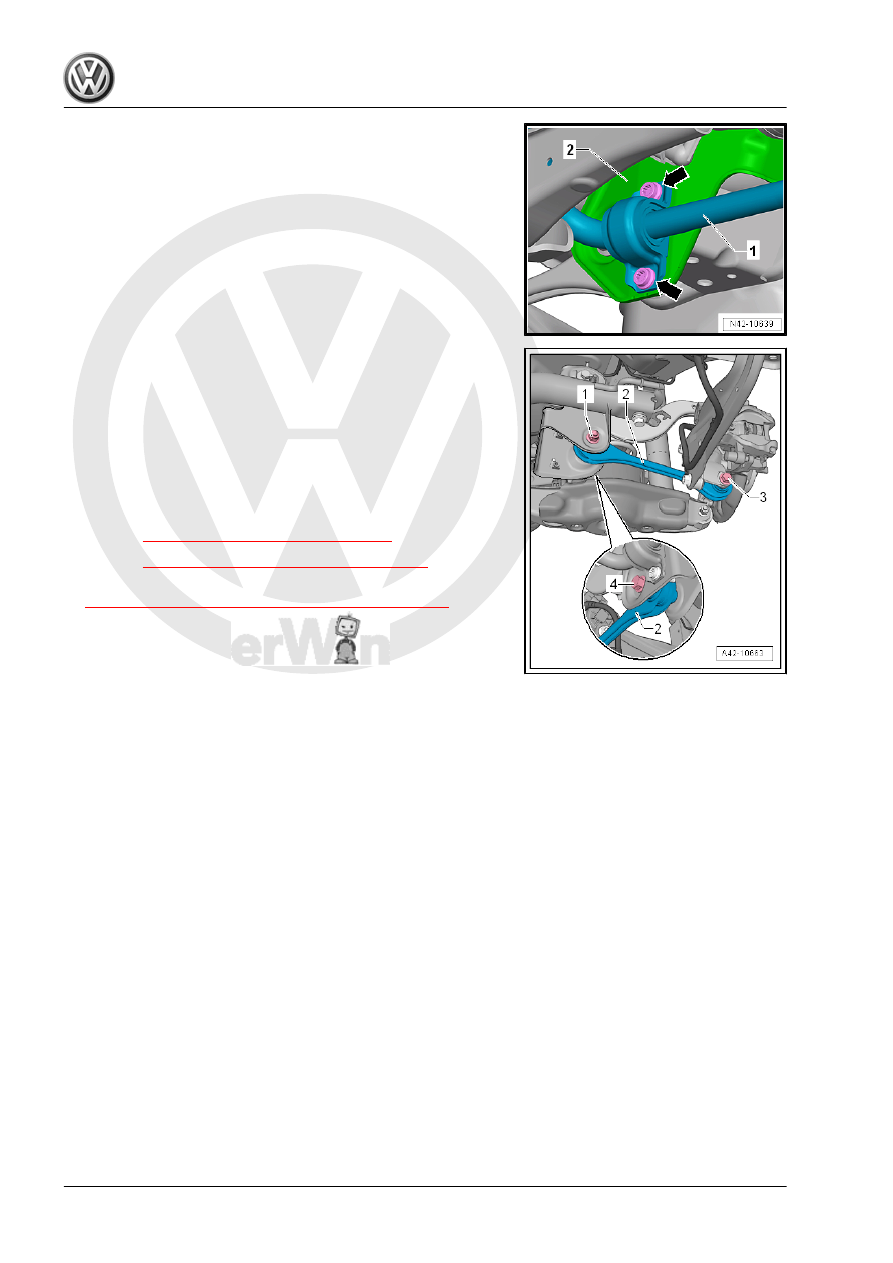

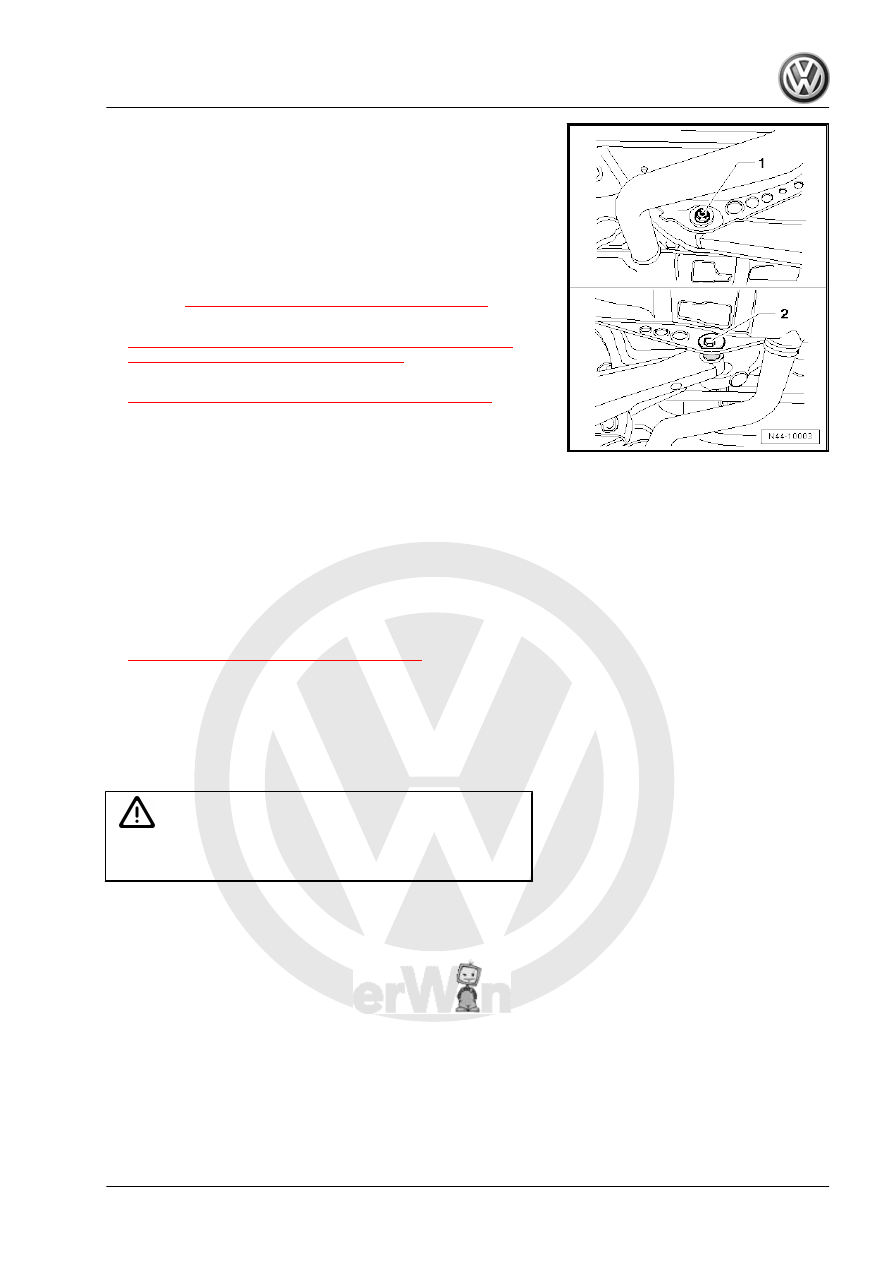

– Mark the position of the eccentric screw -2- in relation to the subframe, for example using a felt-tip pen. – Unscrew the nut -1- and remove the bolt -2-. ⇒ “5.1 Overview - Transverse Link”, page 181 ♦ Refer to ⇒ “2.4 Left/Right Rear Level Control System Sensor G76 / G77 , Removing and Installing”, page 282 ♦ Refer to ⇒ “1.1 Wheel Bolt Tightening Specifications”, page 286 ♦ Rear exhaust system. Refer to ⇒ Rep. Gr. 26 ; Exhaust Pipes/ Mufflers; Overview - Muffler . • Observe the mark made for the eccentric screw -2- in relation to the subframe. • Only fasten the transverse link in the curb weight position. basic setting for the wheel damping electronics using the Ve‐ hicle Diagnostic Tester. • For vehicles with a level control system sensor, perform a headlamp basic setting. Refer to ⇒ Electrical Equipment; Rep. Gr. 94 ; Headlamp; Headlamp, Adjusting . – Perform an axle alignment. Refer to ⇒ “3.5 Axle Alignment Procedure”, page 302 5.5 Tie Rod, Removing and Installing Special tools and workshop equipment required Caution This procedure contains mandatory replaceable parts. Refer to component overview prior to starting procedure. Mandatory Replacement Parts |
