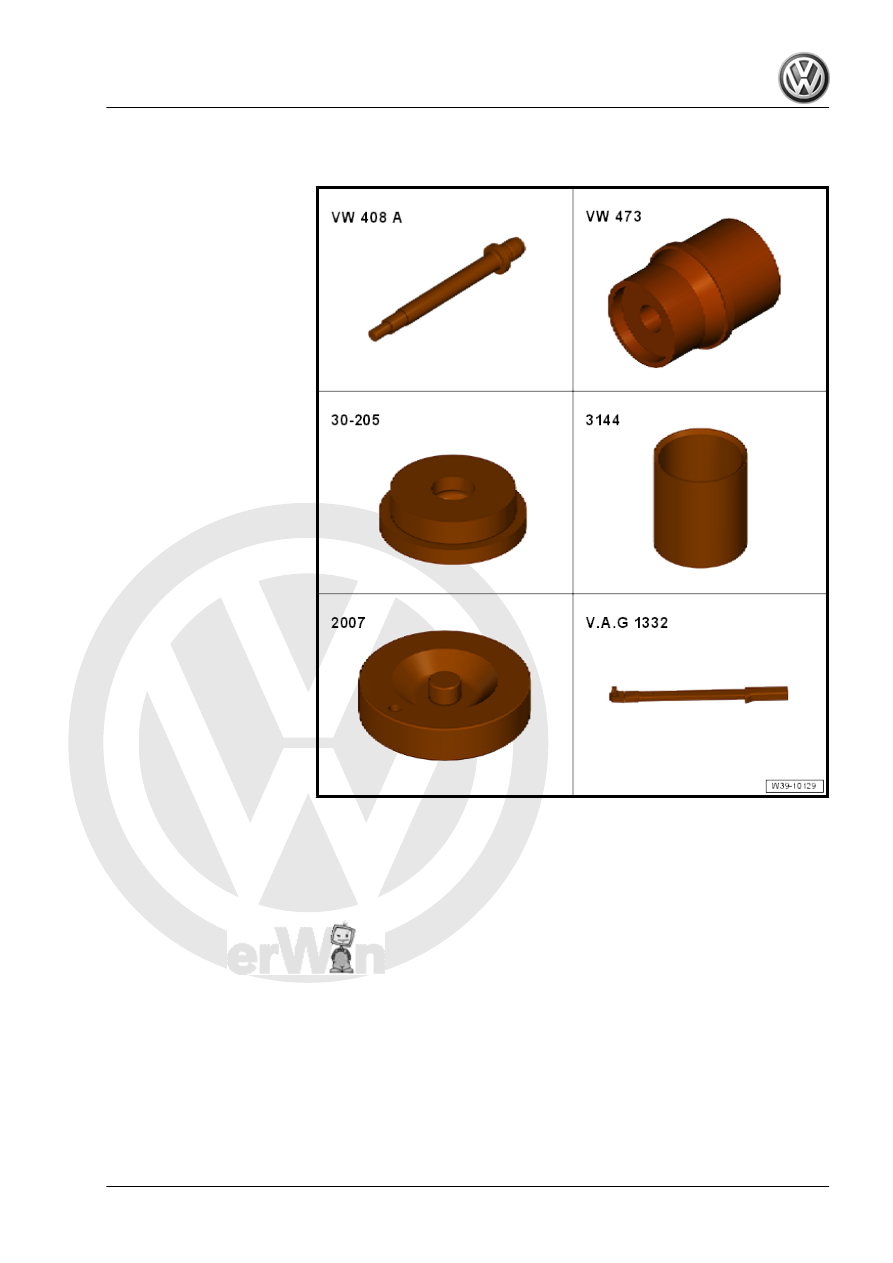

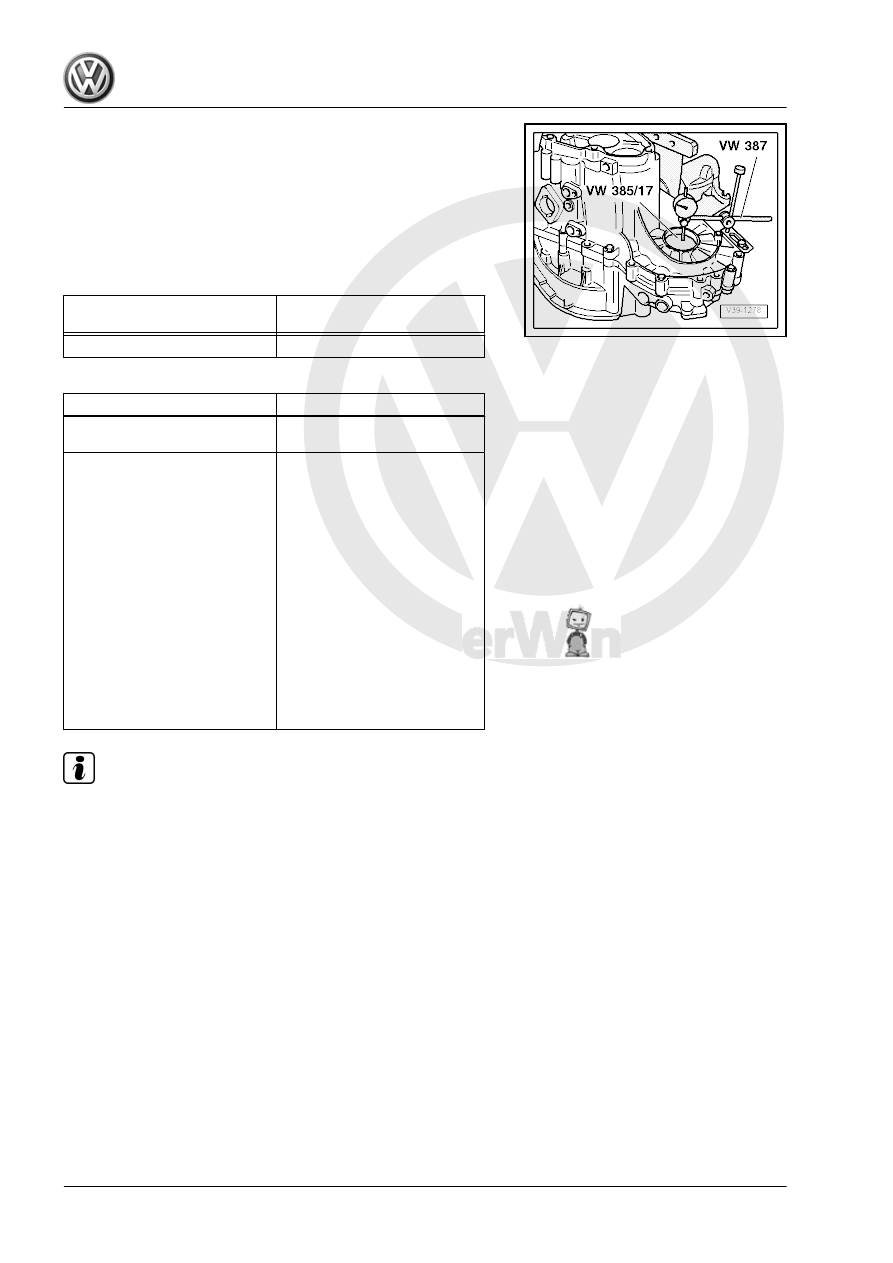

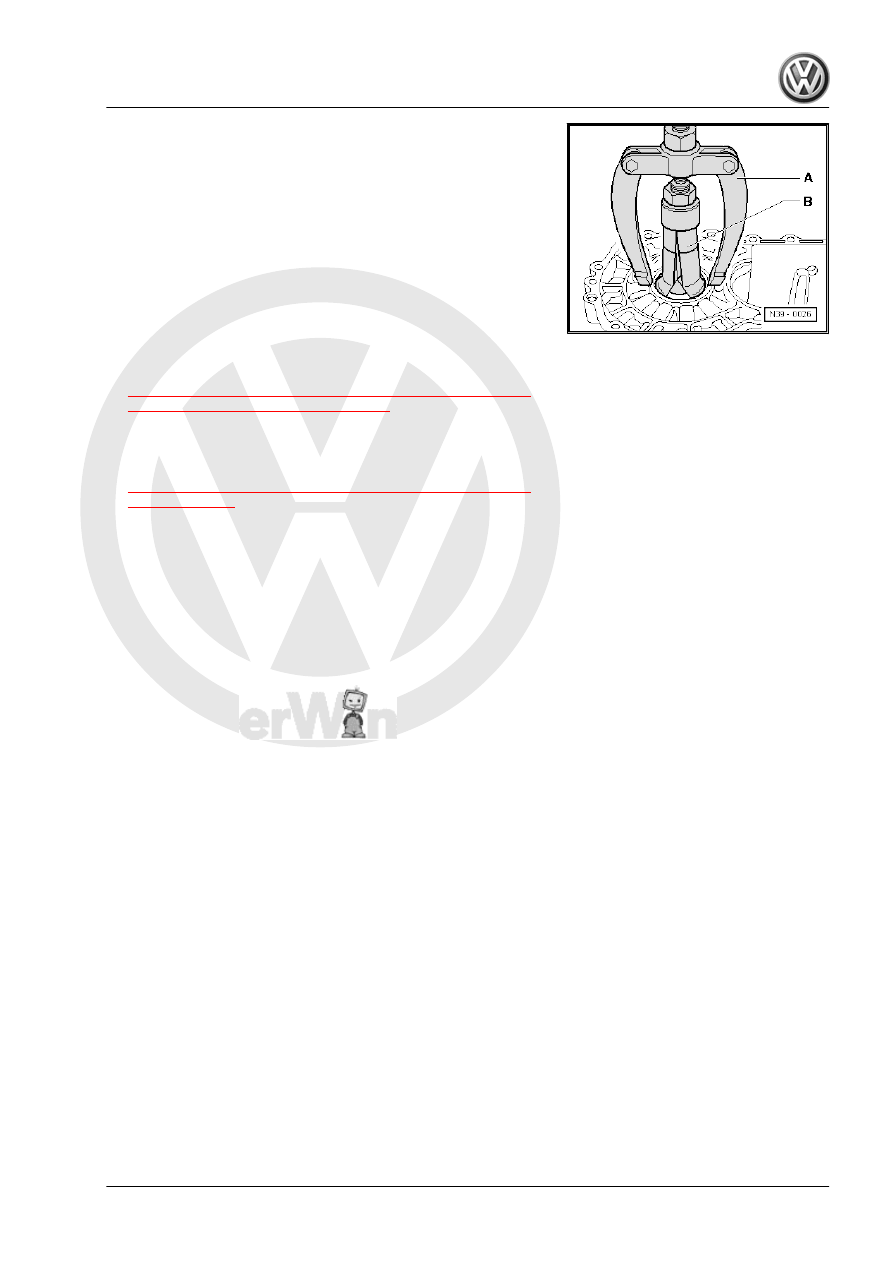

– Attach the Dial Gauge Holder - VW387- and set the dial gauge to “0” with 1 mm preload. – Move differential up and down, read off play on dial gauge and note. (example: 0.70 mm). Determining the Shim pre-load figure of 0.25 mm to the reading obtained. Bearing Clearance Measured Value Adjustment Shim Thickness According to the Table 0.70 mm 0.95 mm Shim Table Bearing Play Shim Measured value (mm) Thickness (mm) 0.303 to 0.449 0.450 to 0.499 0.500 to 0.549 0.650 0.700 0.750 0.550 to 0.599 0.600 to 0.649 0.650 to 0.699 0.800 0.850 0.900 0.700 to 0.749 0.750 to 0.799 0.800 to 0.849 0.950 1.000 1.050 0.850 to 0.899 0.900 to 0.949 0.950 to 0.999 1.100 1.150 1.200 1.000 to 1.049 1.050 to 1.099 1.100 to 1.149 1.250 1.300 1.350 1.150 to 1.199 1.400 Note Allocate the shims. Refer to the Parts Catalog. |
