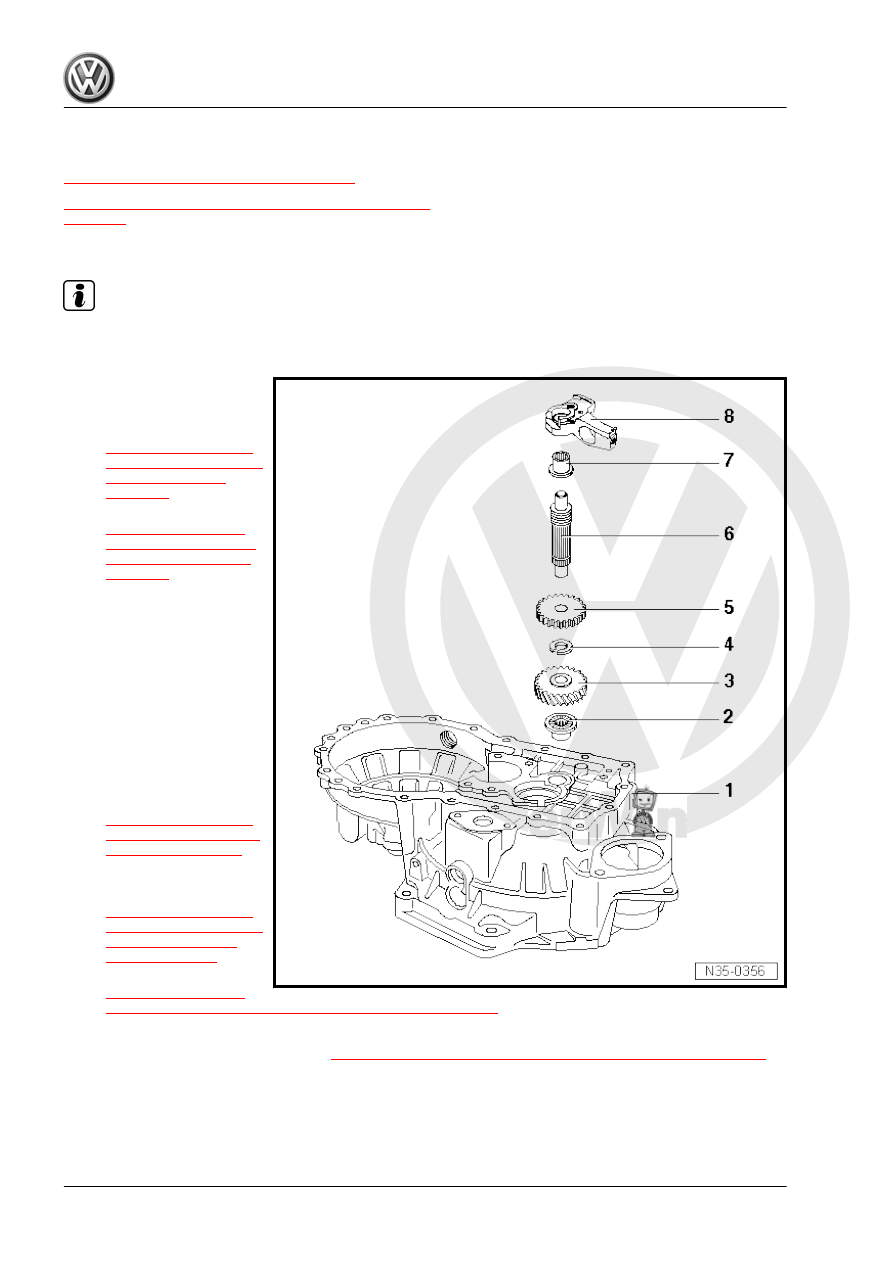

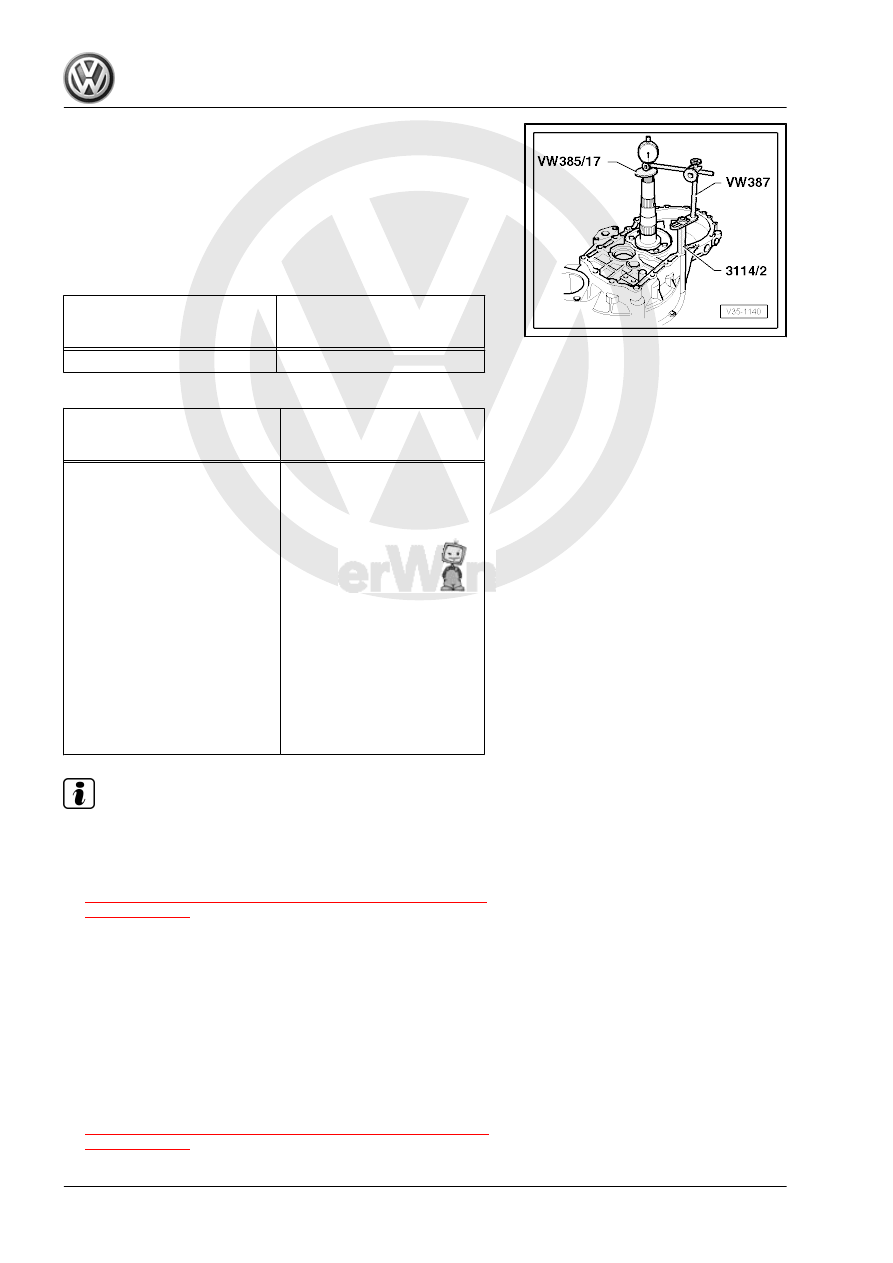

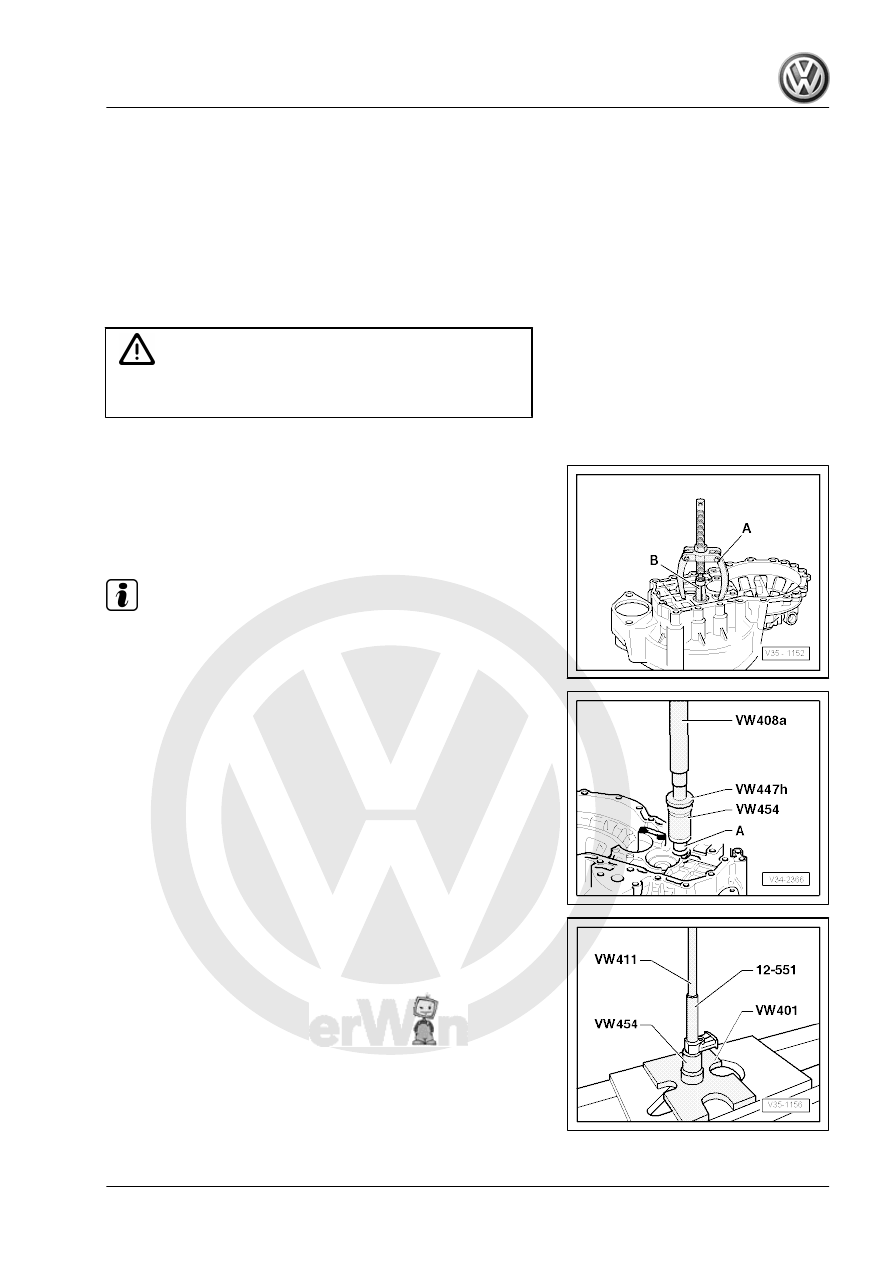

– Install dial gauge (3 mm measuring range) and set to “0” with 1 mm pre-load. – Move the input shaft up and down, check the play on the dial gauge and make a note of it. Determining the Shim shim (0.65 mm) is added to the measured value. Bearing Play = (Adjustment Shim 0.65 mm Plus the Measured Value) Adjustment Shim Thickness According to the Table 0.740 mm 0.900 mm Shim Table Bearing Play = (Adjustment Shim 0.65 mm Plus the Measured Value) Adjustment Shim Thickness (mm) 0.650 0.660 to 0.689 0.750 0.800 0.690 to 0.739 0.740 to 0.789 0.790 to 0.839 0.850 0.900 0.950 0.840 to 0.889 0.890 to 0.939 0.940 to 0.989 1.000 1.050 1.100 0.990 to 1.039 1.040 to 1.089 1.090 to 1.139 1.150 1.200 1.250 1.140 to 1.189 1.190 to 1.239 1.240 to 1.289 1.300 1.350 1.400 1.290 to 1.339 1.340 to 1.389 1.390 to 1.429 1.450 1.500 1.550 Note Allocate the shims. Refer to the Parts Catalog. – Remove the output shaft and then remove the small taper roll‐ er bearing outer race. Refer to ⇒ Fig. ““Remove the Small Outer Race/Tapered Roller Bear‐ – Install the shim with the correct thickness, thickest shim first. it must be checked for damage. If the measured shim thickness is larger than those listed in the Table, then install two shims that add up to the necessary thick‐ ness. ness required. termined shim (0.70 mm as in example). Refer to ⇒ Fig. ““Installing the Small Outer Race/Tapered Roller Bear‐ and install output shaft. |
