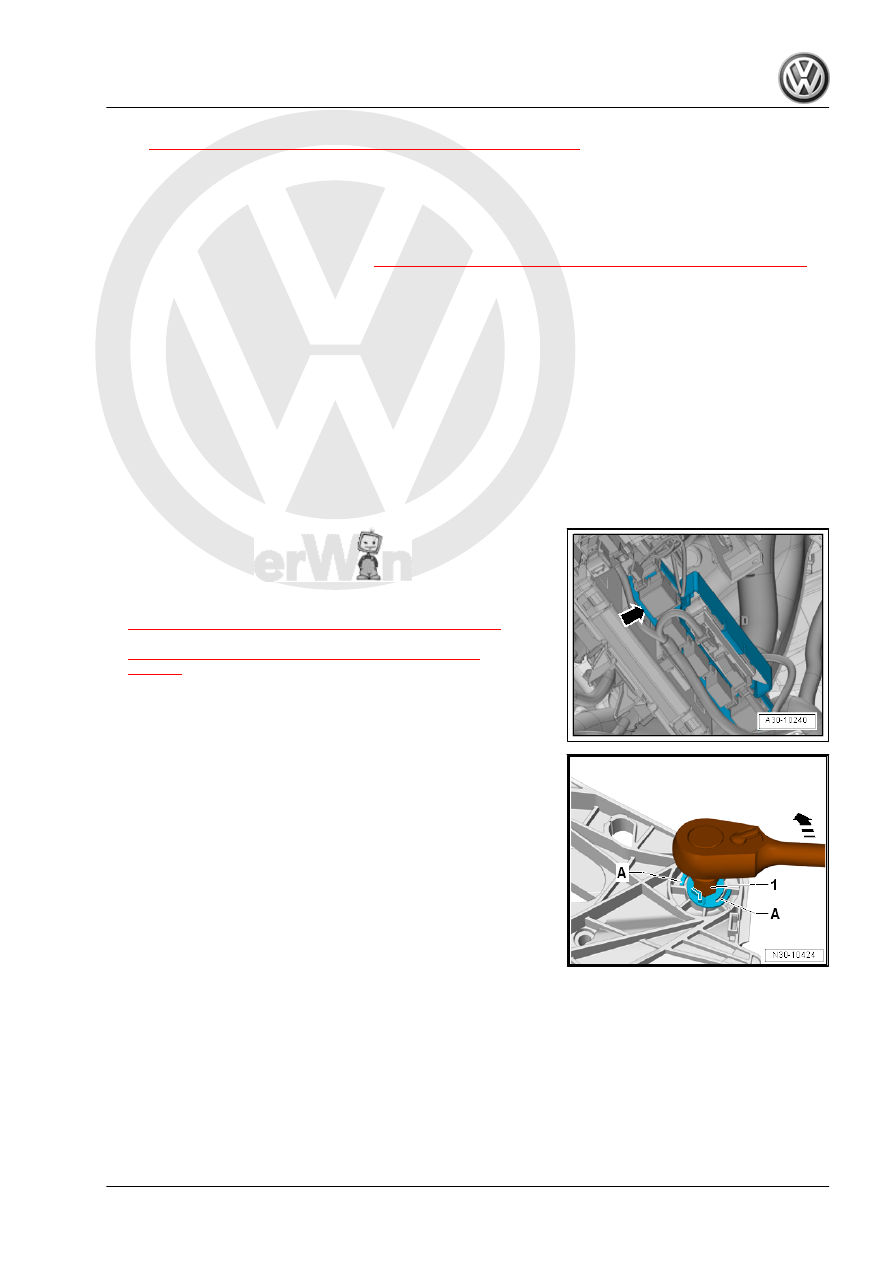

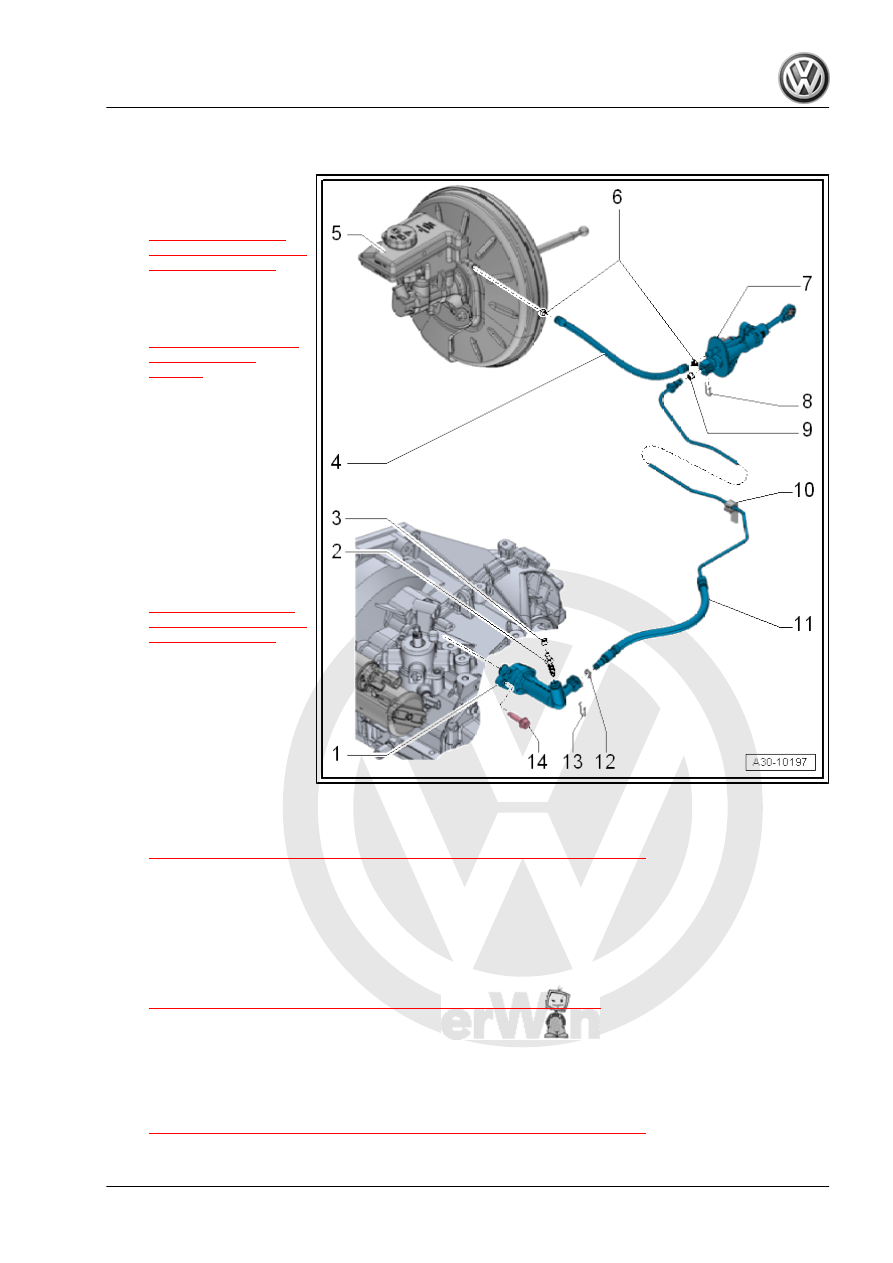

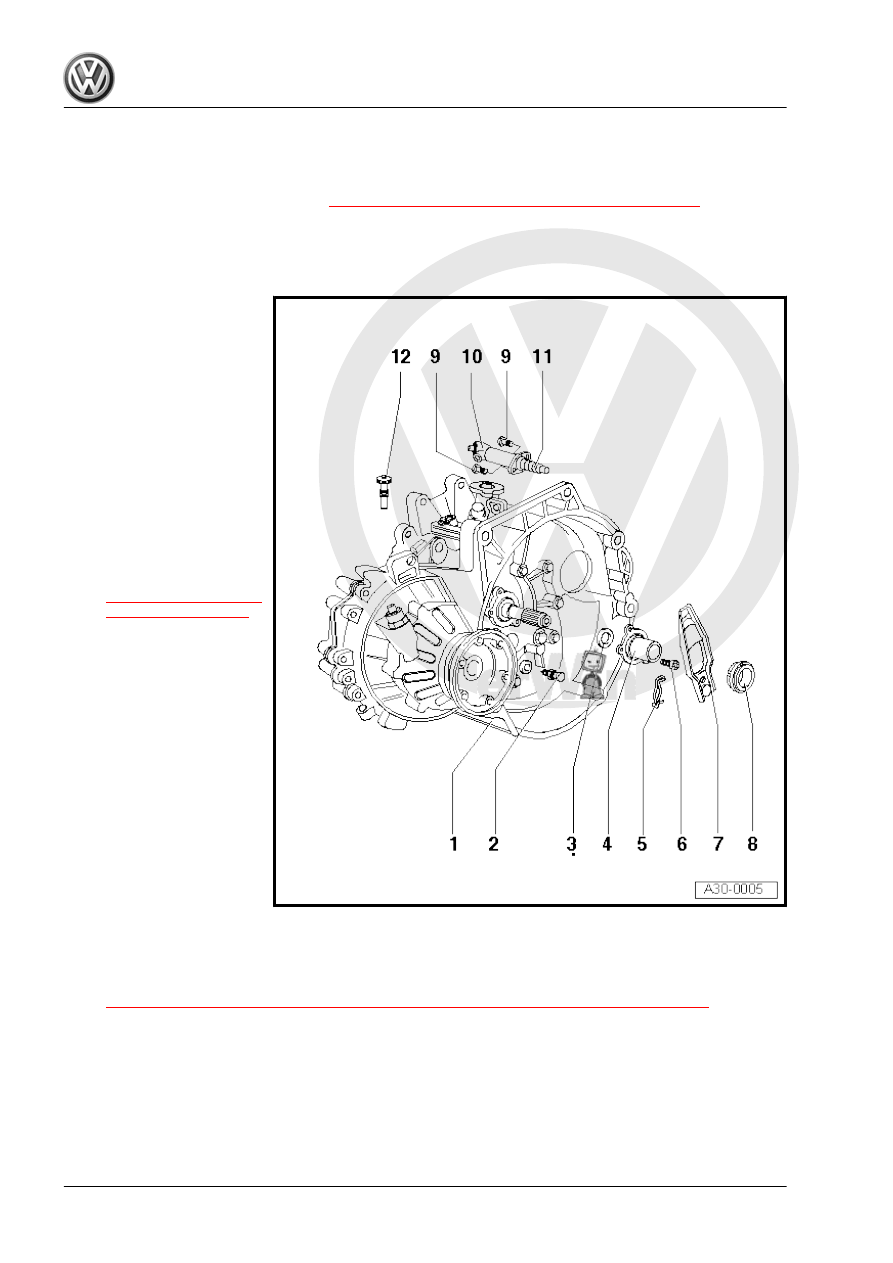

❑ Seals/O-rings suitable for the line connection material. Refer to ⇒ Fig. ““Sealing Rings/O-Rings for Hose/Line Assembly or Pipe”“ , page 16 ❑ Allocation. Refer to the Parts Catalog. 13 - Clamp ❑ The clamp must be removed in order to remove/install the hose/line assembly 14 - Clutch Slave Cylinder ❑ Removing and installing. Refer to ⇒ “1.11 Clutch Slave Cylinder, Removing and Installing”, page 30 . Disconnect and Connect Clutch Mechanism Wires assembly -1- from the connection -4-. Connecting Note ♦ An O-ring can also be installed instead of a seal -2-. Refer to ⇒ Fig. ““Sealing Rings/O-Rings for Hose/Line Assembly or ♦ Replace the damaged seal -2-. – Press in the hose/line assembly -1- at the connection -4- until the clip -3- engages audibly. – Pull on the hose/line assembly to make sure it is secure. Sealing Rings/O-Rings for Hose/Line Assembly or Pipe Item Line Connection Version 1 Line connection with a groove all the way around -arrow 1- 2 Line connection with a shoulder -arrow 2- 3 Line connection with a shoulder -arrow 2- and with a groove all the way around -arrow 3- • The seal / O-ring must be installed in the groove -arrow 1- and -arrow 3-. |
